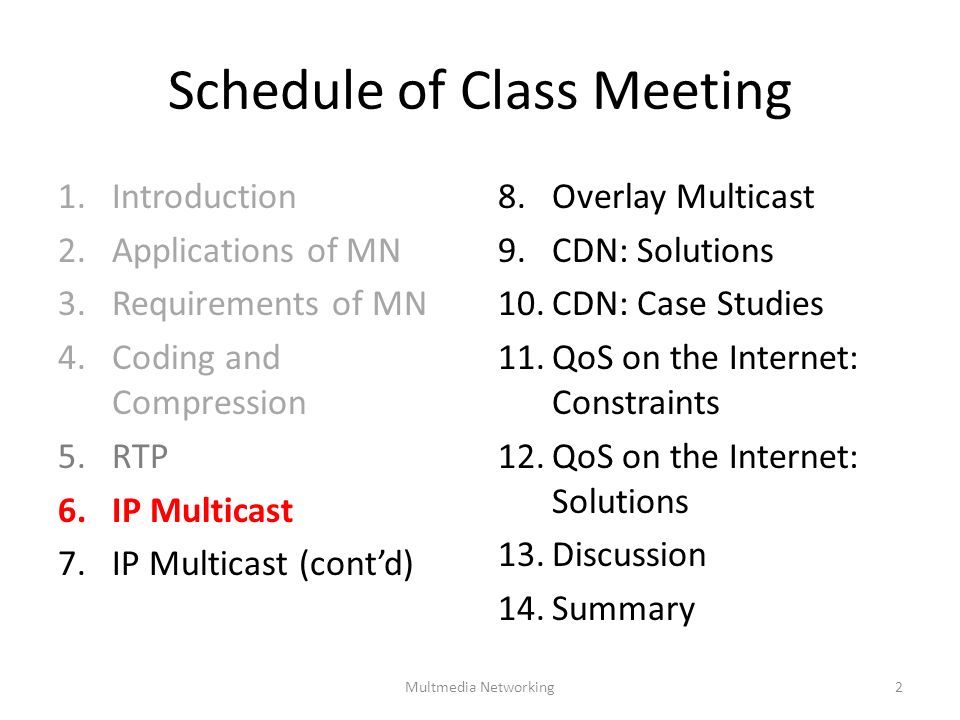

2. Schedule of Class Meeting 1.Introduction 2.Applications of MN 3.Requirements of MN 4.Coding and Compression 5.RTP 6.IP Multicast 7.IP Multicast (cont’d) 8.Overlay Multicast 9.CDN: Solutions 10.CDN: Case Studies 11.QoS on the Internet: Constraints 12.QoS on the Internet: Solutions 13.Discussion 14.Summary Multmedia Networking2

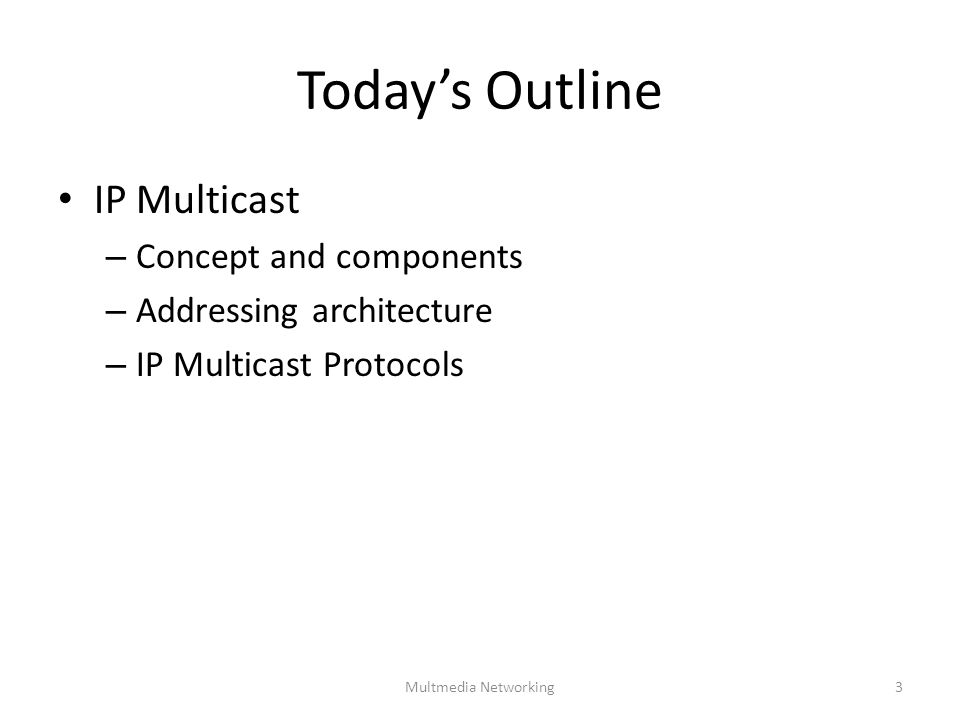

3. Today’s Outline IP Multicast – Concept and components – Addressing architecture – IP Multicast Protocols Multmedia Networking3

4. IP Multicast

5. Multicast Many receivers – Receiving the same content Applications – Video conferencing – Online gaming – IP television (IPTV) – Financial data feeds Multmedia Networking5

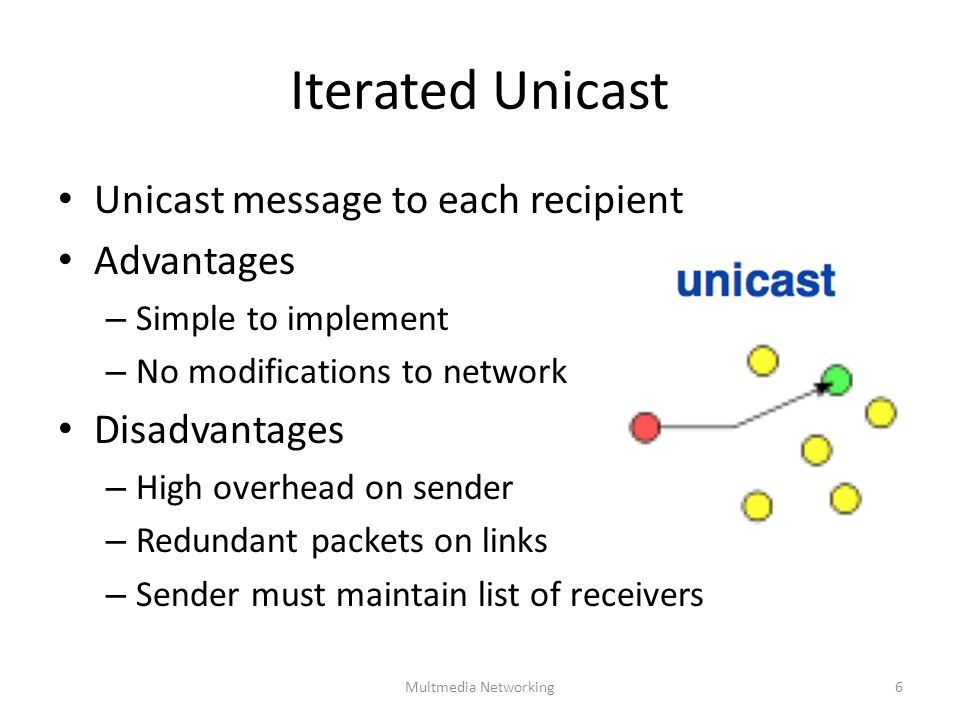

6. Iterated Unicast Unicast message to each recipient Advantages – Simple to implement – No modifications to network Disadvantages – High overhead on sender – Redundant packets on links – Sender must maintain list of receivers Multmedia Networking6

7. IP Multicast Embed receiver-driven tree in network layer – Sender sends a single packet to the group – Receivers “join” and “leave” the tree Advantages – Low overhead on the sender – Effective use of network resources Avoids redundant network traffic Disadvantages – Control-plane protocols for multicast groups – Overhead of duplicating packets in the routers Multmedia Networking7

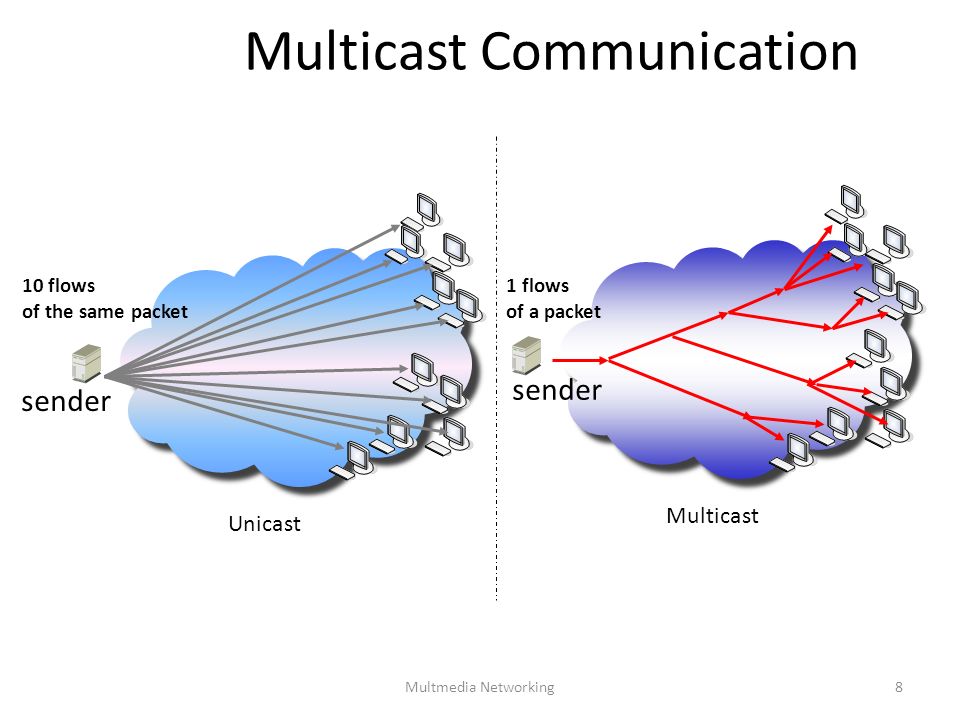

8. Multicast Communication 1 flows of a packet 10 flows of the same packet Unicast Multicast sender Multmedia Networking8

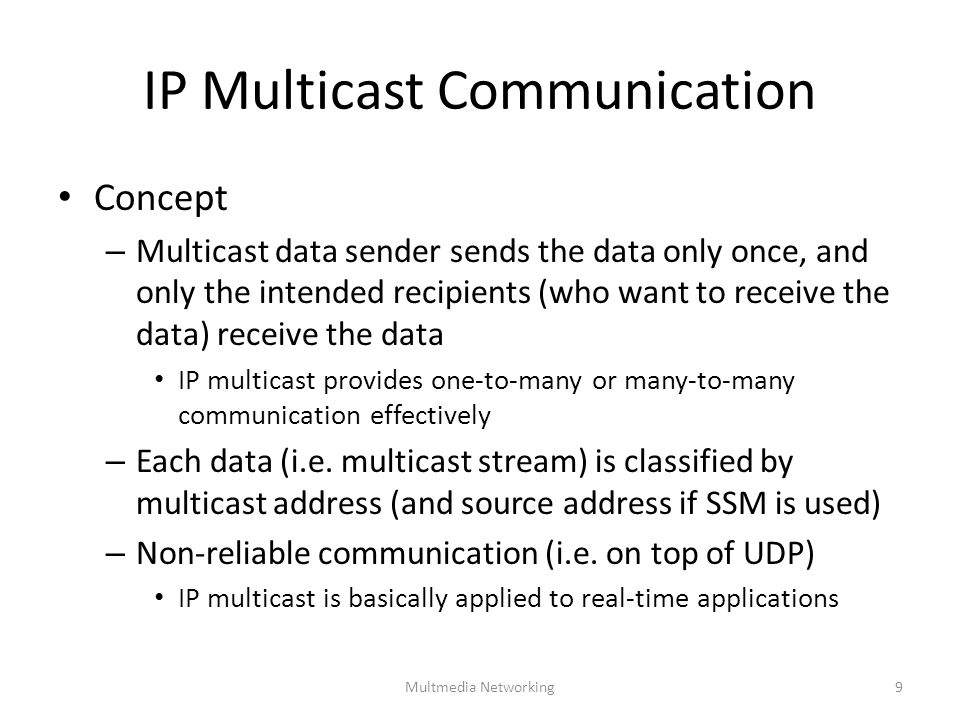

9. IP Multicast Communication Concept – Multicast data sender sends the data only once, and only the intended recipients (who want to receive the data) receive the data IP multicast provides one-to-many or many-to-many communication effectively – Each data (i.e. multicast stream) is classified by multicast address (and source address if SSM is used) – Non-reliable communication (i.e. on top of UDP) IP multicast is basically applied to real-time applications Multmedia Networking9

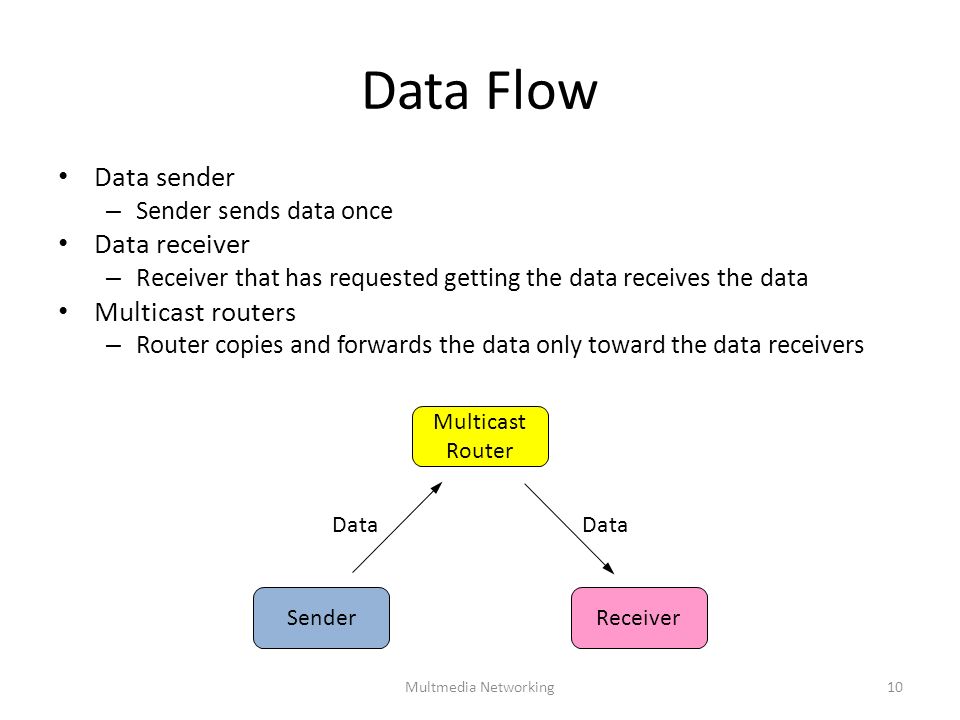

10. Data Flow Data sender – Sender sends data once Data receiver – Receiver that has requested getting the data receives the data Multicast routers – Router copies and forwards the data only toward the data receivers Multicast Router SenderReceiver Data Multmedia Networking10

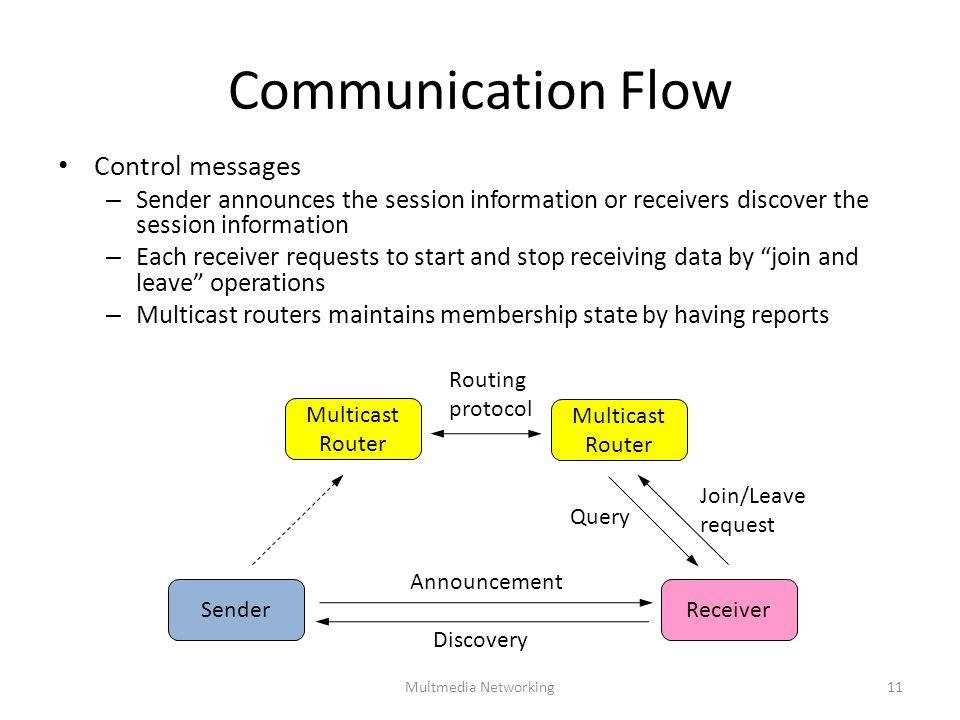

11. Communication Flow Control messages – Sender announces the session information or receivers discover the session information – Each receiver requests to start and stop receiving data by “join and leave” operations – Multicast routers maintains membership state by having reports Multicast Router SenderReceiver Join/Leave request Announcement Discovery Query Multicast Router Routing protocol Multmedia Networking11

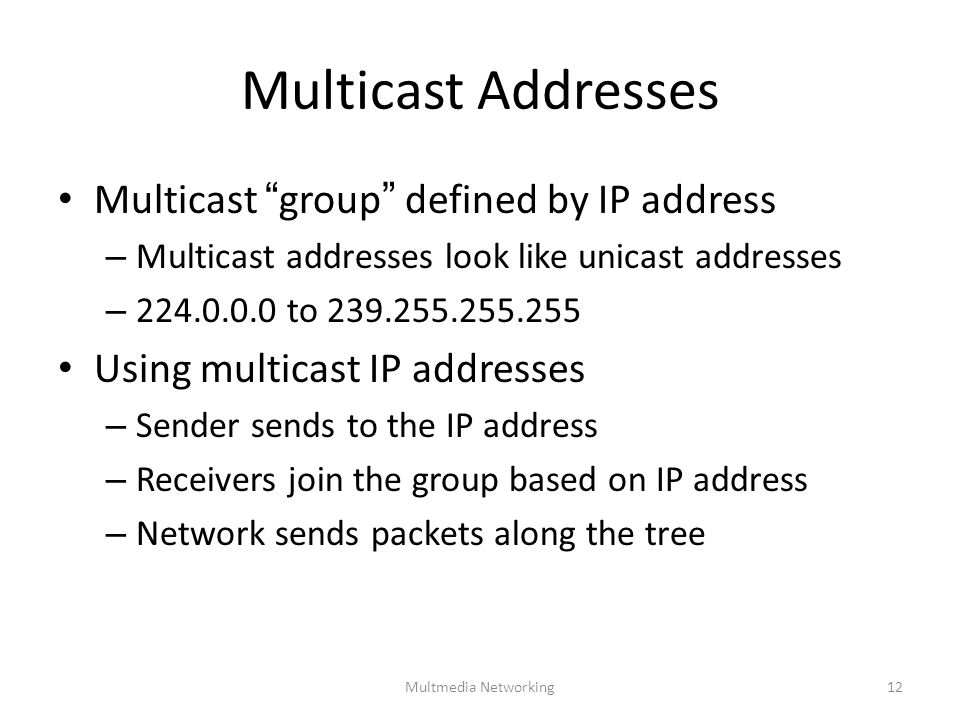

12. Multicast Addresses Multicast “group” defined by IP address – Multicast addresses look like unicast addresses – 224.0.0.0 to 239.255.255.255 Using multicast IP addresses – Sender sends to the IP address – Receivers join the group based on IP address – Network sends packets along the tree Multmedia Networking12

13. Example Multicast Protocol Receiver sends a “join” messages to the sender – And grafts to the tree at the nearest point A B G D E c F Multmedia Networking13

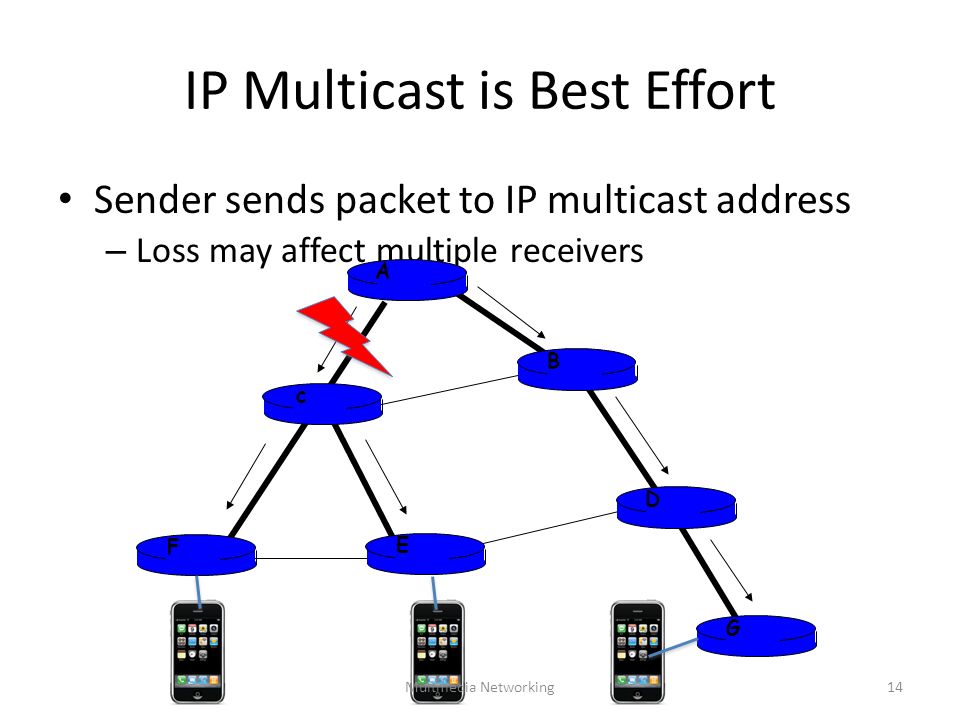

14. IP Multicast is Best Effort Sender sends packet to IP multicast address – Loss may affect multiple receivers A B G D E c F Multmedia Networking14

15. Terminologies Group address (or multicast address) – Used for destination address Join and leave – Data reception state requested by receiver hosts Join and prune – Data reception state requested by routers (*,G) and (S,G) – Notation of source address and group address in join-and-leave (or join-and-prune) state Multmedia Networking15

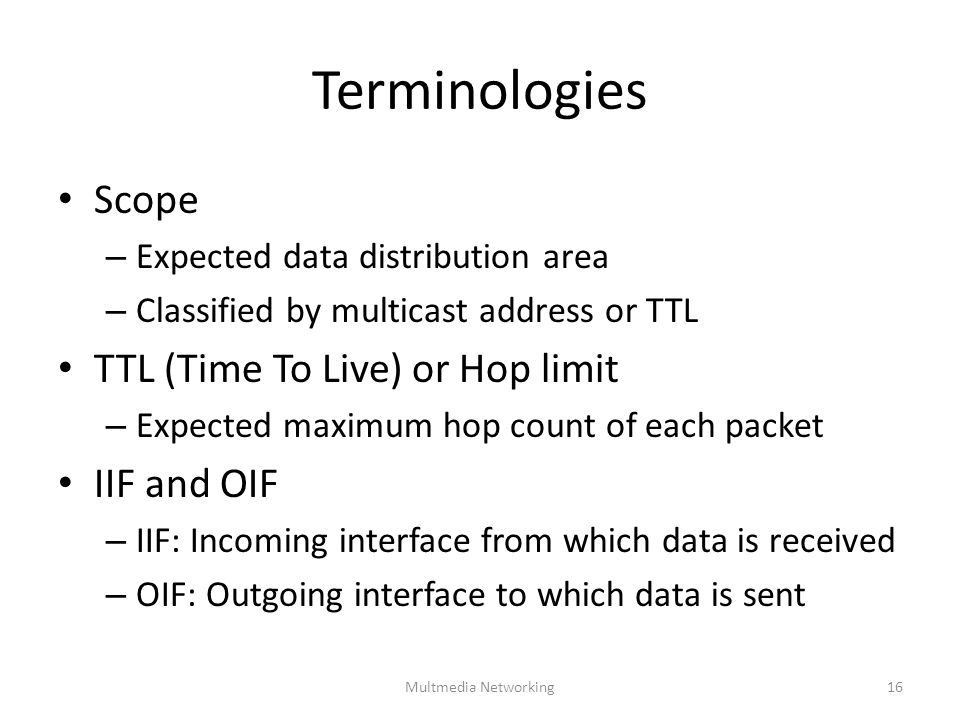

16. Terminologies Scope – Expected data distribution area – Classified by multicast address or TTL TTL (Time To Live) or Hop limit – Expected maximum hop count of each packet IIF and OIF – IIF: Incoming interface from which data is received – OIF: Outgoing interface to which data is sent Multmedia Networking16

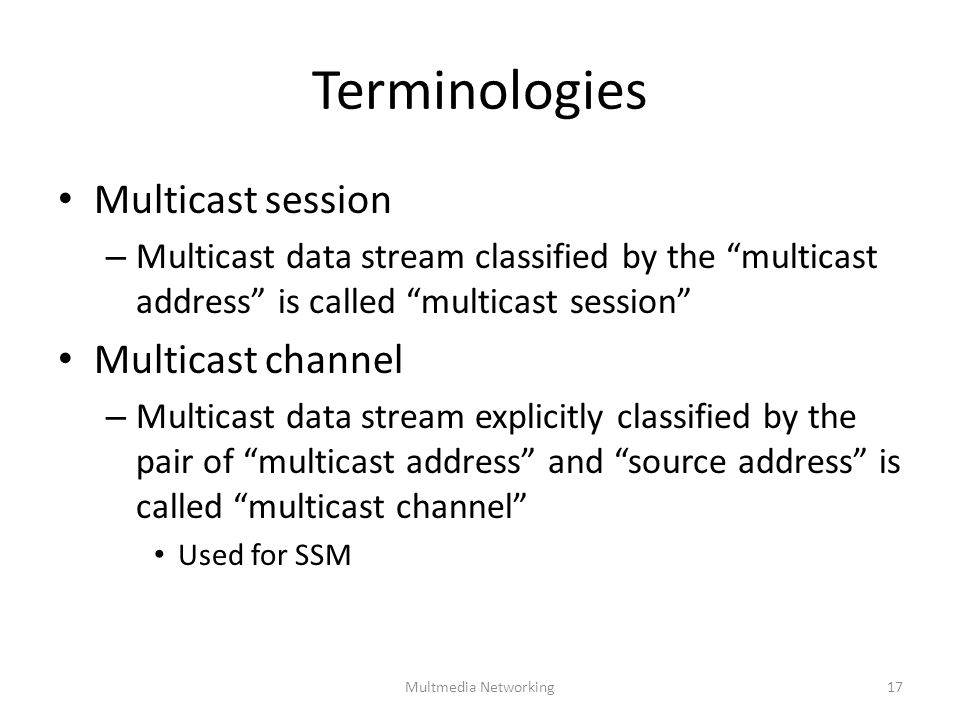

17. Terminologies Multicast session – Multicast data stream classified by the “multicast address” is called “multicast session” Multicast channel – Multicast data stream explicitly classified by the pair of “multicast address” and “source address” is called “multicast channel” Used for SSM Multmedia Networking17

18. Multicast Protocols Host-to-Router Protocols – IGMPv1, IGMPv2, IGMPv3, MLDv1, MLDv2 Router-to-Router Protocols – DVMRP, MOSPF, CBT, PIM-DM, PIM-SM, PIM-SSM Multicast Router Sender host Receiver host Join/Leave request Query Multicast Router Multmedia Networking18

19. Multicast Address Assignment

20. IP Multicast Simple to use in applications – Multicast “group” defined by IP multicast address IP multicast addresses look similar to IP unicast addrs 224.0.0.0 to 239.255.255.255 (RPC 3171) – 265 M multicast groups at most – Best effort delivery only Sender issues single datagram to IP multicast address Routers delivery packets to all subnetworks that have a receiver “belonging” to the group Receiver-driven membership – Receivers join groups by informing upstream routers – Internet Group Management Protocol (v3: RFC 3376) Multmedia Networking20

21. IP Multicast Address IP multicast address – IPv4: 224.0.0.0 – 239.255.255.255 – IPv6: FFx0::1 – MUST be specified as a destination address – MUST NOT be specified as a source address Dynamic address assignment – Regular applications select their multicast addresses dynamically Some multicast addresses are assigned by IANA for special uses Multmedia Networking21

22. IPv4 Multicast Addresses IPv4 multicast address – 224.0.0.0 (0xe0000000) - 239.255.255.255 (0xefffffff) +----+----+---------+------------+ | 4 | 28 bits | +----+----+---------+------------+ |1110| group address | +----+----+---------+------------+ – Administrative scope [RFC2365] – Local address (224/24) – Administrative scope (239/8) – Organization-Local (239.192/14) – GLOP address (233/8) [RFC3180] – EGLOP (233.252.0.0 - 233.255.255.255) [RFC3138] – SSM address (232/8) [RFC] Multmedia Networking22

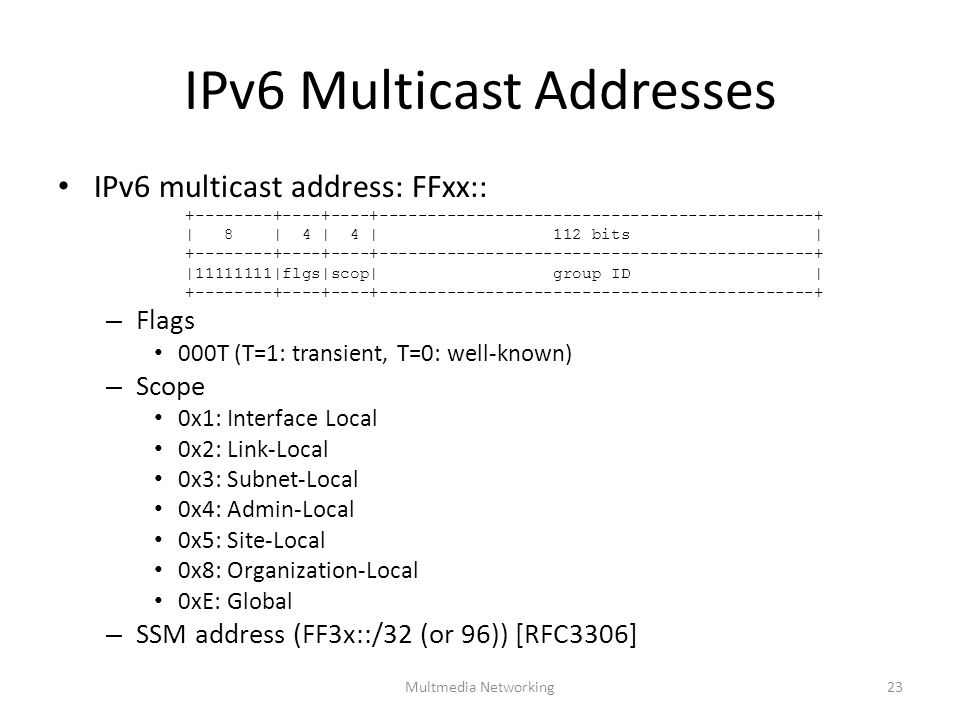

23. IPv6 Multicast Addresses IPv6 multicast address: FFxx:: +--------+----+----+---------------------------------------------+ | 8 | 4 | 4 | 112 bits | +--------+----+----+---------------------------------------------+ |11111111|flgs|scop| group ID | +--------+----+----+---------------------------------------------+ – Flags 000T (T=1: transient, T=0: well-known) – Scope 0x1: Interface Local 0x2: Link-Local 0x3: Subnet-Local 0x4: Admin-Local 0x5: Site-Local 0x8: Organization-Local 0xE: Global – SSM address (FF3x::/32 (or 96)) [RFC3306] Multmedia Networking23

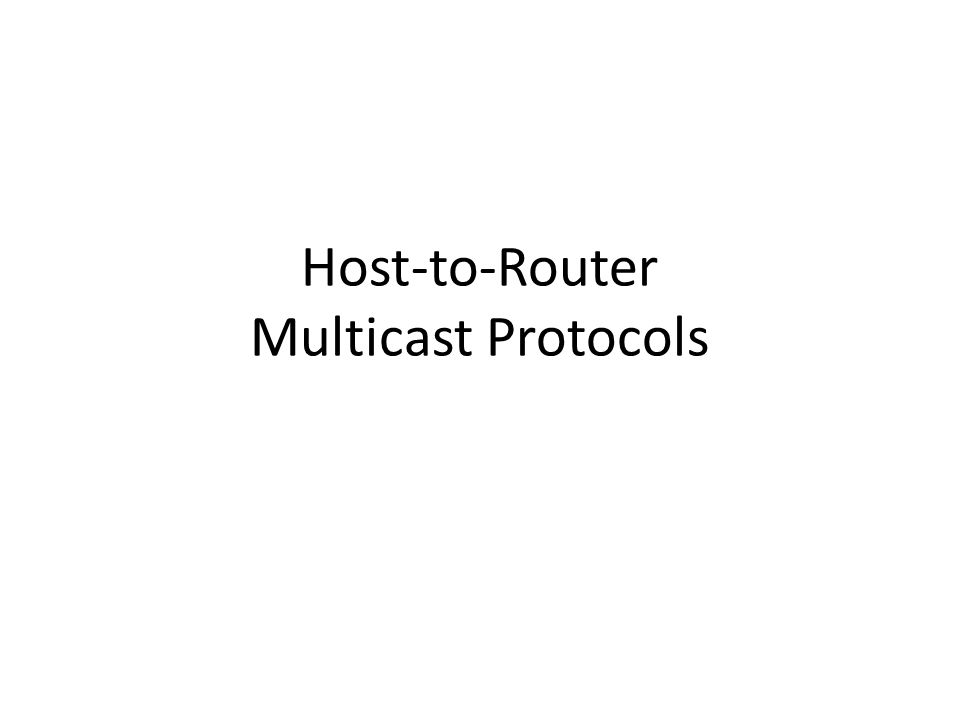

24. Host-to-Router Multicast Protocols

25. IGMP v1 Two types of IGMP msgs (both have IP TTL of 1) – Host membership query: Routers query local networks to discover which groups have members – Host membership report: Hosts report each group (e.g., multicast addr) to which belong, by broadcast on net interface from which query was received Routers maintain group membership – Host senders an IGMP “report” to join a group – Multicast routers periodically issue host membership query to determine liveness of group members – Note: No explicit “leave” message from clients Multmedia Networking25

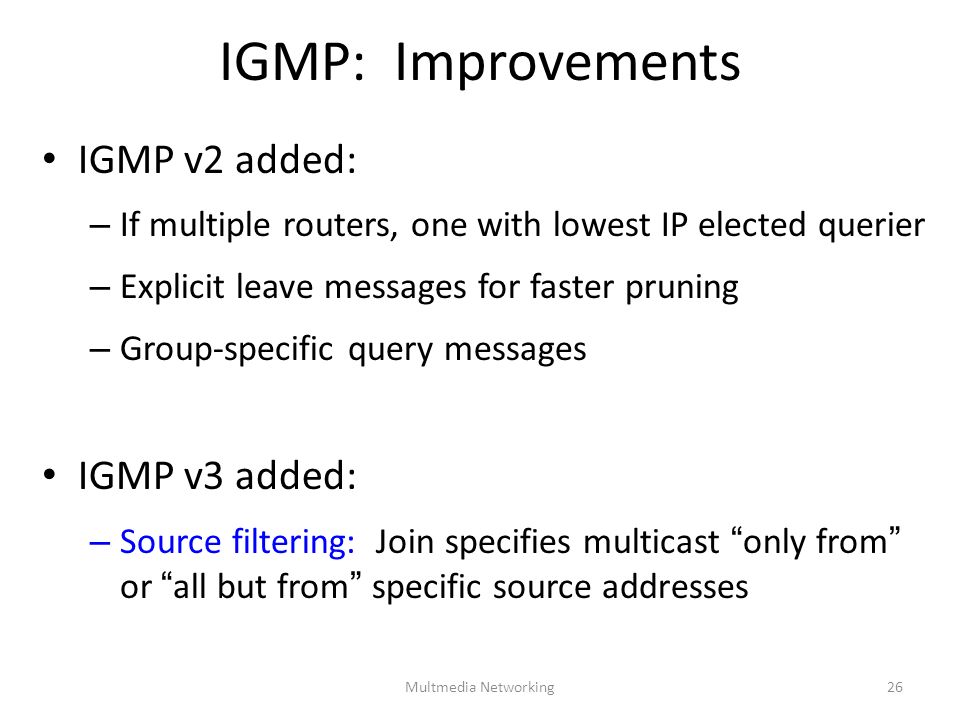

26. IGMP: Improvements IGMP v2 added: – If multiple routers, one with lowest IP elected querier – Explicit leave messages for faster pruning – Group-specific query messages IGMP v3 added: – Source filtering: Join specifies multicast “only from” or “all but from” specific source addresses Multmedia Networking26

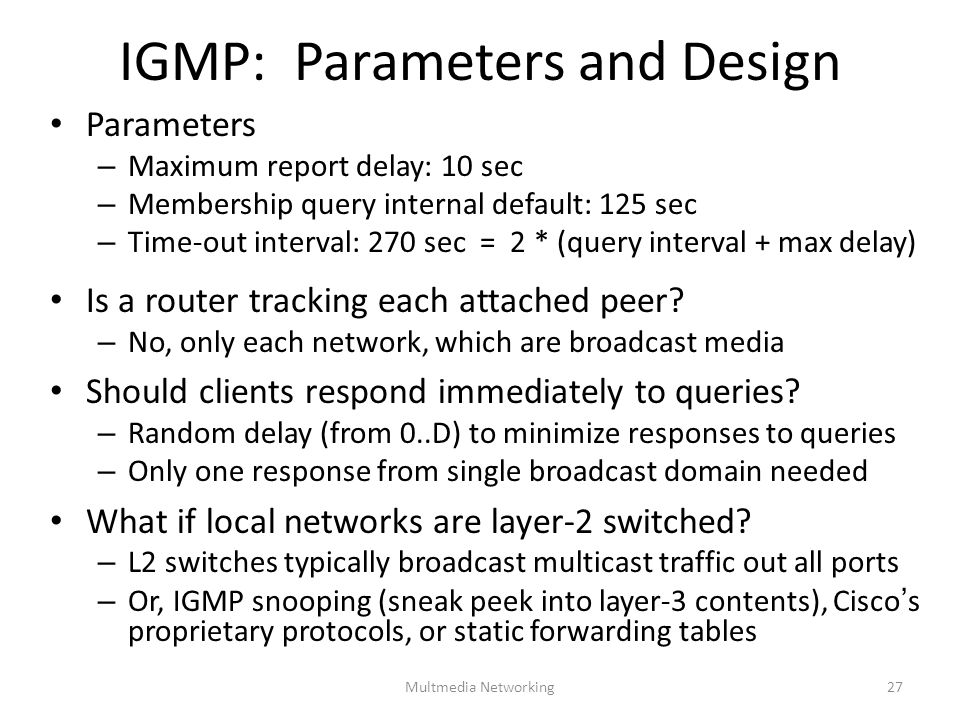

27. IGMP: Parameters and Design Parameters – Maximum report delay: 10 sec – Membership query internal default: 125 sec – Time-out interval: 270 sec = 2 * (query interval + max delay) Is a router tracking each attached peer? – No, only each network, which are broadcast media Should clients respond immediately to queries? – Random delay (from 0..D) to minimize responses to queries – Only one response from single broadcast domain needed What if local networks are layer-2 switched? – L2 switches typically broadcast multicast traffic out all ports – Or, IGMP snooping (sneak peek into layer-3 contents), Cisco’s proprietary protocols, or static forwarding tables Multmedia Networking27

28. Router-to-Router Multicast Protocols

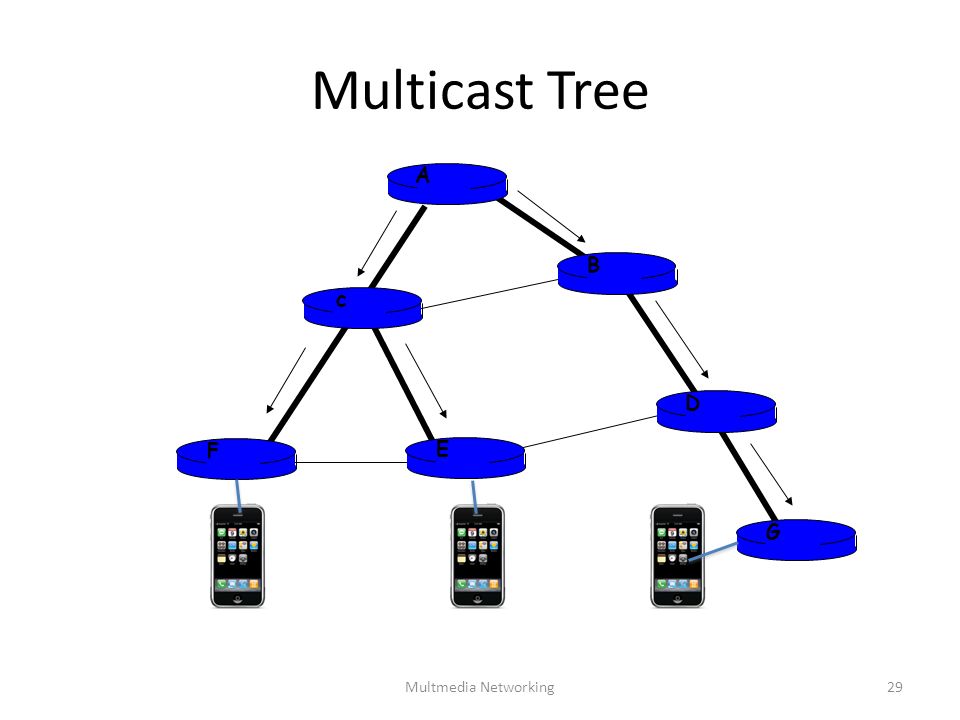

29. Multicast Tree A B G D E c F Multmedia Networking29

30. Multicast routing: problem statement goal: find a tree (or trees) connecting routers having local mcast group members tree: not all paths between routers used shared-tree: same tree used by all group members shared tree source-based trees group member not group member router with a group member router without group member legend  source-based: different tree from each sender to rcvrs Multmedia Networking30

31. Approaches for building mcast trees approaches: source-based tree: one tree per source – shortest path trees – reverse path forwarding group-shared tree: group uses one tree – minimal spanning (Steiner) – center-based trees …we first look at basic approaches, then specific protocols adopting these approaches Multmedia Networking31

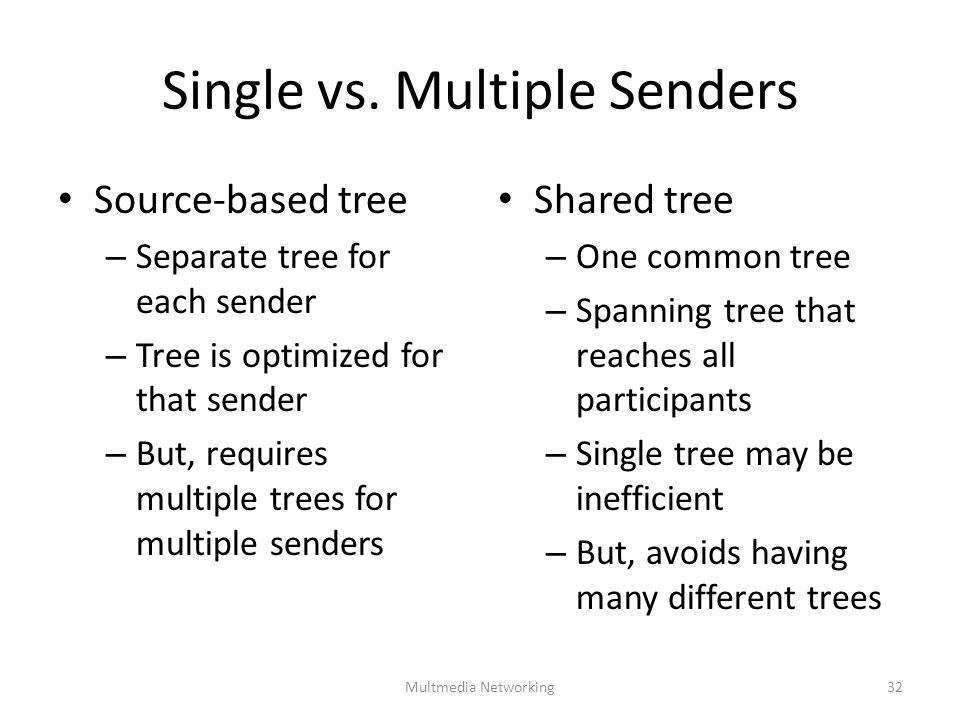

32. Single vs. Multiple Senders Source-based tree – Separate tree for each sender – Tree is optimized for that sender – But, requires multiple trees for multiple senders Shared tree – One common tree – Spanning tree that reaches all participants – Single tree may be inefficient – But, avoids having many different trees Multmedia Networking32

33. Shortest path tree mcast forwarding tree: tree of shortest path routes from source to all receivers – Dijkstra’s algorithm i router with attached group member router with no attached group member link used for forwarding, i indicates order link added by algorithm LEGEND R1 R2 R3 R4 R5 R6 R7 2 1 6 3 4 5 s: source Multmedia Networking33

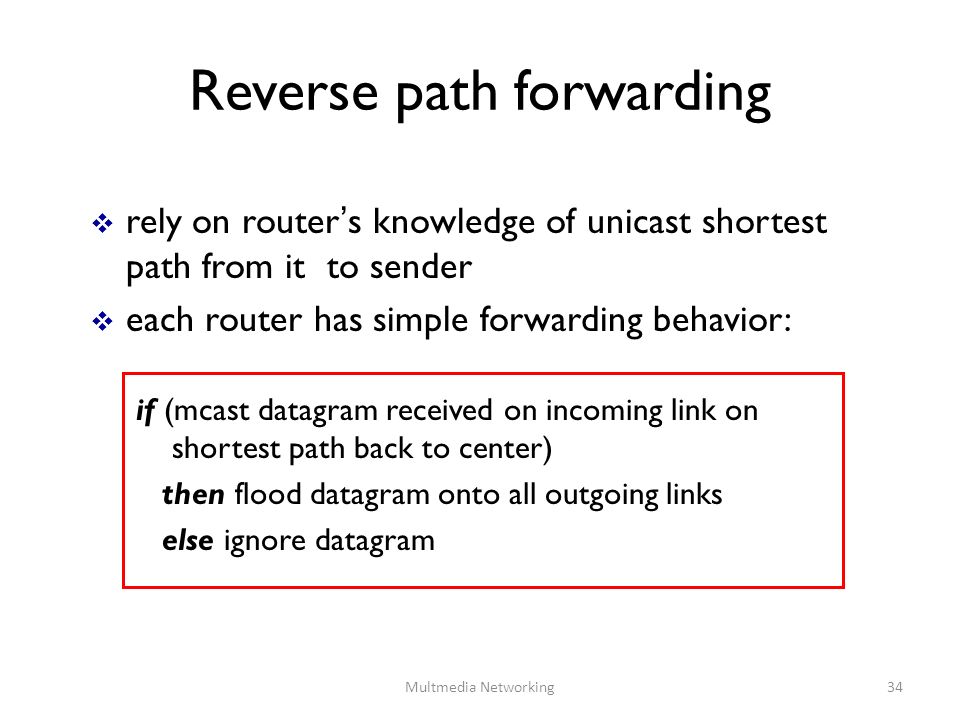

34. Reverse path forwarding if (mcast datagram received on incoming link on shortest path back to center) then flood datagram onto all outgoing links else ignore datagram  rely on router’s knowledge of unicast shortest path from it to sender  each router has simple forwarding behavior: Multmedia Networking34

35. Reverse path forwarding: example  result is a source-specific reverse SPT  may be a bad choice with asymmetric links router with attached group member router with no attached group member datagram will be forwarded LEGEND R1 R2 R3 R4 R5 R6 R7 s: source datagram will not be forwarded Multmedia Networking35

36. Reverse path forwarding: pruning forwarding tree contains subtrees with no mcast group members – no need to forward datagrams down subtree – “prune” msgs sent upstream by router with no downstream group members router with attached group member router with no attached group member prune message LEGEND links with multicast forwarding P R1 R2 R3 R4 R5 R6 R7 s: source P P Multmedia Networking36

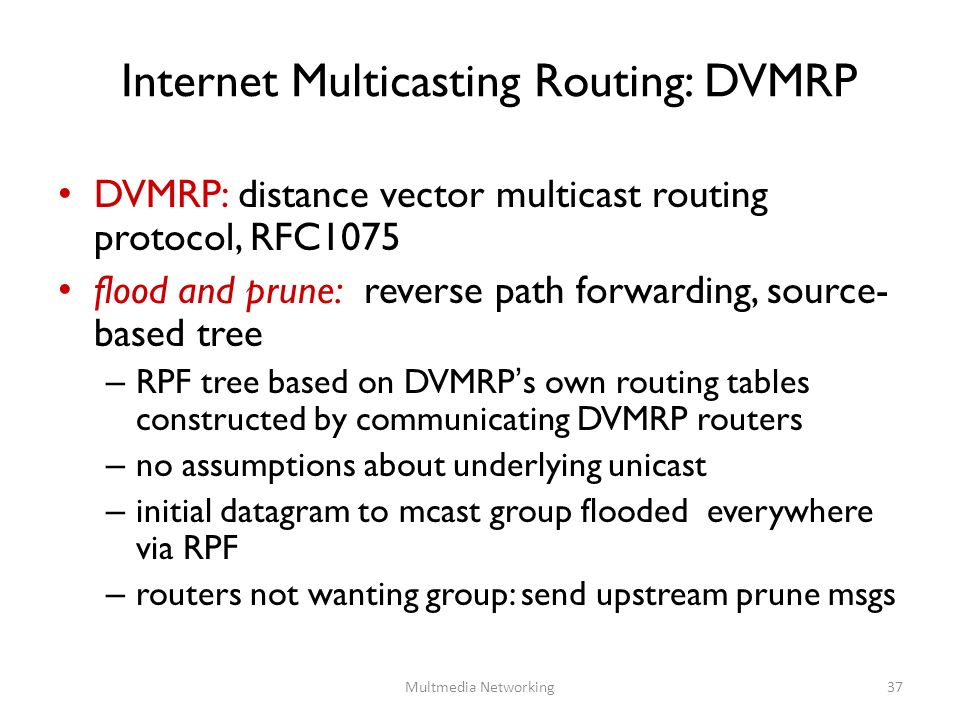

37. Internet Multicasting Routing: DVMRP DVMRP: distance vector multicast routing protocol, RFC1075 flood and prune: reverse path forwarding, source- based tree – RPF tree based on DVMRP’s own routing tables constructed by communicating DVMRP routers – no assumptions about underlying unicast – initial datagram to mcast group flooded everywhere via RPF – routers not wanting group: send upstream prune msgs Multmedia Networking37

38. DVMRP: continued… soft state: DVMRP router periodically (1 min.) “forgets” branches are pruned: – mcast data again flows down unpruned branch – downstream router: reprune or else continue to receive data routers can quickly regraft to tree – following IGMP join at leaf odds and ends – commonly implemented in commercial router Multmedia Networking38

39. Tunneling Q: how to connect “islands” of multicast routers in a “sea” of unicast routers?  mcast datagram encapsulated inside “normal” (non- multicast-addressed) datagram  normal IP datagram sent thru “tunnel” via regular IP unicast to receiving mcast router (recall IPv6 inside IPv4 tunneling)  receiving mcast router unencapsulates to get mcast datagram physical topology logical topology Multmedia Networking39

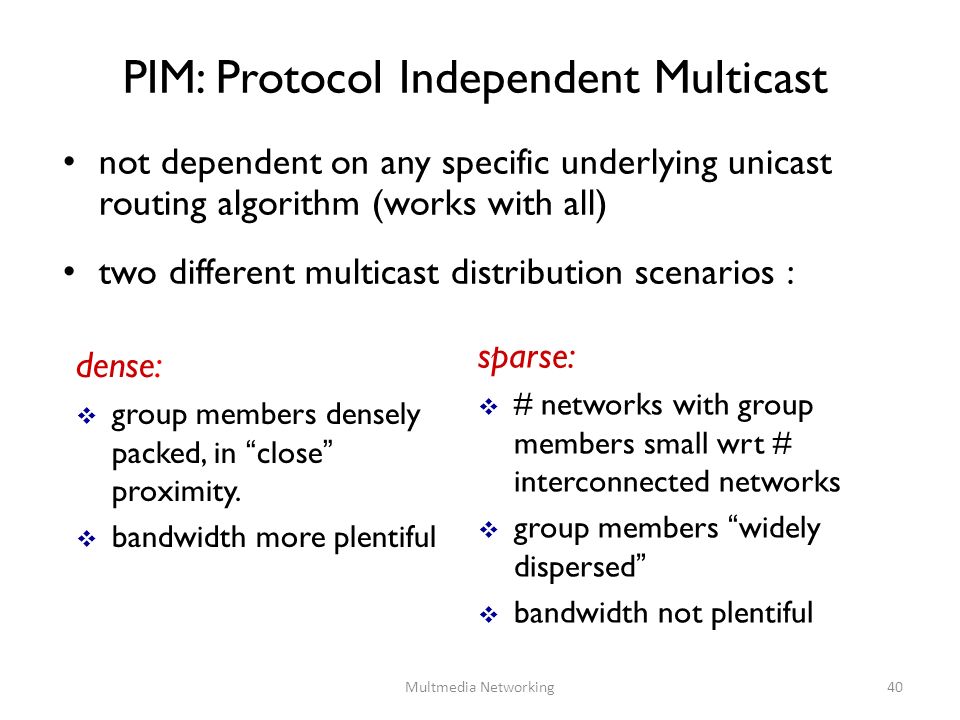

40. PIM: Protocol Independent Multicast not dependent on any specific underlying unicast routing algorithm (works with all) two different multicast distribution scenarios : dense:  group members densely packed, in “close” proximity.  bandwidth more plentiful sparse:  # networks with group members small wrt # interconnected networks  group members “widely dispersed”  bandwidth not plentiful Multmedia Networking40

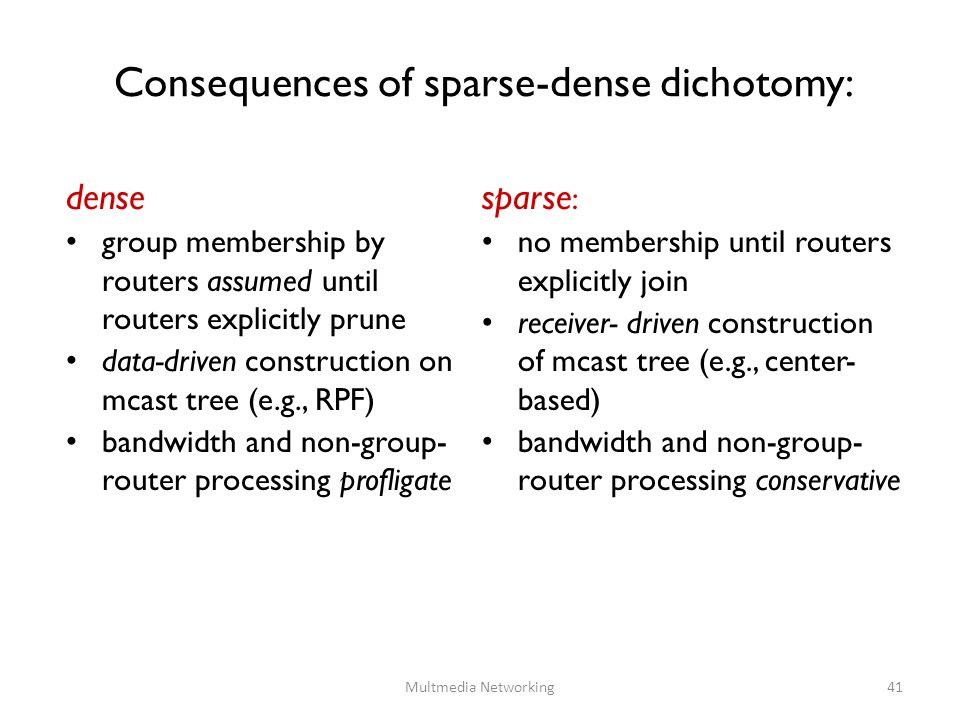

41. Consequences of sparse-dense dichotomy: dense group membership by routers assumed until routers explicitly prune data-driven construction on mcast tree (e.g., RPF) bandwidth and non-group- router processing profligate sparse : no membership until routers explicitly join receiver- driven construction of mcast tree (e.g., center- based) bandwidth and non-group- router processing conservative Multmedia Networking41

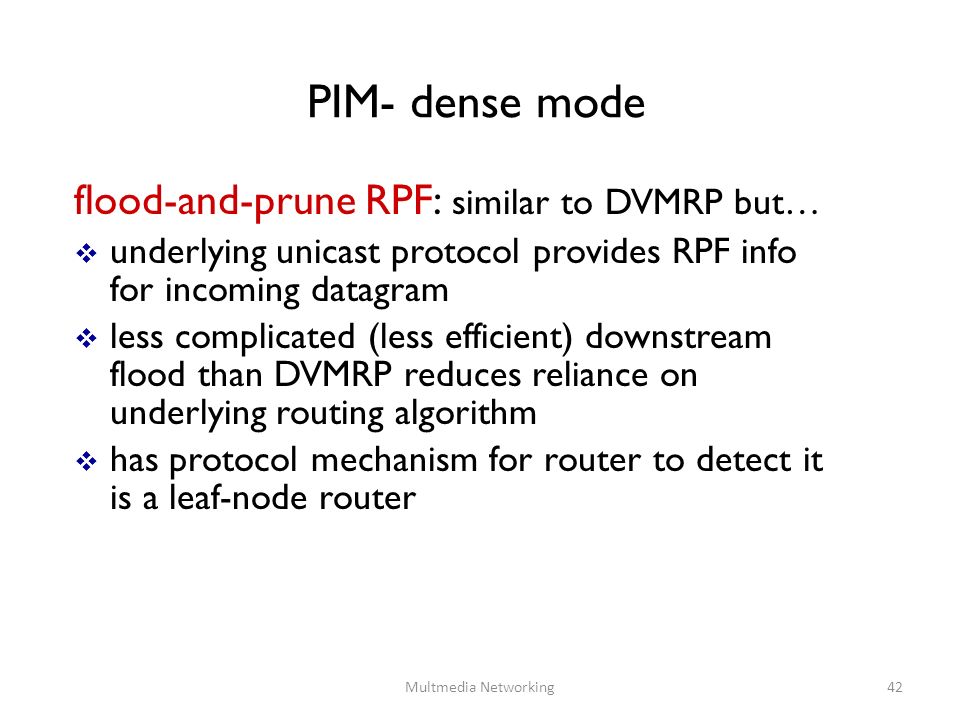

42. PIM- dense mode flood-and-prune RPF: similar to DVMRP but…  underlying unicast protocol provides RPF info for incoming datagram  less complicated (less efficient) downstream flood than DVMRP reduces reliance on underlying routing algorithm  has protocol mechanism for router to detect it is a leaf-node router Multmedia Networking42

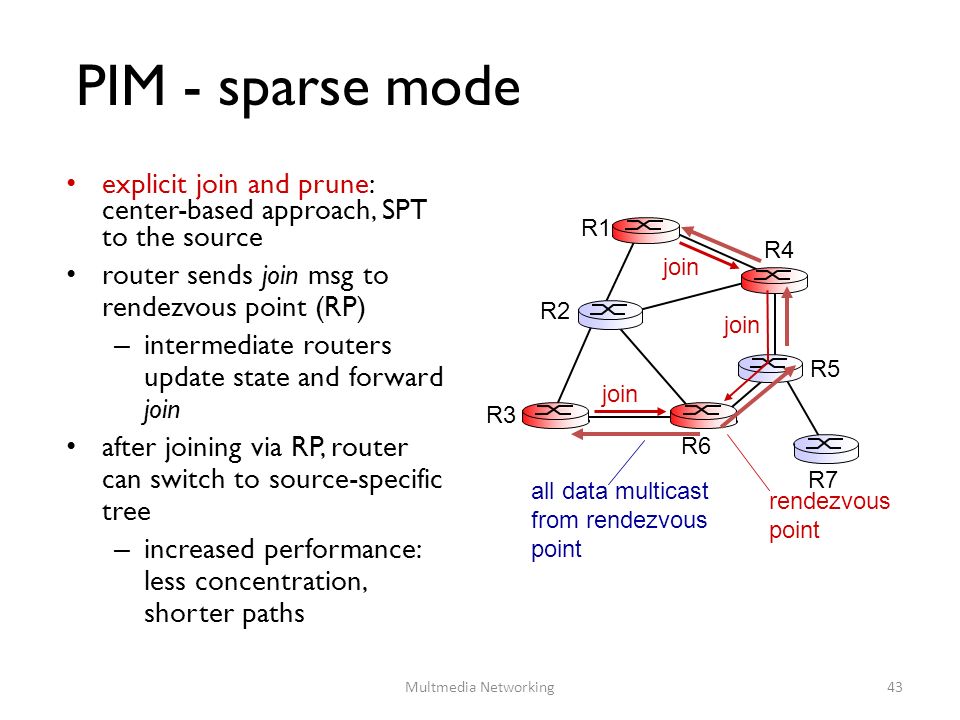

43. PIM - sparse mode explicit join and prune: center-based approach, SPT to the source router sends join msg to rendezvous point (RP) – intermediate routers update state and forward join after joining via RP, router can switch to source-specific tree – increased performance: less concentration, shorter paths all data multicast from rendezvous point rendezvous point join R1 R2 R3 R4 R5 R6 R7 Multmedia Networking43

44. sender(s): unicast data to RP, which distributes down RP-rooted tree RP can extend mcast tree upstream to source RP can send stop msg if no attached receivers – “no one is listening!” all data multicast from rendezvous point rendezvous point join R1 R2 R3 R4 R5 R6 R7 PIM - sparse mode Multmedia Networking44

45. Conclusion of Today’s Lecture IP Multicast runs on top of UDP under best-effort IP network – suitable for real-time applications IP Multicast is efficient-use of network resources – suitable for one-many or many-many communication IP Multicast requires – specific address assignment – host-to-router protocols – router-to-router protocols Multmedia Networking45
