1. CHEMICAL INJURIES OF THE EYE Ayesha S Abdullah 07.04.2015

2. Learning outcomes By the end of this lecture the students would be able to  Describe the epidemiology of chemical ocular injuries  Correlate the pathophysiology of chemical injury with acids and alkali to the clinical presentation & complications  explain the first aid measure and later management of a case with chemical injury.  Identify the complications of chemical injury and correlate it with the underlying pathology, suggest ways for the primary, secondary and tertiary prevention of such injuries

3. Case  Gul Nawaz aged 35 years presented to emergency deparment with injury to the right eye while working in a cement factory. He had severe ocular irritation with watering, pain and photophobia.  The eye was extensively washed till the normal pH was restored  On examination VA OD=CF 1 m, OS=6/5  He had red eye with corneal haze  There was limbal ischemia affecting less than 1/3 rd of the limbus (3 clock hours)  The IOP was 24 mmHg OD, 11 mmHg OS  Examine the given photograph

5. Questions  What kind of injury is this?  Acidic/ alkaline- would it make any difference?  Why was the eye washed first?  What is limbal ischemia and what is its significance in this patient?  Why was the IOP raised?  Why such an extensive damage?  What would be the prognosis of this kind of injury?  What complications can happen?  How can chemical injuries be prevented?

6. Epidemiology  Why should you know this?  About 2/3 rd of the chemical injuries happen at workplace the rest at home  Almost any chemical can cause ocular irritation  Serious damage however happen with acids and alkalis  Alkali injuries are more common because they are used more frequently  Bilateral chemical exposure could be extremely damaging resulting in blindness and disfigurement

7.  Calcium hydroxide is the most common cause of alkali ocular burns, ammonia tends to cause the most serious burns  Sulfuric acid is the most common acidic caustic agent but hydrofluoric acid causes the most devastating injury

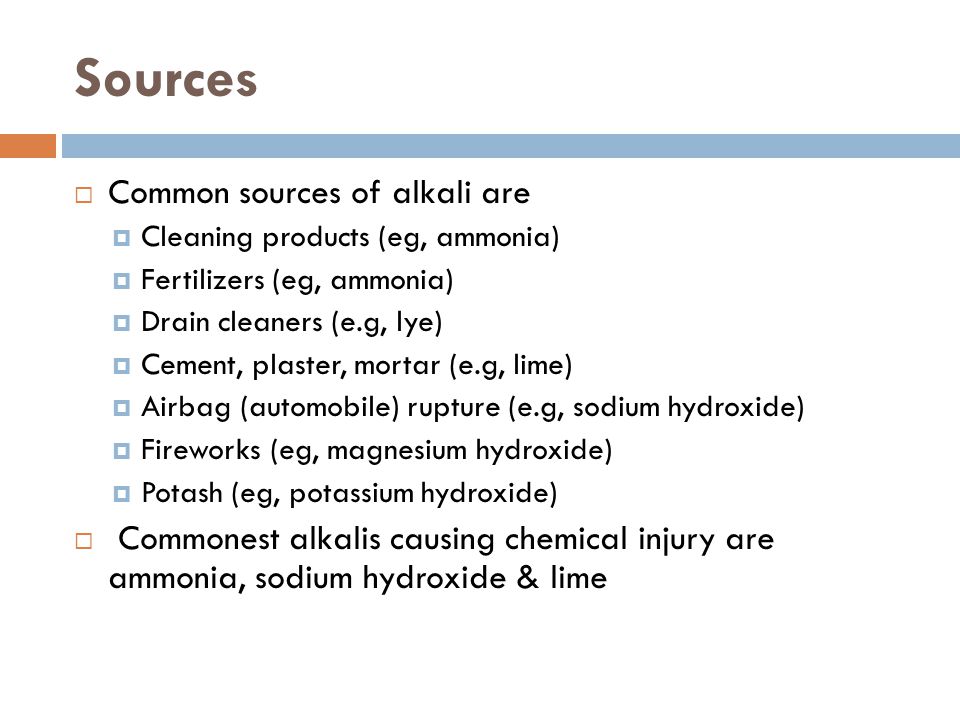

8. Sources  Common sources of alkali are  Cleaning products (eg, ammonia)  Fertilizers (eg, ammonia)  Drain cleaners (e.g, lye)  Cement, plaster, mortar (e.g, lime)  Airbag (automobile) rupture (e.g, sodium hydroxide)  Fireworks (eg, magnesium hydroxide)  Potash (eg, potassium hydroxide)  Commonest alkalis causing chemical injury are ammonia, sodium hydroxide & lime

9. Sources  Common sources of acids are as follows:  Battery acid (eg, sulfuric acid)  Bleach (eg, sulfurous acid)  Glass polish (eg, hydrofluoric; behaves like an alkali)  Vinegar (eg, acetic acid)  Chromic acid (brown discoloration of conjunctiva)  Nitric acid (yellow discoloration of conjunctiva)  Hydrochloric acid  Commonest acids are sulphuric, sulphurous, hydrofluoric, acetic, chromic and hydrochloric acid.

11. Pathophysiology  Severity depends upon  The nature/ properties & concentration of the chemical  Area of the affected surface  Length of exposure  Associated damage e.g. thermal /electrical/ explosive

12. Pathophysiology  Alakli burns are more damaging than acid burns because it penetrates deeper 1  Necrosis and shedding of the corneal and conjunctival epithelium  Damage to the limbal vasculature  Limbal ischemia  Persistent corneal epithelial defects  Conjunctivaliztion & vascularization of the cornea  Corneal ulceration and perforation  Conjunctival and adnexal scarring

13. Corneal healing  Loss of epithelium  Migration of cell derived from the limbal stem cells  Phagocytosis of the necrosed collagen by the keratocytes and new collagen is laid down

14. Clinical presentation  History  Ascertain the nature of the chemical and mode of injury  Complaints are  Pain (often extreme)  Foreign body sensation  Blurred vision  Excessive tearing  Photophobia  Red eye(s)

15. Physical examination  Physical examination: General and Ocular  A thorough physical examination should be deferred until the affected eye is irrigated copiously, and the pH of the ocular surface is neutralized.  After irrigation, a thorough eye examination is performed focusing on 1. clarity and integrity of the cornea 2. degree of limbal ischemia 3. Anterior chamber reaction 4. Signs of deeper penetration of the chemical 5. IOP.

16. Signs  Conjunctival inflammation:  Particles in the conjunctival fornices.  Perilimbal ischemia (LI-blanching) The most significant prognostic indicator for corneal healing. Greater the extent of blanching, the worse the prognosis. LI is documented as number of clock hours

17. Signs  Corneal epithelial defect: Corneal epithelial damage can range from mild diffuse punctate epithelial keratitis (PEK) to a complete epithelial defect. The size of the defect should be recorded so as to document response to treatment on subsequent visits.  Stromal haze: Haze can range from a clear cornea (grade 0-5) to a complete opacification  Increased IOP

18. Signs  Corneal perforation  Anterior chamber inflammatory reaction: more common with alkali injury  Adnexal damage/scarring: Similar to chemical injuries on other skin areas, this can lead to severe exposure problems if eyelid scarring prevents proper closure, thereby exposing an already damaged ocular surface.

19. Grading of the extent of injury & prognosis

26. Goals of management  Treat Systemic injury  Goals for ocular involvement  removing the offending agent  controlling inflammation  promoting ocular surface healing  preventing infection  controlling IOP

27. Remove the chemical (irrigation)  Immediate copious irrigation remains the single most important therapy for treating chemical injuries.  Ideally, the eye should be irrigated with a sterile balanced buffered solution, such as normal saline solution or Ringer's lactate solution. However, immediate irrigation with even plain tap water is preferred without waiting for the ideal fluid.  The irrigation solution must contact the ocular surface. Irrigation should be continued until the pH of the ocular surface is neutralized, usually requiring 1-2 liters of fluid.

28. Promote ocular surface (epithelial) healing  Artificial tears  Bandage contact lens  Ascorbate plays a fundamental role in collagen remodeling, leading to an improvement in corneal healing.  Amniotic membrane transplant  topical Sodium Ascorabte 10% given 2 hourly and 1-2 g of vitamin C given orally ( not recommended in renal disease)

29. Control inflammation  Inflammatory mediators  Inhibits reepithelialization but also increases the risk of corneal ulceration and perforation  Controlling inflammation with topical steroids can help break this inflammatory cycle  Citrate both promotes corneal wound healing and inhibits PMNs via calcium chelation.

30. Prevent infection  When the corneal epithelium is absent, the eye is susceptible to infection.  Prophylactic topical antibiotics during the initial treatment stages Control IOP Oral acetazolamide and topical medications

31. Control pain  Severe chemical burns can be extremely painful.  Oral NSAIDS  Ciliary spasm can be managed with the use of cycloplegic agents

32. Surgical Care  Early  Debridement  Temporary amniotic membrane  Limbal stem cell transplant  Lysis of conjunctival symblepharon  Late  Surgery for conjunctival adhesions  Keratoplasty  Cataract extraction  Keratoprosthesis  Glaucoma surgery

33. Follow up  In patients with severe chemical injuries, short hospitalization in an ophthalmic care unit to closely monitor  In general, the prognosis of ocular chemical injuries is directly correlated with the severity of insult to the eye and adnexal structures.  Roper-Hall grading system

34. Complications  Primary complications include the following:  Conjunctival inflammation  Corneal abrasions  Corneal haze and edema  Acute rise in IOP  Corneal melting and perforations

35. Complications  Secondary complications include the following:  Secondary glaucoma  Secondary cataract  Conjunctival scarring  Corneal thinning and perforation  Complete ocular surface disruption with corneal scarring and vascularization  Corneal ulceration (sterile or infectious)  Complete globe atrophy (phthisis bulbi)  Blindness

39. Management summary  Immediate, prolonged irrigation  Followed by referral to ophthalmologist for aggressive early management  Close long-term monitoring  Are essential to promote ocular surface healing and to provide the best opportunity for visual rehabilitation
