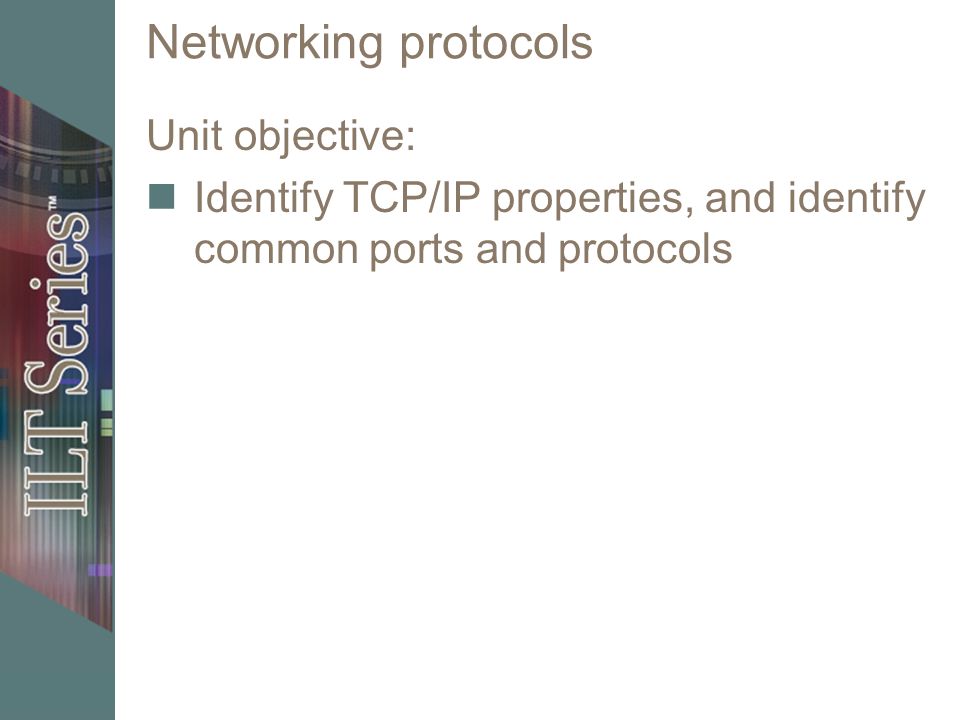

1. Networking protocols Unit objective: Identify TCP/IP properties, and identify common ports and protocols

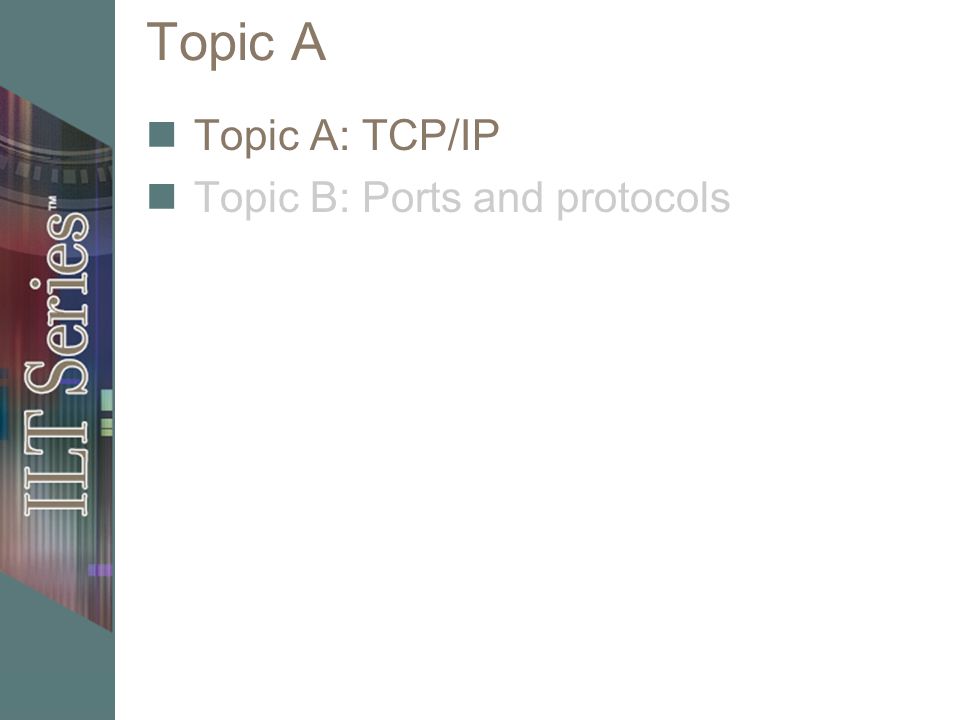

2. Topic A Topic A: TCP/IP Topic B: Ports and protocols

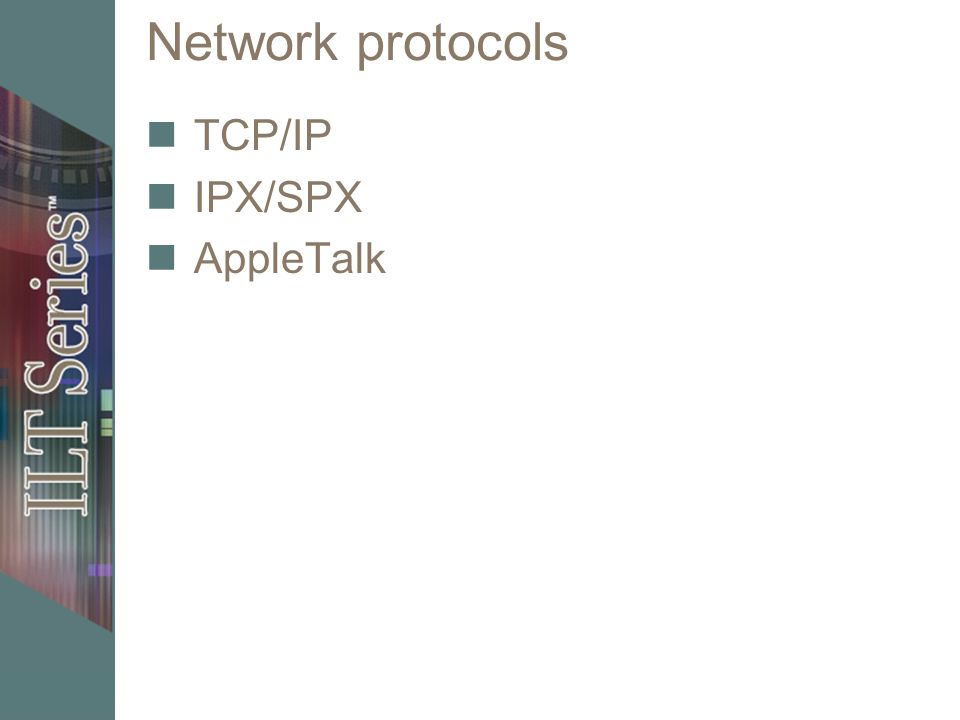

3. Network protocols TCP/IP IPX/SPX AppleTalk

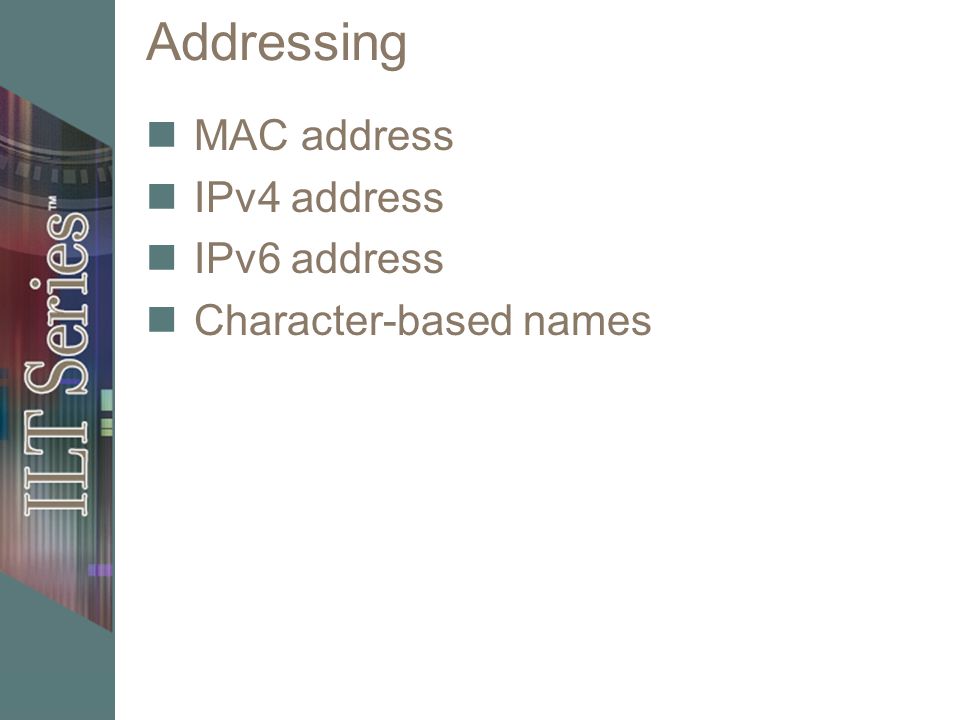

4. Addressing MAC address IPv4 address IPv6 address Character-based names

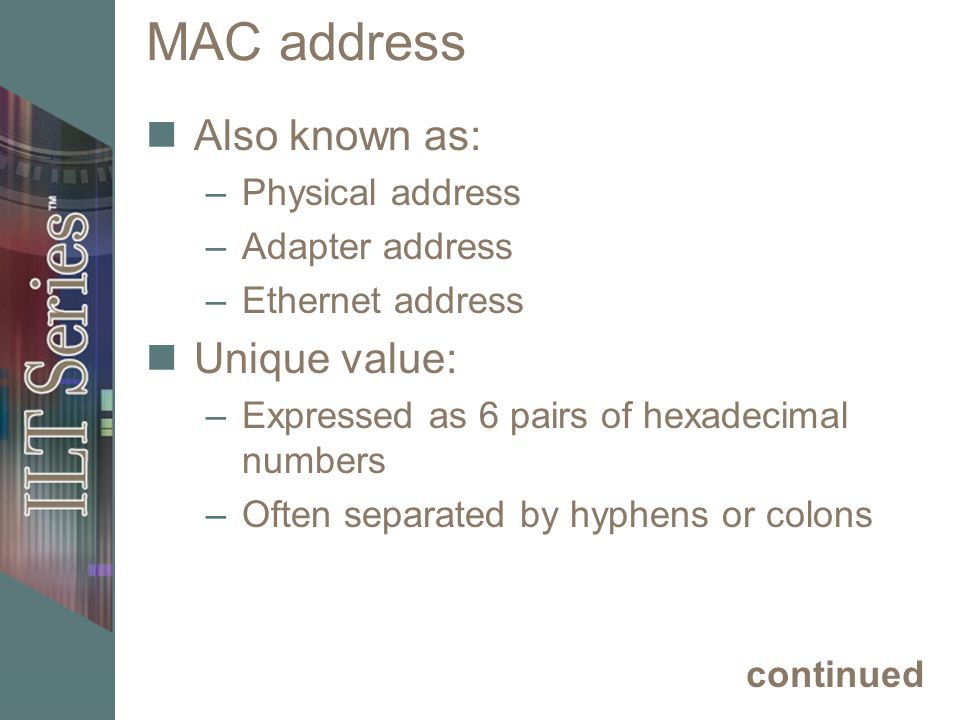

5. MAC address Also known as: –Physical address –Adapter address –Ethernet address Unique value: –Expressed as 6 pairs of hexadecimal numbers –Often separated by hyphens or colons continued

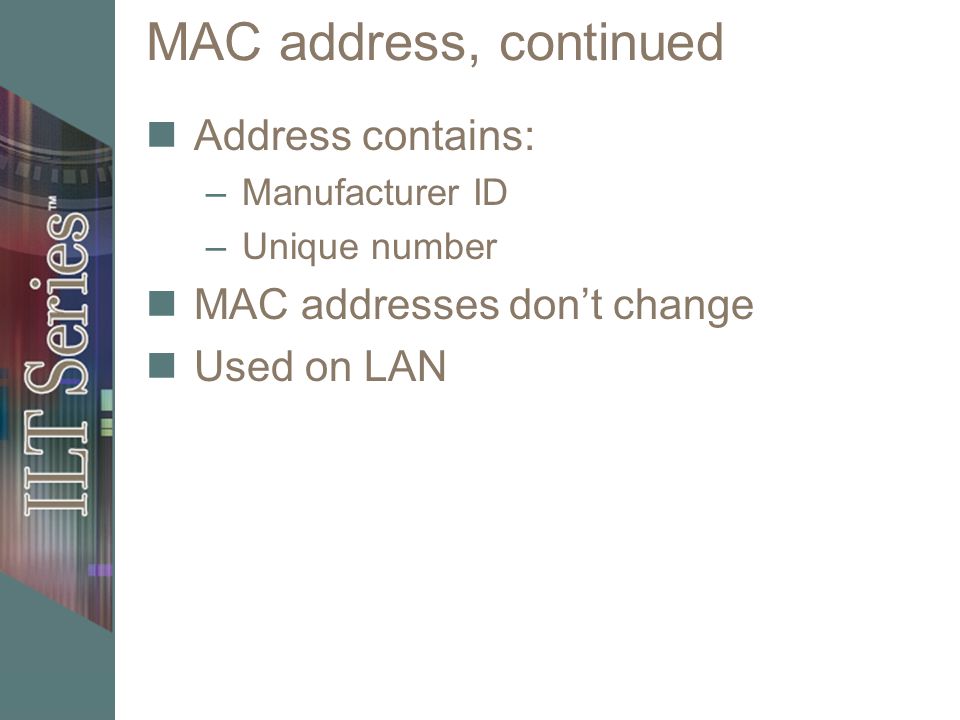

6. MAC address, continued Address contains: –Manufacturer ID –Unique number MAC addresses don’t change Used on LAN

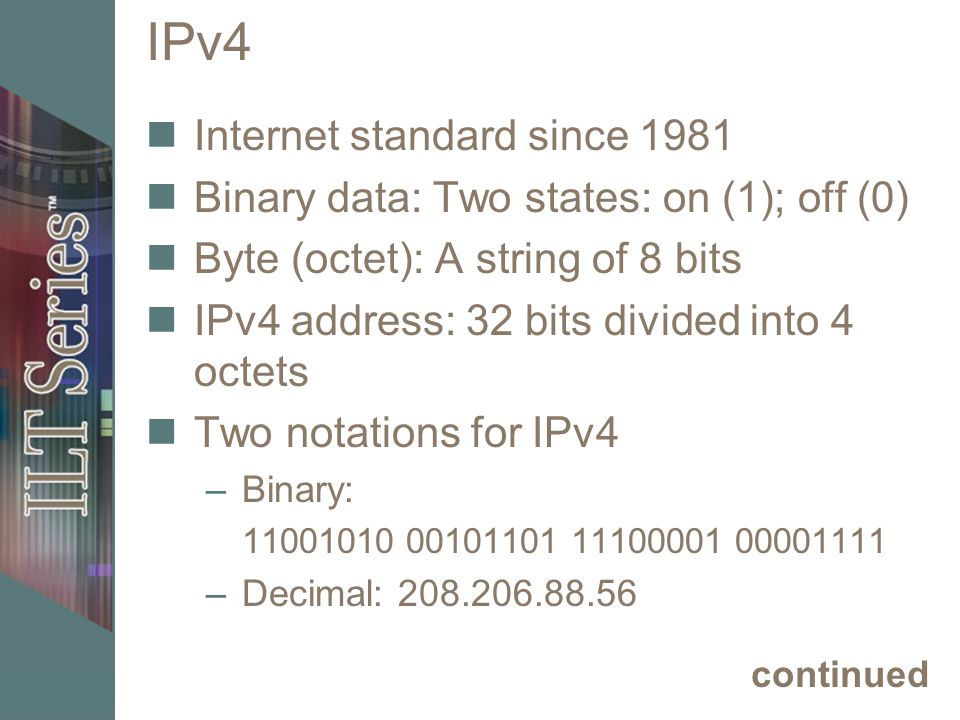

7. IPv4 Internet standard since 1981 Binary data: Two states: on (1); off (0) Byte (octet): A string of 8 bits IPv4 address: 32 bits divided into 4 octets Two notations for IPv4 –Binary: 11001010 00101101 11100001 00001111 –Decimal: 208.206.88.56 continued

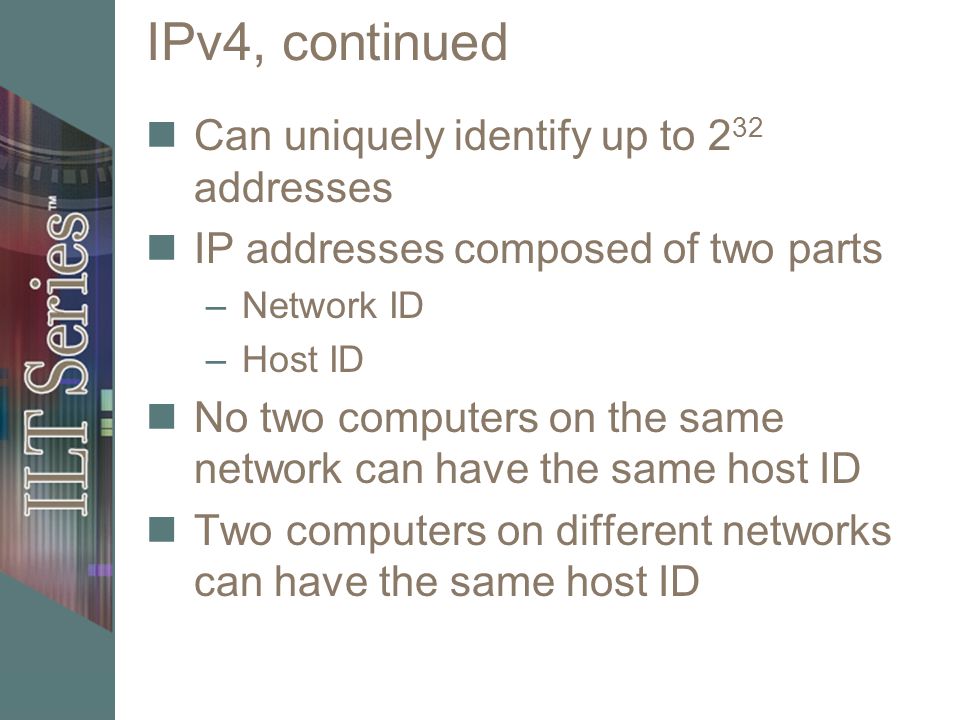

8. IPv4, continued Can uniquely identify up to 2 32 addresses IP addresses composed of two parts –Network ID –Host ID No two computers on the same network can have the same host ID Two computers on different networks can have the same host ID

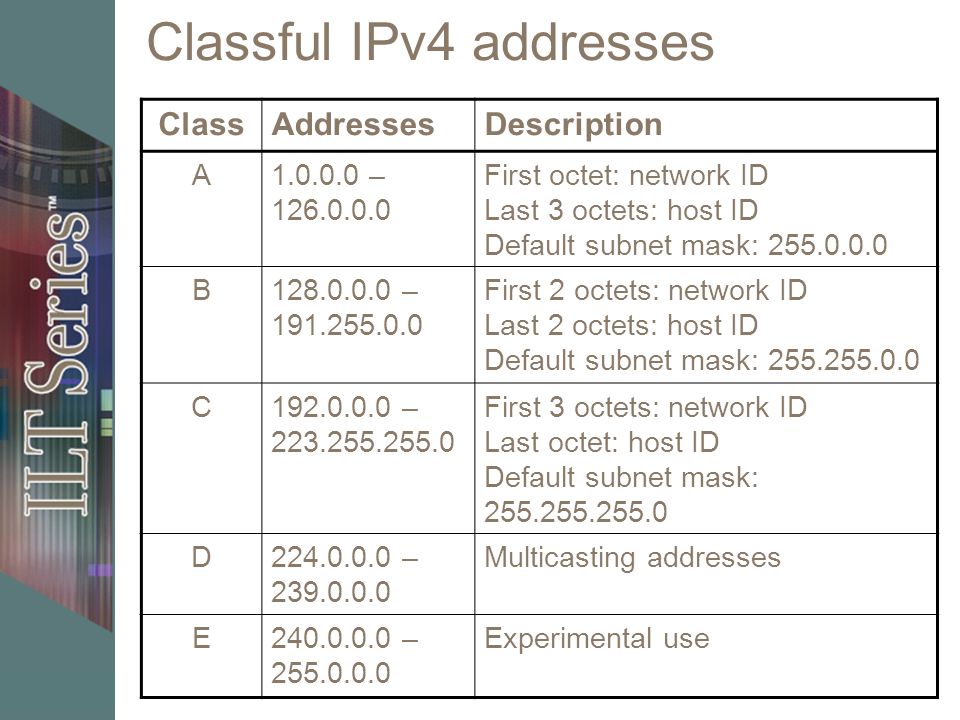

9. Classful IPv4 addresses ClassAddressesDescription A1.0.0.0 – 126.0.0.0 First octet: network ID Last 3 octets: host ID Default subnet mask: 255.0.0.0 B128.0.0.0 – 191.255.0.0 First 2 octets: network ID Last 2 octets: host ID Default subnet mask: 255.255.0.0 C192.0.0.0 – 223.255.255.0 First 3 octets: network ID Last octet: host ID Default subnet mask: 255.255.255.0 D224.0.0.0 – 239.0.0.0 Multicasting addresses E240.0.0.0 – 255.0.0.0 Experimental use

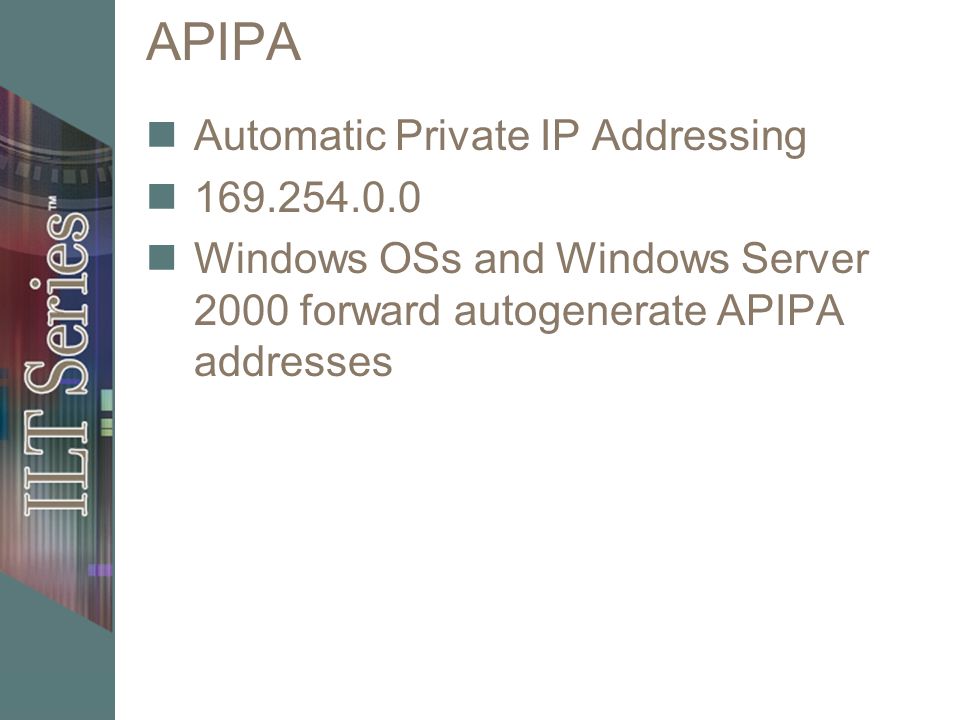

10. APIPA Automatic Private IP Addressing 169.254.0.0 Windows OSs and Windows Server 2000 forward autogenerate APIPA addresses

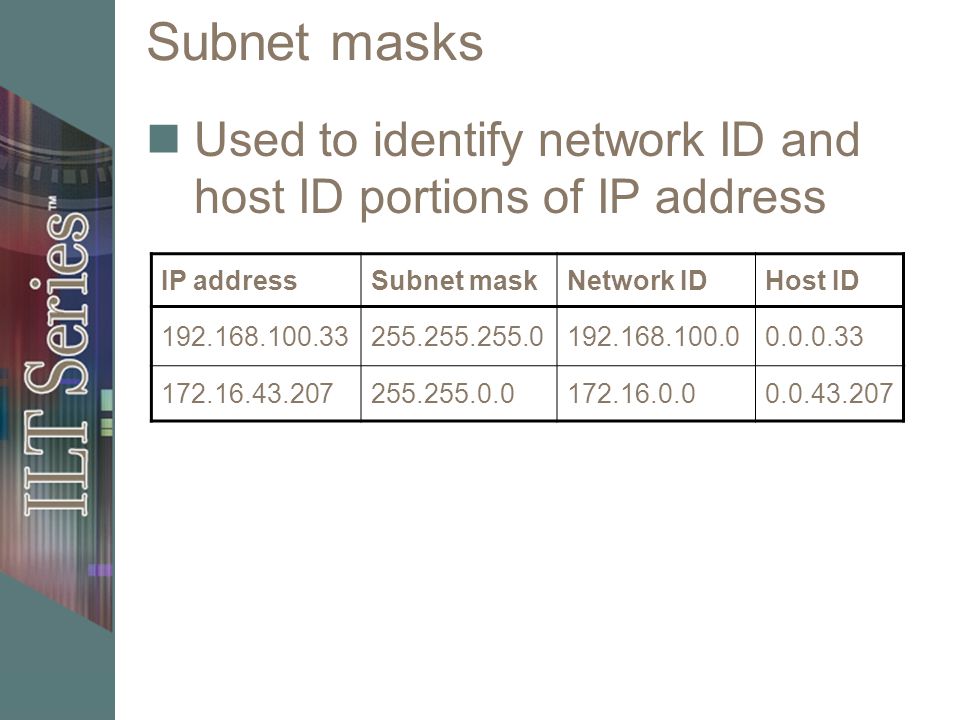

11. Subnet masks Used to identify network ID and host ID portions of IP address IP addressSubnet maskNetwork IDHost ID 192.168.100.33255.255.255.0192.168.100.00.0.0.33 172.16.43.207255.255.0.0172.16.0.00.0.43.207

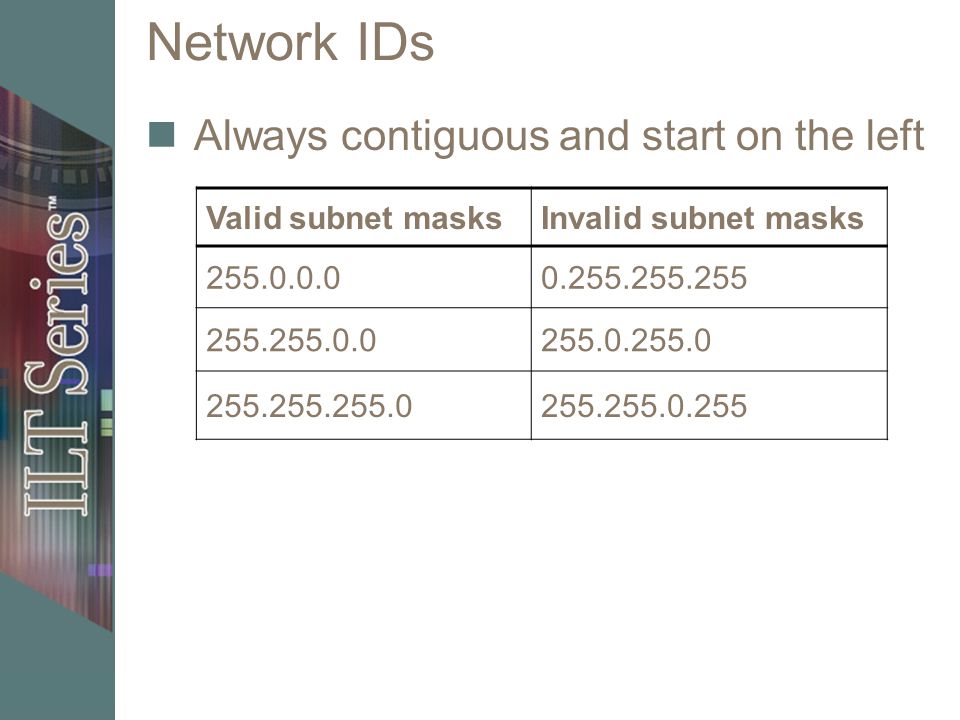

12. Network IDs Always contiguous and start on the left Valid subnet masksInvalid subnet masks 255.0.0.00.255.255.255 255.255.0.0255.0.255.0 255.255.255.0255.255.0.255

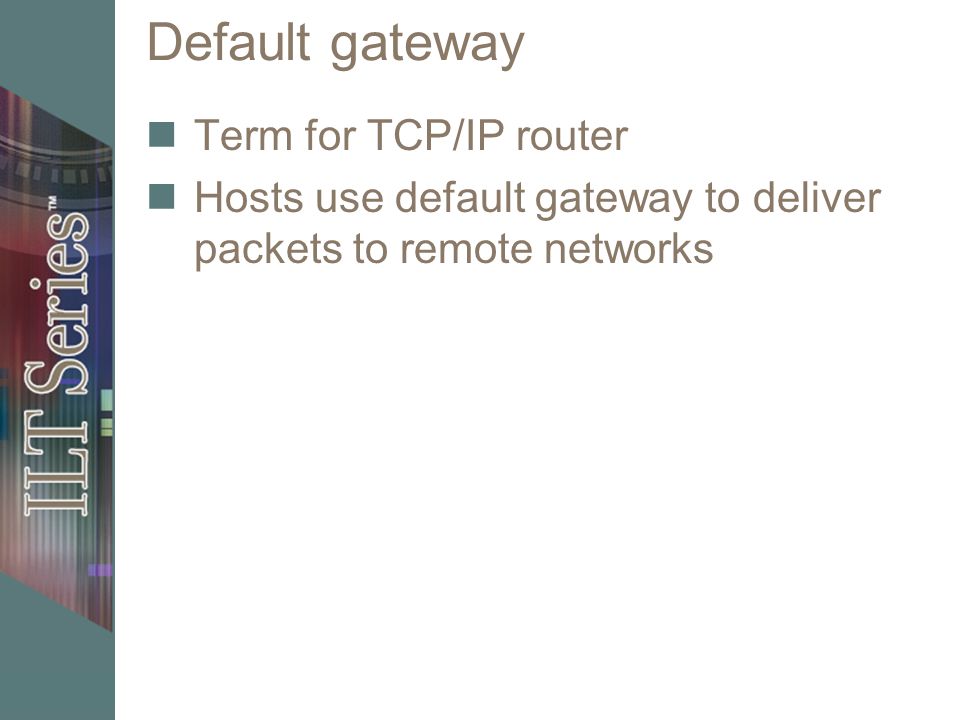

13. Default gateway Term for TCP/IP router Hosts use default gateway to deliver packets to remote networks

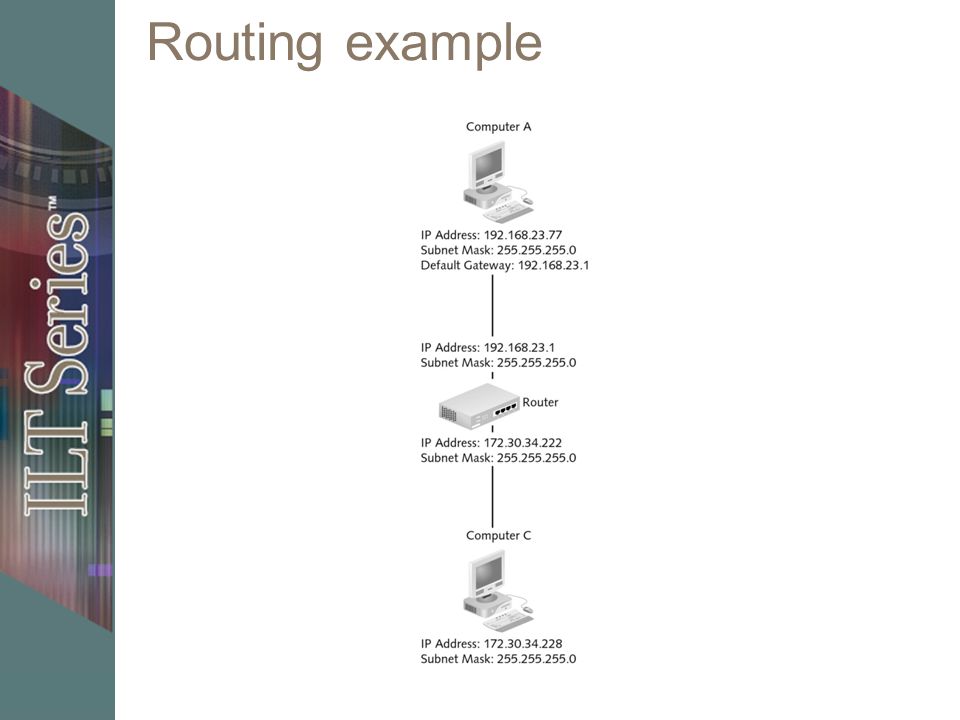

14. Routing example

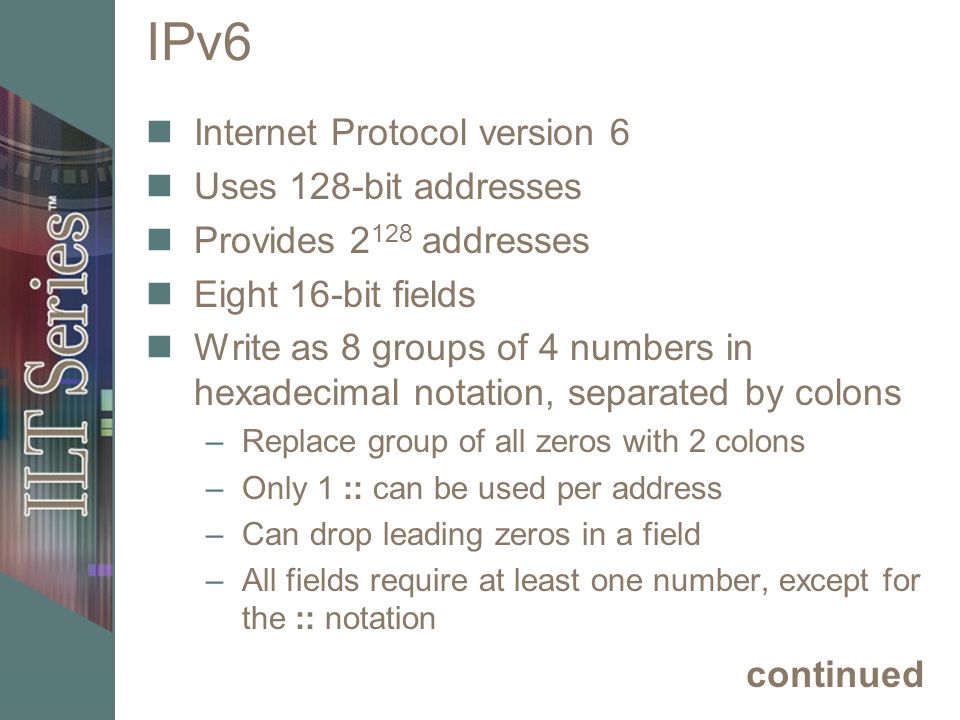

15. IPv6 Internet Protocol version 6 Uses 128-bit addresses Provides 2 128 addresses Eight 16-bit fields Write as 8 groups of 4 numbers in hexadecimal notation, separated by colons –Replace group of all zeros with 2 colons –Only 1 :: can be used per address –Can drop leading zeros in a field –All fields require at least one number, except for the :: notation continued

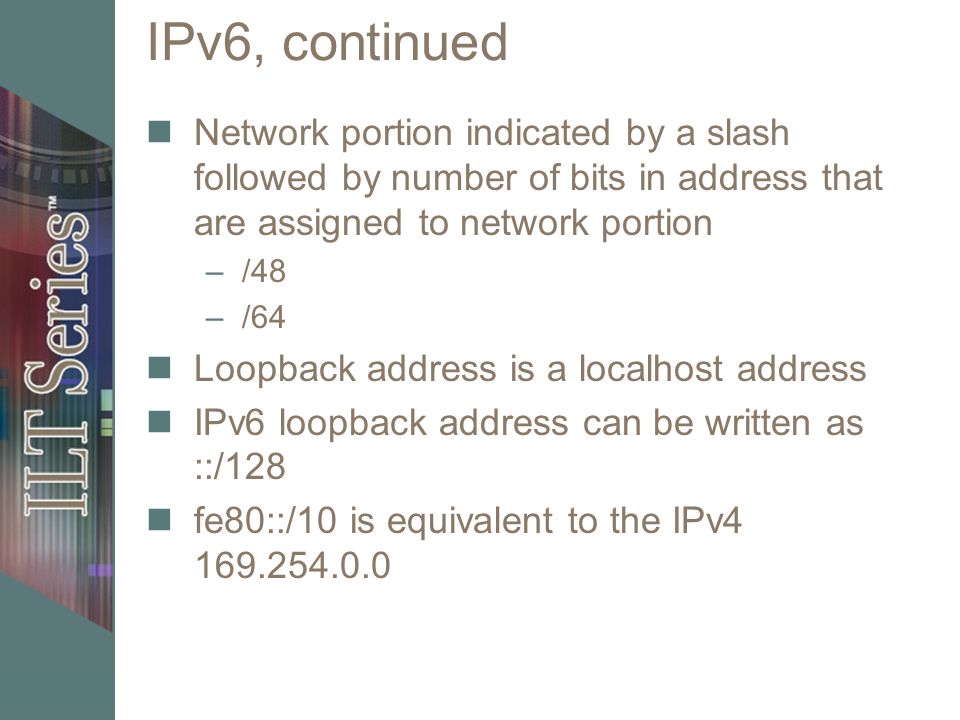

16. IPv6, continued Network portion indicated by a slash followed by number of bits in address that are assigned to network portion –/48 –/64 Loopback address is a localhost address IPv6 loopback address can be written as ::/128 fe80::/10 is equivalent to the IPv4 169.254.0.0

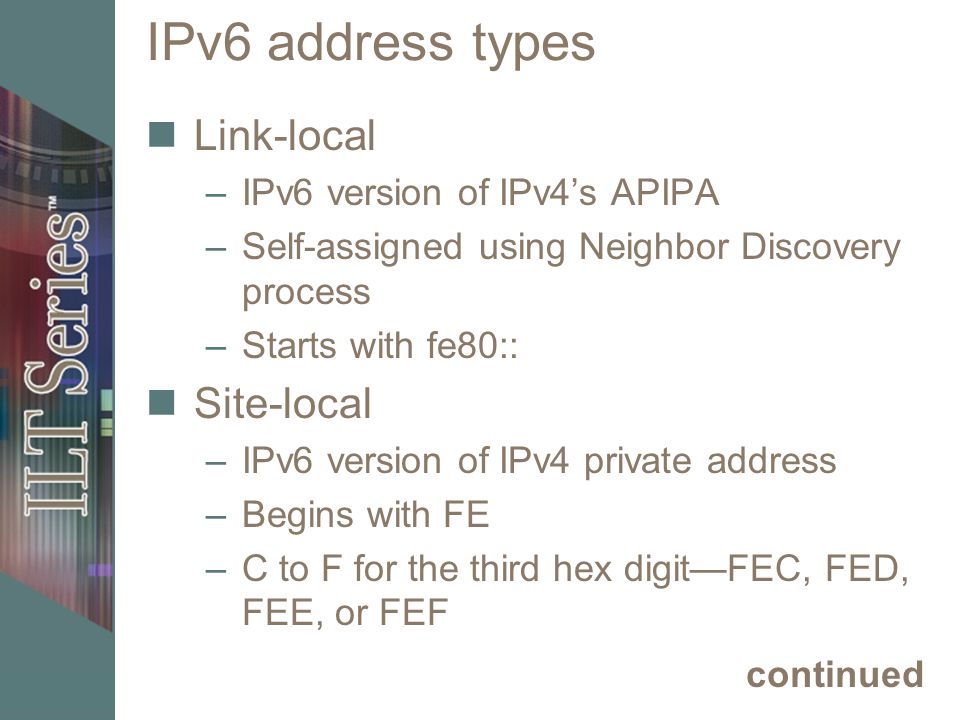

17. IPv6 address types Link-local –IPv6 version of IPv4’s APIPA –Self-assigned using Neighbor Discovery process –Starts with fe80:: Site-local –IPv6 version of IPv4 private address –Begins with FE –C to F for the third hex digit—FEC, FED, FEE, or FEF continued

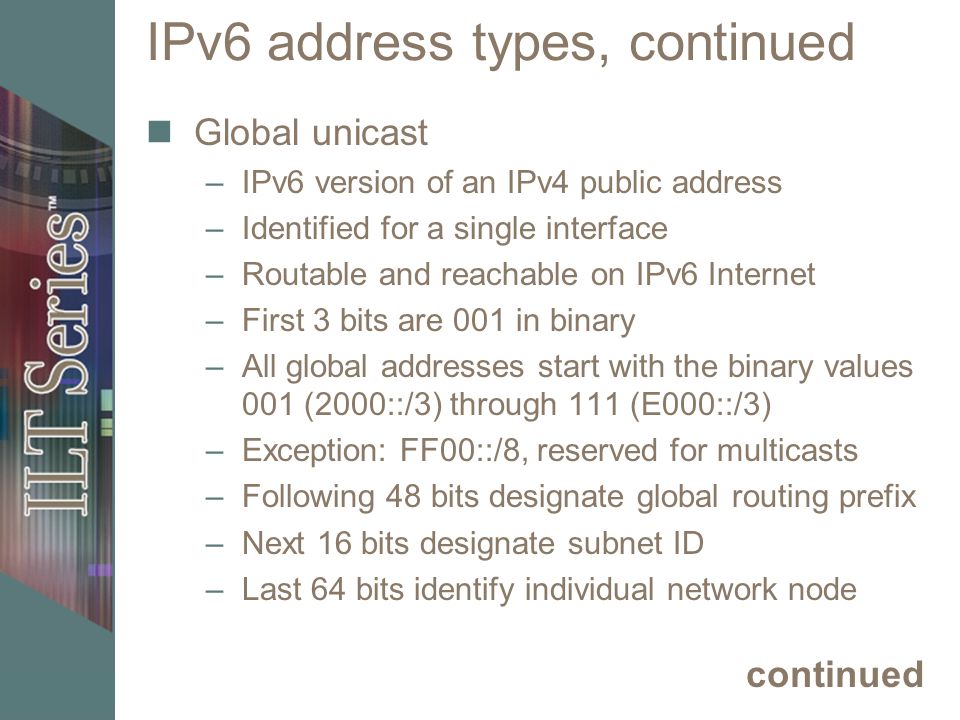

18. IPv6 address types, continued Global unicast –IPv6 version of an IPv4 public address –Identified for a single interface –Routable and reachable on IPv6 Internet –First 3 bits are 001 in binary –All global addresses start with the binary values 001 (2000::/3) through 111 (E000::/3) –Exception: FF00::/8, reserved for multicasts –Following 48 bits designate global routing prefix –Next 16 bits designate subnet ID –Last 64 bits identify individual network node continued

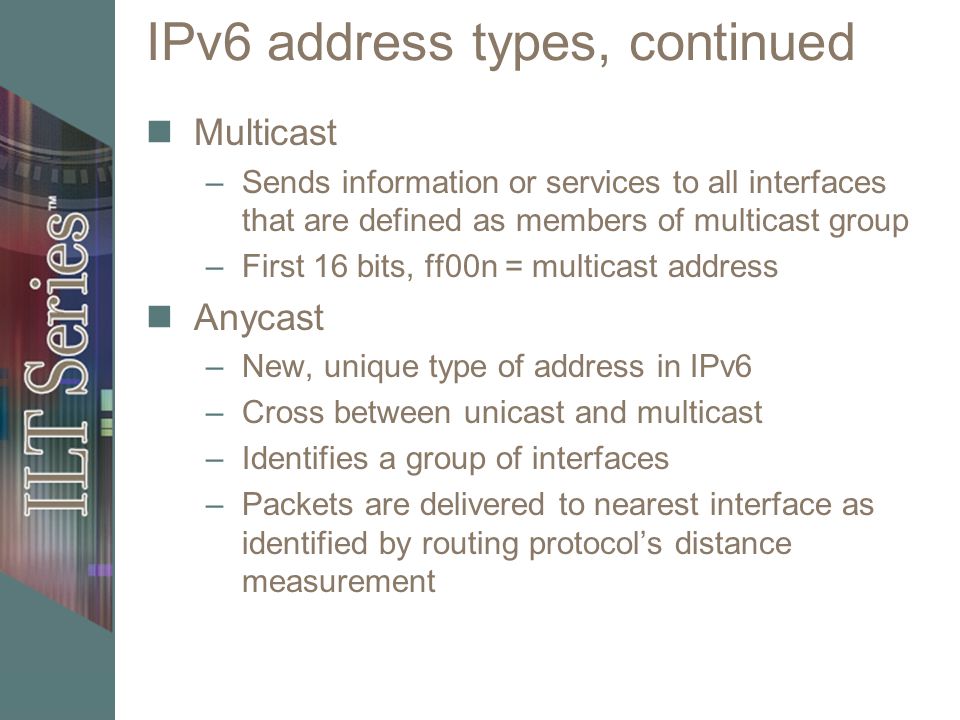

19. IPv6 address types, continued Multicast –Sends information or services to all interfaces that are defined as members of multicast group –First 16 bits, ff00n = multicast address Anycast –New, unique type of address in IPv6 –Cross between unicast and multicast –Identifies a group of interfaces –Packets are delivered to nearest interface as identified by routing protocol’s distance measurement

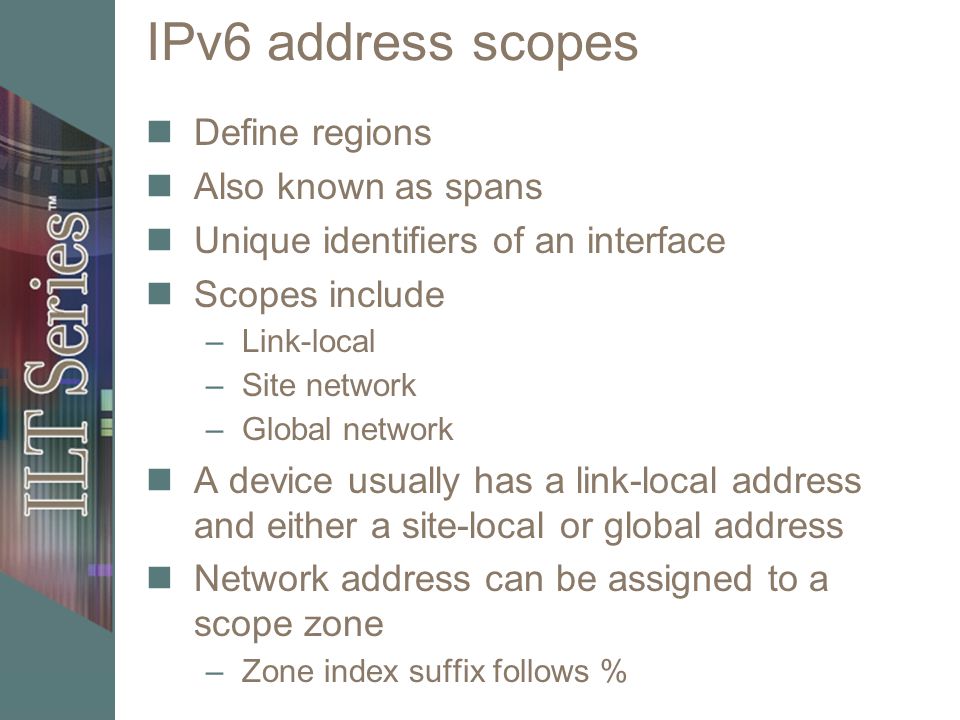

20. IPv6 address scopes Define regions Also known as spans Unique identifiers of an interface Scopes include –Link-local –Site network –Global network A device usually has a link-local address and either a site-local or global address Network address can be assigned to a scope zone –Zone index suffix follows %

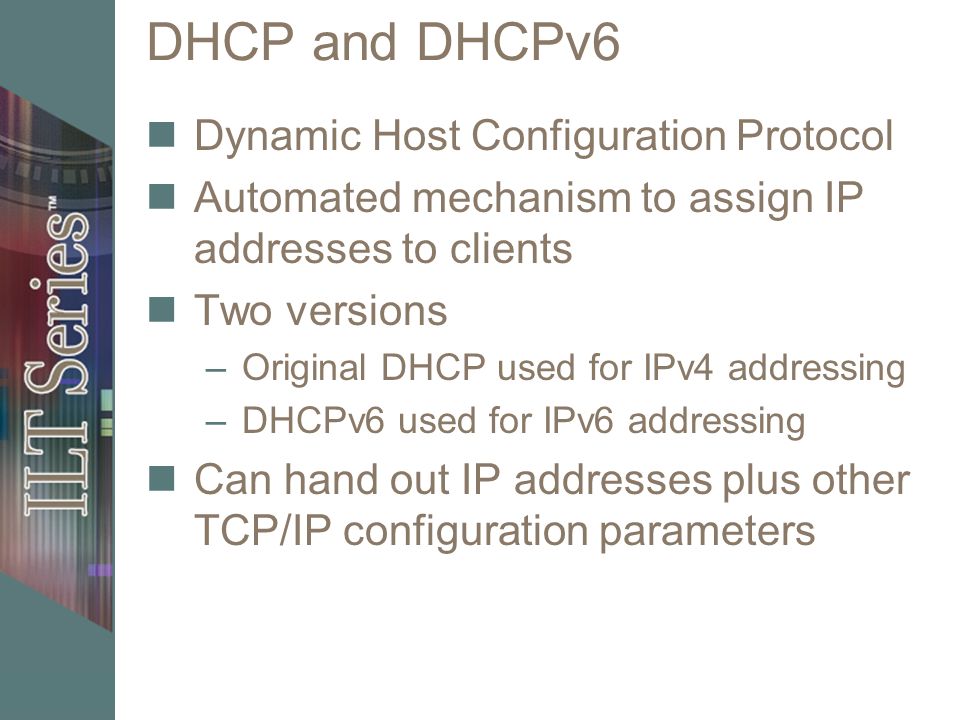

21. DHCP and DHCPv6 Dynamic Host Configuration Protocol Automated mechanism to assign IP addresses to clients Two versions –Original DHCP used for IPv4 addressing –DHCPv6 used for IPv6 addressing Can hand out IP addresses plus other TCP/IP configuration parameters

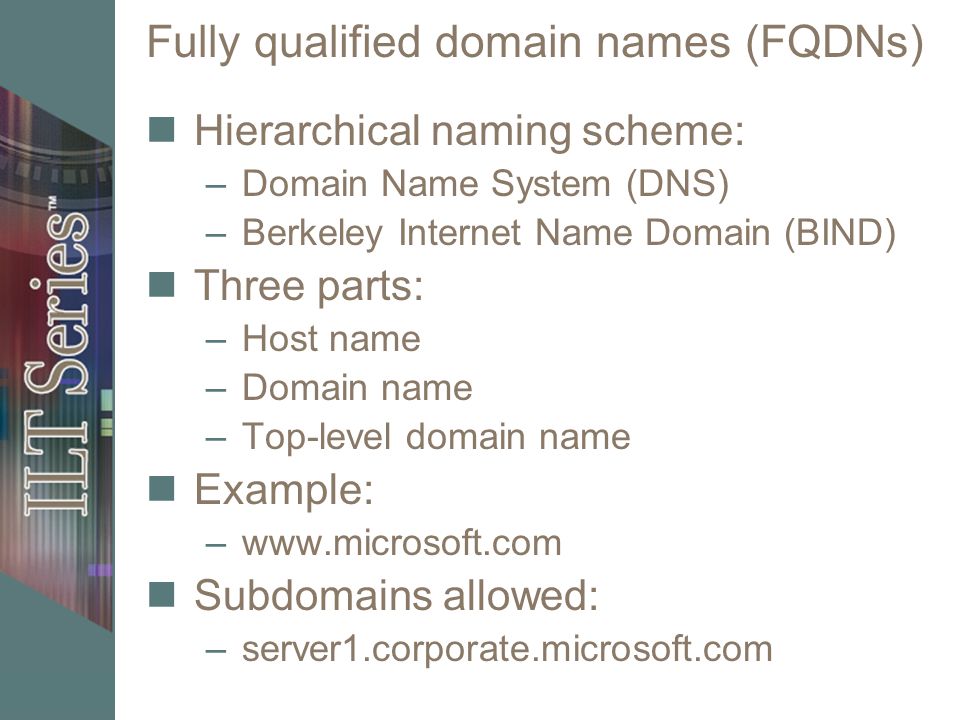

22. Fully qualified domain names (FQDNs) Hierarchical naming scheme: –Domain Name System (DNS) –Berkeley Internet Name Domain (BIND) Three parts: –Host name –Domain name –Top-level domain name Example: –www.microsoft.com Subdomains allowed: –server1.corporate.microsoft.com

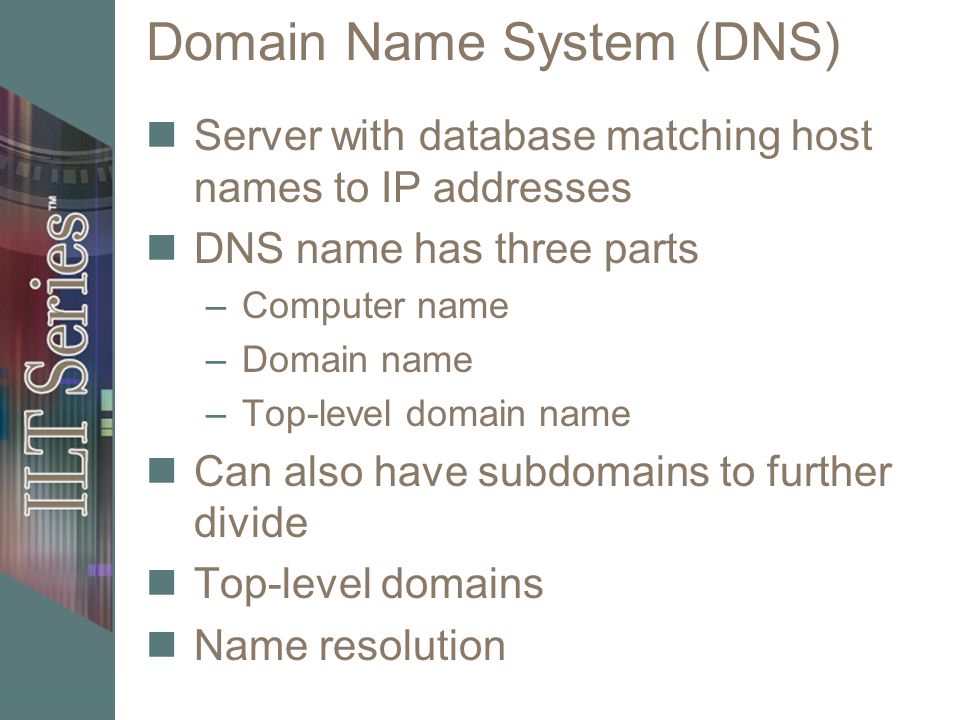

23. Domain Name System (DNS) Server with database matching host names to IP addresses DNS name has three parts –Computer name –Domain name –Top-level domain name Can also have subdomains to further divide Top-level domains Name resolution

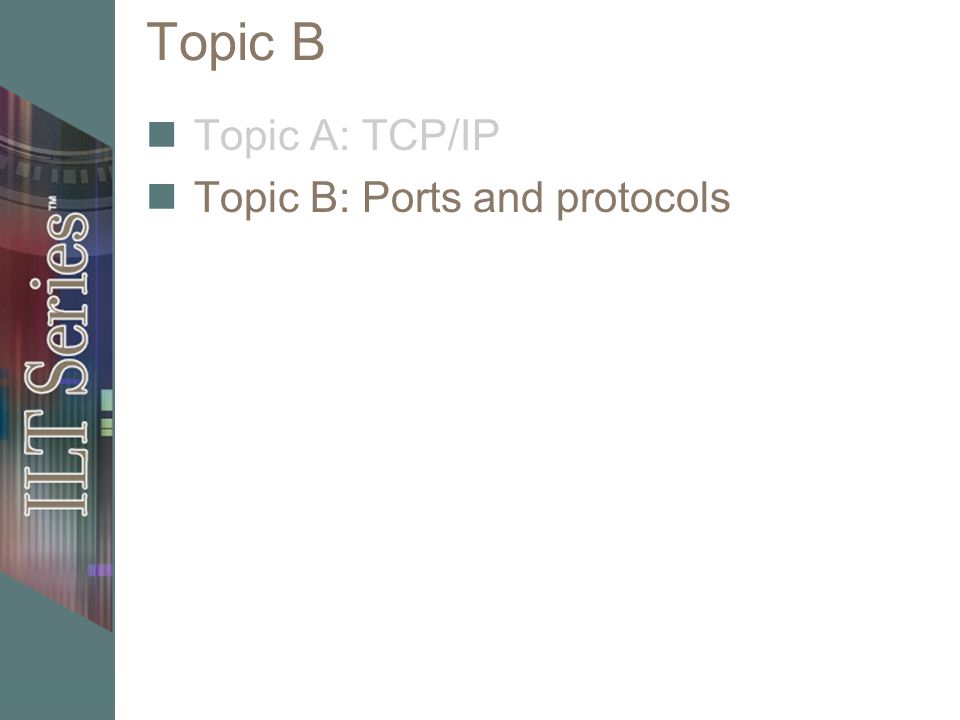

24. Topic B Topic A: TCP/IP Topic B: Ports and protocols

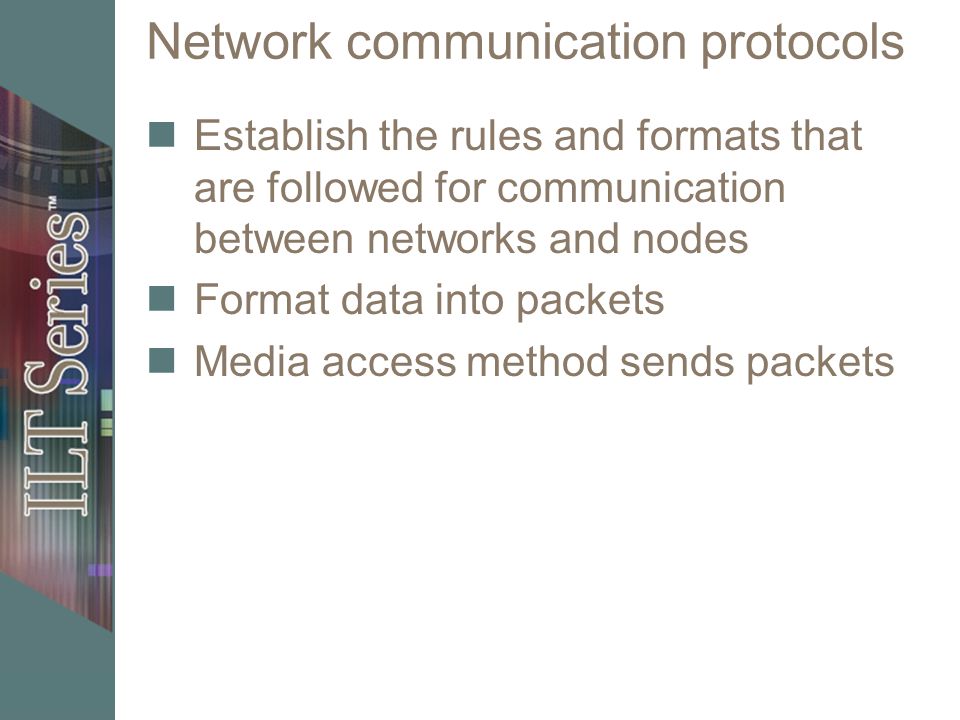

25. Network communication protocols Establish the rules and formats that are followed for communication between networks and nodes Format data into packets Media access method sends packets

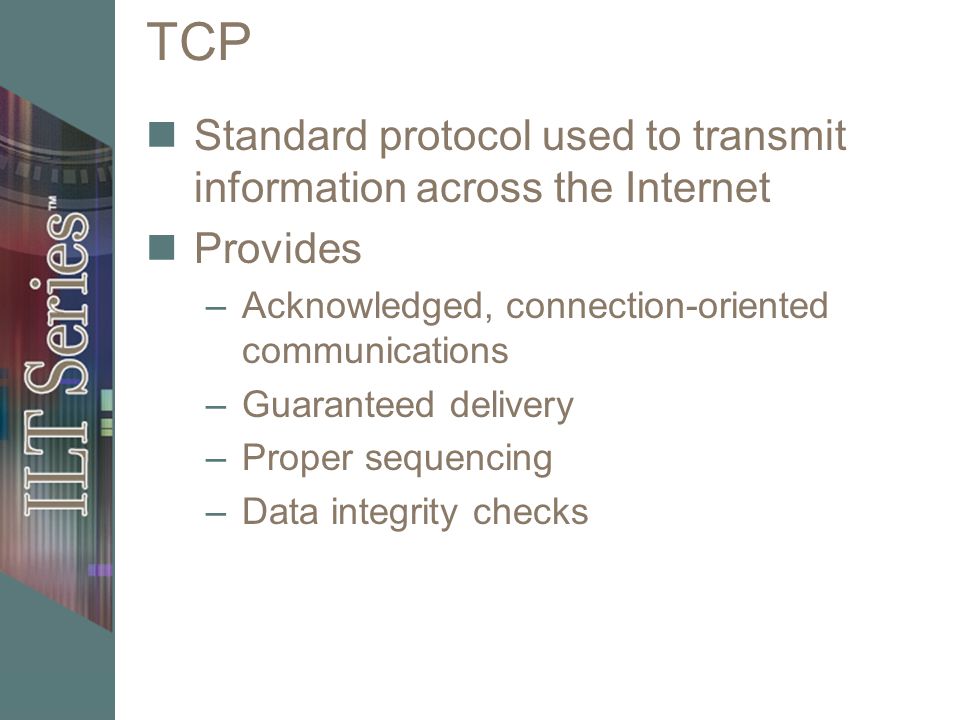

26. TCP Standard protocol used to transmit information across the Internet Provides –Acknowledged, connection-oriented communications –Guaranteed delivery –Proper sequencing –Data integrity checks

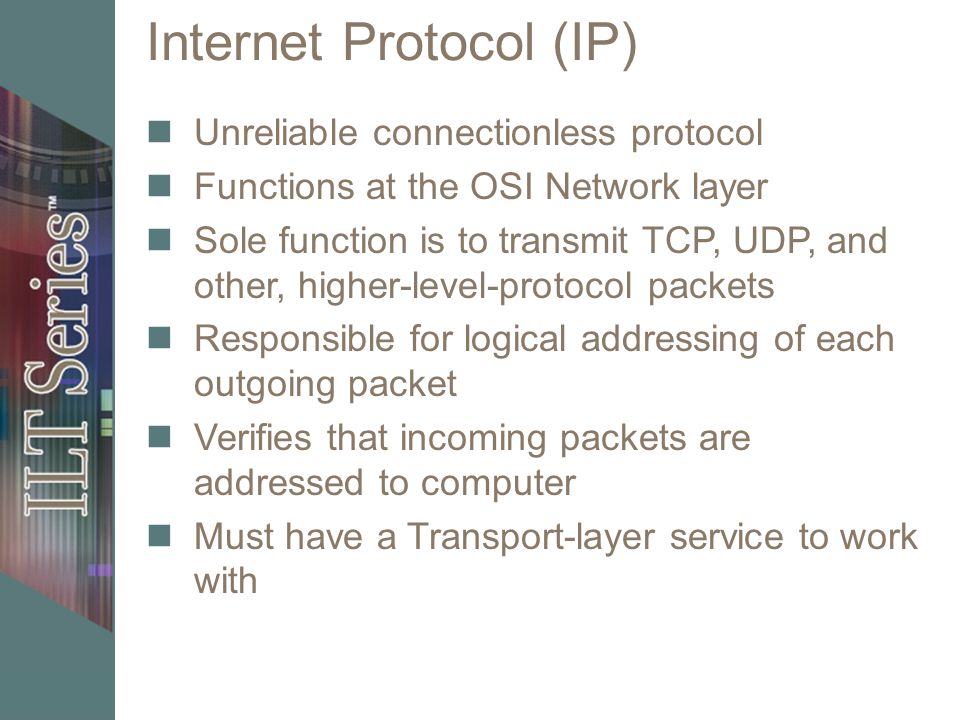

27. Internet Protocol (IP) Unreliable connectionless protocol Functions at the OSI Network layer Sole function is to transmit TCP, UDP, and other, higher-level-protocol packets Responsible for logical addressing of each outgoing packet Verifies that incoming packets are addressed to computer Must have a Transport-layer service to work with

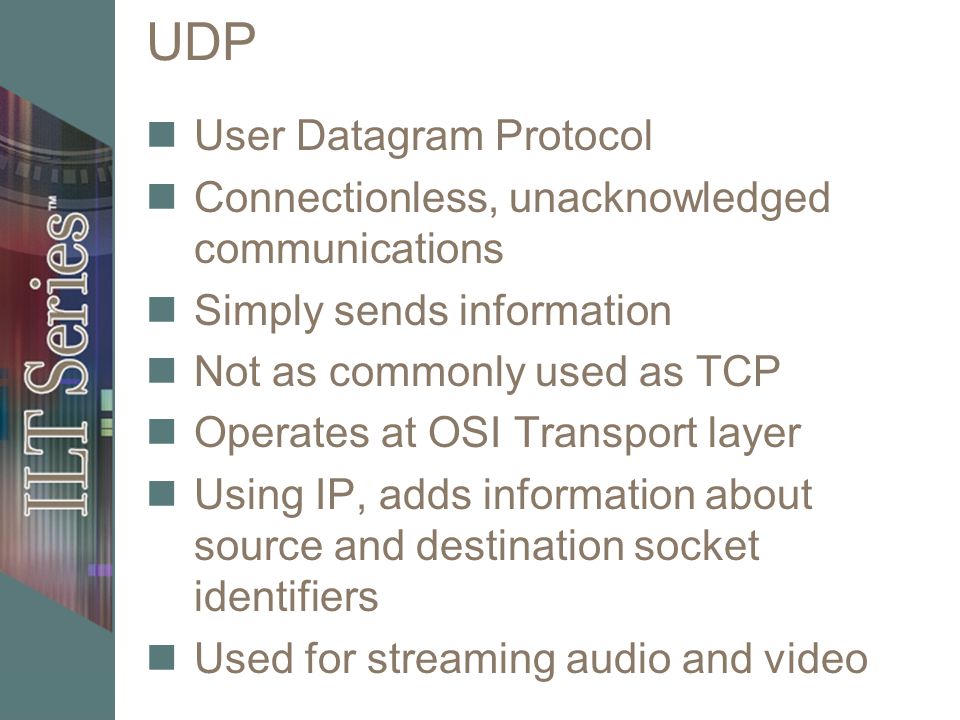

28. UDP User Datagram Protocol Connectionless, unacknowledged communications Simply sends information Not as commonly used as TCP Operates at OSI Transport layer Using IP, adds information about source and destination socket identifiers Used for streaming audio and video

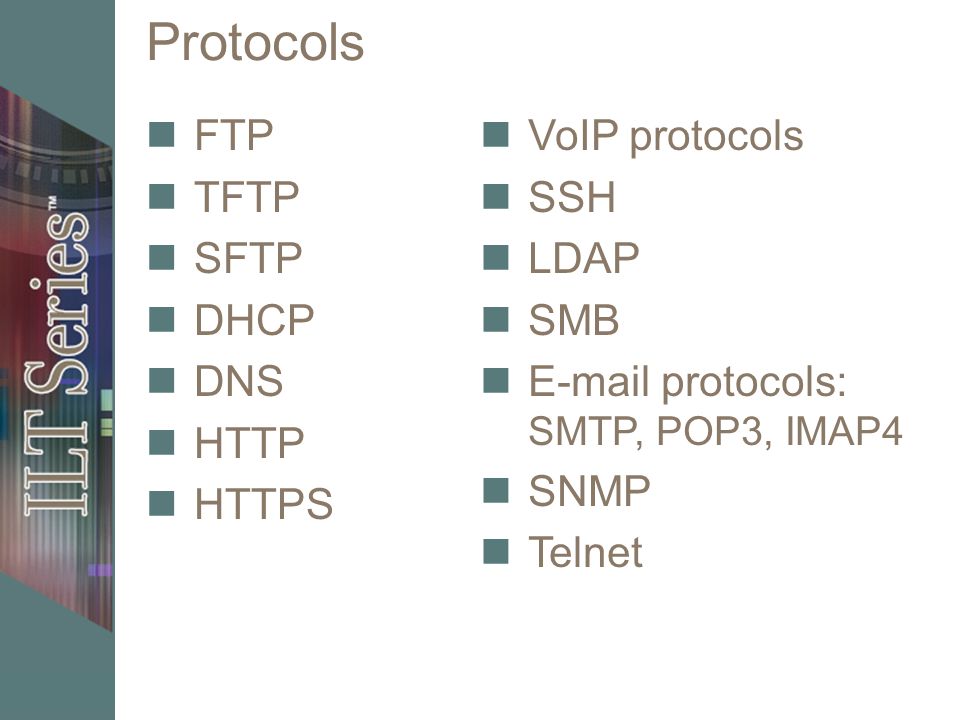

29. Protocols FTP TFTP SFTP DHCP DNS HTTP HTTPS VoIP protocols SSH LDAP SMB E-mail protocols: SMTP, POP3, IMAP4 SNMP Telnet

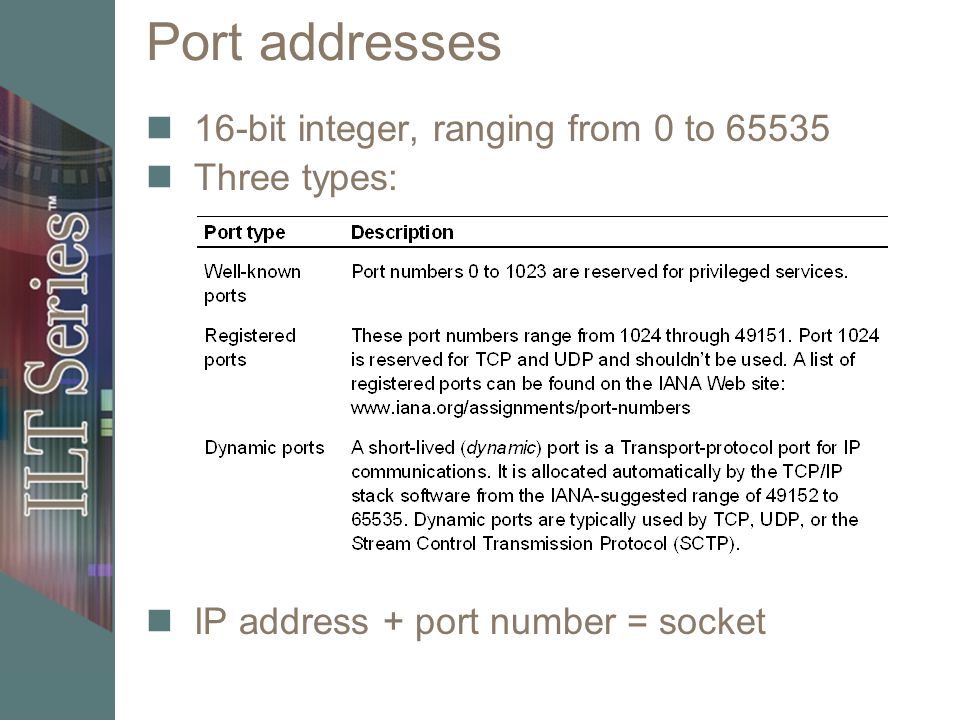

30. Port addresses 16-bit integer, ranging from 0 to 65535 Three types: IP address + port number = socket

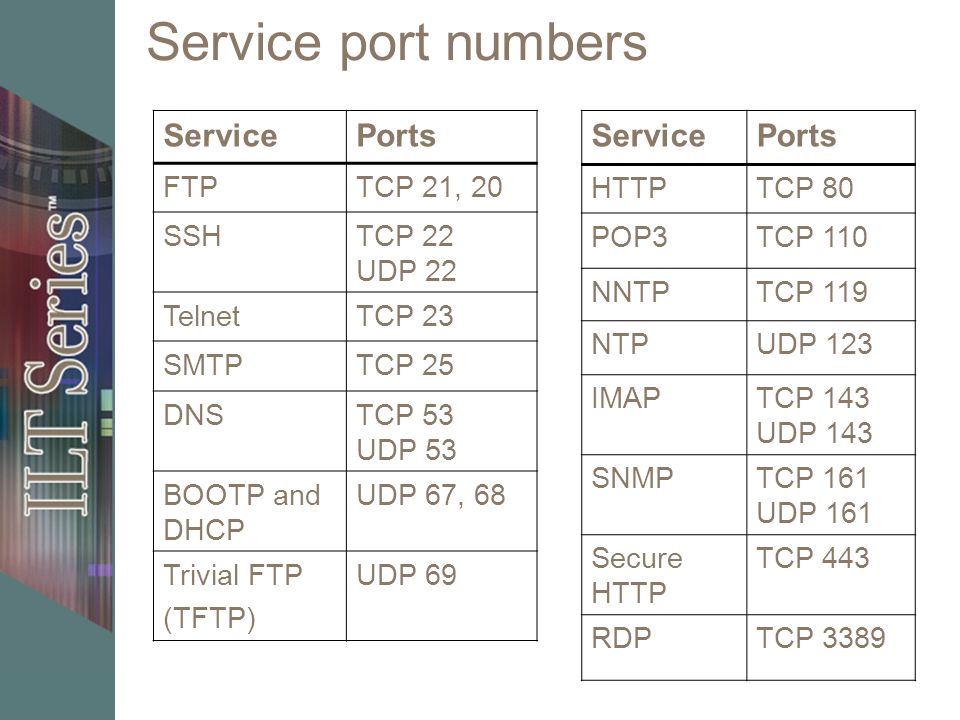

31. Service port numbers ServicePorts FTPTCP 21, 20 SSHTCP 22 UDP 22 TelnetTCP 23 SMTPTCP 25 DNSTCP 53 UDP 53 BOOTP and DHCP UDP 67, 68 Trivial FTP (TFTP) UDP 69 ServicePorts HTTPTCP 80 POP3TCP 110 NNTPTCP 119 NTPUDP 123 IMAPTCP 143 UDP 143 SNMPTCP 161 UDP 161 Secure HTTP TCP 443 RDPTCP 3389

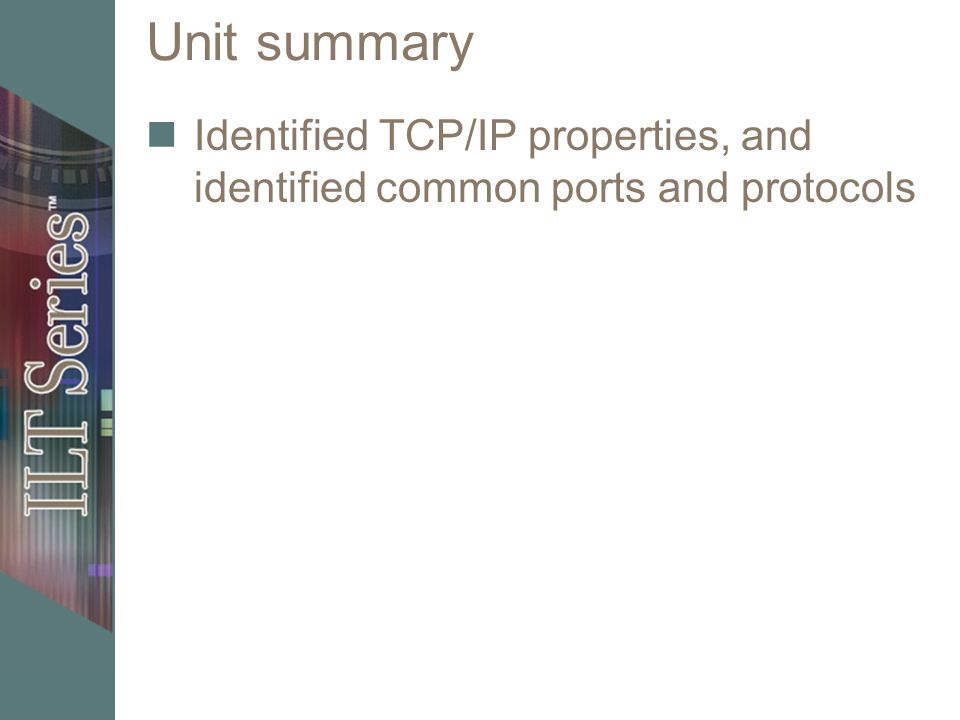

32. Unit summary Identified TCP/IP properties, and identified common ports and protocols
