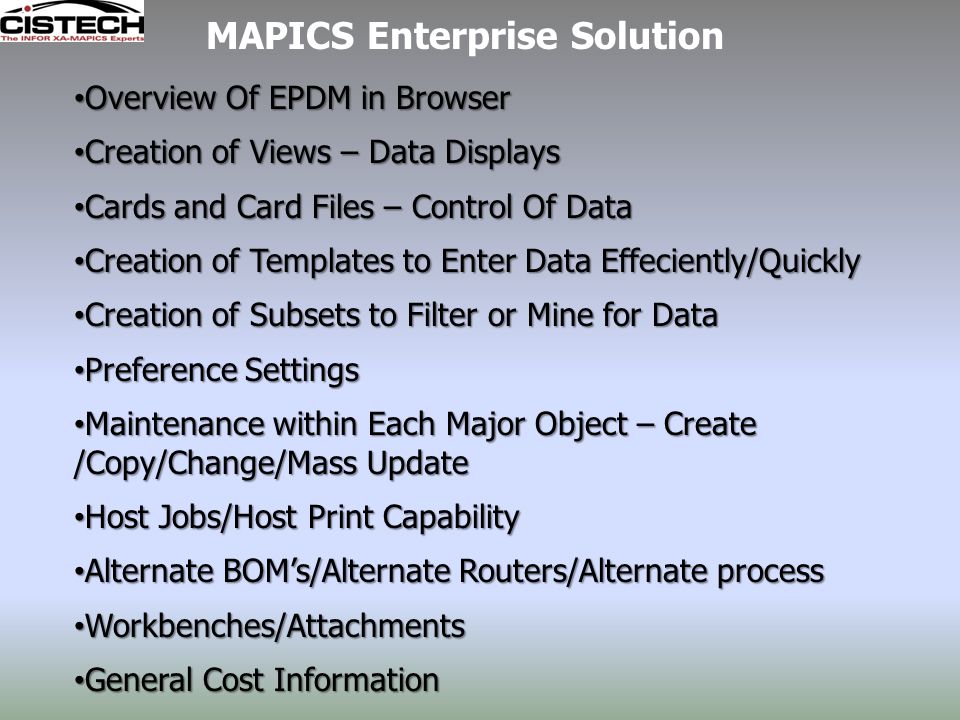

2. Overview Of EPDM in Browser Overview Of EPDM in Browser Creation of Views – Data Displays Creation of Views – Data Displays Cards and Card Files – Control Of Data Cards and Card Files – Control Of Data Creation of Templates to Enter Data Effeciently/Quickly Creation of Templates to Enter Data Effeciently/Quickly Creation of Subsets to Filter or Mine for Data Creation of Subsets to Filter or Mine for Data Preference Settings Preference Settings Maintenance within Each Major Object – Create /Copy/Change/Mass Update Maintenance within Each Major Object – Create /Copy/Change/Mass Update Host Jobs/Host Print Capability Host Jobs/Host Print Capability Alternate BOM’s/Alternate Routers/Alternate process Alternate BOM’s/Alternate Routers/Alternate process Workbenches/Attachments Workbenches/Attachments General Cost Information General Cost Information MAPICS Enterprise Solution

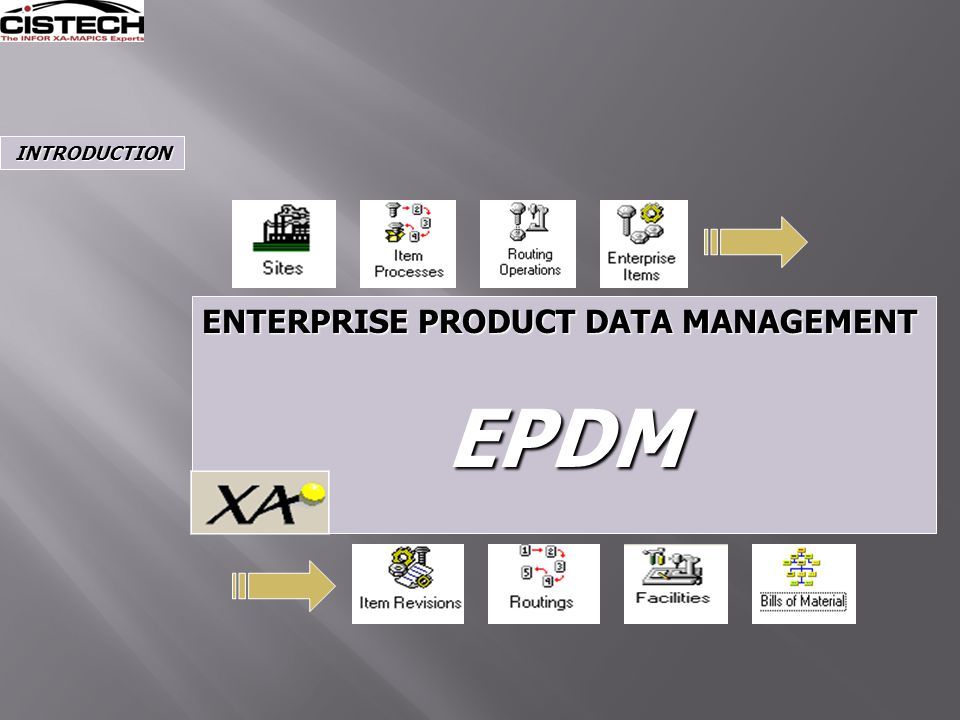

3. ENTERPRISE PRODUCT DATA MANAGEMENT EPDM INTRODUCTION

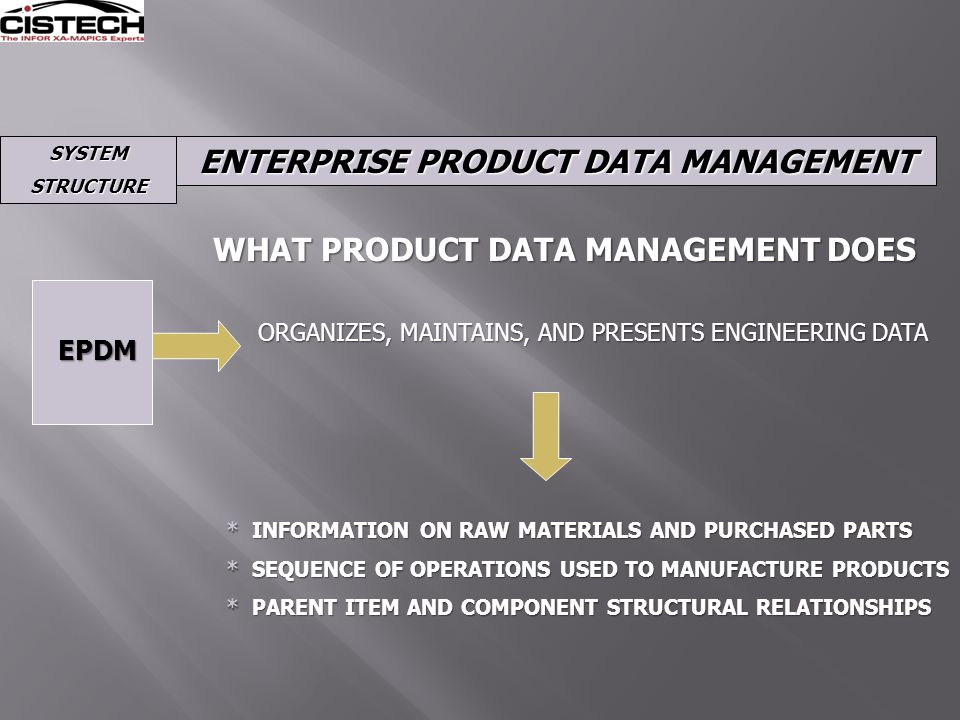

4. SYSTEMSTRUCTURE WHAT PRODUCT DATA MANAGEMENT DOES EPDM ORGANIZES, MAINTAINS, AND PRESENTS ENGINEERING DATA * INFORMATION ON RAW MATERIALS AND PURCHASED PARTS * SEQUENCE OF OPERATIONS USED TO MANUFACTURE PRODUCTS * PARENT ITEM AND COMPONENT STRUCTURAL RELATIONSHIPS

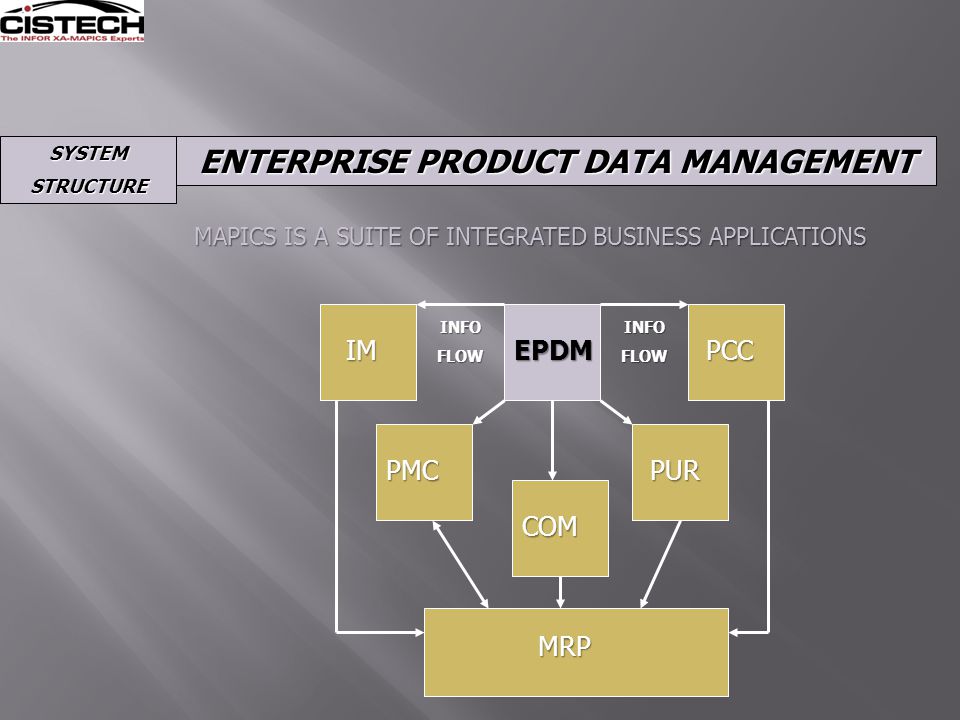

5. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE EPDM COM IM PMC PCC PUR MAPICS IS A SUITE OF INTEGRATED BUSINESS APPLICATIONS INFOFLOWINFOFLOW MRP

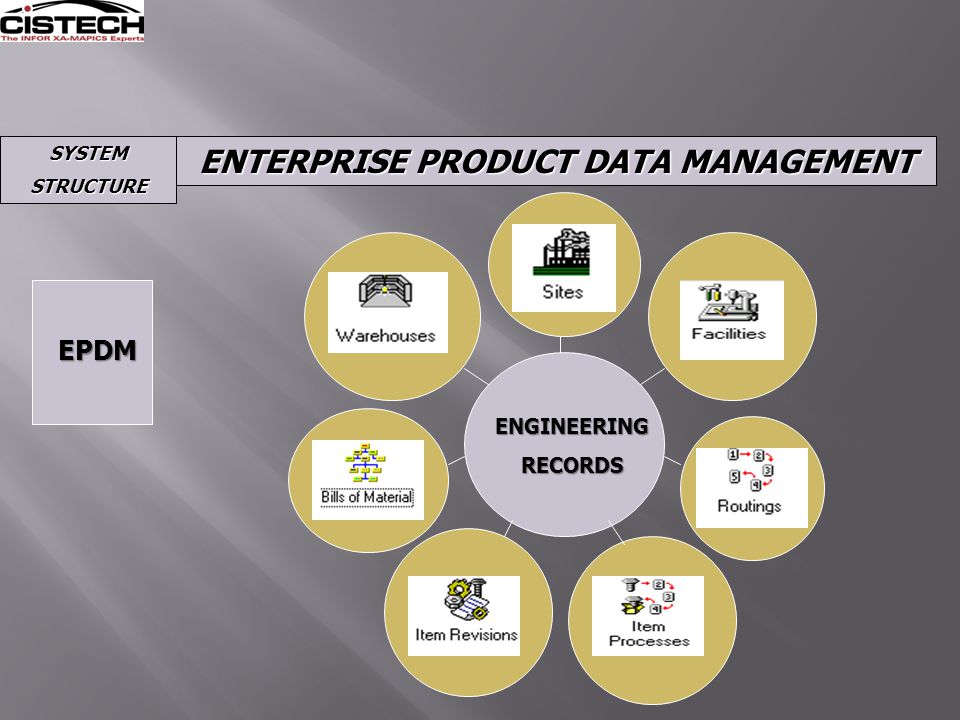

6. ENTERPRISE PRODUCT DATA MANAGEMENT ENGINEERINGRECORDS SYSTEMSTRUCTURE EPDM

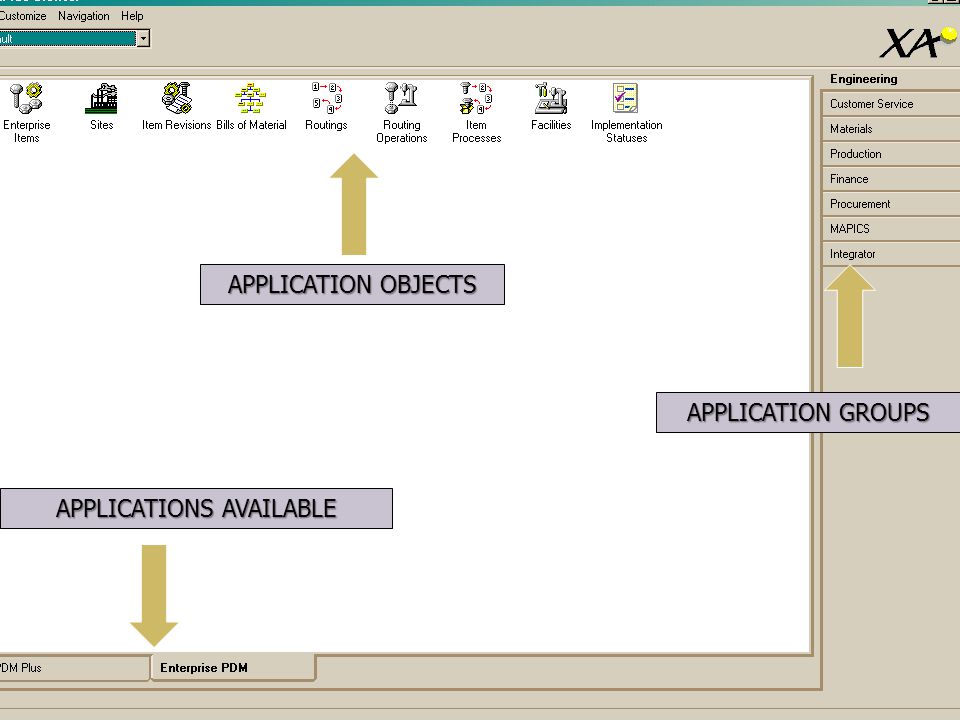

7. APPLICATION GROUPS APPLICATION OBJECTS APPLICATIONS AVAILABLE

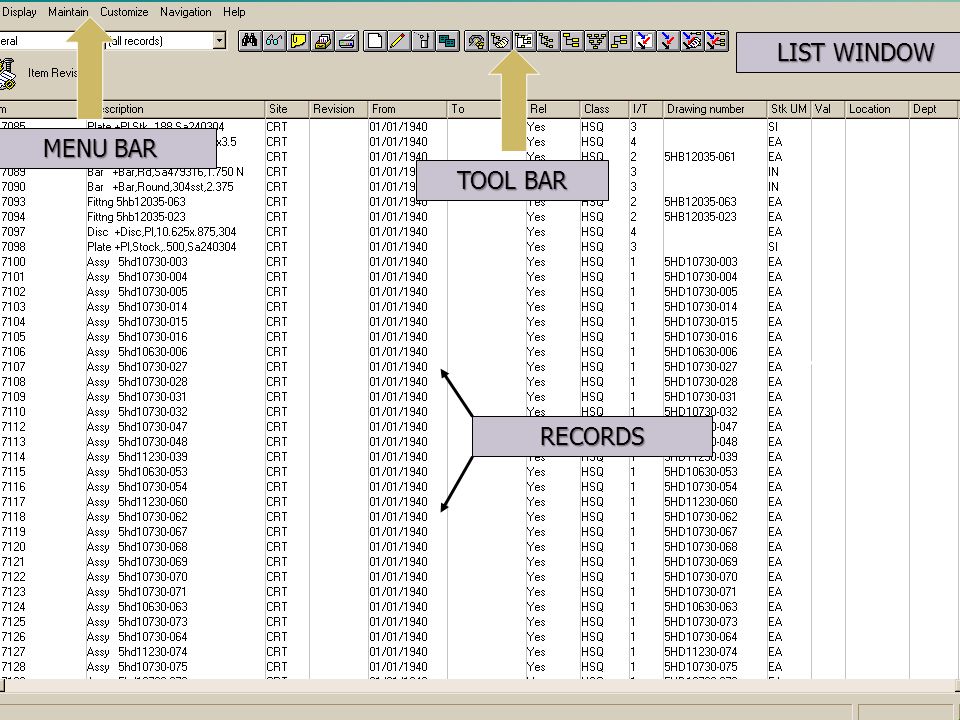

8. MENU BAR TOOL BAR RECORDS LIST WINDOW

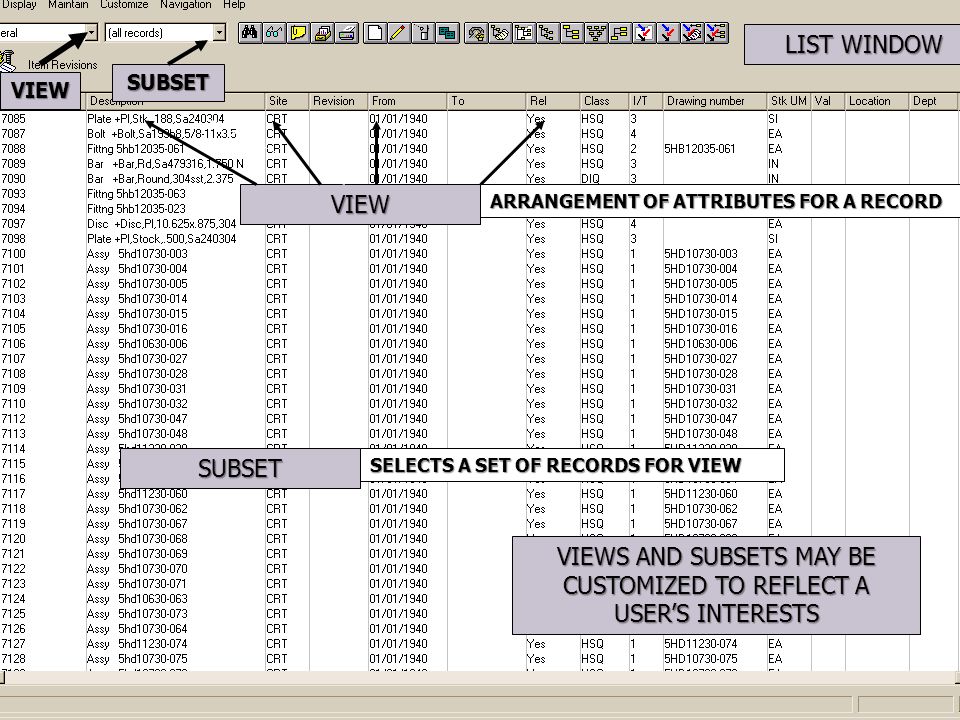

9. VIEW ARRANGEMENT OF ATTRIBUTES FOR A RECORD SUBSET SELECTS A SET OF RECORDS FOR VIEW VIEWS AND SUBSETS MAY BE CUSTOMIZED TO REFLECT A USER’S INTERESTS LIST WINDOW VIEW SUBSET

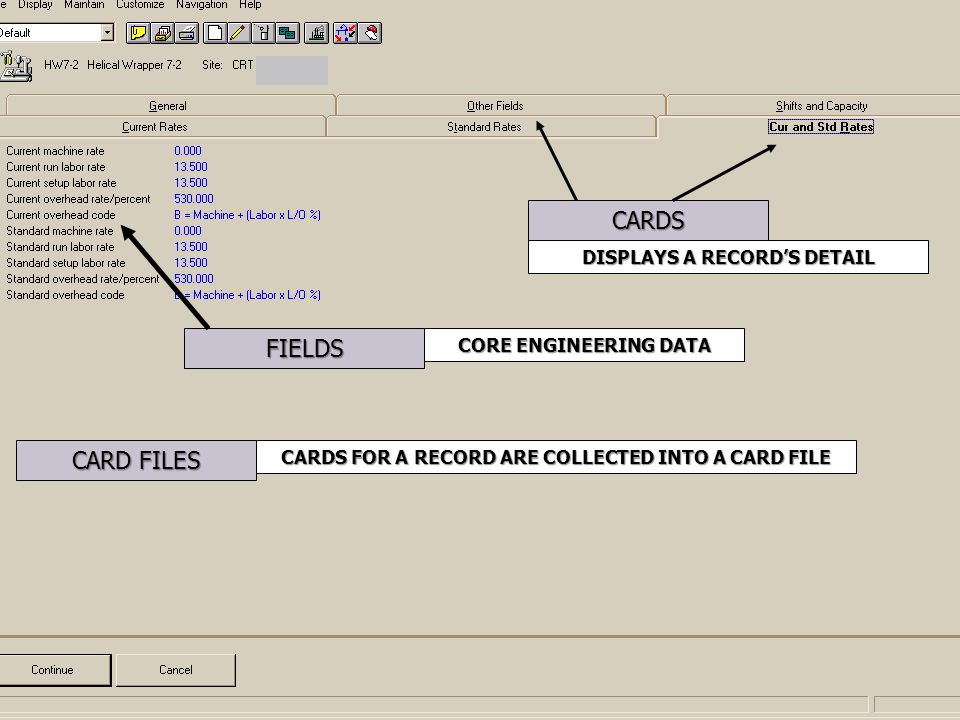

10. CARDS CARD FILES CARDS FOR A RECORD ARE COLLECTED INTO A CARD FILE DISPLAYS A RECORD’S DETAIL FIELDS CORE ENGINEERING DATA

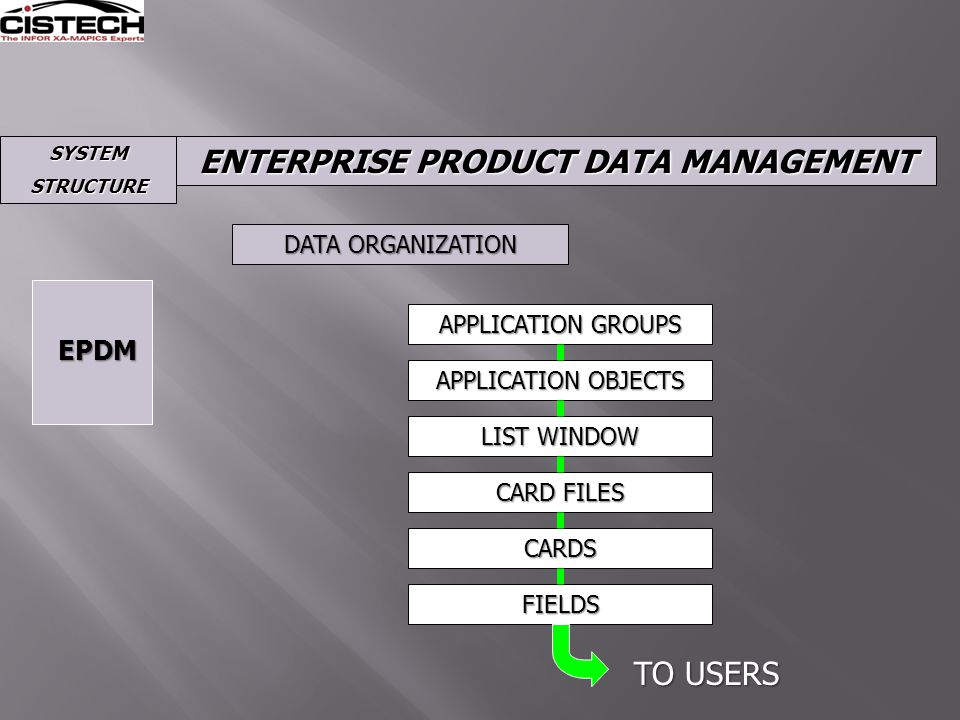

11. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE EPDM DATA ORGANIZATION APPLICATION GROUPS APPLICATION OBJECTS LIST WINDOW CARD FILES CARDS FIELDS TO USERS

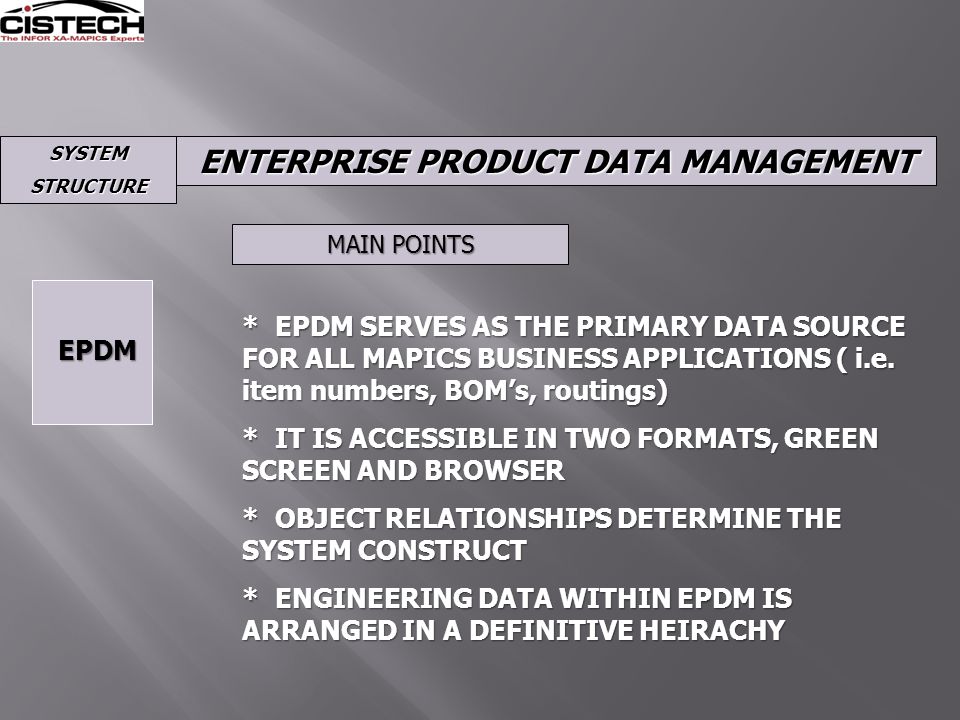

12. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE EPDM MAIN POINTS * EPDM SERVES AS THE PRIMARY DATA SOURCE FOR ALL MAPICS BUSINESS APPLICATIONS ( i.e. item numbers, BOM’s, routings) * IT IS ACCESSIBLE IN TWO FORMATS, GREEN SCREEN AND BROWSER * OBJECT RELATIONSHIPS DETERMINE THE SYSTEM CONSTRUCT * ENGINEERING DATA WITHIN EPDM IS ARRANGED IN A DEFINITIVE HEIRACHY

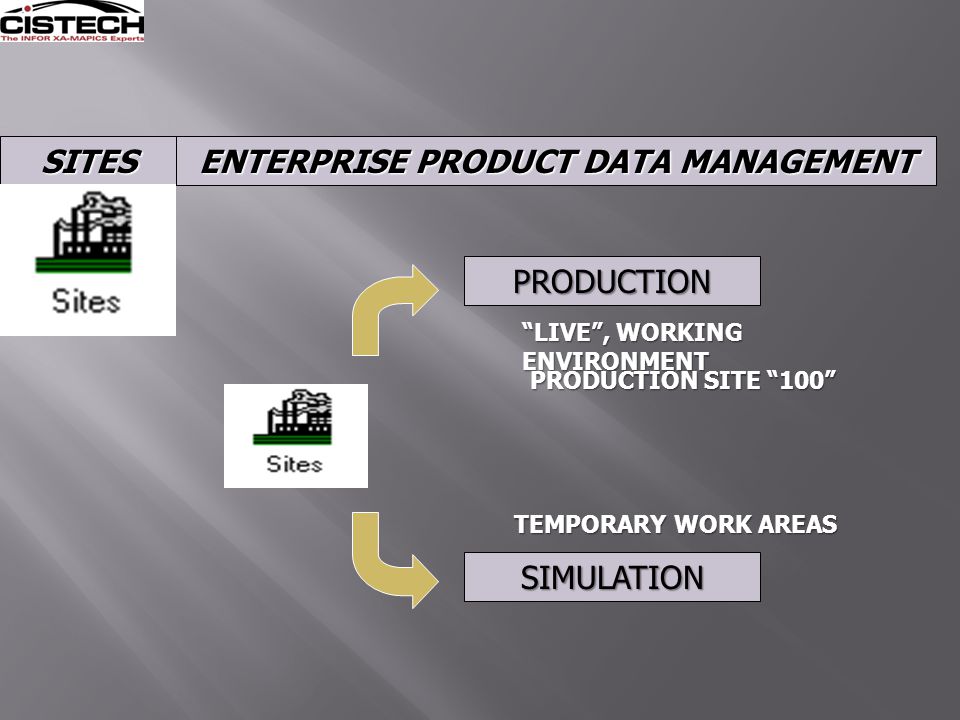

13. ENTERPRISE PRODUCT DATA MANAGEMENT PRODUCTION SIMULATION TEMPORARY WORK AREAS SITES “LIVE”, WORKING ENVIRONMENT PRODUCTION SITE “100”

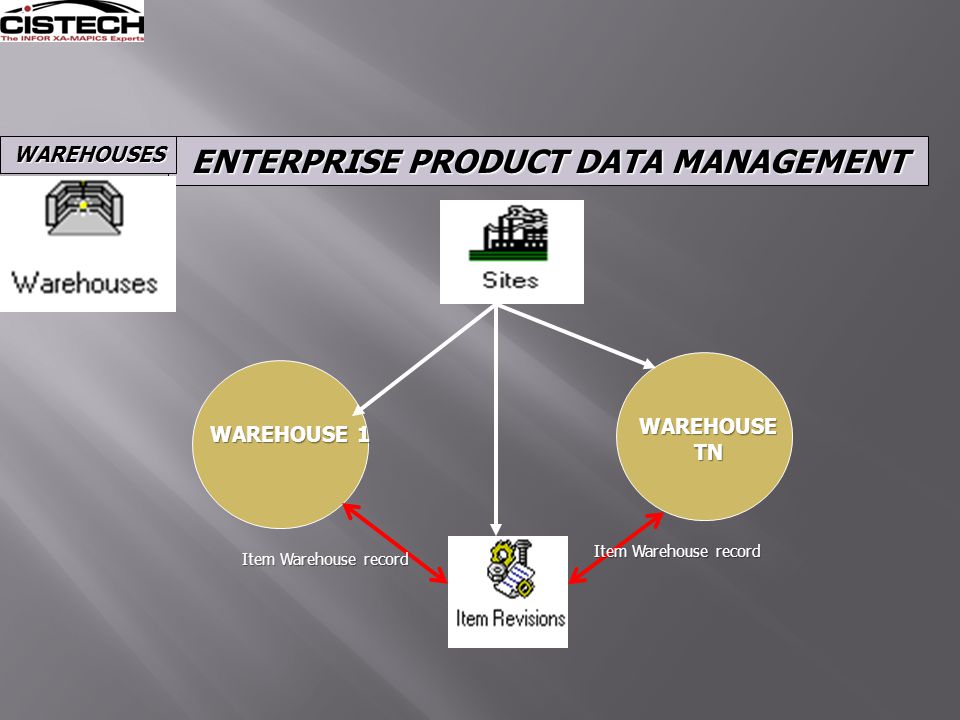

14. ENTERPRISE PRODUCT DATA MANAGEMENT WAREHOUSE 1 WAREHOUSE TN WAREHOUSES Item Warehouse record

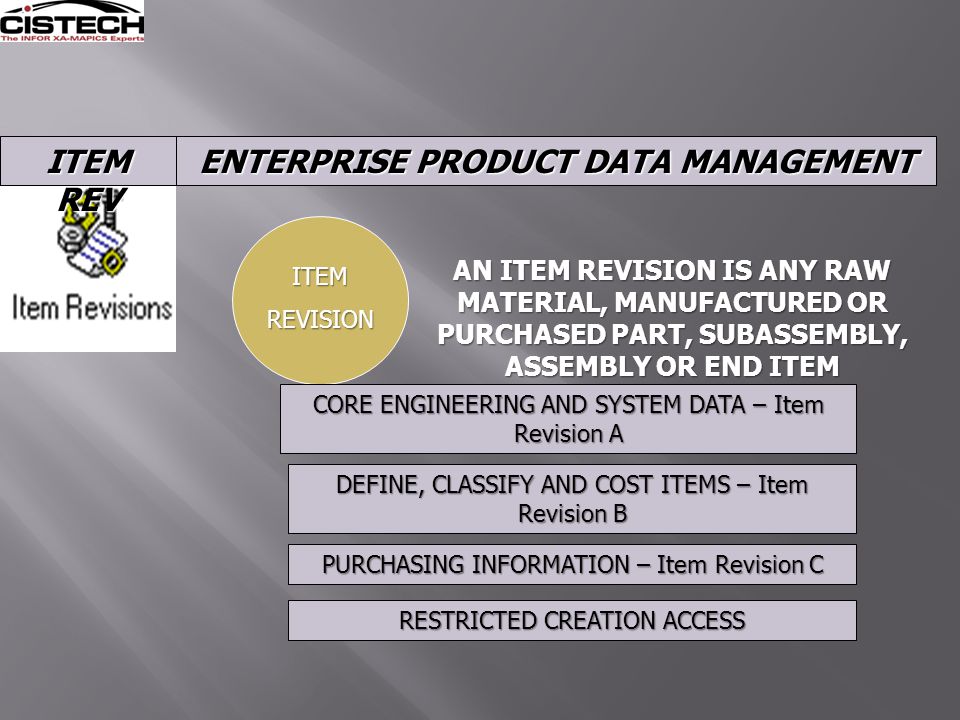

15. ENTERPRISE PRODUCT DATA MANAGEMENT ITEMREVISION AN ITEM REVISION IS ANY RAW MATERIAL, MANUFACTURED OR PURCHASED PART, SUBASSEMBLY, ASSEMBLY OR END ITEM ITEM REV PURCHASING INFORMATION – Item Revision C DEFINE, CLASSIFY AND COST ITEMS – Item Revision B RESTRICTED CREATION ACCESS CORE ENGINEERING AND SYSTEM DATA – Item Revision A

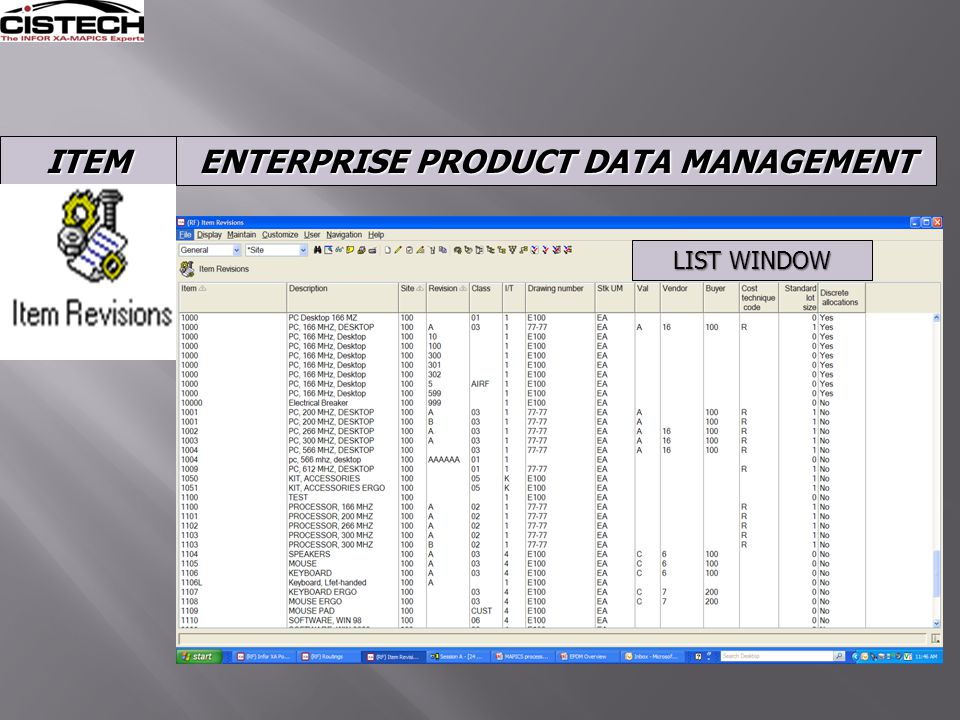

16. ENTERPRISE PRODUCT DATA MANAGEMENT ITEM REV LIST WINDOW

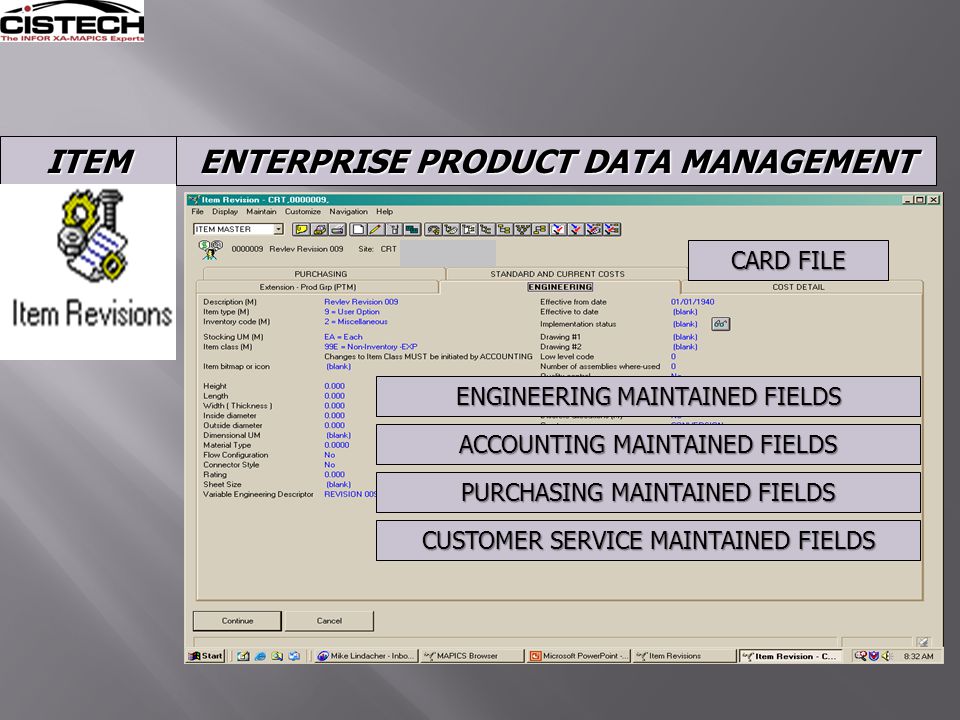

17. ENTERPRISE PRODUCT DATA MANAGEMENT ITEM REV CARD FILES CARD FILE ENGINEERING MAINTAINED FIELDS ACCOUNTING MAINTAINED FIELDS PURCHASING MAINTAINED FIELDS CUSTOMER SERVICE MAINTAINED FIELDS

18. ENTERPRISE PRODUCT DATA MANAGEMENT ROUTING ROUTERS ANALOGOUS TO PROCESS SHEETS, ROUTERS DEFINE HOW AN ITEM IS MANUFACTURED ROUTING FILES ARE LINKED TO A SITE DEFINED BY A ROUTING IDENTIFIER MAY HAVE ALTERNATES COMPRISED OF ROUTING OPERATION FILES

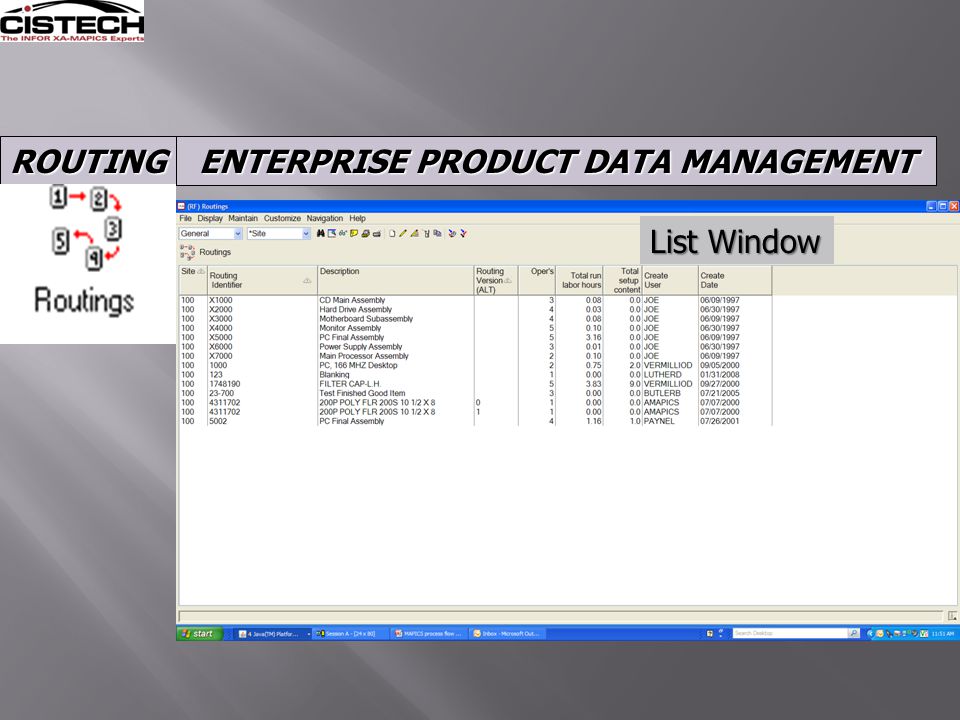

19. ENTERPRISE PRODUCT DATA MANAGEMENT ROUTING List Window

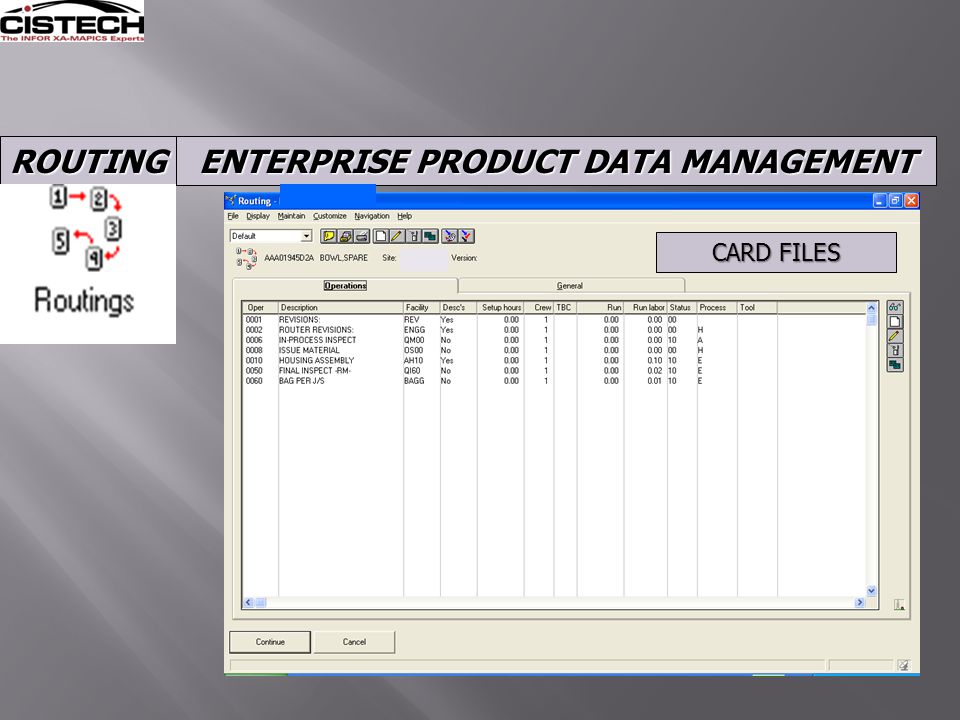

20. ENTERPRISE PRODUCT DATA MANAGEMENT ROUTING CARD FILES

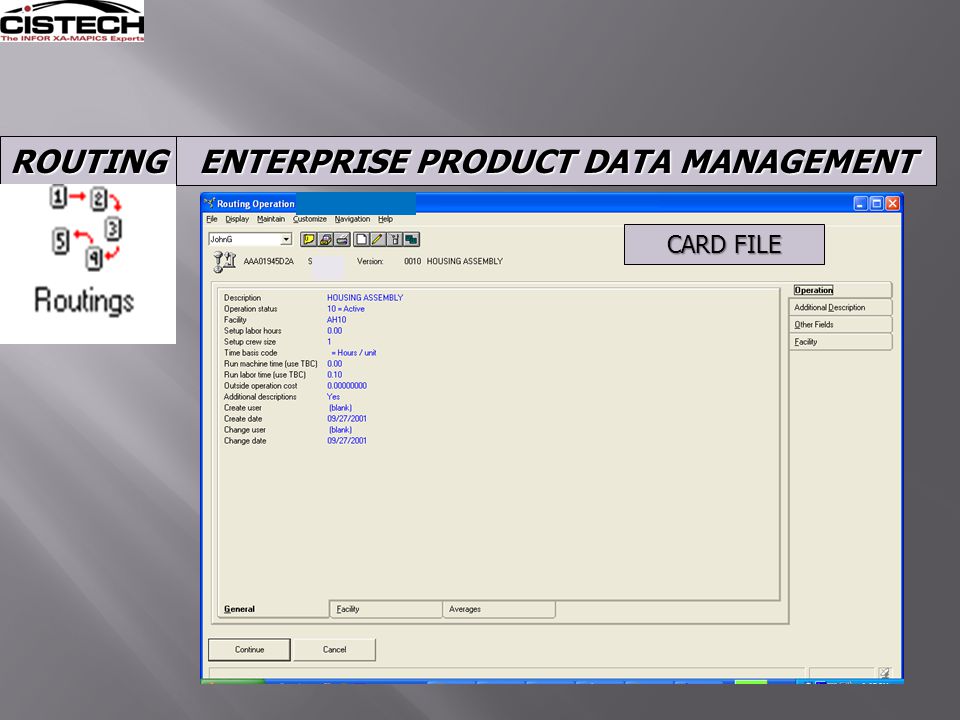

21. ENTERPRISE PRODUCT DATA MANAGEMENT ROUTING CARD FILE

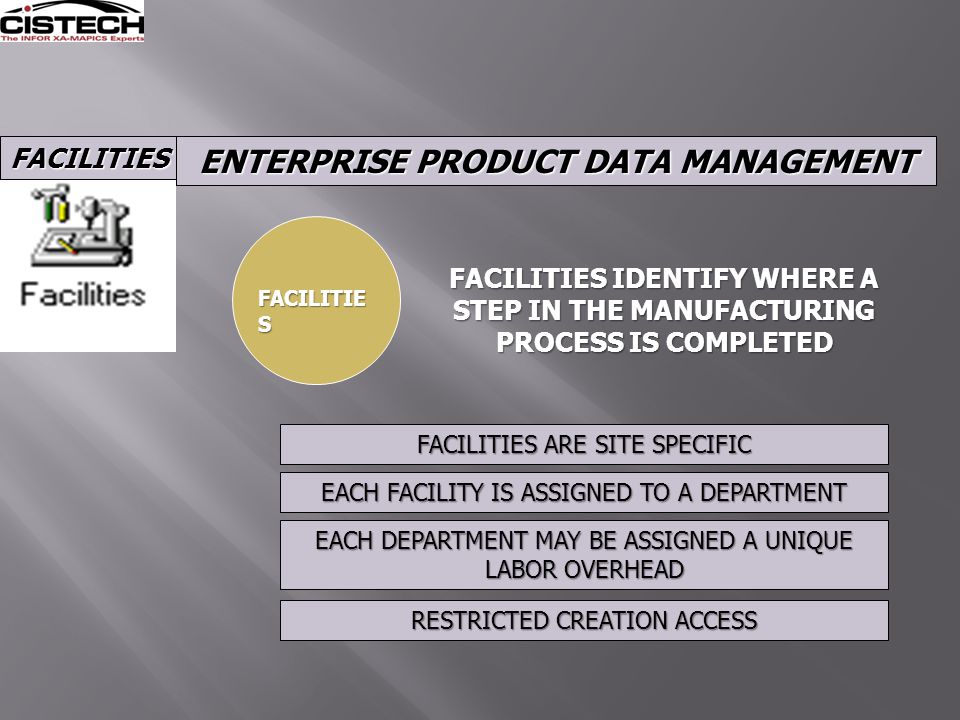

22. ENTERPRISE PRODUCT DATA MANAGEMENT FACILITIE S FACILITIES IDENTIFY WHERE A STEP IN THE MANUFACTURING PROCESS IS COMPLETED FACILITIES FACILITIES ARE SITE SPECIFIC EACH FACILITY IS ASSIGNED TO A DEPARTMENT RESTRICTED CREATION ACCESS EACH DEPARTMENT MAY BE ASSIGNED A UNIQUE LABOR OVERHEAD

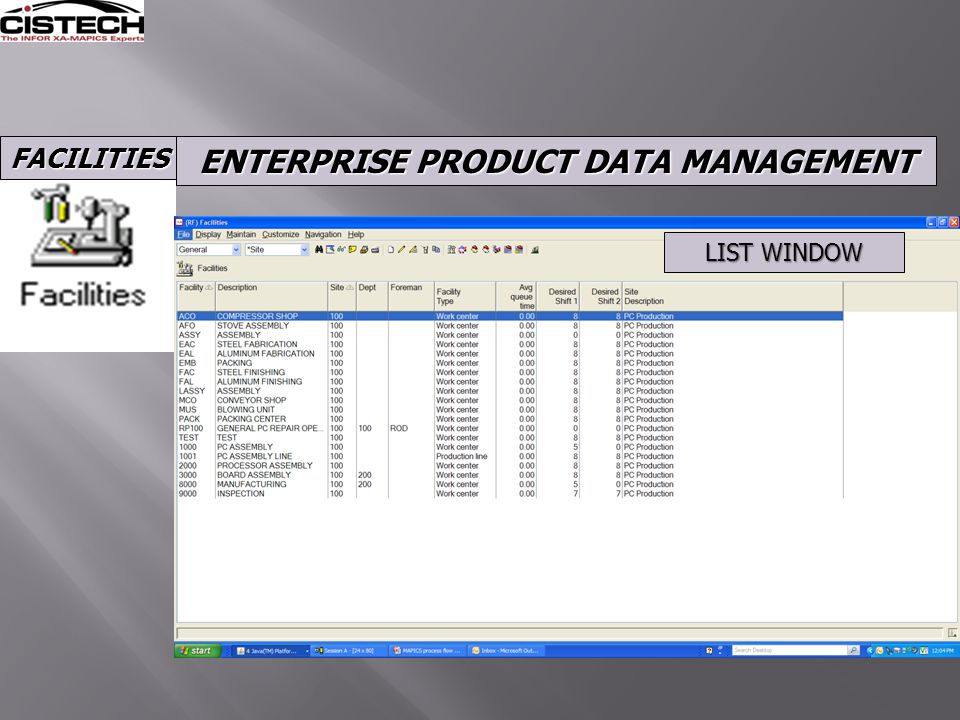

23. ENTERPRISE PRODUCT DATA MANAGEMENT FACILITIES LIST WINDOW

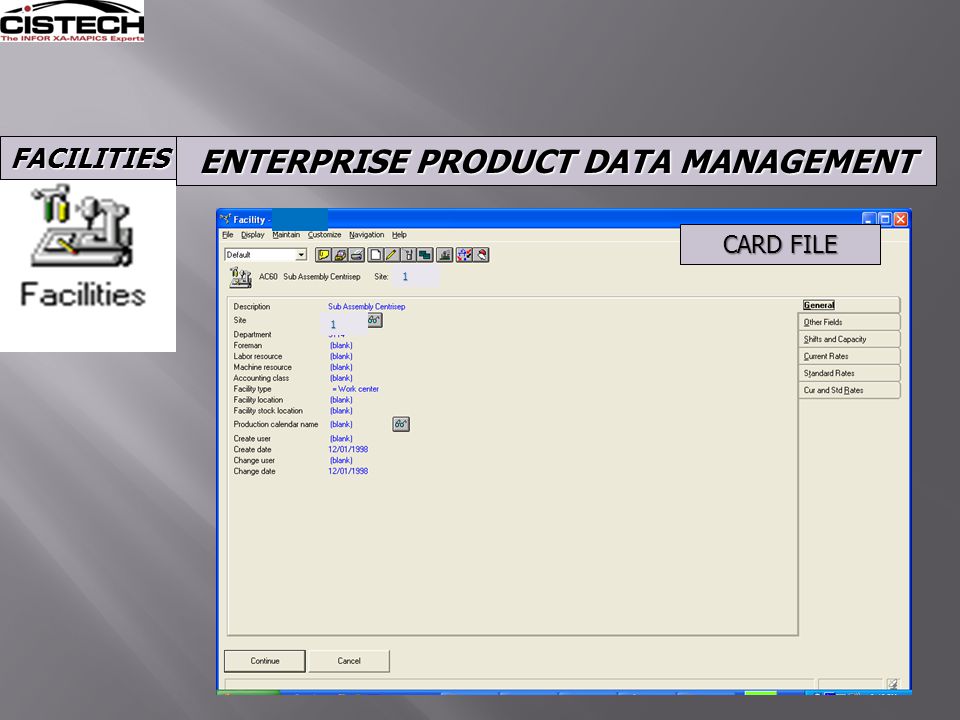

24. ENTERPRISE PRODUCT DATA MANAGEMENT FACILITIES CARD FILE 1 1

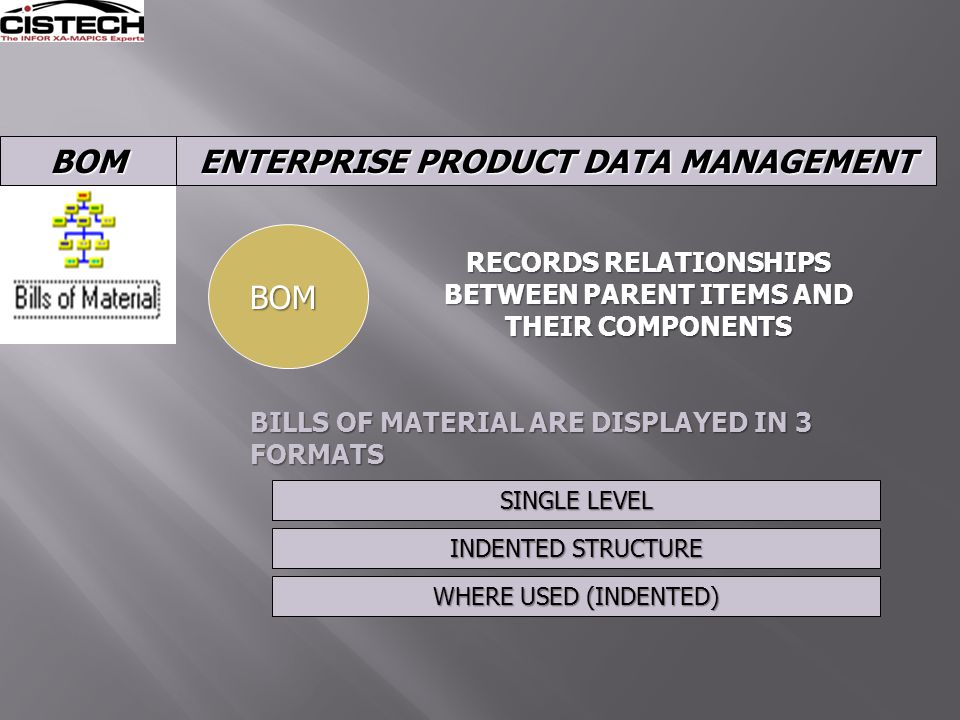

25. ENTERPRISE PRODUCT DATA MANAGEMENT BOM RECORDS RELATIONSHIPS BETWEEN PARENT ITEMS AND THEIR COMPONENTS BILLS OF MATERIAL ARE DISPLAYED IN 3 FORMATS BOM SINGLE LEVEL INDENTED STRUCTURE WHERE USED (INDENTED)

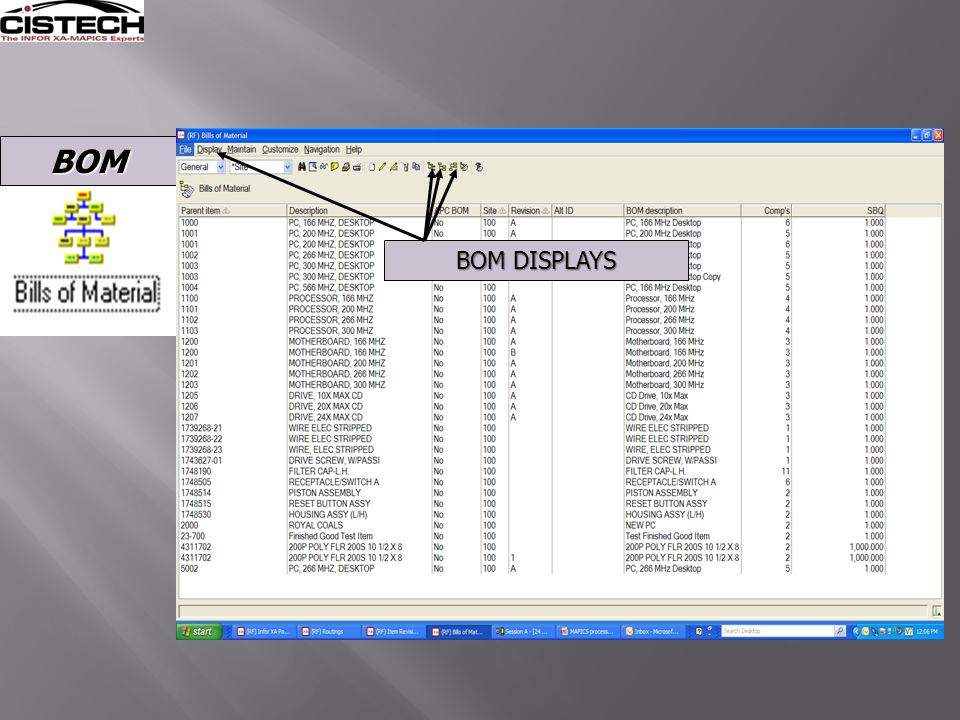

26. BOM BOM DISPLAYS

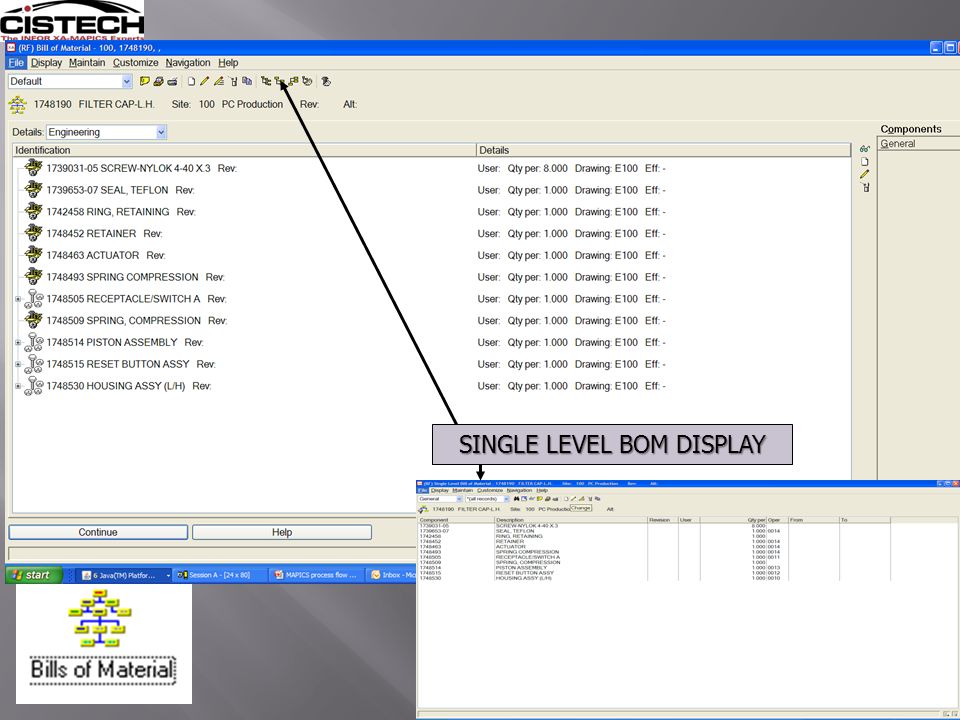

27. SINGLE LEVEL BOM DISPLAY

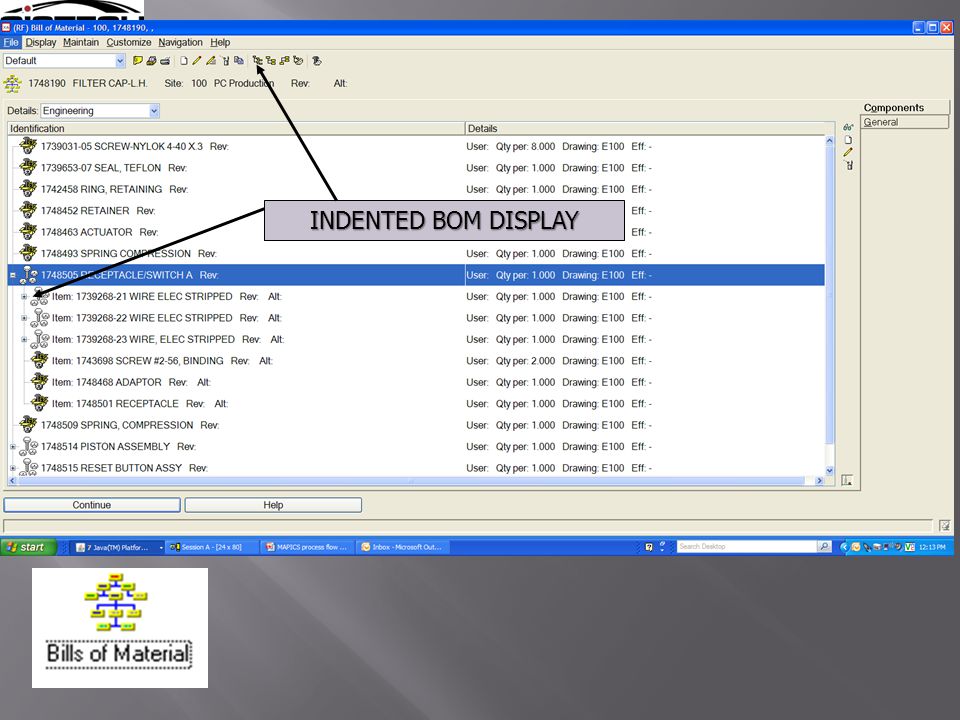

28. INDENTED BOM DISPLAY

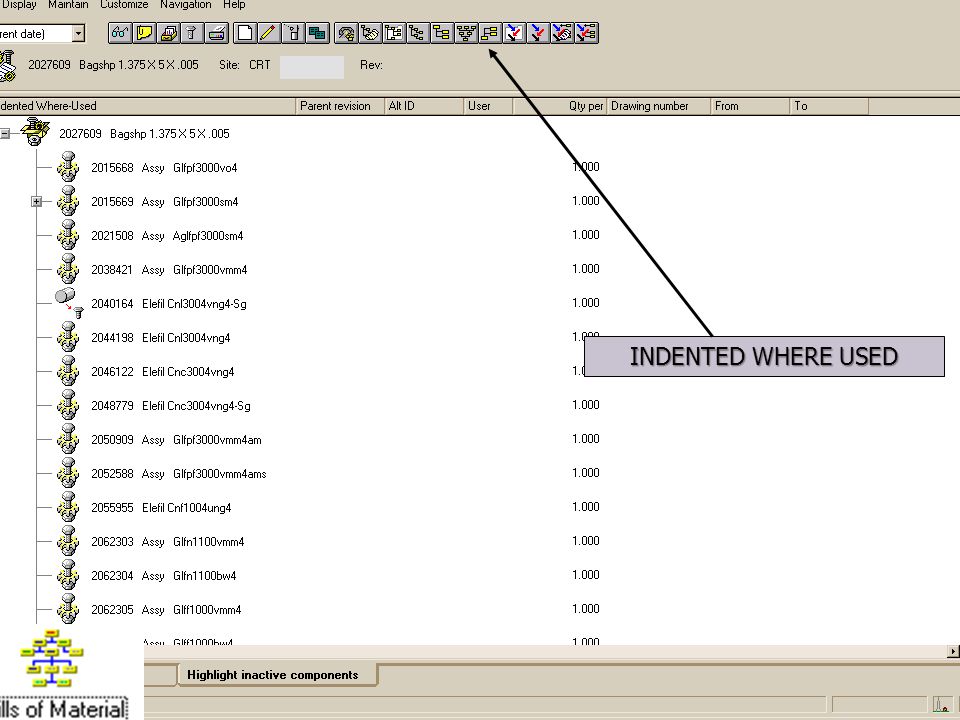

29. INDENTED WHERE USED

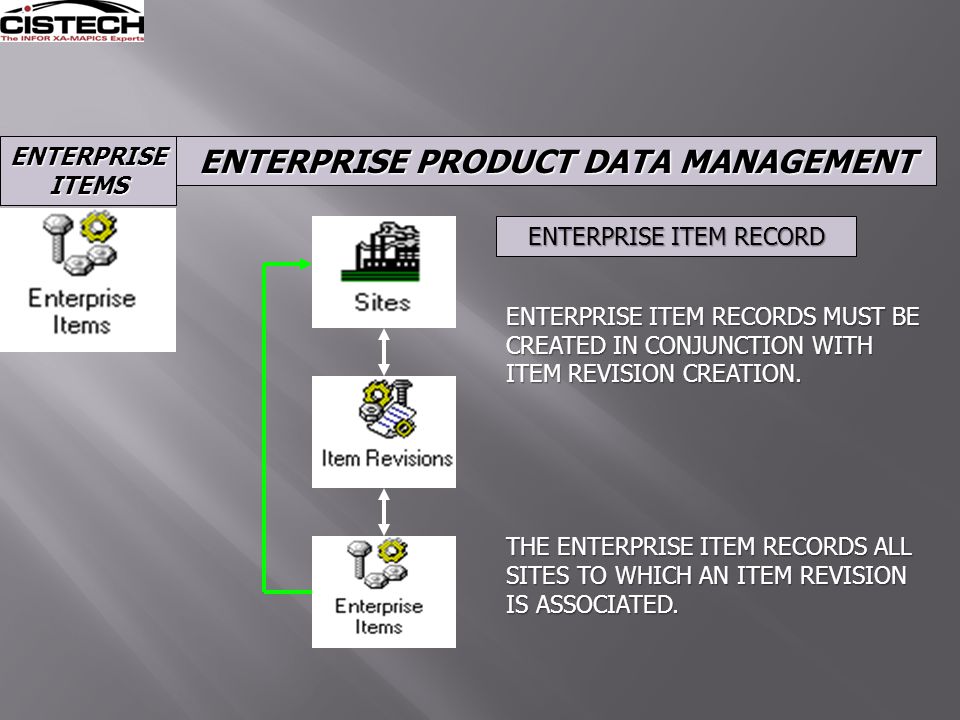

30. ENTERPRISE PRODUCT DATA MANAGEMENT ENTERPRISE ITEMS ENTERPRISE ITEM RECORD ENTERPRISE ITEM RECORDS MUST BE CREATED IN CONJUNCTION WITH ITEM REVISION CREATION. THE ENTERPRISE ITEM RECORDS ALL SITES TO WHICH AN ITEM REVISION IS ASSOCIATED.

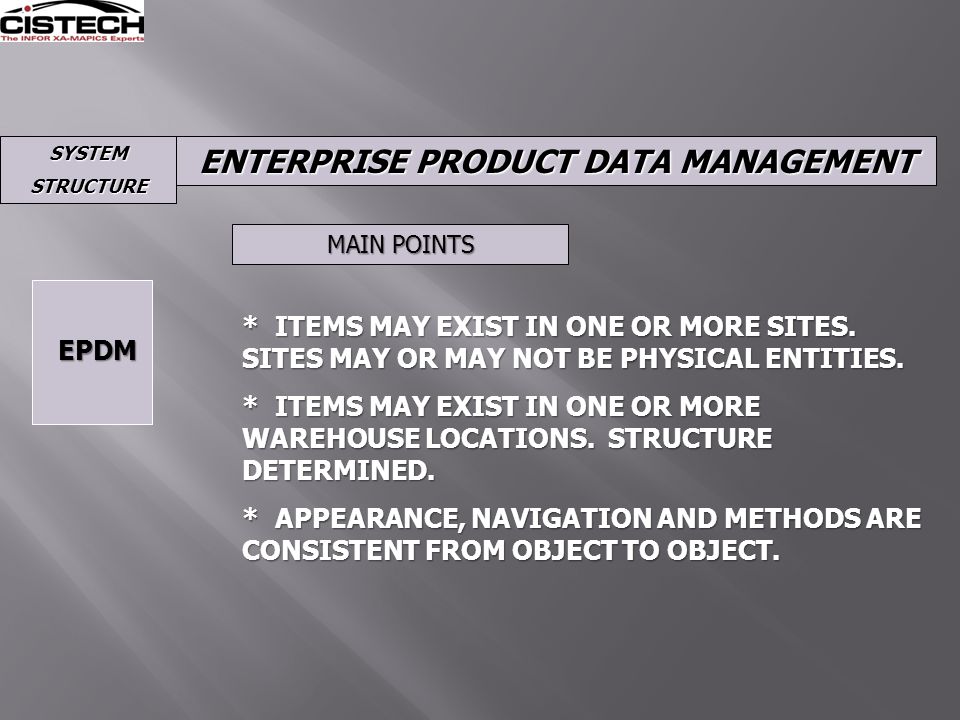

31. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE EPDM MAIN POINTS * ITEMS MAY EXIST IN ONE OR MORE SITES. SITES MAY OR MAY NOT BE PHYSICAL ENTITIES. * ITEMS MAY EXIST IN ONE OR MORE WAREHOUSE LOCATIONS. STRUCTURE DETERMINED. * APPEARANCE, NAVIGATION AND METHODS ARE CONSISTENT FROM OBJECT TO OBJECT.

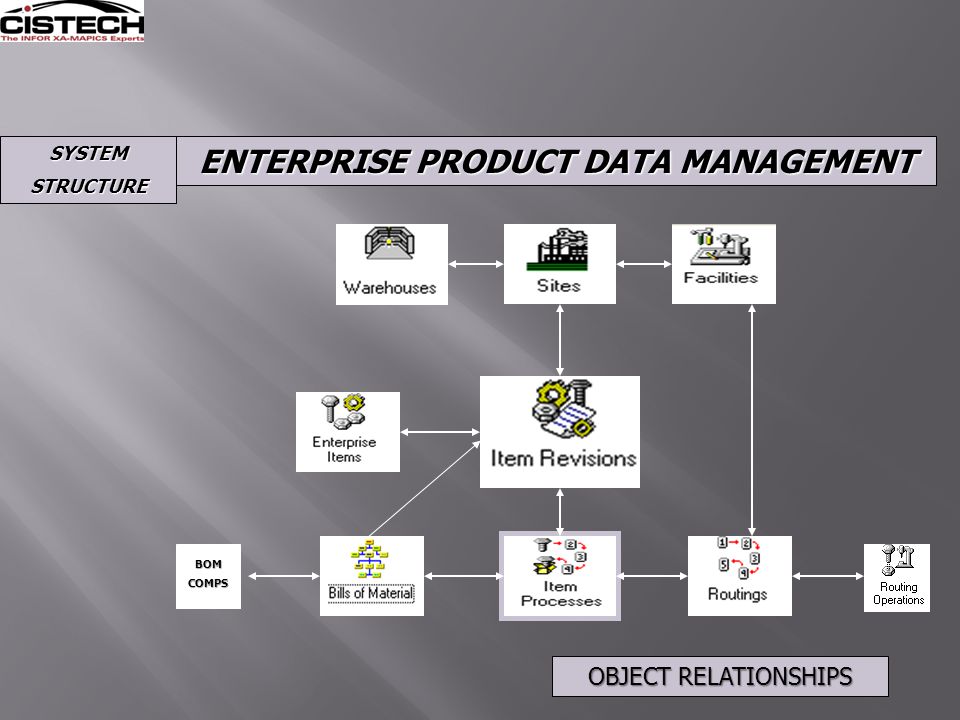

32. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE OBJECT RELATIONSHIPS BOMCOMPS

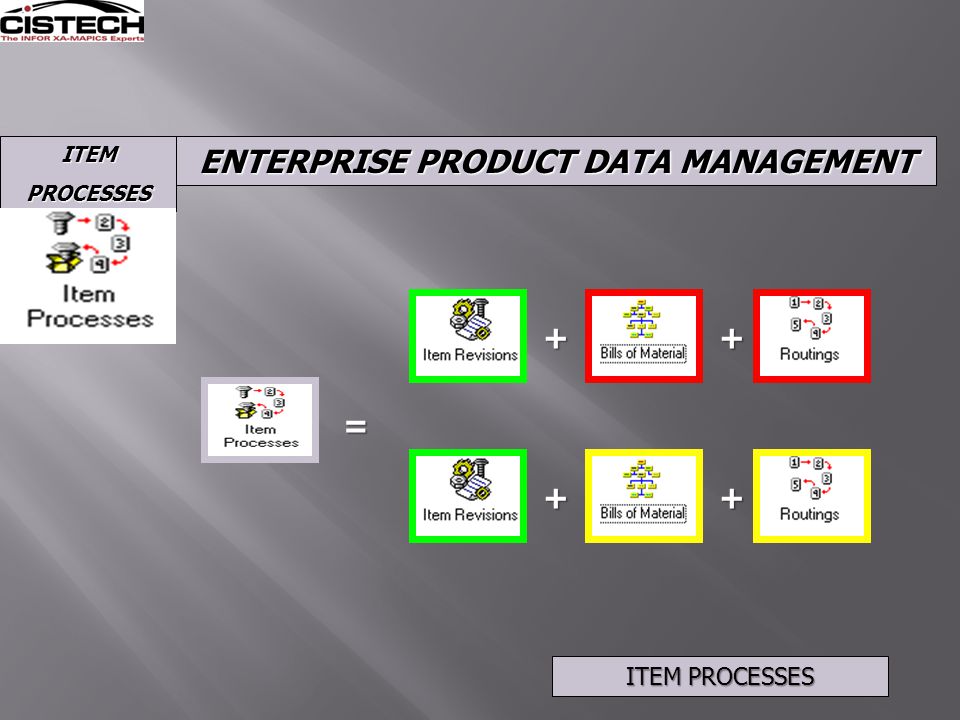

33. ENTERPRISE PRODUCT DATA MANAGEMENT ITEMPROCESSES ITEM PROCESSES = + + + +

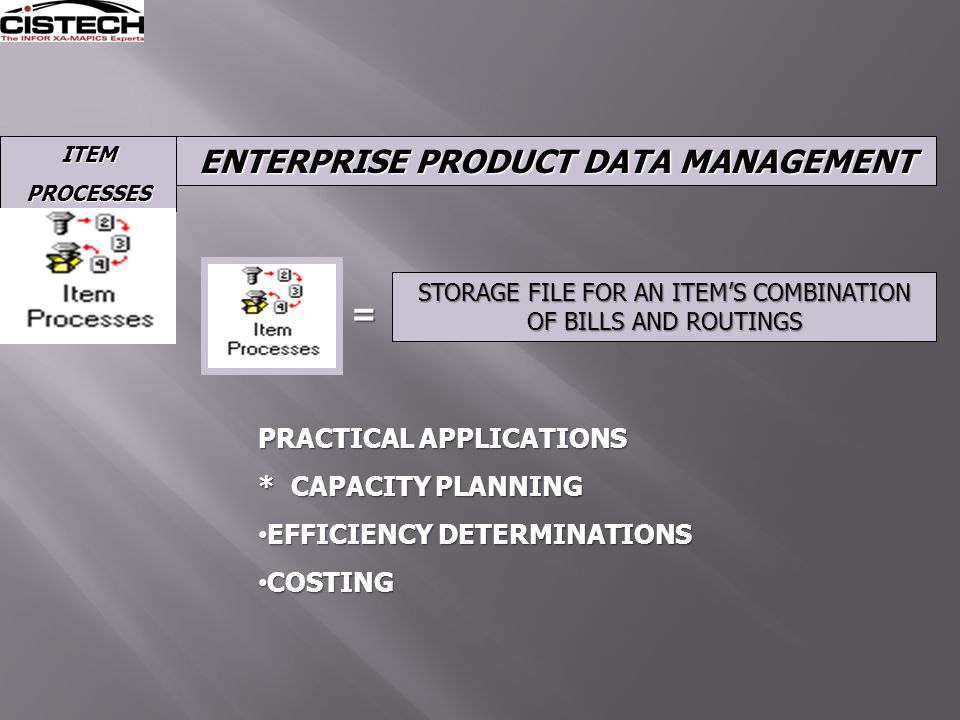

34. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE = STORAGE FILE FOR AN ITEM’S COMBINATION OF BILLS AND ROUTINGS PRACTICAL APPLICATIONS * CAPACITY PLANNING EFFICIENCY DETERMINATIONS EFFICIENCY DETERMINATIONS COSTING COSTING ITEMPROCESSES

35. QUERY DEFINES THE VIEW, SUBSET AND SORT USE QUERIES TO STRUCTURE “ON- LINE REPORTS” EXIT TO EPDM

36. ENTERPRISE PRODUCT DATA MANAGEMENT LOCATE AND QUERY LOCATING RECORDS WITHIN EPDM OBJECTS 1.LOCATE 2.QUERY

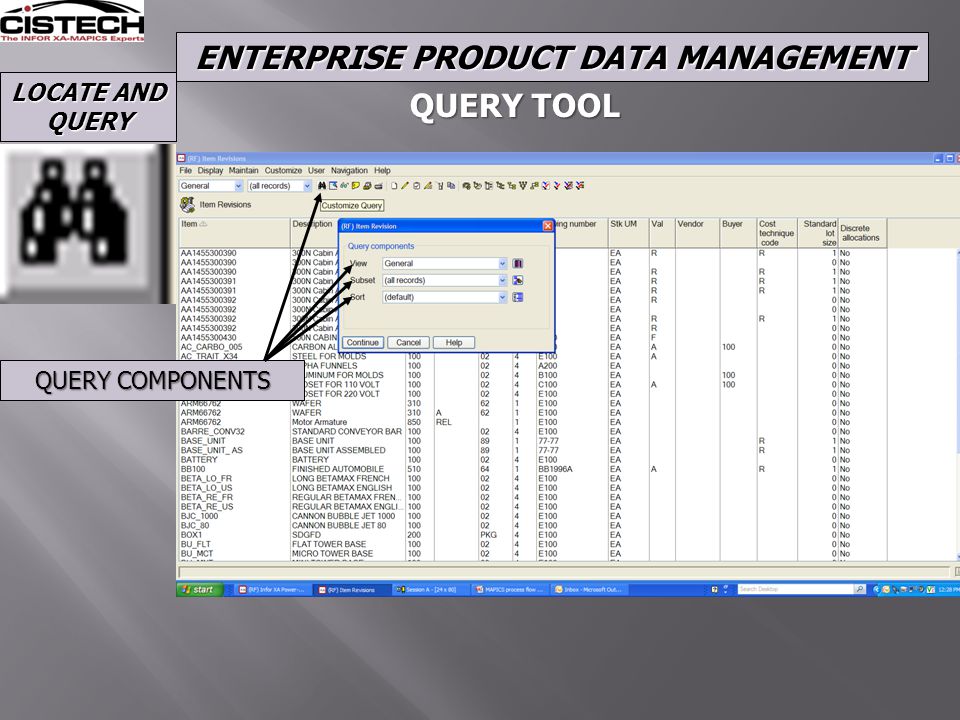

37. QUERY TOOL ENTERPRISE PRODUCT DATA MANAGEMENT LOCATE AND QUERY QUERY COMPONENTS

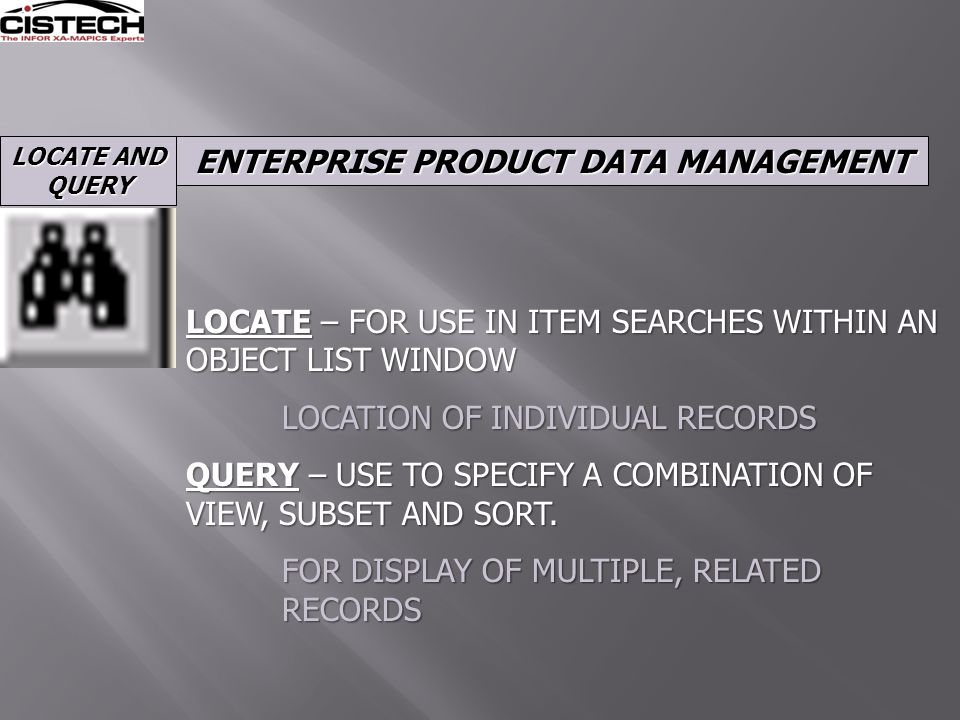

38. ENTERPRISE PRODUCT DATA MANAGEMENT LOCATE AND QUERY LOCATE – FOR USE IN ITEM SEARCHES WITHIN AN OBJECT LIST WINDOW LOCATION OF INDIVIDUAL RECORDS QUERY – USE TO SPECIFY A COMBINATION OF VIEW, SUBSET AND SORT. FOR DISPLAY OF MULTIPLE, RELATED RECORDS

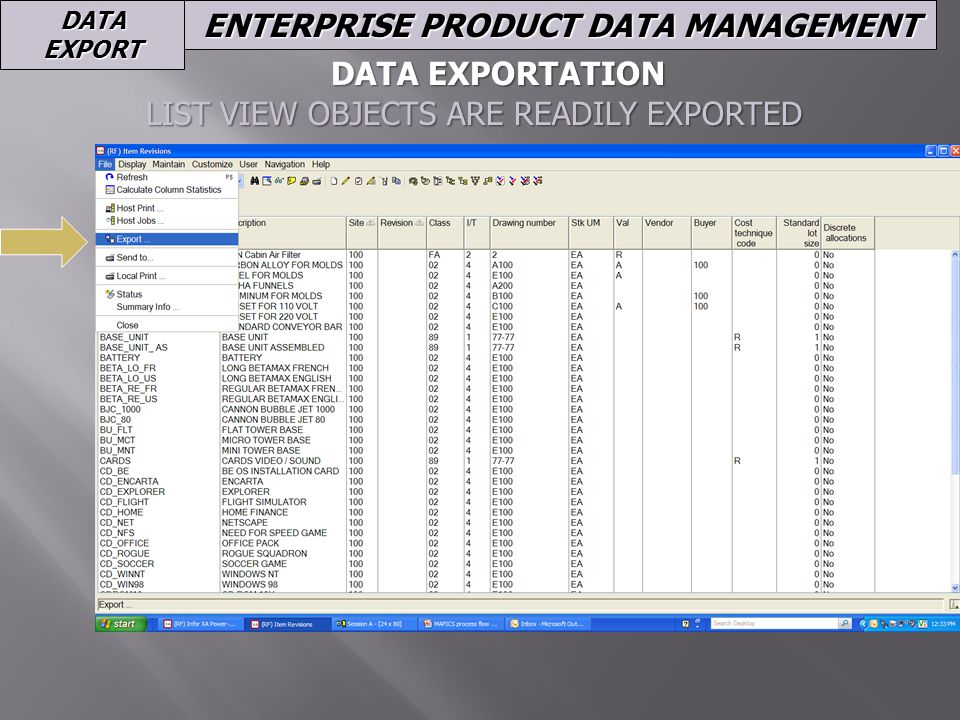

39. ENTERPRISE PRODUCT DATA MANAGEMENT DATA EXPORT DATA EXPORTATION DATA EXPORTATION LIST VIEW OBJECTS ARE READILY EXPORTED

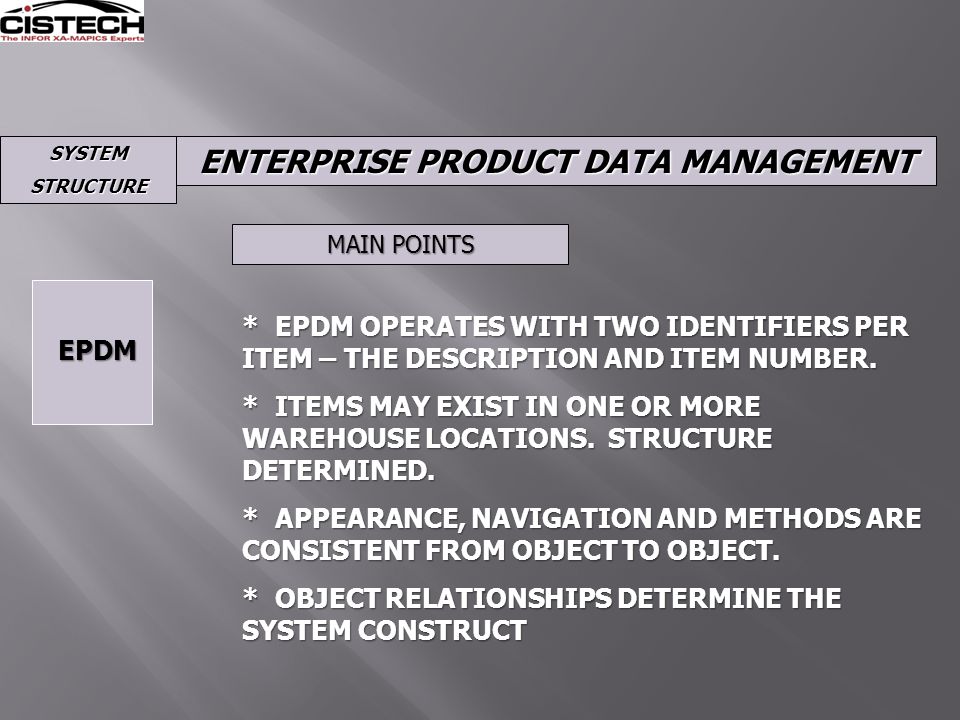

40. ENTERPRISE PRODUCT DATA MANAGEMENT SYSTEMSTRUCTURE EPDM MAIN POINTS * EPDM OPERATES WITH TWO IDENTIFIERS PER ITEM – THE DESCRIPTION AND ITEM NUMBER. * ITEMS MAY EXIST IN ONE OR MORE WAREHOUSE LOCATIONS. STRUCTURE DETERMINED. * APPEARANCE, NAVIGATION AND METHODS ARE CONSISTENT FROM OBJECT TO OBJECT. * OBJECT RELATIONSHIPS DETERMINE THE SYSTEM CONSTRUCT
