1. Okavango Basin Abigail Tomasek

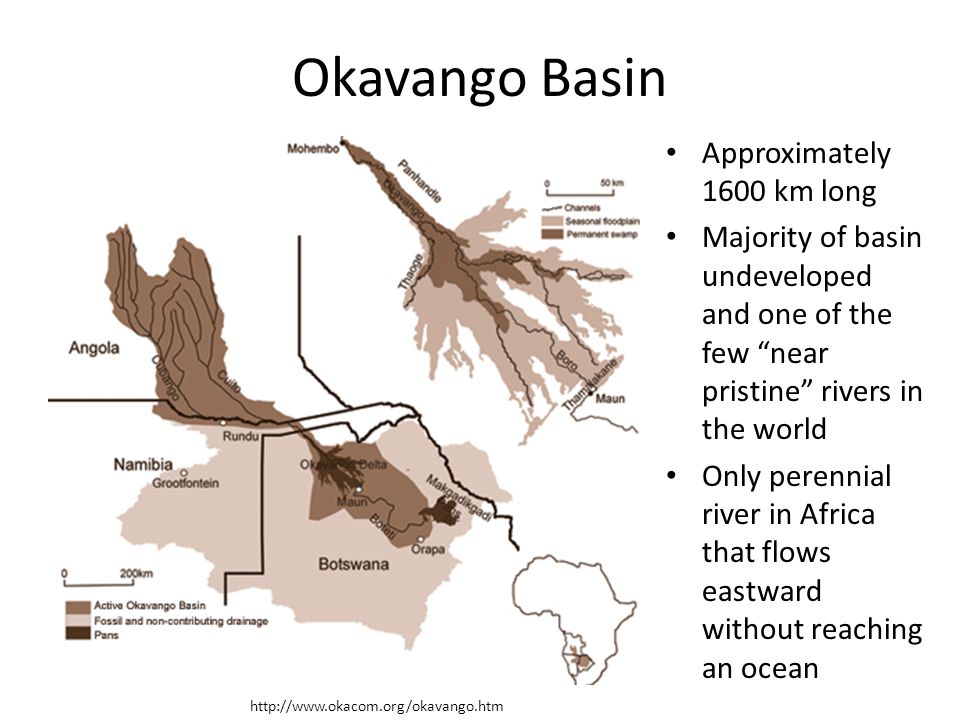

3. Okavango Basin http://www.okacom.org/okavango.htm Approximately 1600 km long Majority of basin undeveloped and one of the few “near pristine” rivers in the world Only perennial river in Africa that flows eastward without reaching an ocean

4. Basin Statistics Percentage of Basin in Country Percentage of Catchment in Country Contribution to Streamflow Population in Basin Mean Annual Rainfall [mm] Avg. Max Annual Rainfall [mm] Angola28%48%94.5%845,8808651320 Namibia23%37%2.9%144,690465595 Botswana46%15%2.6%122,430495570 Basin area estimates range from 320,000- 725,000 km 2 Okavango catchment listed as 413,550 km 2 and Basin as 725,293 km 2 by OKACOM

5. Precipitation Distribution sfrc.ufl.edu/ecohydrology/.../Ecohydrology_Lecture2_F11.pptx Rainfall not equally distributed across basin Majority of water from rainfall in Angola highlands Angola receives three times as much rainfall as Botswana Water is limited and in demand

6. Pictures from the Delta http://www.guardian.co.uk/environment/gallery/2010/mar/04/okavango-delta-floods-of-life#/

7. Okavango Delta Largest inland delta Delta developed in Kalahari depression Situated in a semi-arid region Annual inflow ranges between 7-15 km 3 Approximately 97% of inflow lost to ET and seepage Approximately 3900 km 2 are protected as the Moremi Game Reserve UNESCO World Heritage tentative list Supports over 500 species of birds, 150 species of mammals, and 90 species of fish http://earthobservatory.nasa.gov/IOTD/view.php?id=51190

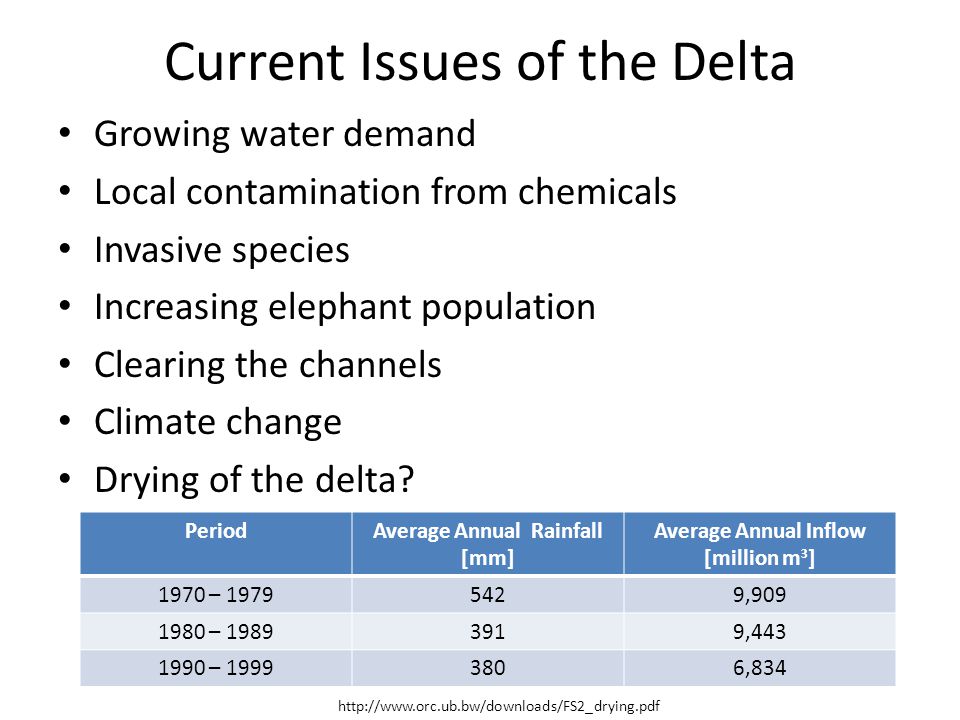

8. Current Issues of the Delta Growing water demand Local contamination from chemicals Invasive species Increasing elephant population Clearing the channels Climate change Drying of the delta? http://www.orc.ub.bw/downloads/FS2_drying.pdf PeriodAverage Annual Rainfall [mm] Average Annual Inflow [million m 3 ] 1970 – 19795429,909 1980 – 19893919,443 1990 – 19993806,834

9. Current Water Usage Angola – Assuming 350,000 people, expected usage of 6 million m 3 annually – Only one dam (40ha) on tributary Namibia – 16.5 million m 3 per year taken for irrigating 1100 ha, and approximately 5.5 million m 3 for water supply to Rundu and villages Botswana – Approximately 2 million m 3 annually for Sepupa, Shakawe and Mahembo – Maun uses 3 million m 3 annually but mostly from GW Abstractions 41 million m 3 annually, about 0.44% of water flowing in Okavango River

10. Potential Sources of Conflict Return of refugees to the Angola highlands with large developmental needs Failed plans to construct a hydroelectric dam on Popa Falls along Angola-Namibia border Failed plans for Namibia’s Eastern National Water Carrier Water scarcity in area Botswana’s reliance on the health of the delta http://www.tripmondo.com/namibia/caprivi/bagani/picture-gallery-of-bagani/

11. OKACOM agreement signed in 1994 OKACOM Agreement gives it legal responsibility to: – Determine the long term safe yield of the river basin – Estimate reasonable demand from the consumers – Prepare criteria for conservation, equitable allocation and sustainable utilization of water – Conduct investigations related to water infrastructure – Recommend pollution prevention measures – Develop measures for the alleviation of short term difficulties, such as temporary droughts – Address other matters determined by the commission

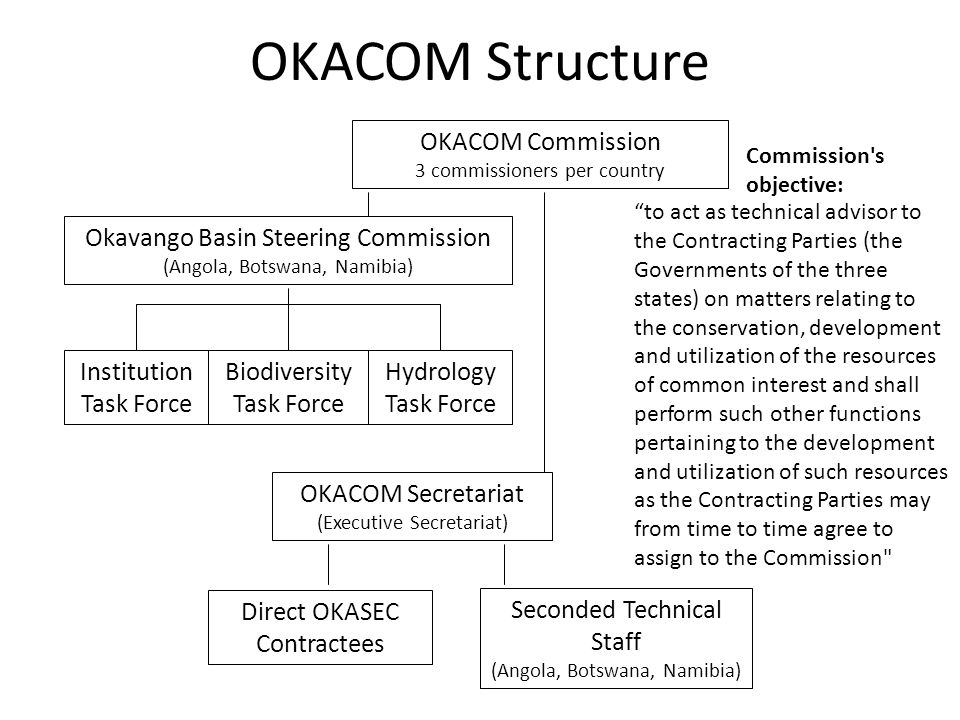

12. OKACOM Structure OKACOM Commission 3 commissioners per country Institution Task Force Biodiversity Task Force Hydrology Task Force Okavango Basin Steering Commission (Angola, Botswana, Namibia) OKACOM Secretariat (Executive Secretariat) Direct OKASEC Contractees Seconded Technical Staff (Angola, Botswana, Namibia) “to act as technical advisor to the Contracting Parties (the Governments of the three states) on matters relating to the conservation, development and utilization of the resources of common interest and shall perform such other functions pertaining to the development and utilization of such resources as the Contracting Parties may from time to time agree to assign to the Commission" Commission's objective:

13. OKACOM Projects and Partners Okavango River Basin Water Audit (ORBWA) project (follow up of EPSMO) Southern Africa Regional Environmental Program (SAREP) Environmental Protection and Sustainable Management of the Okavango River Basin (GEF- EPSMO) The Every River Has Its People Project The Integrated River Basin Management Project (IRBM)

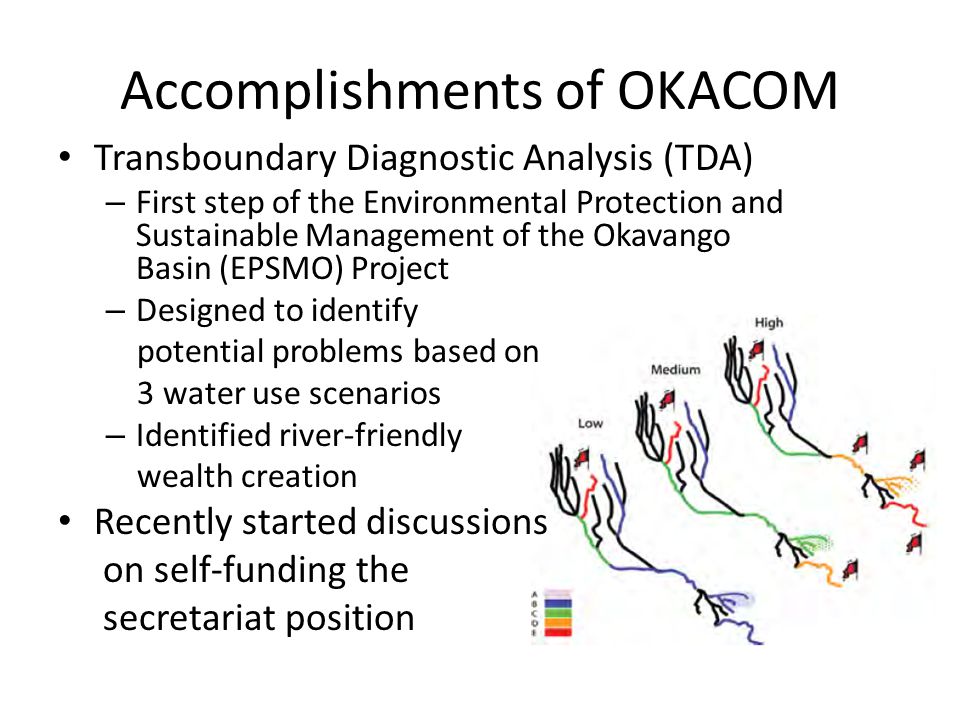

14. Accomplishments of OKACOM Transboundary Diagnostic Analysis (TDA) – First step of the Environmental Protection and Sustainable Management of the Okavango Basin (EPSMO) Project – Designed to identify potential problems based on 3 water use scenarios – Identified river-friendly wealth creation Recently started discussions on self-funding the secretariat position

15. Possible Issues for OKACOM All decisions during OKACOM meetings made on basis of consensus, and agreement seems ambiguous as to what happens if consensus not made No exact provisions for dispute resolution in the OKACOM agreement Member states can leave OKACOM Agreement after providing Member States 6 months notice No provisions for benefit sharing No specified repercussions for going against agreement

16. Questions How should water in a basin be allocated? Angola is expected to have large developmental needs in the near future, and contributes the majority of the streamflow, but is less water-stressed than Botswana and Namibia. Should this be taken into account? How can the countries balance the protection of the Okavango River and delta while still meeting their water demands? Do you think OKACOM’s structure is working? Is the lack of development in the basin is because OKACOM’s success, or the political situation in the basin hindering development? If protection of the Okavango delta is of global concern, should nations outside the basin be expected to contribute to its preservation?

17. References http://www.caee.utexas.edu/prof/mckinney/ce397/Readings/IW_Review_of_Legal_Ins tl_Frameworks.pdf http://www.caee.utexas.edu/prof/mckinney/ce397/Readings/IW_Review_of_Legal_Ins tl_Frameworks.pdf http://www.okacom.org/ http://pdf.usaid.gov/pdf_docs/PDACD456.pdf http://www.wetlands.org/reports/ris/1BW001_mgtpln.pdf http://www.greencrossitalia.it/ita/acqua/wfp/pdf/greencrosswfp_okavango.pdf http://www.orc.ub.bw/downloads/FS2_drying.pdf http://www.okacom.org/TDA%20Brochure.pdf http://www.okavango-delta.net/info.htm http://www.economist.com/node/150959
