1. Getting Started with the Internet of Things (IoT) using the Texas Instruments CC3200
Featuring:
CC3200 SimpleLink Wi-Fi LaunchPad
Monday, June 15
2:15 – 3:45 pm
Room 606
Presenter: Dr. Thad B. Welch, P.E.

2. But before we start - a quick survey
Educator
Teaching assistant
Student
You teach microprocessors
You teach communications
You teach a project-based course
You own an IoT device
None of the above …

3. Outline Quickly … what is the IoT?
Hardware hands on with Energia … coding example to make an LED blink
How to configure your personal development system
Continued … what is the IoT?
TEMBOO Yahoo weather example
Weather example … extended
Creating a simple APP

4. Quickly … what is the IoT?
A diverse collection of technologies and devices designed to connect everyday objects to the Cloud to keep track of people, assets and events effortlessly and in real-time, providing enhanced personal and societal awareness and control
Image from:

5. The Evolution of the IoT
Internet of Things
50 billion connected devices by 2020
Things on the Internet
Total number of things
Things talk to each other and the Internet
Connected Things
Things talk directly to the Internet
Things
No direct connection to the Internet
Time

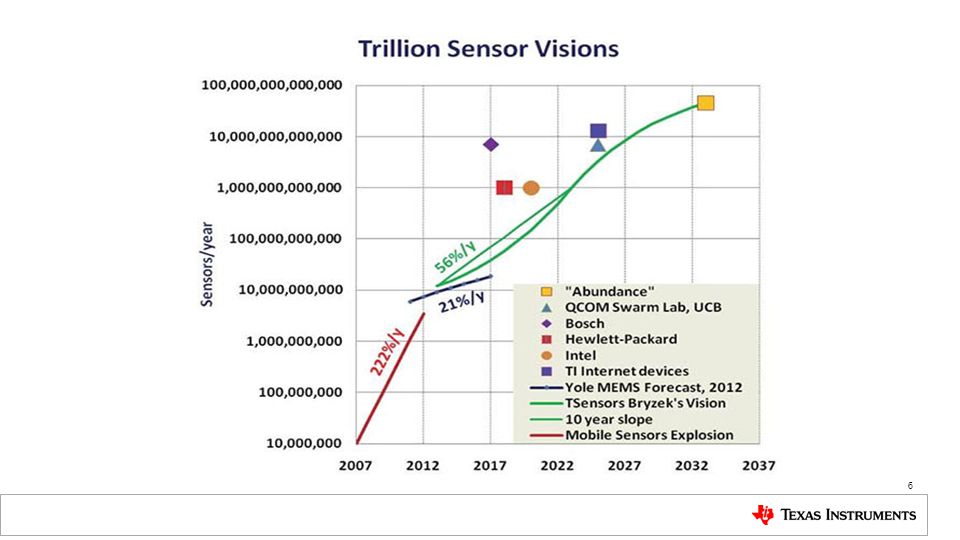

8. Now you are a hardware ninja!
Hardware Hands On
Verify board configuration
Jumpers are correct
Plugged into the computer
Launch Energia
Run the example, File – Example – Basics – Blink
LED on the CC3200 should now be blinking
Let’s quickly look at the code
Now you are a hardware ninja!

9. FYI … how to configure your personal development system
Have a CC3200, a micro USB cable, and a jumper wire
Install Energia version 15
Verify all jumper connections
Update the CC3200 firmware (optional)
Install the CC3200 drivers, Allow the drivers to load … completely
Connect the CC3200 to your computer using the USB cable
Launch Energia
Set your device COM port (Tools – Serial Port – COMxx)
Select your hardware (Tools – Board – CC3200)
Select an example (File – Example – Basics – Blink) and “Upload” it

10. Only TI has all the IoT building blocks
Nodes
Gateway, Bridge or Router
Cloud
MCUs
Processors
MCUs
Multicore Processors
Wired & Wireless Connectivity
Sensors
Processors
Wired & Wireless Connectivity
Analog Signal Chain
Analog Signal Chain
Power Management
Analog Signal Chain
Power Management
Power Management
Applications will be: Flow meter, light bulb, fitness monitor and fall detector or something else for healthcare

11. Requirements for MCU to be ideal for IoT
Energy efficiency
Embedded architecture with a rich software ecosystem
Portfolio breadth to enable
Software scalability
Meet different levels of performance & a robust mix of I/O interfaces
Cost-effectiveness
Quality and reliability
Security
3-The ability to reuse software and leverage existing software investment

12. MCU in IoT system architectures
MCU and RF SOC
MCU as Host
MCU as Host and running Network Stack
MCU as Sensor Hub or Power management to Host MPU
Architecture
Example
CC430
CC3200
CC MSP430 F5xx
CC MSP430 F5xx; TRF79xx
WL18xx + AM335x + MSP430 F5xx
MCU Memory needs
Max
Min
Task-dependent
MCU Flexibility/
Scalability
Middle
MCU Cost
$$$ $ $$
MCU + RF
Appl
MCU
Appl RF
MCU
Appl RF
MPU
MSP430
ULP task
Appl
Stack
Stack
Stack
Stack RF

13. Benefits for Internet of Things
Industry standard BSD socket APIs for TCP/IP communication
Build Internet applications quickly,
reuse industry available Internet code
Small driver footprint
down to 6KB host code
Enable integration with low-cost MCUs like MSP430
HW crypto engine for TLS/SSL Internet security
Establish TLS connection in 150mSec for fast and secured user experience
Low power radio and advanced low power modes
Wi-Fi® sensors stay connected to the network for over a year using two AA batteries
SmartConfigTM Technology world’s best Wi-Fi® provisioning tool
Enables customers to set up headless devices easily and fast
TI modules certified for WW regulatory and Wi-Fi Alliance
Fast time to market
Save customers over $50K of test cost and test time per product family

14. CC3200 Software Development Kit (SDK)
Traditional Path
Use the SDK to get started quickly with over 50 C code examples and sample applications
Energia Path
Use the Energia WiFi library and other derived libraries to create application code using the Wiring framework

15. Making MADE simple
With the TI LaunchPad { }
Hardware & Software

16. Modular Hardware, Intuitive Software, & Community Support
The LaunchPad Concept
Rapidly Prototype
TI Solutions with
Modular Hardware, Intuitive Software, & Community Support

17. The LaunchPad Ecosystem
Everything you need to start microcontroller development
Hardware + Software + Community
LaunchPads & BoosterPacks
Development tools based on TI microcontrollers, including MSP430, C2000, TM4C, & Hercules. They are affordable & include everything you need to start microcontroller development! Plug-in modules for the LaunchPad add new functionality including capacitive touch, wireless, motor control, dynamic lighting, sensors & more.
Intuitive Software
Teach your LaunchPad new tricks using easy-to-use software tools. LaunchPad is supported by a wide range of software tools ranging from beginner-level software to full-featured professional development environments.
Engaged Community
Share projects and ask questions with LaunchPad community members and TI engineers located all over the world using online forums and communications tools.

18. Low-cost LaunchPad kits from MSP430, MSP432, TM4C, C2000, Hercules & Connectivity starting at $9.99
Open designs & modular hardware enables developers to create complete TI-enabled system solutions
Add power management, wireless capabilities, sensors, displays & more to your TI MCU- based LaunchPad by stacking multiple BoosterPacks. Ranging from $10-$60
Hundreds of code examples to get up and running quickly using intuitive software tools

19. Why TI LaunchPad is better?
Price
HW Debugger
TI online resources
Performance and Variety
Multiple supported SW paths

20. LaunchPad is TI’s Common Denominator
Modular hardware enables developers to explore new ideas quickly
Sub-1GHz
NFC/RFID
WiFi
ZigBee
BLE
(CC110L)
(TRF7970A)
(CC3100)
(CC2530)
(CC2541)
Bluetooth
(CC2564)
Wireless BoosterPacks enabled by TI transceivers
Thermocouple BoosterPack
(ADS1118)
MEMS Temp Sensor BoosterPack
(TMP006)
ePaper Display BoosterPack
(RePaper)
LiPo Battery
BoosterPack
(BQ fuel gauge)
SensorHub
(various sensors)
Additional BoosterPacks for analog, sensors, displays & more from TI, Third Parties & Maker community.
LaunchPad kits featuring TI MCUs & standardized BoosterPack interface
MSP430
(Ultra-Low Power)
TM4C
(ARM Cortex M4F)
C2000
(Real-time Control)
Hercules
(Safety)
CC3200
(MCU + WiFi) 20

21. Want to see the LaunchPad in action? Check out these links:
Scrolling Marquee with 8x8 LED Matrix BoosterPack
ePaper BoosterPack for ultra-low power displays
K-type Thermocouple BBQ Companion BoosterPack
Monitor accelerometer wirelessly with CC110L SubGHz RF BoosterPack 21

22. SimpleLink™ Wi-Fi® CC3200 LaunchPads
ARM® Cortex™ M4 based SoC with integrated Wi-Fi connectivity
Target MCU: CC3200 & CC3200MOD
BoosterPack Pinout: 40-pin
Specs:
80MHz
external Flash support / 256 kB RAM
Wi-Fi b/g/n standards
Station, AP, and Wi-Fi Direct Roles
ADC, I2S, I2C,UART, SPI
Why this LaunchPad?
Connectivity for IoT Applications
All in one solution for Wi-Fi
$29.99
CC3200-LAUNCHXL & CC3200MODLAUNCHXL

23. LaunchPad in the cloud
Cloud-connected LaunchPads offer support for various cloud partners & protocols via WiFi or Ethernet.

24. LaunchPad & IoT a bird’s eye view
Cloud Service Provider
Cloud services
Access to data, dashboards, etc
TM4C129
(MCU +
Ethernet)
LaunchPad
CC3200
(MCU +
WiFi SoC)
LaunchPad RF
Booster
Pack
IoT Gateways
Your portal to the cloud RF
Booster
Pack
Ethernet
WiFi
LaunchPads
MSP430F5529
MSP430FR596
MSP430G2
MSP432P401R
TM4C123G
TM4C1294
MCU
LaunchPad
RF BoosterPacks
Zigbee
SubGHz RF
Bluetooth
6LoWPan
NFC
MCU +
RF SoC
LaunchPad
Wireless
Nodes
Connecting your devices
MCU + RF SoC LaunchPads
CC3200 MCU + WiFi
BoosterPack

25. CODE!
For FREE!

26. LaunchPad Software Tools Making it easier & providing multiple points of entry
Rapid Prototyping
Evaluation
Advanced
Energia
Light-weight, Community-driven, Wiring-based IDE for quick evaluation
CCS Cloud
Browser-based code editor and Resource Explorer
CCS & Pro Tools
Fully-capable dev environments from TI & third parties
Intuitive coding environment
Simplified interface provides an easy-to-use code editor, serial monitor & compiler
Fast start & no installation
Browser based code editing tool to get you started quickly (MSP430 and MSP432 supported at this time)
Full debug capability & more
Set breakpoints, watch variables, step through code & more
Import Energia projects
Need more features from your development environment? Seemlessly import your Energia sketches into Code Composer Studio!
Highly-abstracted API framework
Functional APIs make it easy for developers to start controlling hardware
Use Energia, TI-RTOS & more
Cross Platform and allows you to upload firmware using TI Cloud Agent
Community-driven
Completely open source & driven by the community
Resource Explorer integration
Access Resource Explorer to get the latest code examples, design files, and more.

27. Complete documentation can be found at www.energia.nu
IDE | Language | Community
Open source & community driven
Wiring-based code enabling multi- architecture abstraction & source code compatibility across supported LaunchPads
Fork of the popular Wiring framework – the basis of the Arduino IDE
Robust collection of intuitive APIs for controlling your LaunchPad’s I/O
Immediately develop code for I2C, UART, PWM, ADCs, SPI & more
Complete documentation can be found at

28. Energia Abstraction Fly high above the bits & bytes
Boils it down to line of code 1 { }
Energia Abstraction Fly high above the bits & bytes
Abstraction
Energia
Program a LaunchPad using highly-abstracted functional APIs
Peripheral Driver Library
Low level abstraction layer for intuitively populating peripheral registers.
Enable configure & use peripherals with easy-to-use APIs.
Low-level C Code
Each TI microcontroller peripheral is defined by a collection of registers.
Our Peripheral Driver Library prevents developers from having to directly access & populate 1’s & 0’s into each register.
TI Microcontroller
Control MCU hardware & peripherals 28

29. The Energia Difference
Send & receive wireless data within minutes using simple APIs
Radio.begin(parameters);
Radio.Transmit(parameters);
Radio.receiverOn(parameters);
100% source code compatibility/consistent APIs across MCU, including MSP430, MSP432, C2000 & TM4C LaunchPads
All with a simple & intuitive code editing tool
Start sending & receiving RF data for <$40 & <10 minutes.
2 LaunchPads + 2 CC110L RF BoosterPacks + Energia

30. Code Composer Studio Cloud
Browser based code editing tool to get your started quickly
Access Resource Explorer to get the latest code examples, design files, and more.
Cross Platform and allows you to upload firmware using TI Cloud Agent
Supports MSP430 & MSP432 LaunchPads

31. Code Composer Studio 6 Download CCS Desktop at ti.com/ccstudio
Eclipse-based IDE for professional firmware developers that supports all TI processors
CCS App Center allows you to stay current with the latest plugins and updates
Use tools such as Energy Trace, GRACE, and more to optimize your workflow and application
Resource Explorer exposes thousands of code examples and technical materials
Download CCS Desktop at ti.com/ccstudio

32. Energia Import in CCSv6+
Import an Energia sketch into Code Composer Studio v6 & pick up right where you left off.
CCS introduces full debug capability & other professional features to further optimize your design.
Modularize your code & leverage Energia APIs & libraries within CCS
Enable “hybrid” projects that leverage low-level C, assembly & even abstracted Energia APIs enabling a developer maximum flexibility during code development.

33. The Community

34. The Community Get support from TI & the online community!
Supported 24/7 by TI engineers!
Over 1 million Q&As available on-demand
Get support on TI’s complete portfolio from microcontrollers to analog to connectivity
~20,000 active members
~60 forum users online at any given time!
Active & friendly online community & blog for the LaunchPad ecosystem!
Home to much of the Energia community

35. Now you are a cloud ninja!
Cloud Demo(s)
WiFi library - Simple Web Server
Use Temboo to Get Yahoo Weather Report
Use Temboo to query Wolfram Alpha
Use Temboo to write to a Google spreadsheet
Use Temboo to send an SMS using Twilio
Use Temboo and Nexmo to control your LaunchPad with your phone
Now you are a cloud ninja!

37. Now you are a cloud ninja!
Weather … continued
Let’s prototype a pushbutton activated getWeather device that queries Yahoo Weather for data
Sign up for Temboo
Open the lab solution in Energia and modify for our Wi-Fi Access Point. Upload to the LaunchPad
When you push SW2 you will see the weather info in your serial monitor.
Now you are a cloud ninja!

38. Thad’s discussion of … creating a simple iOS application TI Dragon … battery powered CC3200 with app controlled music and blinking LEDs

39. Sign up for a myTI account!
Where to go next: TI’s official LaunchPad portal
Get specs, order hardware, find software tools, and download datasheets and design files
Sign up for a myTI account!

40. Appendix Temboo Tutorial can be found at www.energia.nu/temboo
The Temboo website does an excellent job of explaining how to get started with the APIs and helps you generate Energia code.

41. Please come to the TI booth
Thank you!

42. Backup

43. CC110L Sub-1GHz RF BoosterPack (433, 868, 915MHz)
Start developing wireless applications immediately!
Manufacturer: Anaren / TI
Part #: 430BOOST-CC110L
MSRP: $19.99 (includes 2 RF BoosterPacks!)
Feature List:
Based on TI CC110L SubGHz RF transceiver
SPI interface between RF module & MCU
FCC/IC certified module
Includes AIR BoosterPack Stack software
Enabling Star network & p2p topologies
Includes pre-programmed MSP devices
Learn

44. CC3100 SimpleLink Wi-Fi BoosterPack
LaunchPad in the cloud
Manufacturer: Texas Instruments
Part #: CC3100BOOST
MSRP: $19.99
Feature List:
CC3100 WiFi Transceiver
IEEE b/g/n
Embedded IPv4 TCP/IP stack
Small form factor
Complete software solutions & features TI’s unique SimpleLink technology
Learn

45. Sharp ® Memory LCD BoosterPack
Add capacitive touch and display capabilities with 1 board!
Manufacturer: Texas Instruments
Part #: 430BOOST-SHARP96
MSRP: $19.99
Feature List:
Sharp LS013B4DN04 Memory LCD
1.3" inch screen offering 96 x 96 pixels
Ultra-Low-Power consumption
Display controlled serially using SPI
Software enabled by TI’s software libraries
Graphics Library Support
Capacitive Touch Library Support
Learn

46. Kentec QVGA TFT LCD BoosterPack
Add resistive touch and display capabilities with 1 board!
Manufacturer: Texas Instruments
Part #: BOOSTXL-K350QVG-S1
MSRP: $24.99
Feature List:
Kentec TFT LCD (P/N: K350QVG-V2-F)
3.5 inch QVGA (320x240 resolution)
SPI Interface
4-wire resistive touch screen
White LED Backlight + driver circuit
Complies with the BoosterPack standard for use with 20 and 40 pin LaunchPads
Learn

47. Infrared (IR) BoosterPack Plug-in Module
Start developing remote control applications today!
Manufacturer: TI
Part #: Boost-IR
MSRP: $20
Feature List:
IR LED transmitter
IR receiver + demodulator
4x4 membrane keypad
20-pin BoosterPack standard for use with any LaunchPad
Compatibility with different IR signal generation methods
Learn

48. TRF7970A NFC BoosterPack
Start developing with Near-Field Communication & RFID!
Manufacturer: DLP Design
Part #: DLP-7970ABP
MSRP: $25
Feature List:
13.56MHz HF RFID Reader/Writer
Supported by the NFCLink software library
Supports various modes:
RFID/NFC Reader
NFC Peer
Card-Emulation Mode
FCC/IC approved design
Learn

49. BoosterPack pinout standard (ti.com/byob)

50. BoosterPack pinout standard (ti.com/byob)
The BoosterPack pinout standard enables:
Cross-compatibility between LaunchPads & BoosterPacks
BoosterPack stackability to create more complex solutions
The same BoosterPack can work across multiple LaunchPads
Learn
Build your own BoosterPack (BYOB) with templates, resources & more! 50 50

51. Breakthrough Sensor Technology

52. Easily add RF for wireless applications!

53. CCS Cloud & Resource Explorer
Changing how developers engage their environment
Focus on Web and bringing all parts of the design process to the cloud
Instant evaluation of TI products
Try it now at dev.ti.com

54. = + + = + + = + + Quick demo recipes
Enable customers to experience TI differentiation
MSP430F5529 LaunchPad
WiFi CC3100 BoosterPack
Thermocouple BoosterPack
(ADS1118)
WiFi-enabled Meat Probe “iGrill”. Send a tweet when temp exceeds threshold. = + +
CC3200 Wi-Fi LaunchPad
NFC/RFID
LiPo Battery
BoosterPack
(TRF7970A)
Create a battery-powered WiFi-connected NFC/RFID tag reader
(BQ fuel gauge) = + +
MSP430G2553 LaunchPad
Sub-1GHz
MEMS Temp Sense BoosterPack
(CC110L)
Create a multi-point SubGHz RF wireless temperature sensor network
(TMP006) = + +
TI Microcontroller
TI Wireless
TI Analog

55. = + + = + + = + + Quick demo recipes
Enable customers to experience TI differentiation
C2000 InstaSPIN LaunchPad
WiFi CC3100 BoosterPack
BLDC Motor BoosterPack
(DRV8301)
WiFi-enabled Meat Probe “iGrill”. Send a tweet when temp exceeds threshold. = + +
CC3200 Wi-Fi LaunchPad
Sensor Hub BoosterPack
LiPo Battery
BoosterPack
Create a battery-powered WiFi-connected NFC/RFID tag reader
(BQ fuel gauge) = + +
MSP430G2553 LaunchPad
Sub-1GHz
Stepper Motor
BoosterPack
(CC110L)
Create a multi-point SubGHz RF wireless temperature sensor network
(DRV8711) = + +
TI Microcontroller
TI Wireless
TI Analog
