1. Lecture 8 Configuring a Printer-using Magic Filter Introduction to IP Addressing

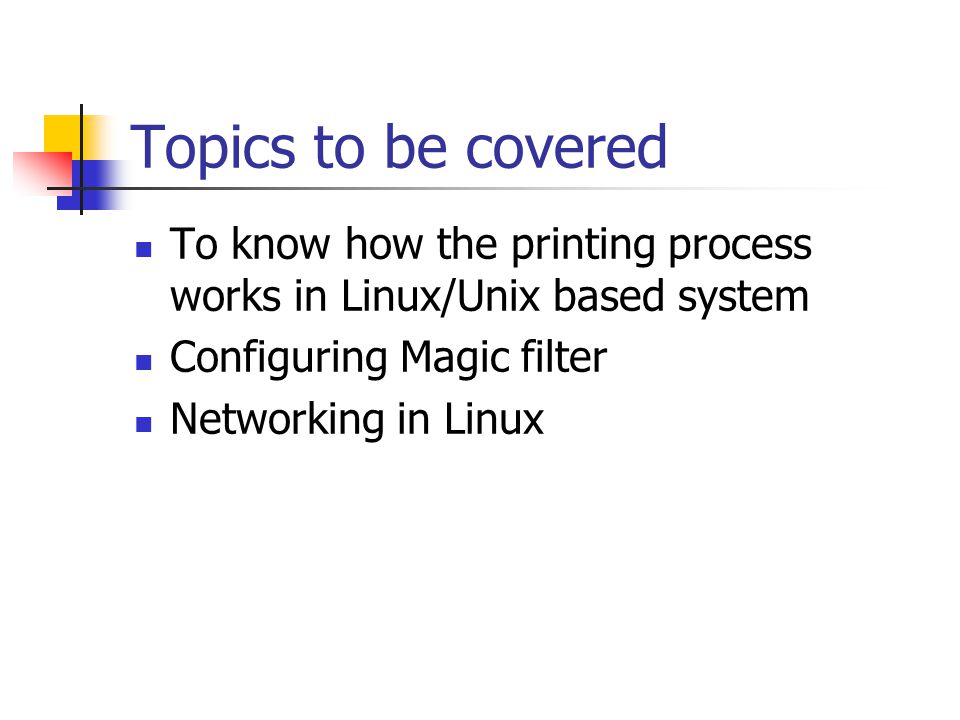

2. Topics to be covered To know how the printing process works in Linux/Unix based system Configuring Magic filter Networking in Linux

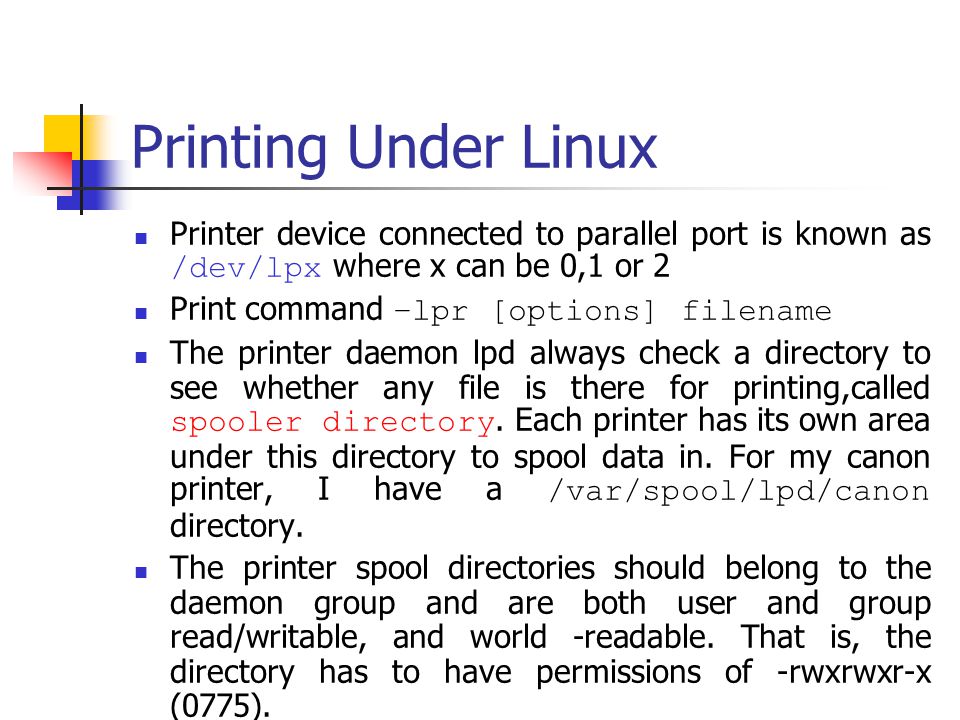

3. Printing Under Linux Printer device connected to parallel port is known as /dev/lpx where x can be 0,1 or 2 Print command –lpr [options] filename The printer daemon lpd always check a directory to see whether any file is there for printing,called spooler directory. Each printer has its own area under this directory to spool data in. For my canon printer, I have a /var/spool/lpd/canon directory. The printer spool directories should belong to the daemon group and are both user and group read/writable, and world -readable. That is, the directory has to have permissions of -rwxrwxr-x (0775).

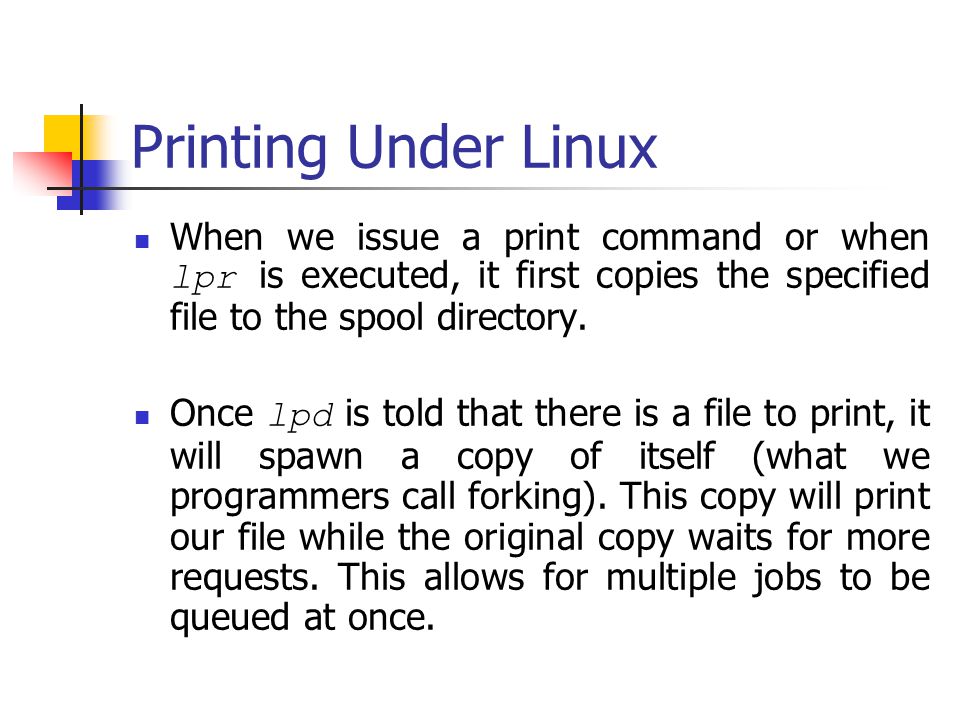

4. Printing Under Linux When we issue a print command or when lpr is executed, it first copies the specified file to the spool directory. Once lpd is told that there is a file to print, it will spawn a copy of itself (what we programmers call forking). This copy will print our file while the original copy waits for more requests. This allows for multiple jobs to be queued at once.

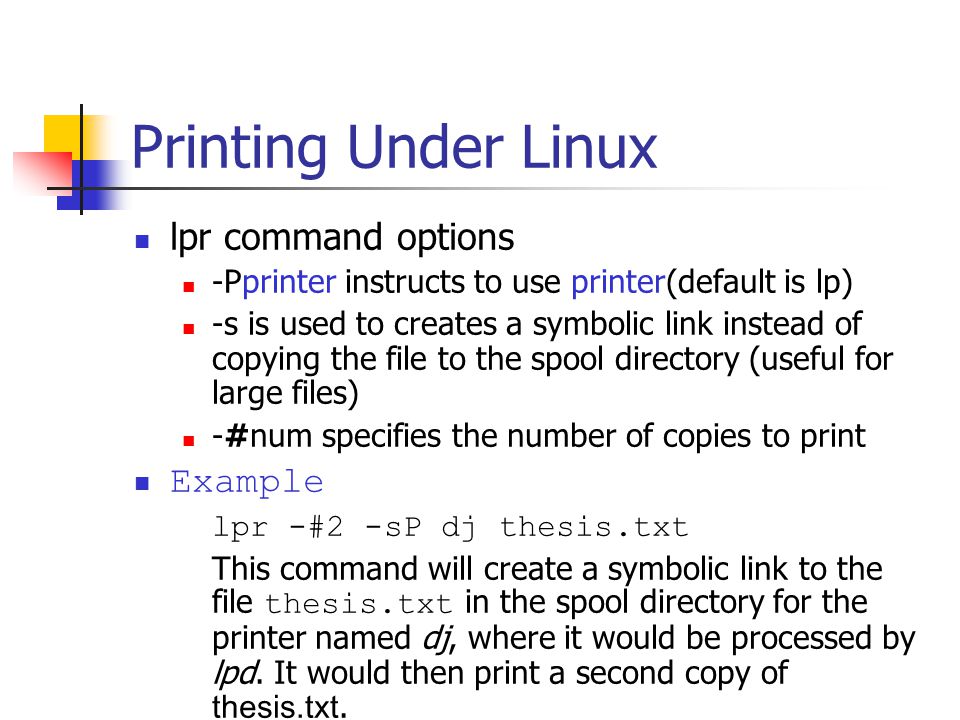

5. Printing Under Linux lpr command options -Pprinter instructs to use printer(default is lp) -s is used to creates a symbolic link instead of copying the file to the spool directory (useful for large files) -#num specifies the number of copies to print Example lpr -#2 -sP dj thesis.txt This command will create a symbolic link to the file thesis.txt in the spool directory for the printer named dj, where it would be processed by lpd. It would then print a second copy of thesis.txt.

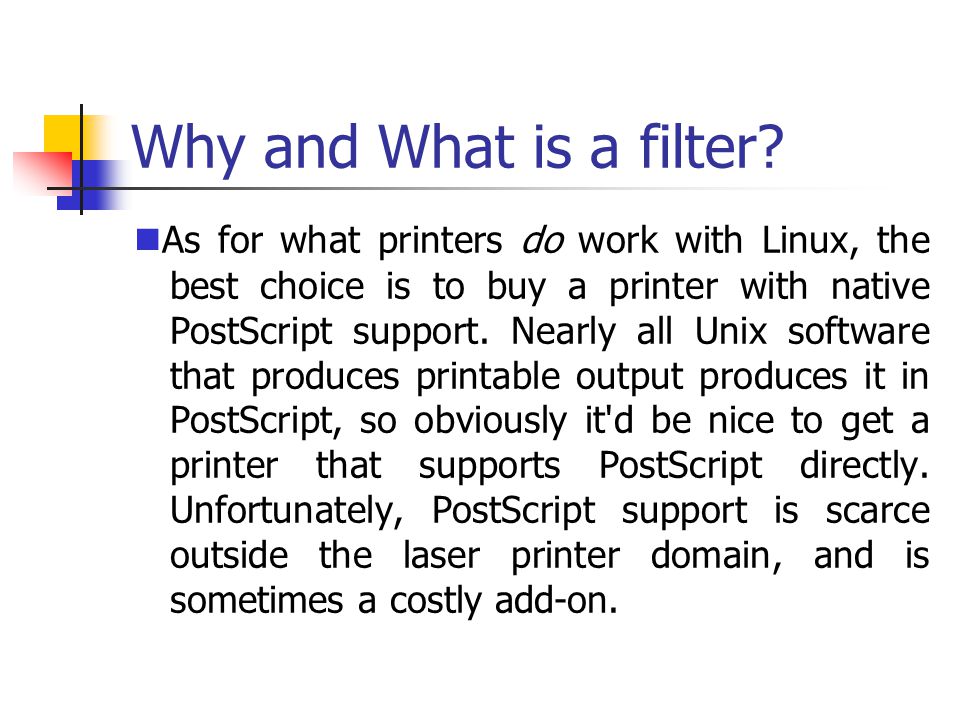

6. Why and What is a filter? As for what printers do work with Linux, the best choice is to buy a printer with native PostScript support. Nearly all Unix software that produces printable output produces it in PostScript, so obviously it'd be nice to get a printer that supports PostScript directly. Unfortunately, PostScript support is scarce outside the laser printer domain, and is sometimes a costly add-on.

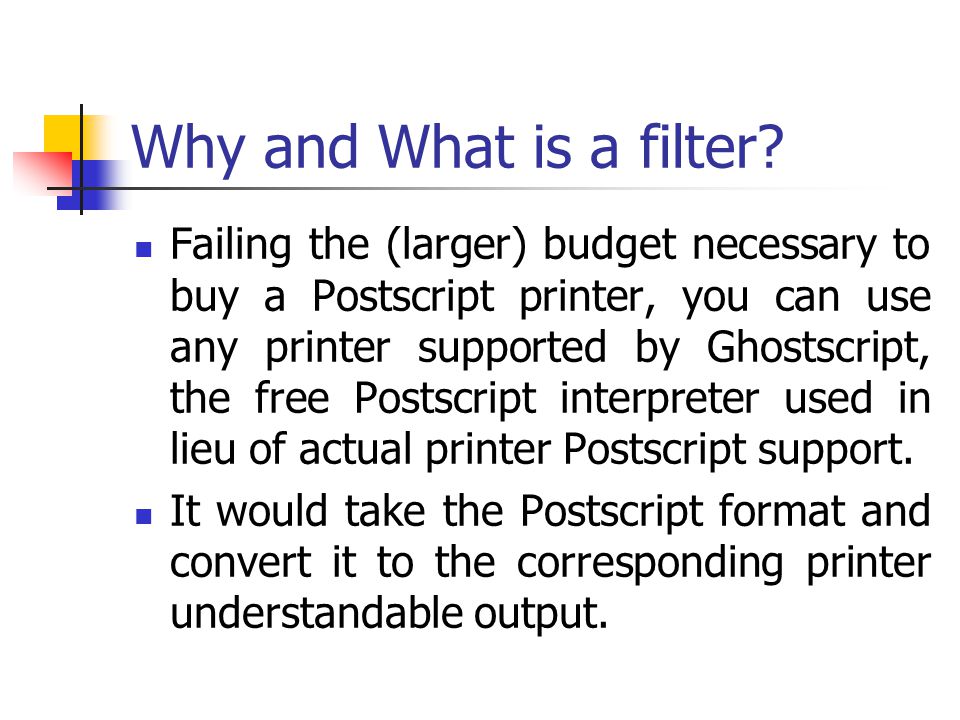

7. Why and What is a filter? Failing the (larger) budget necessary to buy a Postscript printer, you can use any printer supported by Ghostscript, the free Postscript interpreter used in lieu of actual printer Postscript support. It would take the Postscript format and convert it to the corresponding printer understandable output.

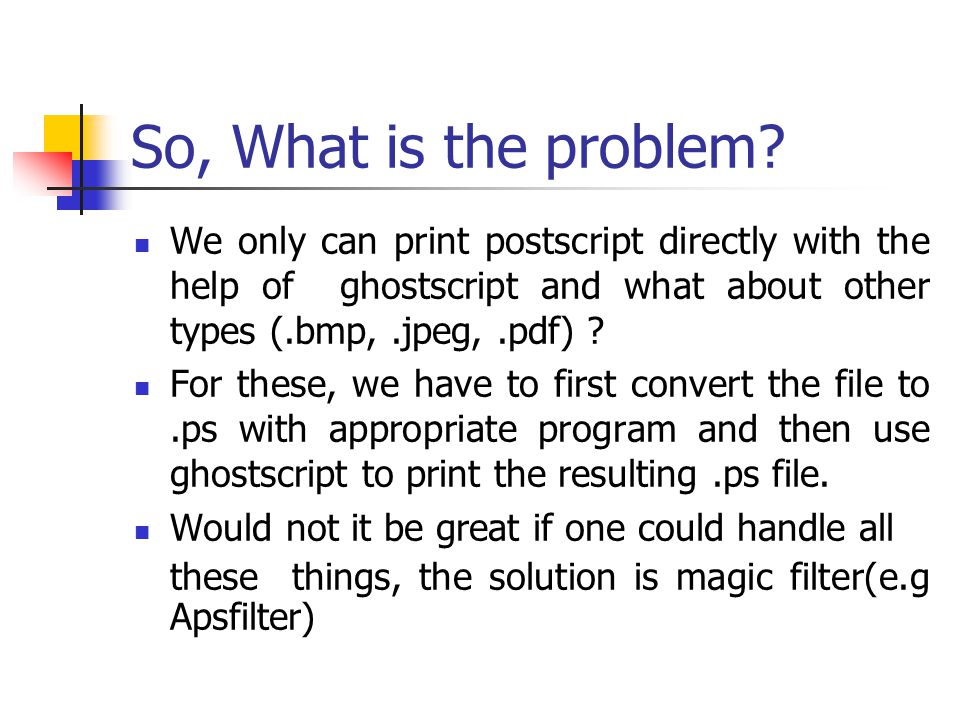

8. So, What is the problem? We only can print postscript directly with the help of ghostscript and what about other types (.bmp,.jpeg,.pdf) ? For these, we have to first convert the file to.ps with appropriate program and then use ghostscript to print the resulting.ps file. Would not it be great if one could handle all these things, the solution is magic filter(e.g Apsfilter)

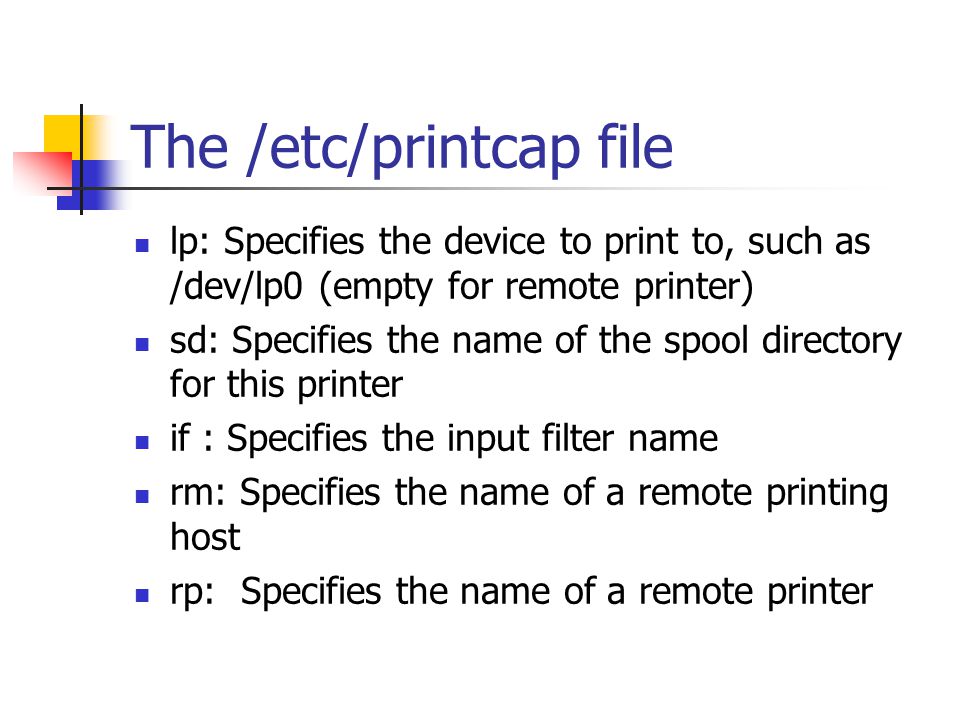

9. The /etc/printcap file lp: Specifies the device to print to, such as /dev/lp0 (empty for remote printer) sd: Specifies the name of the spool directory for this printer if : Specifies the input filter name rm: Specifies the name of a remote printing host rp: Specifies the name of a remote printer

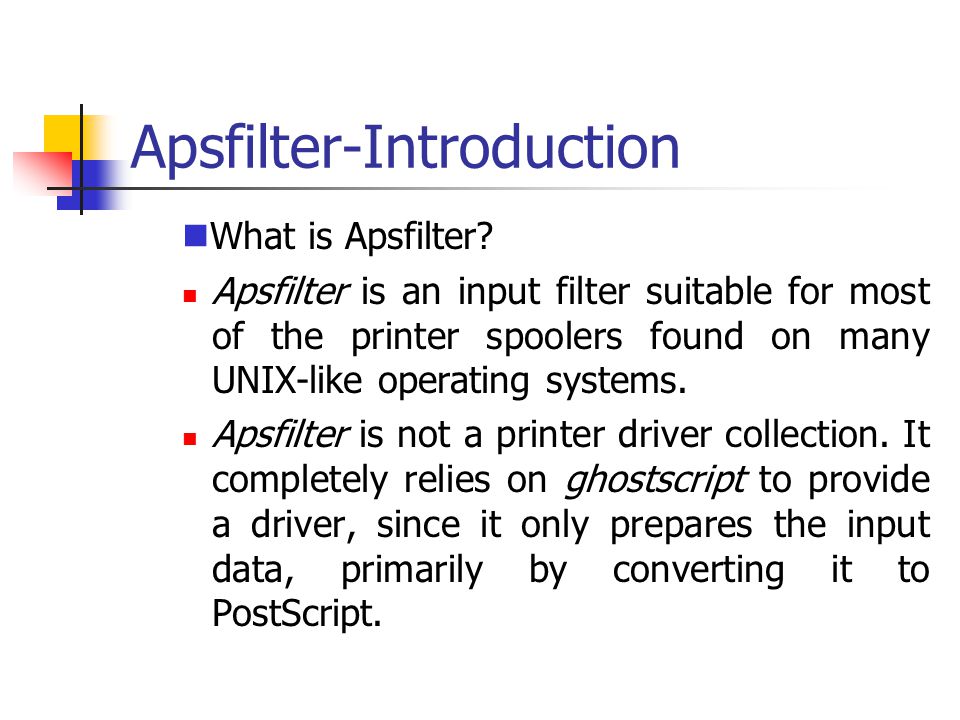

10. Apsfilter-Introduction What is Apsfilter? Apsfilter is an input filter suitable for most of the printer spoolers found on many UNIX-like operating systems. Apsfilter is not a printer driver collection. It completely relies on ghostscript to provide a driver, since it only prepares the input data, primarily by converting it to PostScript.

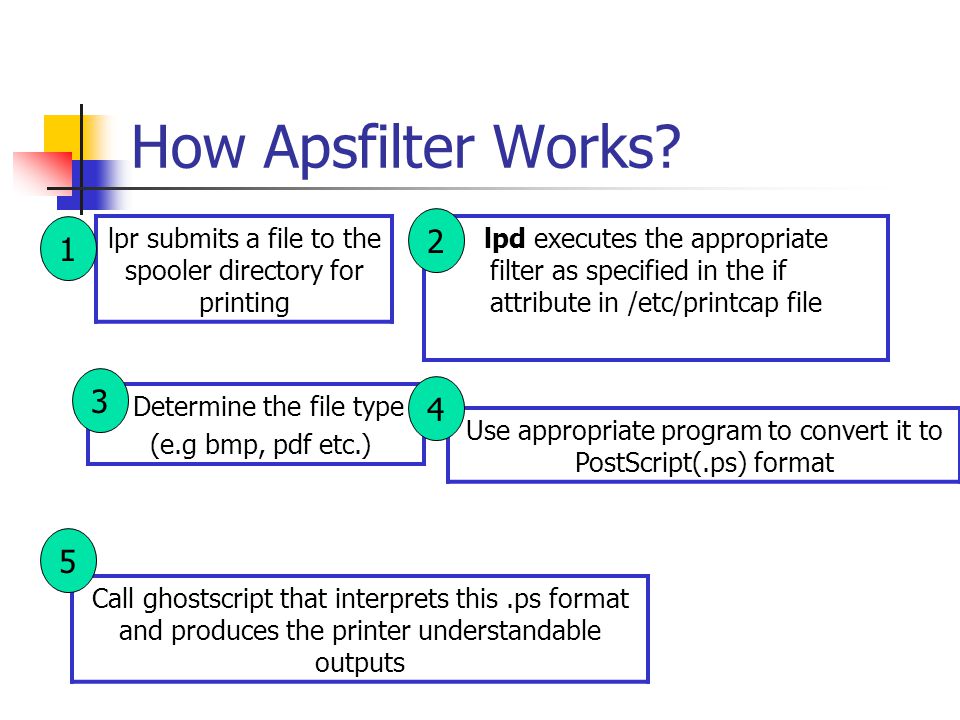

11. How Apsfilter Works? lpr submits a file to the spooler directory for printing Use appropriate program to convert it to PostScript(.ps) format Determine the file type (e.g bmp, pdf etc.) Call ghostscript that interprets this.ps format and produces the printer understandable outputs lpd executes the appropriate filter as specified in the if attribute in /etc/printcap file 1 5 4 3 2

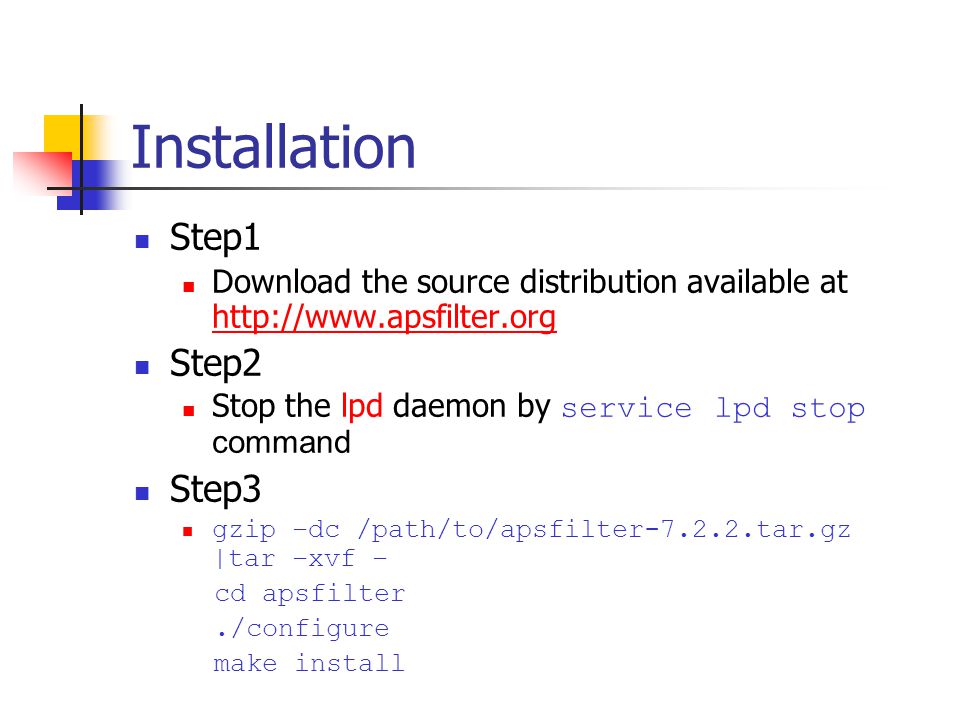

12. Installation Step1 Download the source distribution available at http://www.apsfilter.org http://www.apsfilter.org Step2 Stop the lpd daemon by service lpd stop command Step3 gzip –dc /path/to/apsfilter-7.2.2.tar.gz |tar –xvf – cd apsfilter./configure make install

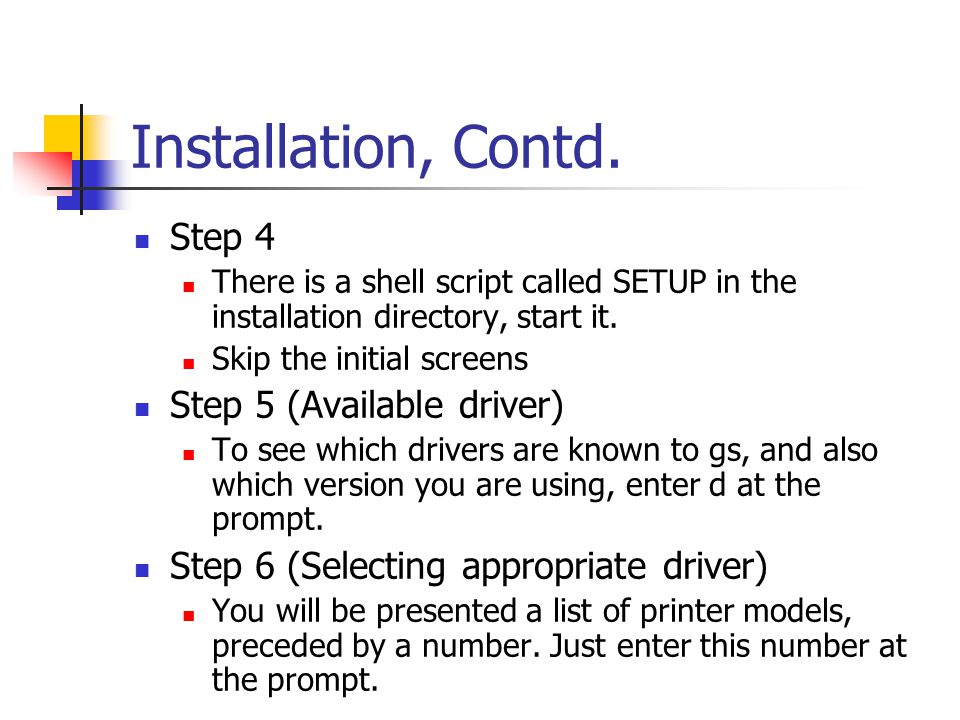

13. Installation, Contd. Step 4 There is a shell script called SETUP in the installation directory, start it. Skip the initial screens Step 5 (Available driver) To see which drivers are known to gs, and also which version you are using, enter d at the prompt. Step 6 (Selecting appropriate driver) You will be presented a list of printer models, preceded by a number. Just enter this number at the prompt.

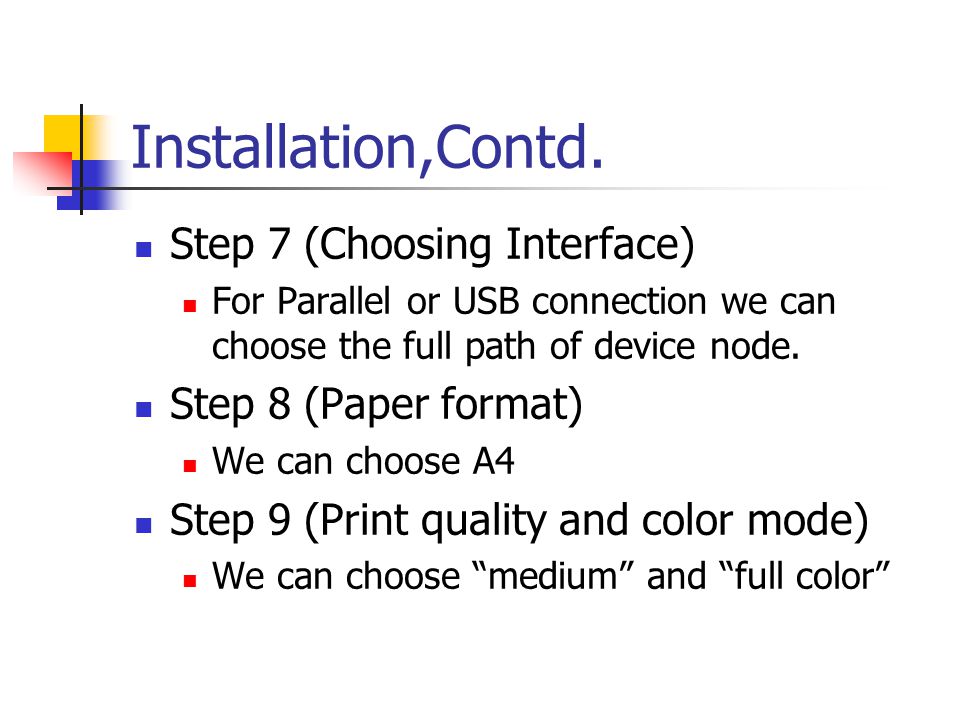

14. Installation,Contd. Step 7 (Choosing Interface) For Parallel or USB connection we can choose the full path of device node. Step 8 (Paper format) We can choose A4 Step 9 (Print quality and color mode) We can choose “medium” and “full color”

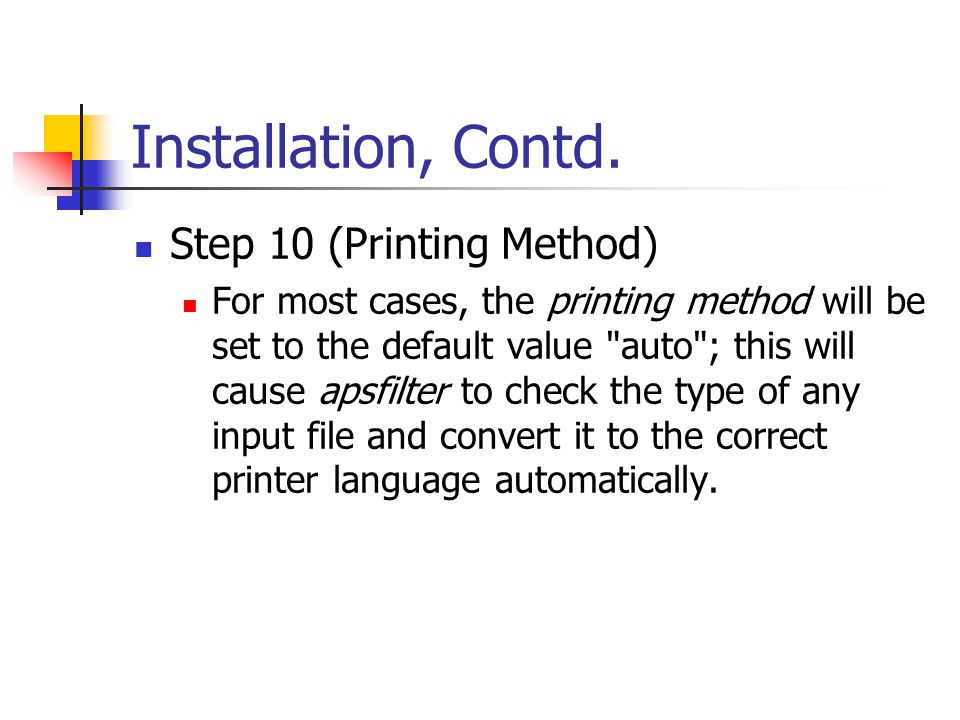

15. Installation, Contd. Step 10 (Printing Method) For most cases, the printing method will be set to the default value "auto"; this will cause apsfilter to check the type of any input file and convert it to the correct printer language automatically.

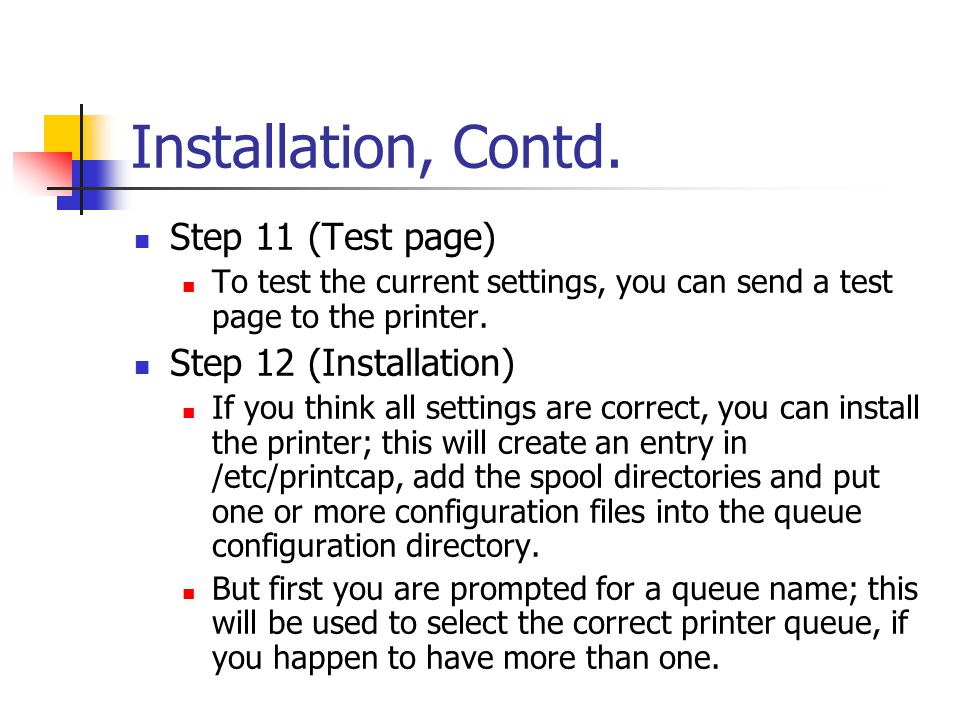

16. Installation, Contd. Step 11 (Test page) To test the current settings, you can send a test page to the printer. Step 12 (Installation) If you think all settings are correct, you can install the printer; this will create an entry in /etc/printcap, add the spool directories and put one or more configuration files into the queue configuration directory. But first you are prompted for a queue name; this will be used to select the correct printer queue, if you happen to have more than one.

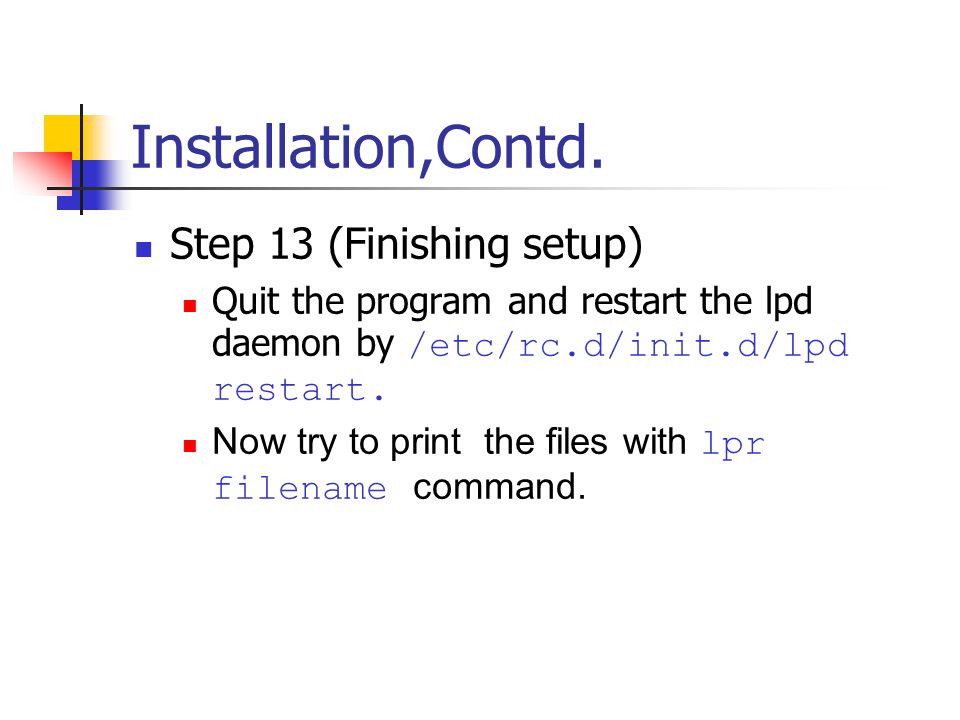

17. Installation,Contd. Step 13 (Finishing setup) Quit the program and restart the lpd daemon by /etc/rc.d/init.d/lpd restart. Now try to print the files with lpr filename command.
