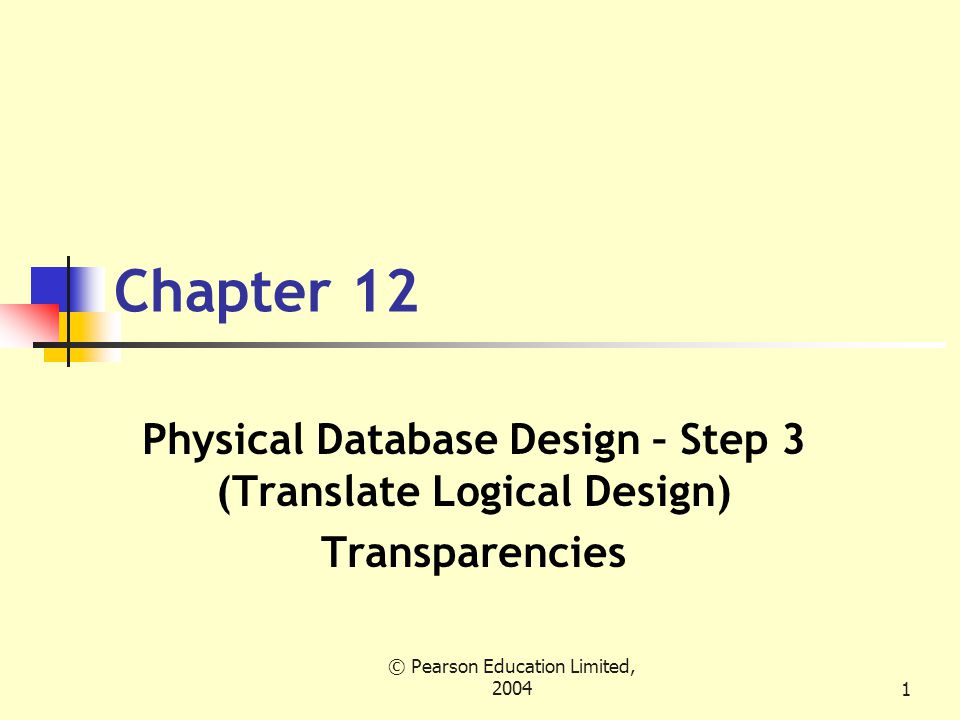

1. © Pearson Education Limited, 20041 Chapter 12 Physical Database Design – Step 3 (Translate Logical Design) Transparencies

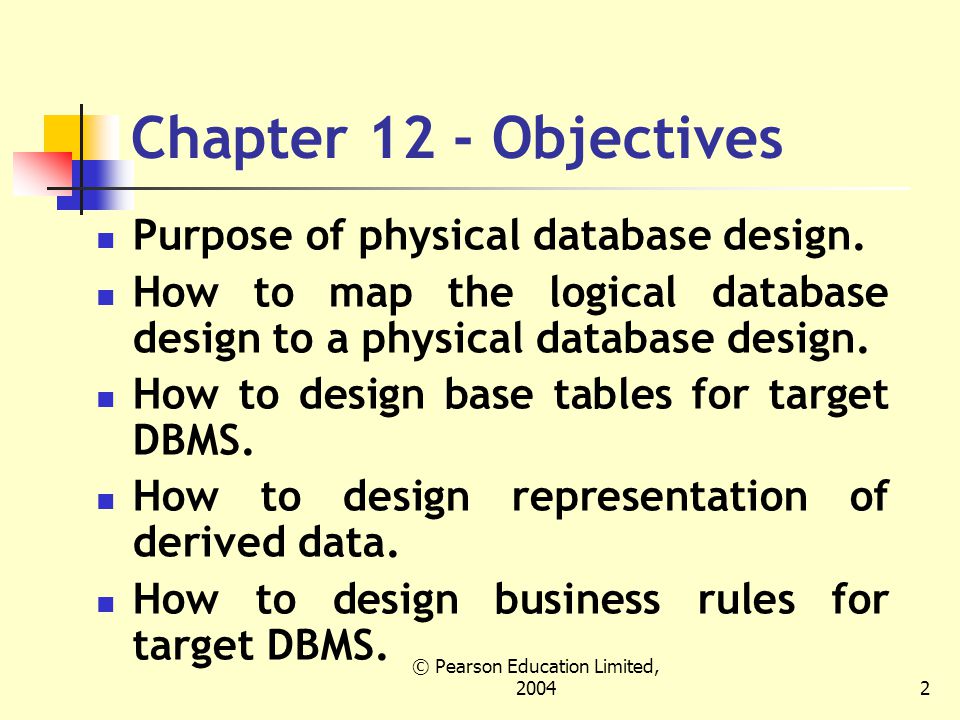

2. © Pearson Education Limited, 20042 Chapter 12 - Objectives Purpose of physical database design. How to map the logical database design to a physical database design. How to design base tables for target DBMS. How to design representation of derived data. How to design business rules for target DBMS.

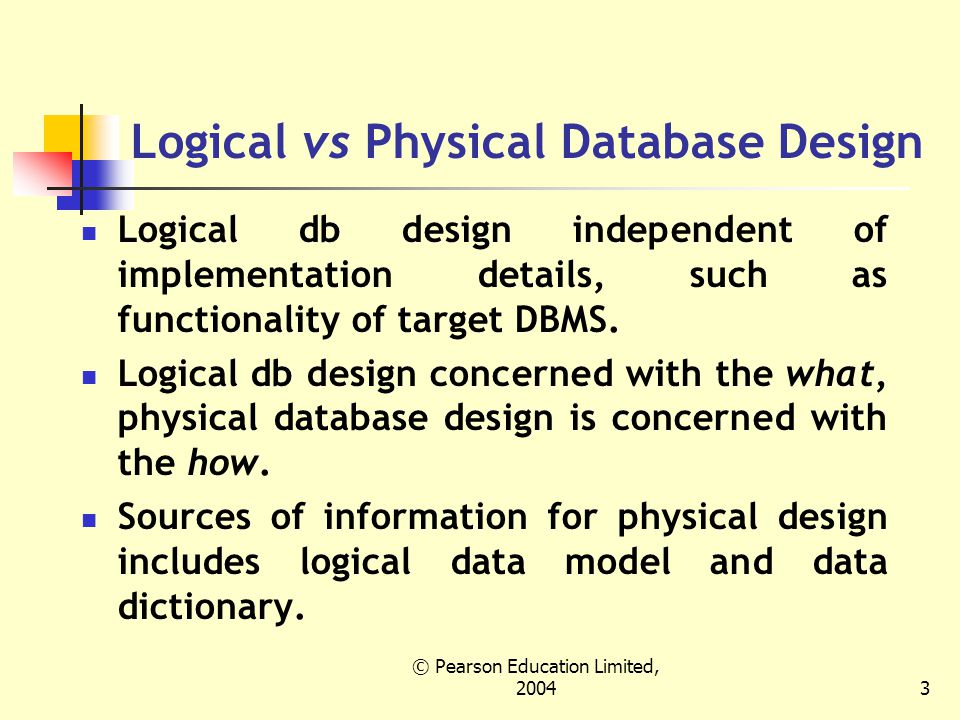

3. © Pearson Education Limited, 20043 Logical vs Physical Database Design Logical db design independent of implementation details, such as functionality of target DBMS. Logical db design concerned with the what, physical database design is concerned with the how. Sources of information for physical design includes logical data model and data dictionary.

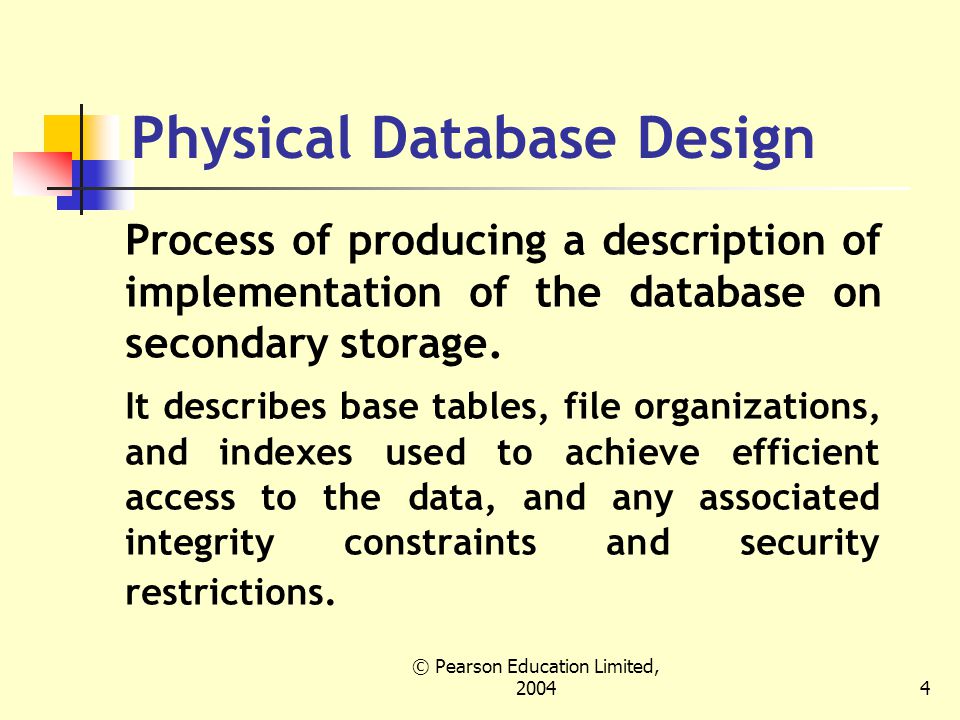

4. © Pearson Education Limited, 20044 Physical Database Design Process of producing a description of implementation of the database on secondary storage. It describes base tables, file organizations, and indexes used to achieve efficient access to the data, and any associated integrity constraints and security restrictions.

5. © Pearson Education Limited, 20045 Overview of Physical Database Design Methodology Step 3 Translate logical database design for target DBMS Step 4 Choose file organizations and indexes Step 5 Design user views Step 6 Design security mechanisms Step 7 Consider introduction of controlled redundancy Step 8 Monitor and tune operational system

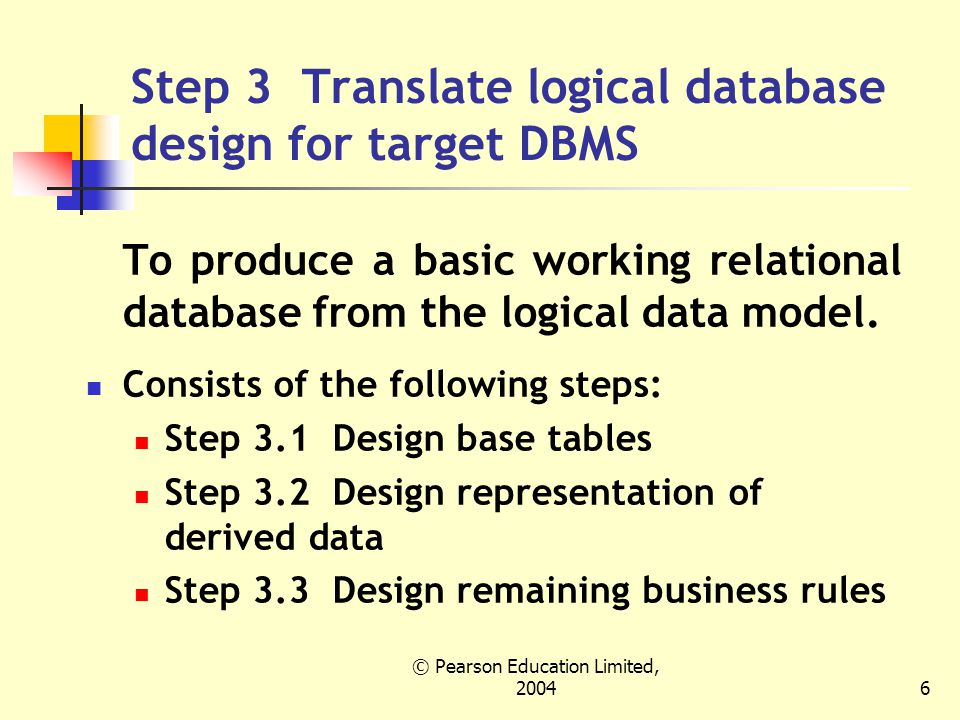

6. © Pearson Education Limited, 20046 Step 3 Translate logical database design for target DBMS To produce a basic working relational database from the logical data model. Consists of the following steps: Step 3.1 Design base tables Step 3.2 Design representation of derived data Step 3.3 Design remaining business rules

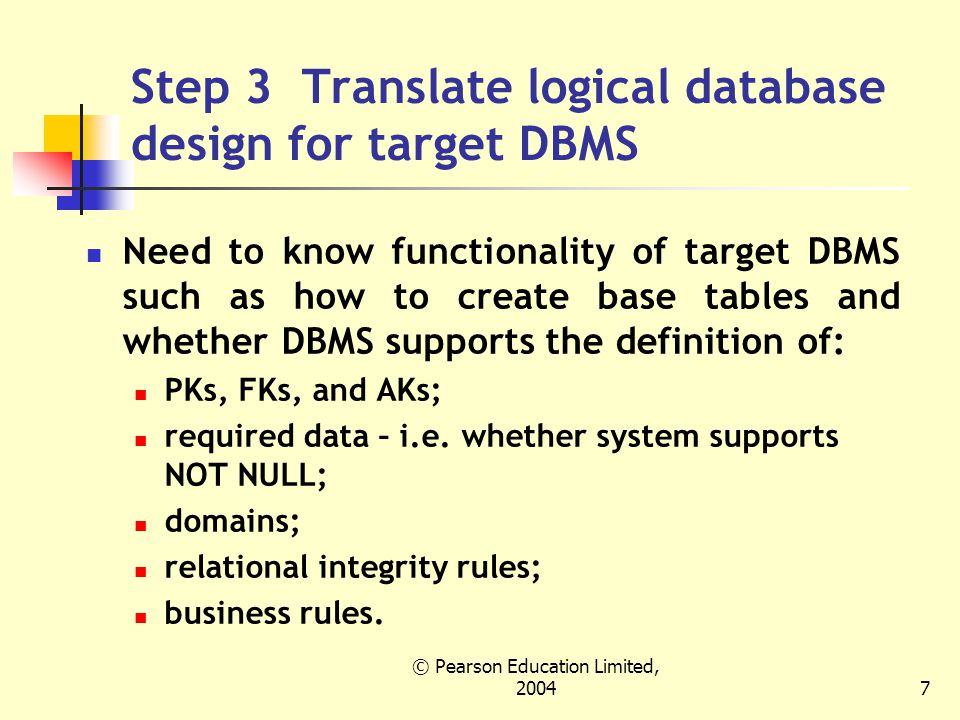

7. © Pearson Education Limited, 20047 Step 3 Translate logical database design for target DBMS Need to know functionality of target DBMS such as how to create base tables and whether DBMS supports the definition of: PKs, FKs, and AKs; required data – i.e. whether system supports NOT NULL; domains; relational integrity rules; business rules.

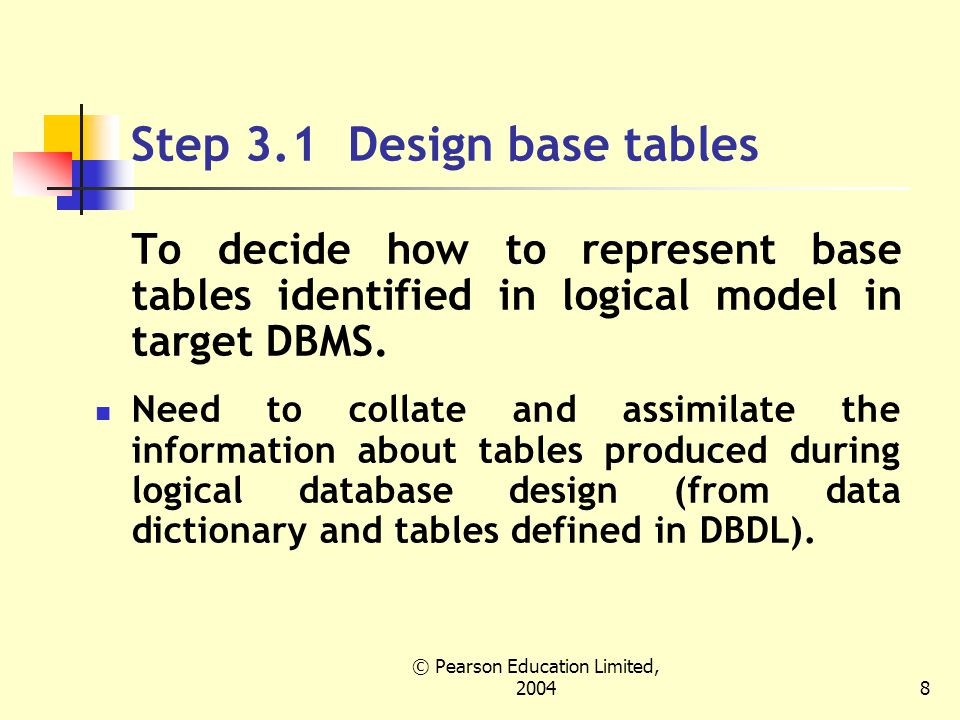

8. © Pearson Education Limited, 20048 Step 3.1 Design base tables To decide how to represent base tables identified in logical model in target DBMS. Need to collate and assimilate the information about tables produced during logical database design (from data dictionary and tables defined in DBDL).

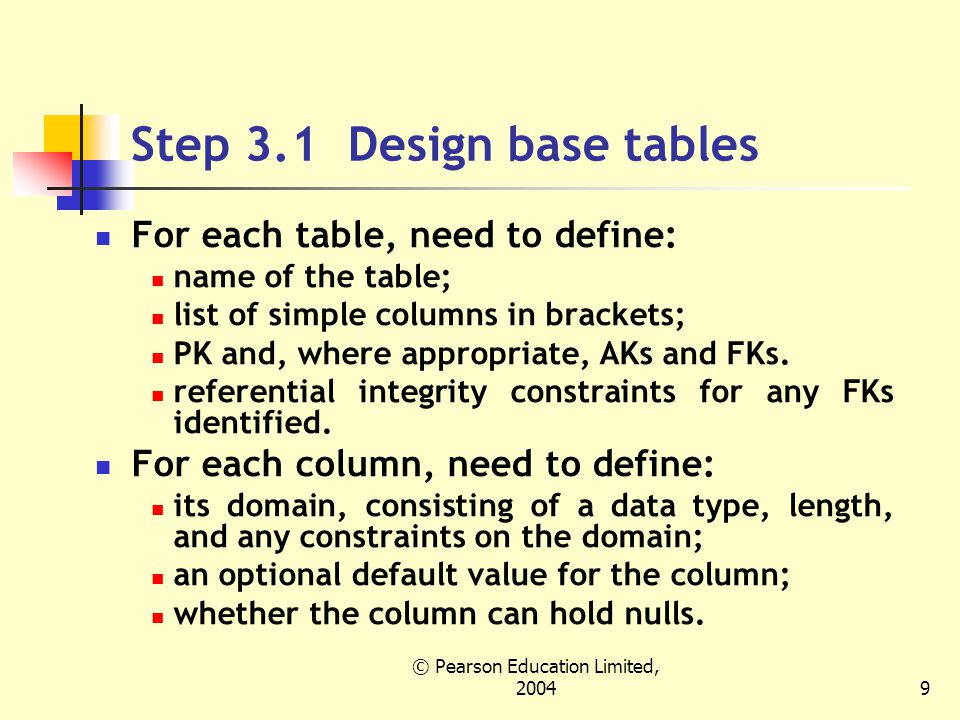

9. © Pearson Education Limited, 20049 Step 3.1 Design base tables For each table, need to define: name of the table; list of simple columns in brackets; PK and, where appropriate, AKs and FKs. referential integrity constraints for any FKs identified. For each column, need to define: its domain, consisting of a data type, length, and any constraints on the domain; an optional default value for the column; whether the column can hold nulls.

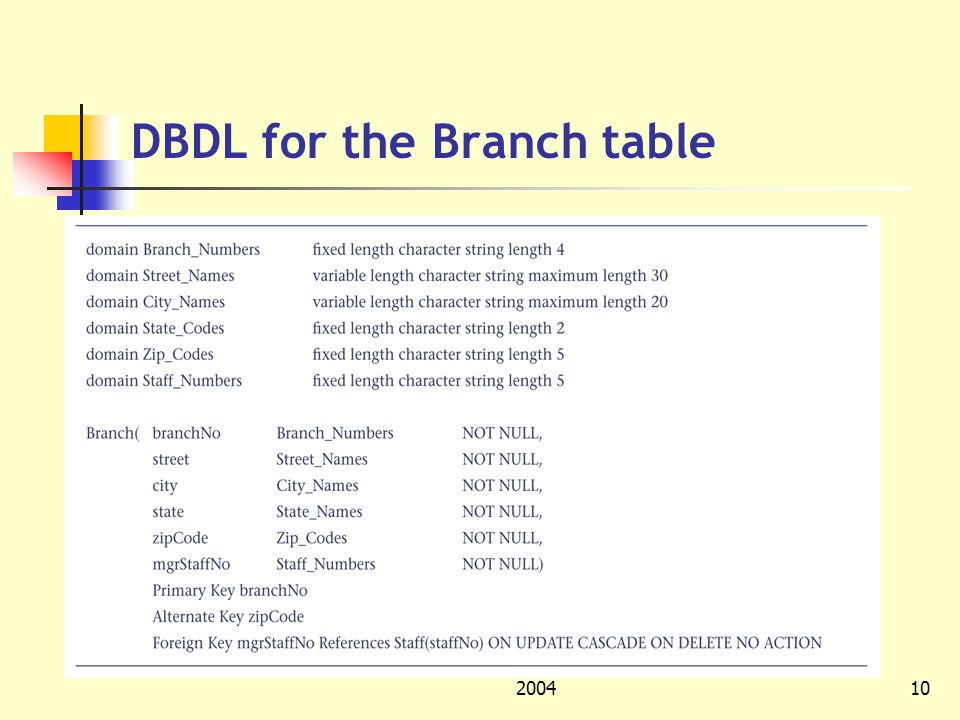

10. © Pearson Education Limited, 200410 DBDL for the Branch table

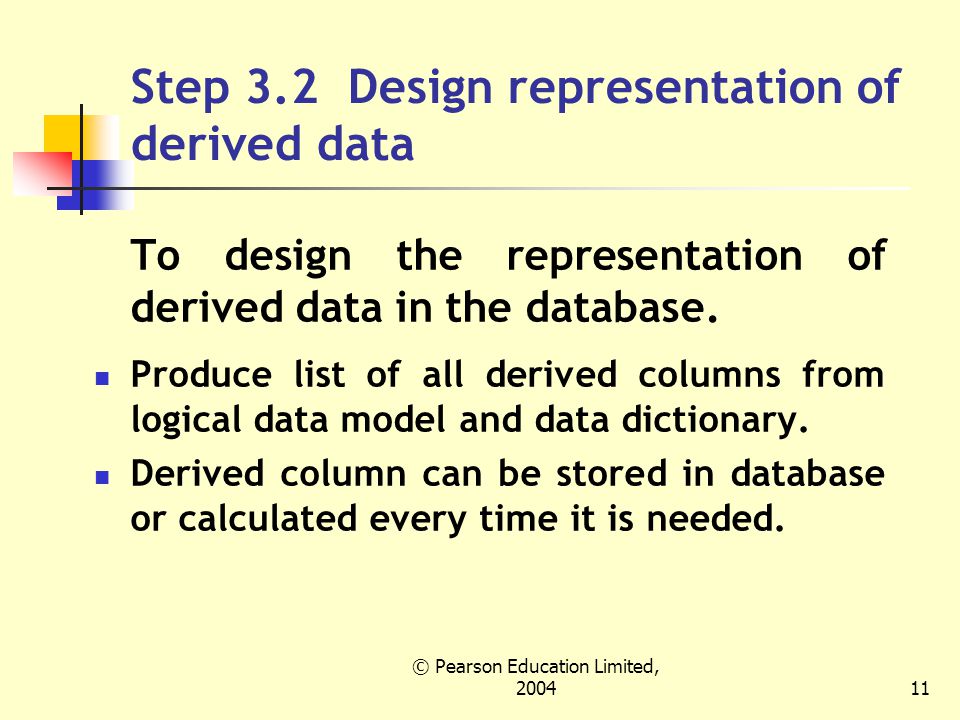

11. © Pearson Education Limited, 200411 Step 3.2 Design representation of derived data To design the representation of derived data in the database. Produce list of all derived columns from logical data model and data dictionary. Derived column can be stored in database or calculated every time it is needed.

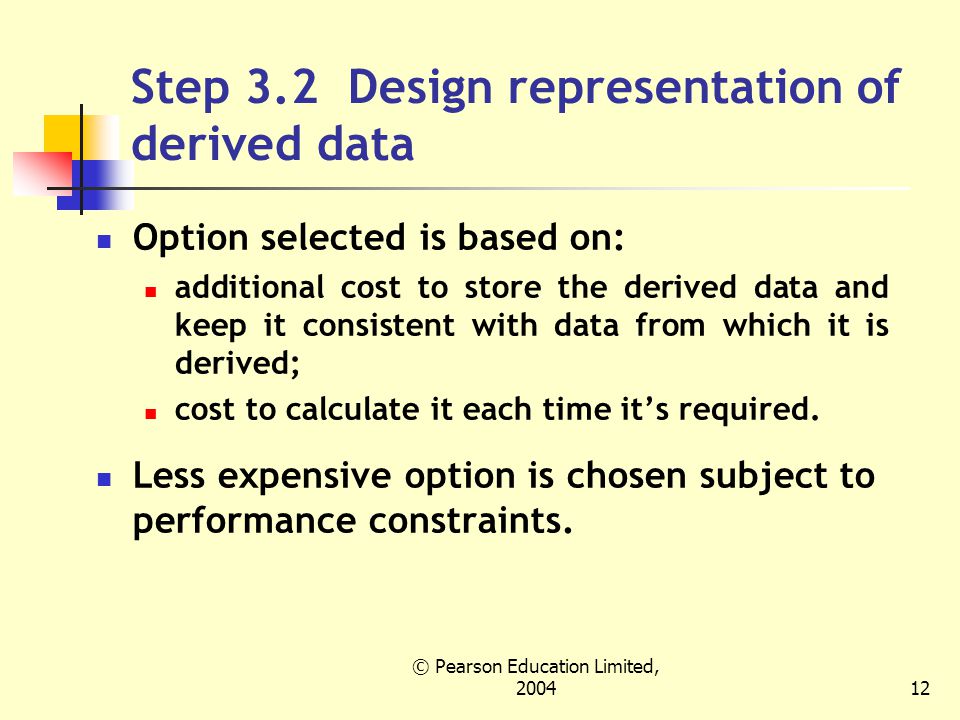

12. © Pearson Education Limited, 200412 Step 3.2 Design representation of derived data Option selected is based on: additional cost to store the derived data and keep it consistent with data from which it is derived; cost to calculate it each time it’s required. Less expensive option is chosen subject to performance constraints.

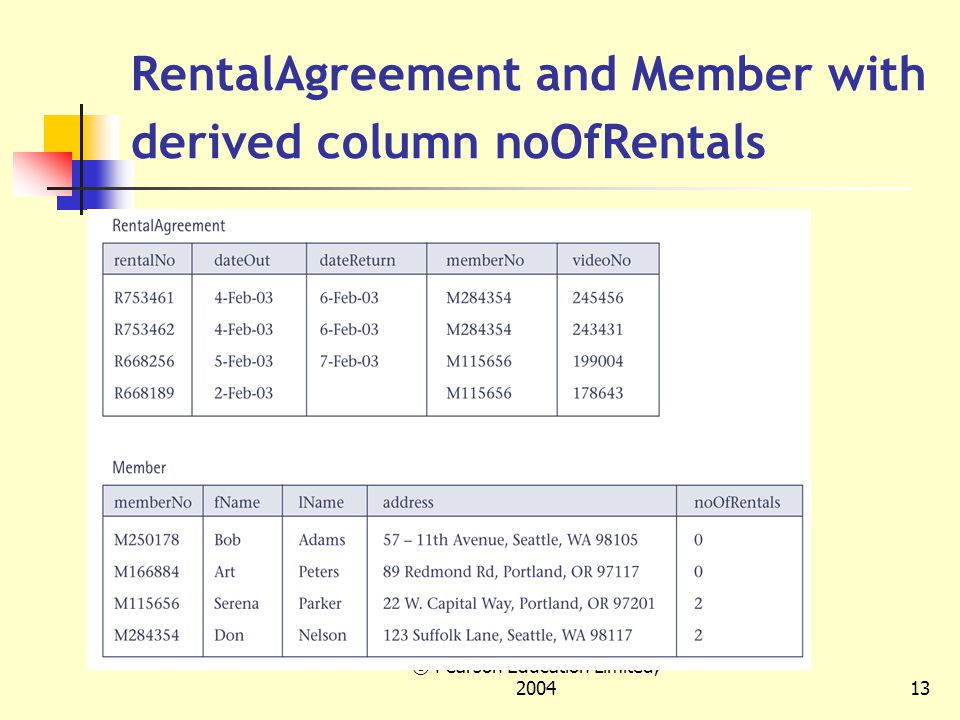

13. © Pearson Education Limited, 200413 RentalAgreement and Member with derived column noOfRentals

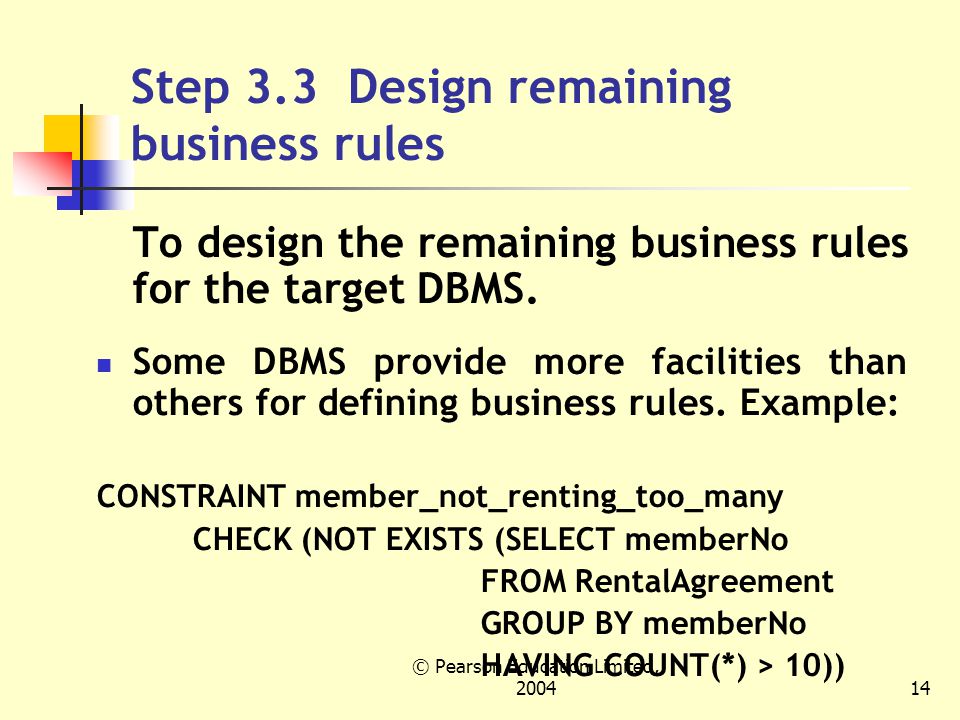

14. © Pearson Education Limited, 200414 Step 3.3 Design remaining business rules To design the remaining business rules for the target DBMS. Some DBMS provide more facilities than others for defining business rules. Example: CONSTRAINT member_not_renting_too_many CHECK (NOT EXISTS (SELECT memberNo FROM RentalAgreement GROUP BY memberNo HAVING COUNT(*) > 10))
