1. HORIZONT 1 XINFO ® The IT - Information System XINFO V3R6 What’s new HORIZONT Software for Datacenters Garmischer Str. 8 D- 80339 München Tel ++49(0)89 / 540 162 - 0 www.horizont-it.com XINFO

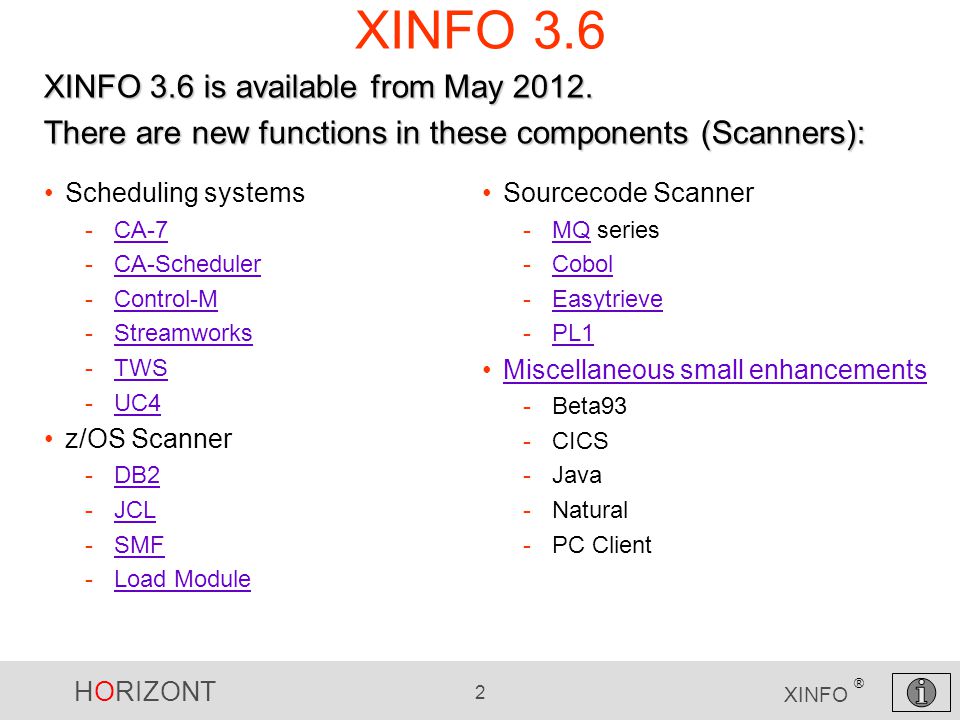

2. HORIZONT 2 XINFO ® XINFO 3.6 Scheduling systems -CA-7CA-7 -CA-SchedulerCA-Scheduler -Control-MControl-M -StreamworksStreamworks -TWSTWS -UC4UC4 z/OS Scanner -DB2DB2 -JCLJCL -SMFSMF -Load ModuleLoad Module XINFO 3.6 is available from May 2012. There are new functions in these components (Scanners): Sourcecode Scanner -MQ seriesMQ -CobolCobol -EasytrieveEasytrieve -PL1PL1 Miscellaneous small enhancements -Beta93 -CICS -Java -Natural -PC Client

3. HORIZONT 3 XINFO ® CA-7 SCHID In all CA7 displays, it’s now possible to enter the schid without leading zeros (e.g. 30 instead of 030).

4. HORIZONT 4 XINFO ® CA-7 Job Netplan You can optionally add Queue Time, Due out Time, Lead Time, Submit Time to the Job symbol

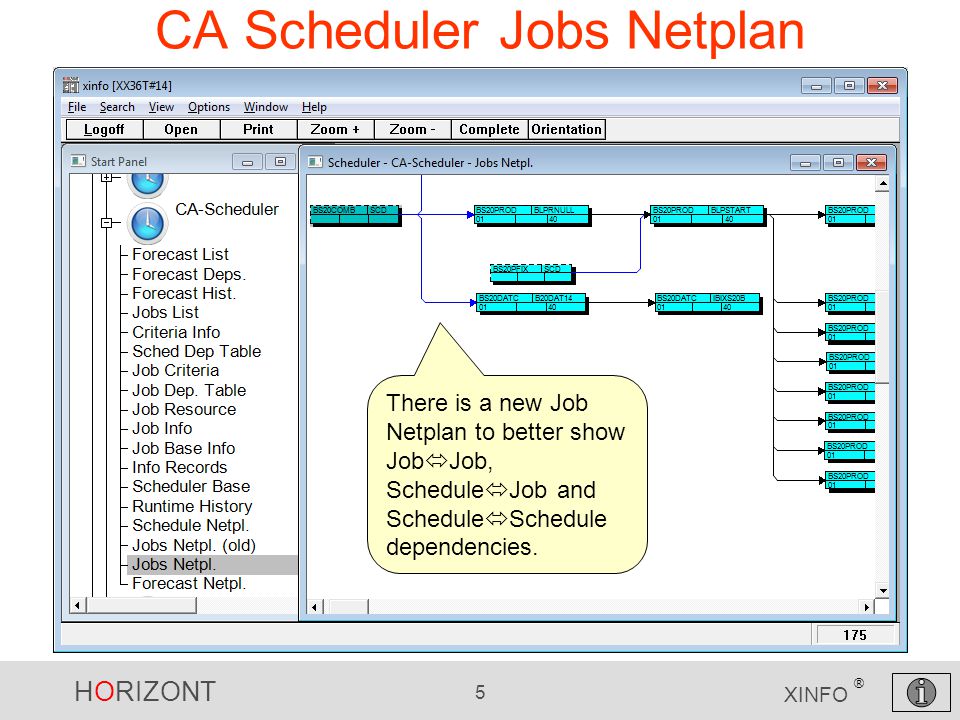

5. HORIZONT 5 XINFO ® CA Scheduler Jobs Netplan There is a new Job Netplan to better show Job  Job, Schedule  Job and Schedule  Schedule dependencies.

6. HORIZONT 6 XINFO ® Control-M Average and Last run time (duration), last run start/end time can be optionally added to the job symbol in the job netplan: Display “ON PGMST / Steps” contains DO MAIL Recipient and Subject A new scanner option allows to skip Control-D info in the Job History Full support of Control-M version 7 -Increased field length for Application, Author, User and Description -Smart tables in the Job Netplan The new functions of XINFO‘s Control-M scanner: Avg.Dur. hhmmss / last start Last Dur. hhmmss / last end Member/Filename, Jobname, Table (a lot more fields are possible)

7. HORIZONT 7 XINFO ® Control-M Full support of Control-M version 7, especially Control-M DS SMART tables: „Subtables" are resolved, the real job flow is displayed

8. HORIZONT 8 XINFO ® Streamworks Streamworks is a new scheduler from arvato systems (Bertelsmann). It is the successor to BAGJAS. The XINFO scanner delivers typical scheduler data: Job/Stream definitions, history and nice netplans:

9. HORIZONT 9 XINFO ® TWS 8.6 support (TWS z/OS and TWS distributed) New table: TWS z/OS - User Fields New fields in existing displays: -TWS z/OS - Operation Data Remote (shadow) Job data (Remote Job, Stream, etc.) Number of user fields -TWS z/OS - Current Plan Remote (shadow) Job data (Remote Job, Stream, etc.) Some new flags (Y/N) like “JCL preparation”, “has OI”, MH, “wait for SCHENV”, ShadowJob HRC -TWS z/OS – Workstations remote WS, dynamic WS -TWS z/OS - Job Run Times Job was restarted by Auto Recovery (Y/N) Owner id TWS The new functions of XINFO‘s TWS scanner:

10. HORIZONT 10 XINFO ® UC4 There is a new UC4 display, to show SAP Jobs Select e.g. by job name, SAP Variant or Report etc.

11. HORIZONT 11 XINFO ® UC4 In the result you can see which jobs are using SAP Variant and Reports

12. HORIZONT 12 XINFO ® DB2 Table “Cat: SYSTABLES” contains now also Auxilary Tables and Views (Type T, X, V) Also new: Number of Columns and Record Length

13. HORIZONT 13 XINFO ® DB2 New in Table “Cat: SYSPACKAGE”: The package version

14. HORIZONT 14 XINFO ® Support of Ideal program calls (take the program name from SYSIN): //SYSIN DD * SIGNON PERSON … SEL SYS XYZ SET ENVIRONMENT DECIMAL, SET RUN PLAN planname RUN idealpgm VERSION PROD PARAMETER '0000000,0400000' Write %INCMEM and %INCLIB to “JCL - Control-M Variable usage” (besides all “normal” variable) //CTMT2 JOB... %INCLIB SYSH.CTM.JOBLIB %INCMEM CTMI21 //STEP1 EXEC PGM=... JCL The new functions of XINFO‘s JCL scanner:

15. HORIZONT 15 XINFO ® SMF New Table SMF Printer Select e.g. by form number or pagedef, formdef etc.

16. HORIZONT 16 XINFO ® SMF It shows you e.g. the consumption of forms (page count, number of records)

17. HORIZONT 17 XINFO ® MQ Series Calls There is a new Display to show Program MQ calls. That is available in Assember, C, Cobol, and PL1, too.

18. HORIZONT 18 XINFO ® Cobol There is a new Display to show Cobol XML statements Select e.g. by variable, program name etc.

19. HORIZONT 19 XINFO ® Cobol In the result you can see which programs are using XML statements and it’s variable, parameter etc. XINFO’s Browse source command shows you the source code

20. HORIZONT 20 XINFO ® Cobol ENTRY Scanner-Version 01.19.07 writes also ENTRY Statements into the Cobol Call-Tabelle XINFO’s Browse source command shows you the source code

21. HORIZONT 21 XINFO ® Easytrieve There is a new Display to show Easytrieve SQL statements Select e.g. by Object (table or view) or column name and/or usage etc.

22. HORIZONT 22 XINFO ® Easytrieve In the result you can see which programs are using which Table/View and it’s columns and the usage (select, insert, update etc.)

23. HORIZONT 23 XINFO ® PL/1 New in Table “PL/1 – General Information”: Line counts for source and comments

24. HORIZONT 24 XINFO ® PL/1 New Table Prepro Variable. Scanner Option PREPROTWICE=AUTO simulates "PP(MACRO,MACRO)” Select e.g. by preprocessor variable, macro or program name etc.

25. HORIZONT 25 XINFO ® PL/1 In the result you can see which programs are using preprocessor variable XINFO’s Browse source command shows you the source code

26. HORIZONT 26 XINFO ® Load Modules The Load Module Scanner collects Information about CSECTs, L ink/Bind etc.

27. HORIZONT 27 XINFO ® Load Modules The new Scanner puts the Entry Points in a separate column

28. HORIZONT 28 XINFO ® Load Modules, Preview of XINFO 3.7 There is a new table, containing the Cobol „signature bytes“ (Compiler Options)

29. HORIZONT 29 XINFO ® Load Modules + Cobol Options The result: Cobol compiler, version etc. plus compiler options like DATA(24/31) etc.

30. HORIZONT 30 XINFO ® Load Modules + Cobol Options Double click shows all fields 1. 2. 3.

31. HORIZONT 31 XINFO ® Beta93 -New fields “Banner Text” in the Recipient table CICS -Support of CICS 4.2 Java -increased column length of several fields (path, module names etc.) Natural -Line counts for source and comments (like PL/1) Source scanner C, Cobol, Easytrieve, Natural, PL/1 -DBCS support PC Client -Browse files by using optional an external editor -New graphic export formats PS (Postscript) EMF (Win Expanded Metafile) Miscellaneous Enhancements

32. HORIZONT 32 XINFO ® Any questions about XINFO V3R6? Info@Horizont-it.com

33. HORIZONT 33 XINFO ® Many thanks for your attention! HORIZONT Software for Datacenters Garmischer Str. 8 D- 80339 München Tel ++49(0)89 / 540 162 - 0 www.horizont-it.com The IT - Information System XINFO
