1. 118/2/2015 Cancer & the Immune System Hugh B. Fackrell

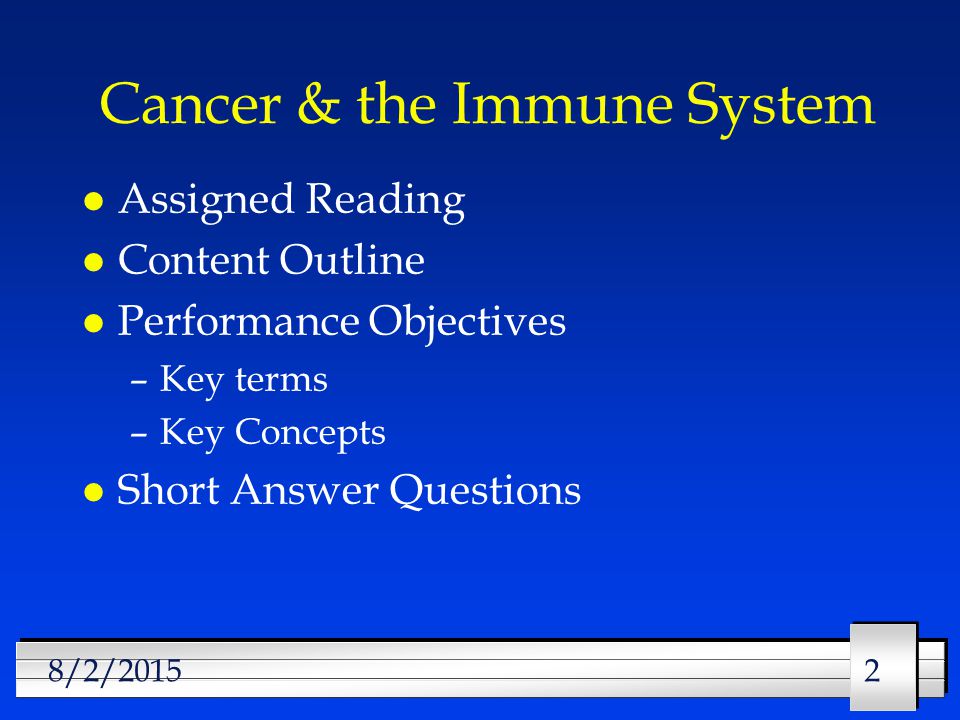

2. 228/2/2015 Cancer & the Immune System l Assigned Reading l Content Outline l Performance Objectives –Key terms –Key Concepts l Short Answer Questions

3. 338/2/2015 Assigned Reading l Janis Kuby’s Immunology 4th Ed Chapter: 22 pp 539-561 l Janis Kuby’s Immunology 3rd Ed l Chapter: 24 pp 573-596

4. 448/2/2015 Content Outline l Origins & Terms l Malignant Transformation l Tumours of the Immune System l Tumour Antigens l TATAs on human melanomas l Immune Response to Tumours l Tumour Evasion of Immune Response l Cancer Immunotherapy

5. 558/2/2015 Origins & Terms

6. 668/2/2015 Benign vs malignant

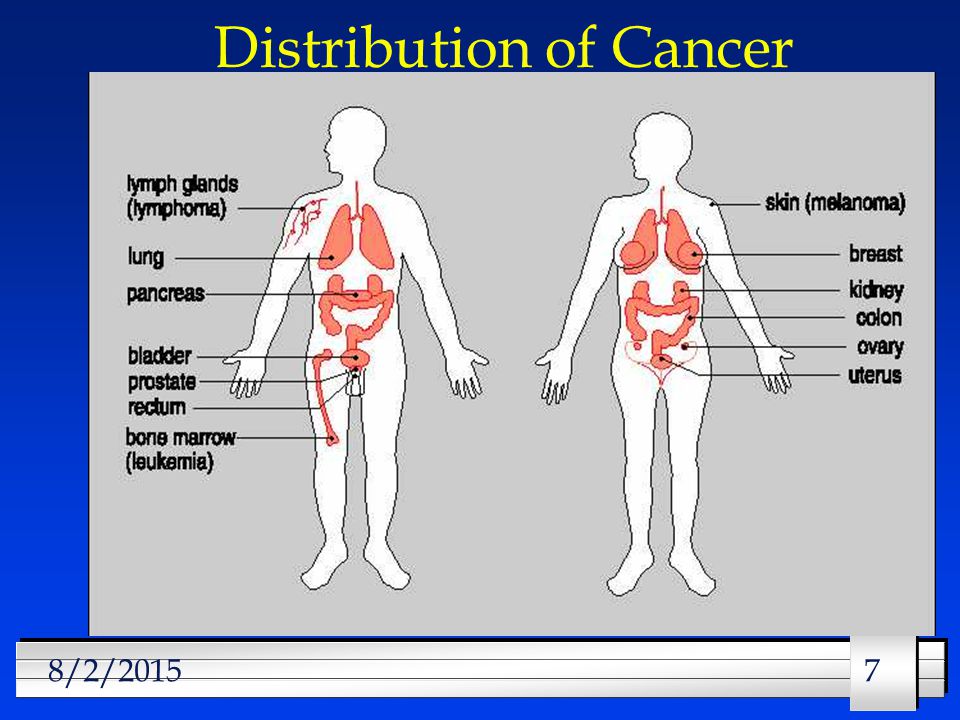

7. 778/2/2015 Distribution of Cancer

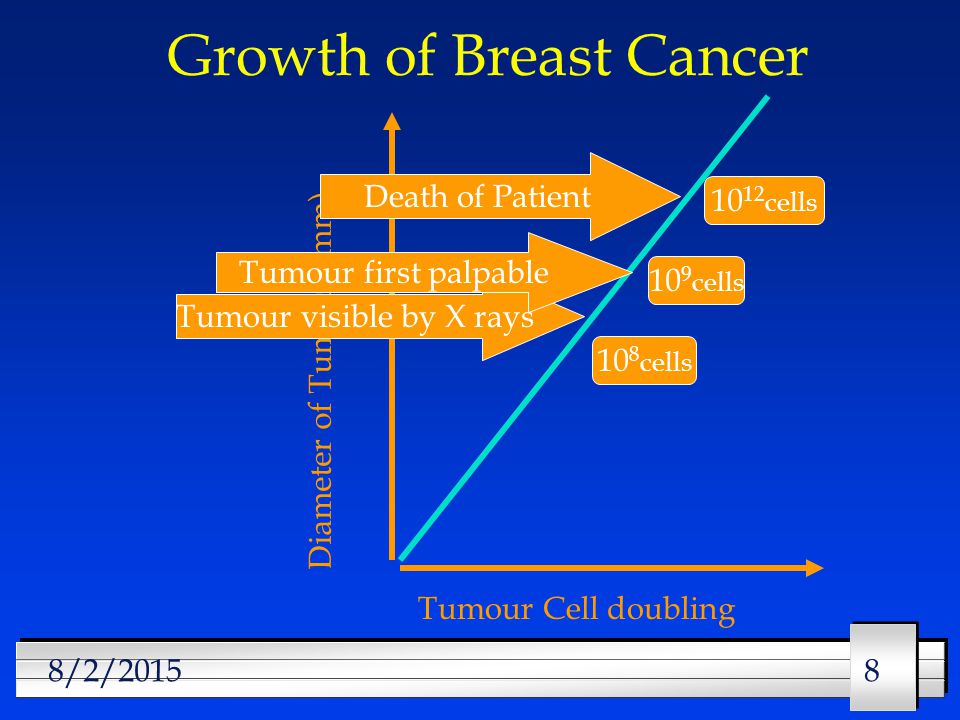

8. 888/2/2015 Growth of Breast Cancer Diameter of Tumour (mm) Tumour Cell doubling Tumour visible by X rays Tumour first palpable Death of Patient 10 8 cells 10 9 cells 10 12 cells

9. 998/2/2015 Altered Growth Properties

10. 10 8/2/2015 Localized Benign Tumour

11. 11 8/2/2015 Tumour Invasion of Basal Lamina

12. 12 8/2/2015 Metastasizes to Other Sites

13. 13 8/2/2015 Tumour Antigens l Tumour specific Antigens –chemically induced –virally induced l Tumour associated antigens –oncofetal tumour antigens –oncogene proteins

14. 14 8/2/2015 TSTA vs TATA

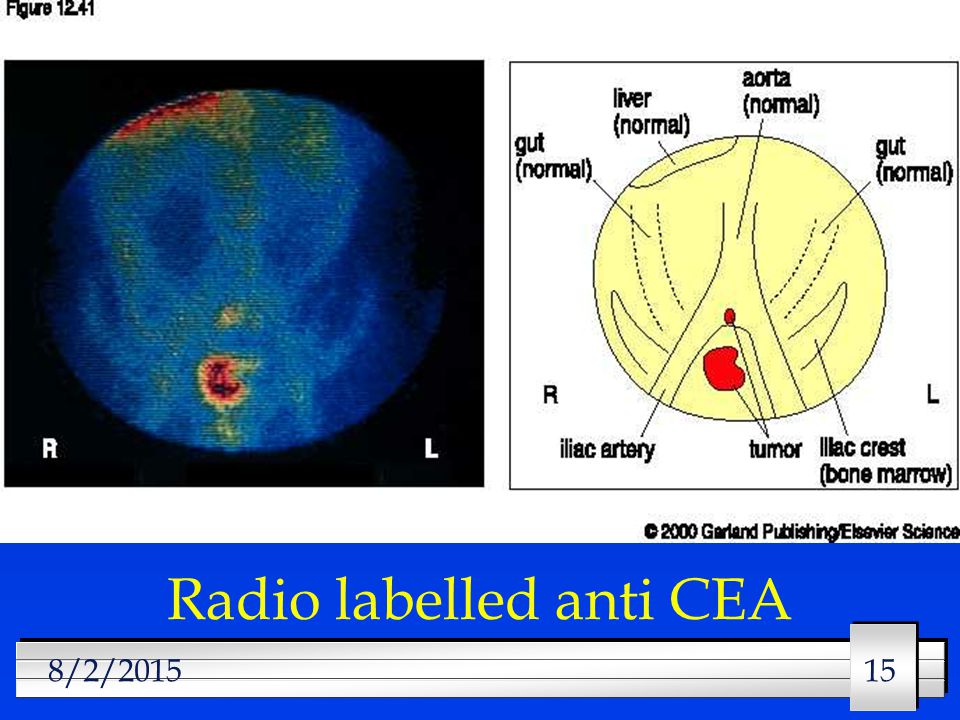

15. 15 8/2/2015 Radio labelled anti CEA

16. 16 8/2/2015 Genes for TSTAs

17. 17 8/2/2015 Malignant Transformation l Oncogenes l Induction of cell proliferation l Inhibition of cell proliferation l Regulation of apoptosis

18. 18 8/2/2015

19. 19 8/2/2015

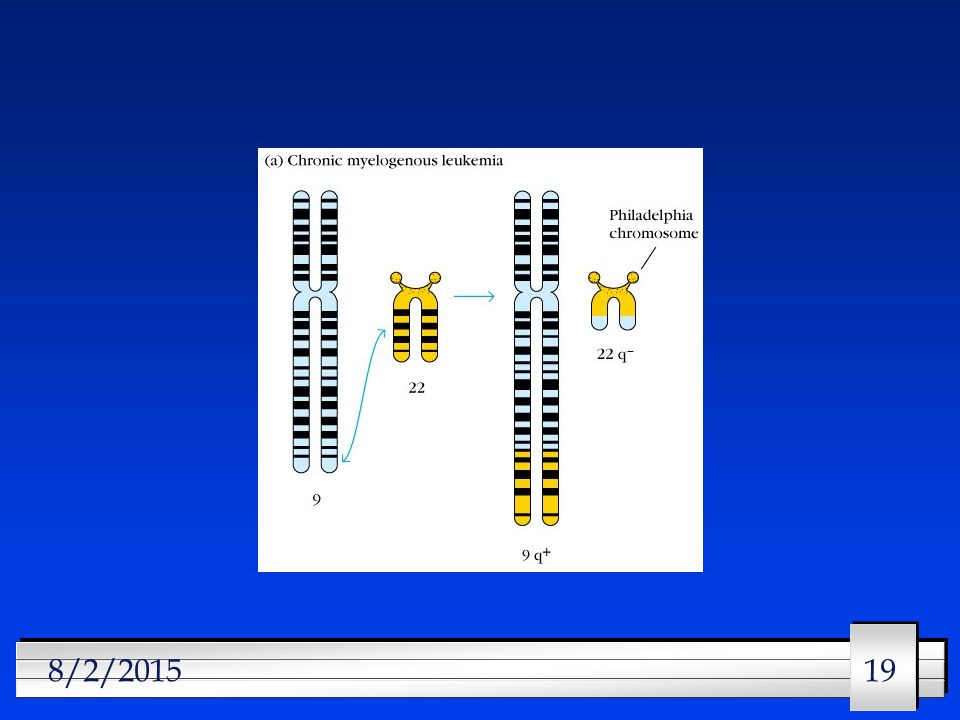

20. 20 8/2/2015 Chromosomal translocations

21. 21 8/2/2015 Tumour Induction

22. 22 8/2/2015 Induction of Tumours

23. 23 8/2/2015 Tumours of the Immune System

24. 24 8/2/2015

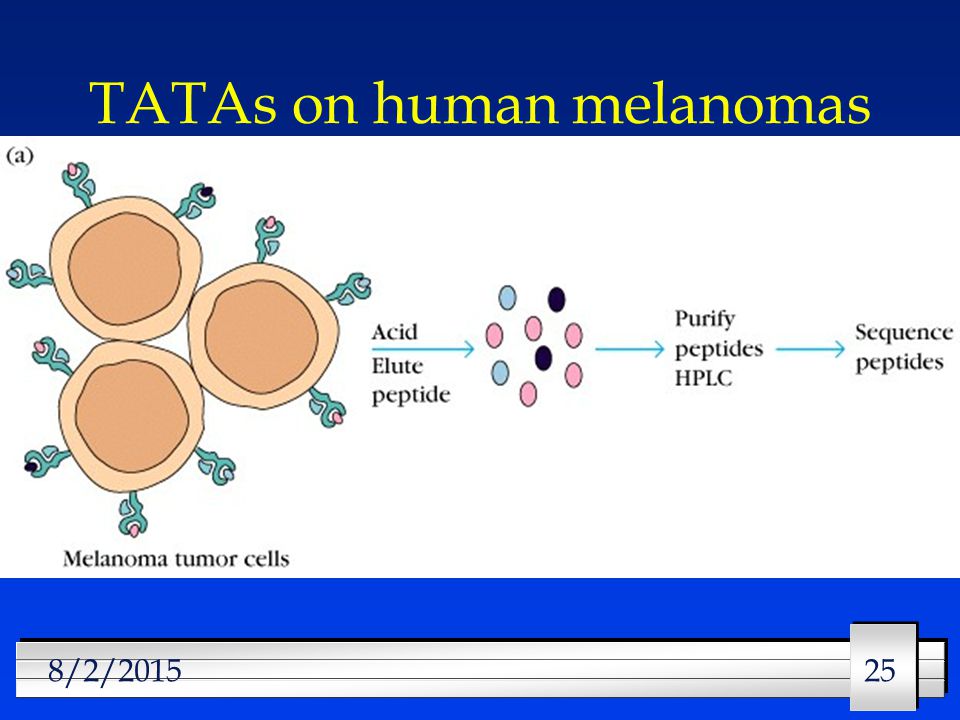

25. 25 8/2/2015 TATAs on human melanomas

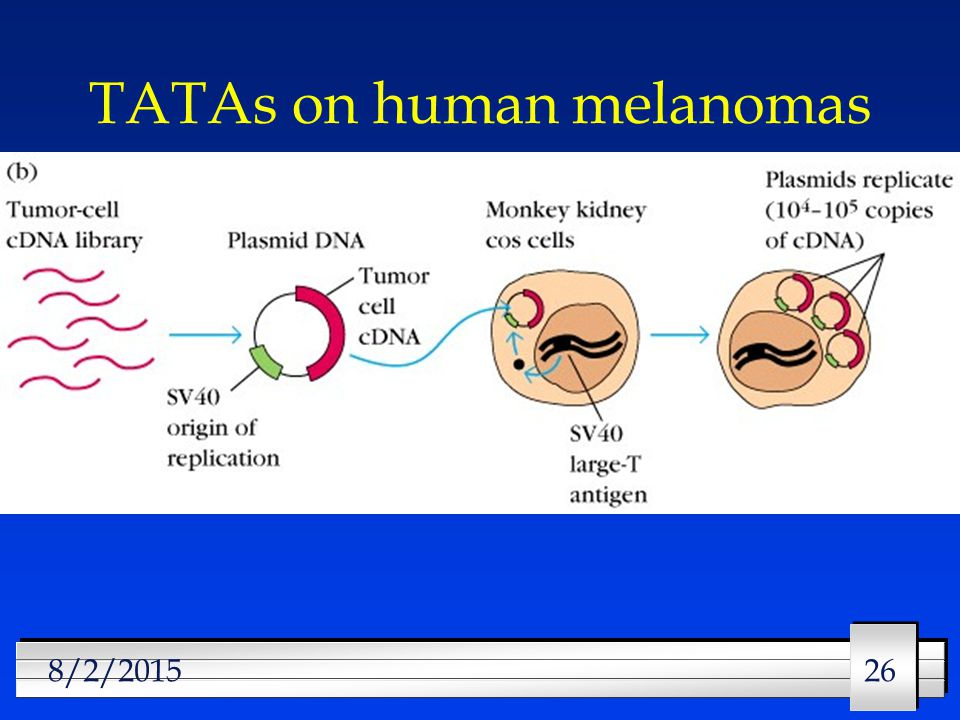

26. 26 8/2/2015 TATAs on human melanomas

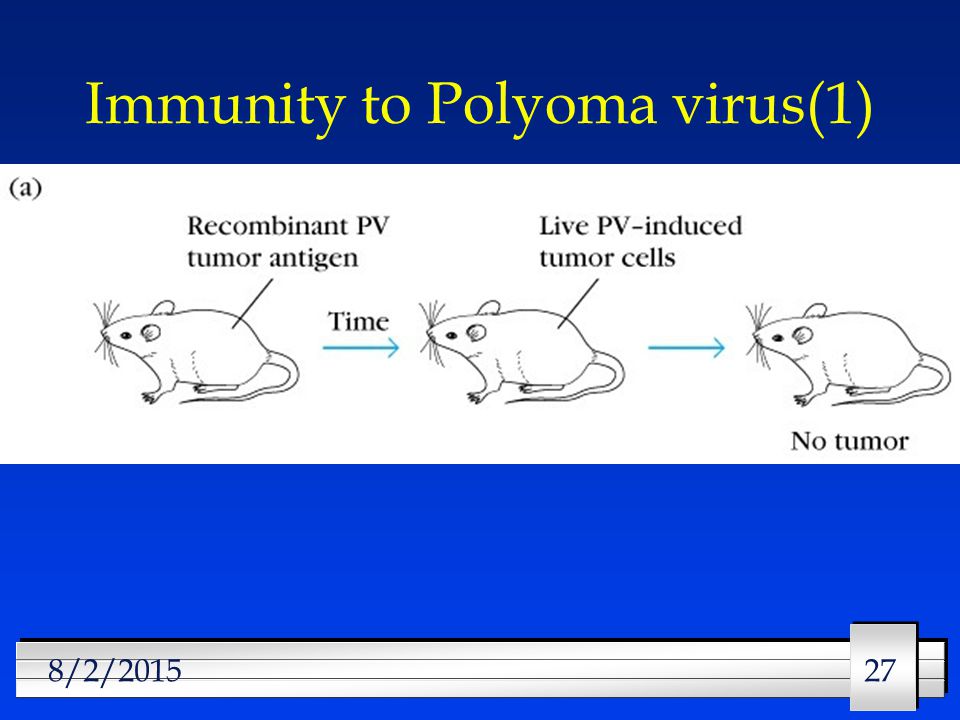

27. 27 8/2/2015 Immunity to Polyoma virus(1)

28. 28 8/2/2015 Immunity to Polyoma virus(2)

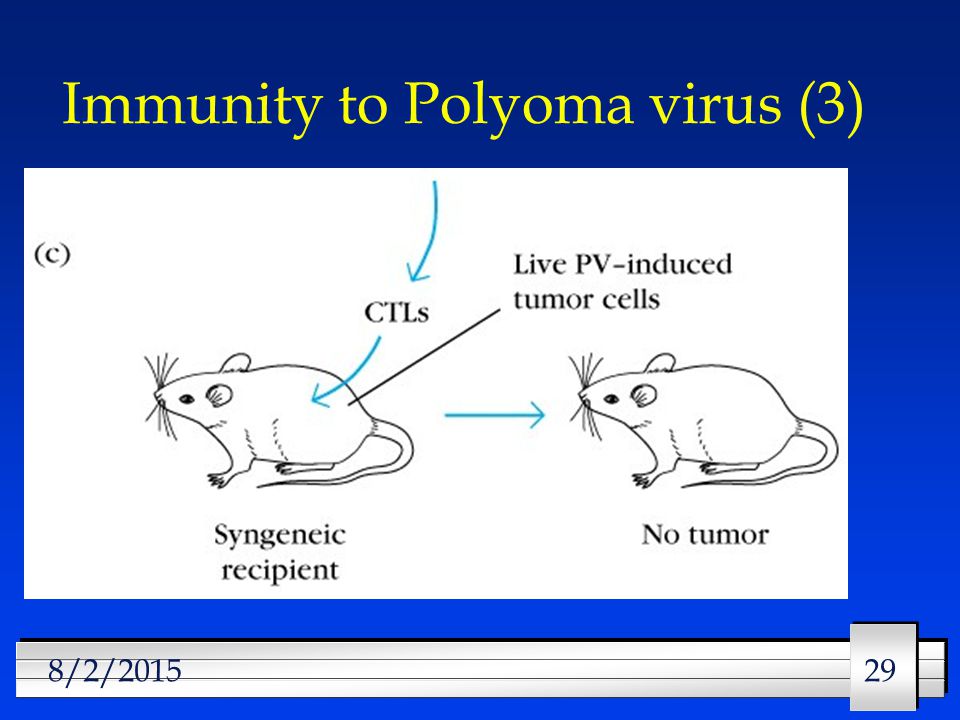

29. 29 8/2/2015 Immunity to Polyoma virus (3)

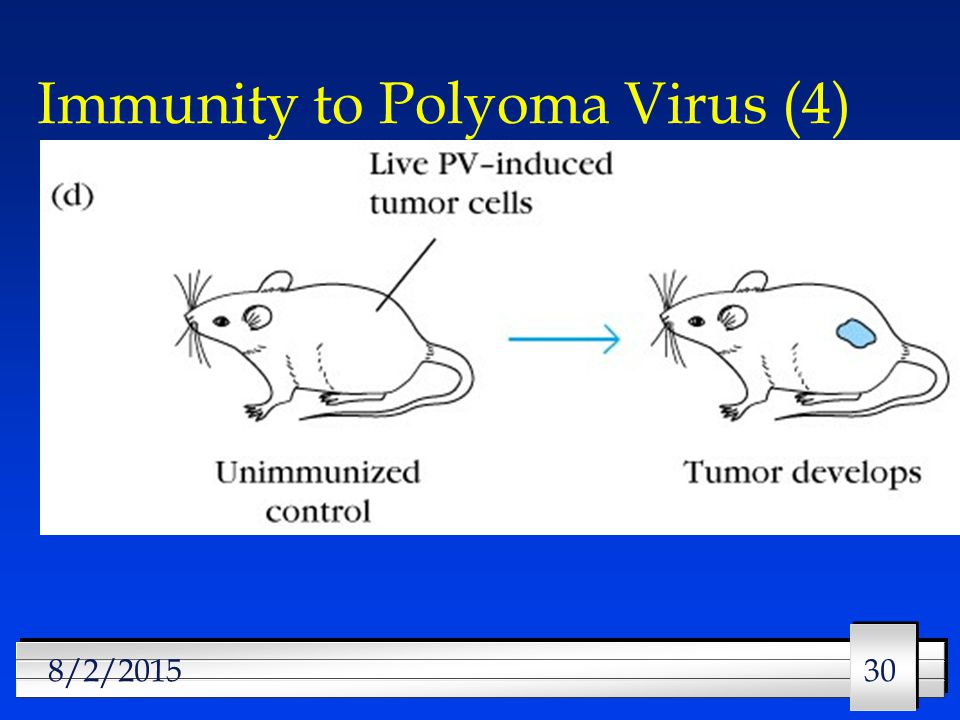

30. 30 8/2/2015 Immunity to Polyoma Virus (4)

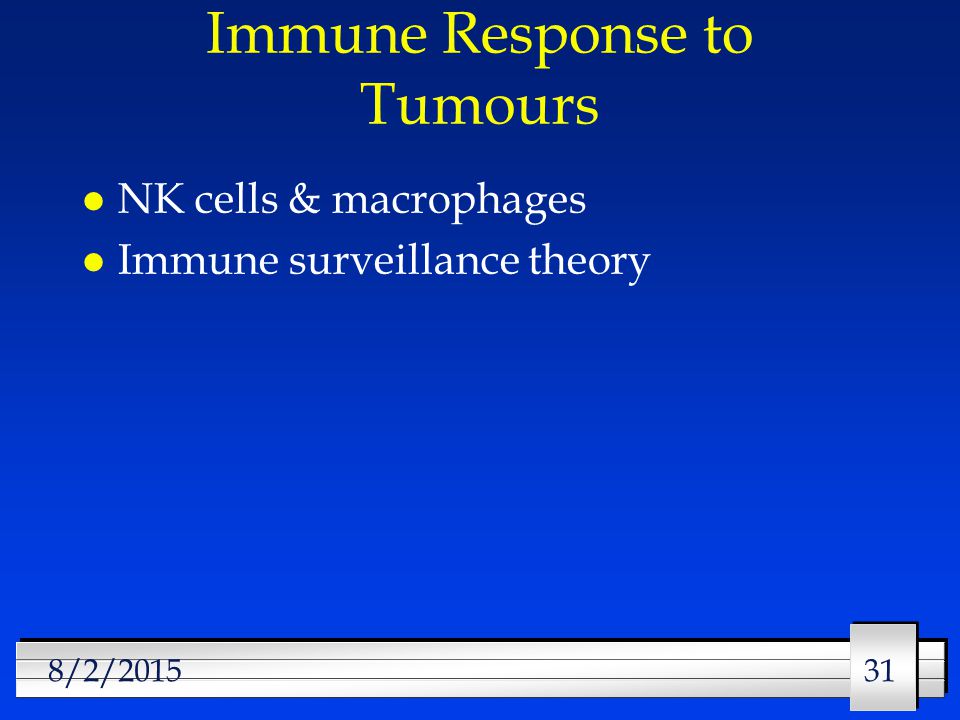

31. 31 8/2/2015 Immune Response to Tumours l NK cells & macrophages l Immune surveillance theory

32. 32 8/2/2015

33. 33 8/2/2015

34. 34 8/2/2015 Tumour Evasion of Immune Response l Immunologic enhancement l Modulation of tumour antigens l Reduce MHC-I l No co-stimulatory signal

35. 35 8/2/2015

36. 36 8/2/2015

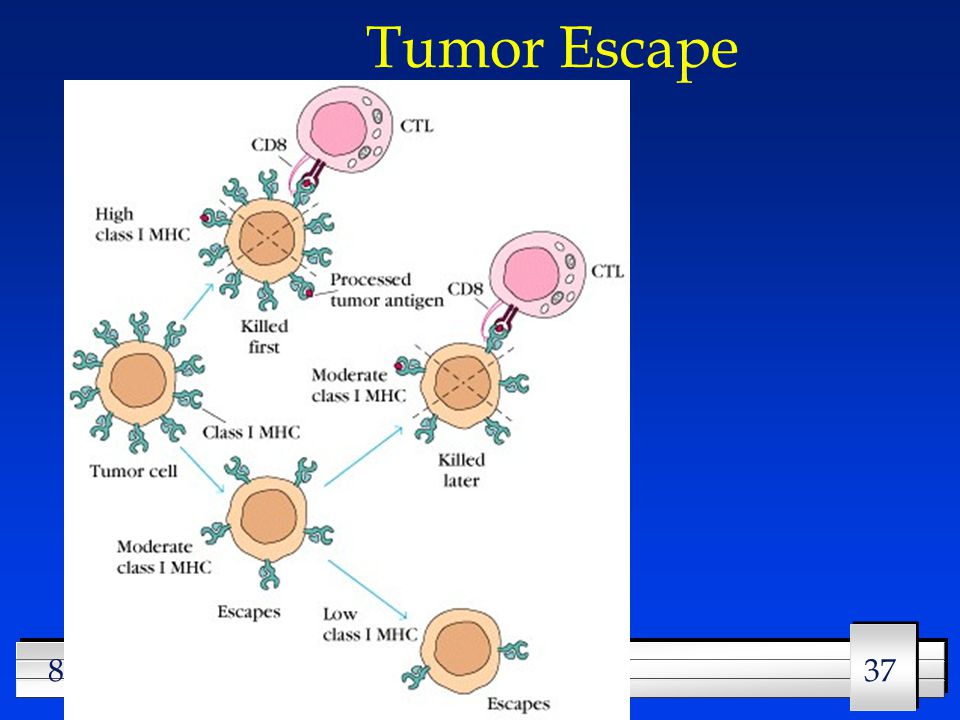

37. 37 8/2/2015 Tumor Escape

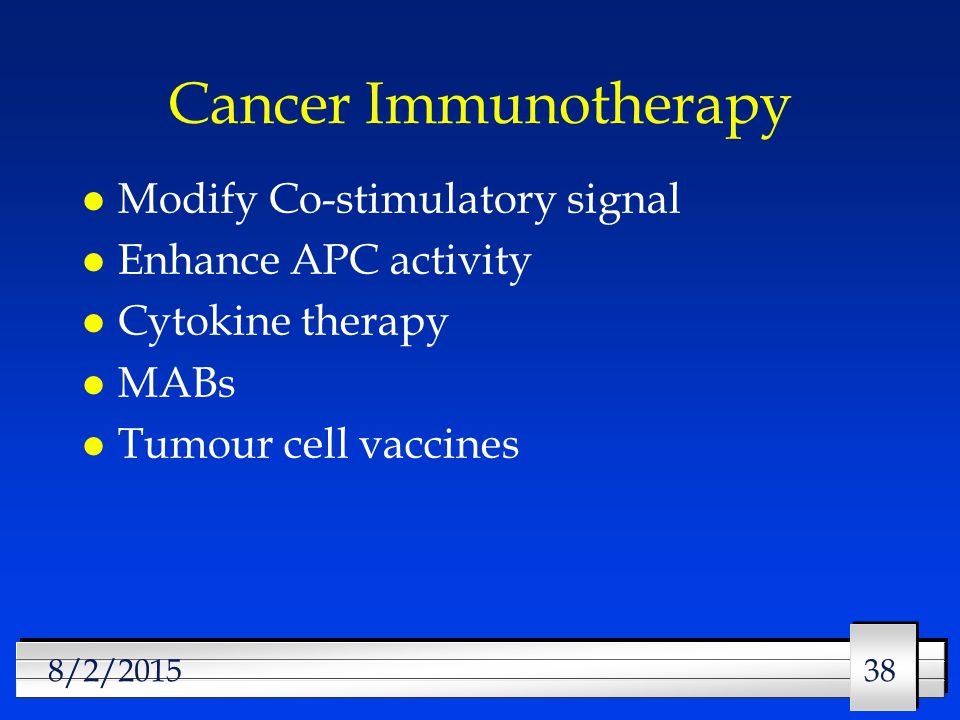

38. 38 8/2/2015 Cancer Immunotherapy l Modify Co-stimulatory signal l Enhance APC activity l Cytokine therapy l MABs l Tumour cell vaccines

39. 39 8/2/2015 Cancers Treatable by Bone Marrow Transplants Allogenic/syngenic Transplant –Breast cancer –aplastic anemia –leukemia –ALL –CML –Myeolodysplasia –multiple myeloma –Non- Hodgkin’s lymphoma –Hodgkin’s disease Autologous Transplants –Leukemia –AML –ALL –Multiple Myeloma –Non Hodgkin’s lymphoma –Hodkin’s disease –Solid tumours –Breast –ovarian –testicular –Neuroblastoma

40. 40 8/2/2015

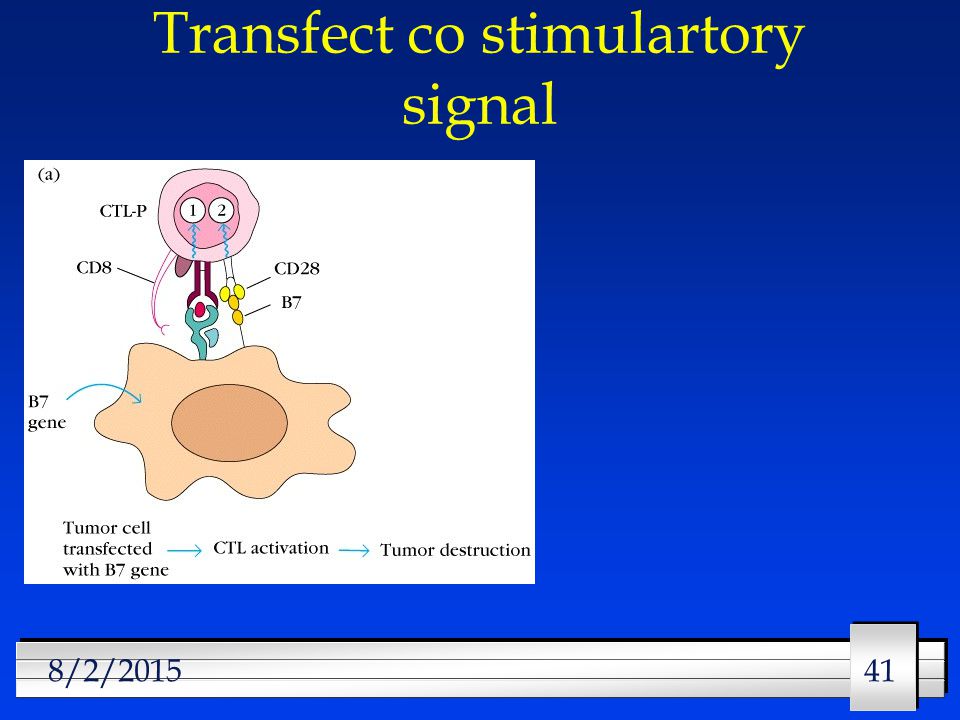

41. 41 8/2/2015 Transfect co stimulartory signal

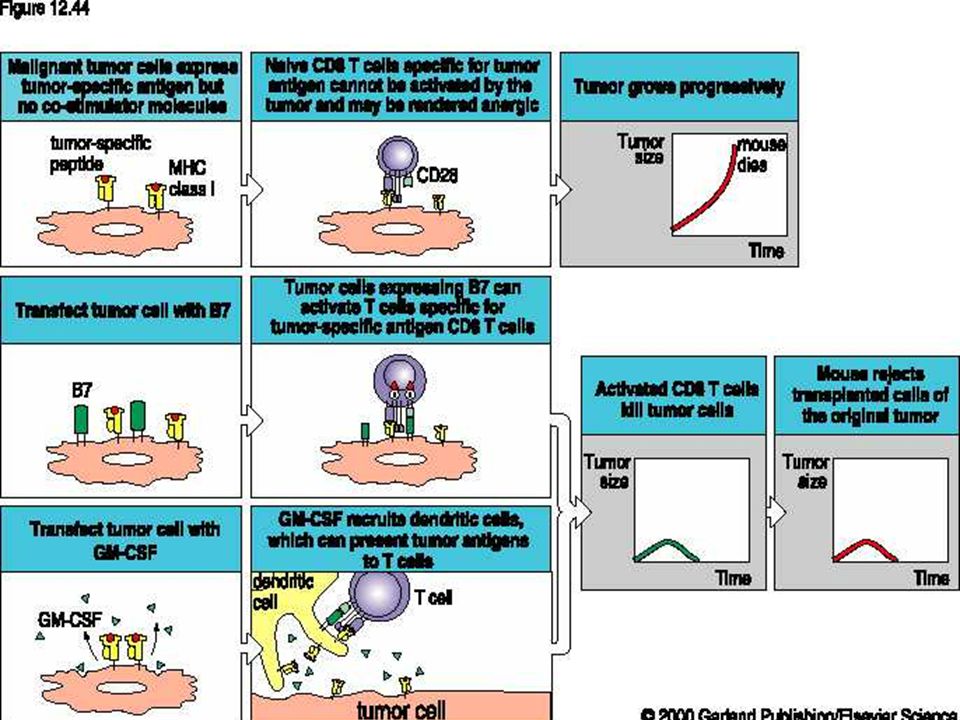

42. 42 8/2/2015 Transfect with GM-CSF

43. 43 8/2/2015 Lak cells & IL-2

44. 44 8/2/2015 Mabs to B cell Lymphoma

45. 45 8/2/2015 Tumour Cell Vaccine Immune Response to MCA or PV Transplant killed cells of MCA induced sarcoma A l Challenge with Sarcoma A- No Growth l Challenge with Sarcoma B- growth Transplant killed cells of Polyoma Virus induced sarcoma A l Challenge with sarcoma A no growth l challenge with sarcoma B no growth l SV40 induced sarcoma C- growth

46. 46 8/2/2015

47. 47 8/2/2015 DONE!!!

48. 48 8/2/2015

49. 49 8/2/2015

50. 50 8/2/2015

51. 51 8/2/2015

52. 52 8/2/2015

53. 53 8/2/2015

54. 54 8/2/2015

55. 55 8/2/2015

56. 56 8/2/2015

57. 57 8/2/2015

58. 58 8/2/2015

59. 59 8/2/2015

60. 60 8/2/2015 Performance Objectives

61. 61 8/2/2015 Key Terms l antibody dependent cell mediated cytotoxicity (ADCC), benign tumour, cancer, l carcinogens, proto oncogens, immune surveillance, Specific immunotherapy, l non specific immunotherapy, immunotoxins,Lymphokine activated killer cell(LAK),

62. 62 8/2/2015 l neoplasm, oncofetal antigens, oncogens, tumour, tumour associated antigens, l tumour associated transplantation antigens, tumour specific antigens, l tumour specific transplantation antigens

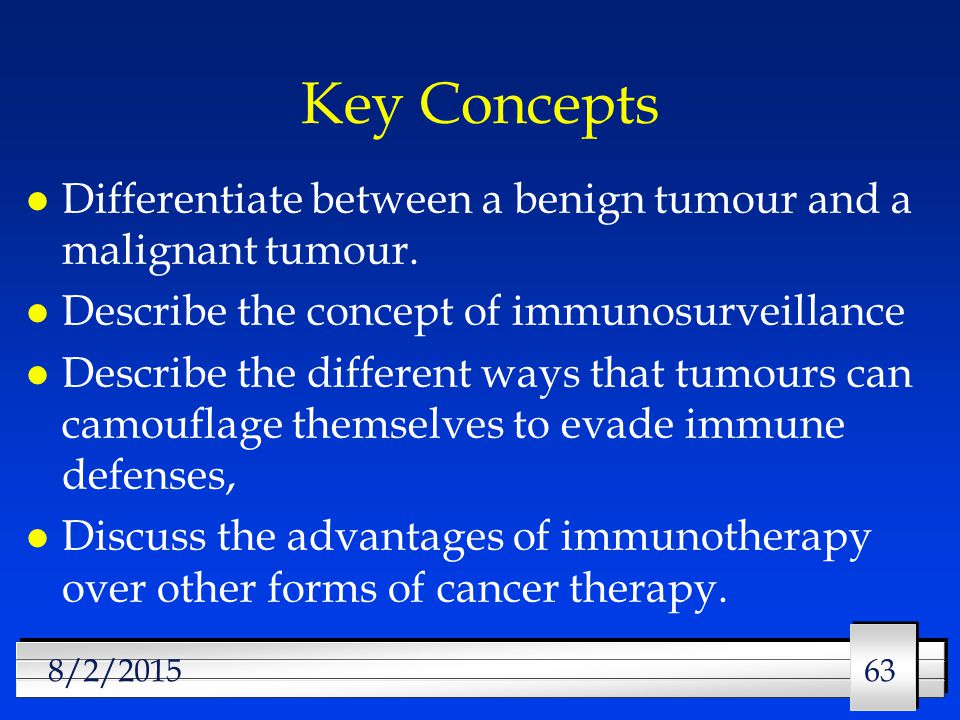

63. 63 8/2/2015 Key Concepts l Differentiate between a benign tumour and a malignant tumour. l Describe the concept of immunosurveillance l Describe the different ways that tumours can camouflage themselves to evade immune defenses, l Discuss the advantages of immunotherapy over other forms of cancer therapy.

64. 64 8/2/2015 l Distinguish between specific and nonspecific immunotherapy with the use of specific examples. l Describe immunotoxins. l Describe the development of humanized antibodies to tumour antigens l Evalulate the contribution of T cells, NK cells, Macrophages, and B cells to tumour immunity.

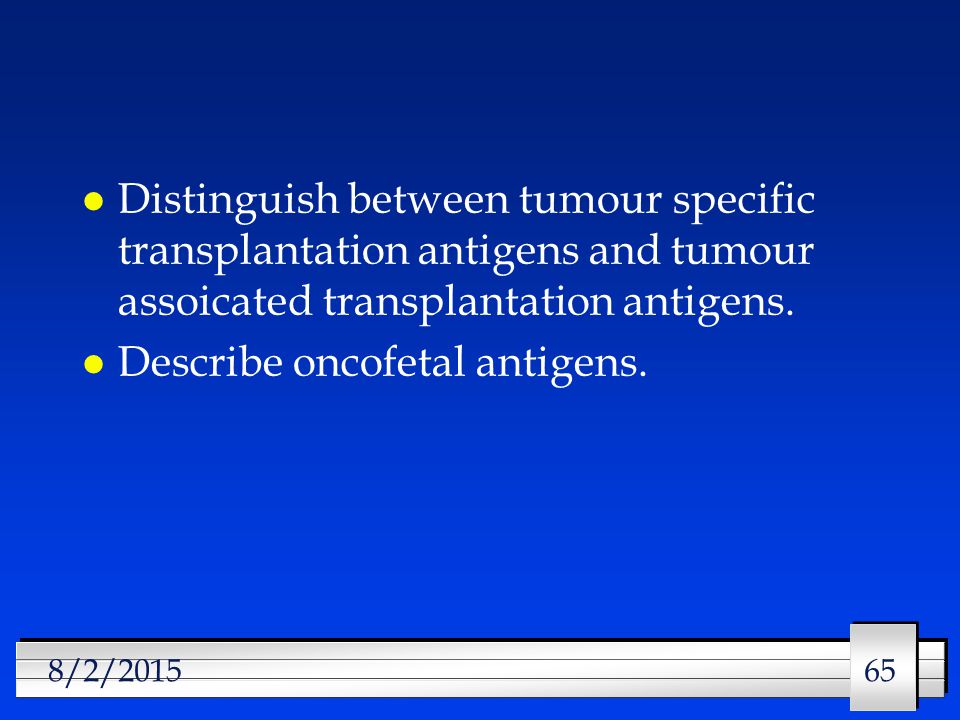

65. 65 8/2/2015 l Distinguish between tumour specific transplantation antigens and tumour assoicated transplantation antigens. l Describe oncofetal antigens.

66. 66 8/2/2015 Short Answer Questions

67. 67 8/2/2015 l Explain how some cancer cells that can make TGF-beta are immunosuppressive. l Tumours and transplants are similar to one another,yet very different. Explain this observation in the context of what the immune system recognizes and the result of this recognition. l The qualities of proliferation and differentiation are essentially all that distinguishes a normal cell from a cancer cell. Explain.

68. 68 8/2/2015 l Design an experiment using mice that proves that the immune system provides immunity against tumours. l Distinguish between tumour-specific transplantation antigens (TSTA) and tumour associated transplantation antigens (TATA). l Design an experiment to show Tumour associated Transplantation Antigens (TATA). l What is the main difference separating cell surface antigens from chemically induced and virually induced cancers?

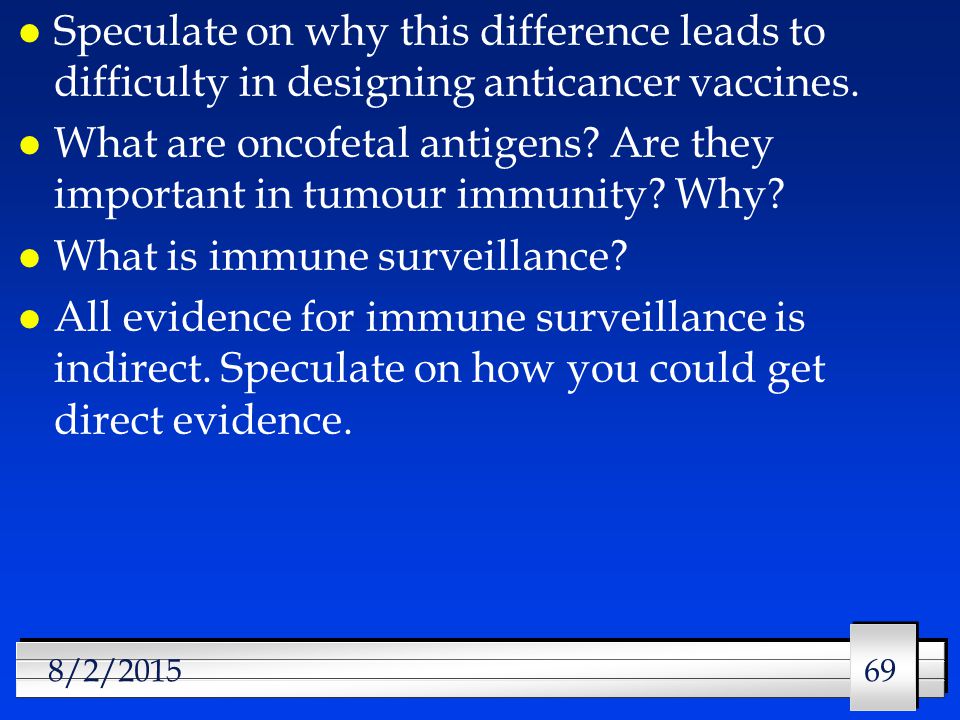

69. 69 8/2/2015 l Speculate on why this difference leads to difficulty in designing anticancer vaccines. l What are oncofetal antigens? Are they important in tumour immunity? Why? l What is immune surveillance? l All evidence for immune surveillance is indirect. Speculate on how you could get direct evidence.

70. 70 8/2/2015 l What immune cells play a role in tumour rejection? Briefly describe how each accomplishes this task. Include such things as cytokines, perforins, ADCC etc. l Cancers camouflage themselves to evade antitumour defenses. Pick three possible forms of camouflage that you think are most important, describe them and state why you think they are most important. l What are immunotoxins?

71. 71 8/2/2015 l Surgery, radiation and chemotherapy are the methods most widely used to treat cancer patients. What are the problems with this regimen, and how could immunotherapy overcome these problems. l Distinguish between specific and nonspecific immunotherapy.
