UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2002 Lecture 6 Tuesday, 10/8/02 NP-Completeness.

Similar presentations


Presentation on theme: "UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2002 Lecture 6 Tuesday, 10/8/02 NP-Completeness."— Presentation transcript:

1 UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2002 Lecture 6 Tuesday, 10/8/02 NP-Completeness

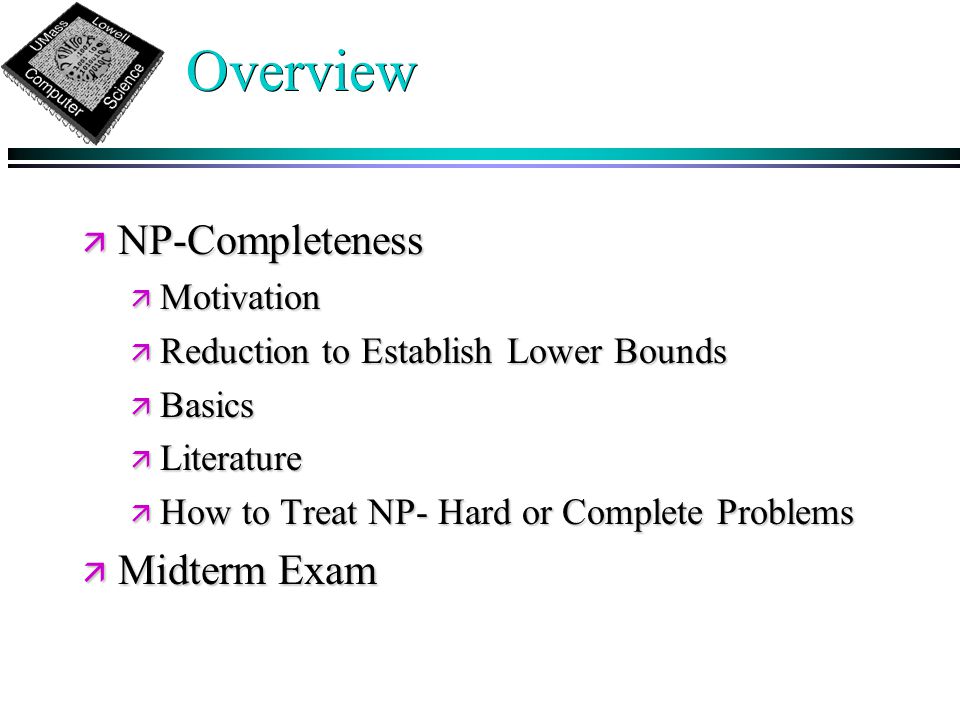

2 Overview ä NP-Completeness ä Motivation ä Reduction to Establish Lower Bounds ä Basics ä Literature ä How to Treat NP- Hard or Complete Problems ä Midterm Exam

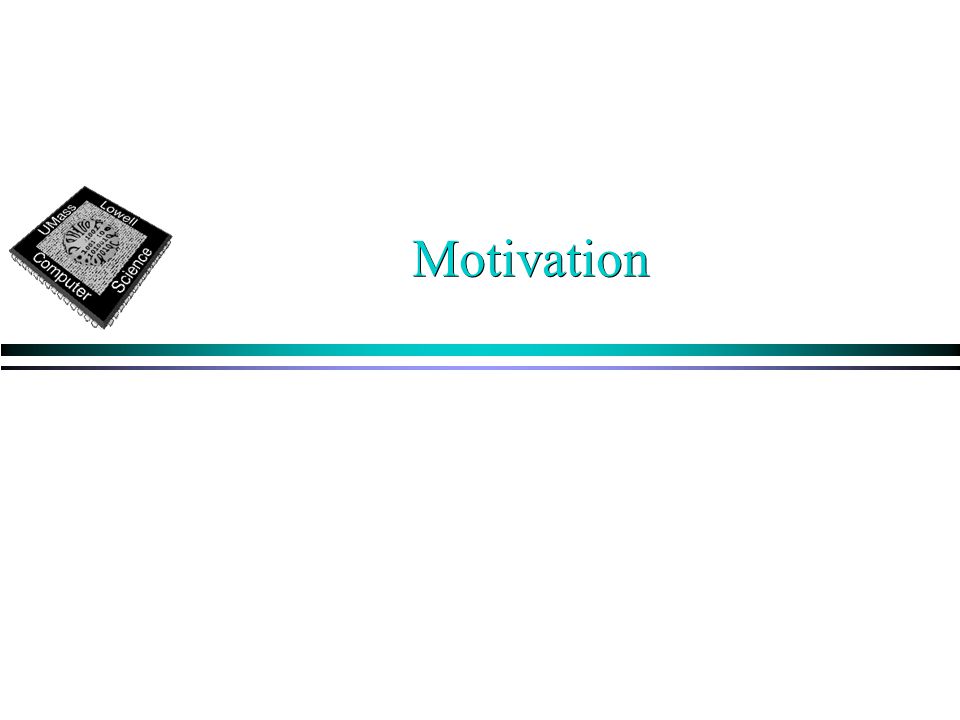

3 Motivation

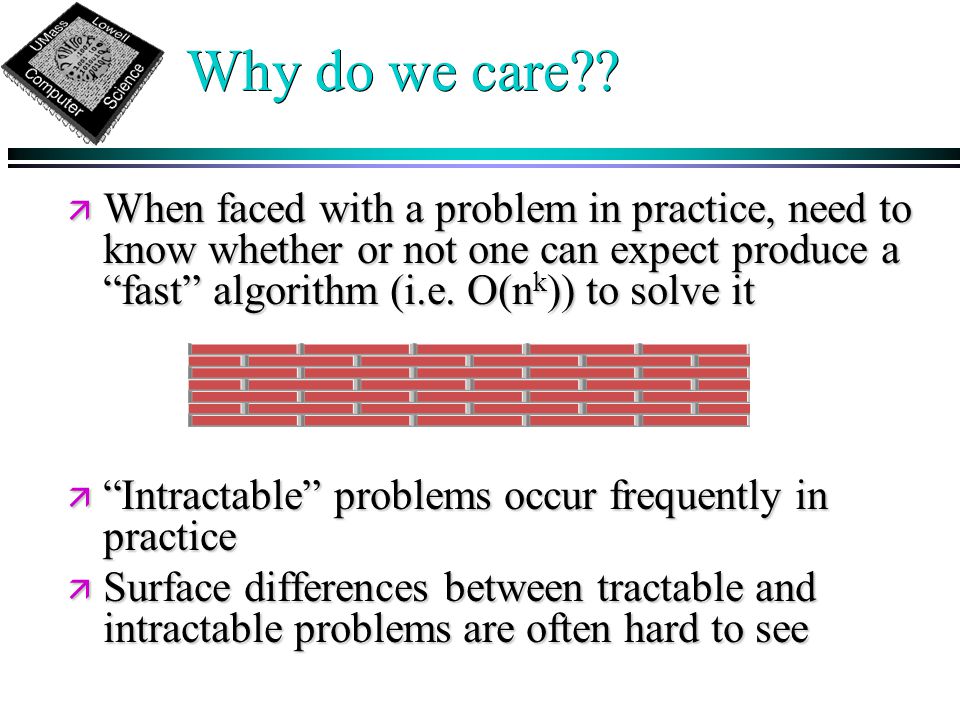

4 Why do we care?? ä When faced with a problem in practice, need to know whether or not one can expect produce a “fast” algorithm (i.e. O(n k )) to solve it ä “Intractable” problems occur frequently in practice ä Surface differences between tractable and intractable problems are often hard to see

5 UMass Lowell Algorithms Lab Telecommunications Data Mining & Visualization Manufacturing Design Analyze Apply PhD research Undergraduate & Masters research OS 305 Prof. Daniels

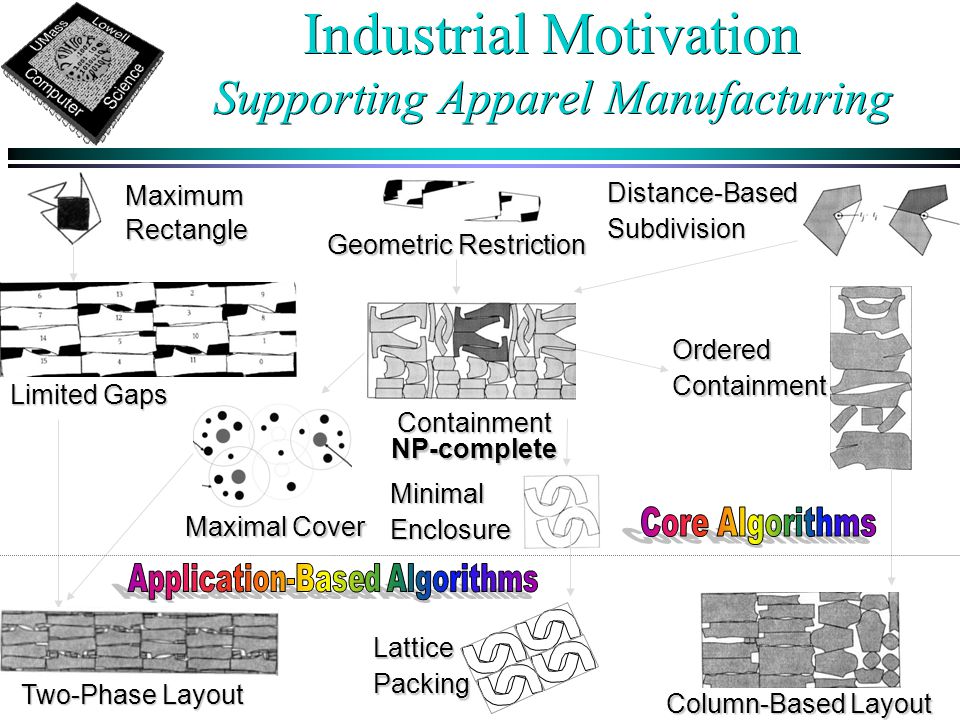

6 Industrial Motivation Supporting Apparel Manufacturing OrderedContainment Geometric Restriction Distance-BasedSubdivision MaximumRectangle Limited Gaps MinimalEnclosure Column-Based Layout Two-Phase Layout LatticePacking Maximal Cover Containment NP-complete

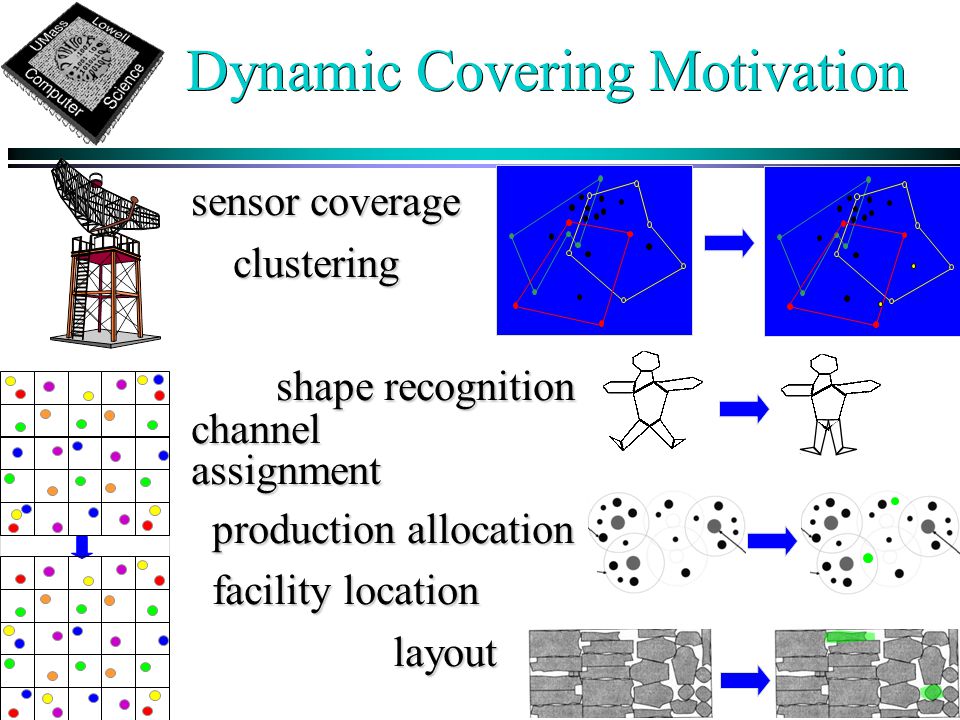

7 Dynamic Covering Motivation sensor coverage sensor coverage clustering clustering shape recognition shape recognition channel channel assignment assignment production allocation production allocation facility location facility location layout layout

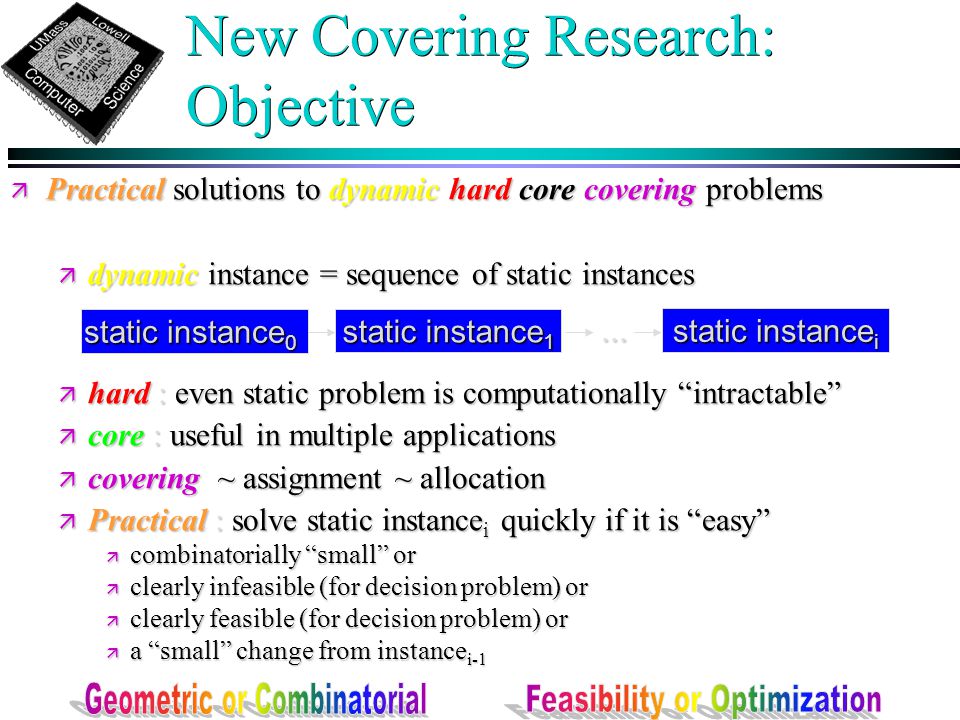

8 New Covering Research: Objective ä Practical solutions to dynamic hard core covering problems ä dynamic instance = sequence of static instances ä hard : even static problem is computationally “intractable” ä core : useful in multiple applications ä covering ~ assignment ~ allocation ä Practical : solve static instance i quickly if it is “easy” ä combinatorially “small” or ä clearly infeasible (for decision problem) or ä clearly feasible (for decision problem) or ä a “small” change from instance i-1 static instance 0 static instance 1 static instance i...

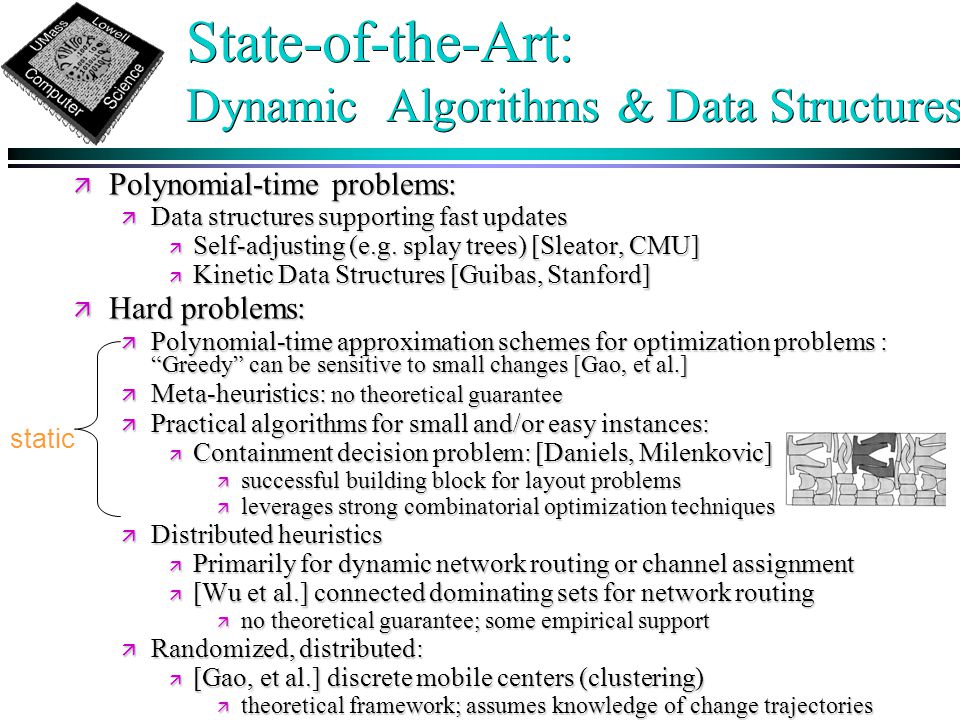

9 State-of-the-Art: Dynamic Algorithms & Data Structures ä Polynomial-time problems: ä Data structures supporting fast updates ä Self-adjusting (e.g. splay trees) [Sleator, CMU] ä Kinetic Data Structures [Guibas, Stanford] ä Hard problems: ä Polynomial-time approximation schemes for optimization problems : “Greedy” can be sensitive to small changes [Gao, et al.] ä Meta-heuristics: no theoretical guarantee ä Practical algorithms for small and/or easy instances: ä Containment decision problem: [Daniels, Milenkovic] ä successful building block for layout problems ä leverages strong combinatorial optimization techniques ä Distributed heuristics ä Primarily for dynamic network routing or channel assignment ä [Wu et al.] connected dominating sets for network routing ä no theoretical guarantee; some empirical support ä Randomized, distributed: ä [Gao, et al.] discrete mobile centers (clustering) ä theoretical framework; assumes knowledge of change trajectories static

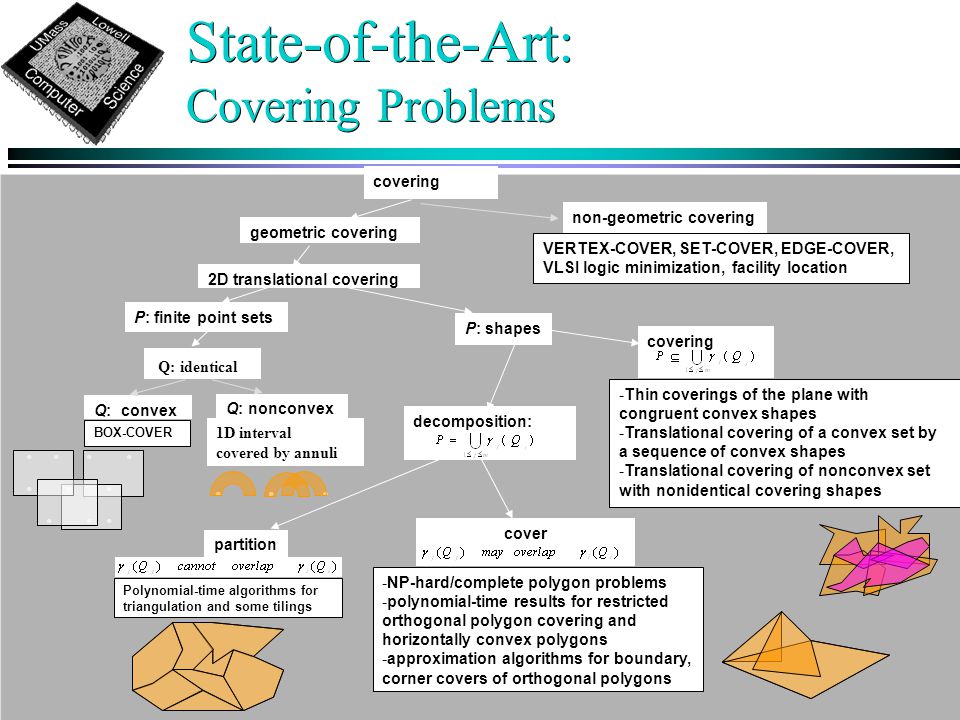

10 State-of-the-Art: Covering Problems covering P: finite point sets geometric covering 2D translational covering non-geometric covering P: shapes cover partition : VERTEX-COVER, SET-COVER, EDGE-COVER, VLSI logic minimization, facility location Polynomial-time algorithms for triangulation and some tilings Q: convex Q: nonconvex BOX-COVER - -Thin coverings of the plane with congruent convex shapes - -Translational covering of a convex set by a sequence of convex shapes - -Translational covering of nonconvex set with nonidentical covering shapes - -NP-hard/complete polygon problems - -polynomial-time results for restricted orthogonal polygon covering and horizontally convex polygons - -approximation algorithms for boundary, corner covers of orthogonal polygons..... covering decomposition: Q: identical... 1D interval covered by annuli

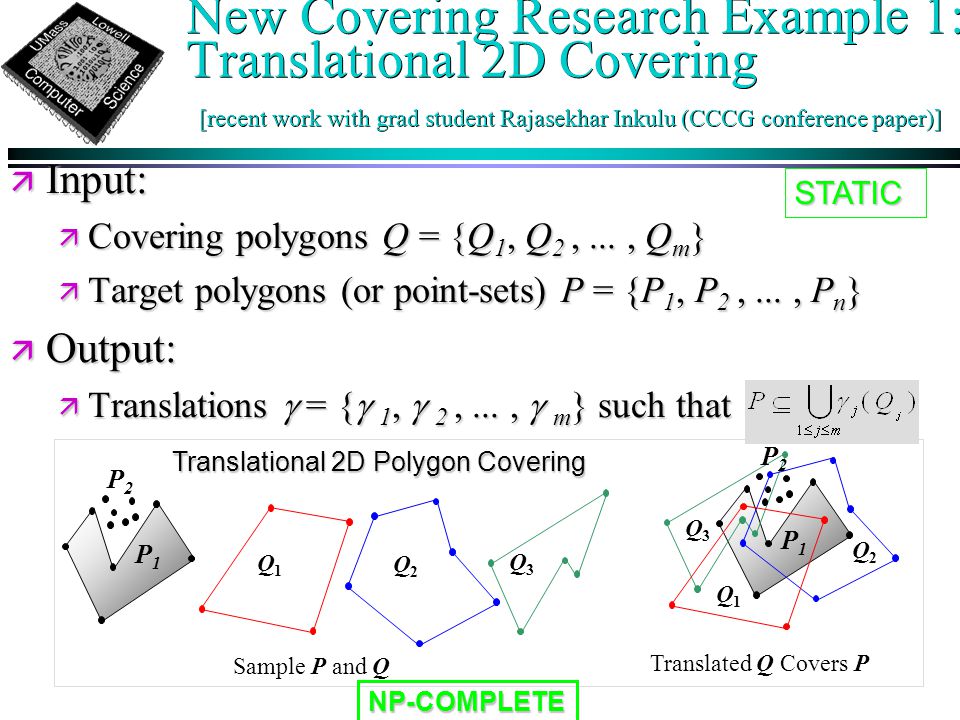

11 New Covering Research Example 1: Translational 2D Covering [recent work with grad student Rajasekhar Inkulu (CCCG conference paper)] Q3Q3 Q1Q1 Q2Q2 Sample P and Q P1P1 P2P2 Translated Q Covers P P1P1 Q1Q1 Q2Q2 Q3Q3 P2P2 Translational 2D Polygon Covering ä Input: ä Covering polygons Q = {Q 1, Q 2,..., Q m } ä Target polygons (or point-sets) P = {P 1, P 2,..., P n } ä Output:  Translations  = {  1,  2,...,  m } such that STATIC NP-COMPLETE

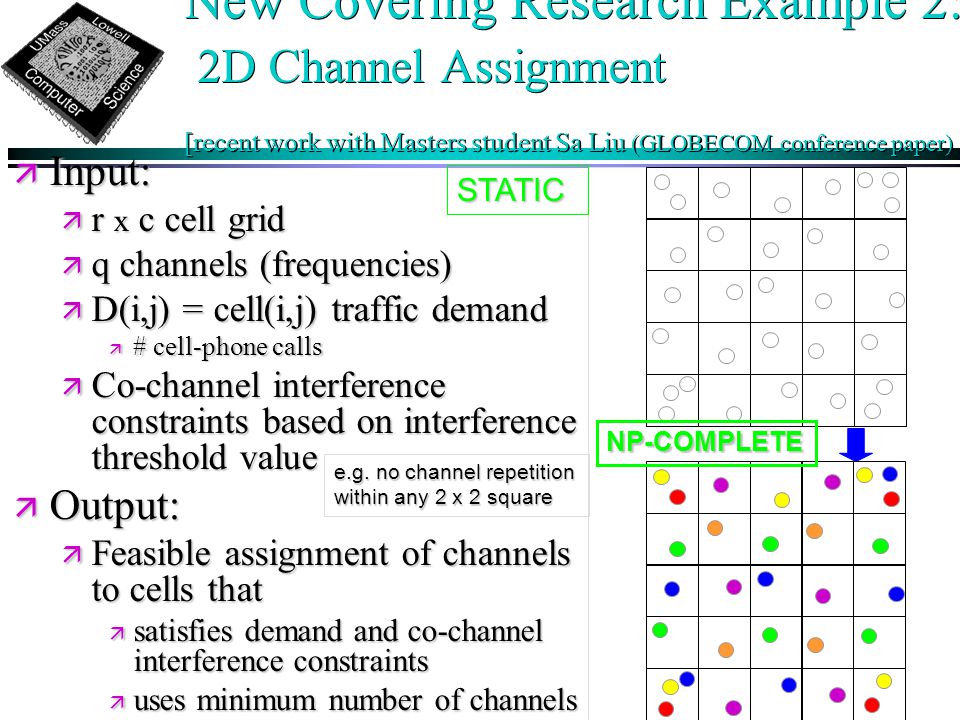

12 New Covering Research Example 2: 2D Channel Assignment [recent work with Masters student Sa Liu (GLOBECOM conference paper) ] ä Input: ä r x c cell grid ä q channels (frequencies) ä D(i,j) = cell(i,j) traffic demand ä # cell-phone calls ä Co-channel interference constraints based on interference threshold value ä Output: ä Feasible assignment of channels to cells that ä satisfies demand and co-channel interference constraints ä uses minimum number of channels e.g. no channel repetition within any 2 x 2 square STATIC NP-COMPLETE

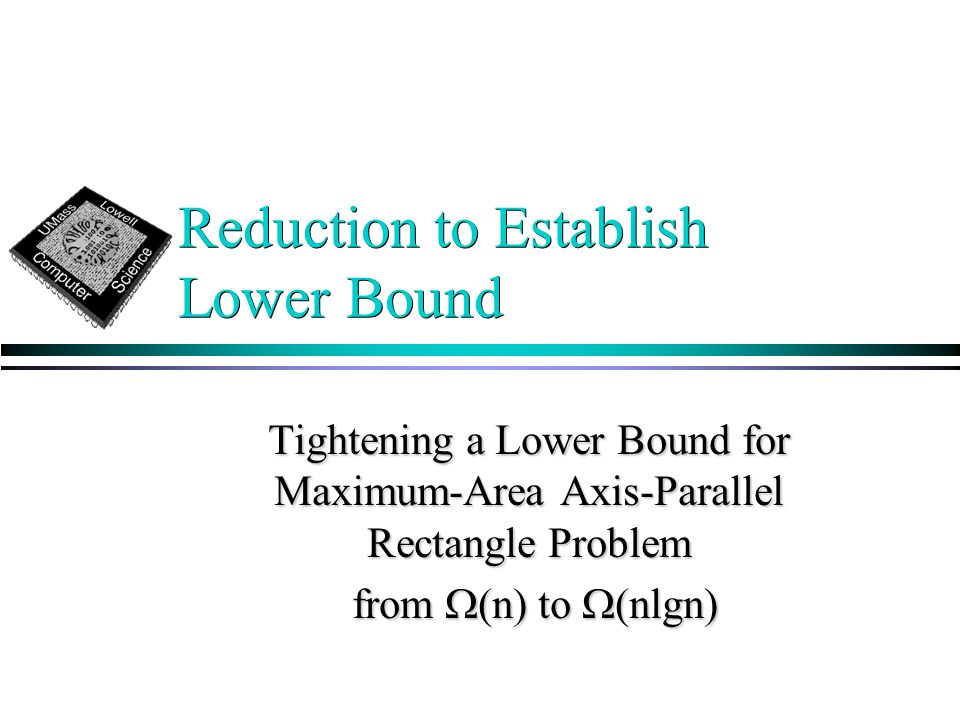

13 Reduction to Establish Lower Bound Tightening a Lower Bound for Maximum-Area Axis-Parallel Rectangle Problem from  (n) to  (nlgn) from  (n) to  (nlgn)

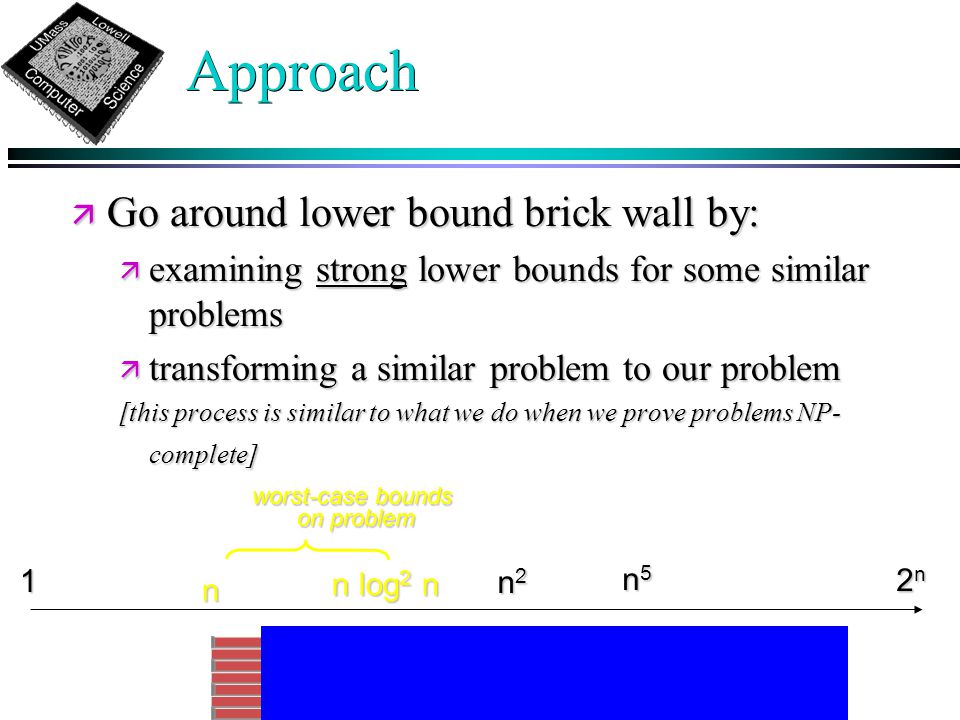

14 Approach ä Go around lower bound brick wall by: ä examining strong lower bounds for some similar problems ä transforming a similar problem to our problem [this process is similar to what we do when we prove problems NP- complete] n 1 2n2n2n2n n5n5n5n5 worst-case bounds on problem on problem n2n2n2n2 n log 2 n

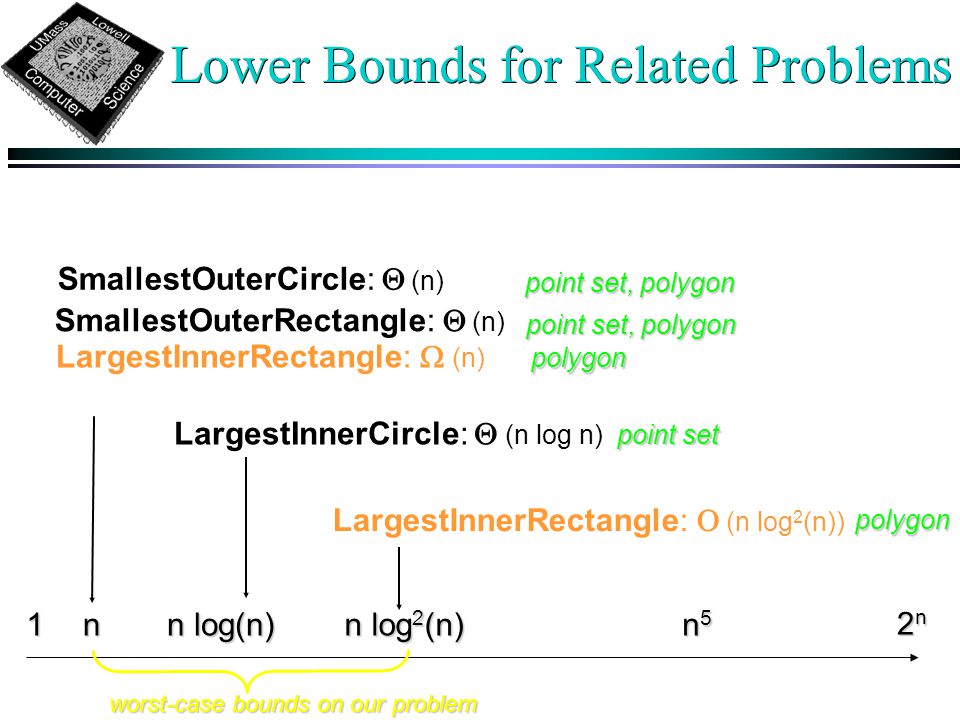

15 Lower Bounds for Related Problems n1 n log(n) n log 2 (n) 2n2n2n2n n5n5n5n5 SmallestOuterRectangle:   (n) SmallestOuterCircle:   (n) LargestInnerRectangle:   (n) LargestInnerCircle:   (n log n) point set, polygon point set polygon LargestInnerRectangle:   (n log 2 (n))polygon worst-case bounds on our problem

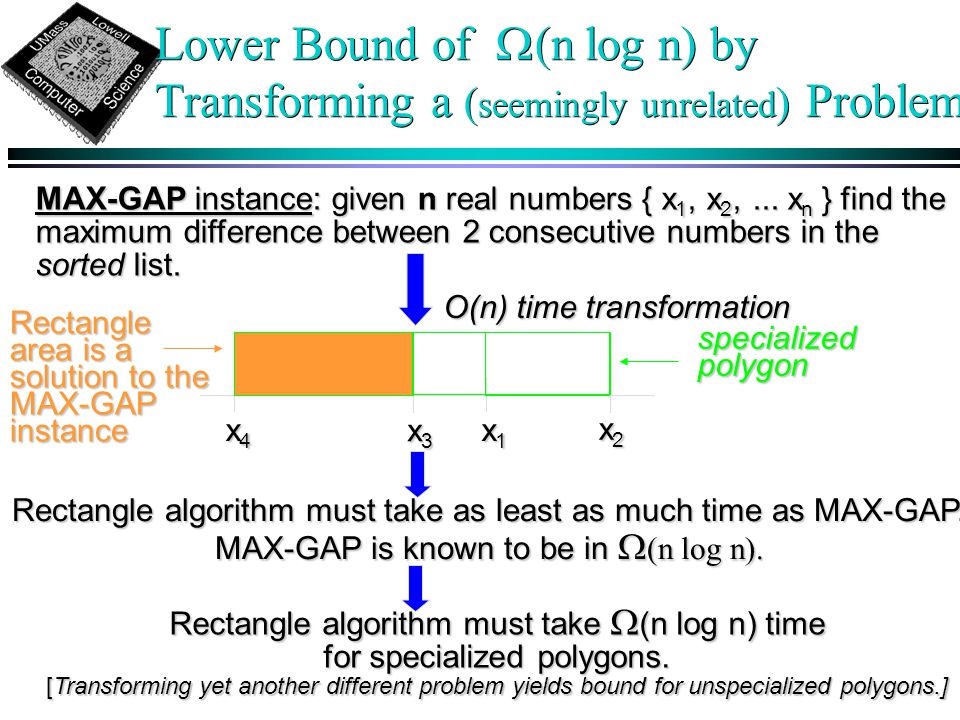

16 Lower Bound of  (n log n) by Transforming a ( seemingly unrelated ) Problem MAX-GAP instance: given n real numbers { x 1, x 2,... x n } find the maximum difference between 2 consecutive numbers in the sorted list. O(n) time transformation specialized polygon x2x2x2x2 x4x4x4x4 x3x3x3x3 x1x1x1x1 Rectangle area is a solution to the MAX-GAP instance Rectangle algorithm must take as least as much time as MAX-GAP. MAX-GAP is known to be in  (n log n). Rectangle algorithm must take  (n log n) time for specialized polygons. [Transforming yet another different problem yields bound for unspecialized polygons.]

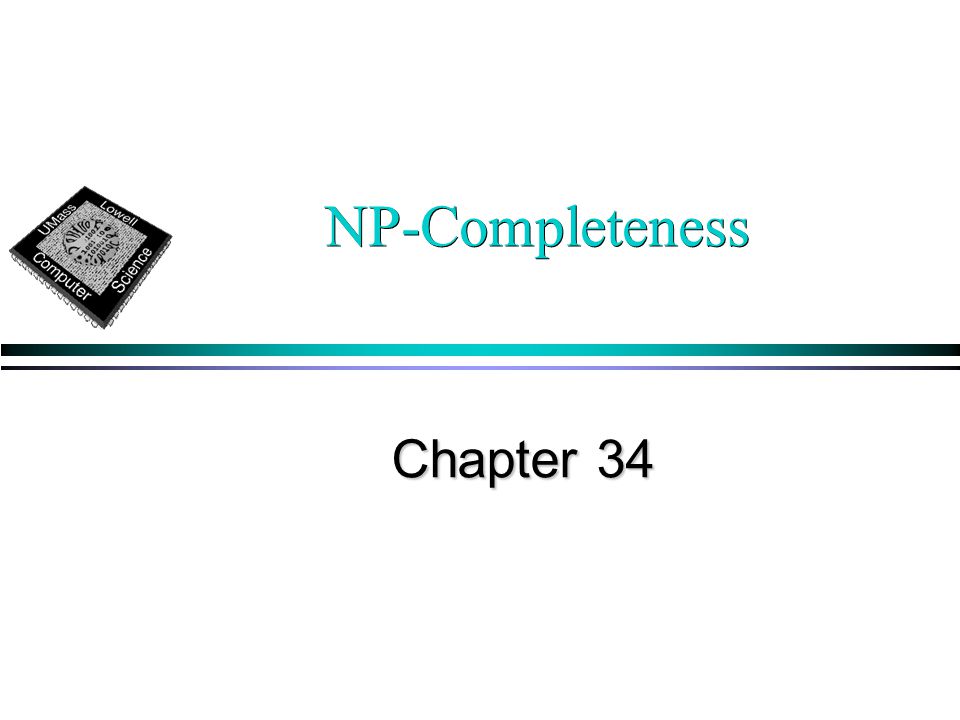

17 NP-Completeness Chapter 34

18 Basic Concepts Polynomial Time & Problem Formalization Polynomial-Time Verification NP-Completeness & Reducibility NP-Completeness Proofs Expanding List of Hard Problems via Reduction

19 Polynomial Time & Problem Formalization ä Formalize notions of abstract and concrete decision problems ä Encoding a problem ä Define class of polynomial-time solvable decision problems ä Define complexity class ä Express relationship between decision problems and algorithms that solve them using framework of formal language theory

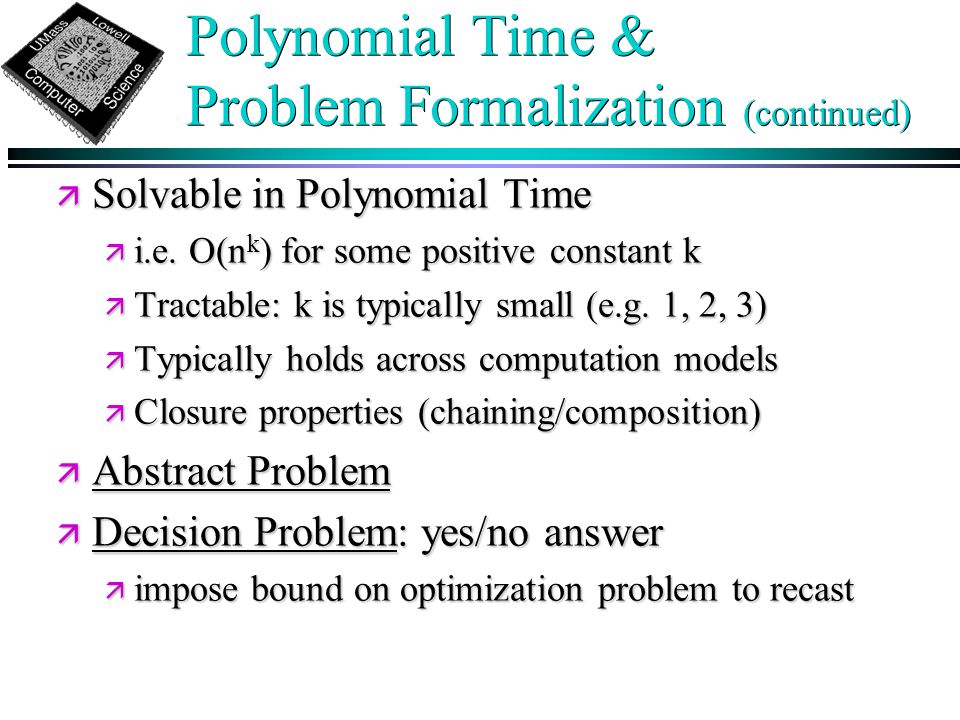

20 Polynomial Time & Problem Formalization (continued) ä Solvable in Polynomial Time  i.e.  (n k ) for some positive constant k ä Tractable: k is typically small (e.g. 1, 2, 3) ä Typically holds across computation models ä Closure properties (chaining/composition) ä Abstract Problem ä Decision Problem: yes/no answer ä impose bound on optimization problem to recast

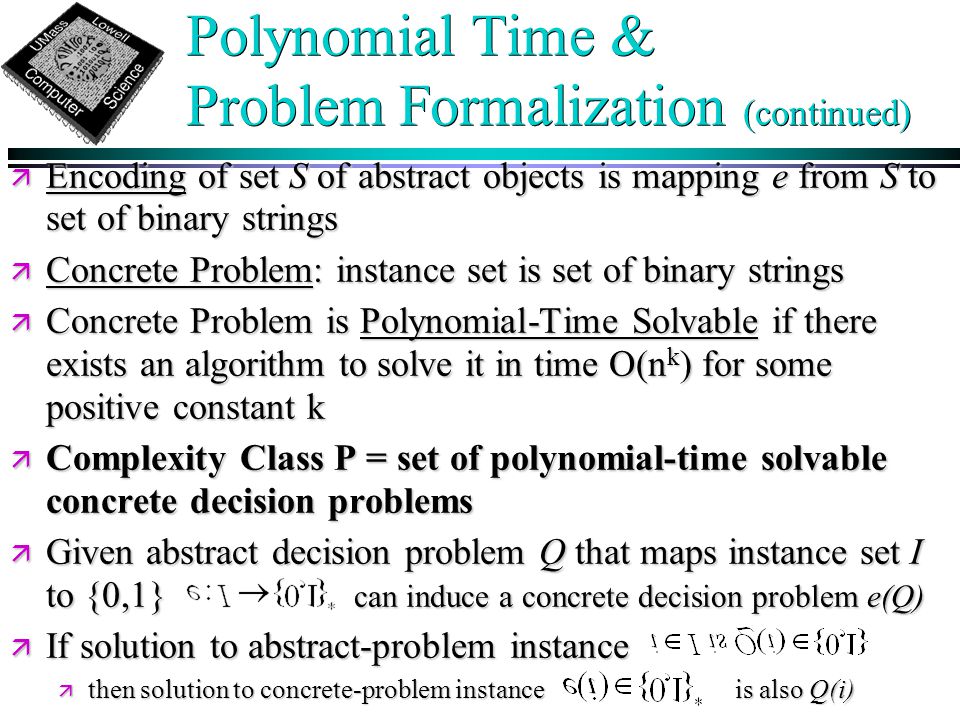

21 Polynomial Time & Problem Formalization (continued) ä Encoding of set S of abstract objects is mapping e from S to set of binary strings ä Concrete Problem: instance set is set of binary strings  Concrete Problem is Polynomial-Time Solvable if there exists an algorithm to solve it in time  (n k ) for some positive constant k ä Complexity Class P = set of polynomial-time solvable concrete decision problems ä Given abstract decision problem Q that maps instance set I to {0,1} can induce a concrete decision problem e(Q) ä If solution to abstract-problem instance ä then solution to concrete-problem instance is also Q(i)

22 Polynomial Time & Problem Formalization (continued) ä is polynomial-time computable if there exists a polynomial-time algorithm A that, given any input, produces f(x) as output. ä For set I of problem instances, encodings are polynomially related if there exist 2 polynomial-time computable functions f 12, f 21 such that ä If 2 encodings e 1, e 2 of abstract problem are polynomially related, then polynomial-time solvability of problem is encoding-independent: Lemma 34.1: Let Q be an abstract decision problem on an instance set I and let e 1, e 2 be polynomially related encodings on I. Then, Goal: Extend definition of polynomial-time solvability from concrete to abstract using encodings as bridge

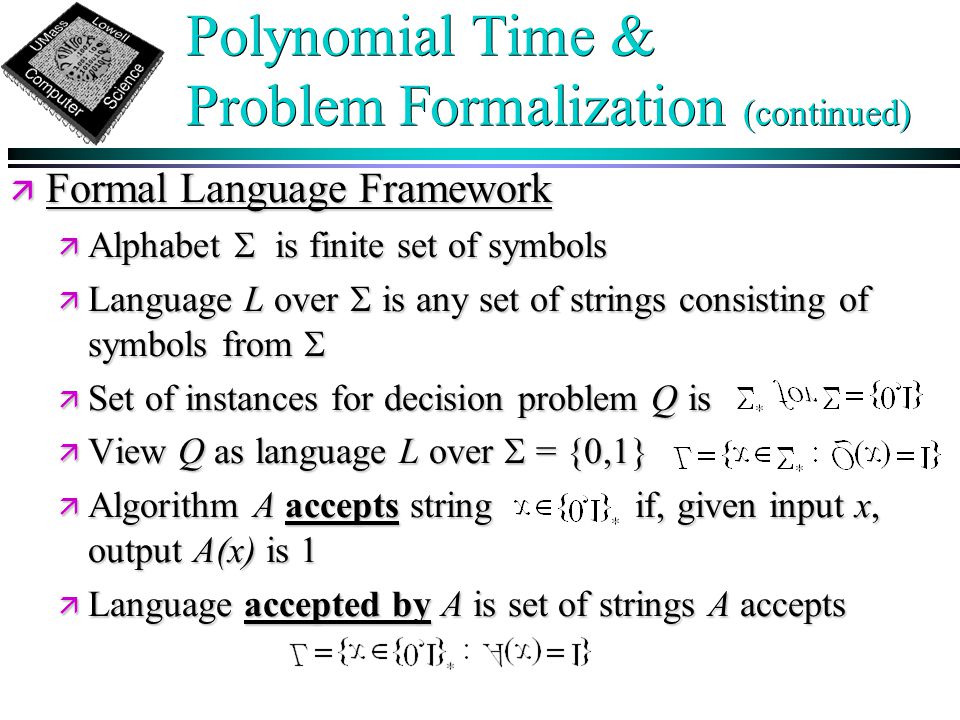

23 Polynomial Time & Problem Formalization (continued) ä Formal Language Framework  Alphabet  is finite set of symbols  Language L over  is any set of strings consisting of symbols from  ä Set of instances for decision problem Q is  View Q as language L over  = {0,1} ä Algorithm A accepts string if, given input x, output A(x) is 1 ä Language accepted by A is set of strings A accepts

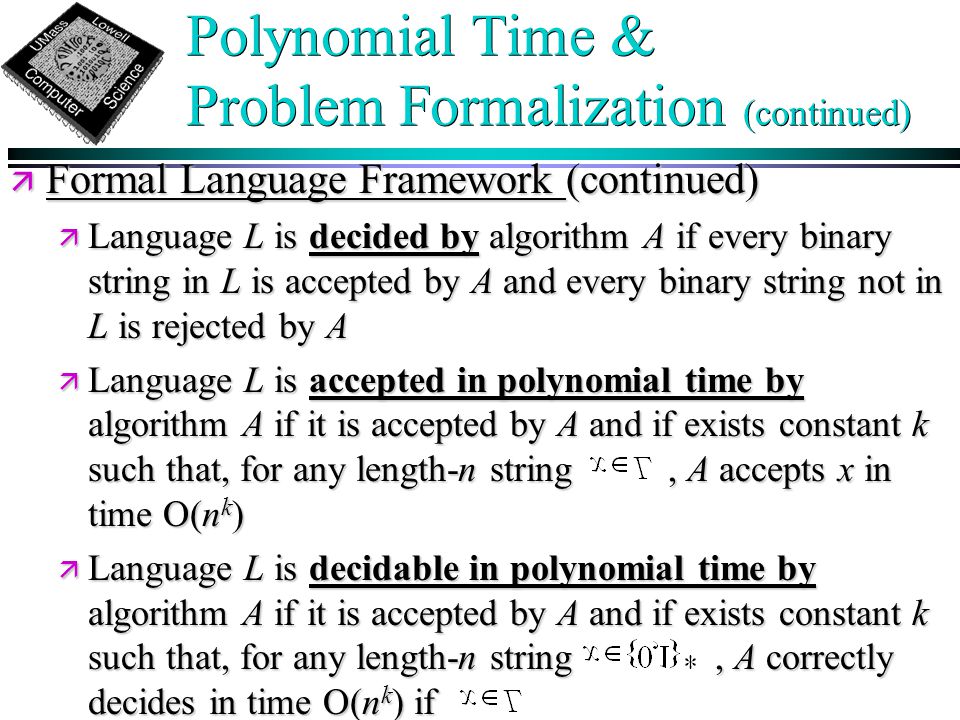

24 Polynomial Time & Problem Formalization (continued) ä Formal Language Framework (continued) ä Language L is decided by algorithm A if every binary string in L is accepted by A and every binary string not in L is rejected by A ä Language L is accepted in polynomial time by algorithm A if it is accepted by A and if exists constant k such that, for any length-n string, A accepts x in time O(n k ) ä Language L is decidable in polynomial time by algorithm A if it is accepted by A and if exists constant k such that, for any length-n string, A correctly decides in time O(n k ) if

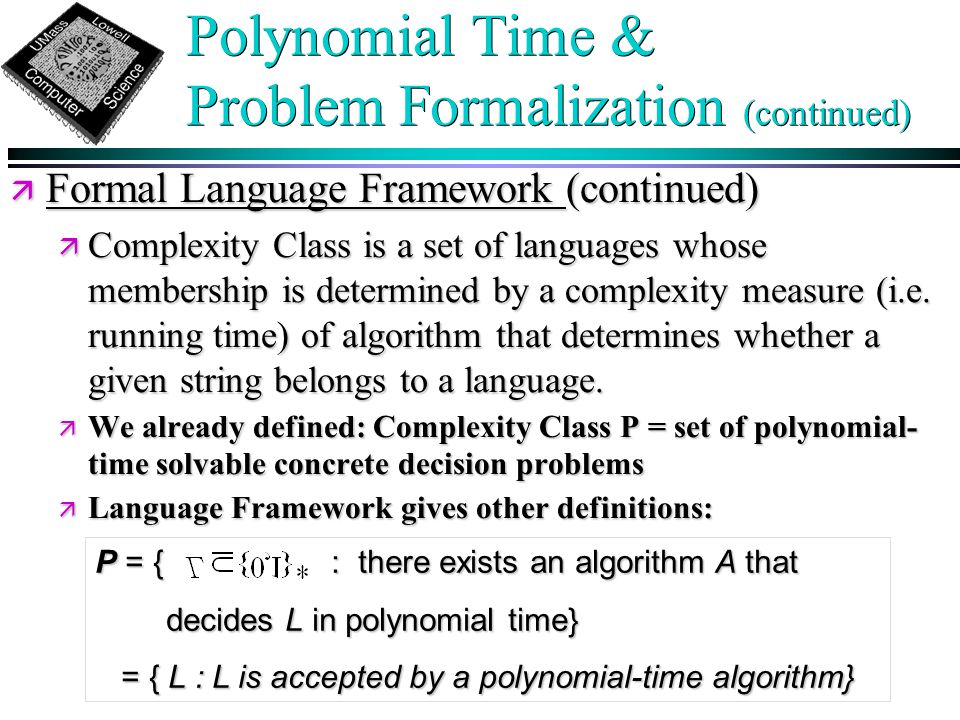

25 Polynomial Time & Problem Formalization (continued) ä Formal Language Framework (continued) ä Complexity Class is a set of languages whose membership is determined by a complexity measure (i.e. running time) of algorithm that determines whether a given string belongs to a language. ä We already defined: Complexity Class P = set of polynomial- time solvable concrete decision problems ä Language Framework gives other definitions: P = { : there exists an algorithm A that decides L in polynomial time} decides L in polynomial time} = { L : L is accepted by a polynomial-time algorithm} = { L : L is accepted by a polynomial-time algorithm}

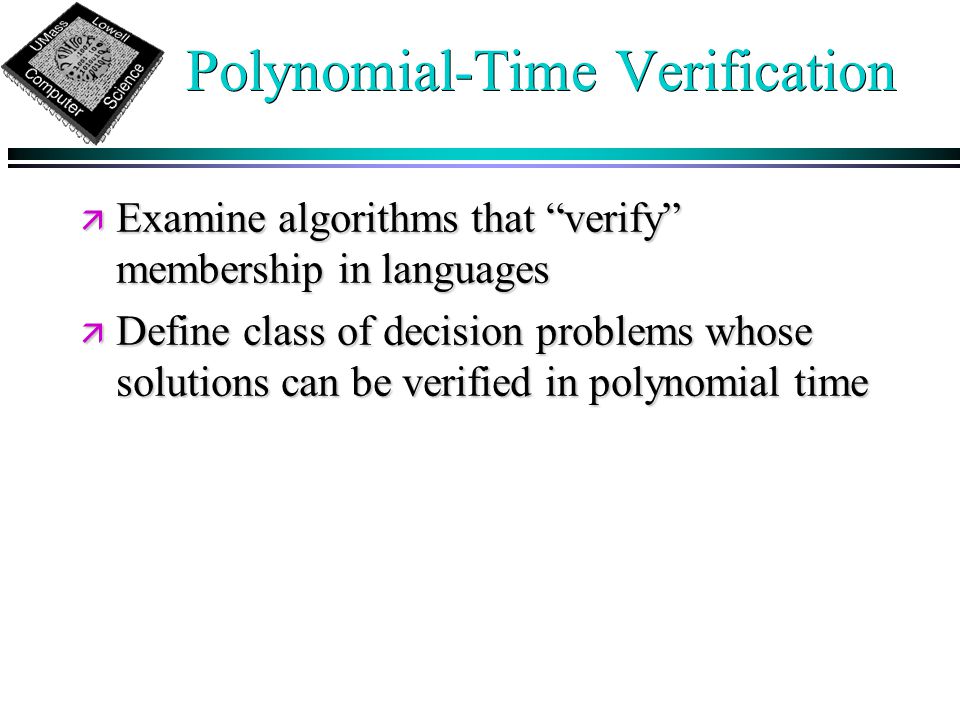

26 Polynomial-Time Verification ä Examine algorithms that “verify” membership in languages ä Define class of decision problems whose solutions can be verified in polynomial time

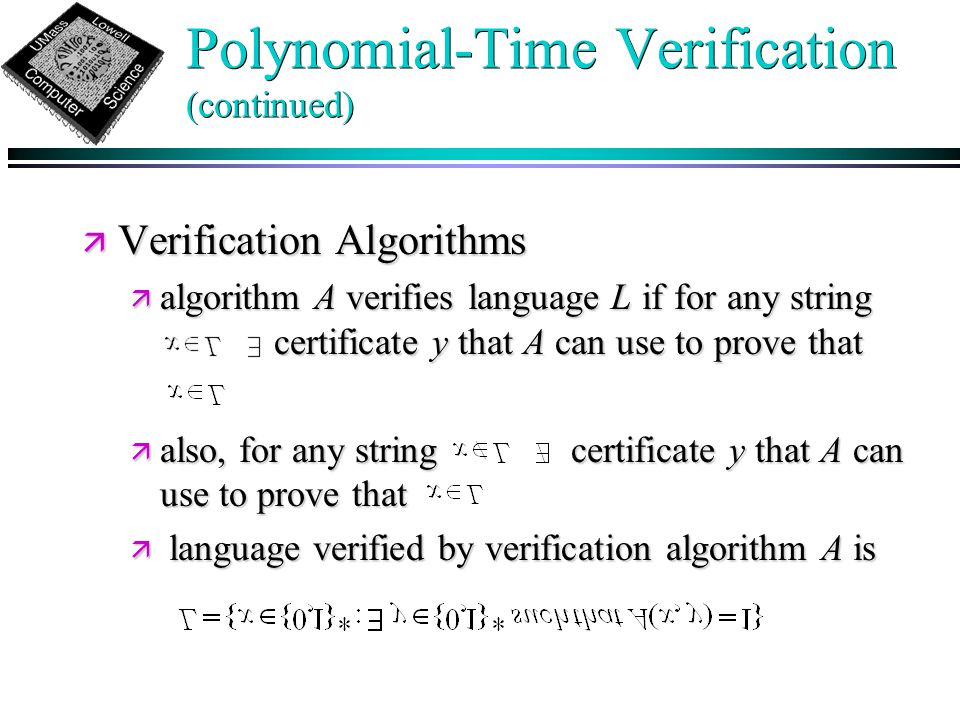

27 Polynomial-Time Verification (continued) ä Verification Algorithms ä algorithm A verifies language L if for any string certificate y that A can use to prove that ä also, for any string certificate y that A can use to prove that ä language verified by verification algorithm A is

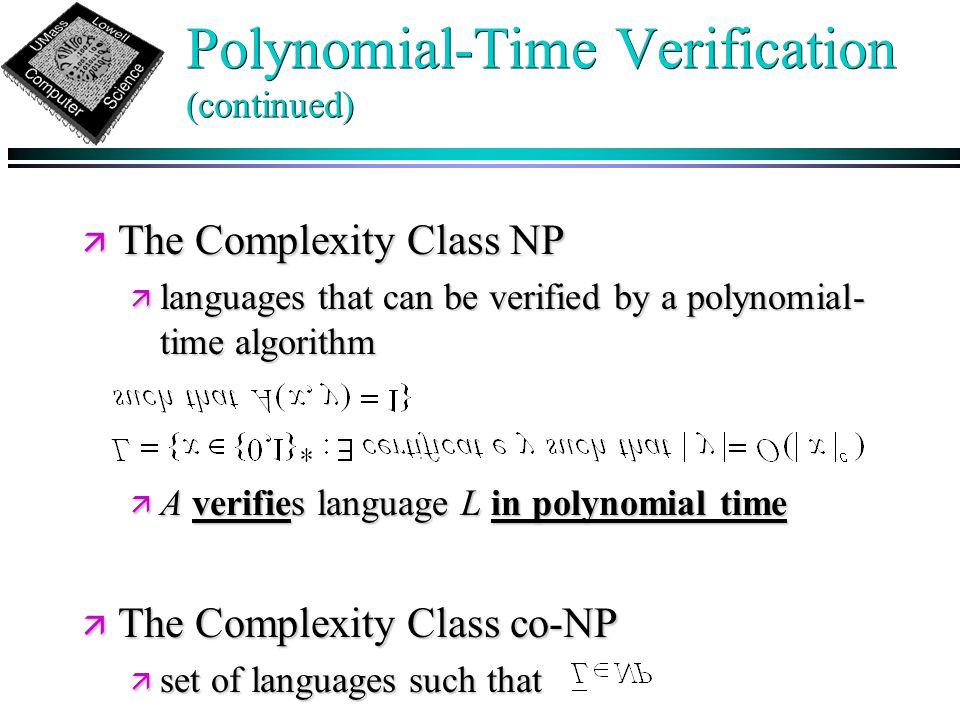

28 Polynomial-Time Verification (continued) ä The Complexity Class NP ä languages that can be verified by a polynomial- time algorithm ä A verifies language L in polynomial time ä The Complexity Class co-NP ä set of languages such that

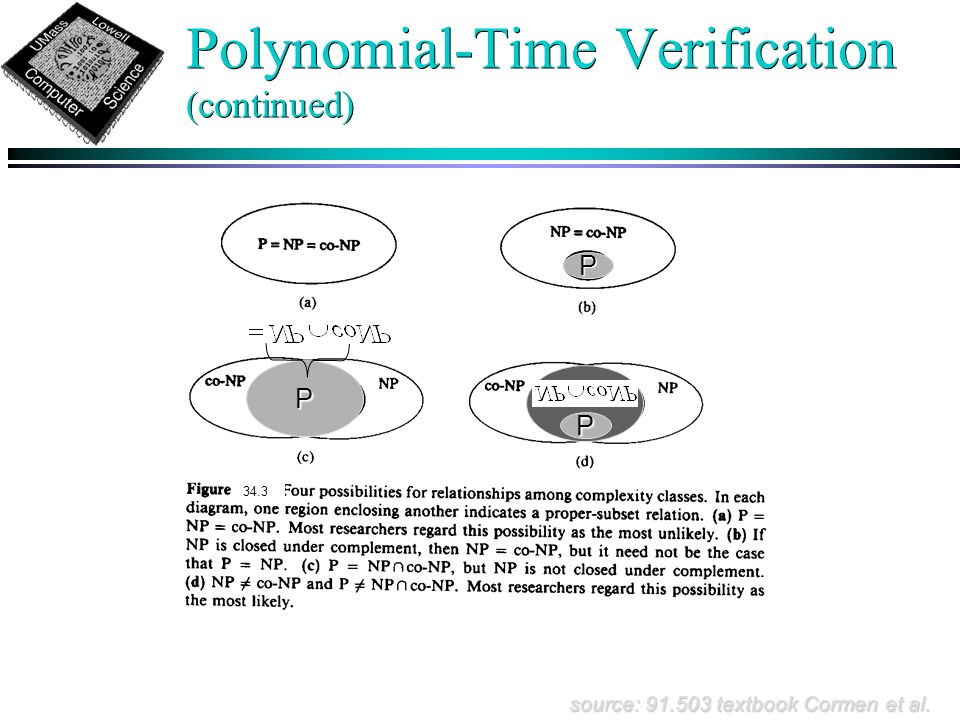

29 Polynomial-Time Verification (continued) source: 91.503 textbook Cormen et al. P P P 34.3

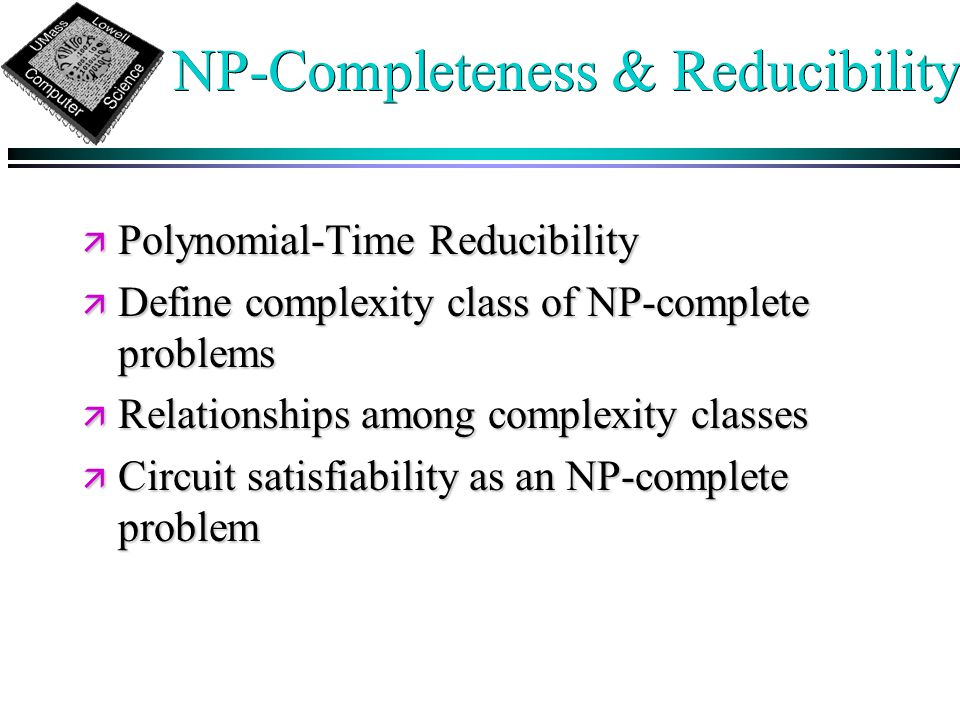

30 NP-Completeness & Reducibility ä Polynomial-Time Reducibility ä Define complexity class of NP-complete problems ä Relationships among complexity classes ä Circuit satisfiability as an NP-complete problem

31 NP-Completeness & Reducibility (continued) ä Q can be reduced to Q’ if any instance of Q can be “easily rephrased as an instance of Q’, the solution to which provides solution to instance of Q ä L 1 is polynomial-time reducible to L 2 if exists polynomial-time computable function source: 91.503 textbook Cormen et al. 34.4

32 NP-Completeness & Reducibility (continued) source: 91.503 textbook Cormen et al. 34.5 34.3

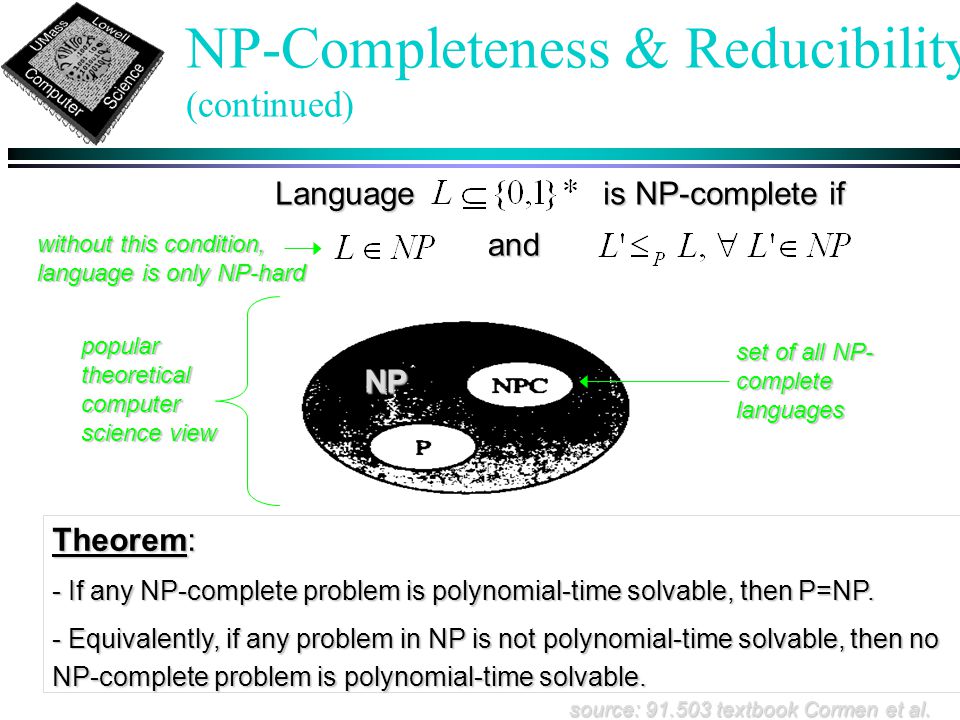

33 NP-Completeness & Reducibility (continued) source: 91.503 textbook Cormen et al. Language is NP-complete if and without this condition, language is only NP-hard NP set of all NP- complete languages popular theoretical computer science view Theorem: - If any NP-complete problem is polynomial-time solvable, then P=NP. - Equivalently, if any problem in NP is not polynomial-time solvable, then no NP-complete problem is polynomial-time solvable.

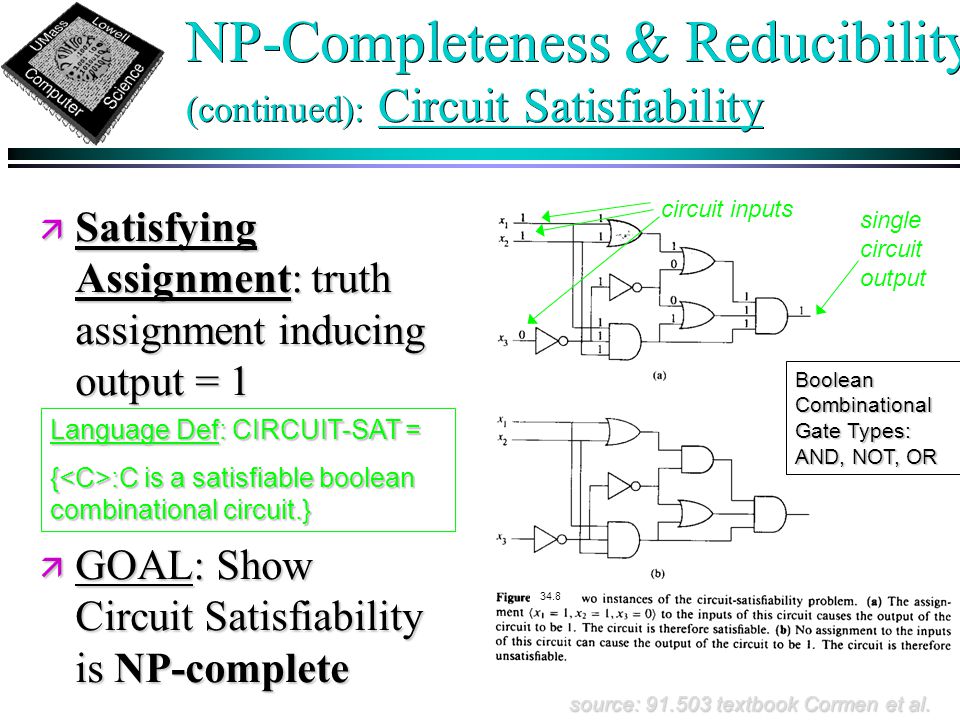

34 NP-Completeness & Reducibility (continued): Circuit Satisfiability ä Satisfying Assignment: truth assignment inducing output = 1 ä GOAL: Show Circuit Satisfiability is NP-complete source: 91.503 textbook Cormen et al. Boolean Combinational Gate Types: AND, NOT, OR single circuit output circuit inputs Language Def: CIRCUIT-SAT = { :C is a satisfiable boolean combinational circuit.} 34.8

35 NP-Completeness & Reducibility (continued) Circuit Satisfiability ä CIRCUIT-SAT is in NP: ä Construct 2-input polynomial-time algorithm A that verifies CIRCUIT-SAT ä Input 1: encoding of circuit C ä Input 2: certificate = assignment of boolean values to all wires of C ä Algorithm A : ä For each logic gate A checks if certificate value for gate’s output wire correctly computes gate’s function based on input wire values ä If output of entire circuit is 1, algorithm outputs 1 ä Otherwise, algorithm outputs 0 ä For satisfiable circuit, there is a (polynomial-length) certificate that causes A to output 1 ä For unsatisfiable circuit, no certificate can cause A to output 1 ä Algorithm A runs in polynomial time source: 91.503 textbook Cormen et al.

36 NP-Completeness & Reducibility (continued) Circuit Satisfiability ä CIRCUIT-SAT is NP-hard: ä L represents some language in NP ä Create polynomial-time algorithm F computing reduction function f that maps every binary string x to a circuit C=f(x) such that ä ä Must exist algorithm A verifying L in polynomial time. (A from NP) ä F uses A to compute f. ä Represent computation of A as sequence of configurations ä F constructs single circuit that computes all configurations produced by initial configuration source: 91.503 textbook Cormen et al.

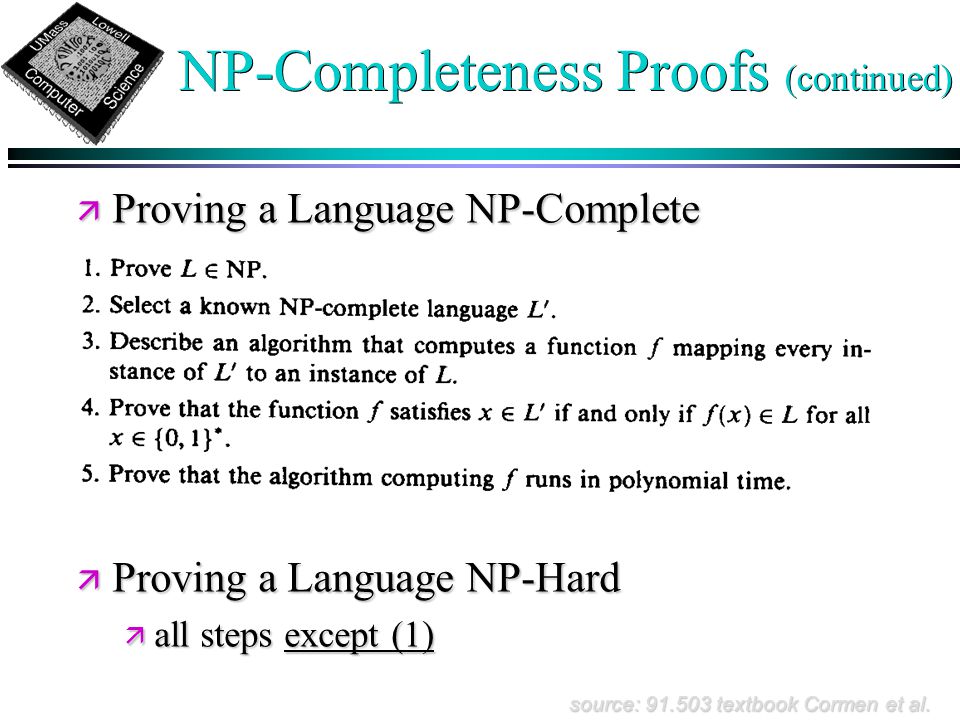

37 NP-Completeness Proofs (continued) ä Proving a Language NP-Complete ä Proving a Language NP-Hard ä all steps except (1) source: 91.503 textbook Cormen et al.

38 NP-Completeness Proofs (continued) ä Reducing Boolean Circuit Satisfiability to Boolean Formula Satisfiability  Boolean Formula Satisfiability: Instance of language SAT is a boolean formula  consisting of: ä n boolean variables: x 1, x 2,..., x n ä m boolean connectives: boolean function with 1 or 2 inputs and 1 output ä e.g. AND, OR, NOT, implication, iff ä parentheses ä truth, satisfying assignments notions apply source: 91.503 textbook Cormen et al.

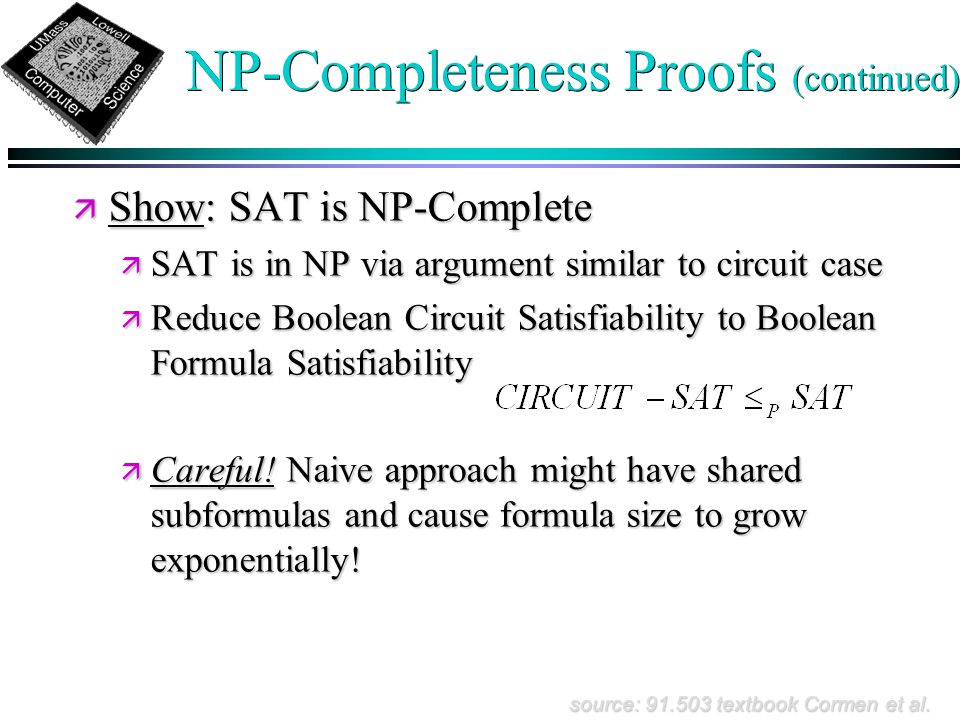

39 NP-Completeness Proofs (continued) ä Show: SAT is NP-Complete ä SAT is in NP via argument similar to circuit case ä Reduce Boolean Circuit Satisfiability to Boolean Formula Satisfiability ä Careful! Naive approach might have shared subformulas and cause formula size to grow exponentially! source: 91.503 textbook Cormen et al.

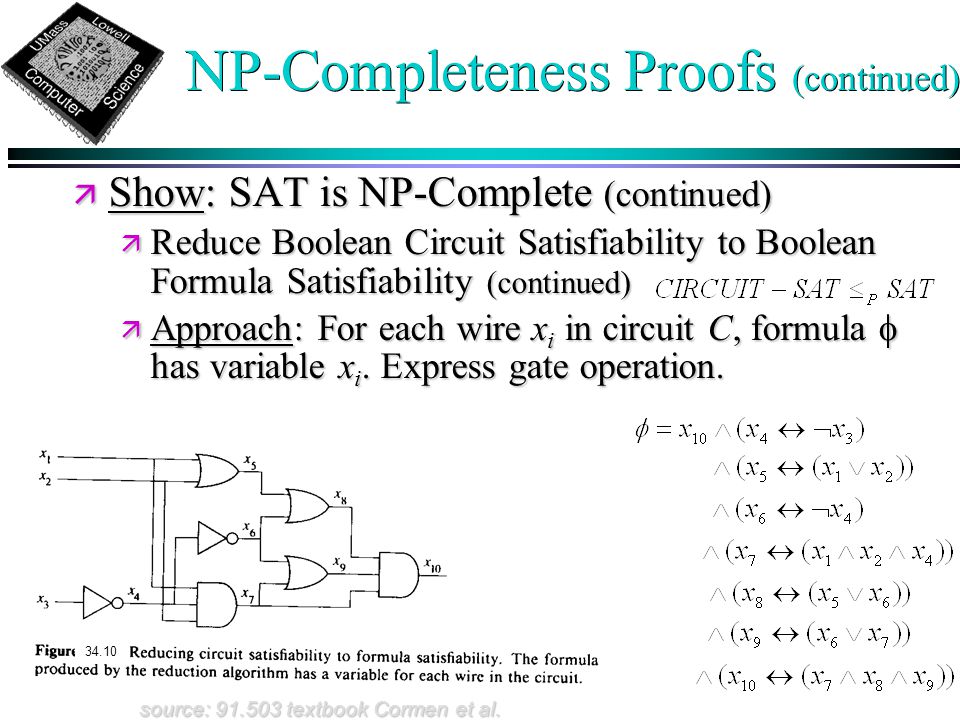

40 NP-Completeness Proofs (continued) ä Show: SAT is NP-Complete (continued) ä Reduce Boolean Circuit Satisfiability to Boolean Formula Satisfiability (continued)  Approach: For each wire x i in circuit C, formula  has variable x i. Express gate operation. source: 91.503 textbook Cormen et al. 34.10

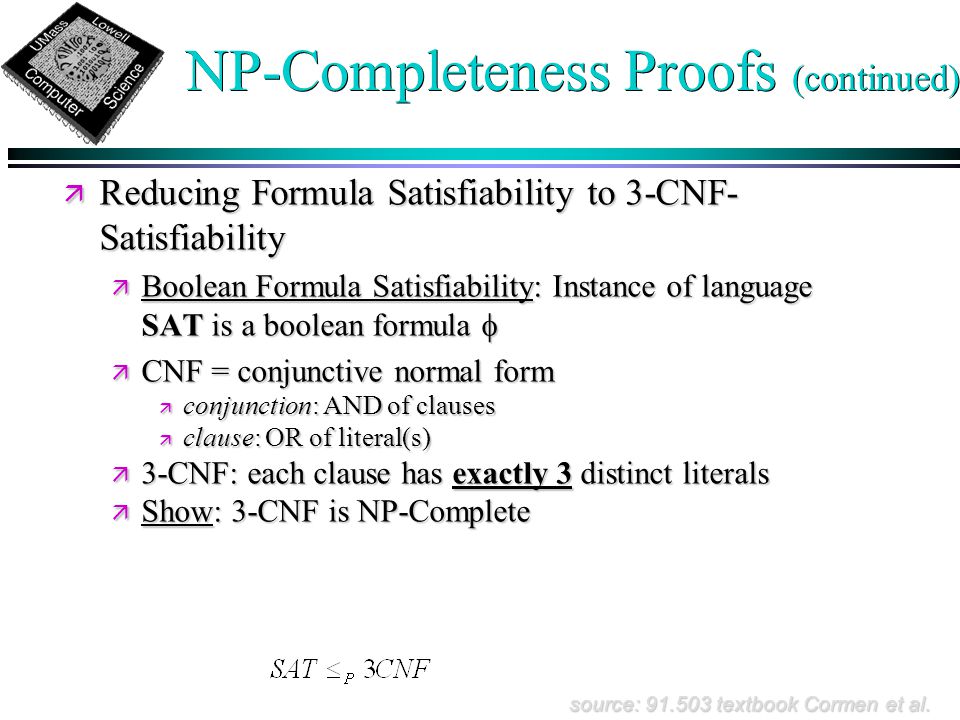

41 NP-Completeness Proofs (continued) ä Reducing Formula Satisfiability to 3-CNF- Satisfiability  Boolean Formula Satisfiability: Instance of language SAT is a boolean formula  ä CNF = conjunctive normal form ä conjunction: AND of clauses ä clause: OR of literal(s) ä 3-CNF: each clause has exactly 3 distinct literals ä Show: 3-CNF is NP-Complete source: 91.503 textbook Cormen et al.

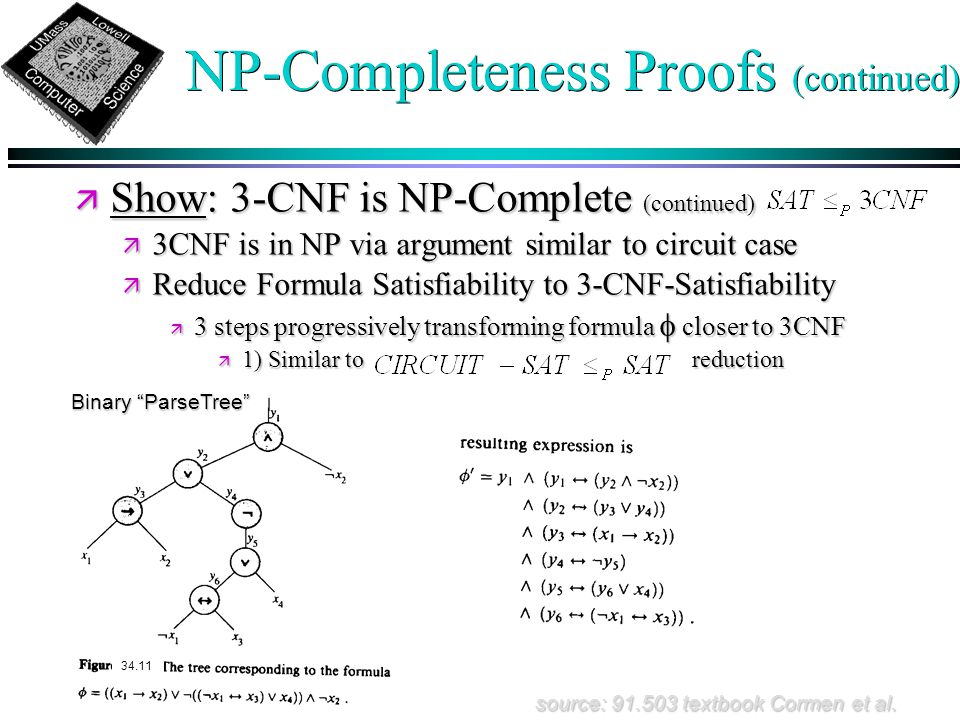

42 NP-Completeness Proofs (continued) ä Show: 3-CNF is NP-Complete (continued) ä 3CNF is in NP via argument similar to circuit case ä Reduce Formula Satisfiability to 3-CNF-Satisfiability  3 steps progressively transforming formula  closer to 3CNF ä 1) Similar to reduction source: 91.503 textbook Cormen et al. Binary “ParseTree” 34.11

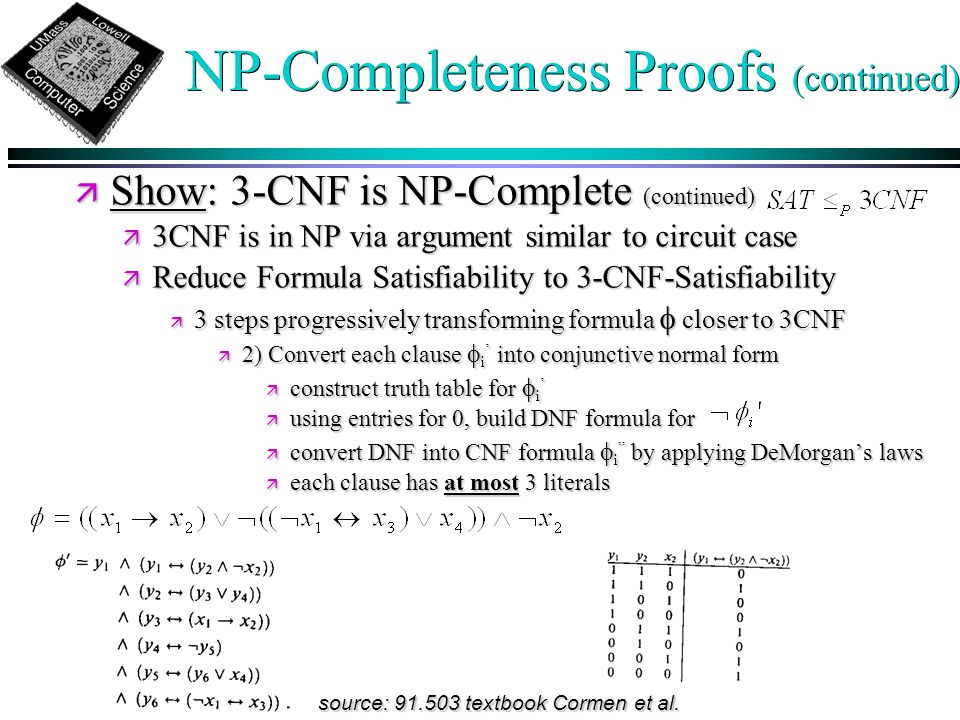

43 NP-Completeness Proofs (continued) ä Show: 3-CNF is NP-Complete (continued) ä 3CNF is in NP via argument similar to circuit case ä Reduce Formula Satisfiability to 3-CNF-Satisfiability  3 steps progressively transforming formula  closer to 3CNF  2) Convert each clause  i ’ into conjunctive normal form  construct truth table for  i ’ ä using entries for 0, build DNF formula for  convert DNF into CNF formula  i ” by applying DeMorgan’s laws ä each clause has at most 3 literals source: 91.503 textbook Cormen et al.

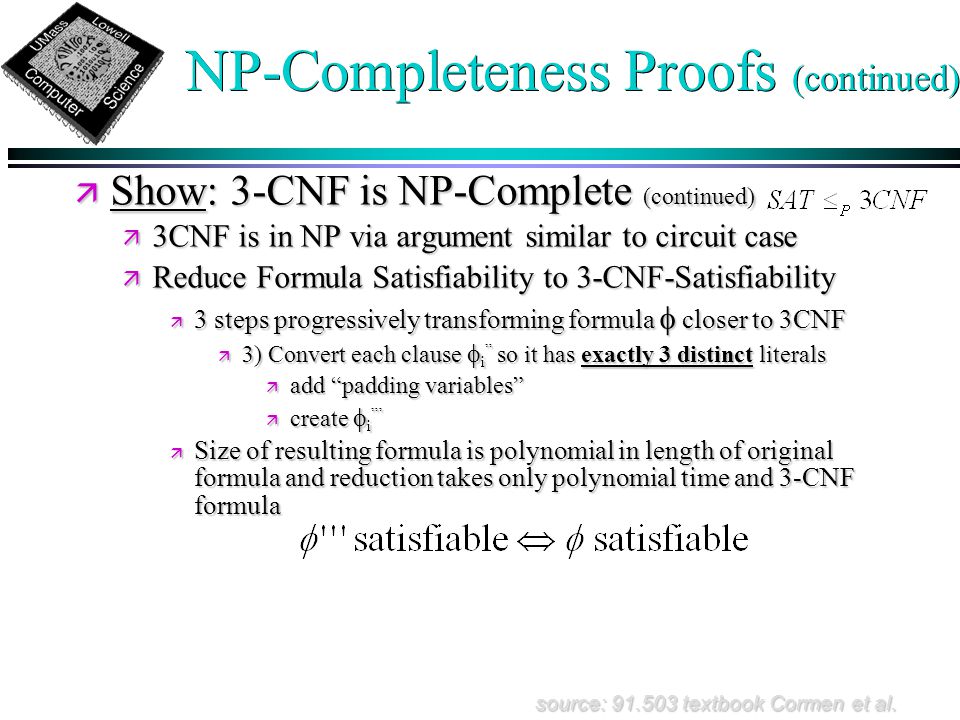

44 NP-Completeness Proofs (continued) ä Show: 3-CNF is NP-Complete (continued) ä 3CNF is in NP via argument similar to circuit case ä Reduce Formula Satisfiability to 3-CNF-Satisfiability  3 steps progressively transforming formula  closer to 3CNF  3) Convert each clause  i ” so it has exactly 3 distinct literals ä add “padding variables”  create  i ”’ ä Size of resulting formula is polynomial in length of original formula and reduction takes only polynomial time and 3-CNF formula source: 91.503 textbook Cormen et al.

45 Expanding List of Hard Problems via Reduction ä Relationships among some NP-complete problems source: 91.503 textbook Cormen et al. source: Garey & Johnson Circuit-SAT

46 Vertex Cover source: Garey & Johnson B E C F D A Vertex Cover of an undirected graph G=(V,E) is a subset vertex cover of size 2

47 Dominating Set source: Garey & Johnson

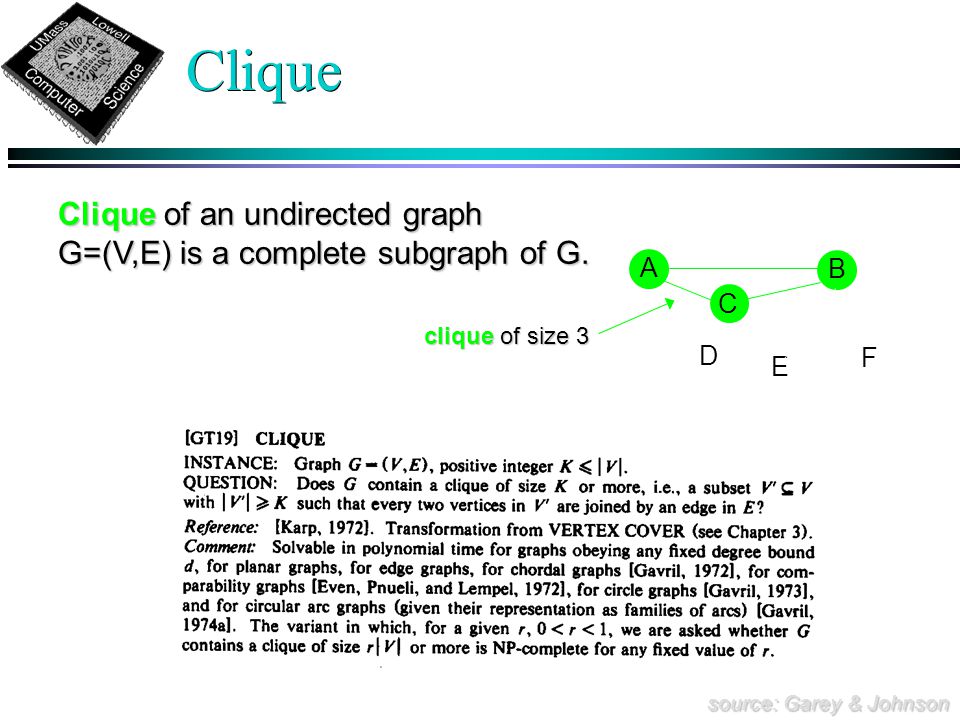

48 Clique source: Garey & Johnson B E C F D A Clique of an undirected graph G=(V,E) is a complete subgraph of G. clique of size 3

49 Hamiltonian Cycle source: 91.503 textbook Cormen et al. Hamiltonian Cycle of an undirected graph G=(V,E) is a simple cycle that contains each vertex in V. 34.2

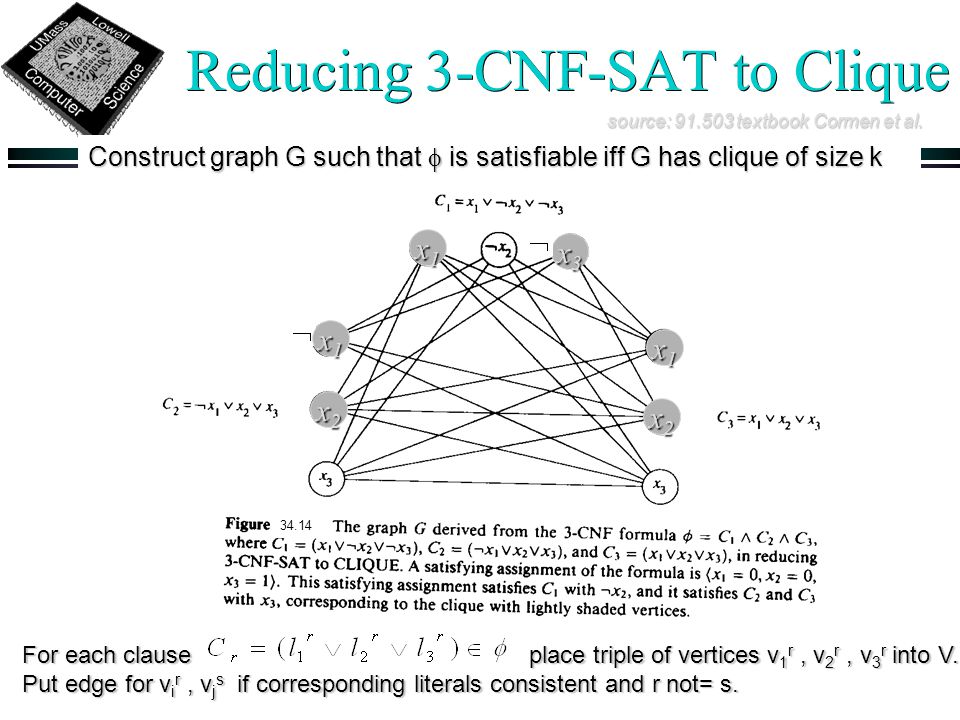

50 Reducing 3-CNF-SAT to Clique x1x1x1x1 x1x1x1x1 x2x2x2x2 x2x2x2x2 x1x1x1x1 x3x3x3x3 Construct graph G such that  is satisfiable iff G has clique of size k For each clause place triple of vertices v 1 r, v 2 r, v 3 r into V. Put edge for v i r, v j s if corresponding literals consistent and r not= s. source: 91.503 textbook Cormen et al. 34.14

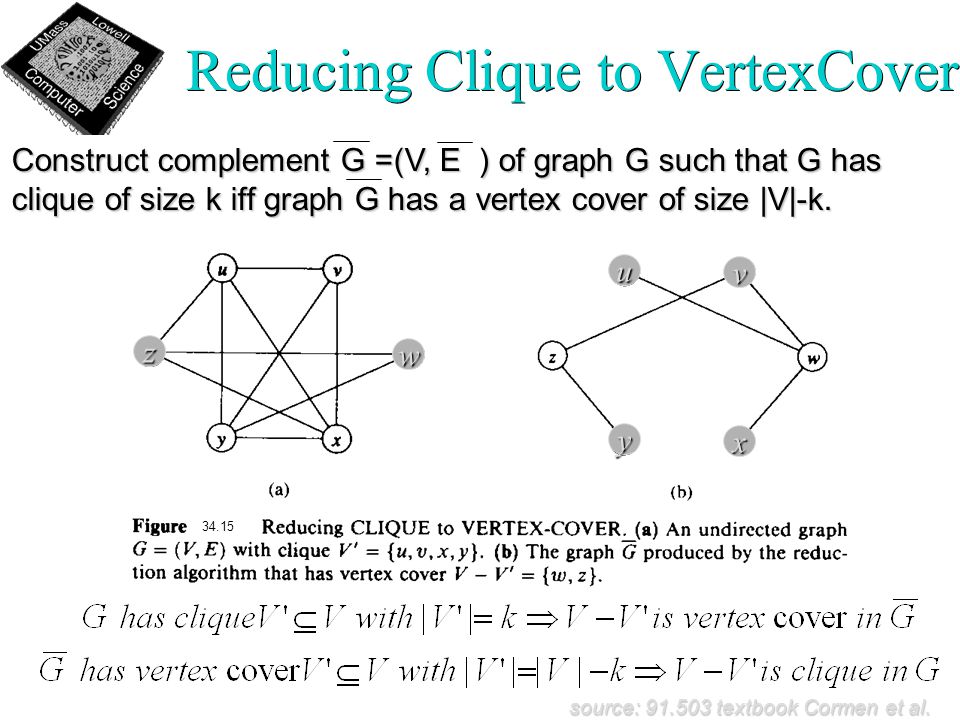

51 Reducing Clique to VertexCover source: 91.503 textbook Cormen et al. Construct complement G =(V, E ) of graph G such that G has clique of size k iff graph G has a vertex cover of size |V|-k. z w u y v x 34.15

52 Literature

53 Resources - Recommended: ä Computers & Intractability ä by Garey & Johnson ä W.H.Freeman ä 1990 ä ISBN 0716710455.

54 How to Treat NP-Hard or Complete Problems

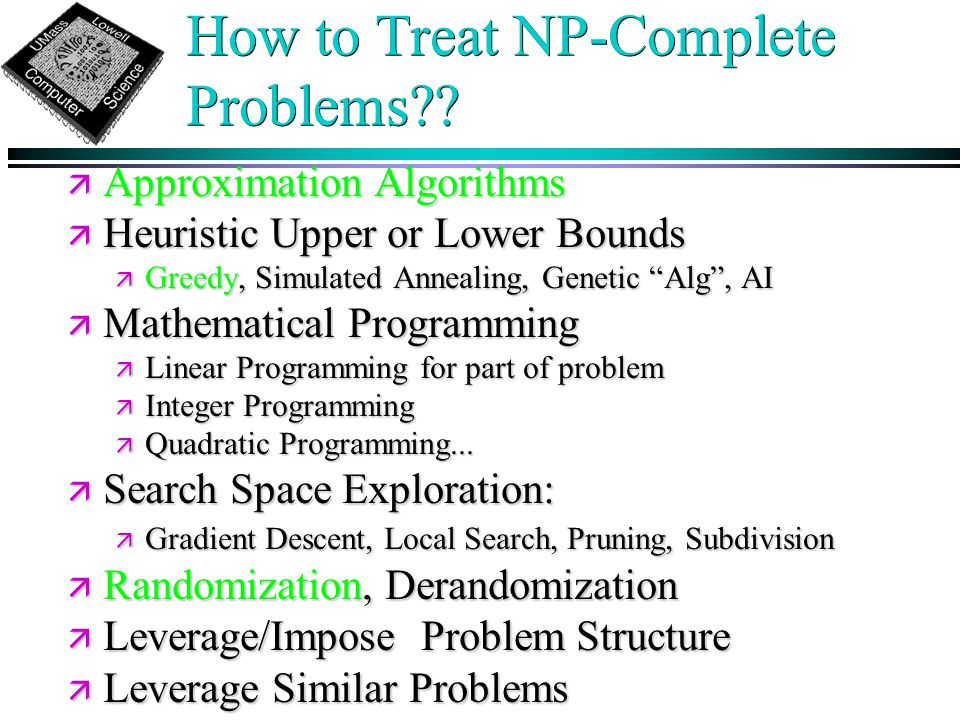

55 How to Treat NP-Complete Problems?? ä Approximation Algorithms ä Heuristic Upper or Lower Bounds ä Greedy, Simulated Annealing, Genetic “Alg”, AI ä Mathematical Programming ä Linear Programming for part of problem ä Integer Programming ä Quadratic Programming... ä Search Space Exploration: ä Gradient Descent, Local Search, Pruning, Subdivision ä Randomization, Derandomization ä Leverage/Impose Problem Structure ä Leverage Similar Problems
