1. RELIC NEUTRINOS: NEUTRINO PROPERTIES FROM COSMOLOGY Sergio Pastor (IFIC) ν

2. Massive neutrinos Standard neutrinos Extra radiation and Neutrino asymmetries RELIC NEUTRINOS: OUTLINE

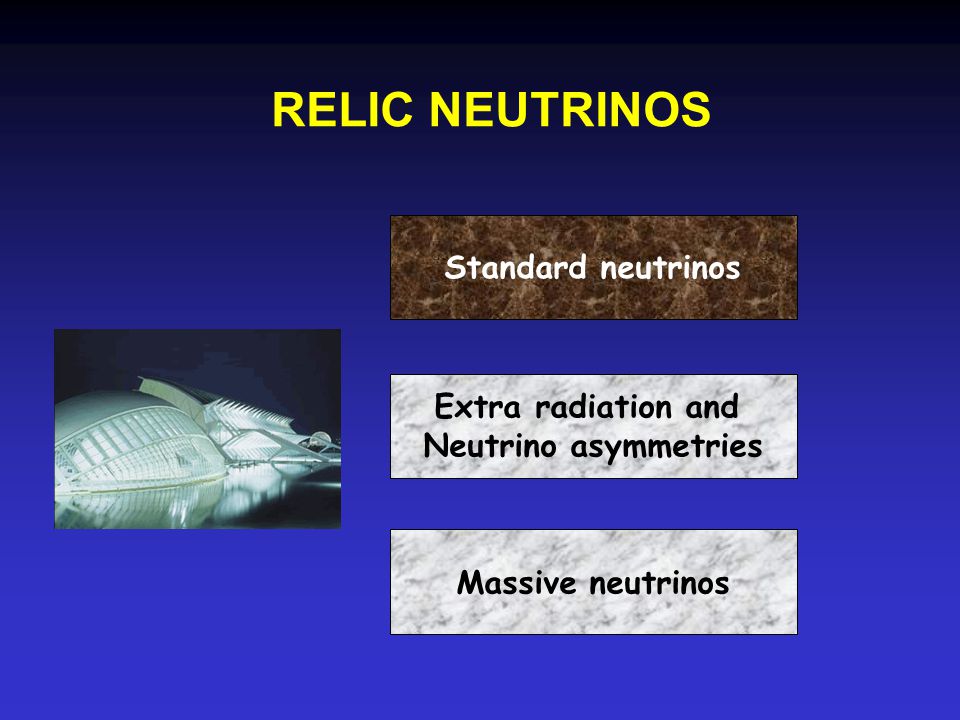

3. RELIC NEUTRINOS Massive neutrinos Standard neutrinos Extra radiation and Neutrino asymmetries

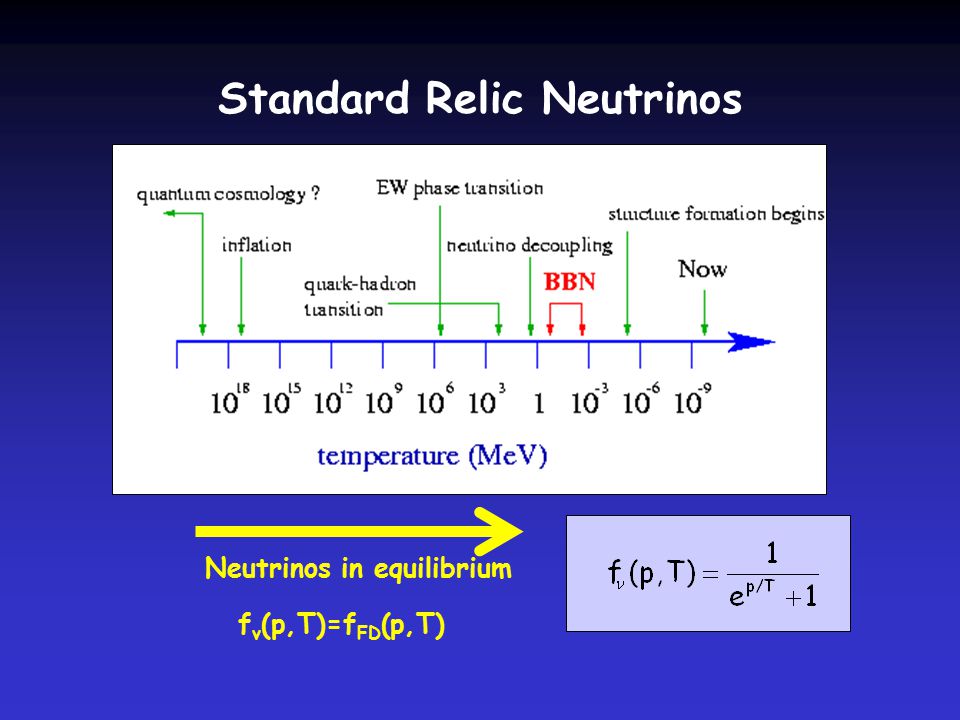

4. Neutrinos in equilibrium f ν (p,T)=f FD (p,T) Standard Relic Neutrinos

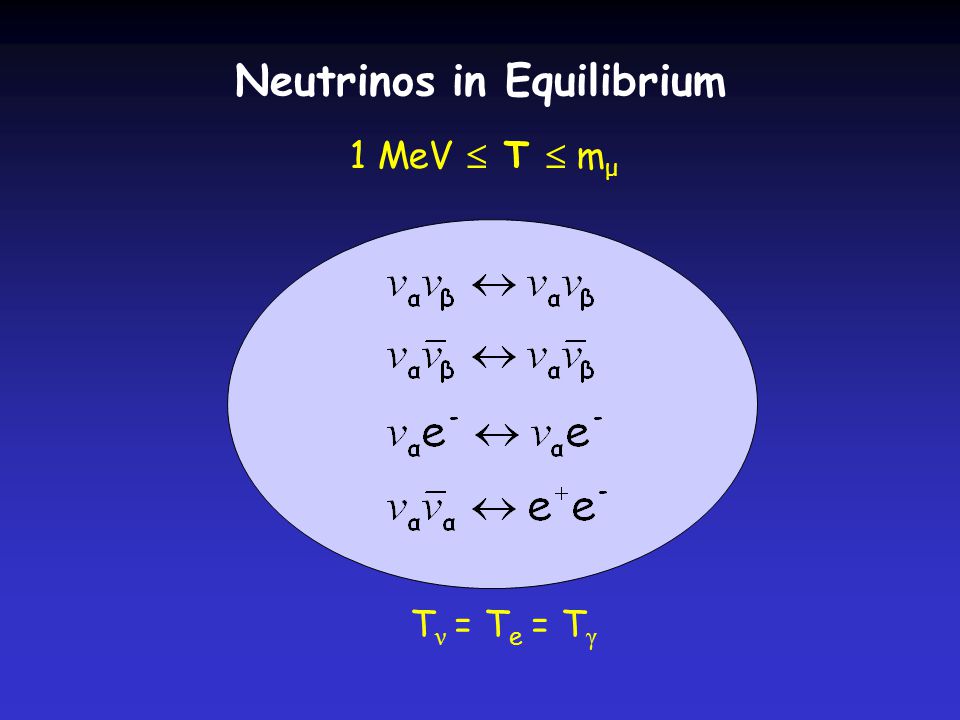

5. T ν = T e = T γ 1 MeV  T  m μ Neutrinos in Equilibrium

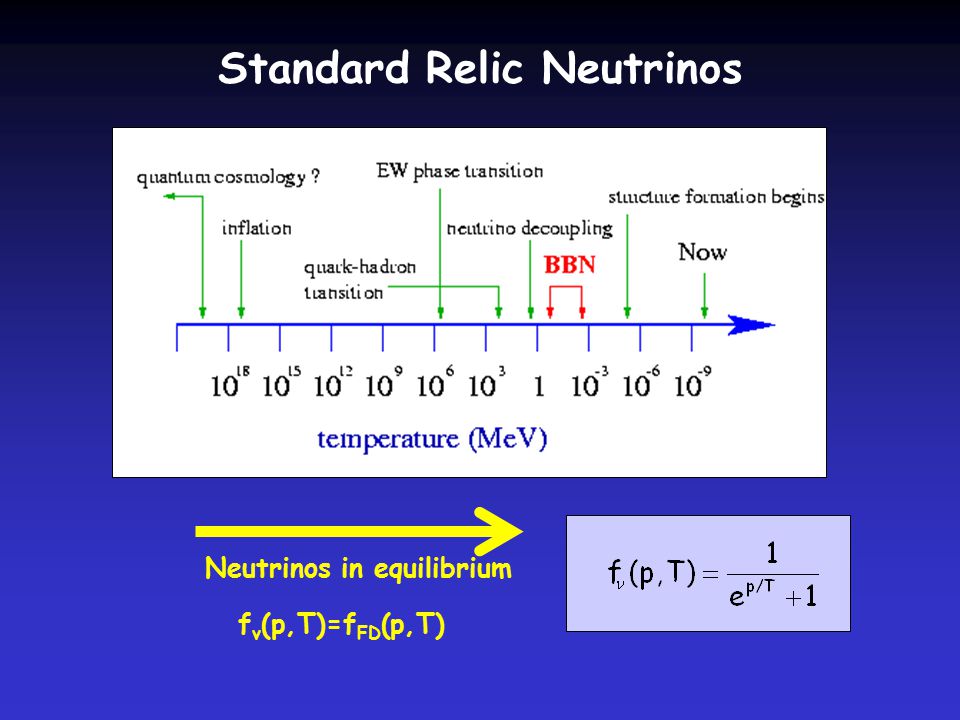

6. Neutrinos in equilibrium f ν (p,T)=f FD (p,T) Standard Relic Neutrinos

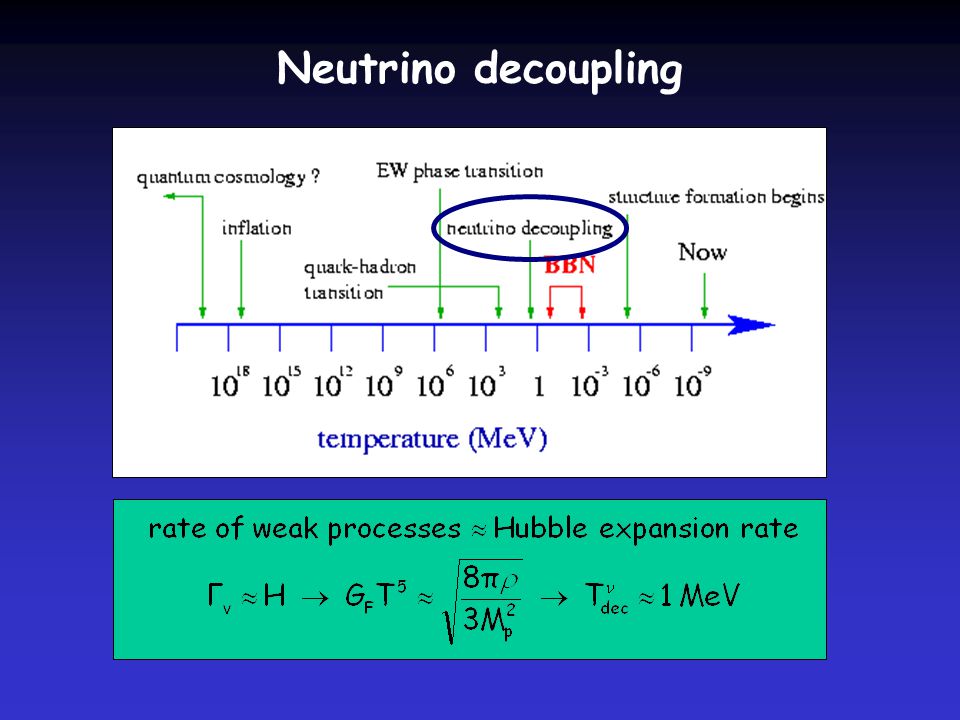

7. Neutrino decoupling

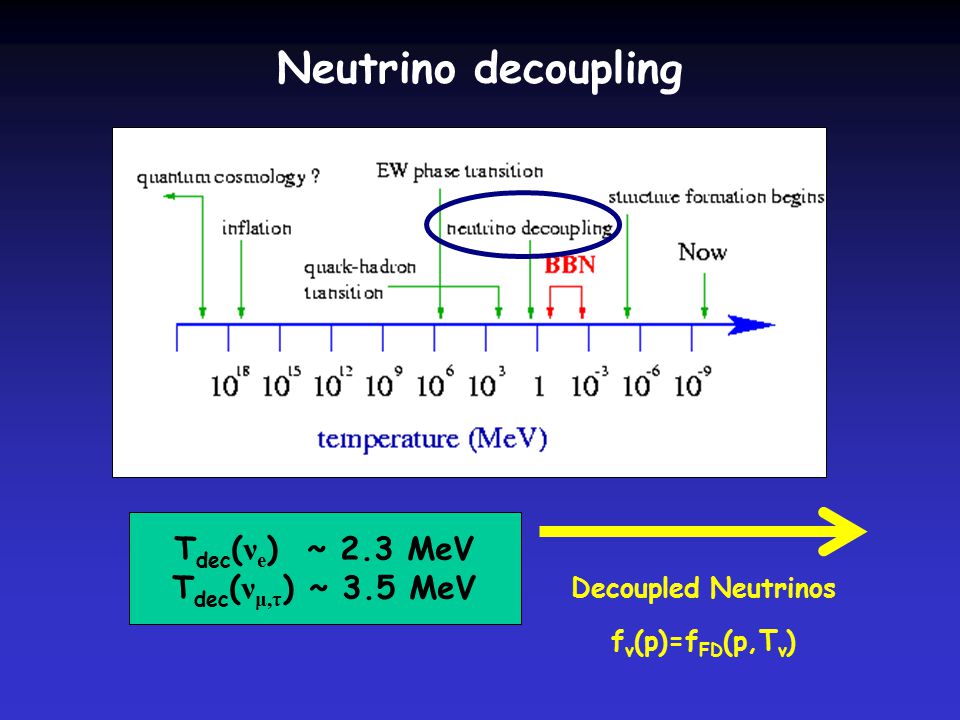

8. Decoupled Neutrinos f ν (p)=f FD (p,T ν ) T dec ( ν e ) ~ 2.3 MeV T dec ( ν μ,τ ) ~ 3.5 MeV Neutrino decoupling

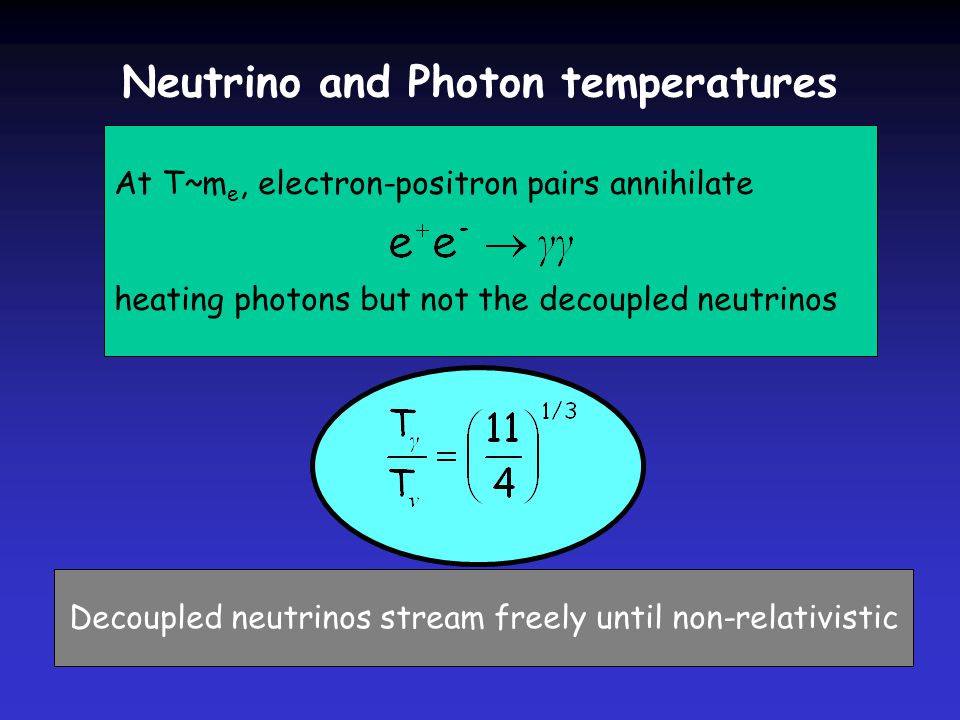

9. At T~m e, electron-positron pairs annihilate heating photons but not the decoupled neutrinos Decoupled neutrinos stream freely until non-relativistic Neutrino and Photon temperatures

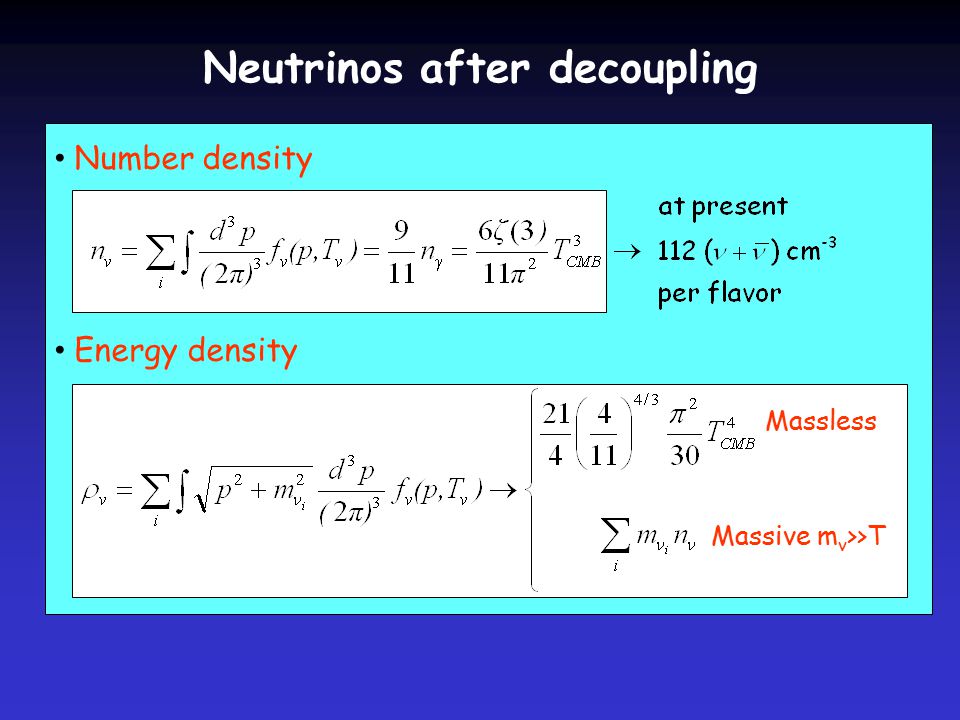

10. Number density Energy density Neutrinos after decoupling Massless Massive m ν >>T

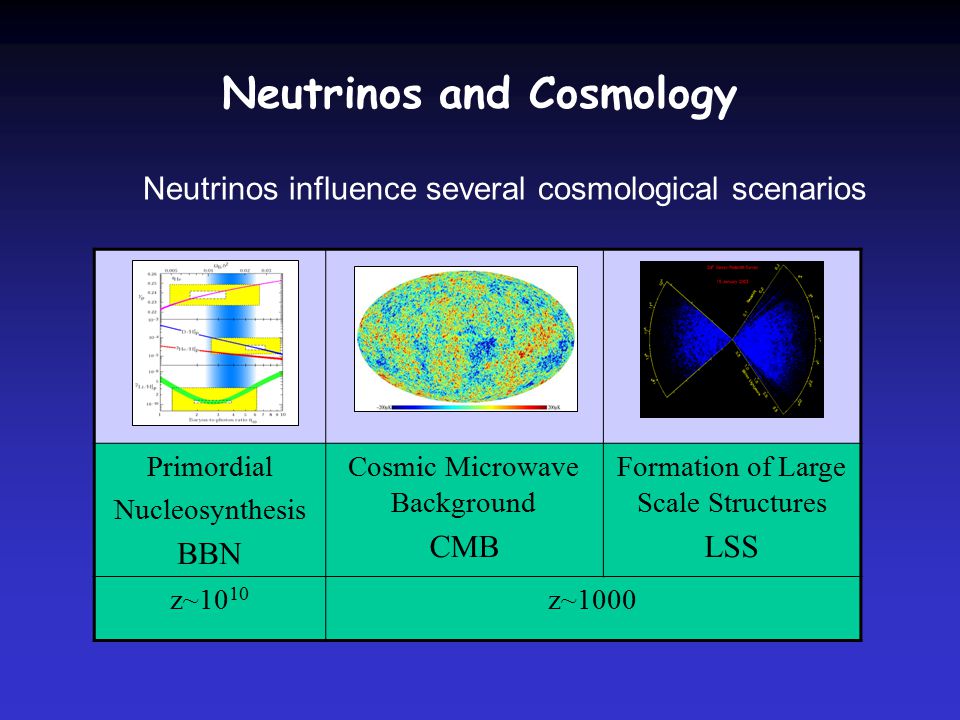

11. Neutrinos and Cosmology Neutrinos influence several cosmological scenarios Primordial Nucleosynthesis BBN Cosmic Microwave Background CMB Formation of Large Scale Structures LSS z~10 10 z~1000

12. RELIC NEUTRINOS Massive neutrinos Standard neutrinos Extra radiation and Neutrino asymmetries

13. At T<<m e, the radiation content of the Universe is Effective number of relativistic neutrino species Traditional parametrization of the energy density stored in relativistic particles Neff is not exactly 3 for standard neutrinos (if m ν <<T) Relativistic particles in the Universe

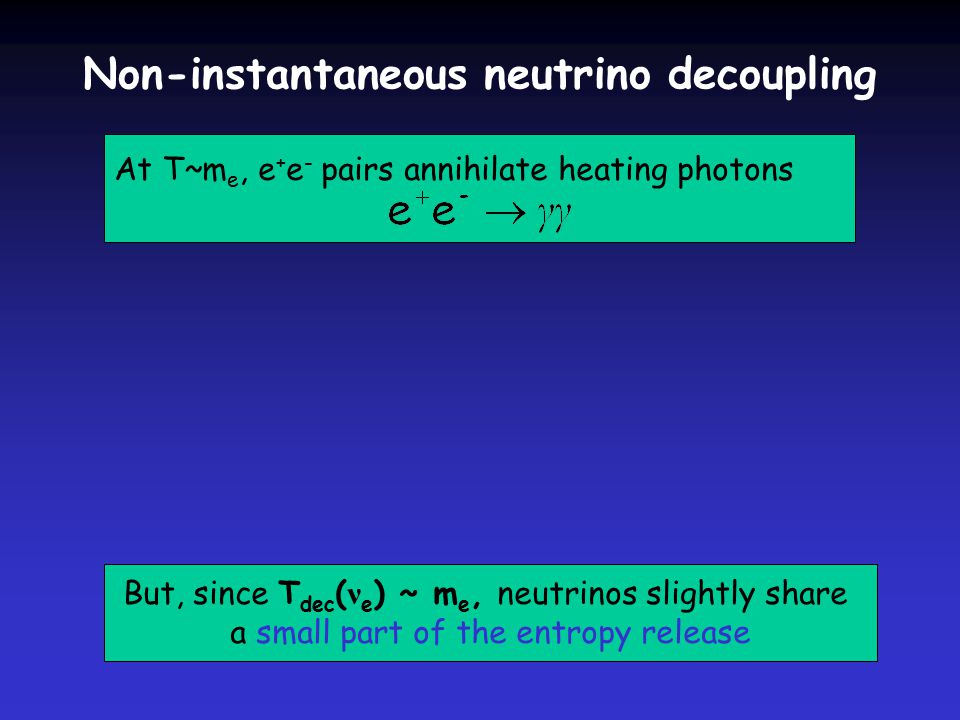

14. But, since T dec ( ν e ) ~ m e, neutrinos slightly share a small part of the entropy release At T~m e, e + e - pairs annihilate heating photons Non-instantaneous neutrino decoupling

15. But, since T dec ( ν e ) ~ m e, neutrinos slightly share a small part of the entropy release T ν 0.15% larger ρ(ν e ) 1% larger ρ(ν μ,τ ) 0.5% larger f ν =f FD (p,T ν )[1+δf(p)] Non-instantaneous decoupling + QED corrections to e.m. plasma Neff=3.0395 Mangano et al 2002 Non-instantaneous neutrino decoupling

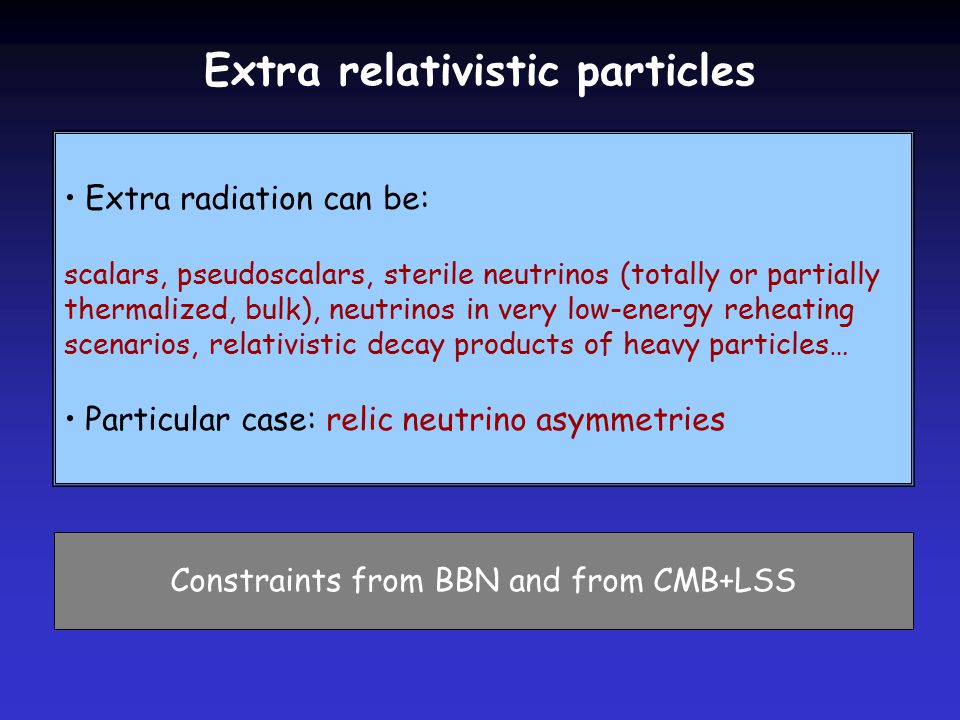

16. Extra radiation can be: scalars, pseudoscalars, sterile neutrinos (totally or partially thermalized, bulk), neutrinos in very low-energy reheating scenarios, relativistic decay products of heavy particles… Particular case: relic neutrino asymmetries Constraints from BBN and from CMB+LSS Extra relativistic particles

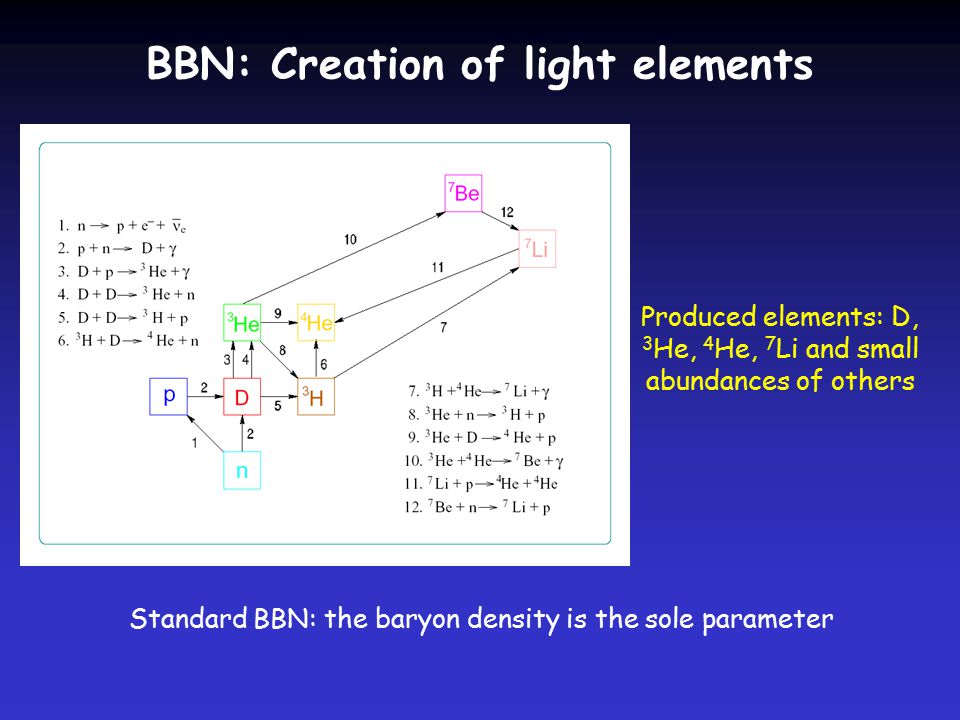

17. Produced elements: D, 3 He, 4 He, 7 Li and small abundances of others BBN: Creation of light elements Standard BBN: the baryon density is the sole parameter

18. Fields & Sarkar PDG 2002 BBN: Predictions vs Observations After WMAP Ω B h 2 =0.023±0.001

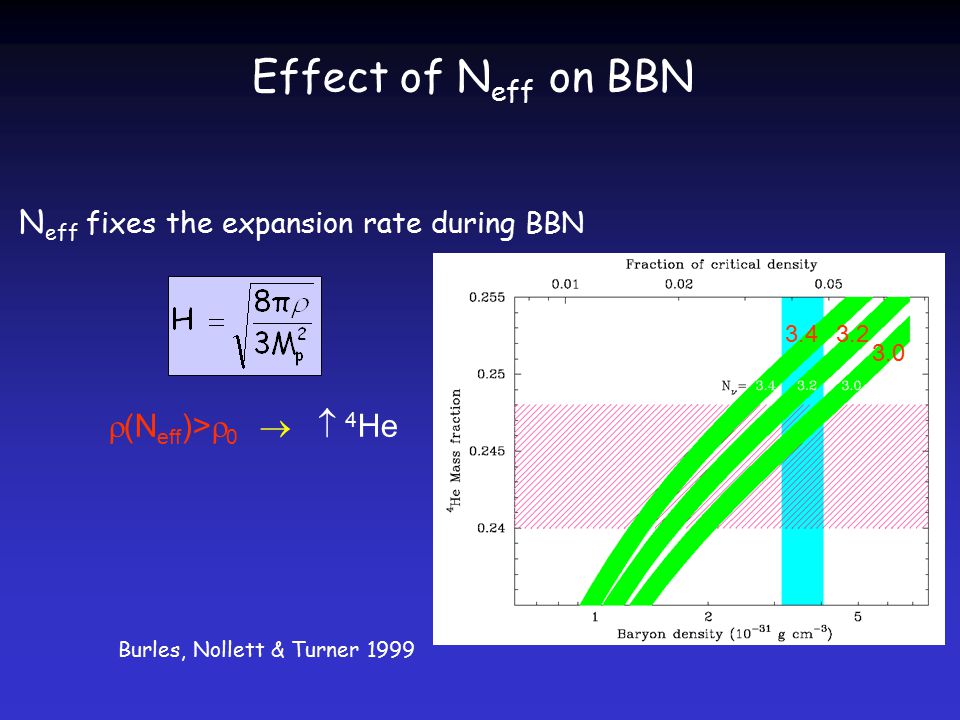

19. Effect of N eff on BBN N eff fixes the expansion rate during BBN  (N eff )>  0   4 He Burles, Nollett & Turner 1999 3.43.2 3.0

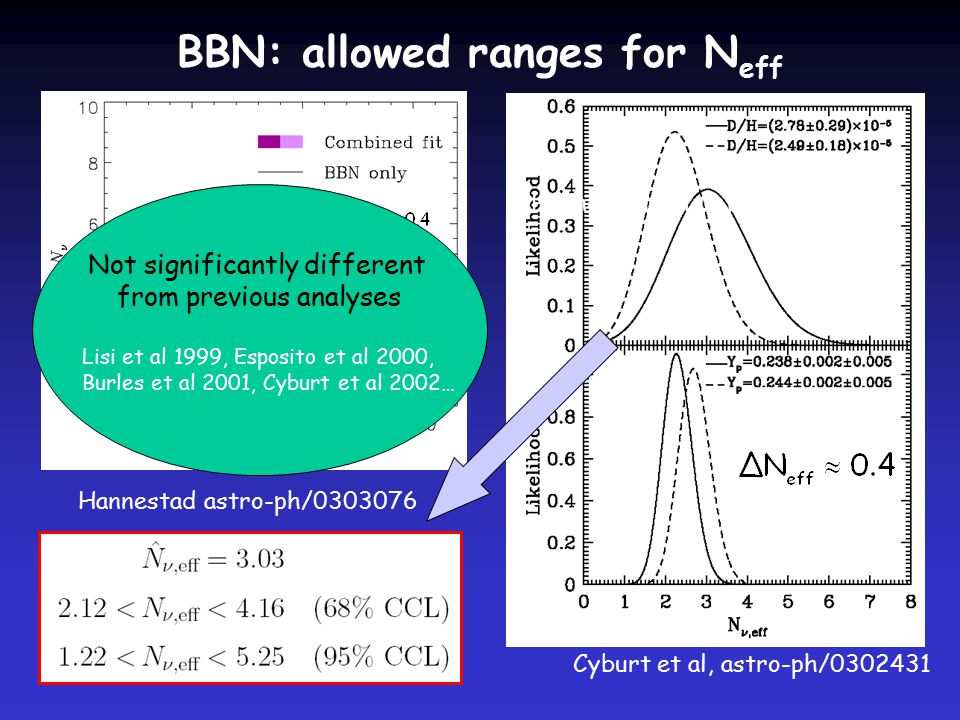

20. Cyburt et al, astro-ph/0302431 BBN: allowed ranges for N eff Hannestad astro-ph/0303076 Not significantly different from previous analyses Lisi et al 1999, Esposito et al 2000, Burles et al 2001, Cyburt et al 2002… Hannestad astro-ph/0303076

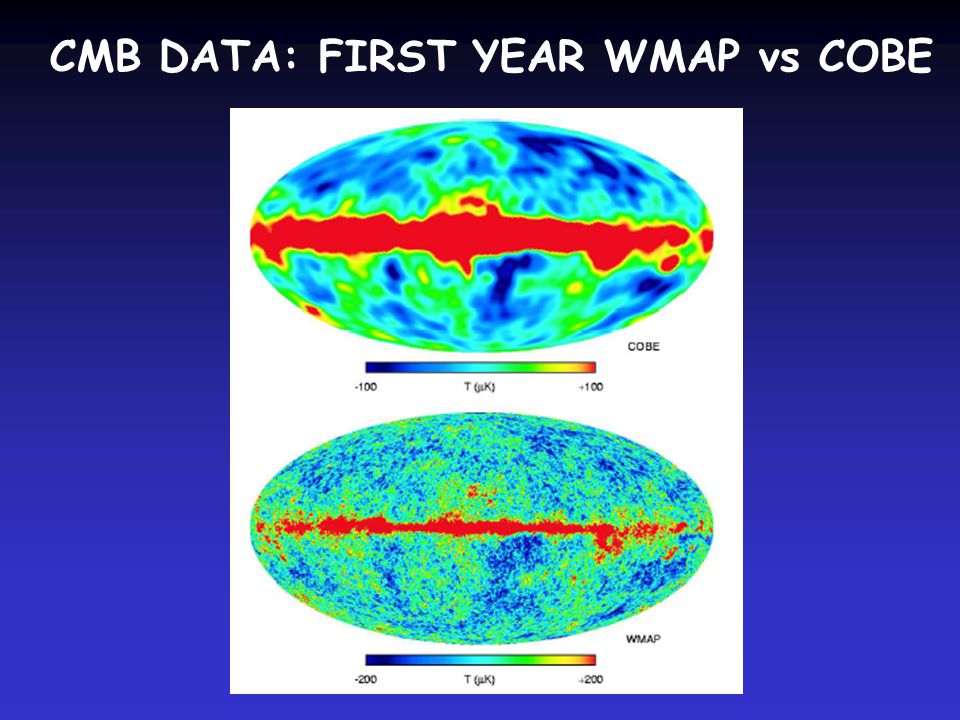

21. CMB DATA: FIRST YEAR WMAP vs COBE

22. Map of CMBR temperature Fluctuations Multipole Expansion CMB DATA: INCREASING PRECISION Angular Power Spectrum

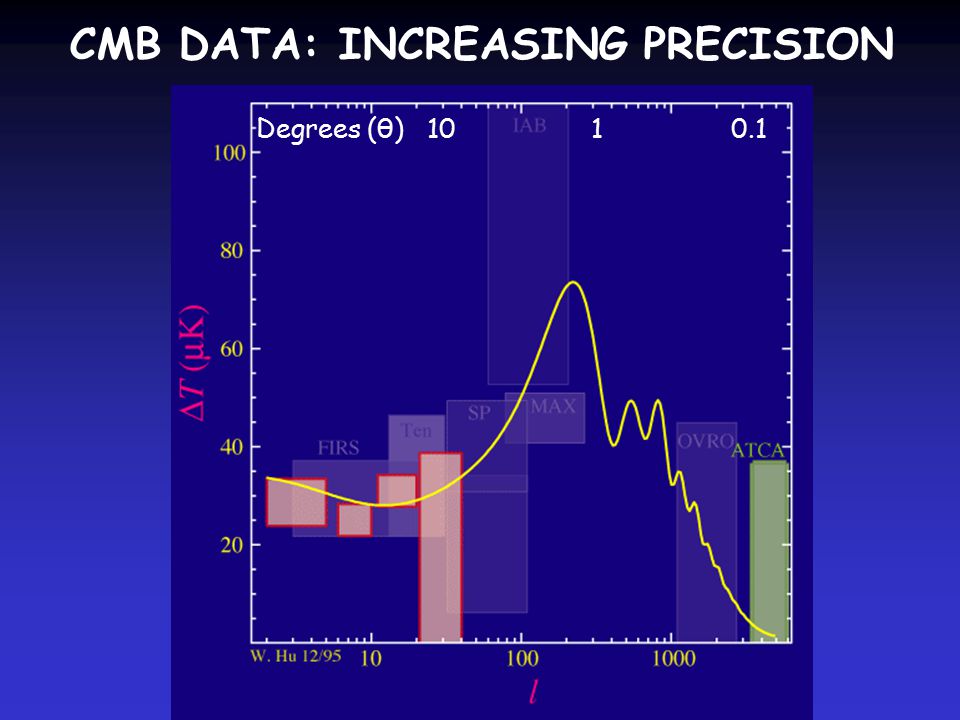

23. CMB DATA: INCREASING PRECISION Degrees (θ) 10 1 0.1

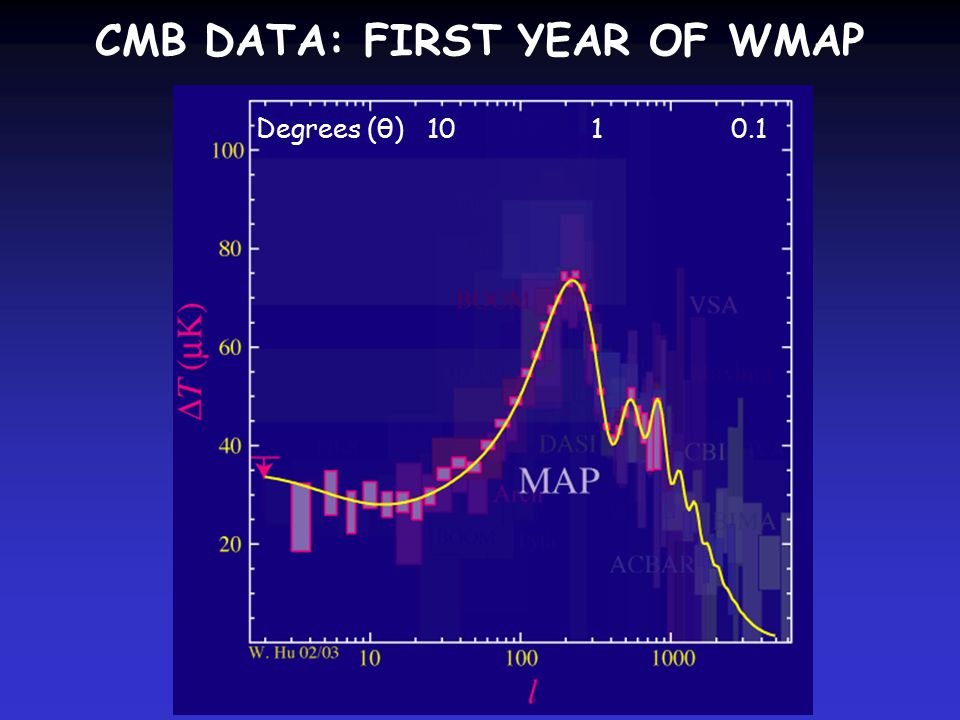

24. CMB DATA: FIRST YEAR OF WMAP

25. Effect of N eff on CMB N eff modifies the radiation content: Changes the epoch of matter-radiation equivalence

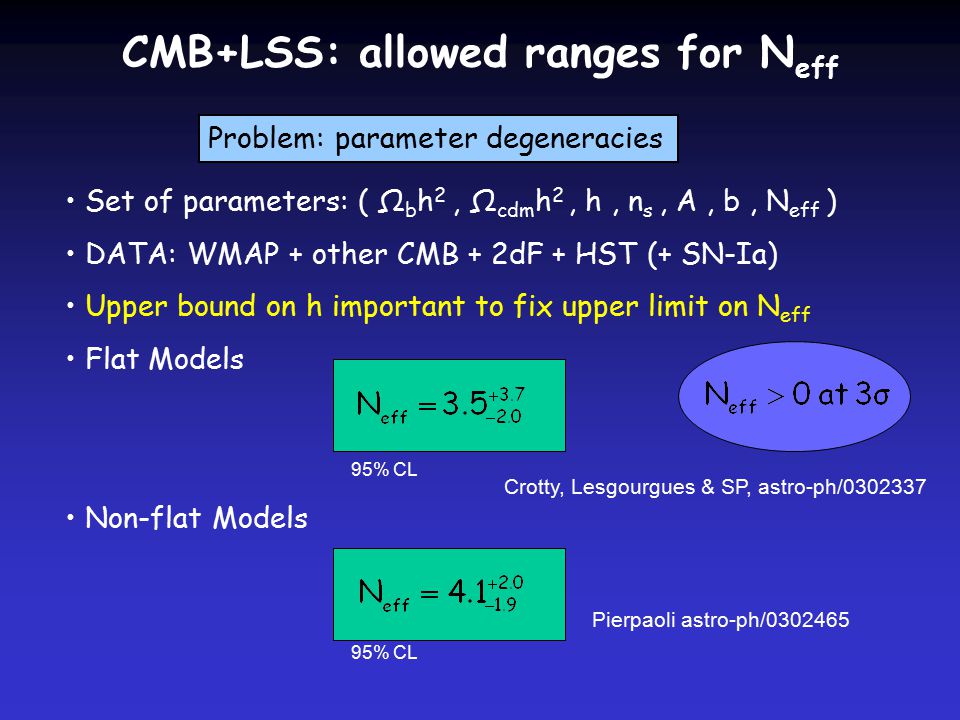

26. Pierpaoli astro-ph/0302465 CMB+LSS: allowed ranges for N eff Crotty, Lesgourgues & SP, astro-ph/0302337 Problem: parameter degeneracies Set of parameters: ( Ω b h 2, Ω cdm h 2, h, n s, A, b, N eff ) DATA: WMAP + other CMB + 2dF + HST (+ SN-Ia) Upper bound on h important to fix upper limit on N eff Flat Models Non-flat Models 95% CL

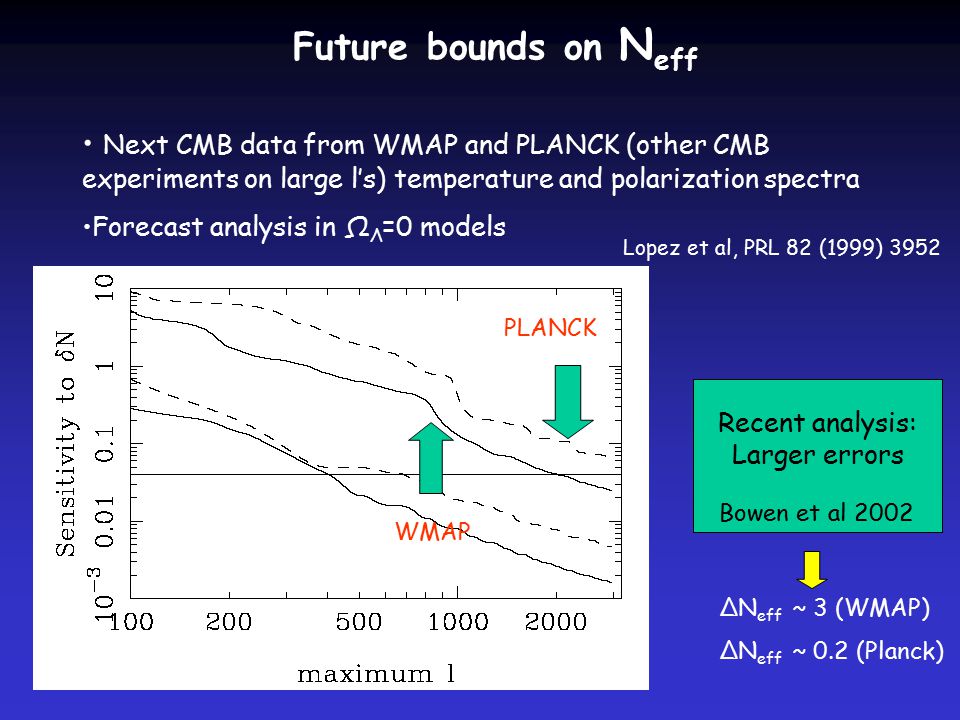

27. Future bounds on N eff Next CMB data from WMAP and PLANCK (other CMB experiments on large l’s) temperature and polarization spectra Forecast analysis in Ω Λ =0 models Lopez et al, PRL 82 (1999) 3952 WMAP PLANCK Recent analysis: Larger errors Bowen et al 2002 ΔN eff ~ 3 (WMAP) ΔN eff ~ 0.2 (Planck)

28. Neutrinos in equilibrium f ν (p,T)=f FD (p,T) Degenerate Relic Neutrinos    /T

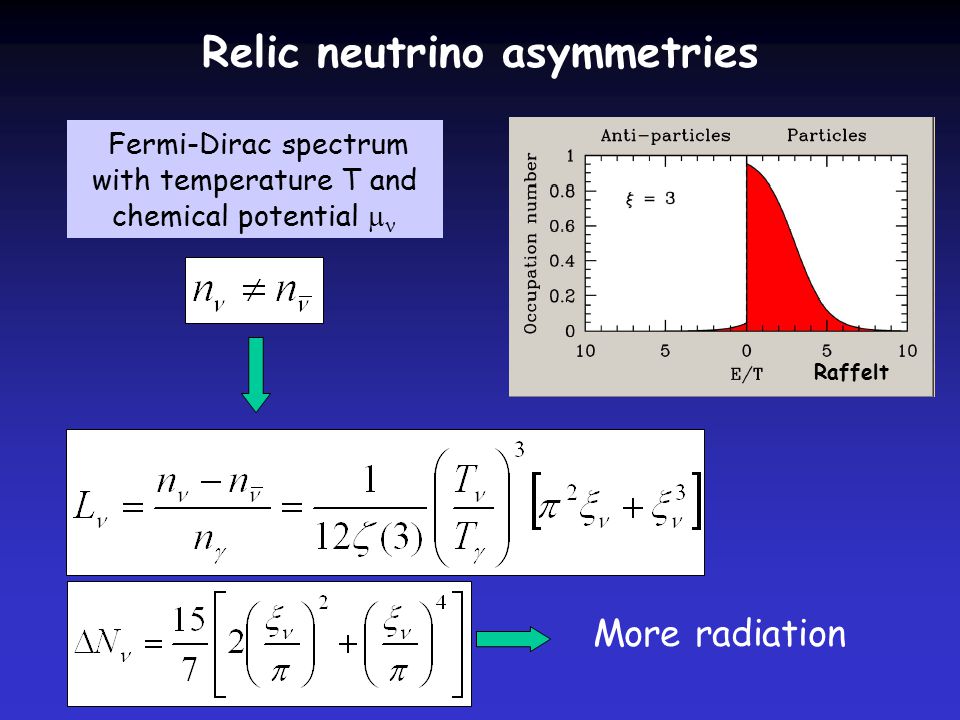

29. Relic neutrino asymmetries Raffelt Fermi-Dirac spectrum with temperature T and chemical potential  More radiation

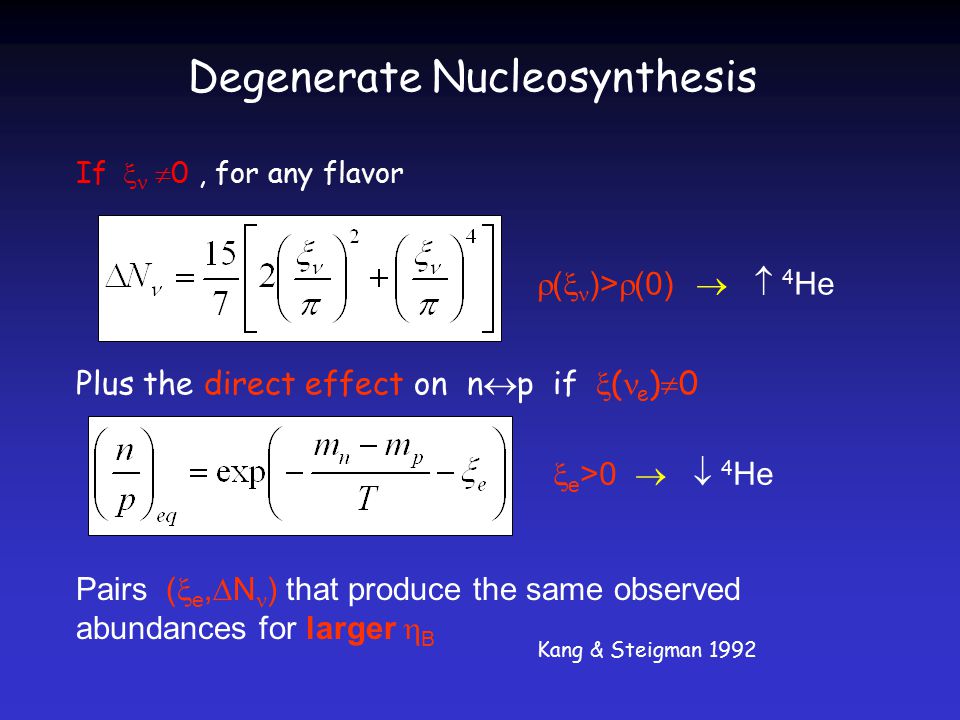

30. Degenerate Nucleosynthesis If   0, for any flavor  (  )>  (0)   4 He Plus the direct effect on n  p if  ( e )  0  e >0   4 He Pairs  (  e,  N ) that produce the same observed abundances for larger  B Kang & Steigman 1992

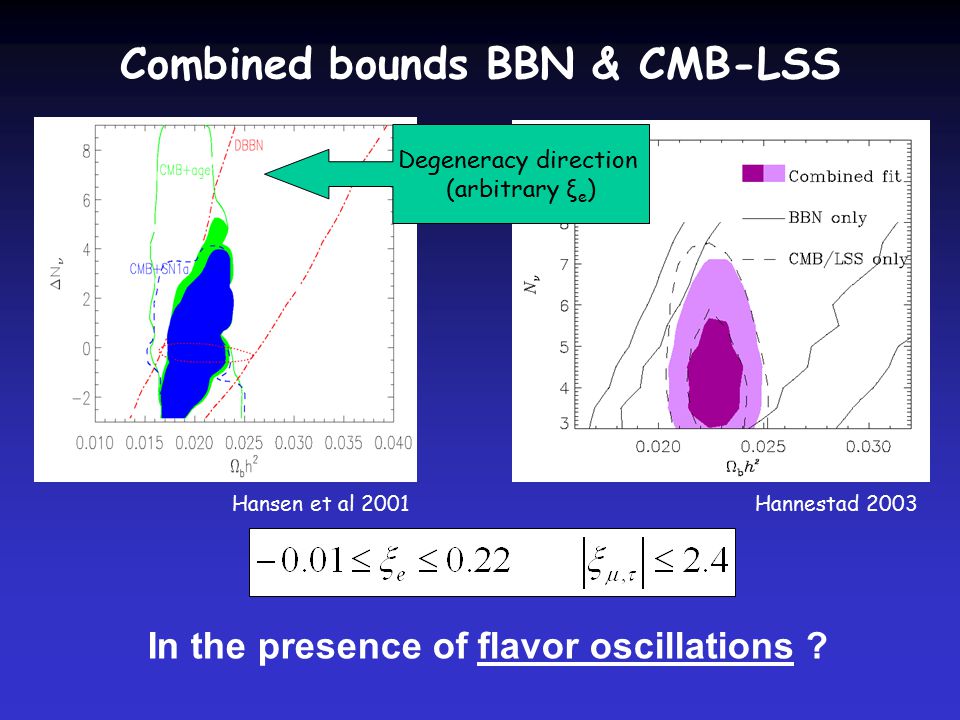

31. Hansen et al 2001Hannestad 2003 Combined bounds BBN & CMB-LSS In the presence of flavor oscillations ? Degeneracy direction (arbitrary ξ e )

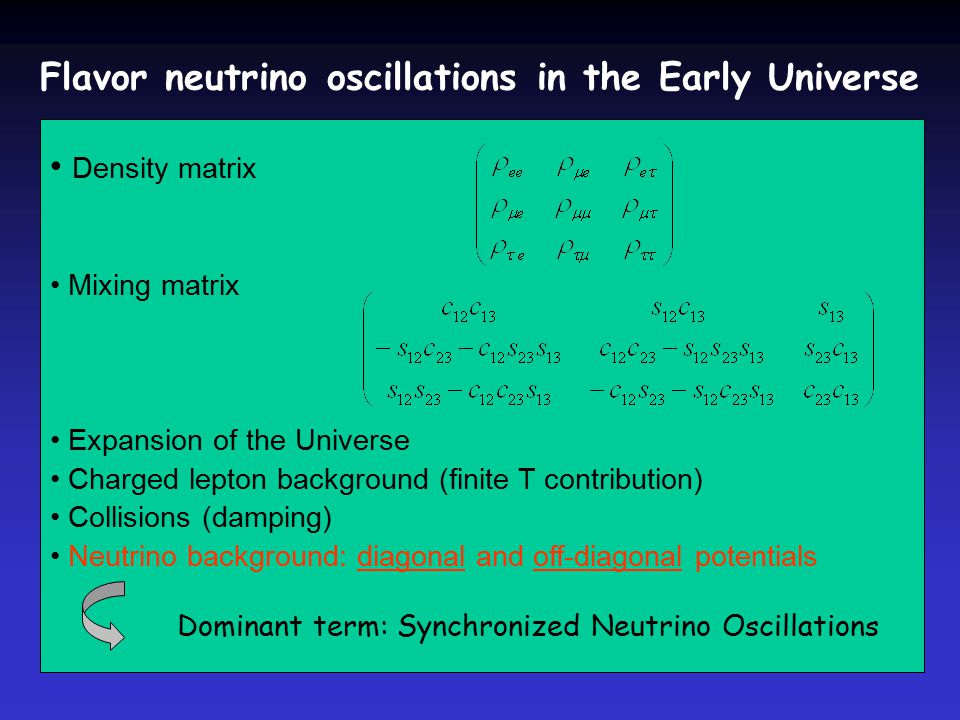

32. Flavor neutrino oscillations in the Early Universe Density matrix Mixing matrix Expansion of the Universe Charged lepton background (finite T contribution) Collisions (damping) Neutrino background: diagonal and off-diagonal potentials Dominant term: Synchronized Neutrino Oscillations

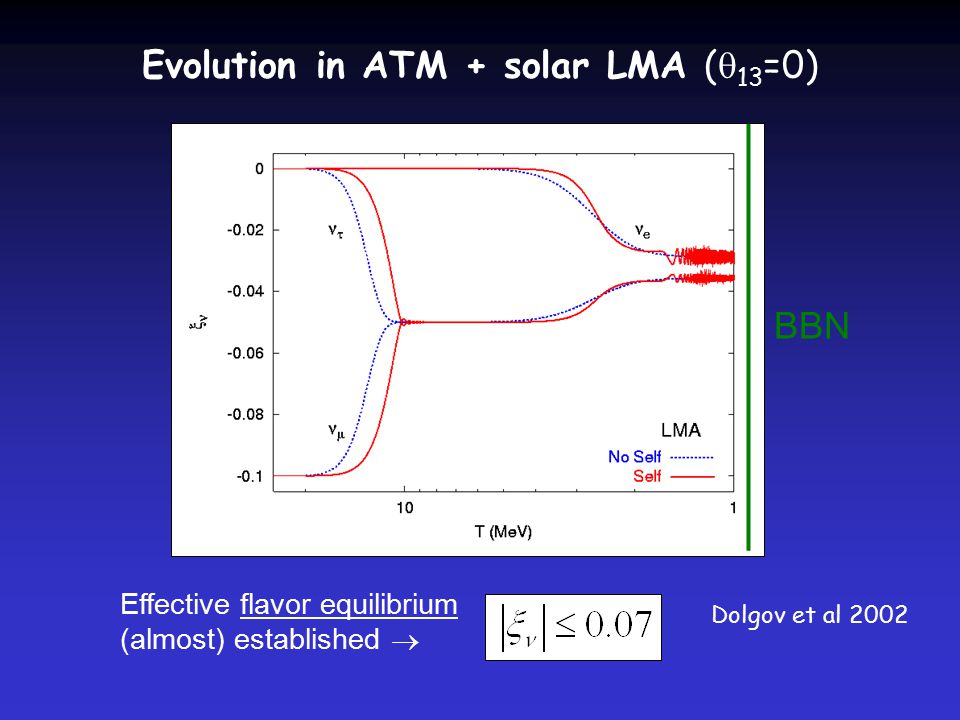

33. Effective flavor equilibrium (almost) established  BBN Evolution in ATM + solar LMA (  13 =0) Dolgov et al 2002

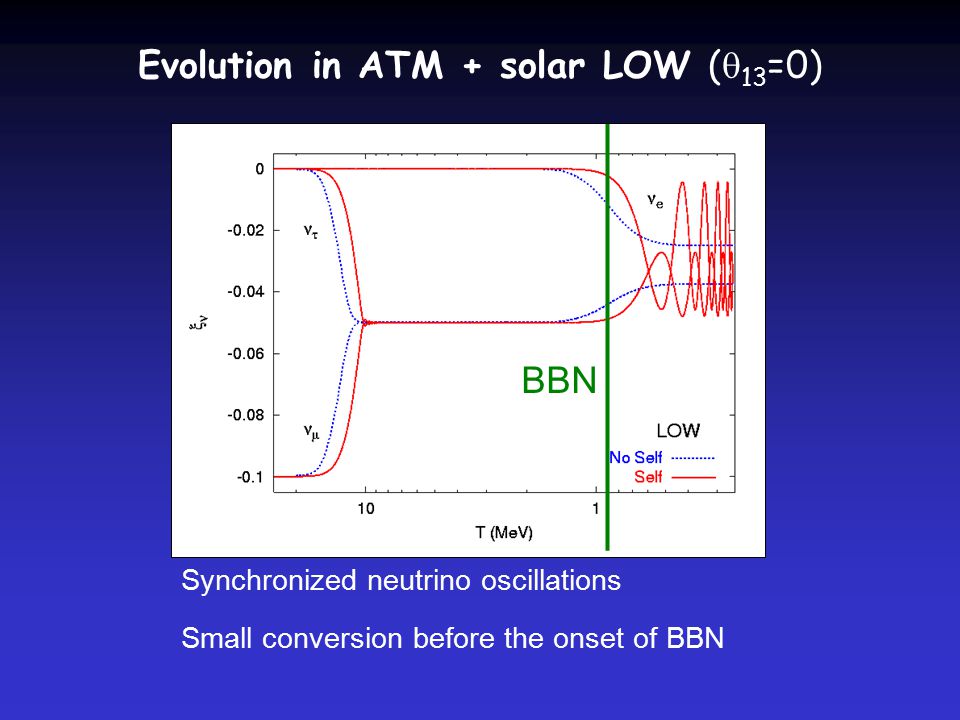

34. Synchronized neutrino oscillations Small conversion before the onset of BBN BBN Evolution in ATM + solar LOW (  13 =0)

35. RELIC NEUTRINOS Extra radiation and Neutrino asymmetries Standard neutrinos Massive neutrinos

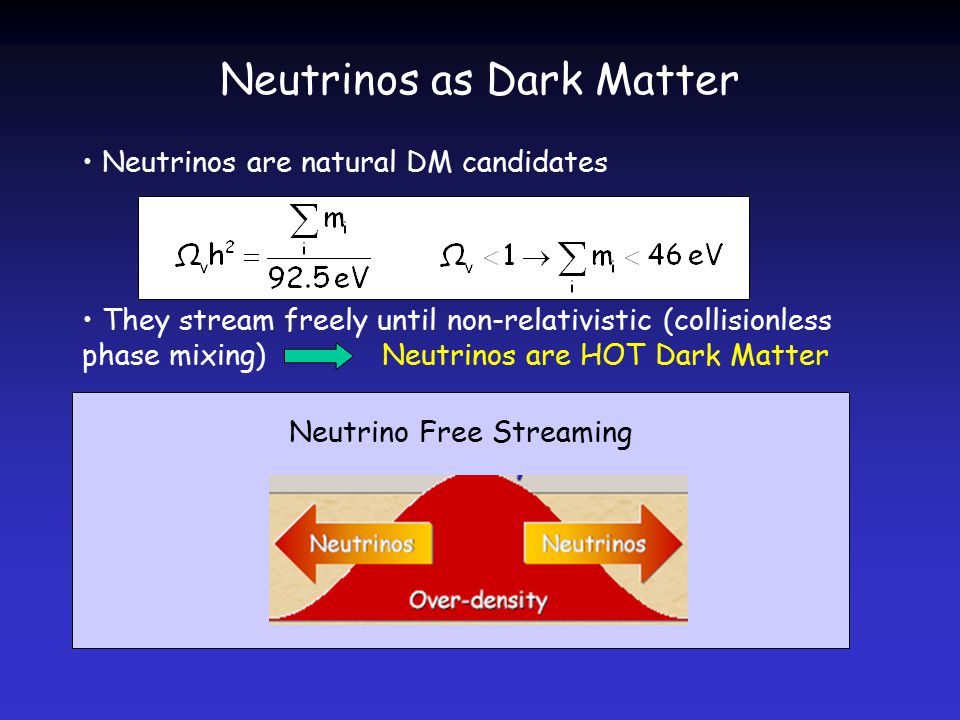

36. Neutrinos as Dark Matter Neutrinos are natural DM candidates They stream freely until non-relativistic (collisionless phase mixing) Neutrinos are HOT Dark Matter First structures to be formed when Universe became matter -dominated Ruled out by structure formation CDM Neutrino Free Streaming

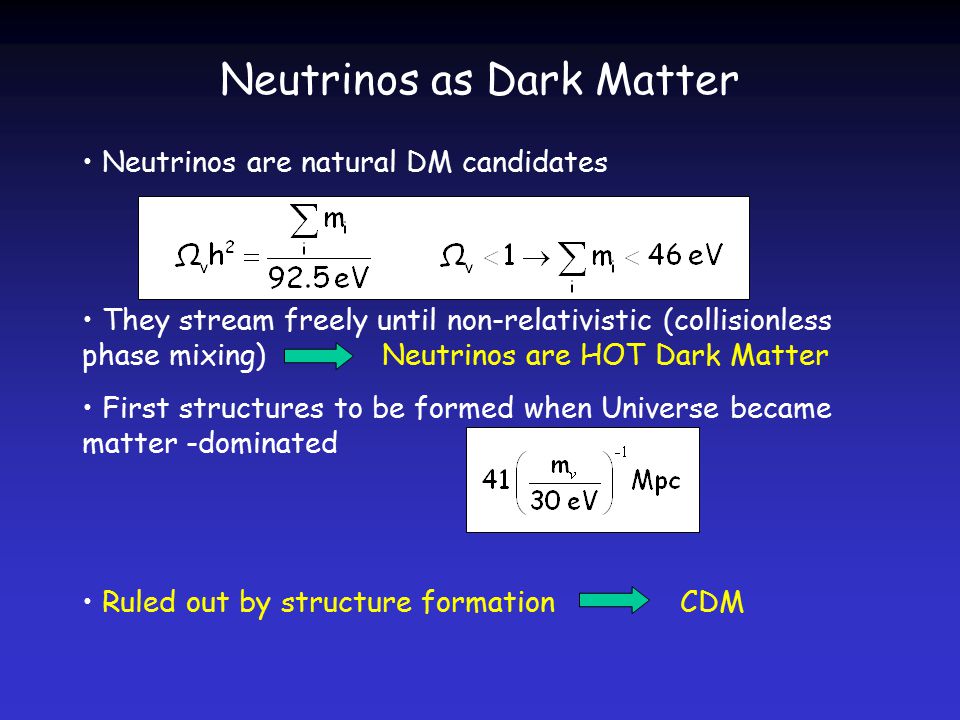

37. Neutrinos as Dark Matter Neutrinos are natural DM candidates They stream freely until non-relativistic (collisionless phase mixing) Neutrinos are HOT Dark Matter First structures to be formed when Universe became matter -dominated Ruled out by structure formation CDM

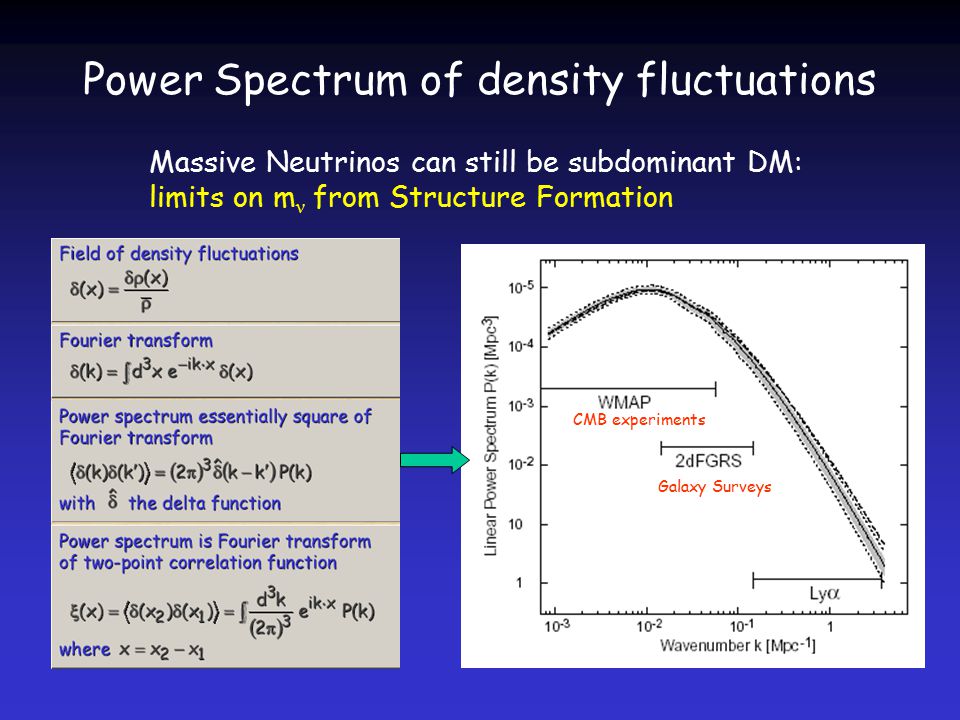

38. Power Spectrum of density fluctuations Massive Neutrinos can still be subdominant DM: limits on m ν from Structure Formation Galaxy Surveys CMB experiments

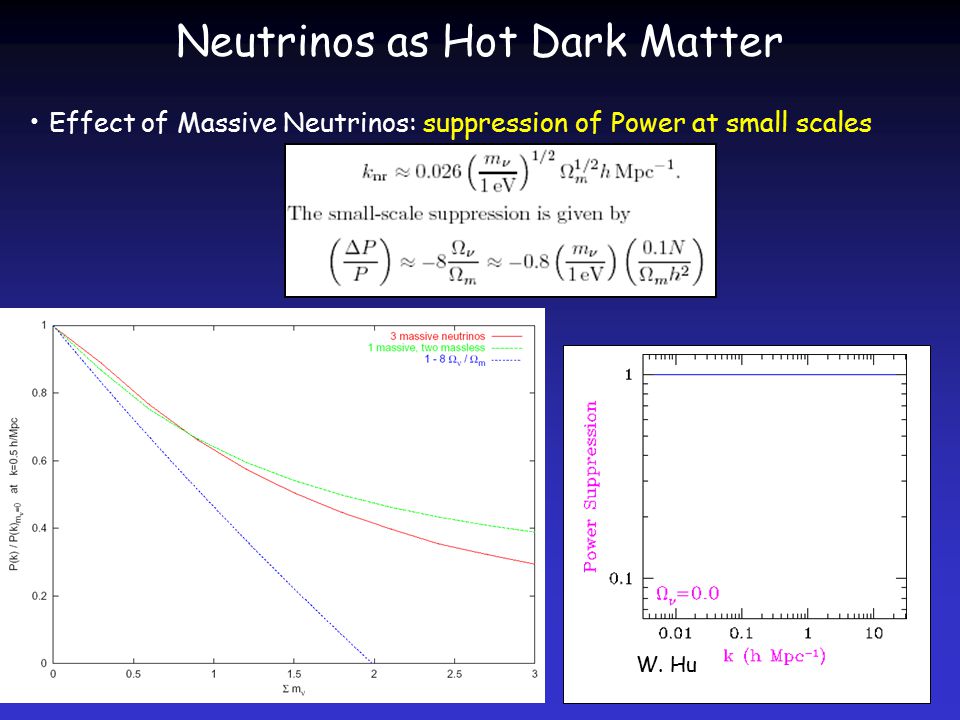

39. Neutrinos as Hot Dark Matter W. Hu Effect of Massive Neutrinos: suppression of Power at small scales

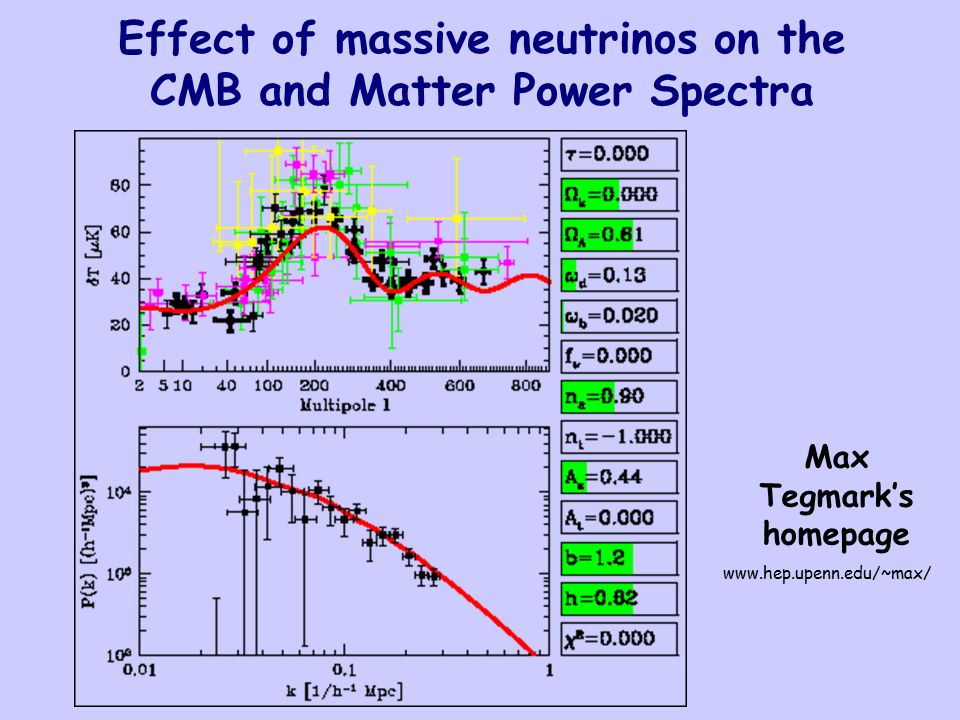

40. Max Tegmark’s homepage www.hep.upenn.edu/~max/ Effect of massive neutrinos on the CMB and Matter Power Spectra

41. 2dFGRS Galaxy Survey

42. ~ 1300 Mpc

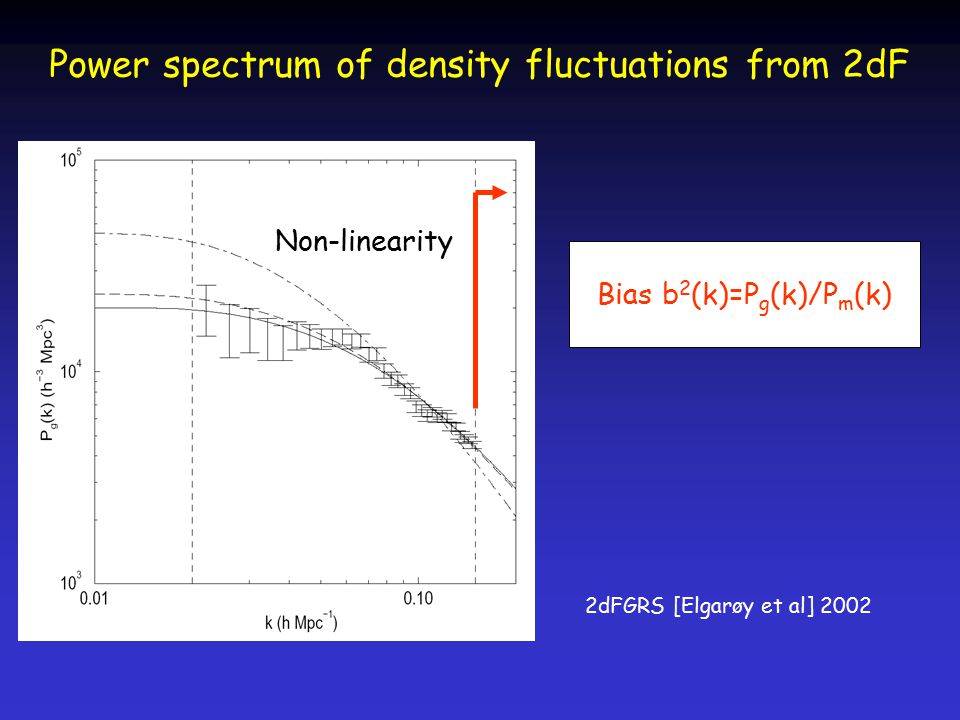

43. Power spectrum of density fluctuations from 2dF 2dFGRS [Elgarøy et al] 2002 Bias b 2 (k)=P g (k)/P m (k) Non-linearity

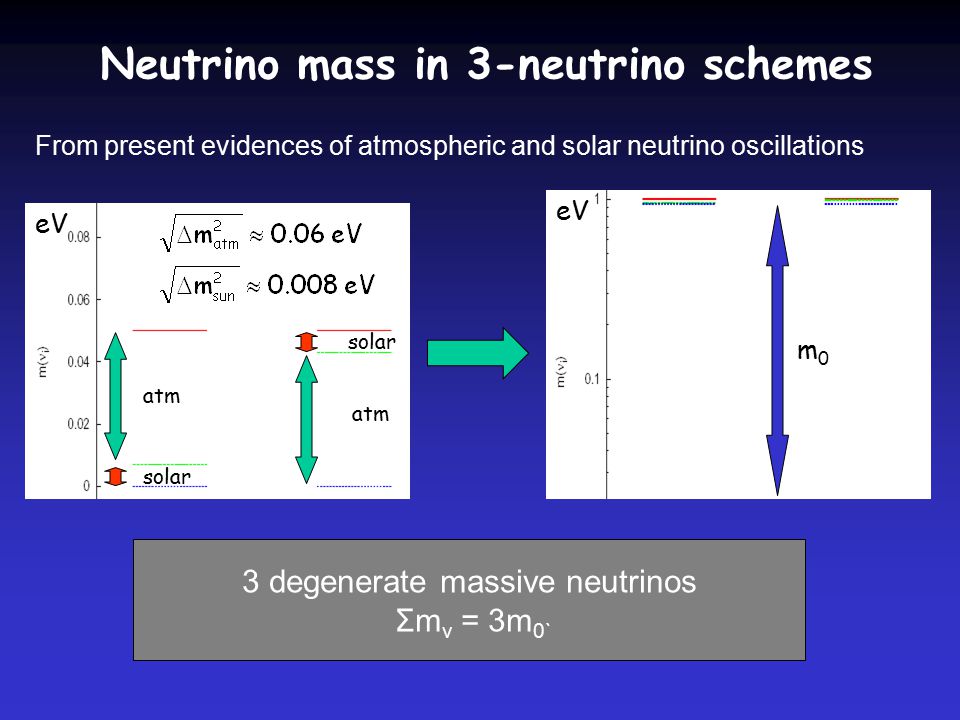

44. 3 degenerate massive neutrinos Σm ν = 3m 0` Neutrino mass in 3-neutrino schemes eV From present evidences of atmospheric and solar neutrino oscillations atm solar m0m0

45. Direct laboratory bounds on m ν Searching for non-zero neutrino mass in laboratory experiments Tritium beta decay: measurements of endpoint energy m(ν e ) < 2.2 eV (95% CL) Mainz-Troitsk Future experiments (KATRIN) m(ν e ) ~ 0.3 eV Neutrinoless double beta decay: if Majorana neutrinos 76 Ge experiments: Im ee I < 0.35 eV

46. WMAP+CBI+ACBAR+2dFGRS+Lyman α Spergel et al astro-ph/0302209 Σm ν < 0.71 eV Ω ν h 2 < 0.0076 m 0 < 0.23 eV 95% CL 3 degenerate massive neutrinos Bound on m ν after first year WMAP data

47. Pierce & Murayama hep-ph/0302131 Strumia hep-ph/0201134 (v4) Giunti hep-ph/0302173 Σm ν < 0.71 eV Ω ν h 2 < 0.0076 Small marginally allowed region 3+1 solution strongly disfavored Is the 3+1 LSND scenario ruled out ? More conservative Σm ν < 1.01 eV Hannestad astro-ph/0303076 Elgarøy & Lahav astro-ph/0303089

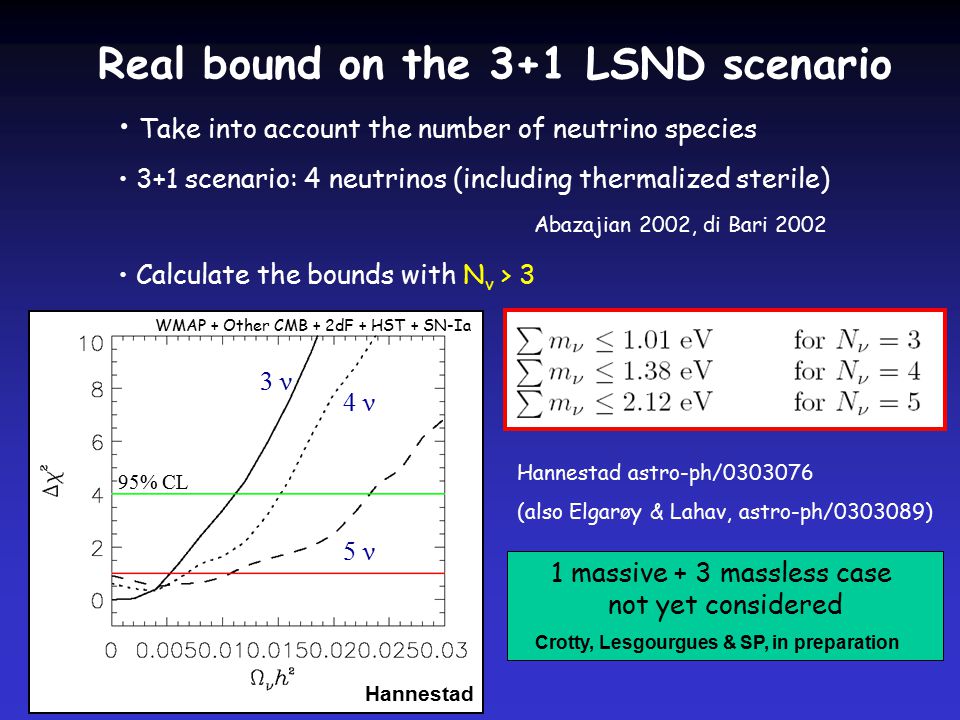

48. Real bound on the 3+1 LSND scenario Take into account the number of neutrino species 3+1 scenario: 4 neutrinos (including thermalized sterile) Calculate the bounds with N ν > 3 Abazajian 2002, di Bari 2002 Hannestad astro-ph/0303076 (also Elgarøy & Lahav, astro-ph/0303089) 3 ν 4 ν 5 ν Hannestad 95% CL WMAP + Other CMB + 2dF + HST + SN-Ia 1 massive + 3 massless case not yet considered Crotty, Lesgourgues & SP, in preparation

49. Future bounds on Σm ν Next CMB data from WMAP and PLANCK (other CMB experiments on large l’s) temperature and polarization spectra SDSS galaxy survey: 10 6 galaxies (250,000 for 2dF) Forecast analysis in WMAP and Ω Λ =0 models Hu et al, PRL 80 (1998) 5255 With current best-fit values

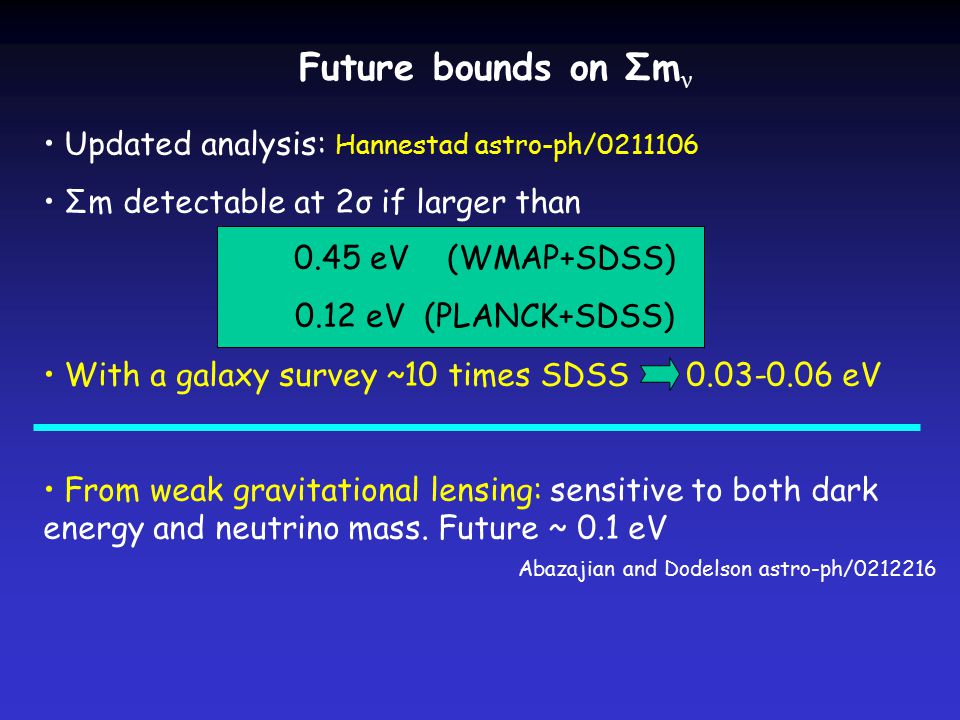

50. Future bounds on Σm ν Updated analysis: Hannestad astro-ph/0211106 Σm detectable at 2σ if larger than With a galaxy survey ~10 times SDSS 0.03-0.06 eV From weak gravitational lensing: sensitive to both dark energy and neutrino mass. Future ~ 0.1 eV 0.45 eV (WMAP+SDSS) 0.12 eV (PLANCK+SDSS) Abazajian and Dodelson astro-ph/0212216

51. Stringent limits on potential relic neutrino asymmetries from flavor equilibrium before BBN (lξ ν l<0.07), fixing the cosmic neutrino density to 1% Cosmological observables efficiently constrain some properties of (relic) neutrinos Bounds on the radiation content of the Universe (N eff ) from BBN (with η B input from CMB) and CMB+LSS (N eff <7 at 95%CL) Conclusions Bounds on the sum of neutrino masses from CMB + 2dFGRS (conservative Σm ν <1 eV), with sub-eV sensitivity in the next future
