1. 18 Nov 2003Ryan Kittredge Digital Communications Ryan Kittredge Technical Topic Report 19 November 2003

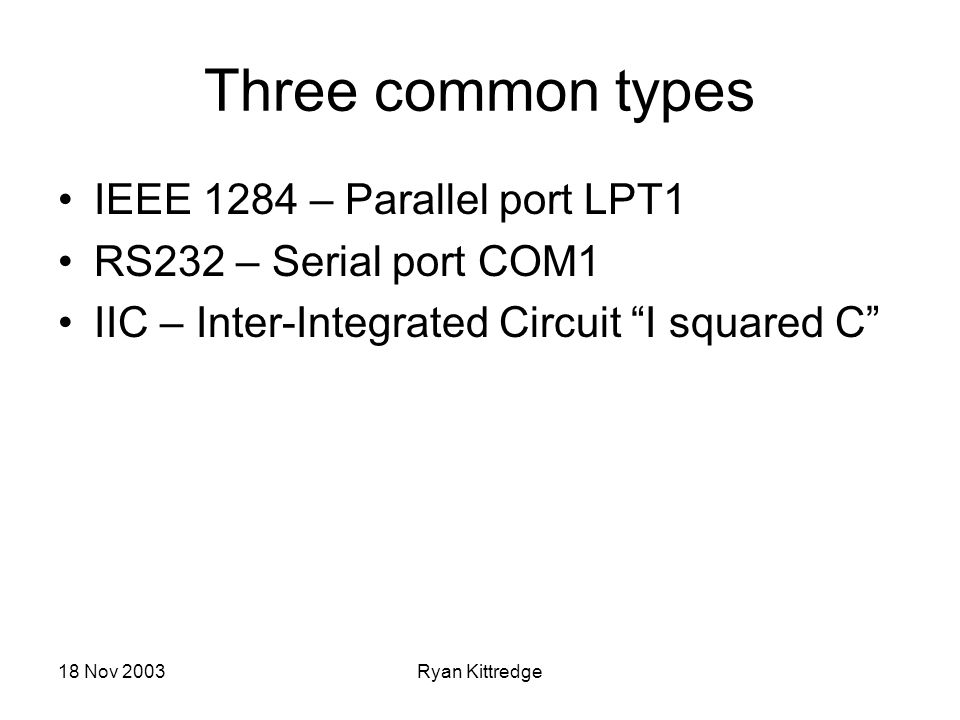

2. 18 Nov 2003Ryan Kittredge Three common types IEEE 1284 – Parallel port LPT1 RS232 – Serial port COM1 IIC – Inter-Integrated Circuit “I squared C”

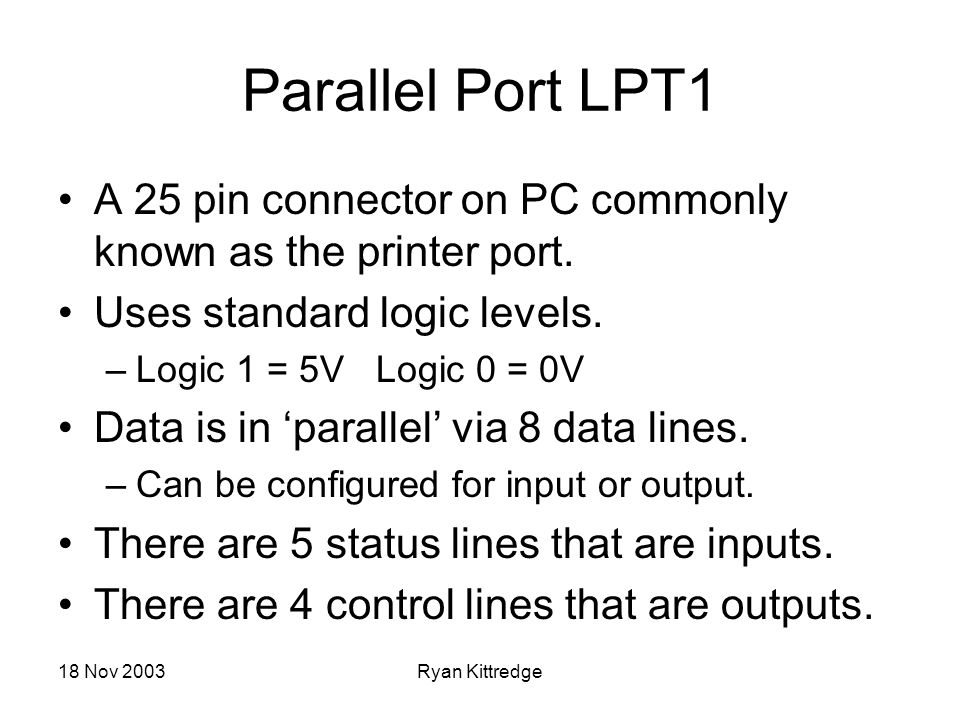

3. 18 Nov 2003Ryan Kittredge Parallel Port LPT1 A 25 pin connector on PC commonly known as the printer port. Uses standard logic levels. –Logic 1 = 5V Logic 0 = 0V Data is in ‘parallel’ via 8 data lines. –Can be configured for input or output. There are 5 status lines that are inputs. There are 4 control lines that are outputs.

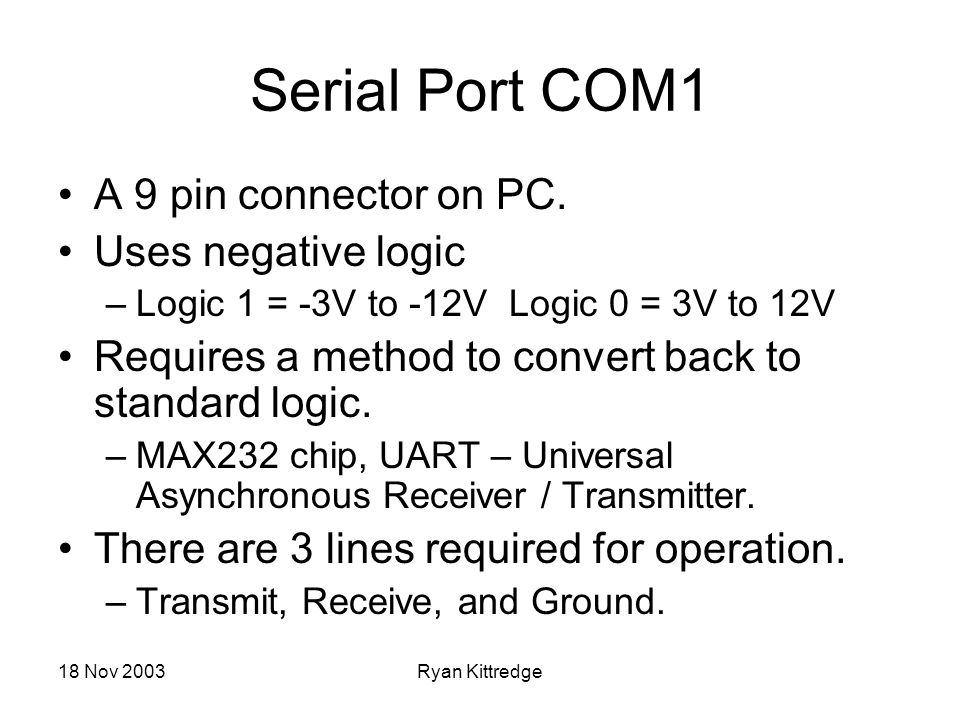

4. 18 Nov 2003Ryan Kittredge Serial Port COM1 A 9 pin connector on PC. Uses negative logic –Logic 1 = -3V to -12V Logic 0 = 3V to 12V Requires a method to convert back to standard logic. –MAX232 chip, UART – Universal Asynchronous Receiver / Transmitter. There are 3 lines required for operation. –Transmit, Receive, and Ground.

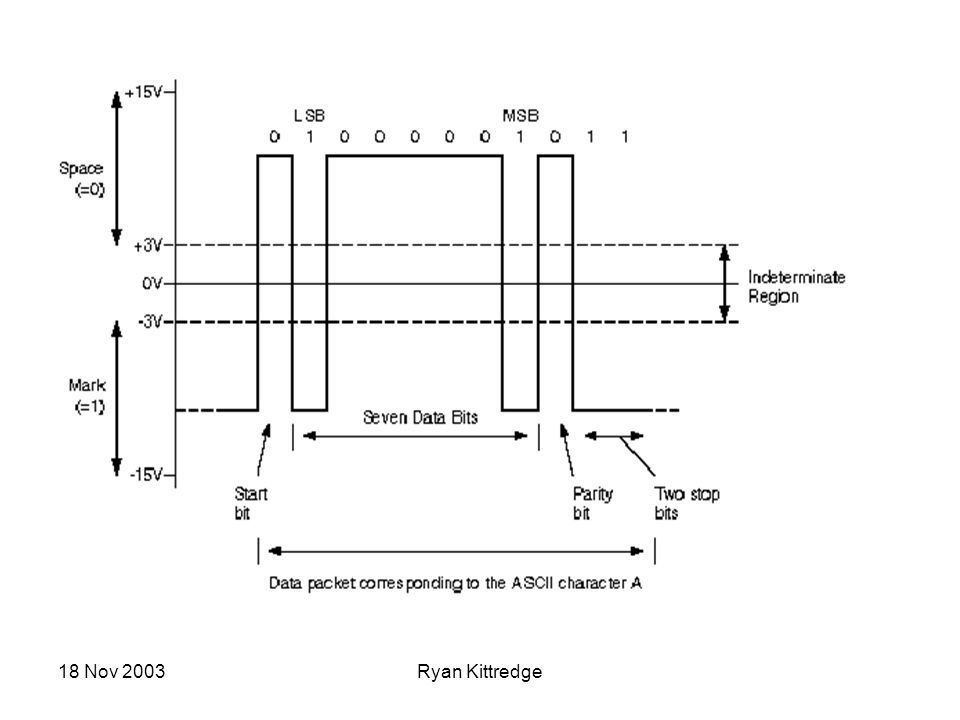

5. 18 Nov 2003Ryan Kittredge

6. 18 Nov 2003Ryan Kittredge IIC – ‘I squared C’ Uses two wires to communicate serially. –SCL – Serial Clock Line –SDA – Serial Data Line Uses standard logic levels. Software could be used to manipulate the parallel port to communicate with a ‘home made’ version of IIC.

7. 18 Nov 2003Ryan Kittredge

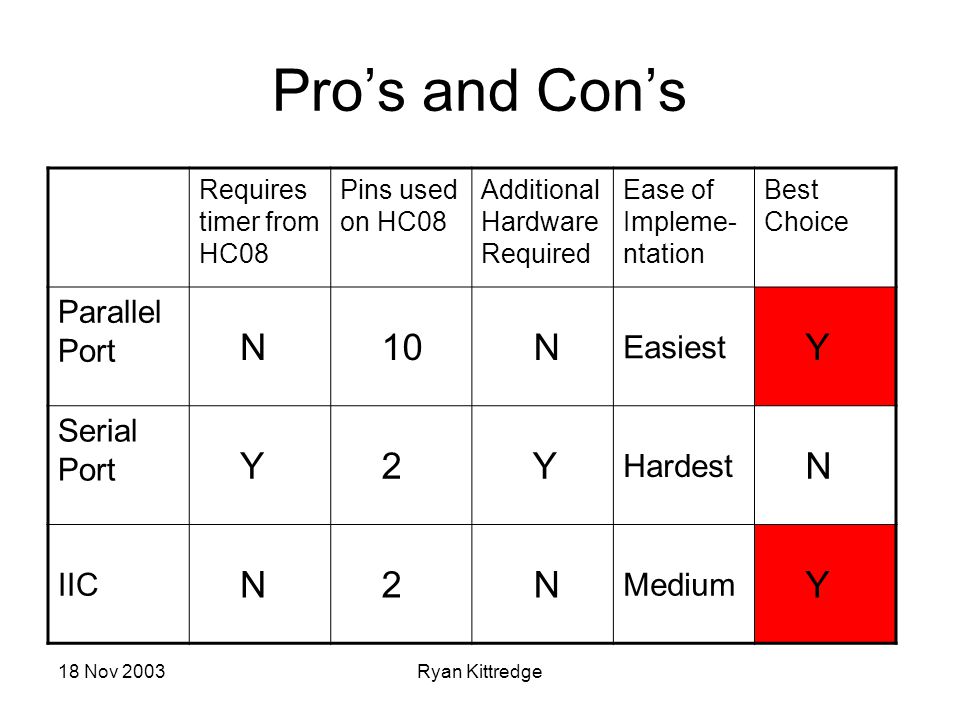

8. 18 Nov 2003Ryan Kittredge Pro’s and Con’s Requires timer from HC08 Pins used on HC08 Additional Hardware Required Ease of Impleme- ntation Best Choice Parallel Port N 10 N Easiest Y Serial Port Y 2 Y Hardest N IIC N 2 N Medium Y

9. 18 Nov 2003Ryan Kittredge Questions? Thank you
