1. Presentation on behalf of the TETRA + Critical Communications Association TCCA SCADA, Smart Grid and Telemetry Group January 2015 1 Member’s products, capabilities and services

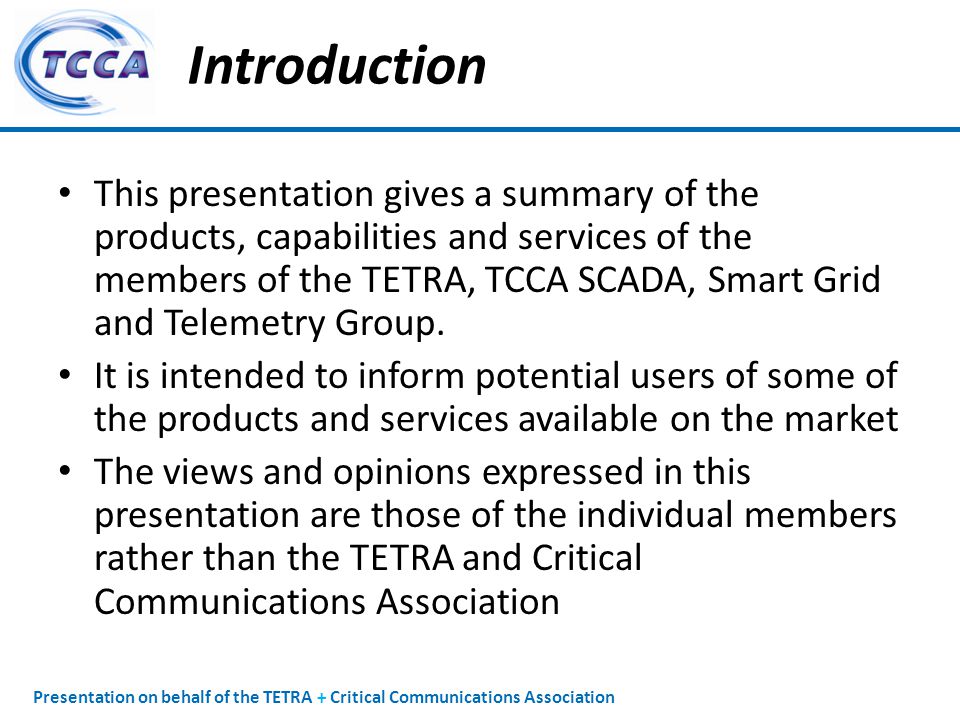

2. Presentation on behalf of the TETRA + Critical Communications Association Introduction This presentation gives a summary of the products, capabilities and services of the members of the TETRA, TCCA SCADA, Smart Grid and Telemetry Group. It is intended to inform potential users of some of the products and services available on the market The views and opinions expressed in this presentation are those of the individual members rather than the TETRA and Critical Communications Association

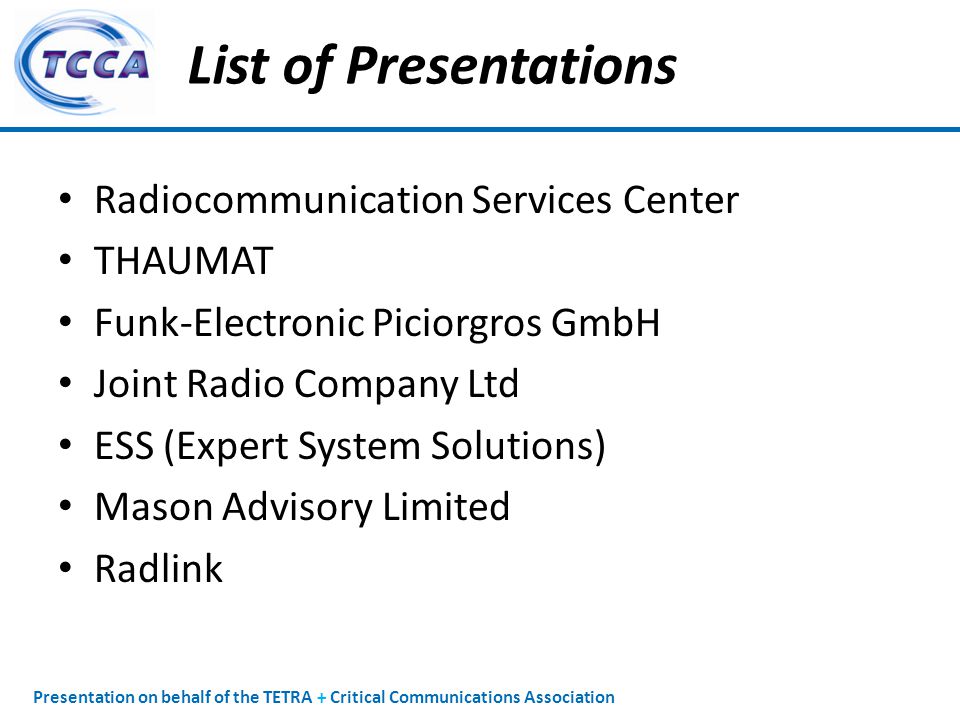

3. Presentation on behalf of the TETRA + Critical Communications Association List of Presentations Radiocommunication Services Center THAUMAT Funk-Electronic Piciorgros GmbH Joint Radio Company Ltd ESS (Expert System Solutions) Mason Advisory Limited Radlink

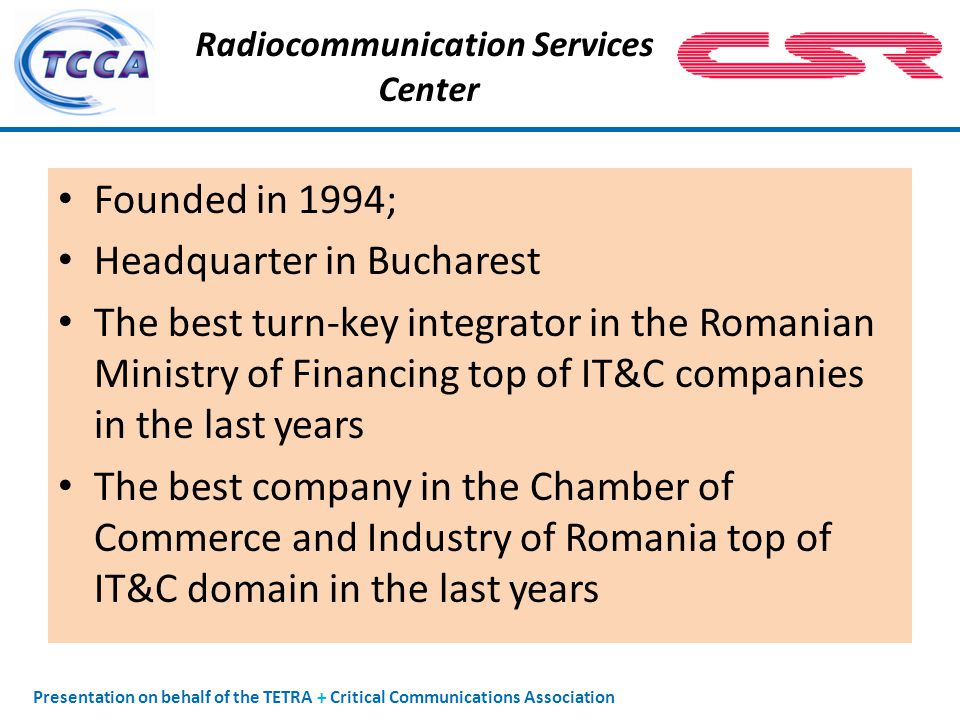

4. Presentation on behalf of the TETRA + Critical Communications Association Radiocommunication Services Center Founded in 1994; Headquarter in Bucharest The best turn-key integrator in the Romanian Ministry of Financing top of IT&C companies in the last years The best company in the Chamber of Commerce and Industry of Romania top of IT&C domain in the last years

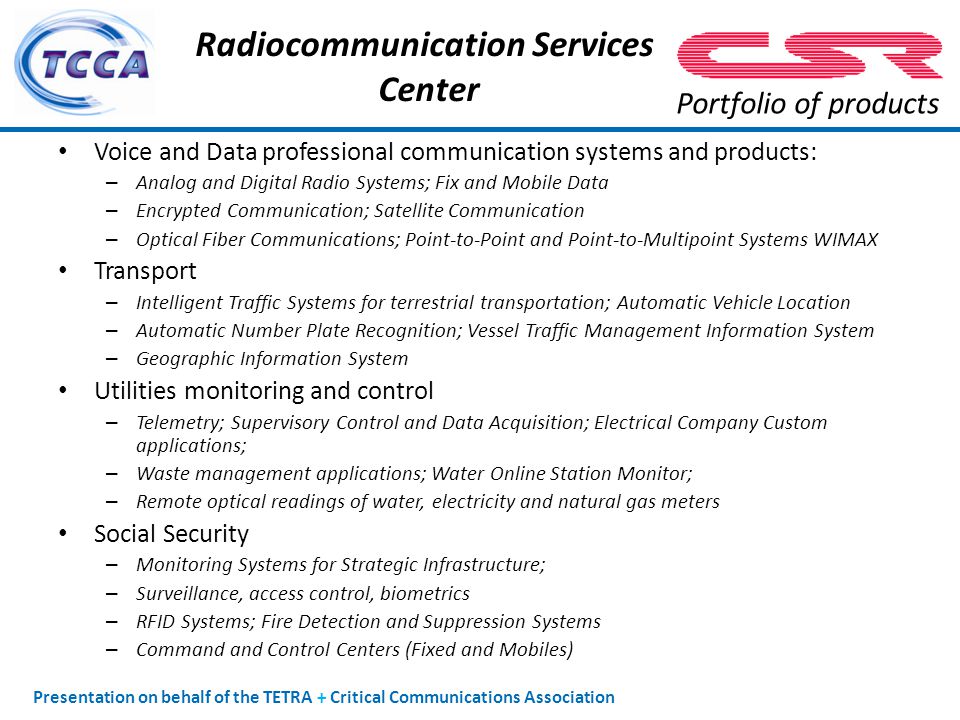

5. Presentation on behalf of the TETRA + Critical Communications Association Voice and Data professional communication systems and products: – Analog and Digital Radio Systems; Fix and Mobile Data – Encrypted Communication; Satellite Communication – Optical Fiber Communications; Point-to-Point and Point-to-Multipoint Systems WIMAX Transport – Intelligent Traffic Systems for terrestrial transportation; Automatic Vehicle Location – Automatic Number Plate Recognition; Vessel Traffic Management Information System – Geographic Information System Utilities monitoring and control – Telemetry; Supervisory Control and Data Acquisition; Electrical Company Custom applications; – Waste management applications; Water Online Station Monitor; – Remote optical readings of water, electricity and natural gas meters Social Security – Monitoring Systems for Strategic Infrastructure; – Surveillance, access control, biometrics – RFID Systems; Fire Detection and Suppression Systems – Command and Control Centers (Fixed and Mobiles) Radiocommunication Services Center Portfolio of products

6. Presentation on behalf of the TETRA + Critical Communications Association THAUMAT DCM300DCM400 DCM300 and DCM400 are advanced Data Communications Modules for remote Critical Telemetry Applications over TETRA with optional backup on GPRS. internal 3W TETRA – DCM300 has an internal 3W TETRA Radiomodem. external TETRA – DCM400 manages an external TETRA Mobile Radio.

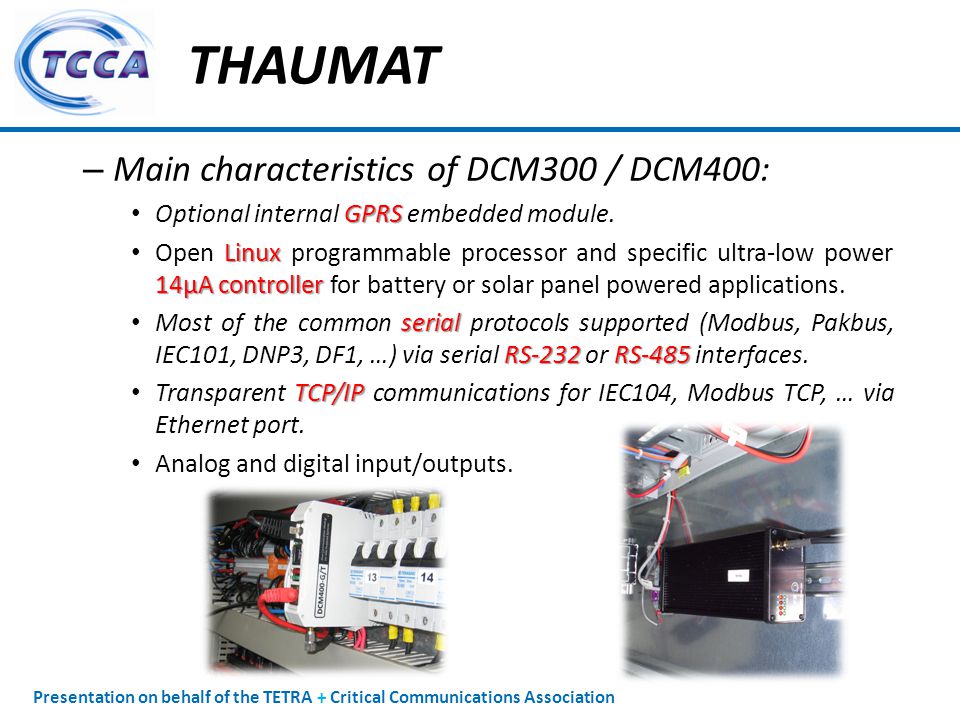

7. Presentation on behalf of the TETRA + Critical Communications Association THAUMAT – Main characteristics of DCM300 / DCM400: GPRS Optional internal GPRS embedded module. Linux 14µA controller Open Linux programmable processor and specific ultra-low power 14µA controller for battery or solar panel powered applications. serial RS-232RS-485 Most of the common serial protocols supported (Modbus, Pakbus, IEC101, DNP3, DF1, …) via serial RS-232 or RS-485 interfaces. TCP/IP Transparent TCP/IP communications for IEC104, Modbus TCP, … via Ethernet port. Analog and digital input/outputs.

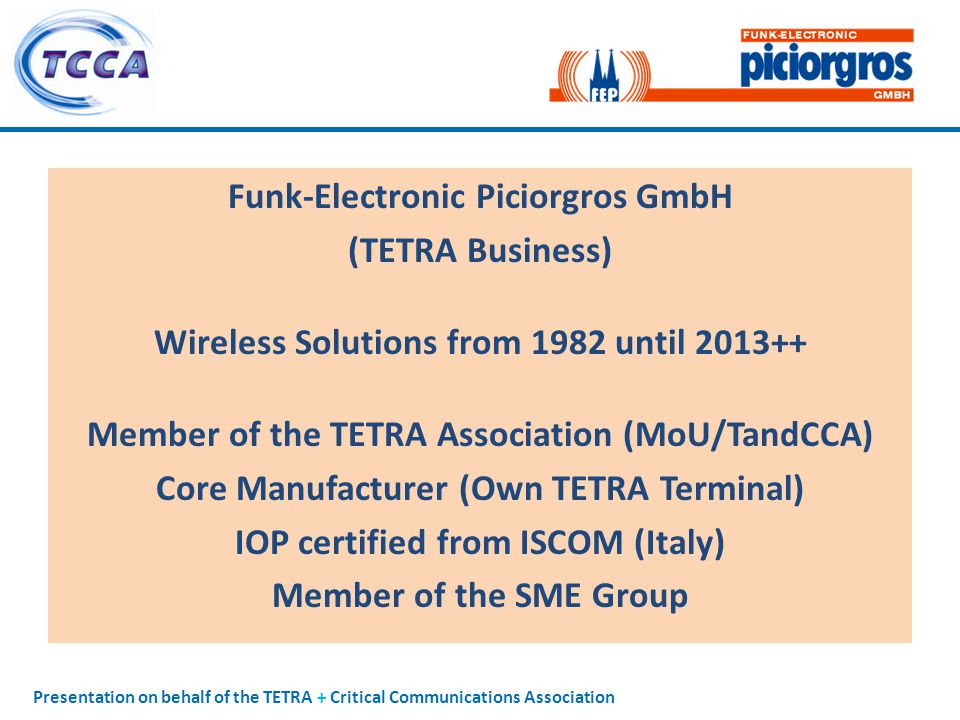

8. Presentation on behalf of the TETRA + Critical Communications Association Funk-Electronic Piciorgros GmbH (TETRA Business) Wireless Solutions from 1982 until 2013++ Member of the TETRA Association (MoU/TandCCA) Core Manufacturer (Own TETRA Terminal) IOP certified from ISCOM (Italy) Member of the SME Group

9. Presentation on behalf of the TETRA + Critical Communications Association TMO-100 - TETRA related Features SDS can be up to 255 bytes (2047 Bit) long. Type TL and TL 4 Packet Switched Data/ Multi Slot Packet Data supported Secondary Control Channel supported Automatic PPP Link set up to the TETRA Switch Router Function with Port Forwarding and NAT 3 Watt RF Output Power Encryption, Authentication, TEA1, TEA2, TEA3, Key delivery Voice feature even with active Packet Data Link Build in Tetra Monitor (local and remote) via embedded Web Server Field Strength Indicator on the Front Panel Short Data or SDS can be sent as alarms (low field strength...) 350 MHz, 380 MHz, 410 MHz 450 MHz and 800 MHz available Serial Port COM / AUX available as RS-232 or RS-485/(422) Device Protocol to access internal Registers: Modbus RTU, Modbus IP, IEC60870-5-101 Serial Protocols: Modbus RTU, DNP3, IEC 60870-5-101, PakBus, BSAP, ROC, … user Defined … IP Protocols: Modbus/IP, DNP3/IP, IEC60870-5-104, … more… Ethernet 10/100 MBit IP-Port for Local Network, UDP and TCP supported Embedded Web Server as Configuration Tool

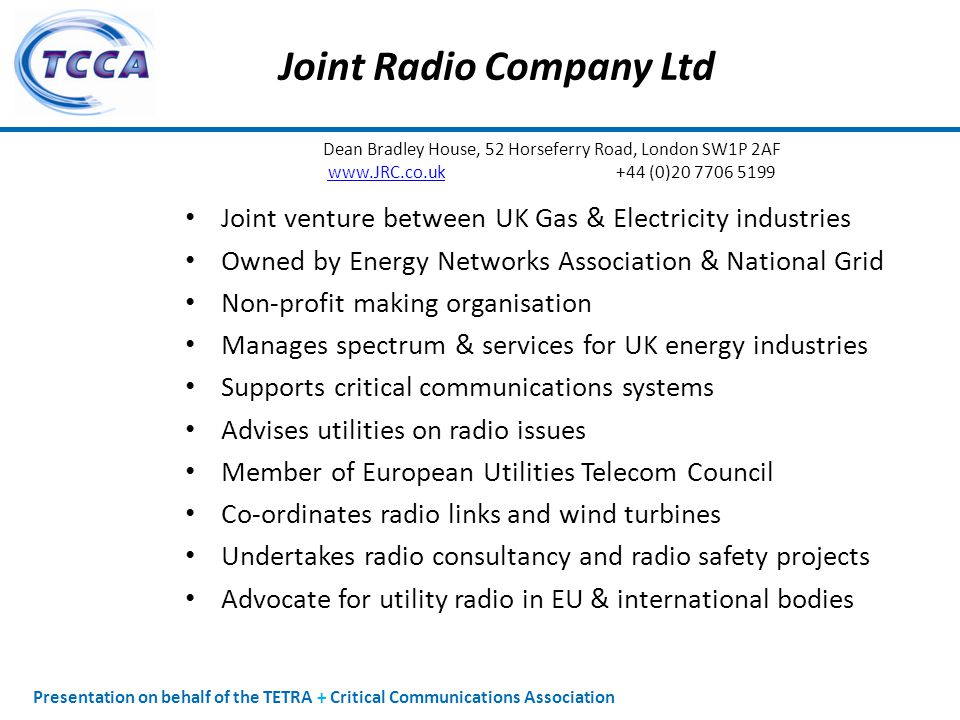

10. Presentation on behalf of the TETRA + Critical Communications Association Joint venture between UK Gas & Electricity industries Owned by Energy Networks Association & National Grid Non-profit making organisation Manages spectrum & services for UK energy industries Supports critical communications systems Advises utilities on radio issues Member of European Utilities Telecom Council Co-ordinates radio links and wind turbines Undertakes radio consultancy and radio safety projects Advocate for utility radio in EU & international bodies Dean Bradley House, 52 Horseferry Road, London SW1P 2AF www.JRC.co.ukwww.JRC.co.uk+44 (0)20 7706 5199 Joint Radio Company Ltd

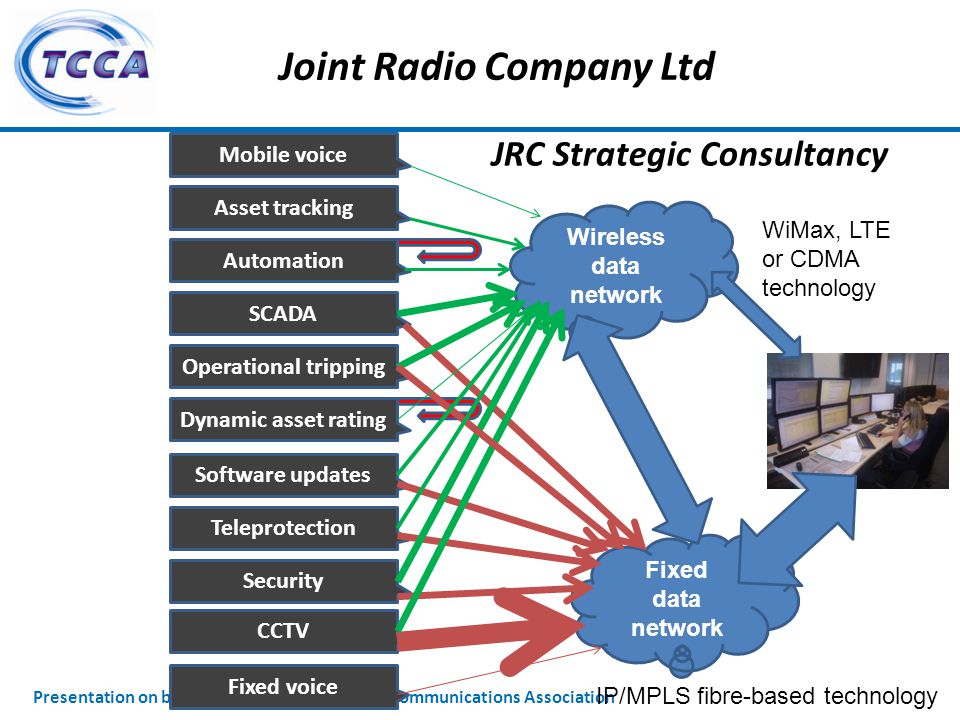

11. Presentation on behalf of the TETRA + Critical Communications Association Wireless data network Fixed data network WiMax, LTE or CDMA technology IP/MPLS fibre-based technology Fixed voice Mobile voice Asset tracking CCTV Automation Security Teleprotection SCADA Operational tripping Software updates Dynamic asset rating JRC Strategic Consultancy Joint Radio Company Ltd

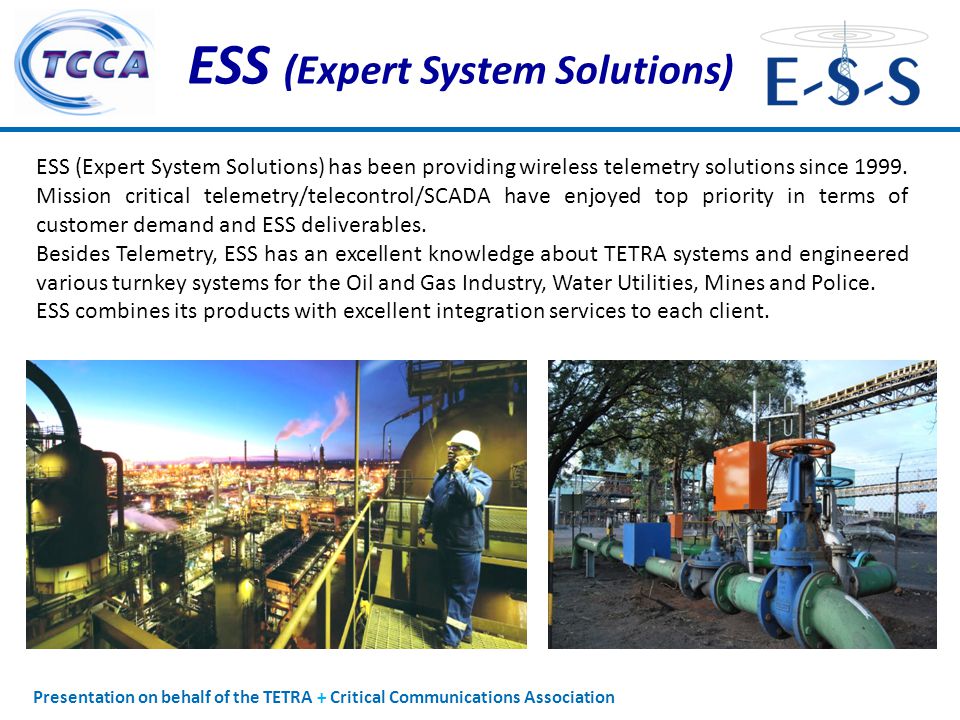

12. Presentation on behalf of the TETRA + Critical Communications Association ESS (Expert System Solutions) ESS (Expert System Solutions) has been providing wireless telemetry solutions since 1999. Mission critical telemetry/telecontrol/SCADA have enjoyed top priority in terms of customer demand and ESS deliverables. Besides Telemetry, ESS has an excellent knowledge about TETRA systems and engineered various turnkey systems for the Oil and Gas Industry, Water Utilities, Mines and Police. ESS combines its products with excellent integration services to each client.

13. Presentation on behalf of the TETRA + Critical Communications Association Overview of TETRA-RTU-SRB main product strengths: ESS uses an embedded industrial microprocessor with Linux operating system Uses a top quality Sepura SRB 8000 modem Intelligent way of minimising TETRA data over the air All programming info resides on a removable SD card Easy to program, needs limited skill-set for changing parameters Protocols supported: OPC 1, 2 and 3, Modbus, IEC60870-101, 103, 104, IEC61850, DNP3 Wide input operational voltage range Supports USB devices. Logic functions ESS (Expert System Solutions) Finalist in category Best TETRA Innovation 2014 International TETRA awards For demo video, brochures, company overview and contact details visit: http://www.e-s-s.co.za

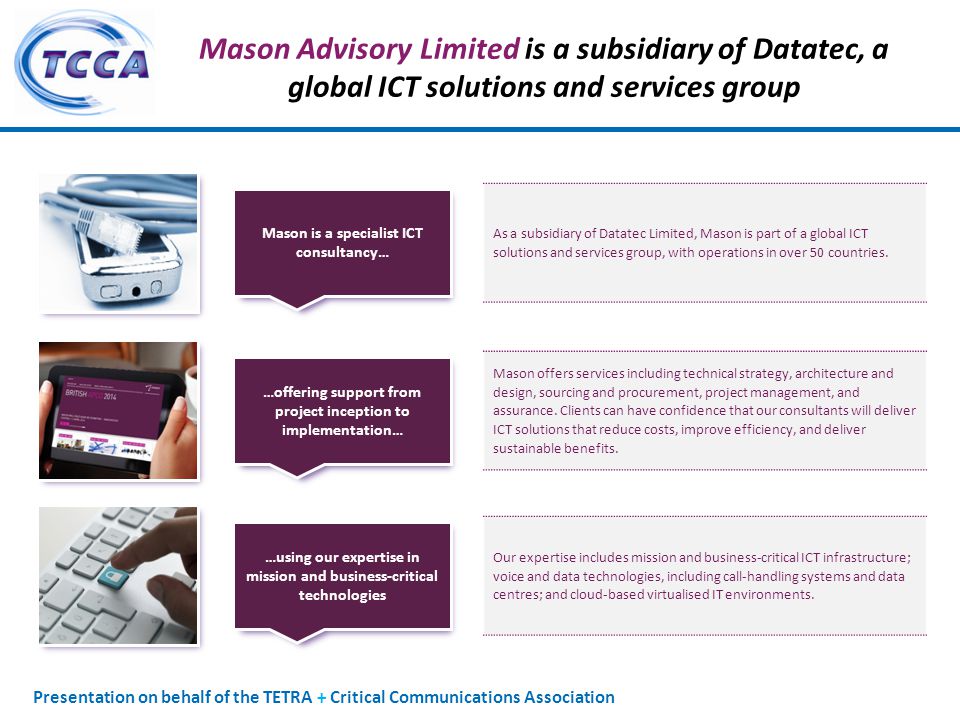

14. Presentation on behalf of the TETRA + Critical Communications Association Mason Advisory Limited is a subsidiary of Datatec, a global ICT solutions and services group 14 Mason is a specialist ICT consultancy… …offering support from project inception to implementation… …using our expertise in mission and business-critical technologies As a subsidiary of Datatec Limited, Mason is part of a global ICT solutions and services group, with operations in over 50 countries. Mason offers services including technical strategy, architecture and design, sourcing and procurement, project management, and assurance. Clients can have confidence that our consultants will deliver ICT solutions that reduce costs, improve efficiency, and deliver sustainable benefits. Our expertise includes mission and business-critical ICT infrastructure; voice and data technologies, including call-handling systems and data centres; and cloud-based virtualised IT environments.

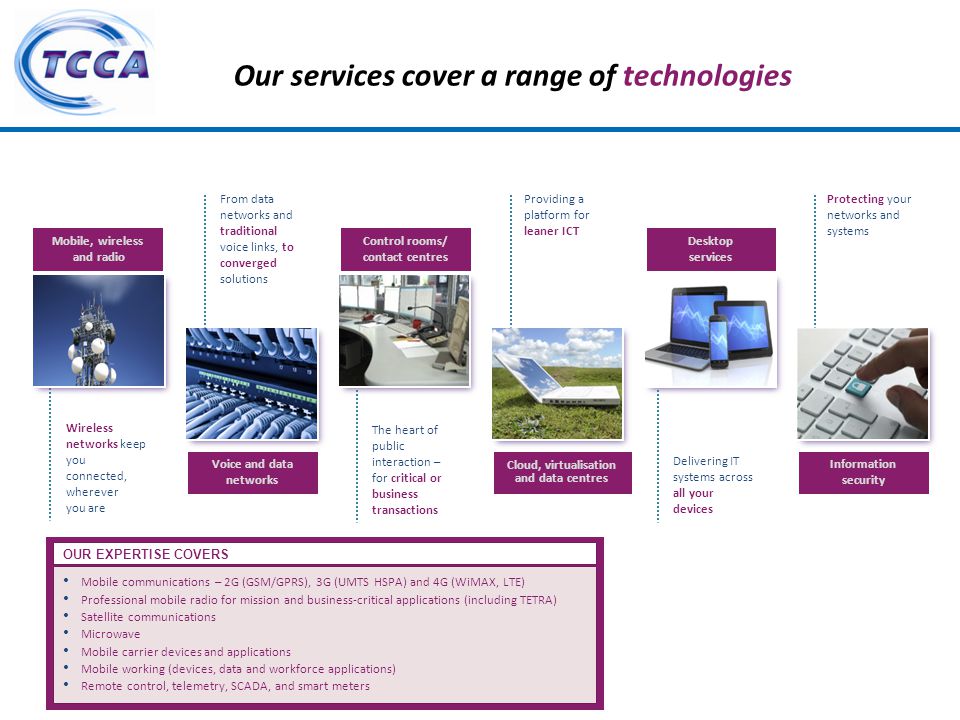

15. Presentation on behalf of the TETRA + Critical Communications Association Our services cover a range of technologies 15 Mobile, wireless and radio Voice and data networks Control rooms/ contact centres Cloud, virtualisation and data centres Desktop services Information security Wireless networks keep you connected, wherever you are The heart of public interaction – for critical or business transactions Delivering IT systems across all your devices From data networks and traditional voice links, to converged solutions Providing a platform for leaner ICT Protecting your networks and systems OUR EXPERTISE COVERS Mobile communications – 2G (GSM/GPRS), 3G (UMTS HSPA) and 4G (WiMAX, LTE) Professional mobile radio for mission and business-critical applications (including TETRA) Satellite communications Microwave Mobile carrier devices and applications Mobile working (devices, data and workforce applications) Remote control, telemetry, SCADA, and smart meters

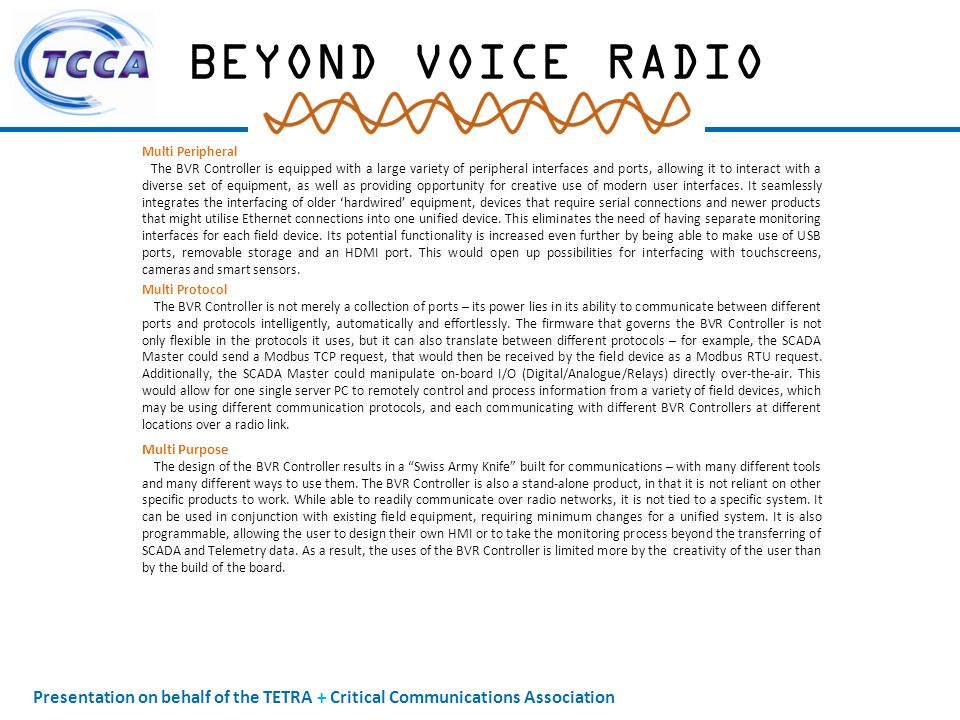

16. Presentation on behalf of the TETRA + Critical Communications Association BEYOND VOICE RADIO Multi Peripheral The BVR Controller is equipped with a large variety of peripheral interfaces and ports, allowing it to interact with a diverse set of equipment, as well as providing opportunity for creative use of modern user interfaces. It seamlessly integrates the interfacing of older ‘hardwired’ equipment, devices that require serial connections and newer products that might utilise Ethernet connections into one unified device. This eliminates the need of having separate monitoring interfaces for each field device. Its potential functionality is increased even further by being able to make use of USB ports, removable storage and an HDMI port. This would open up possibilities for interfacing with touchscreens, cameras and smart sensors. Multi Protocol The BVR Controller is not merely a collection of ports – its power lies in its ability to communicate between different ports and protocols intelligently, automatically and effortlessly. The firmware that governs the BVR Controller is not only flexible in the protocols it uses, but it can also translate between different protocols – for example, the SCADA Master could send a Modbus TCP request, that would then be received by the field device as a Modbus RTU request. Additionally, the SCADA Master could manipulate on-board I/O (Digital/Analogue/Relays) directly over-the-air. This would allow for one single server PC to remotely control and process information from a variety of field devices, which may be using different communication protocols, and each communicating with different BVR Controllers at different locations over a radio link. Multi Purpose The design of the BVR Controller results in a “Swiss Army Knife” built for communications – with many different tools and many different ways to use them. The BVR Controller is also a stand-alone product, in that it is not reliant on other specific products to work. While able to readily communicate over radio networks, it is not tied to a specific system. It can be used in conjunction with existing field equipment, requiring minimum changes for a unified system. It is also programmable, allowing the user to design their own HMI or to take the monitoring process beyond the transferring of SCADA and Telemetry data. As a result, the uses of the BVR Controller is limited more by the creativity of the user than by the build of the board.

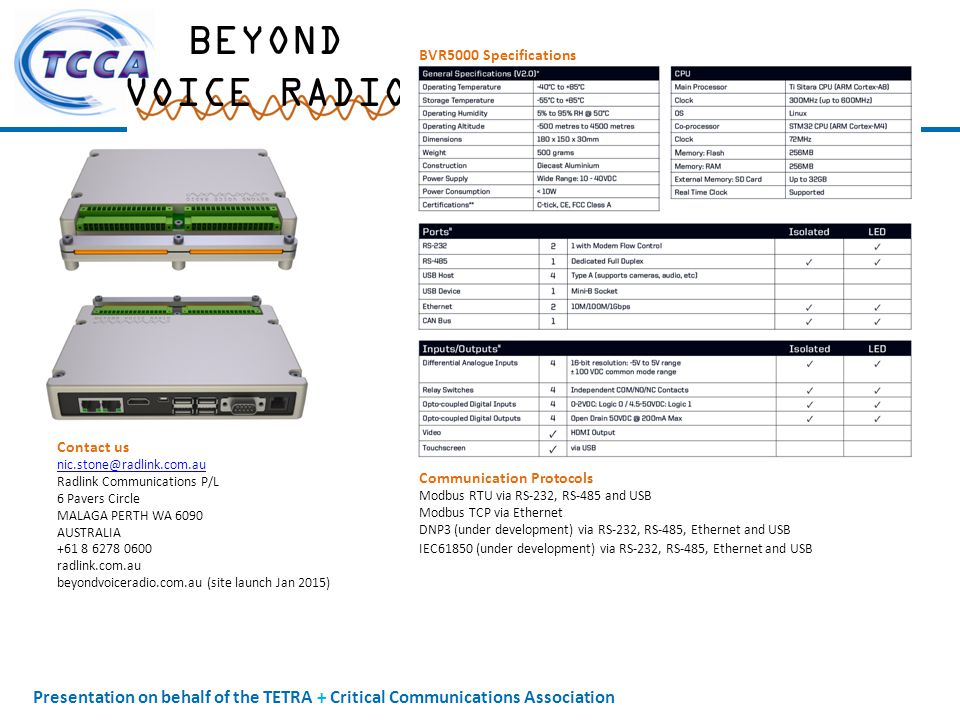

17. Presentation on behalf of the TETRA + Critical Communications Association BEYOND VOICE RADIO Communication Protocols Modbus RTU via RS-232, RS-485 and USB Modbus TCP via Ethernet DNP3 (under development) via RS-232, RS-485, Ethernet and USB IEC61850 (under development) via RS-232, RS-485, Ethernet and USB BVR5000 Specifications Contact us nic.stone@radlink.com.au Radlink Communications P/L 6 Pavers Circle MALAGA PERTH WA 6090 AUSTRALIA +61 8 6278 0600 radlink.com.au beyondvoiceradio.com.au (site launch Jan 2015)
