1. Chapter 22 Patterns of Fields in Space Electric flux Gauss’s law Ampere’s law Maxwell equations

2. What is in the box? no charges? vertical charged plate? Patterns of Fields in Space

3. Box versus open surface Seem to be able to tell if there are charges inside …no clue… Gauss’s law: If we know the field distribution on closed surface we can tell what is inside. Patterns of Fields in Space

4. 3. Surface area flux through small area: Definition of electric flux on a surface: Electric Flux: Surface Area

5. Symmetry: Field must be perpendicular to surface E left =E right The Electric Field of a Large Plate

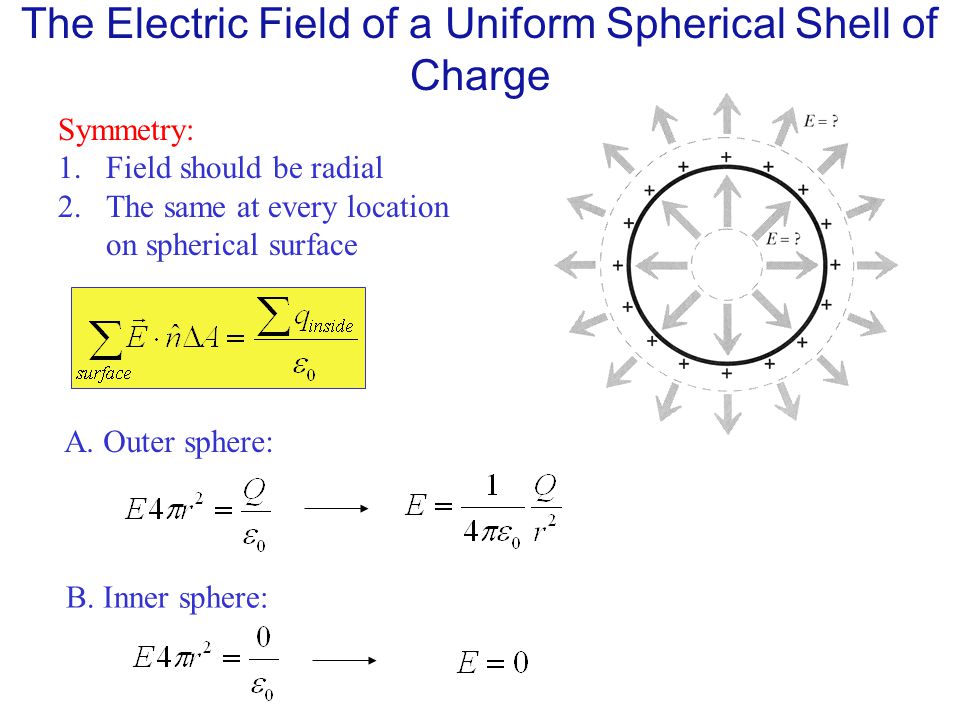

6. Symmetry: 1.Field should be radial 2.The same at every location on spherical surface A. Outer sphere: B. Inner sphere: The Electric Field of a Uniform Spherical Shell of Charge

7. Can we have excess charge inside a metal that is in static equilibrium? Proof by contradiction: =0 Gauss’s Law: Properties of Metal

8. =0 What is electric field inside? = 1.No charges on the surface of an empty hole 2.E is zero inside a hole Gauss’s Law: Hole in a Metal

9. +5nC =0 Gauss’s Law: Charges Inside a Hole

10. Gauss’s Law: Screening Is the field zero inside the box because the metal blocks the field?

11. Can we have excess charge inside in steady state? Gauss’s Law: Circuits

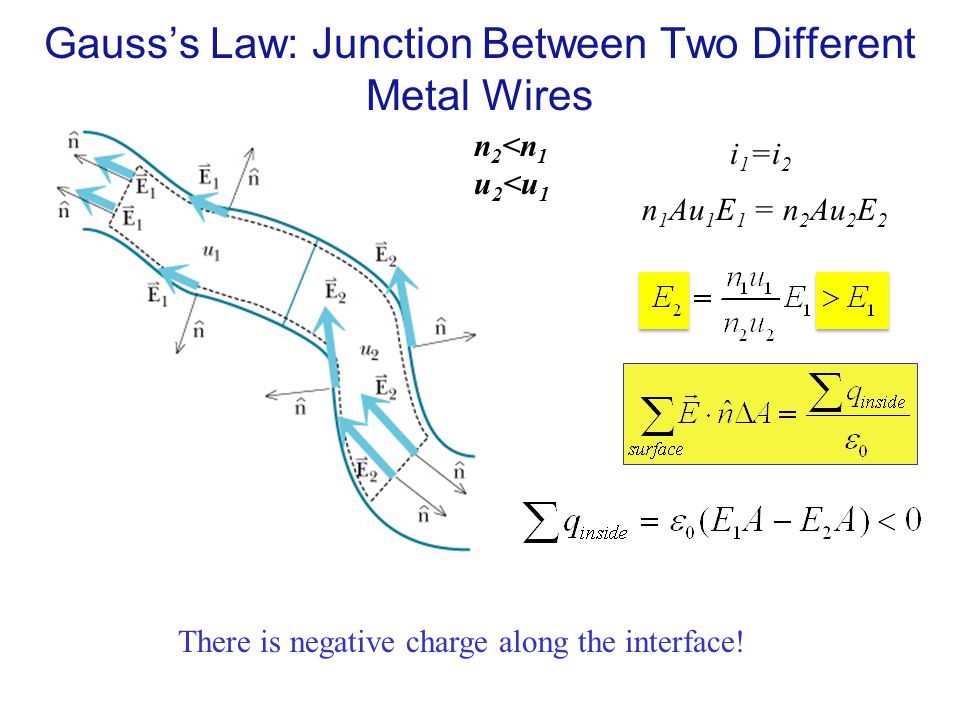

12. Gauss’s Law: Junction Between Two Different Metal Wires i 1 =i 2 n 1 Au 1 E 1 = n 2 Au 2 E 2 There is negative charge along the interface! n 2 <n 1 u 2 <u 1

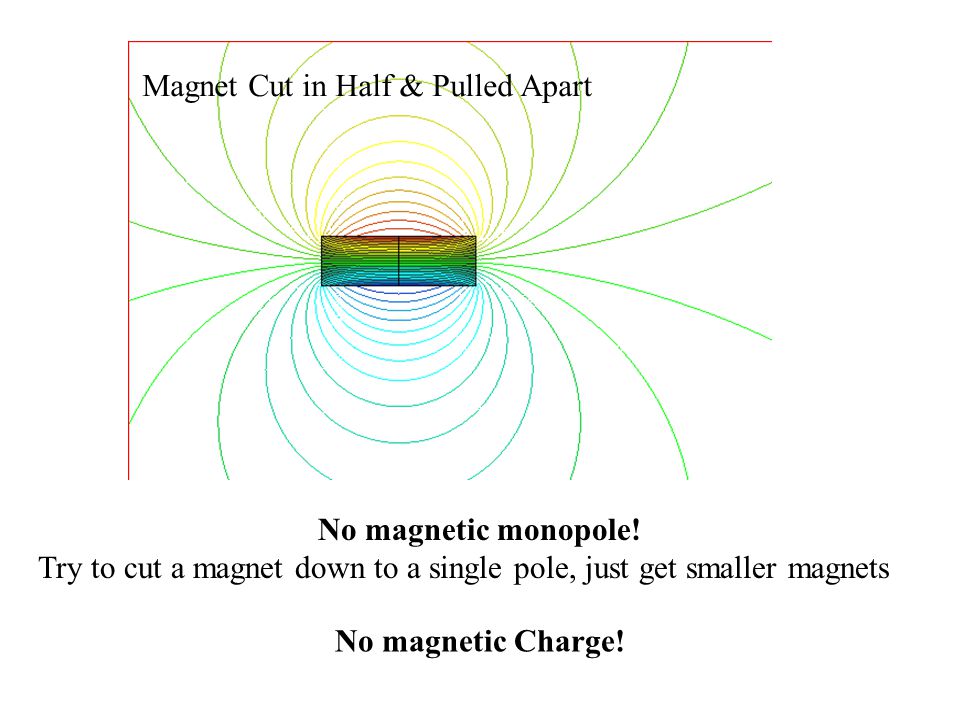

13. Magnet Cut in Half & Pulled Apart No magnetic monopole! Try to cut a magnet down to a single pole, just get smaller magnets No magnetic Charge!

14. Dipoles: Electric field: ‘+’ and ‘–’ charges can be separated Magnetic field: no monopoles Suppose magnetic dipole consists of two magnetic monopoles, each producing a magnetic field similar to the electric field. One cannot separate them  total magnetic ‘charge’ is zero. Gauss’s law for magnetism or Gauss’s Law for Magnetism

15. Patterns of Magnetic Field in Space Is there current passing through these regions? There must be a relationship between the measurements of the magnetic field along a closed path and current flowing through the enclosed area. Ampere’s law

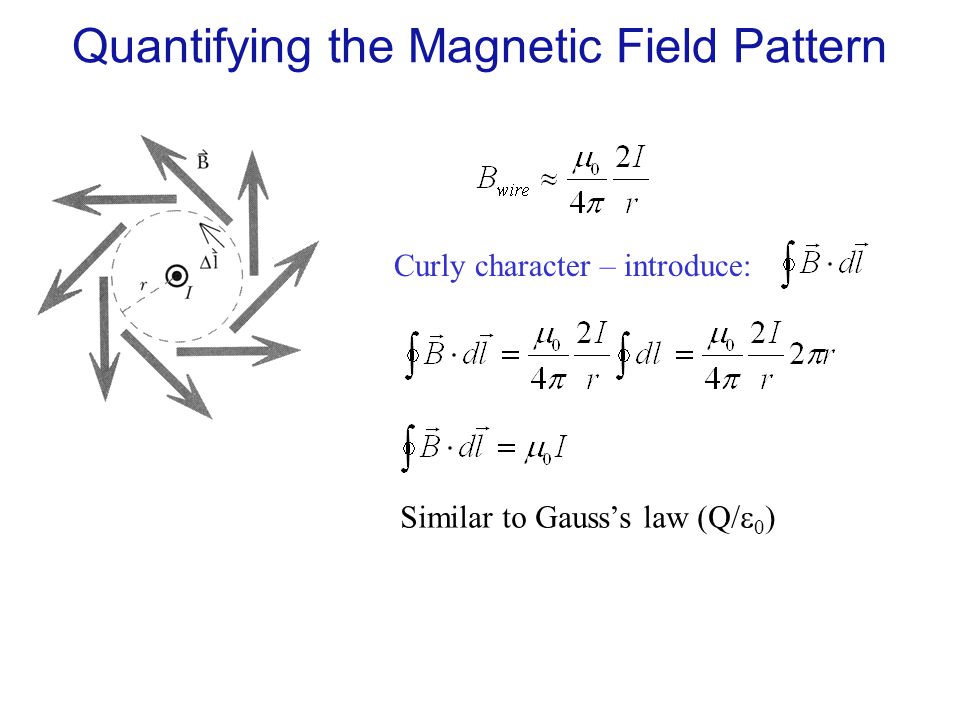

16. Quantifying the Magnetic Field Pattern Curly character – introduce: Similar to Gauss’s law (Q/  0 )

17. All the currents in the universe contribute to B but only ones inside the path result in nonzero path integral Ampere’s law is almost equivalent to the Biot-Savart law: but Ampere’s law is relativistically correct Ampère’s Law

18. Can B have an out of plane component? Is it always parallel to the path? for thick wire: (the same as for thin wire) Would be hard to derive using Biot-Savart law Ampere’s Law: A Long Thick Wire

19. What is on sides? Uniform: Does not depend on distance from sheet. Opposite directions above and below sheet. Ampere’s Law: An Infinite Sheet

20. Symmetry: B || path Is magnetic field constant across the toroid? Ampere’s Law: A Toroid

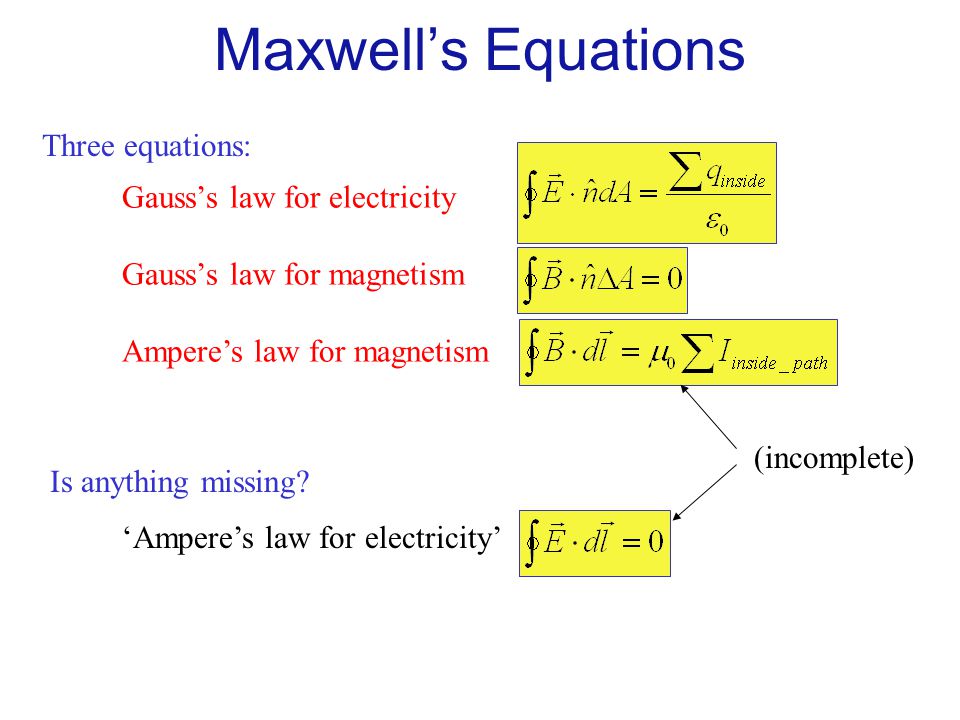

21. Three equations: Gauss’s law for electricity Gauss’s law for magnetism Ampere’s law for magnetism Is anything missing? ‘Ampere’s law for electricity’ (incomplete) Maxwell’s Equations

22. Gauss’s law for electricity Gauss’s law for magnetism Incomplete version of Faraday’s law Ampere’s law (Incomplete Ampere-Maxwell law) First two: integrals over a surface Second two: integrals along a path Incomplete: no time dependence Maxwell’s Equations (incomplete)

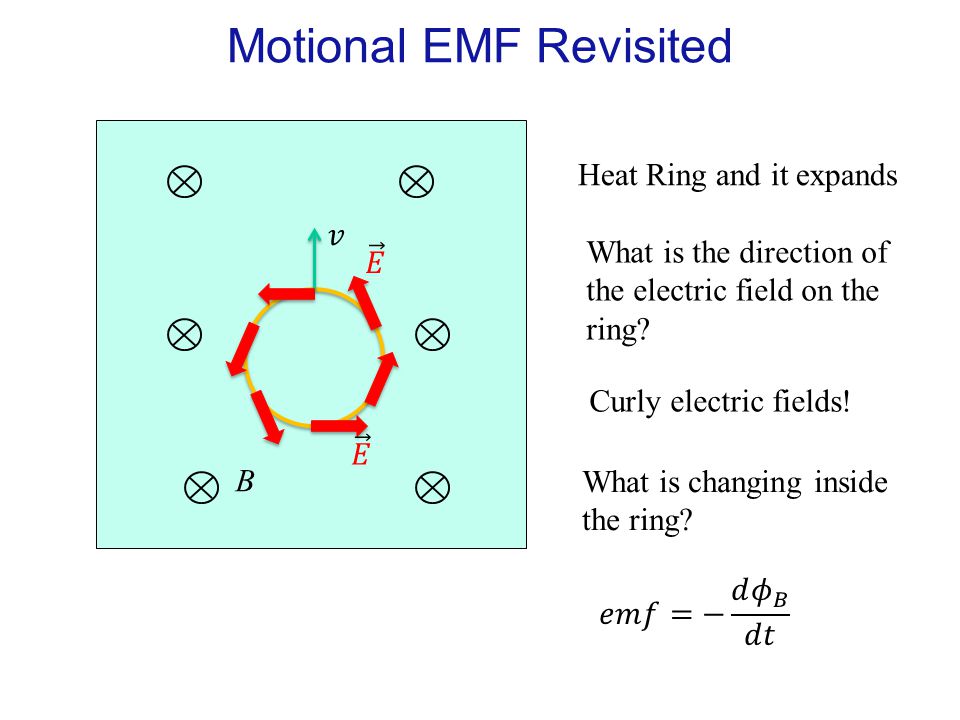

23. Motional EMF Revisited Ampere’s law B  eat Ring and it expands What is the direction of the electric field on the ring? Curly electric fields! What is changing inside the ring?
