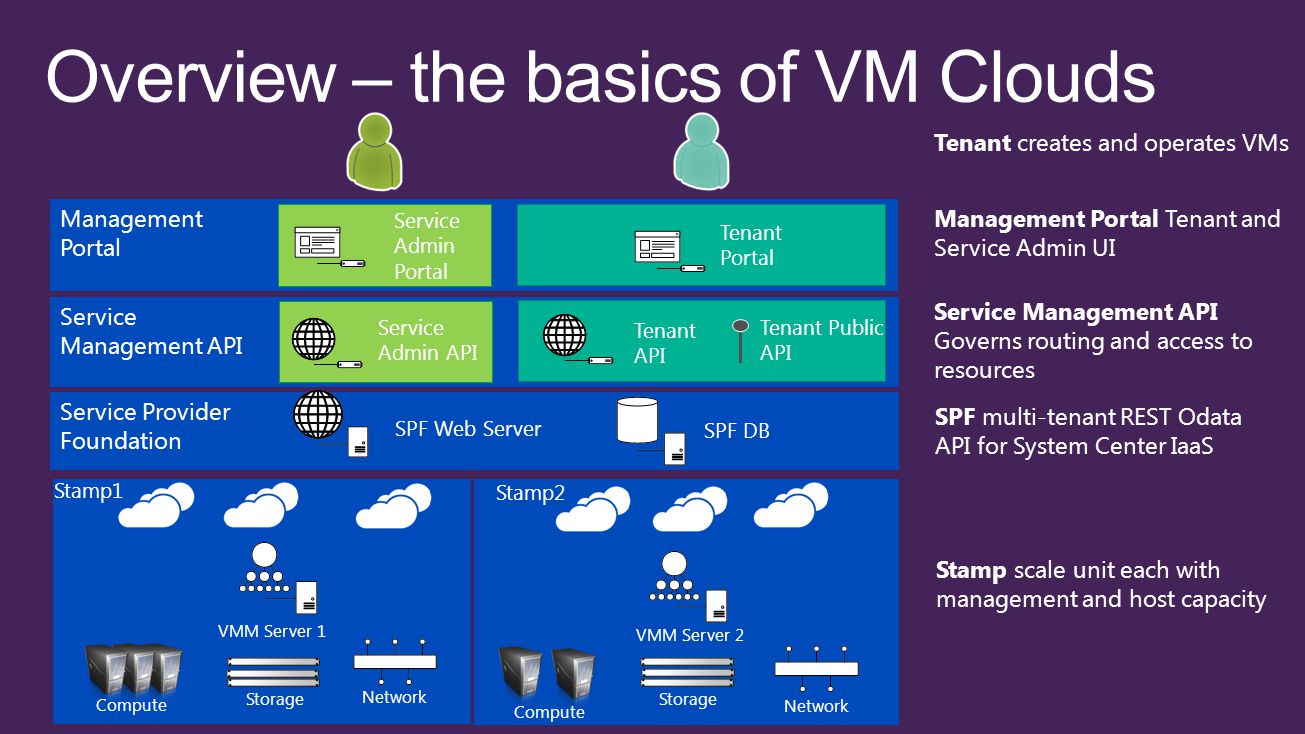

7. Service Management API Management Portal Service Provider Foundation SPF Web Server Stamp2 SPF DB VMM Server 2 Stamp1 VMM Server 1 Stamp scale unit each with management and host capacity Compute Storage Network Compute Storage Network Service Admin Portal Tenant Portal Tenant Public API Tenant API Service Admin API Tenant creates and operates VMs Management Portal Tenant and Service Admin UI Service Management API Governs routing and access to resources SPF multi-tenant REST Odata API for System Center IaaS

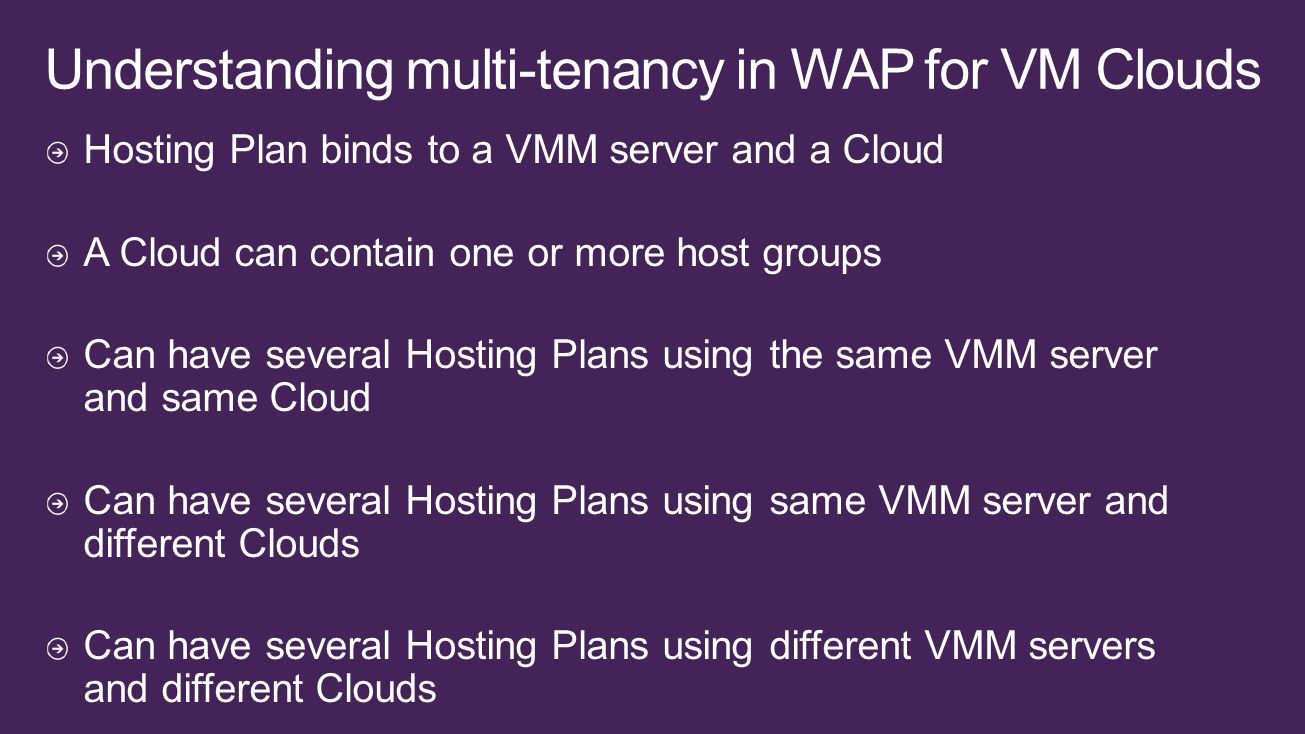

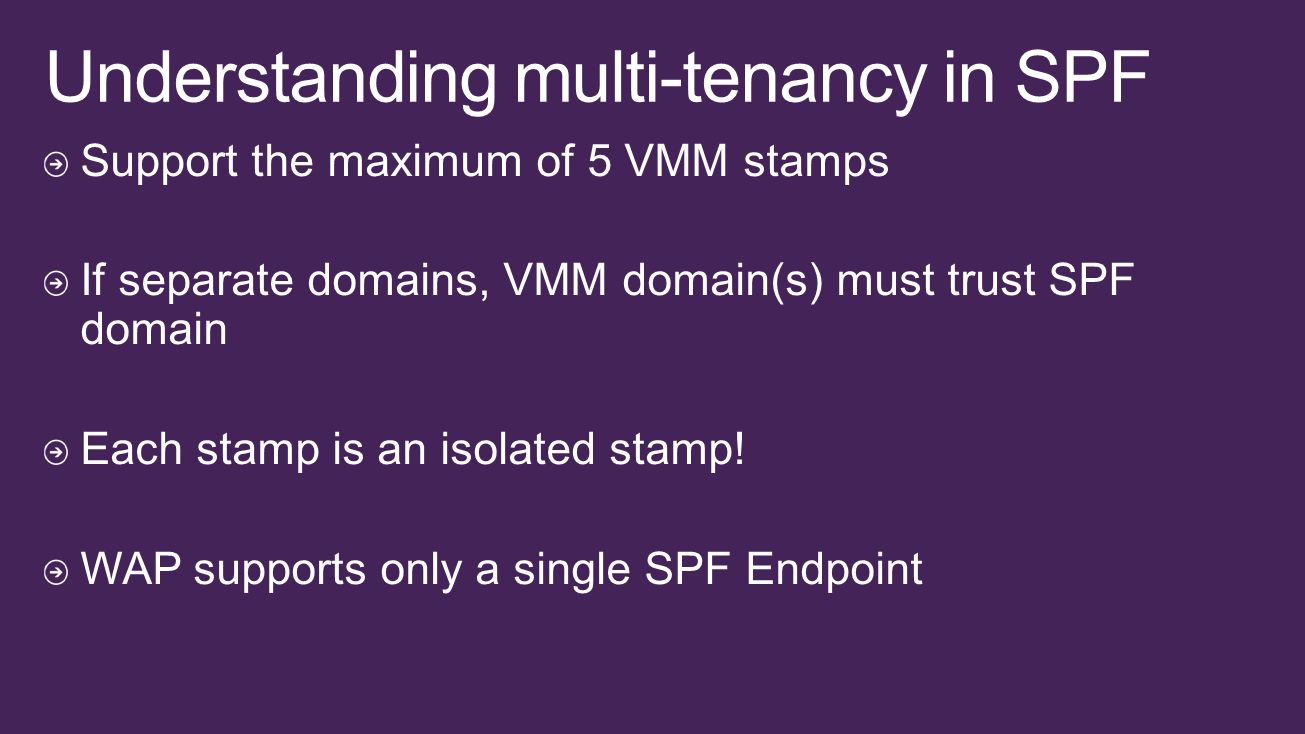

9. Support the maximum of 5 VMM stamps If separate domains, VMM domain(s) must trust SPF domain Each stamp is an isolated stamp! WAP supports only a single SPF Endpoint

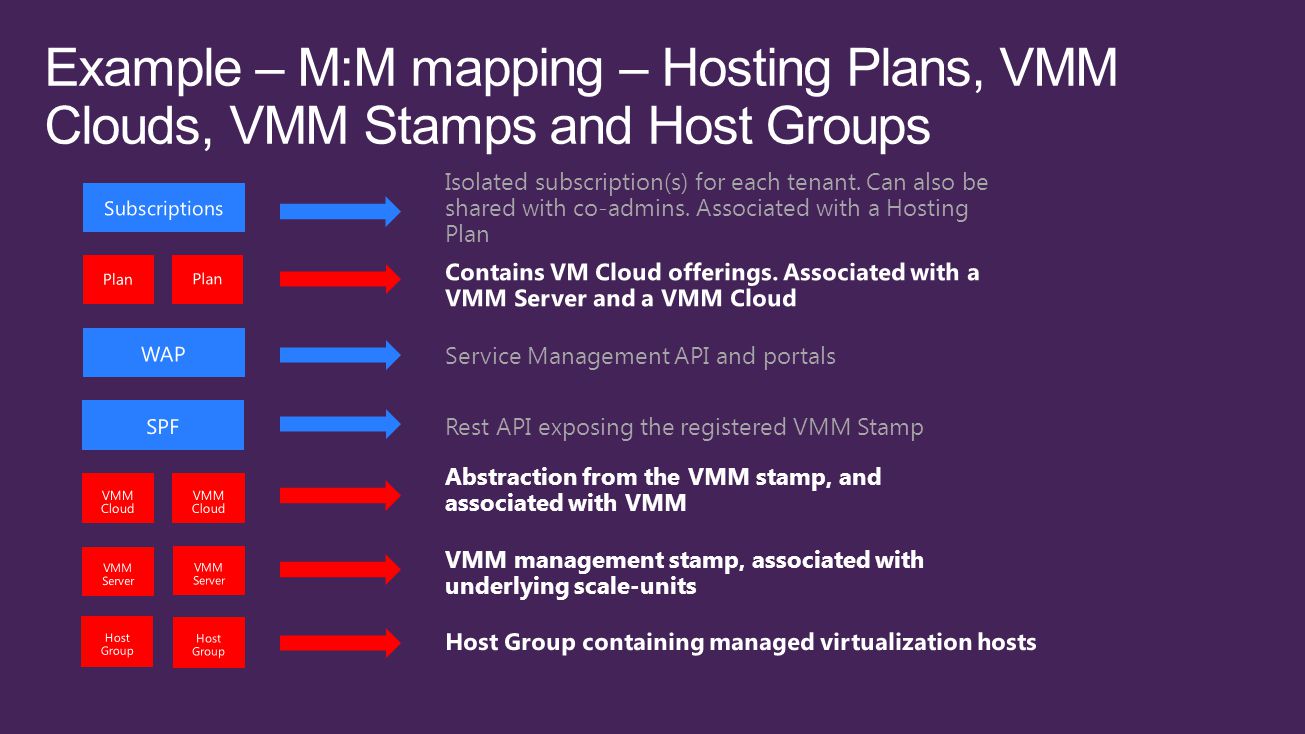

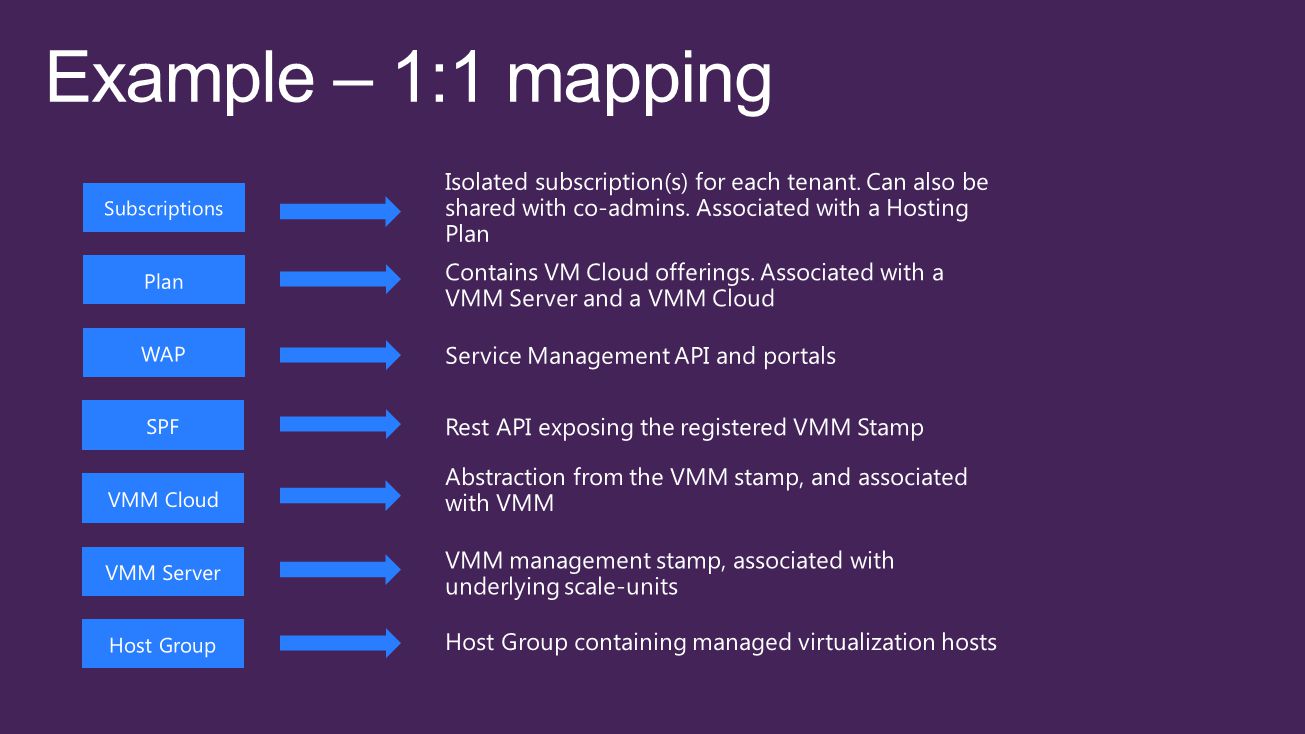

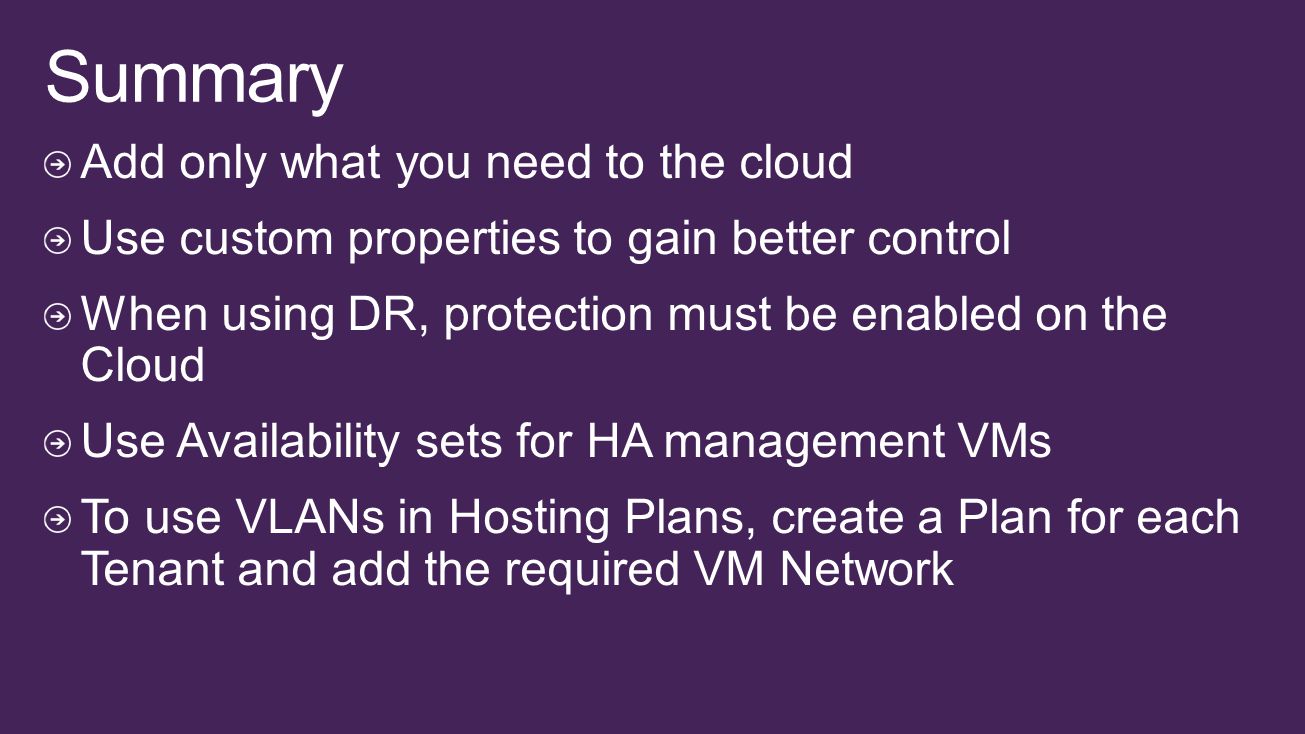

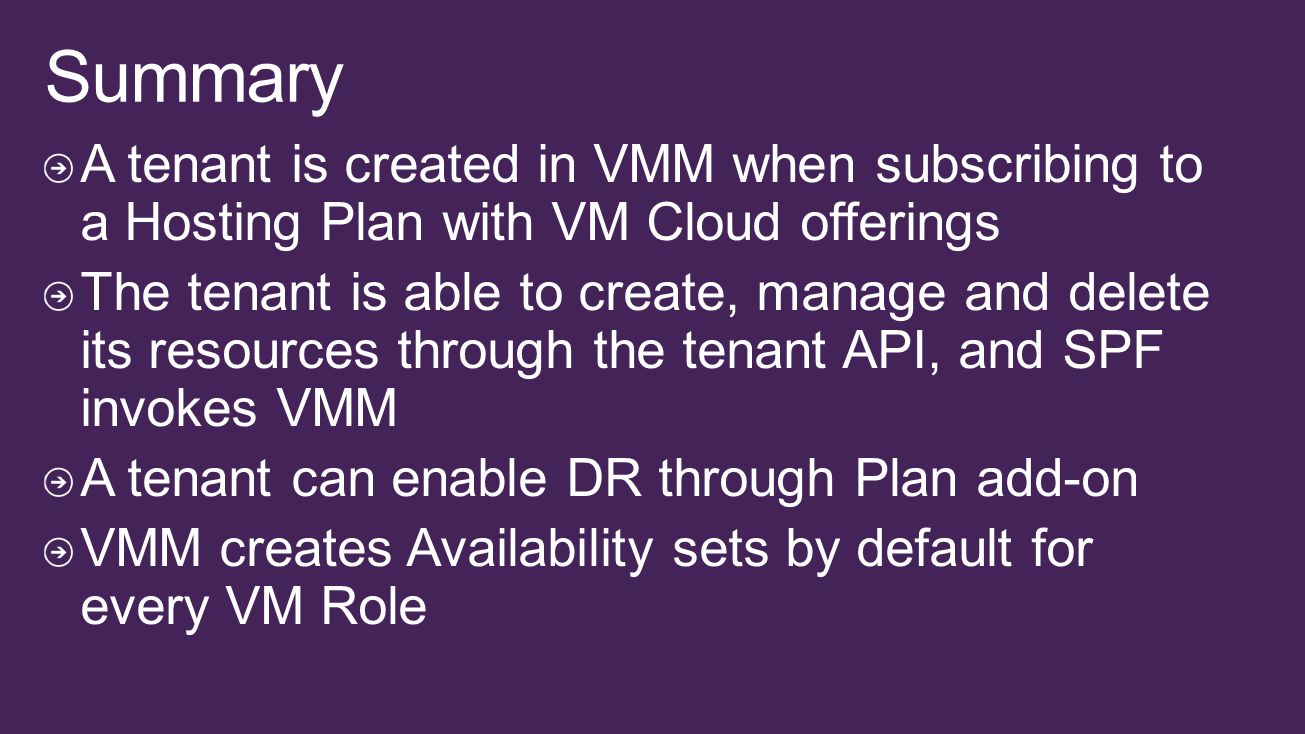

12. Isolated subscription(s) for each tenant. Can also be shared with co-admins. Associated with a Hosting Plan Contains VM Cloud offerings. Associated with a VMM Server and a VMM Cloud Rest API exposing the registered VMM Stamp Abstraction from the VMM stamp, and associated with VMM VMM management stamp, associated with underlying scale-units Service Management API and portals

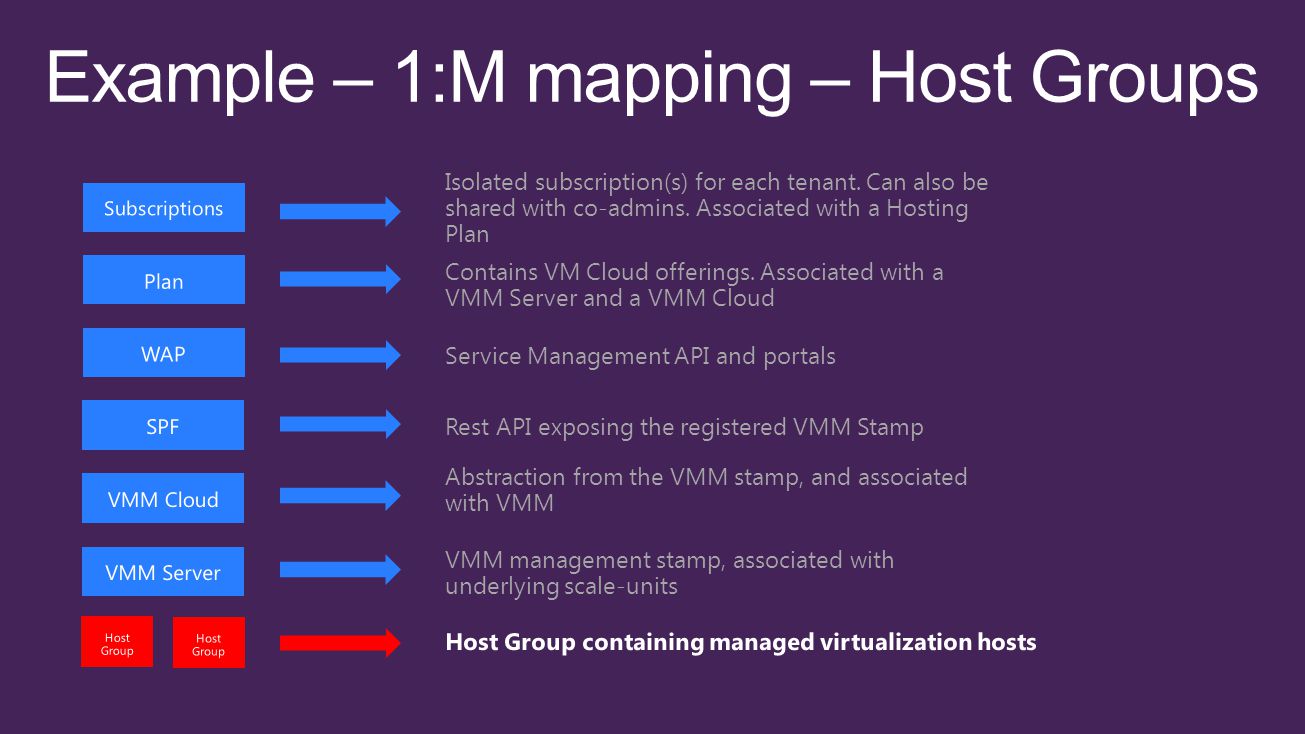

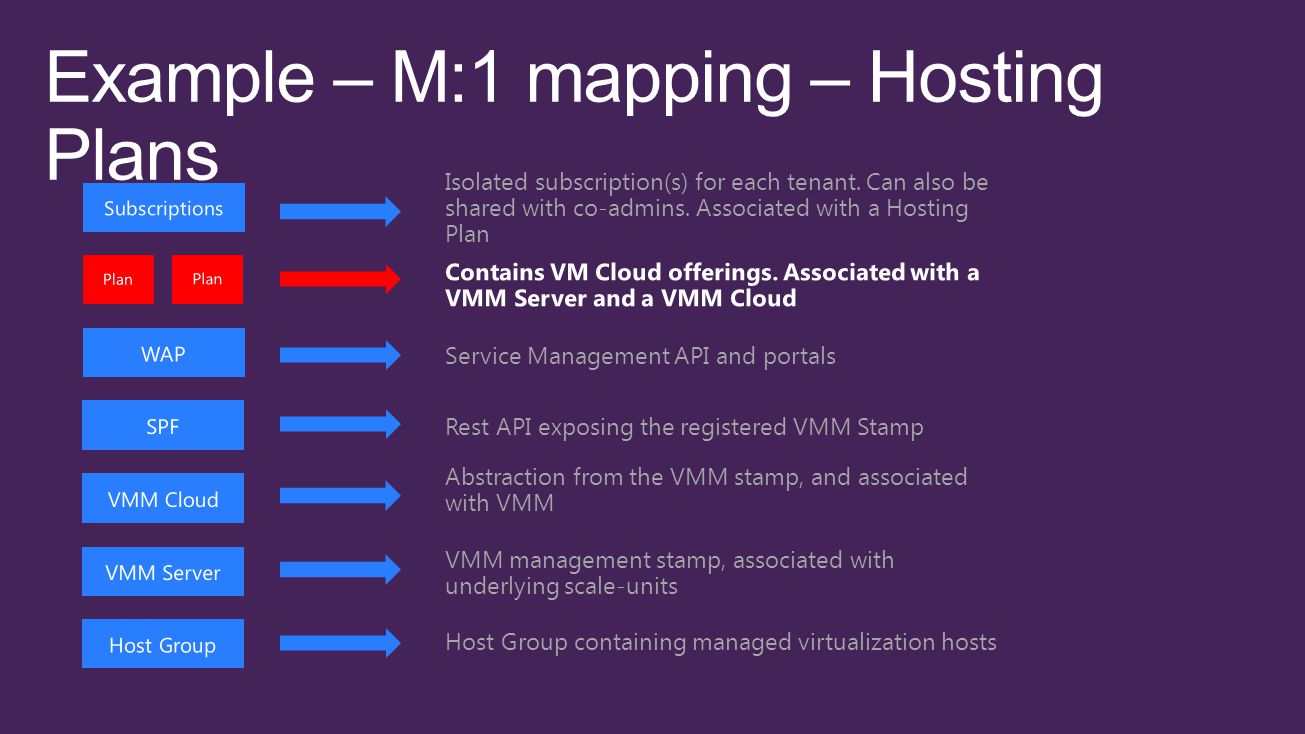

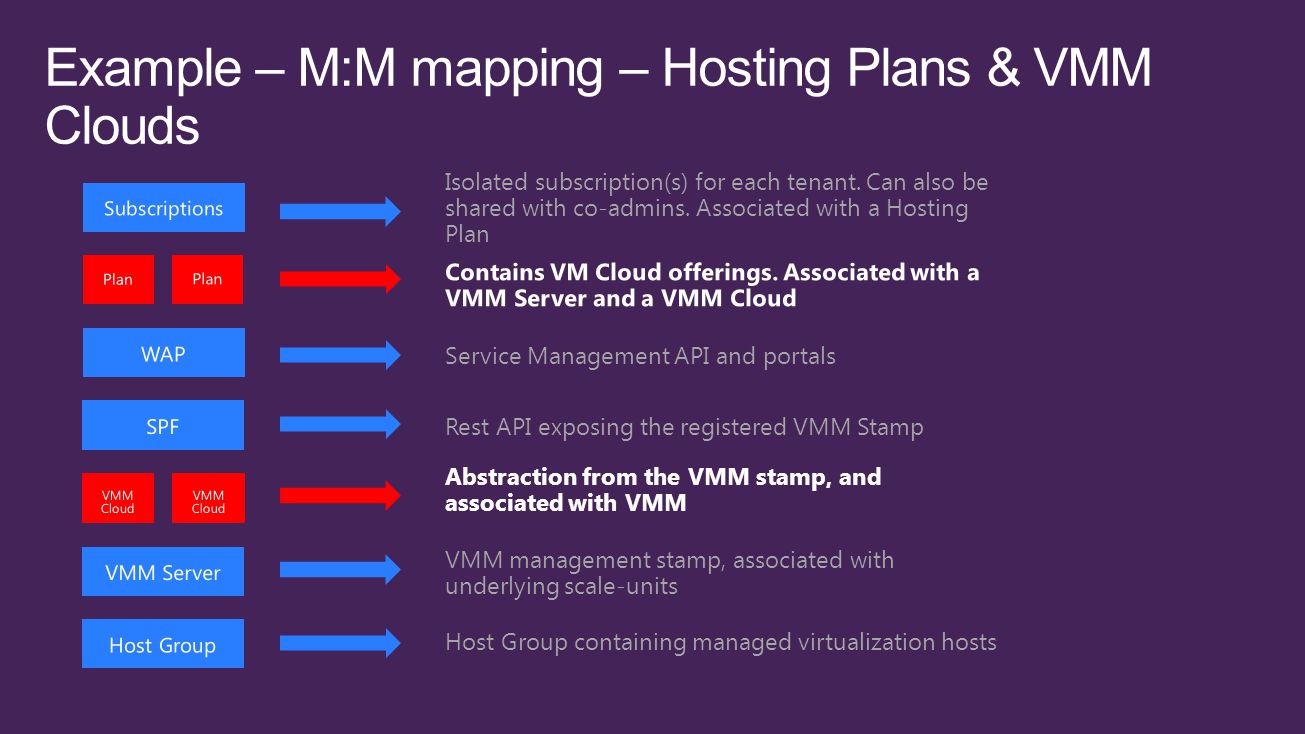

13. Isolated subscription(s) for each tenant. Can also be shared with co-admins. Associated with a Hosting Plan Rest API exposing the registered VMM Stamp Abstraction from the VMM stamp, and associated with VMM VMM management stamp, associated with underlying scale-units Host Group containing managed virtualization hosts Service Management API and portals

14. Isolated subscription(s) for each tenant. Can also be shared with co-admins. Associated with a Hosting Plan Rest API exposing the registered VMM Stamp Abstraction from the VMM stamp, and associated with VMM VMM management stamp, associated with underlying scale-units Host Group containing managed virtualization hosts Service Management API and portals

15. Isolated subscription(s) for each tenant. Can also be shared with co-admins. Associated with a Hosting Plan Rest API exposing the registered VMM Stamp Abstraction from the VMM stamp, and associated with VMM VMM management stamp, associated with underlying scale-units Service Management API and portals

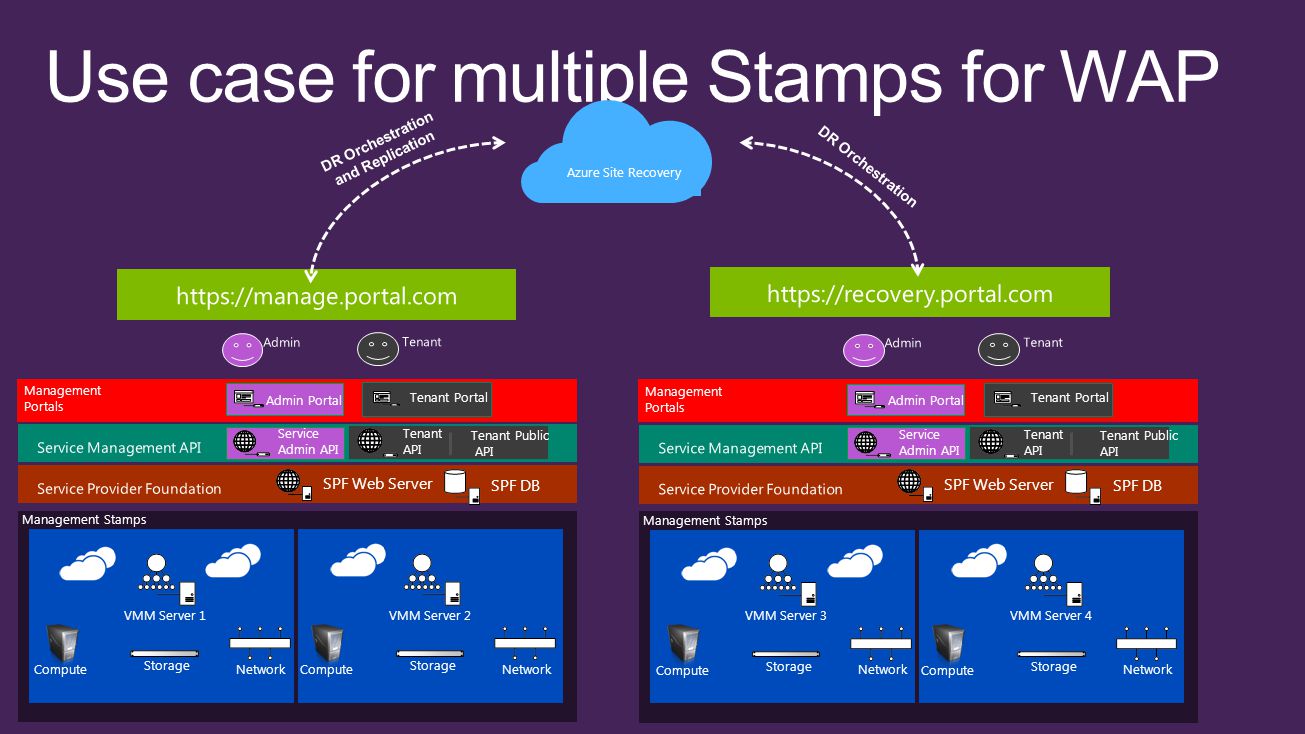

19. VMM Server 1 Compute Storage Network VMM Server 2 Compute Storage Network SPF Web Server SPF DB Tenant Public API Tenant API Service Admin API Management Stamps Management Portals Admin Portal Tenant Portal VMM Server 3 Compute Storage Network VMM Server 4 Compute Storage Network SPF Web Server SPF DB Tenant Public API Tenant API Service Admin API Management Stamps Management Portals Admin Portal Tenant Portal Azure Site Recovery DR Orchestration DR Orchestration and Replication

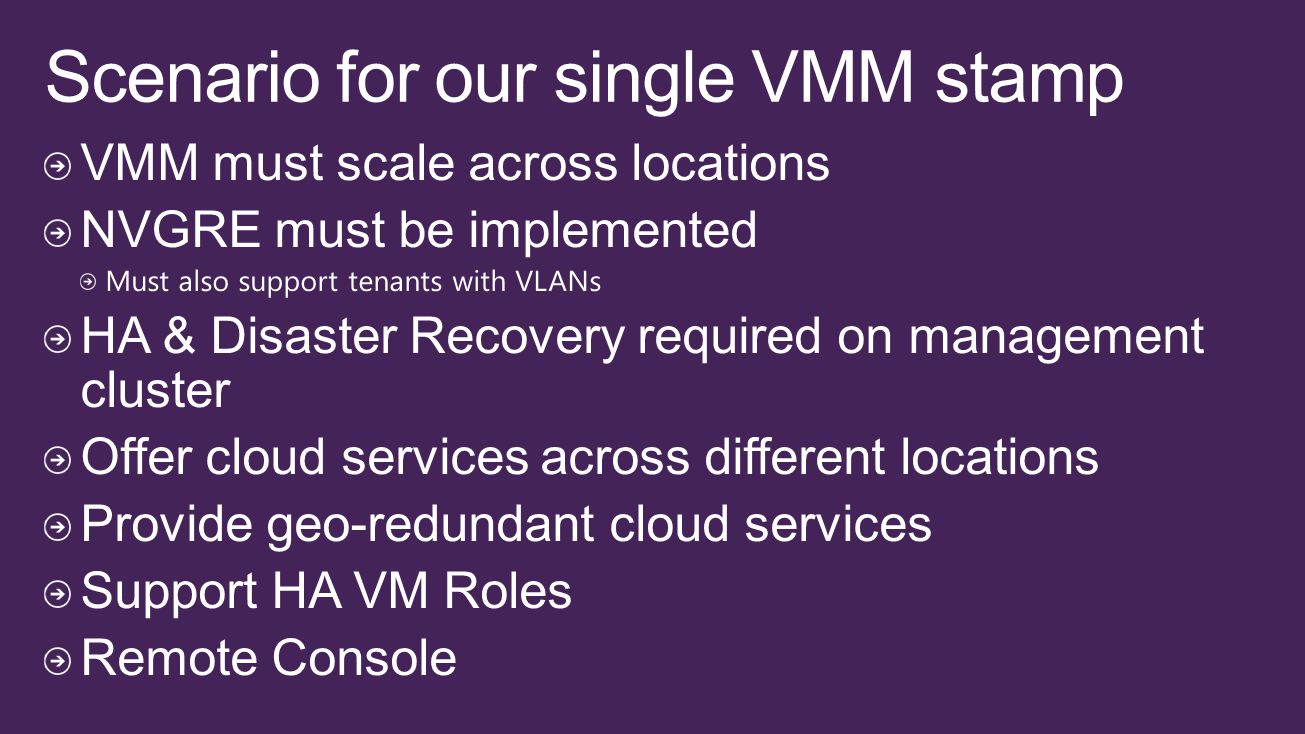

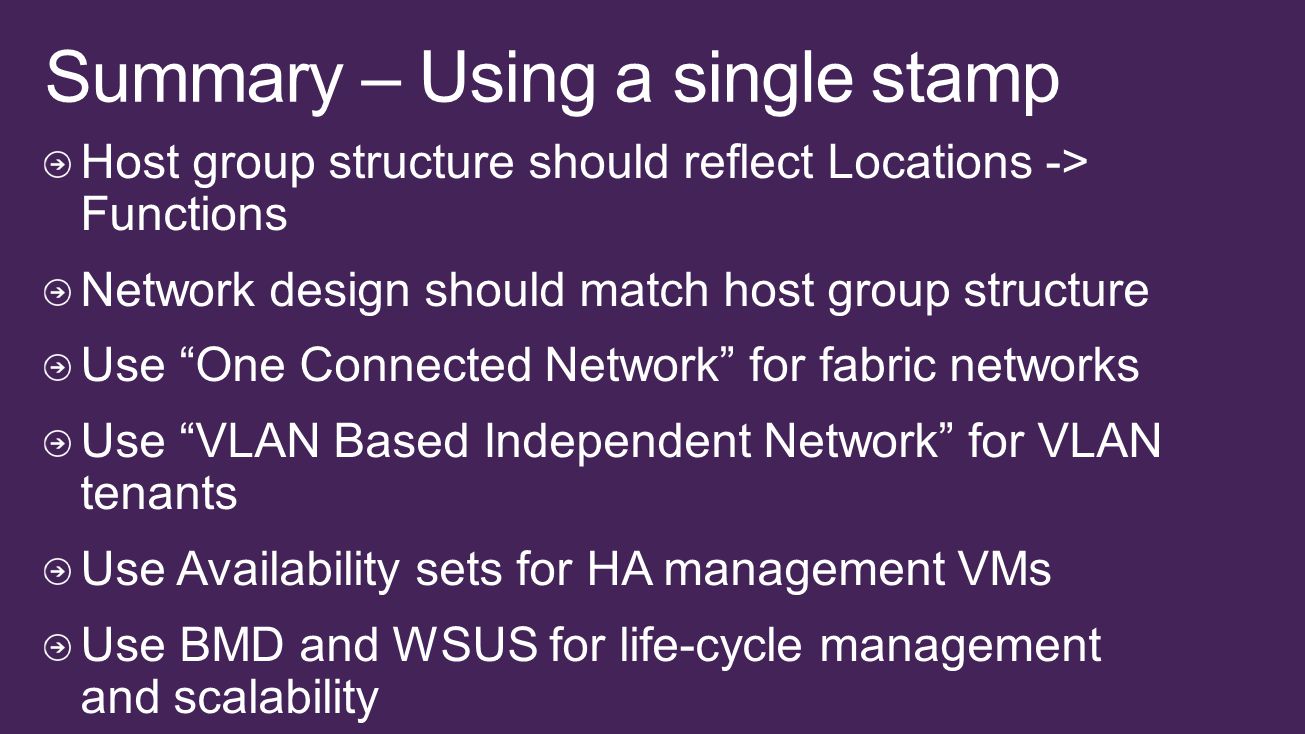

20. VMM Server 1 Compute Storage Network SPF Web Server SPF DB Tenant Public API Tenant API Service Admin API Management Stamp Management Portals Admin Portal Tenant Portal

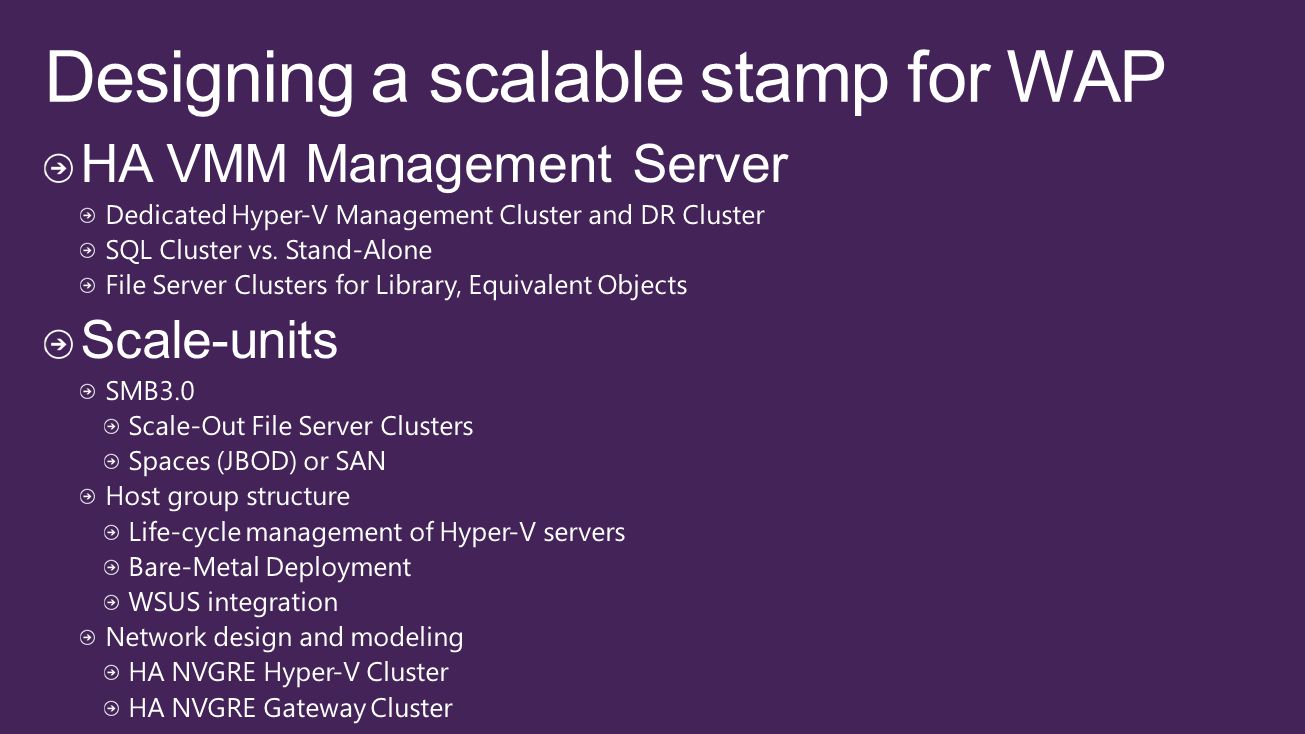

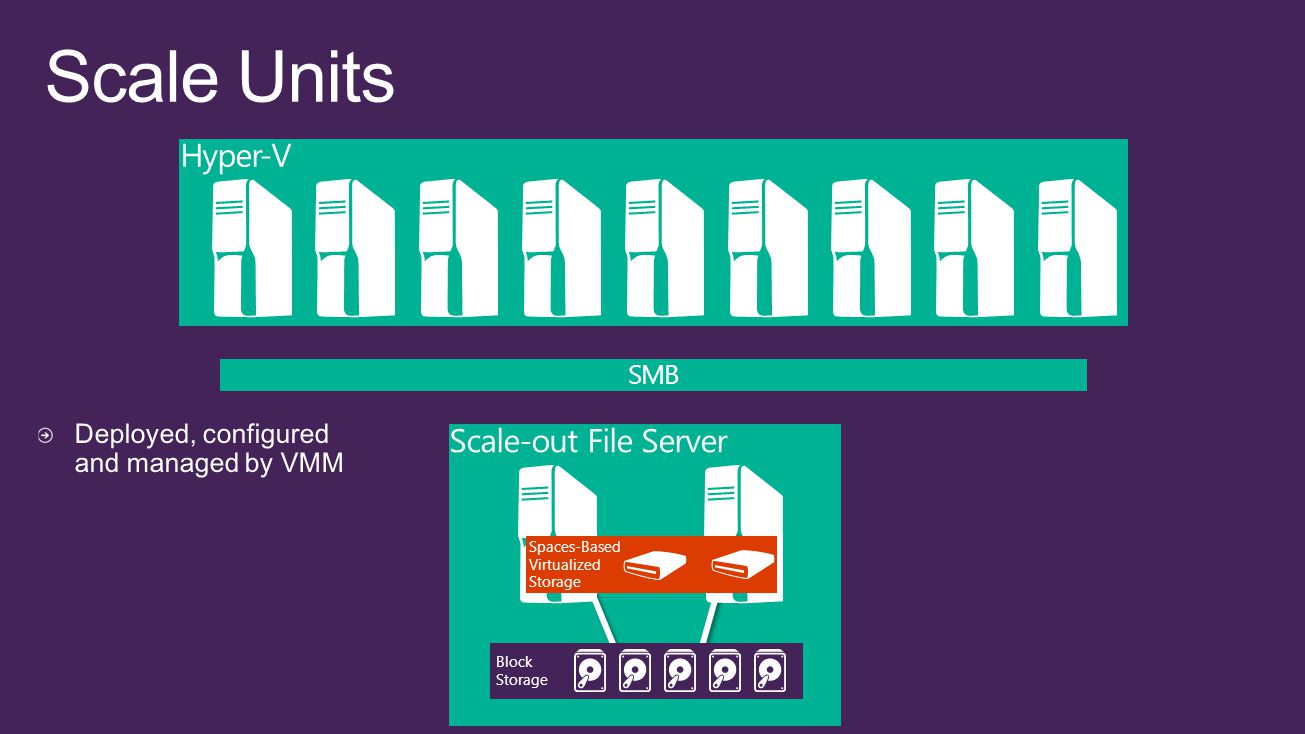

22. Block Storage Scale-out File Server Spaces-Based Virtualized Storage Hyper-V SMB
