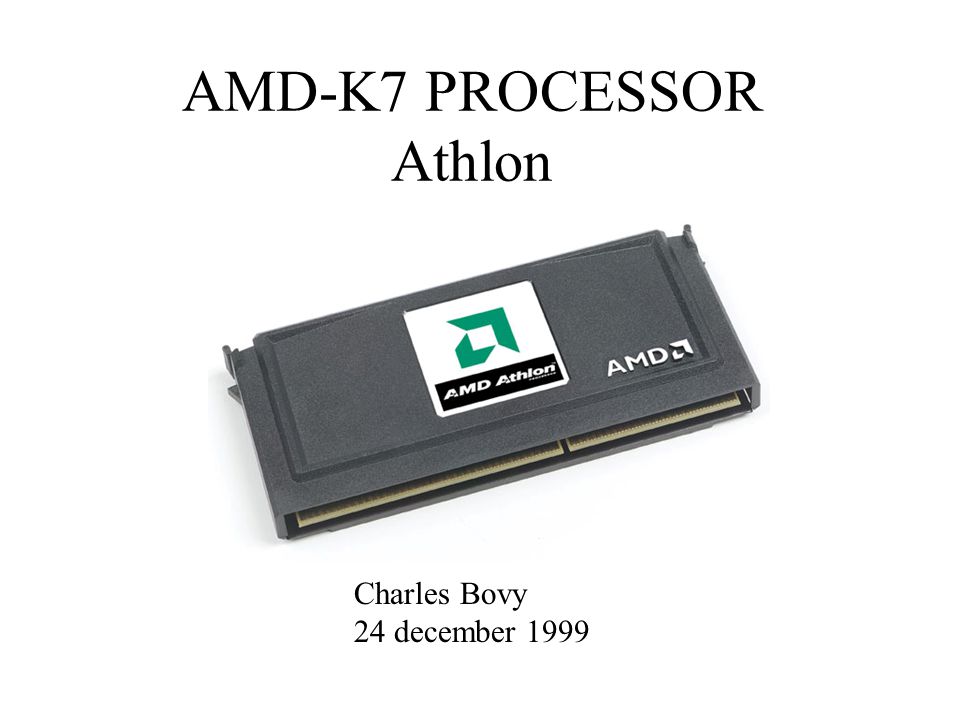

1. AMD-K7 PROCESSOR Athlon Charles Bovy 24 december 1999

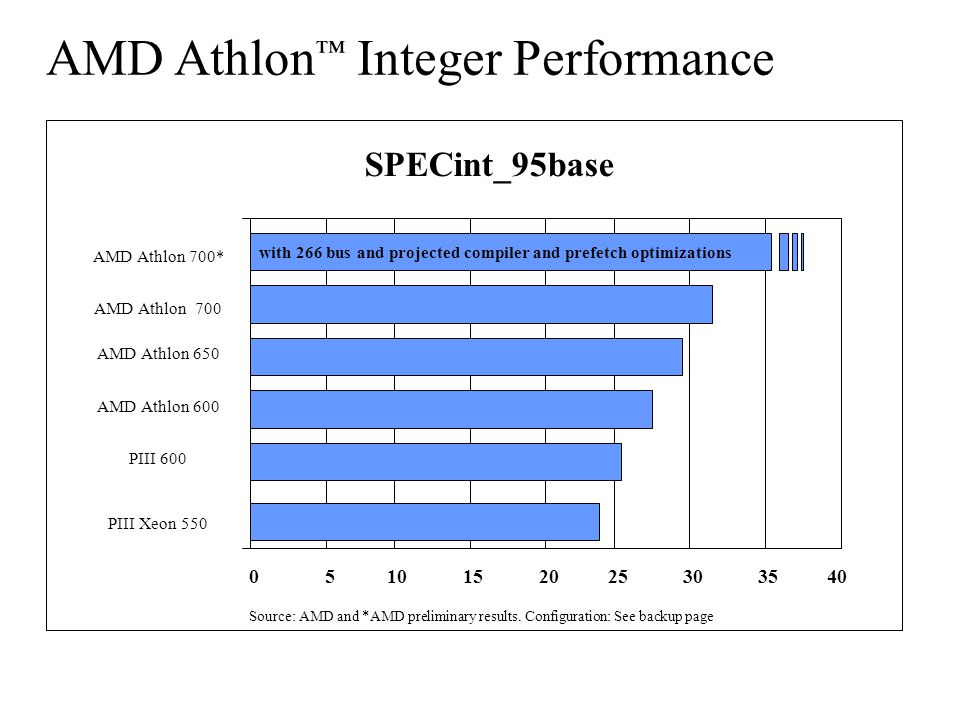

9. AMD Athlon ™ Integer Performance PIII Xeon 550 AMD Athlon 600 AMD Athlon 650 AMD Athlon 700 PIII 600 SPECint_95base 1015203035402550 with 266 bus and projected compiler and prefetch optimizations AMD Athlon 700* Source: AMD and *AMD preliminary results. Configuration: See backup page

10. AMD Athlon ™ Floating Point Performance PIII Xeon 550 AMD Athlon 600 AMD Athlon 650 AMD Athlon 700 PIII 600 10203040050 SPECfp_base95 AMD Athlon 700* with 266 bus and projected compiler & prefetch optimizations Source: AMD and *AMD preliminary results. Configuration: See backup page

11. RISC vs x86 Performance SPECint95base: x86 vs RISC 0 5 10 15 20 25 30 35 Sep-95Dec-96Jul-97Mar-98Nov-98Aug-99 RISC x86 300 MHz 21164 500 MHz 21164 600 MHz 21164 600 MHz 21164 575 MHz 21264 667 MHz 21264 133 MHz Pentium 200 MHz PPro 300 MHz PII 333 MHz PII 450 MHz PII Xeon 700 MHz AMD Athlon 0% 10% 20% 30% 40% 50% 60% Delta Source: Microprocessor Report and AMD Preliminary Results

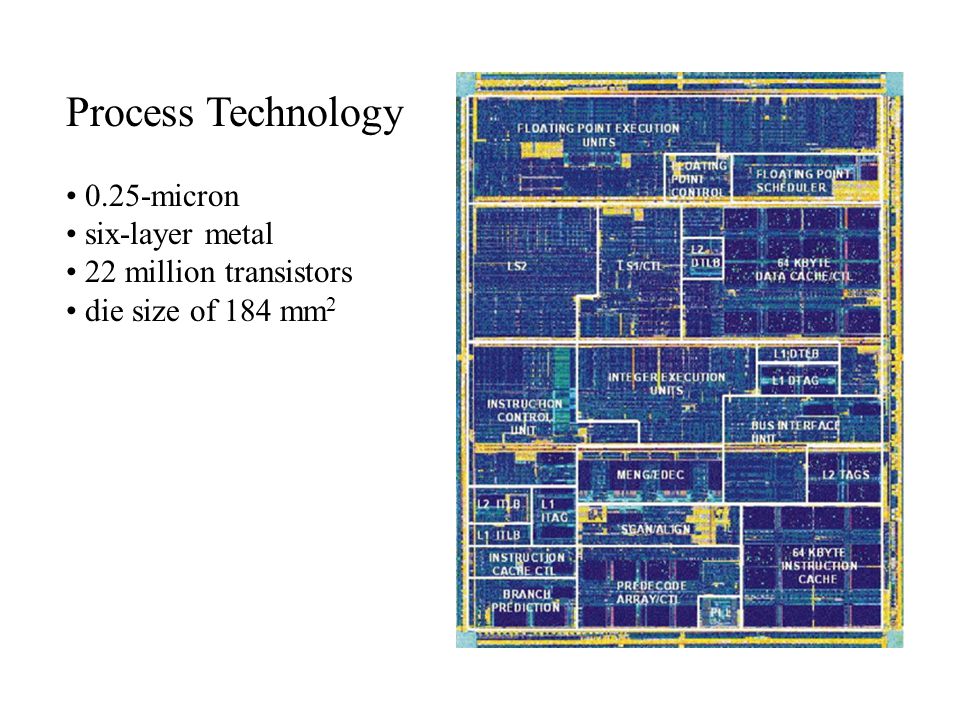

12. Process Technology 0.25-micron six-layer metal 22 million transistors die size of 184 mm 2
