Presentation on theme: "1. Which humidity variable is plotted here as a function of temperature? temperature, ºF."— Presentation transcript:

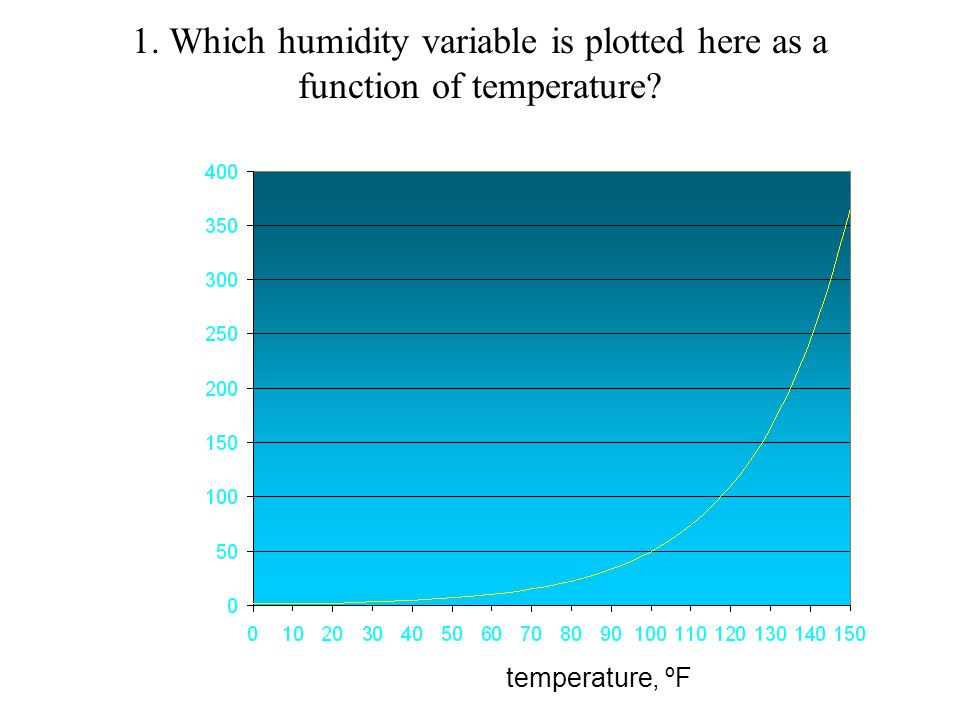

1 1. Which humidity variable is plotted here as a function of temperature? temperature, ºF

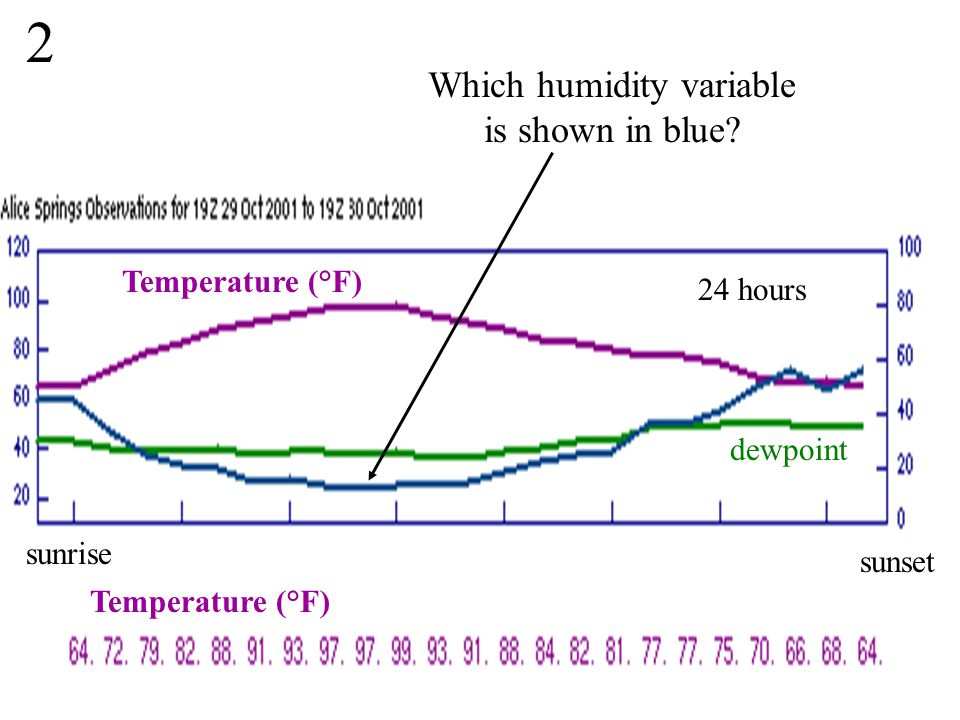

2 2 Which humidity variable is shown in blue? Temperature (°F) sunrise 24 hours sunset dewpoint

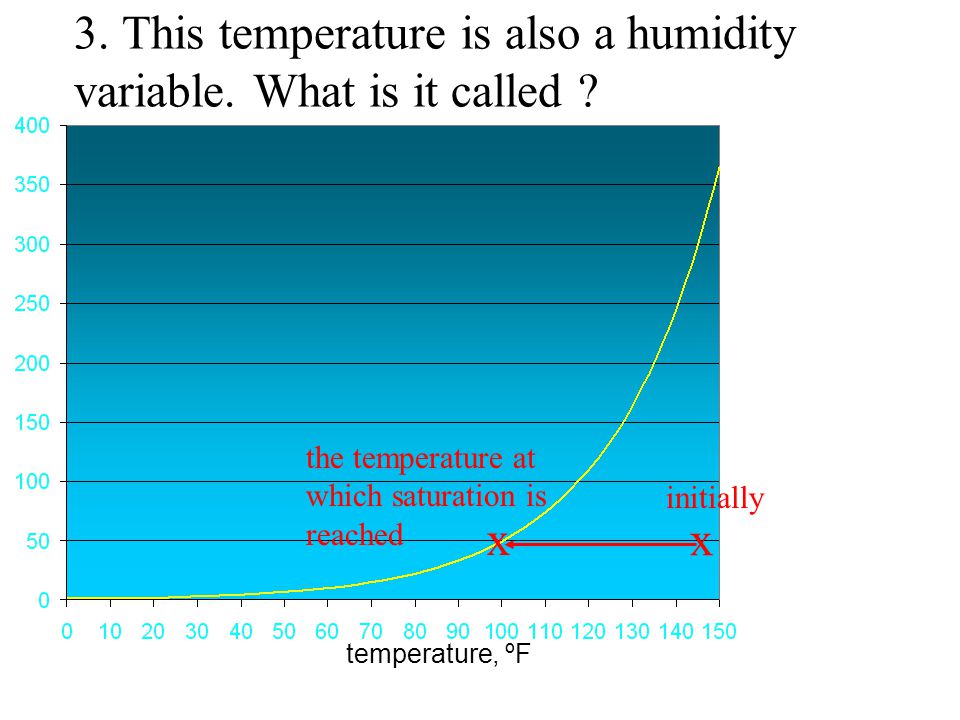

3 temperature, ºF 3. This temperature is also a humidity variable. What is it called ? x x initially the temperature at which saturation is reached

4 14. Assume a daytime temperature of 24°C and a vapor pressure of 18 mb. a.What is the saturation vapor pressure ? b.Calculate the relative humidity (show the equation) c.Does dewfall occur if the minimum at dawn, next day, is 10°C? d.What is the vapor pressure at dawn? x (you can use the chart at the end of the exam)

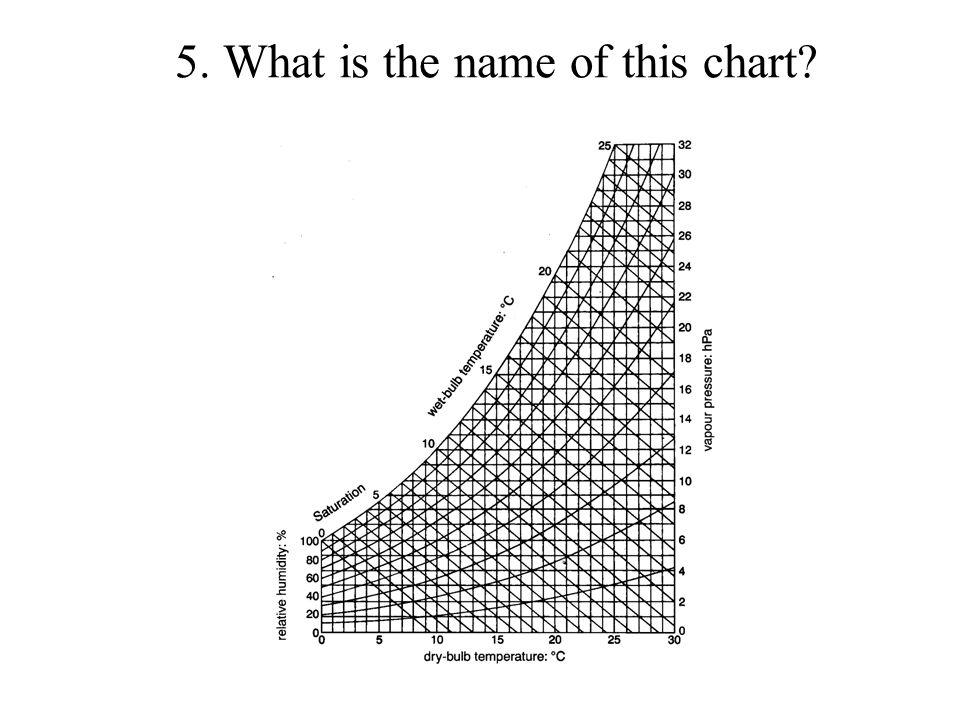

5 5. What is the name of this chart?

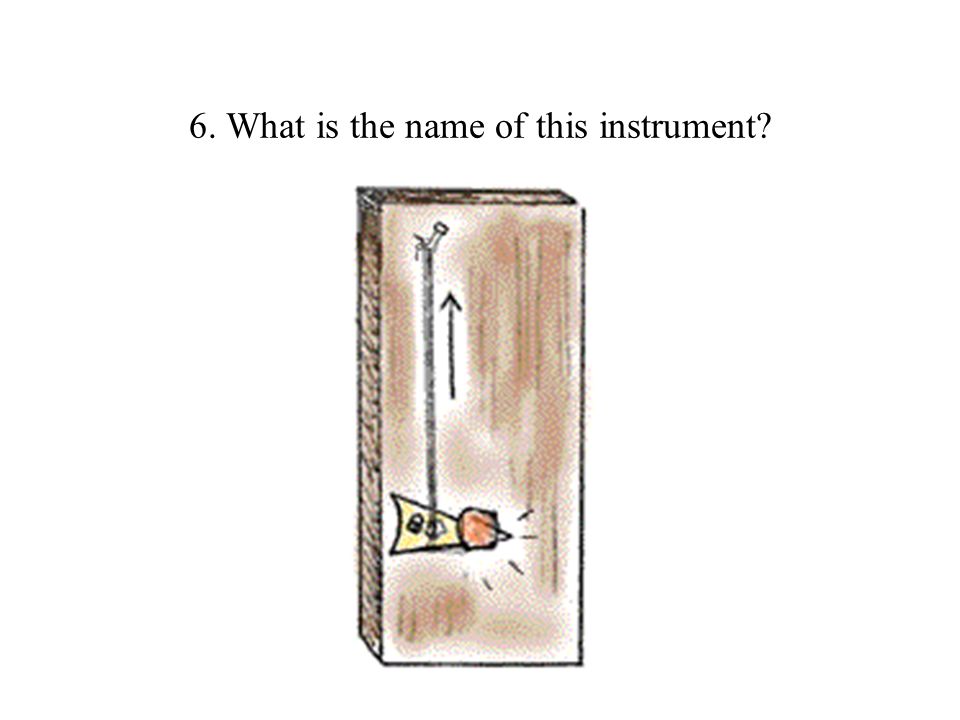

6 6. What is the name of this instrument?

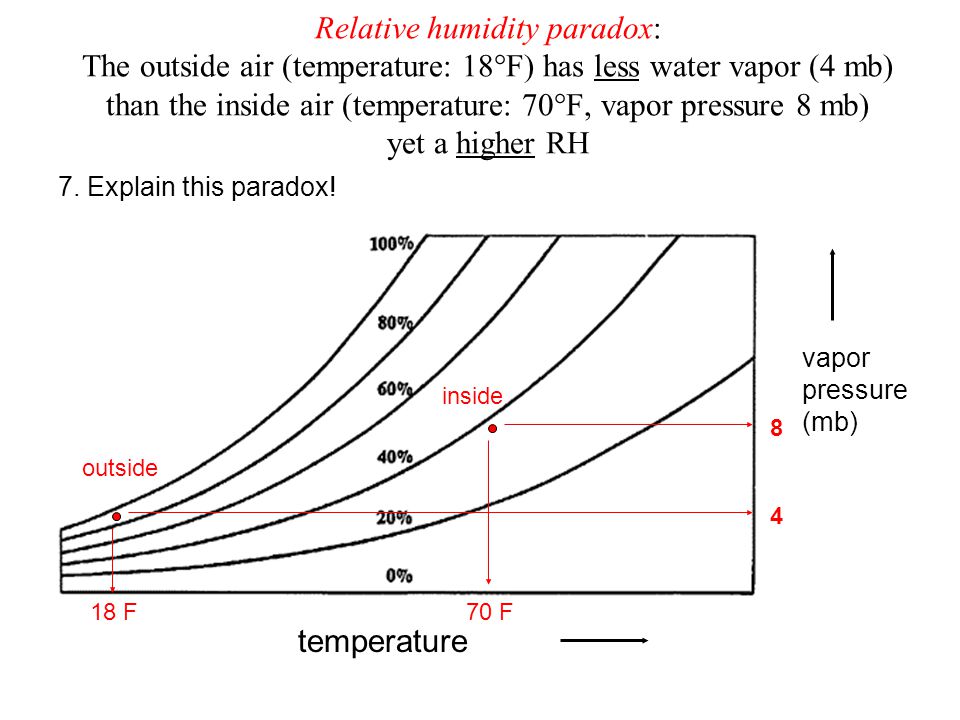

7 Relative humidity paradox: The outside air (temperature: 18°F) has less water vapor (4 mb) than the inside air (temperature: 70°F, vapor pressure 8 mb) yet a higher RH temperature vapor pressure (mb) 18 F70 F 4 8 7. Explain this paradox! outside inside
