1. Clustering

2. 2 Outline  Introduction  K-means clustering  Hierarchical clustering: COBWEB

3. 3 Classification vs. Clustering Classification: Supervised learning: Learns a method for predicting the instance class from pre-labeled (classified) instances

4. 4 Clustering Unsupervised learning: Finds “natural” grouping of instances given un-labeled data

5. 5 Clustering Methods  Many different method and algorithms:  For numeric and/or symbolic data  Deterministic vs. probabilistic  Exclusive vs. overlapping  Hierarchical vs. flat  Top-down vs. bottom-up

6. 6 Clusters: exclusive vs. overlapping Simple 2-D representation Non-overlapping Venn diagram Overlapping a k j i h g f e d c b

7. 7 Clustering Evaluation  Manual inspection  Benchmarking on existing labels  Cluster quality measures  distance measures  high similarity within a cluster, low across clusters

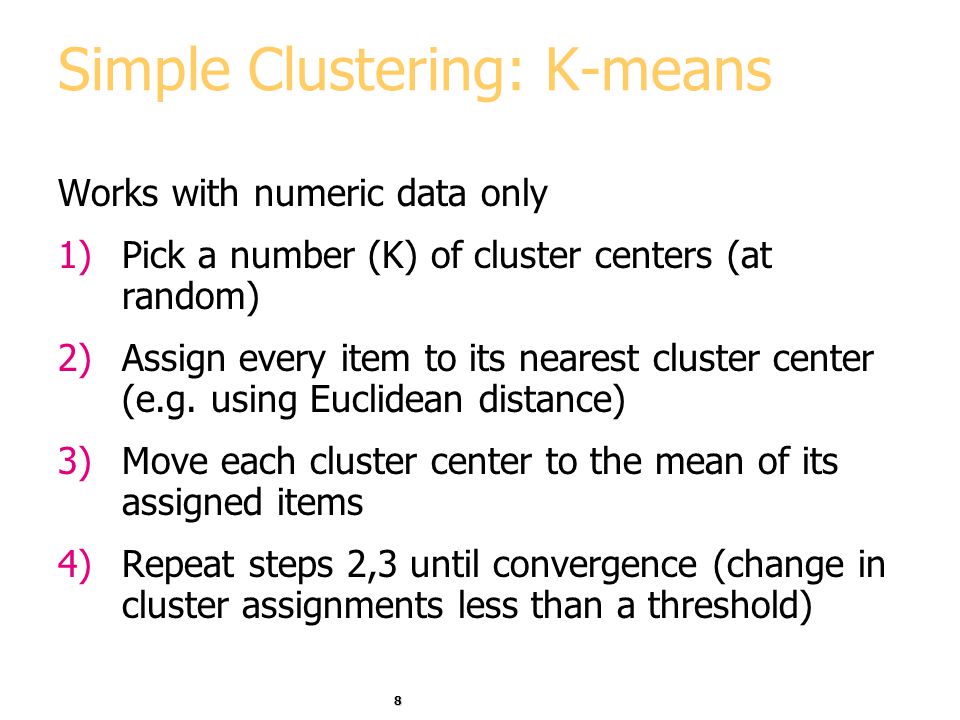

8. 8 Simple Clustering: K-means Works with numeric data only 1)Pick a number (K) of cluster centers (at random) 2)Assign every item to its nearest cluster center (e.g. using Euclidean distance) 3)Move each cluster center to the mean of its assigned items 4)Repeat steps 2,3 until convergence (change in cluster assignments less than a threshold)

9. 9 K-means example, step 1 k1k1 k2k2 k3k3 X Y Pick 3 initial cluster centers (randomly)

10. 10 K-means example, step 2 k1k1 k2k2 k3k3 X Y Assign each point to the closest cluster center

11. 11 K-means example, step 3 X Y Move each cluster center to the mean of each cluster k1k1 k2k2 k2k2 k1k1 k3k3 k3k3

12. 12 K-means example, step 4 X Y Reassign points closest to a different new cluster center Q: Which points are reassigned? k1k1 k2k2 k3k3

13. 13 K-means example, step 4 … X Y A: three points with animation k1k1 k3k3 k2k2

14. 14 K-means example, step 4b X Y re-compute cluster means k1k1 k3k3 k2k2

15. 15 K-means example, step 5 X Y move cluster centers to cluster means k2k2 k1k1 k3k3

16. 16 Discussion  Result can vary significantly depending on initial choice of seeds  Can get trapped in local minimum  Example:  To increase chance of finding global optimum: restart with different random seeds instances initial cluster centers

17. 17 K-means clustering summary Advantages  Simple, understandable  items automatically assigned to clusters Disadvantages  Must pick number of clusters before hand  All items forced into a cluster  Too sensitive to outliers

18. 18 K-means variations  K-medoids – instead of mean, use medians of each cluster  Mean of 1, 3, 5, 7, 9 is  Mean of 1, 3, 5, 7, 1009 is  Median of 1, 3, 5, 7, 1009 is  Median advantage: not affected by extreme values  For large databases, use sampling 5 205 5
