Zeiss / Dywidag shell for planetarium No 1 built at Jena. 1922 Walter Bauersfeld, Carl zeiss,Jena and Franz Dischinger, Dywidag The shell was finished.

Published by Modified over 8 years ago

Similar presentations

Presentation on theme: "Zeiss / Dywidag shell for planetarium No 1 built at Jena. 1922 Walter Bauersfeld, Carl zeiss,Jena and Franz Dischinger, Dywidag The shell was finished."— Presentation transcript:

1 Zeiss / Dywidag shell for planetarium No 1 built at Jena. 1922 Walter Bauersfeld, Carl zeiss,Jena and Franz Dischinger, Dywidag The shell was finished with sprayed concrete Dischinger did a doctor thesis on the theory of polygonal shells in 1929 Concrete Shells, Ian Liddell, Buro Happold

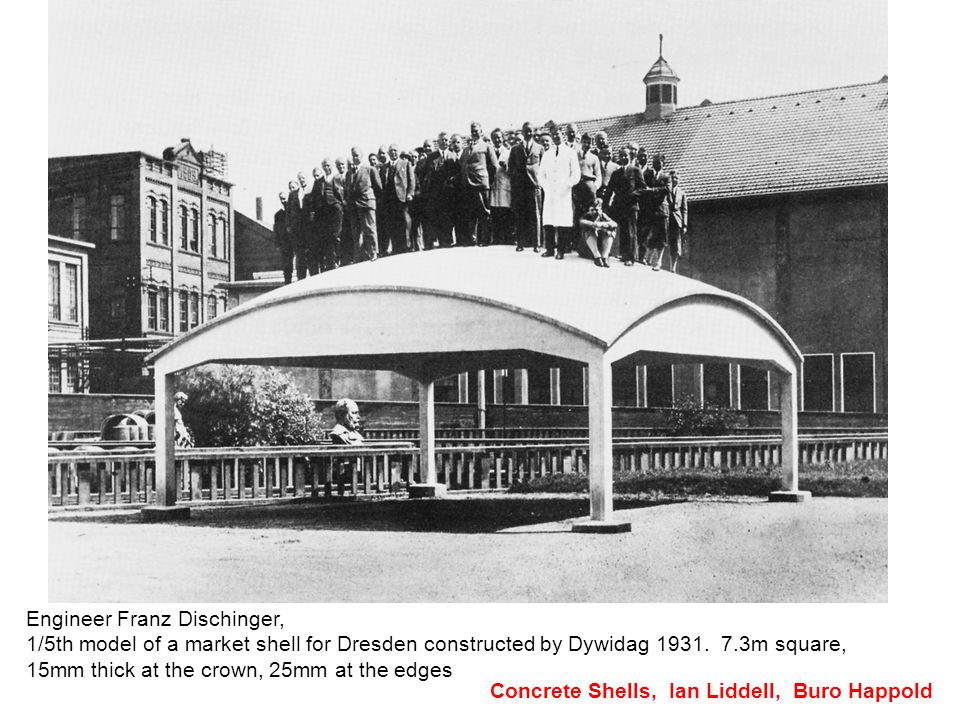

2 Engineer Franz Dischinger, 1/5th model of a market shell for Dresden constructed by Dywidag 1931. 7.3m square, 15mm thick at the crown, 25mm at the edges Concrete Shells, Ian Liddell, Buro Happold

3 Brynmawr rubber factory 1950, Arup and Jenkins Concrete Shells, Ian Liddell, Buro Happold

4 Smithfield poultry market. Model tests to establish buckling load. Shell thickness was 1/4 inches. Buckling load was found to be 190 lbs/sq.ft at full size.

5 Hatfield pool ©1963 Hatfield Swimming Pool 1965

6 Cooling Towers at Didcot 120m high by 100 feet diameter Concrete Shells, Ian Liddell, Buro Happold

7 ST21 Stuttgart’;s new train station Ingenhoven, Otto, Leonhardt & Andrae, Buro Happold. Concrete Shells, Ian Liddell, Buro Happold

8 ST21 Stuttgart’;s new train station Ingenhoven, Otto, Leonhardt & Andrae, Buro Happold. Concrete Shells, Ian Liddell, Buro Happold
