Composed of 3 layers (tunics) Structure of Blood Vessels 1. Tunica Intima – simple squamous epithelium 2. Tunica Media – sheets of smooth muscle Contraction.

Similar presentations


Presentation on theme: "Composed of 3 layers (tunics) Structure of Blood Vessels 1. Tunica Intima – simple squamous epithelium 2. Tunica Media – sheets of smooth muscle Contraction."— Presentation transcript:

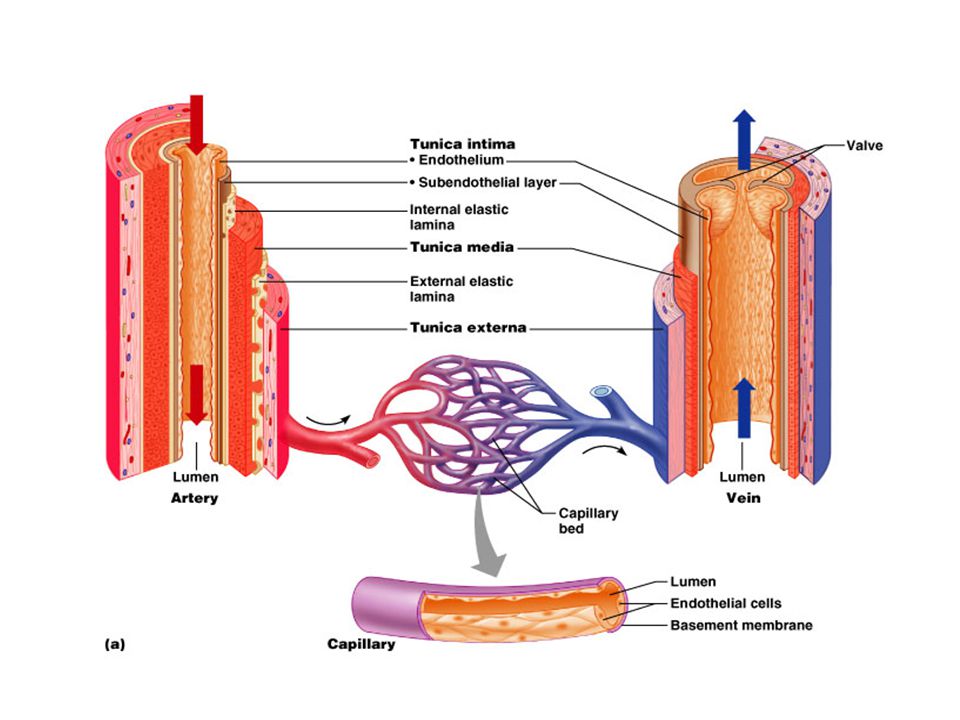

1 Composed of 3 layers (tunics) Structure of Blood Vessels 1. Tunica Intima – simple squamous epithelium 2. Tunica Media – sheets of smooth muscle Contraction – vasoconstriction Relaxation – vasodilation 3. Tunica Externa – connective tissue * Lumen – central blood-filled space of a vessel

2

3

4

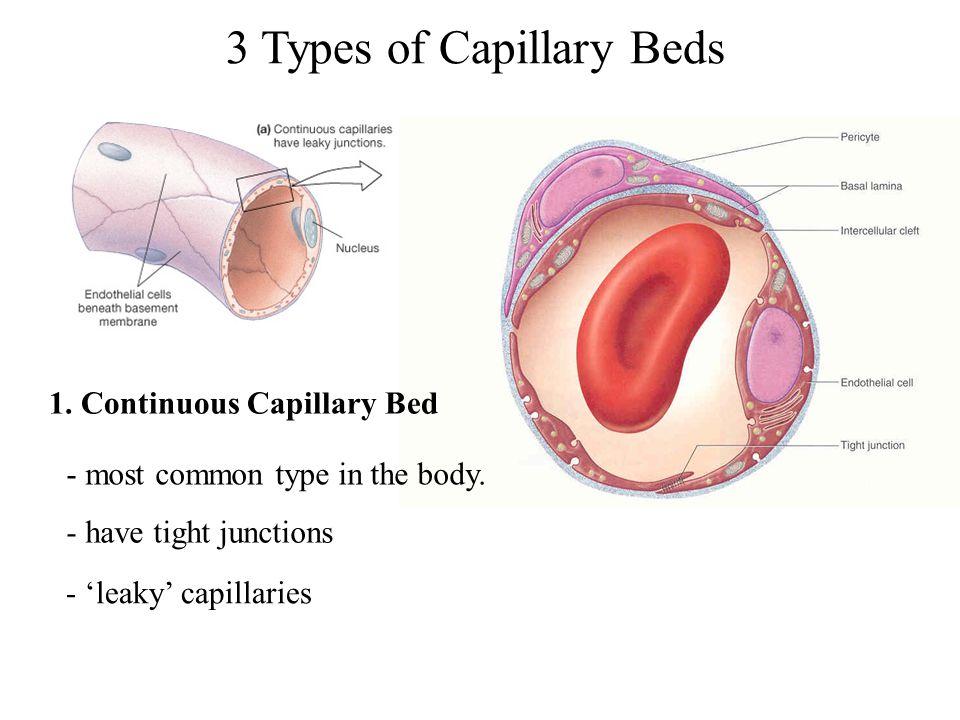

5 3 Types of Capillary Beds 1. Continuous Capillary Bed - have tight junctions - ‘leaky’ capillaries - most common type in the body.

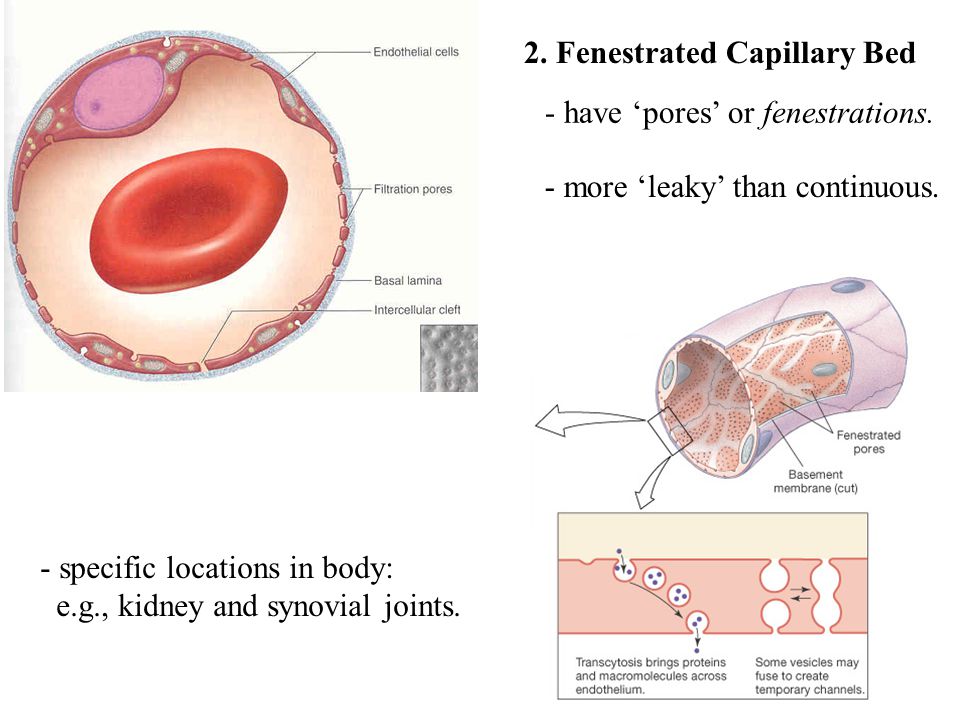

6 2. Fenestrated Capillary Bed - have ‘pores’ or fenestrations. - more ‘leaky’ than continuous. - specific locations in body: e.g., kidney and synovial joints.

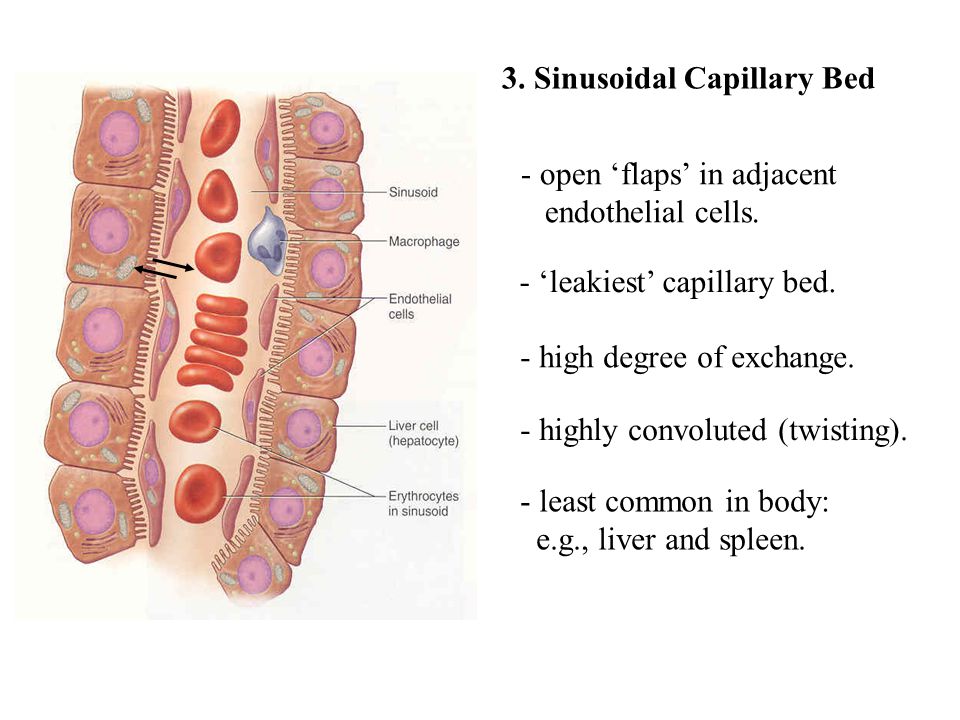

7 3. Sinusoidal Capillary Bed - open ‘flaps’ in adjacent endothelial cells. - ‘leakiest’ capillary bed. - least common in body: e.g., liver and spleen. - highly convoluted (twisting). - high degree of exchange.

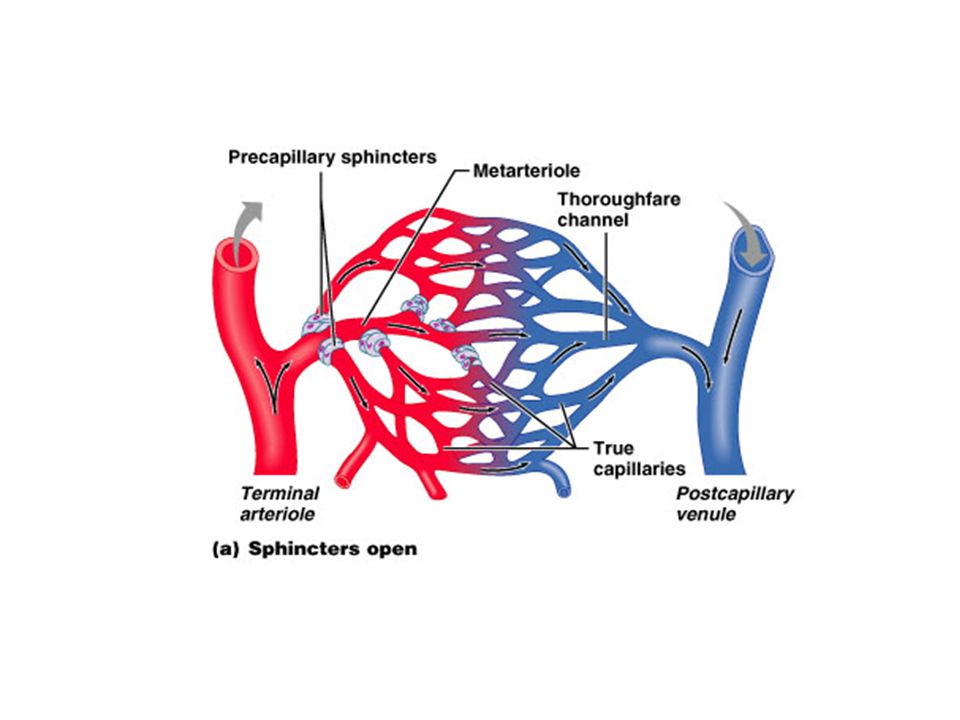

8 Capillaries Venule Ateriole

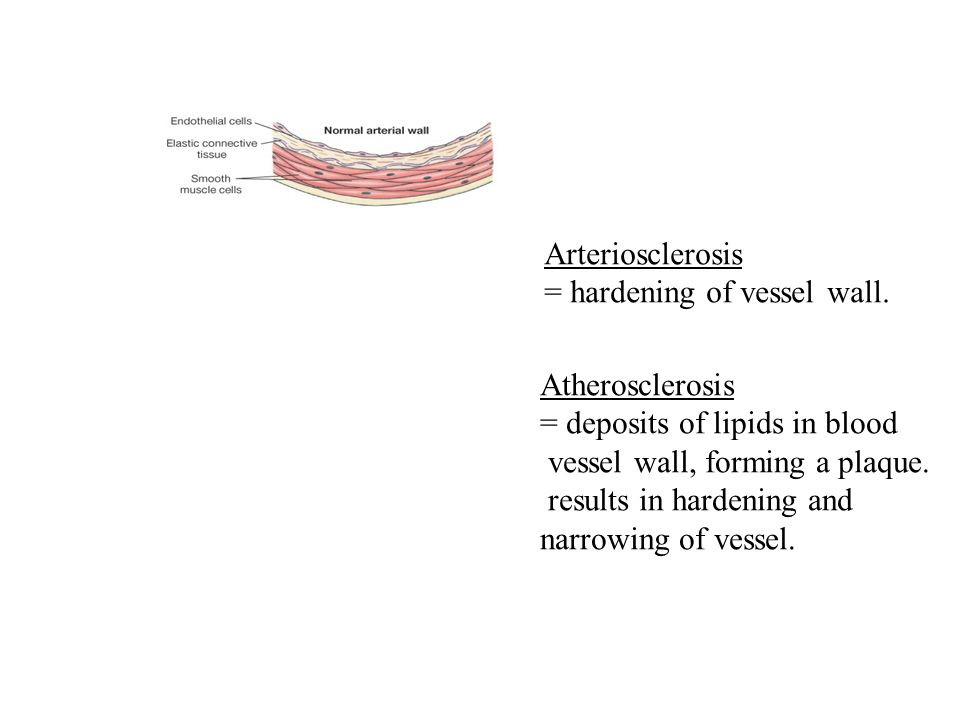

9 Arteriosclerosis = hardening of vessel wall. Atherosclerosis = deposits of lipids in blood vessel wall, forming a plaque. results in hardening and narrowing of vessel.

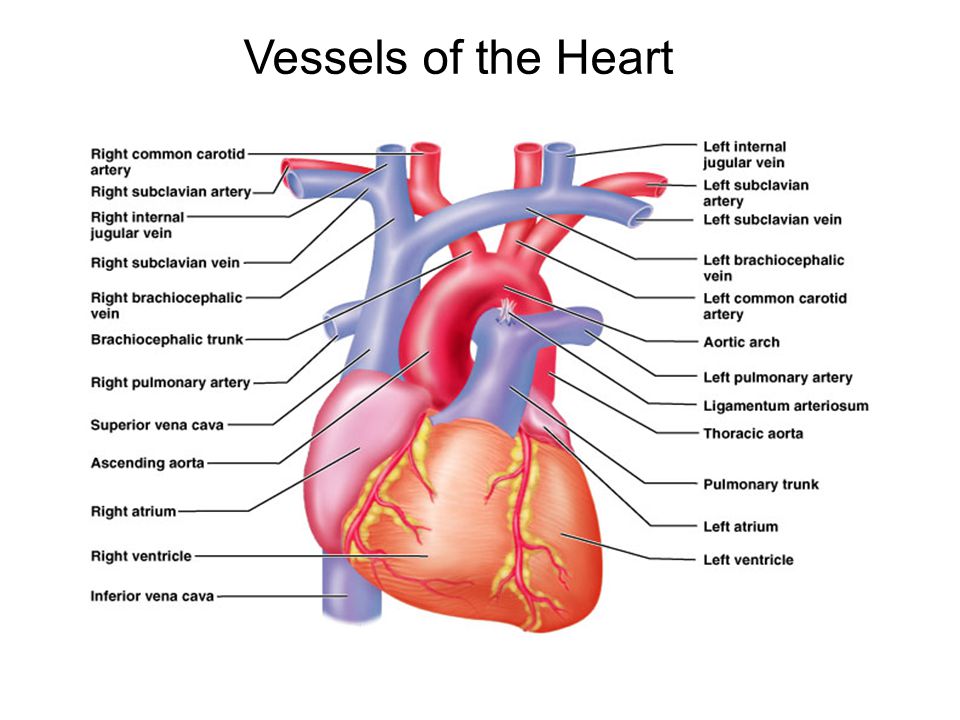

10 Vessels of the Heart

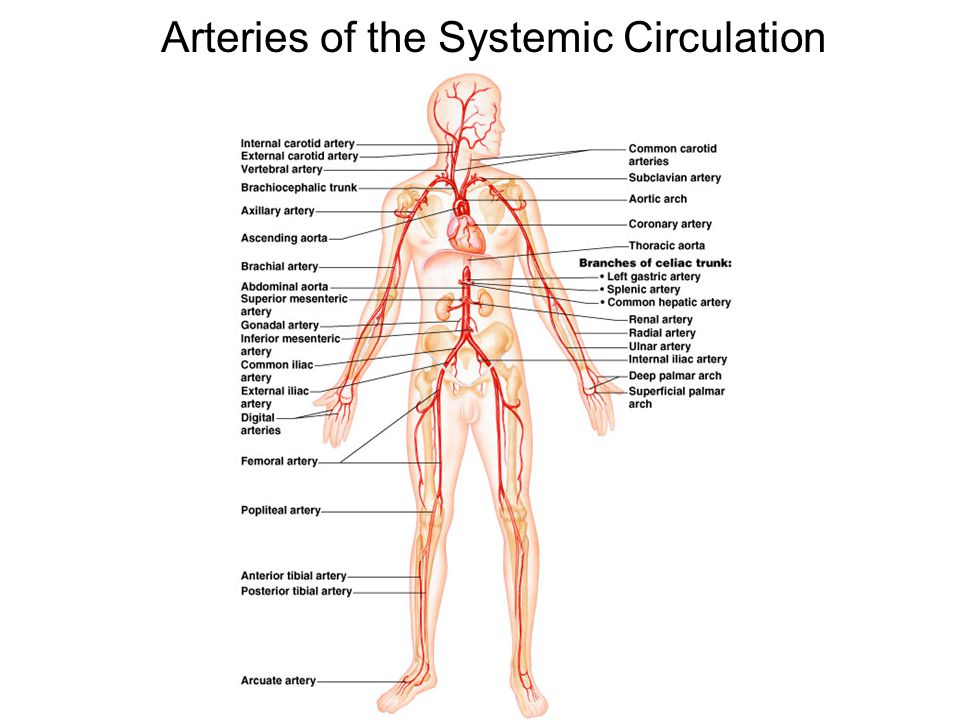

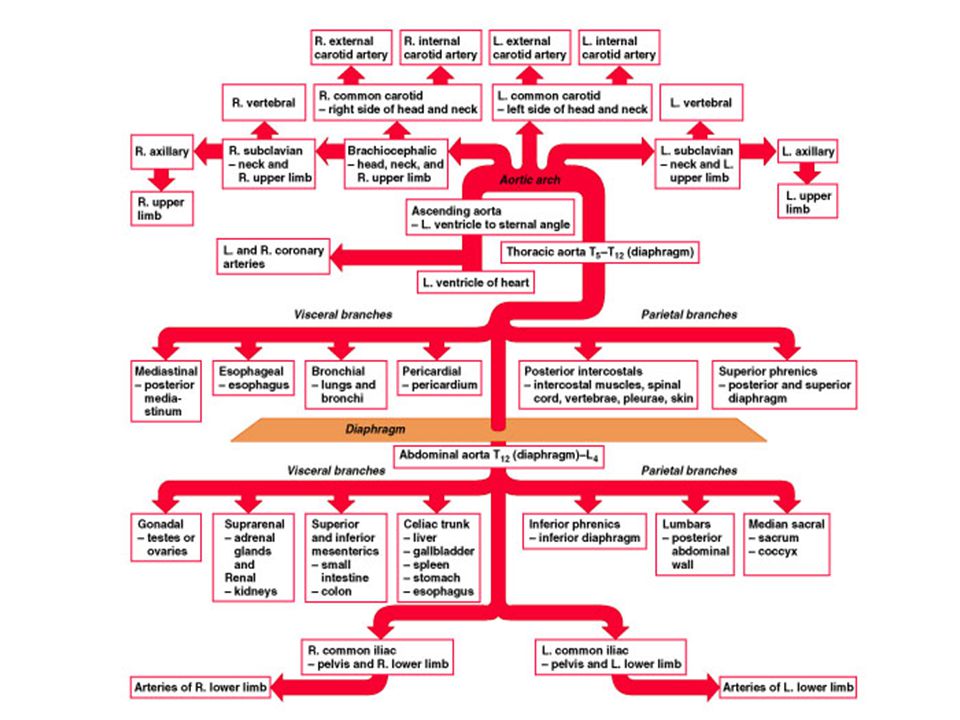

11 Arteries of the Systemic Circulation

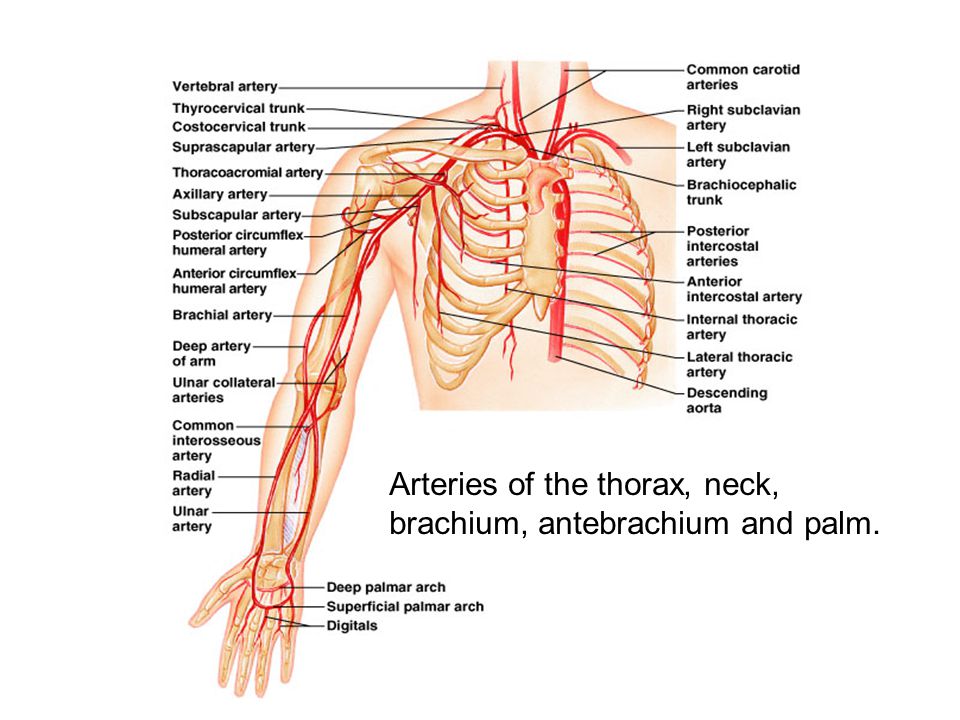

12 Arteries of the thorax, neck, brachium, antebrachium and palm.

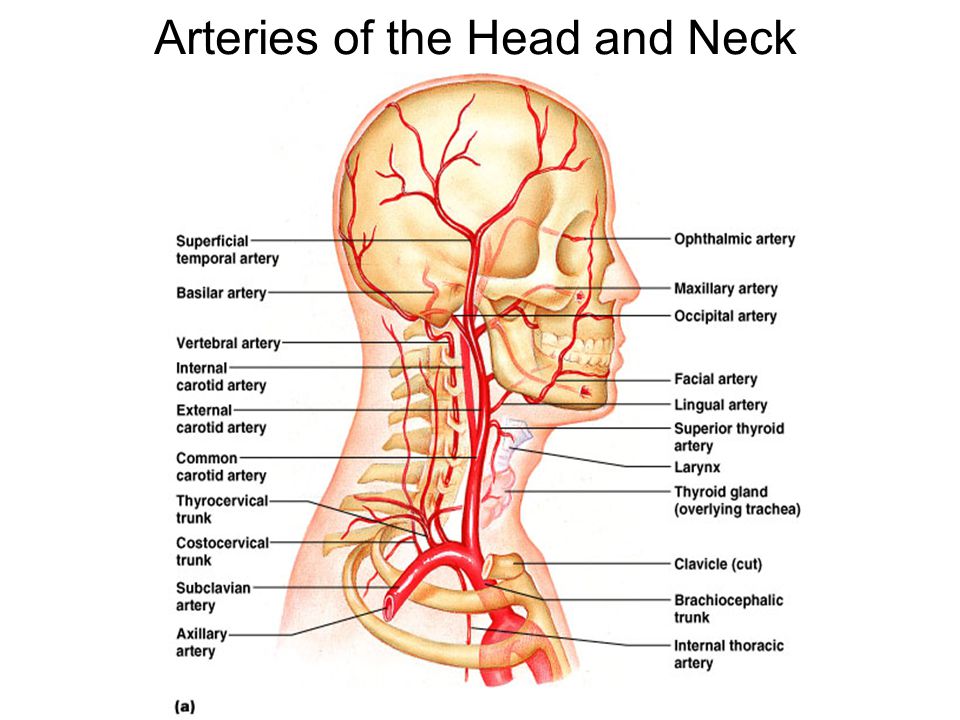

13 Arteries of the Head and Neck

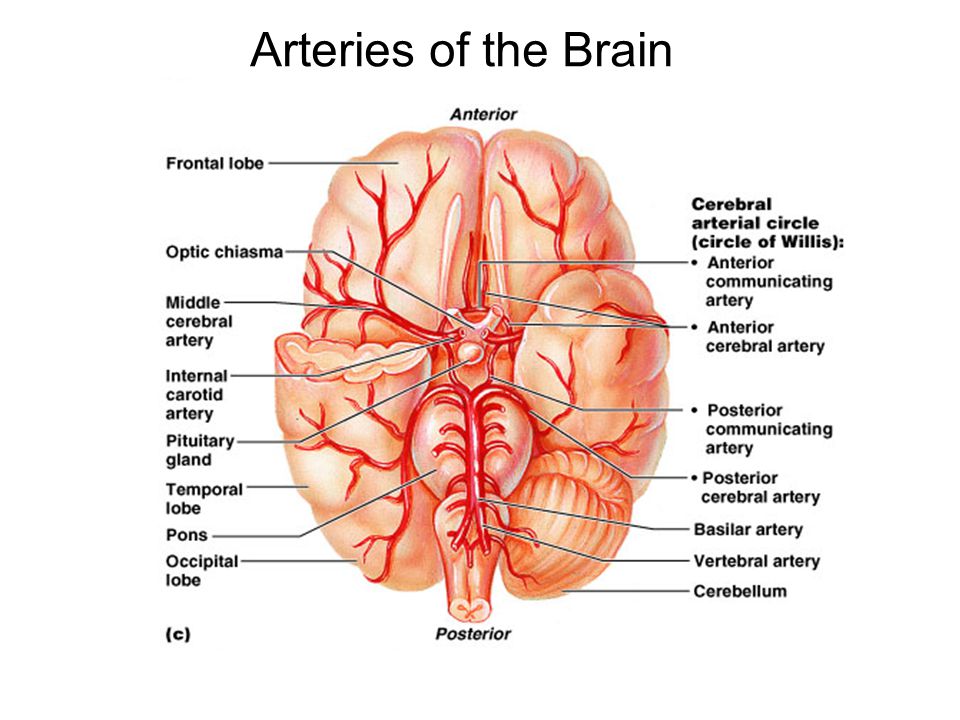

14 Arteries of the Brain

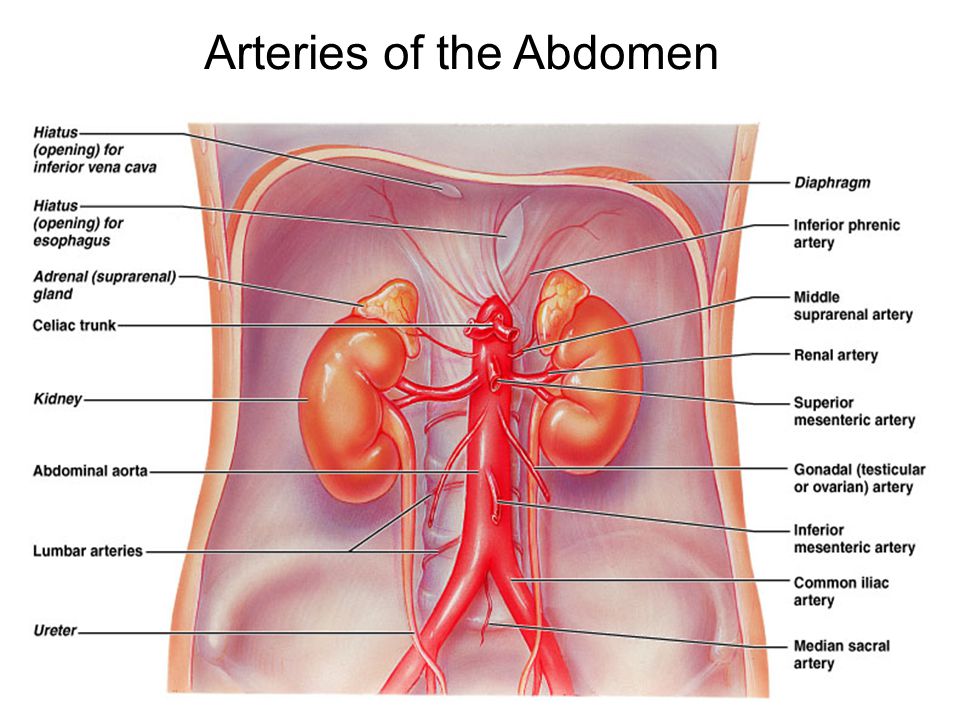

15 Arteries of the Abdomen

16 Aortic Aneurysm Aneurysm: Weakening of A vessel wall; Results in bulging due to pressure in vessel. Poses threat of hemorrhage.

17 The Celiac Trunk

18 Arteries of the Hip, Thigh, Leg and Foot

19

20
