1. 1 Lecture 21, Statistics 246, April 8, 2004 Identifying expression differences in cDNA microarray experiments, cont.

2. 2 An empirical Bayes story Suppose that our M values are independently and normally distributed, and that a proportion p of genes are differentially expressed, i.e. have M’s with non-zero means. Further, suppose that the variances and means of these are chosen jointly from inverse chi-square and normal conjugate priors, respectively. Genes not differentially expressed have zero means, and variances chosen from the same inverse chi-squared distribution. The scale and d.f. parameters in the inverse chi-square are estimated from the data, as is a parameter c connecting the prior for the mean with that for the variances. We then calculate for the posterior probability that a given gene is differentially expressed, and find it is an increasing function of B over the page, where a and c are estimated parameters, and p is in the constant.

3. 3 Empirical Bayes log posterior odds ratio (LOR) Notice that for large n this approximately t=M./s.

4. 4 B=LOR compared with t and M.

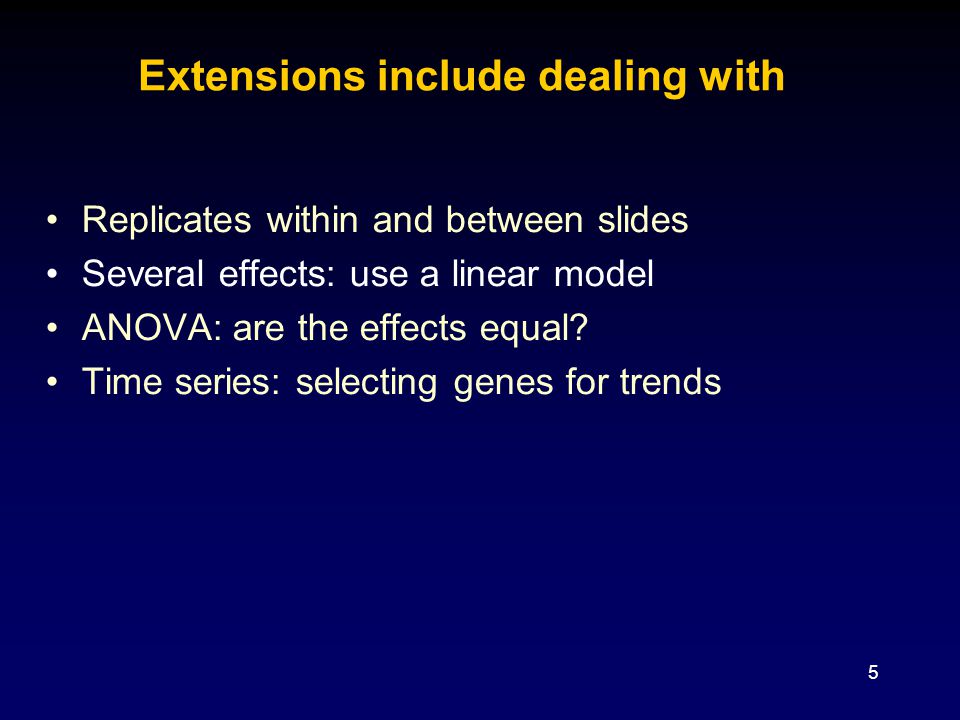

5. 5 Extensions include dealing with Replicates within and between slides Several effects: use a linear model ANOVA: are the effects equal? Time series: selecting genes for trends

6. 6 Summary (for the second simplest problem) Microarray experiments typically have thousands of genes, but only few (1-10) replicates for each gene. Averages can be driven by outliers. t-statistics can be driven by tiny variances. B = LOR will, we hope –use information from all the genes –combine the best of M. and t –avoid the problems of M. and t Ranking on B could be helpful.

7. 7 Use of linear models with cDNA microarray data In many situations we want to combine data from different experiments in a slightly more elaborate manner than simply averaging. One way of doing so is via (fixed effects) linear models, where we estimate certain quantities of interest which we call effects for each gene on our slide. Typically these estimates may be regarded as approximately normally distributed with common SD, and mean zero in the absence of any relevant differential expression. In such cases, the preceding two strategies: qq-plots, and various combinations of estimated effect (cf M.), standardized estimate (cf. t) both apply.

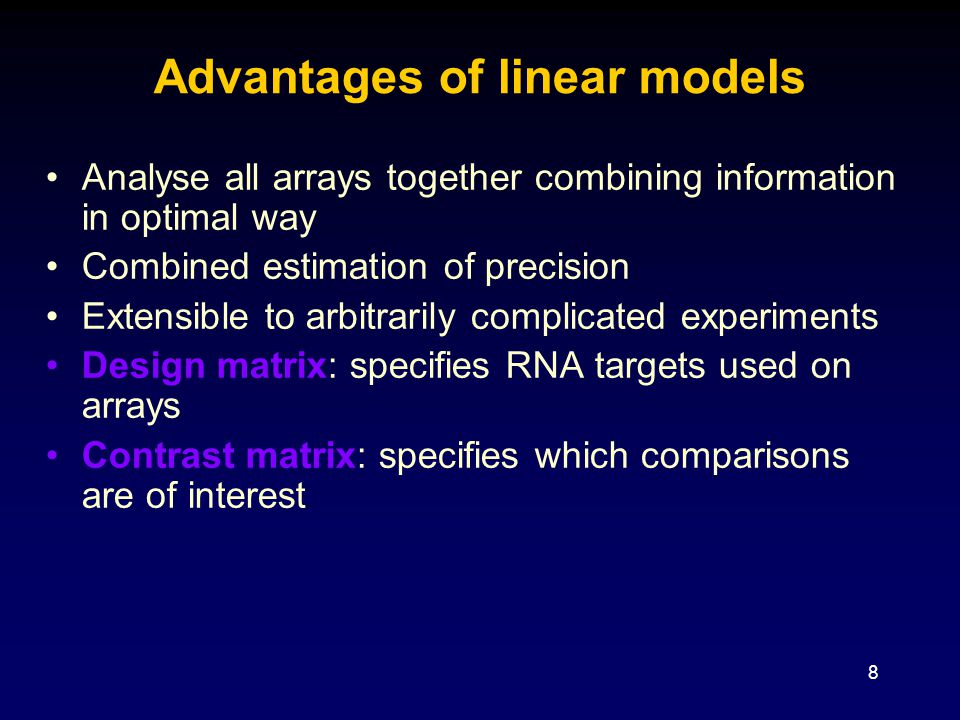

8. 8 Advantages of linear models Analyse all arrays together combining information in optimal way Combined estimation of precision Extensible to arbitrarily complicated experiments Design matrix: specifies RNA targets used on arrays Contrast matrix: specifies which comparisons are of interest

9. 9 Log-ratios or single channel intensities ? Traditional analyses, as here, treat log-ratios M=log(R/G) as the primary data, i.e., we take gene expression measurements as relative An alternative approach treats individual channel intensities R and G as the primary data, i.e., views gene expression measures as “absolute” (Wolfinger, Churchill, Kerr) A single channel approach makes new analyses possible but it –make stronger assumptions –requires more complex models (mixed models in place of ordinary linear models) to accommodate correlation between R and G on same spot –requires absolute normalization methods

10. 10 Linear models for differential expression AB Ref A B AB AB C Allows all comparisons to be estimated simultaneously

11. 11 Matrix multiplication AB Ref A B AB C 1 23

12. 12 WT.P11  + a1 MT.P21  + (a1 + a2) + b + (a1 + a2)b MT.P11  +a1+b+a1.b WT.P21  + a1 + a2 WT.P1  MT.P1  + b 1 2 3 4 5 6 7 Slightly larger example:

13. 13 Linear model estimates Obtain a linear model for each gene g Estimate model by robust regression, least squares or generalized least squares to get coefficients standard deviations standard errors

14. 14 Parallel inference for genes 10,000-40,000 linear models Curse of dimensionality: Need to adjust for multiple testing, e.g., control family-wise error rate (FWE) or false discovery rate (FDR) Boon of parallelism: Can borrow information from one gene to another

15. 15 Hierarchical model Normal Model Prior Normality, independence assumptions are wrong but convenient, resulting methods are useful

16. 16 Posterior statistics Moderated t-statistics Posterior variance estimators Eliminates large t-statistics merely from very small s. under null

17. 17 Posterior Odds Posterior probability of differential expression for any gene is Generalization of B mentioned earlier. Monotonic function offor constant d. Exercise. Prove all the distributional statements made above.

18. 18 Summary Analyse data all at once Use standard deviances not just fold changes Use ensemble information to shrink variances Assess differential expression for all comparisons together

19. 19 Appendix: slightly more general theoretical development Assume that for each gene, Also, assume that certain contrasts  g = C T  g are of interest. The estimators of these contrasts and their estimated covariance matrices are If we let v gj be the jth diagonal element of C T V g C, then our assumptions are where d g is the residual degrees of freedom in the linear model for gene g.

20. 20 Hierarchical model As before, we define a simple hierarchical model to combine information across the genes. Prior information on the variances is assumed to come via a prior estimate 2 with d.f. : For any given j, we assume  gj non-zero with known proportion p j pr(  gj  0) = p j. For those genes which are differentially expressed, prior information is assumed in the form The moderated t and posterior odds are as before. See http://bioinf.wehi.edu.au/limma/ for an R-package and more details.http://bioinf.wehi.edu.au/limma/

21. 21 From single genes to sets of genes All of the foregoing has concerned single genes, i.e. has been a one-gene-at-a-time approach, although the empirical Bayes idea exploits the fact that there are really lots of genes. The problem of discovering sets of genes affected by a treatment at the same time as carrying out some kind of statistical inference, remains a challenge. What follows is a quick reminder that many people use clustering in this context, sometimes ignoring known information about the units being clustered. What is relevant here is that clustering can deliver sets of genes associated with treatment or other differences, though not to date within a formal statistical framework. We then present a brief discussion of a related idea, aimed at finding sets of genes which can be examined in much the same way as single genes.

22. 22 Cluster Analysis Can cluster genes, cell samples, or both. Strengthens signal when averages are taken within clusters of genes (Eisen). Useful (essential ?) when seeking new subclasses of cells, tumours, etc. Leads to readily interpreted figures.

23. 23 Clusters Taken from Nature February, 2000 Paper by Allzadeh. A et al Distinct types of diffuse large B-cell lymphoma identified by Gene expression profiling,

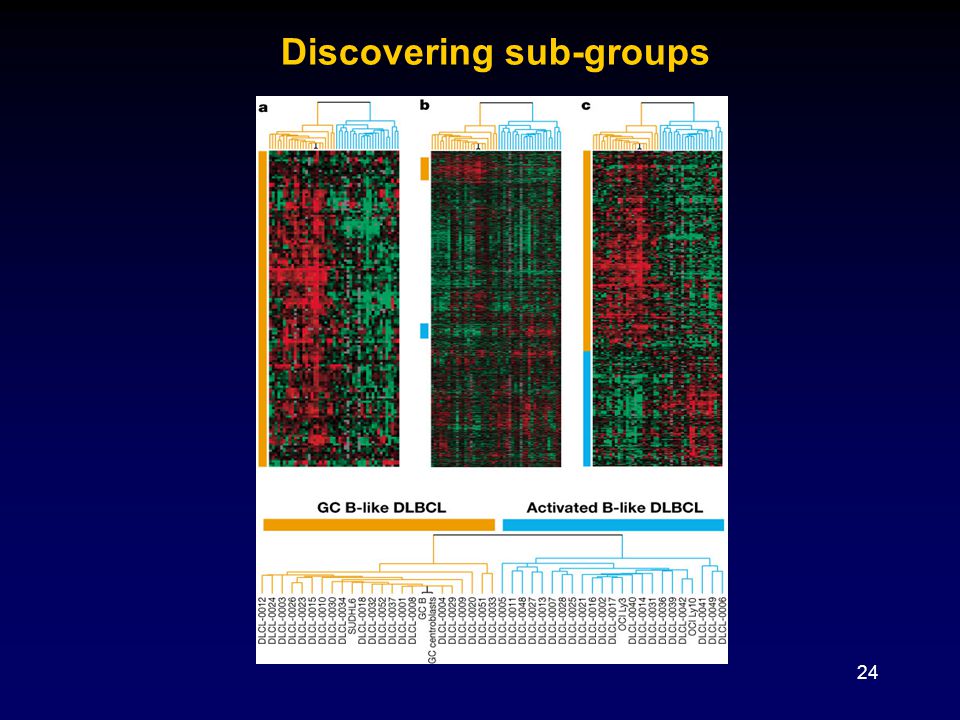

24. 24 Discovering sub-groups

25. 25 Limitations Cluster analyses: 1) Usually outside the normal framework of statistical inference; 2) less appropriate when only a few genes are likely to change. 3) Needs lots of experiments Single gene tests: 1) may be too noisy in general to show much 2) may not reveal coordinated effects of positively correlated genes. 3) hard to relate to pathways.

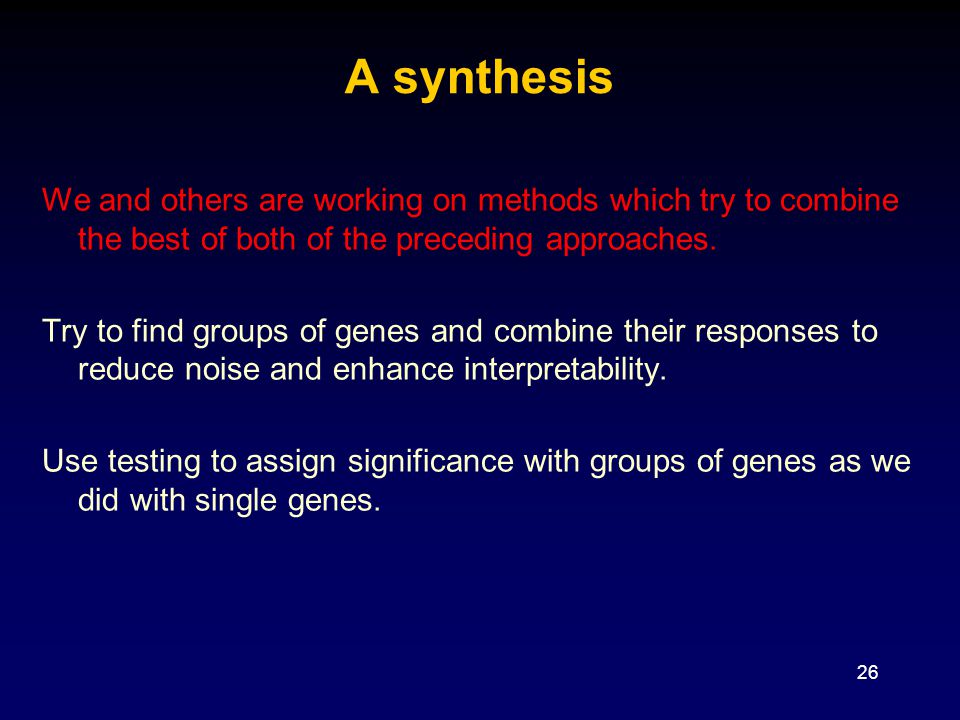

26. 26 A synthesis We and others are working on methods which try to combine the best of both of the preceding approaches. Try to find groups of genes and combine their responses to reduce noise and enhance interpretability. Use testing to assign significance with groups of genes as we did with single genes.

27. 27 One approach: clustering genes 12345 Cluster 6=(1,2) Cluster 7=(1,2,3) Cluster 8=(4,5) Cluster 9= (1,2,3,4,5) Let p = number of genes. 1. Calculate within class correlation. 2. Perform hierarchical clustering which will produce (2p-1) clusters of genes. 3. Average within clusters of genes. 4 Perform testing on averages of clusters of genes as if they were single genes. E.g. p=5

28. 28 Data - Ro1 Transgenic mice with a modified G i coupled receptor (Ro1). Experiment: induced expression of Ro1 in mice. 8 control (ctl) mice 9 treatment mice eight weeks after Ro1 being induced. Long-term question: Which groups of genes work together. Based on paper: Conditional expression of a Gi-coupled receptor causes ventricular conduction delay and a lethal cardiomyopathy, see Redfern C. et al. PNAS, April 25, 2000. http://www.pnas.org also http://www.GenMAPP.org/ (Conklin lab, UCSF)

29. 29 Histogram Cluster of genes (1703, 3754)

30. 30 Top 15 averages of gene clusters -13.47869 = (1703, 3754) -12.13754 11.86175 11.74689 11.36089 11.21683 -10.72272 10.79955 = (6194, 1703, 3754) 10.75179 10.63916 -10.48255 = (4572, 4772, 5809) -10.44772 -10.4 10548 = (2534, 1343, 1954) 10.39476 = (6089, 5455, 3236, 4014) Might be influenced by 3754 Correlation T Group ID

31. 31 Remarks Hard to extend this method to negatively correlated clusters of genes. Need to consider together with other methods. Need to identify high averages of clusters of genes that are due to high averages from sub-clusters of those genes. May be worth pursuing. Not clear.

32. 32 Acknowledgments Yee Hwa Yang Sandrine Dudoit Ingrid Lönnstedt Natalie Thorne David Freedman Gordon Smyth Ngai lab, UCB Matt Callow (LBNL) Bruce Conklin Karen Vranizan
