1. Differentially expressed genes
09/19/07

2. Identify differentially expressed genes

3. Fold Change
Based on the expression index, select genes with high fold change (e.g., R/G > 3)
Advantage:
Intuitive
Larger fold change may indicate greater biological impact.
Drawback
Reliable estimates are difficult to get.
1st approach is sensitive to noise; 2nd approach loses quantitative information

4. Fold change is noisy Log-transformed expression in replicate #2
Noise is very high at low intensity.
Log-transformed expression in replicate #1

5. SAM
Significance Analysis of Microarrays (SAM) considers a signal-to-noise ratio.
where
d(i) can large if either the signal is large or the noise is low. Therefore, it is different from fold change.
Genes are ranked by d(i). The top candidates genes correspond to most positive or negative d(i).
(Tusher et al. 2001)

6. Permutation test 2 1 “I” 2 5 I 3 3 4 4 5 6 U “U” 6 1
If a gene expresses at the same level in I and U conditions, then then relabeling the arrays will not affect the result of the value of d.

7. SAM
To test for statistical significance, arrays are randomly permuted.
For each permutation, compute and rank the result dp(i).
Calculate
Idea is that for truly differentially expressed genes, d(i) should be greater than dE(i).
Select those d(i) that are different from dE(i) more than a threshold level D.

8. D

9. Statistical hypothesis testing
Null hypothesis H0: there is no association between the expression levels and the sample groups.
Alternative hypothesis H1: there is association.
Differentially expressed genes Rejection of null hypothesis.
Genes are selected regardless of fold change.
The last feature is often not desirable.

10. Single Hypothesis Testing
Calculate the value a test statistic.
IF the value is very unlikely given the null hypothesis H0, THEN
H0 is rejected and H1 is accepted.
The gene is differentially expressed.
ELSE
H0 is not rejected.
The gene is not differentially expressed.

11. Rejection Region
Density
t-value

12. Two type of errors
Density
t-value

13. p-value
The p-value is the probability of obtaining a result at least as extreme as a given data point.
It is also the minimum significance level required to reject H0.

14. Choice of test statistic
Standard t-test
Assume that yij are Gaussian distributed, then ti is given by the student-t distribution.
A p-value is calculated from t-distribution with the 2n-2 degree of freedom.
Issues:
When n is small the denominator is an unreliable estimate of the variance.
The assumption that yij are Gaussian is often violated in real data.

15. Variance shrinkage
Basic idea: The variance at different genes should be correlated. If the data are noisy, then they are likely to be noisy everywhere. Thus one can use the information from other genes to estimate the variance at a given gene.

16. Variance shrinkage (Smyth 2004) Assume and
where d0 and s02 correspond to the pooled data.
Then
Modify the t-statistic by replacing si2 with
The new statistic obeys t-distribution with d0 + di degrees of freedom.

17. Permutation test 2 1 “normal” 2 5 normal 3 3 4 4 5 6 cancer “cancer” 6
If H0 is correct, then relabeling the arrays will not affect the result of the test statistic.

18. Permutation p-value Permutation-test
For the b-th permutation, b = 1, …, B,
Permute the n columns (array labels) of the data matrix X.
Compute test statistics t1,b, …, tm,b for each hypothesis (whether the m-th gene is not differentially expressed).
The permutation distribution of the test statistic Ti for hypothesis Hi, ti,1, …, ti,B. For two-sided alternative hypotheses, the permutation p-value for hypothesis Hi is
where I(.) is the indicator function, equaling 1 if the condition in parenthesis is true, and 0 otherwise.

19. Permutation p-value permutation distribution t-distribution scaled
H0 is correct
H0 is rejected

20. Multiple hypothesis testing
Microarray experiments measure expression levels of thousand of genes.
The hypothesis testing procedure is applied once for each gene.
A large number of false positives may result.
Cutoff at p = 0.05 for 6000 genes
6000 X 0.05 = 300 genes falsely rejected
If number of real target ~ 100, then most rejected genes are false targets.

24. Bonferroni correction
Let m be the total number of tests. Reject hypothesis at a/m instead of a.
Strong control of FWER.
Too conservative.

25. Adjusted p-value
The adjusted p-value for a single hypothesis Hj is the nominal level of the entire test procedure at which Hj would just be rejected, given the values of all test statistics involved.
Example: pi = If rejecting all hypotheses with cutoff p < pi leads to FDR = 0.2, then the adjusted p-value is 0.2.
The adjusted p-value is dependent on the specific test procedure.

26. Adjusted p-value
The adjusted p-value for Bonferroni correction is.

27. False Discovery Rate
FWER aims at requiring no false positive at all. This is often too stringent in practice.
False discovery rate (FDR) is proposed by Benjamini and Hochberg (1995). The idea is to allow a few false positives while enhancing the power.

28. Control of FDR, BH-procedure
Find ordered observed p-values, and
Let k be the largest i for which
Reject all H1, …, Hk.
(Benjamini and Hochberg, 1995)

29. Control of FDR, BH-procedure
Find ordered observed p-values, and
Let k be the largest i for which
Reject all H1, …, Hk.
Strongly controls FDR
Also weakly controls FWER
(Benjamini and Hochberg, 1995)

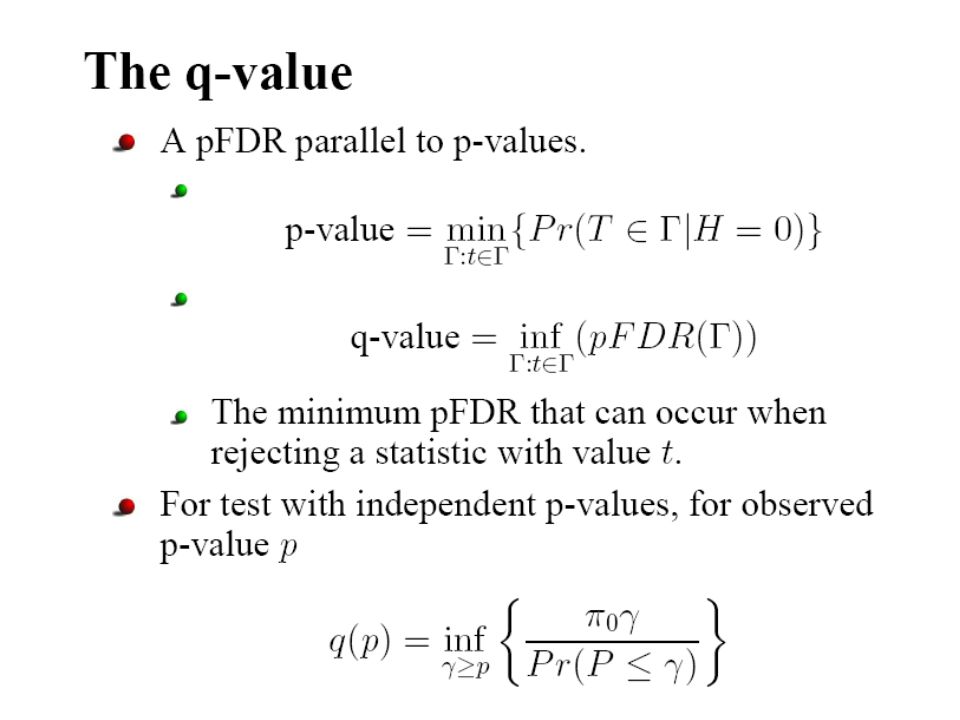

30. Positive false discovery rate (pFDR)
Better power than FDR procedure.
Estimate

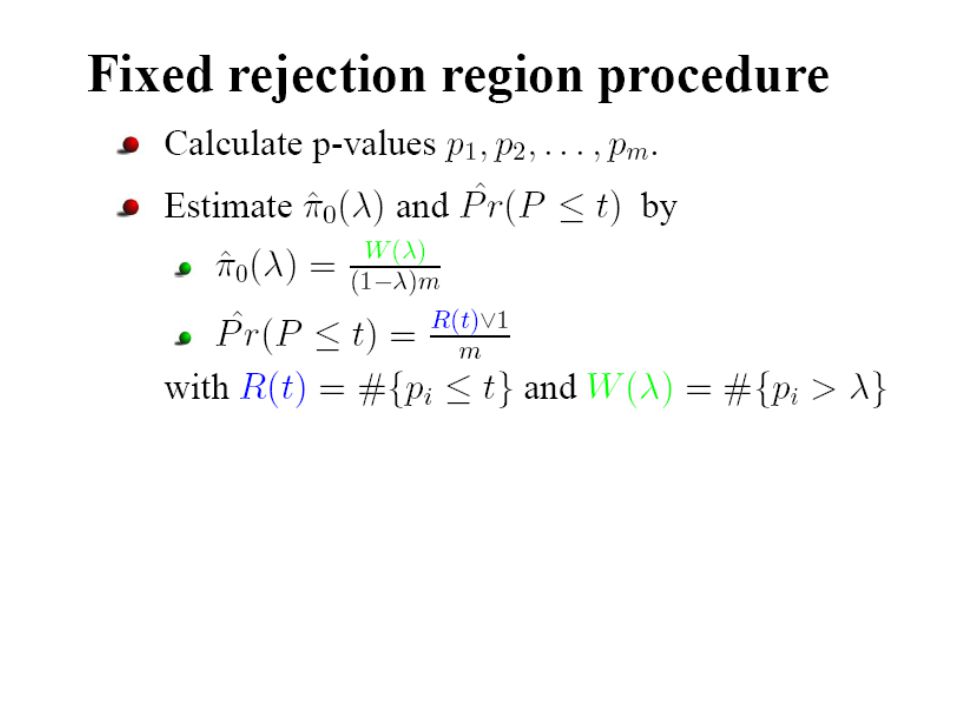

31. Estimation of p0(t)
Under the null hypothesis, p-value is uniformly distributed.

32. Estimation of p0(t) Procedure: Choose 0 < l < 1
Assume pi is uniformly distributed at p > l.
Then estimate as l

38. (Streinsland)

39. (Streinsland)

40. SAM
To test for statistical significance, arrays are randomly permuted.
For each permutation, compute and rank the result dp(i).
Calculate
Idea is that for truly differentially expressed genes, d(i) should be greater than dE(i).
Select those d(i) that are different from dE(i) more than a threshold level D.

41. Estimation of FDR in SAM
R ≈ #(genes called significant)
V ≈ #(genes called significant in permutation tests)
FDR ≈ V/R
Power of SAM is better than fold change criteria.

42. Data: Apo AI experiment
8 mice in treatment group (apo AI knockout); 8 mice in control group (normal)
16 arrays: Cy5 – mRNA from trt or control mice; Cy3 – mRNA from pooled control mice.
6356 genes.
Want to detect differentially (trt vs control mice) expressed genes.

43. SAM is the least stringent

44. Cutoff value vs top genes
Each metric can be viewed as a monotonic transformation of another.
The only difference is the cutoff values are different.
All statistical hypothesis testing methods are equivalent in terms of selecting the top k genes, for a fixed k.
