1. Binning Strategies for Tissue Texture Extraction in DICOM Images CTI Students: Bikash Bhattacharyya, Kriti Jauhar Advisors: Dr. Daniela Raicu, Dr. Jacob Furst Advisors: Dr. Daniela Raicu, Dr. Jacob Furst Submitted To: RSNA Conference ‘05, Chicago, IL

2. Why Binning ?  Binning Definition: Putting gray-levels into bins for image compression e.g. 1,2,3,4 gray levels in Bin 1 5,6,7,8 gray levels in Bin 2  DICOM Images – 12 Bit - 4096 intensities  Texture Feature Calculation – All intensities - SLOW  Binning allows for additional flexibility to trade off large intensity ranges against computational speed COMPUTATION PERFORMANCE

3. Linear Binning  Linear Binning - Bins of equal size 256 bins for DICOM images produces bin ranges [0..15], [16..31], … [4081..4096]  Quick and Efficient approach  Pre -processing step for Harlick texture feature calculation  Promising results for classification of tissues based on Haralick texture features

4. Disadvantages of Linear Binning  Soft tissues with similar intensities may end up in the same bin with linear binning  Soft tissues misclassification  Accuracy of Liver and Spleen not very high  Computed Tomography images contain low number of pixel in the range [1500 – 4096] Non-Linear Binning – Is it possible to improve accuracy of soft tissues?

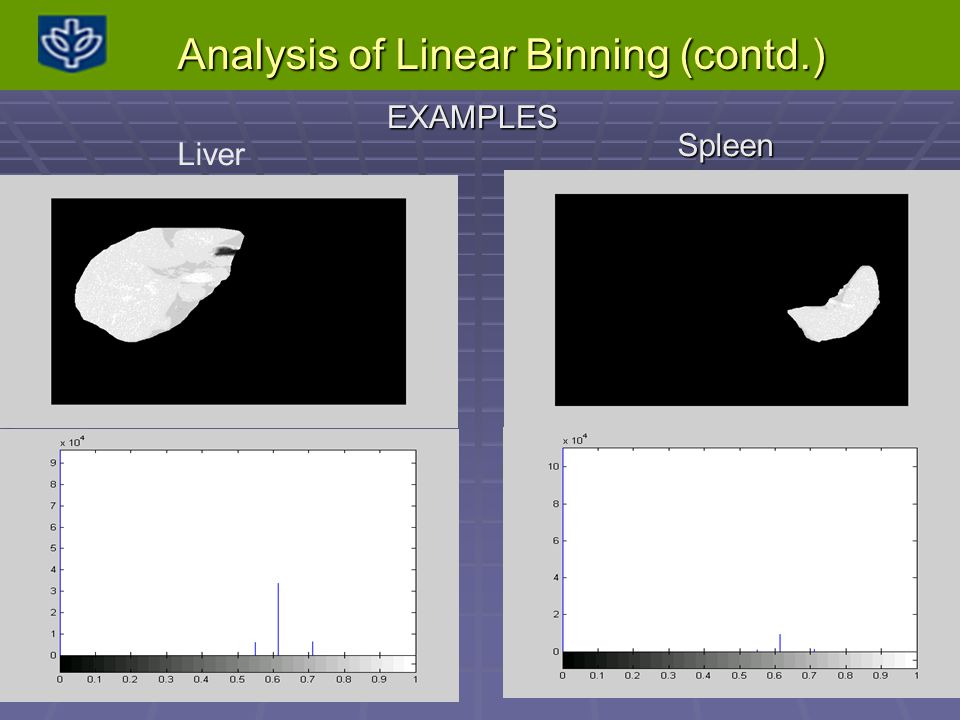

5. Analysis of Linear Binning (contd.) Liver Spleen EXAMPLES

6. PROCESS SUMMARY

7. Two Approaches of Non-Linear Binning Clipped Binning based on visual inspection of gray levels Range [0, 856] mapped to Bin 1 Range [0, 856] mapped to Bin 1 Range [1368, 4096] mapped to Bin 258 Range [1368, 4096] mapped to Bin 258 Range [856, 1368] mapped to 256 linear bins Range [856, 1368] mapped to 256 linear bins e.g. 856 to 858 gray levels in Bin 123 e.g. 856 to 858 gray levels in Bin 123 Non Linear Binning based on K-Means Clustering 256 Clusters – Compare results of 256 linear-bins Distance Measure – Euclidean Clusters of Gray Level Ranges Gray Level ranges form Non-linear Bins

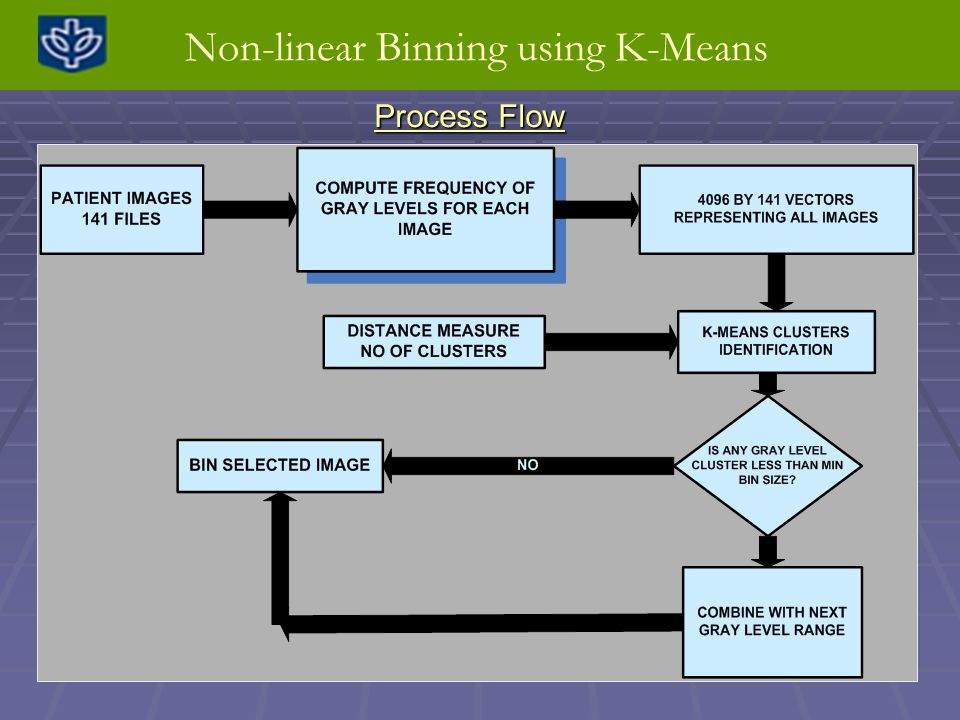

8. Process Flow Non-linear Binning using K-Means

9. K-Means  K =256  141 Dimensions/Images  4096 points/Gray Levels  Initial Points /Random Centroids  Similarity Metric = Euclidean Distance Issues  263 Unique Gray Levels Identified  Multiple Gray Levels – Identified in one Cluster e.g. Cluster 14 has gray levels from 462 to 884 Cluster 14 also has gray levels from 1540 to 1542 CLUSTER Start GL End GL 14462884 1413631365 1413671537 1415391539 1415431543 13915381538 13915401542 13915444095

10. Classification Results TRAINING SET

11. Classification Results TESTING SET

12. Graphical User Interface

13. Conclusion  Non-Linear Binning with K-Means gave us the best overall results ( 86.35%)  Results for Liver and Spleen improved from 73.80% to 91.03% for liver and 70.50% to 74.58% for spleen  Clipped Binning performed poorly on testing set with overall sensitivity of only 68.85%  Results with K-Means improved over Linear Binning

14. Future Work  Experimenting with bins other than 256 such as: 64, 128 etc.  Exploring other similarity measures such as: Jeffrey Divergence, Mahalanobis Distance etc.  Testing other classification algorithms besides decision trees, such as: Neural Networks, Bayesian Networks, Logistic Regression etc.
