1. Title Page

2. What is a Black Hole? Definition: a place where the escape velocity is faster than the speed of light.

3. Close-up Picture of a Black Hole

4. Escape Velocity Definition: the velocity at which something must travel away from an object such that the gravity of the object cannot stop it.

5. Escape Velocity (2) Escape velocity depends on thegravity of the object

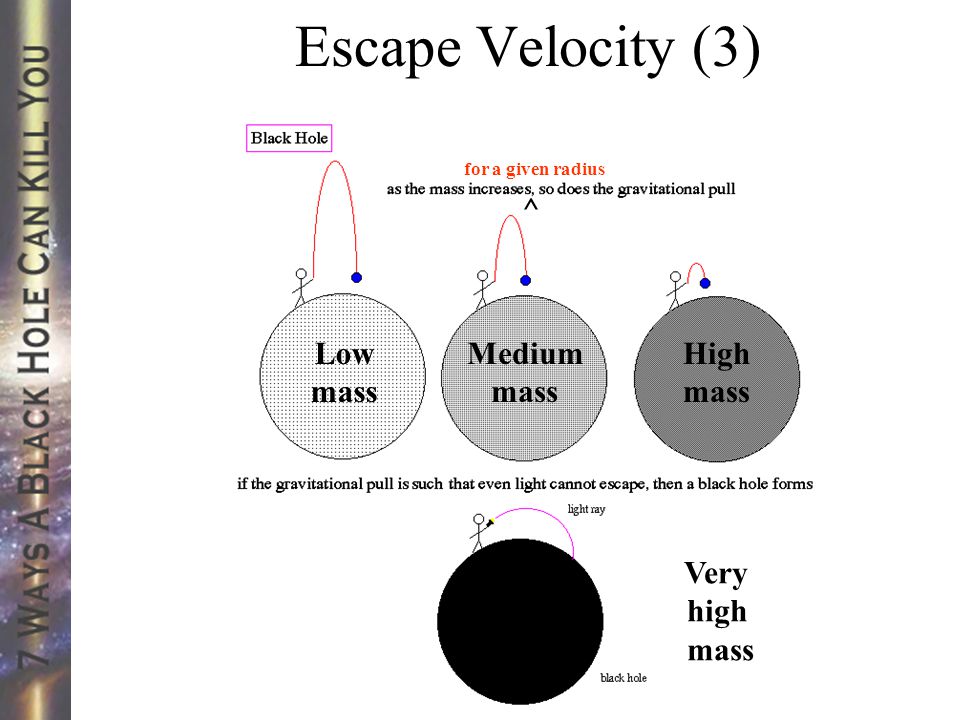

6. Escape Velocity (3) Low mass Medium mass High mass Very high mass for a given radius ^

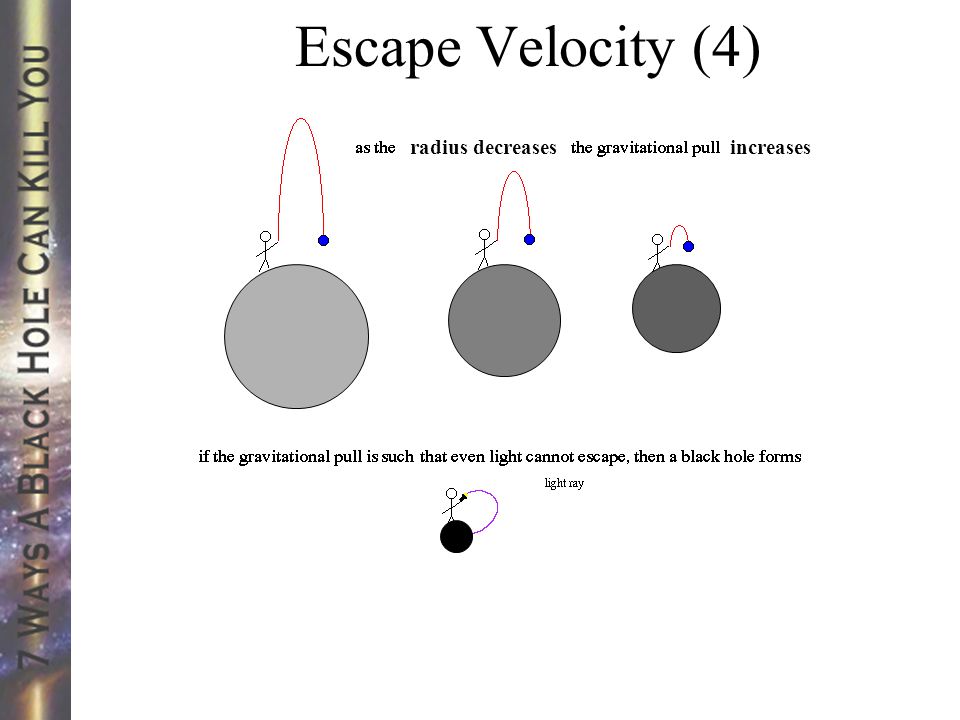

7. Escape Velocity (4) radius decreasesincreases

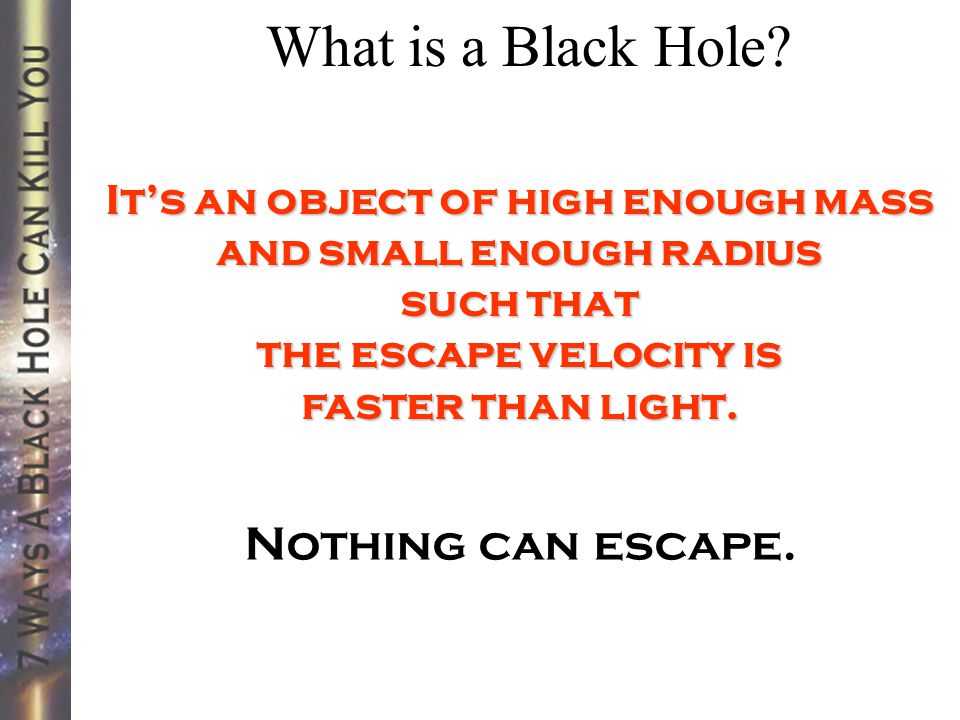

8. What is a Black Hole? It’s an object of high enough mass and small enough radius such that the escape velocity is faster than light. Nothing can escape.

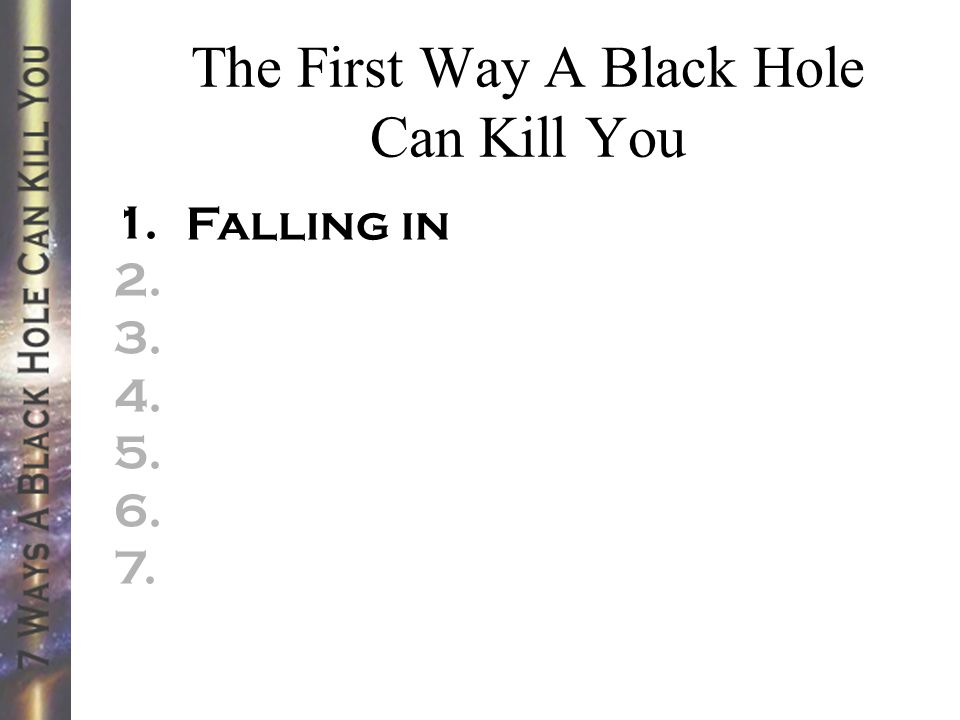

9. The First Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in

10. Down the Drain

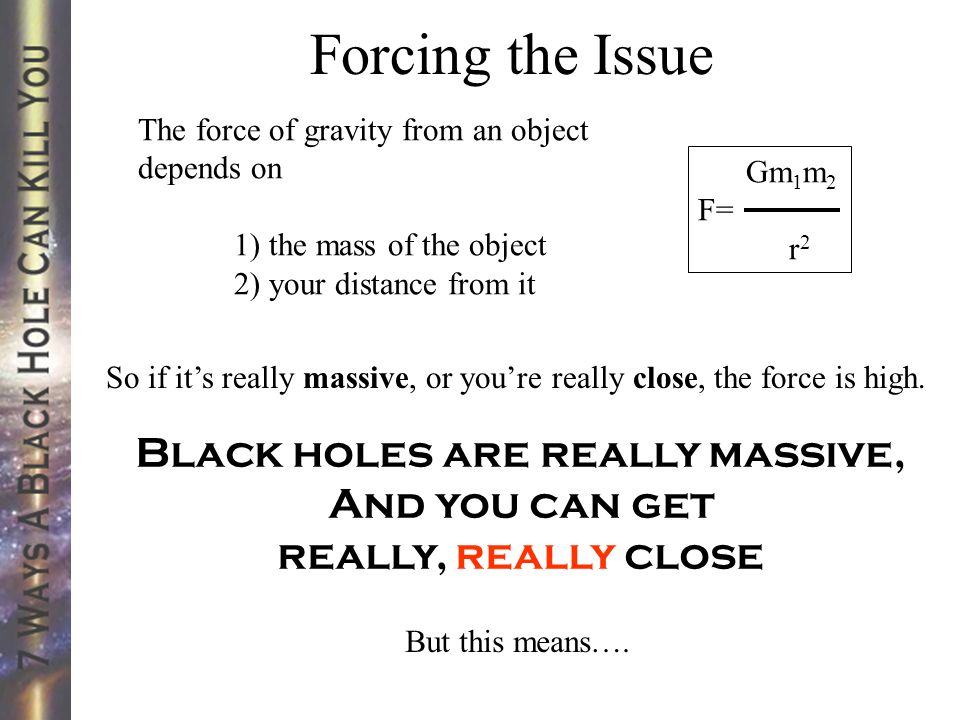

11. Forcing the Issue The force of gravity from an object depends on 1) the mass of the object 2) your distance from it Black holes are really massive, And you can get really, really close But this means…. Gm 1 m 2 F= r 2 So if it’s really massive, or you’re really close, the force is high.

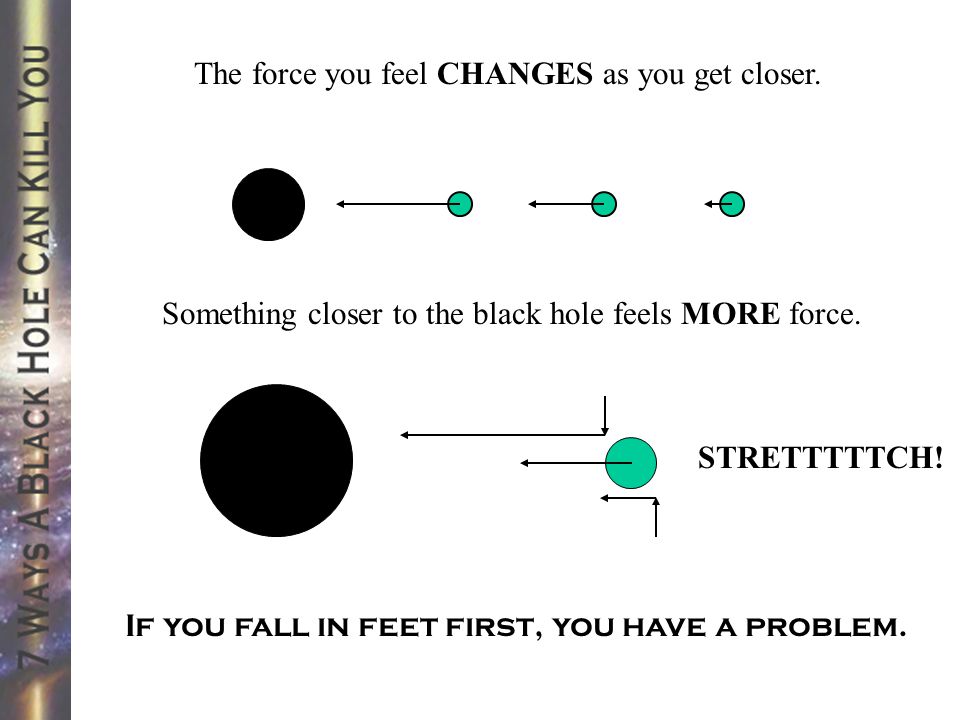

12. Forcing the Issue (2) The force you feel CHANGES as you get closer. Something closer to the black hole feels MORE force. If you fall in feet first, you have a problem. STRETTTTTCH!

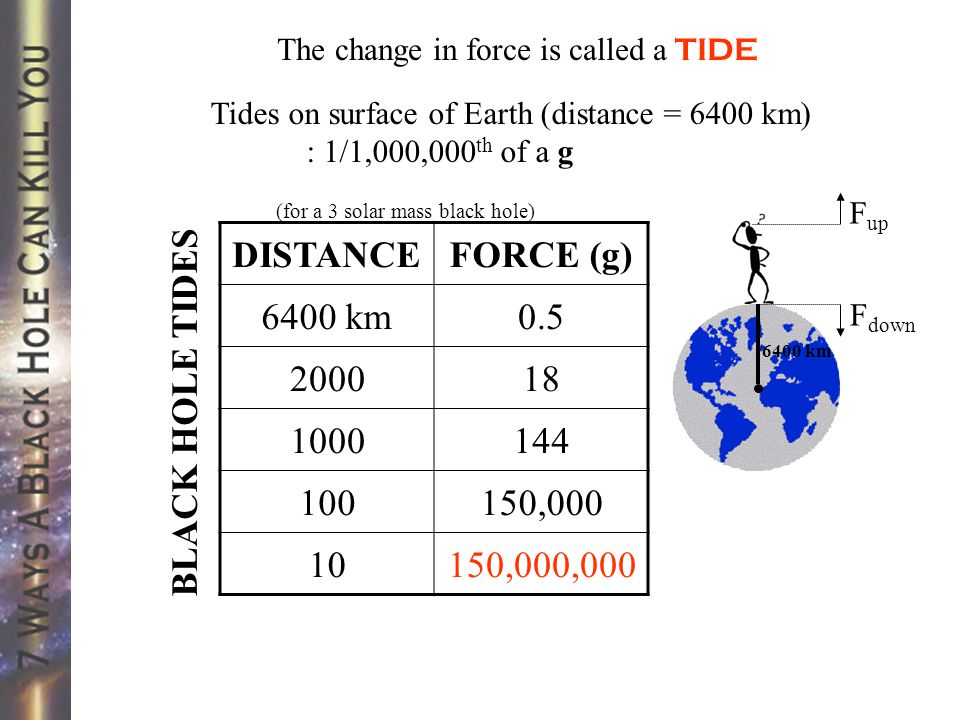

13. There is a Tide The change in force is called a TIDE Tides on surface of Earth (distance = 6400 km) : 1/1,000,000 th of a g DISTANCEFORCE (g) 6400 km0.5 200018 1000144 100150,000 10150,000,000 BLACK HOLE TIDES 6400 km F up F down (for a 3 solar mass black hole)

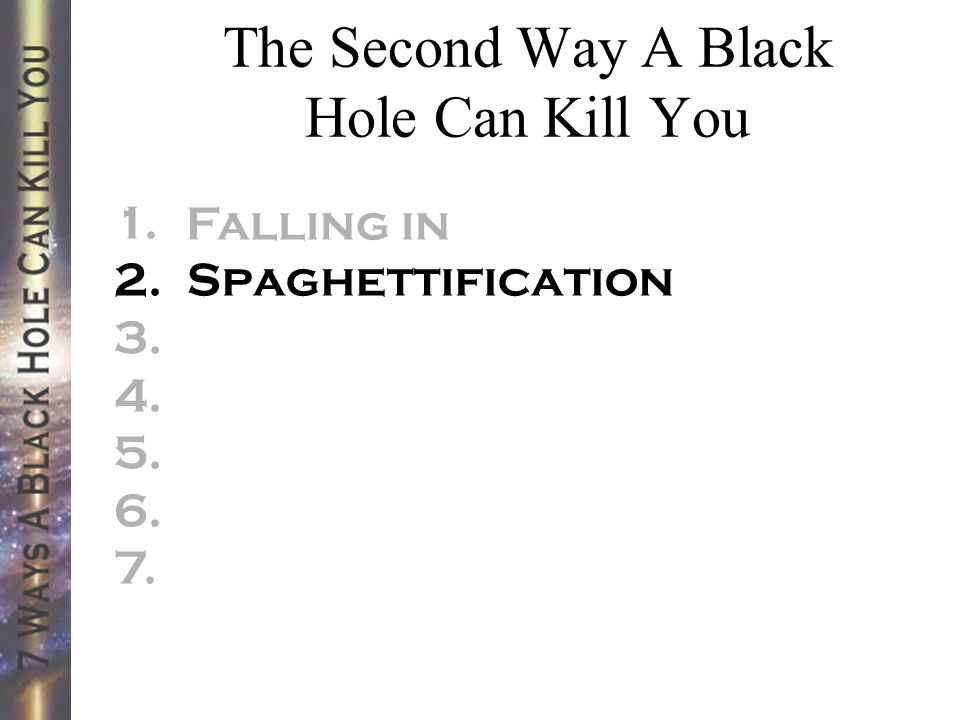

14. The Second Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification

15. Why the long face?

17. The Third Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born

18. Cold War, Hot Topic Vela Satellites flown to detect nuclear explosions on Earth in 1960s and 1970s by looking for gamma rays Over their lifetime, they detected 73 events. NOT ONE WAS OF THIS EARTH

19. Gamma Ray Bursts GRBs happen every day, somewhere in the Universe

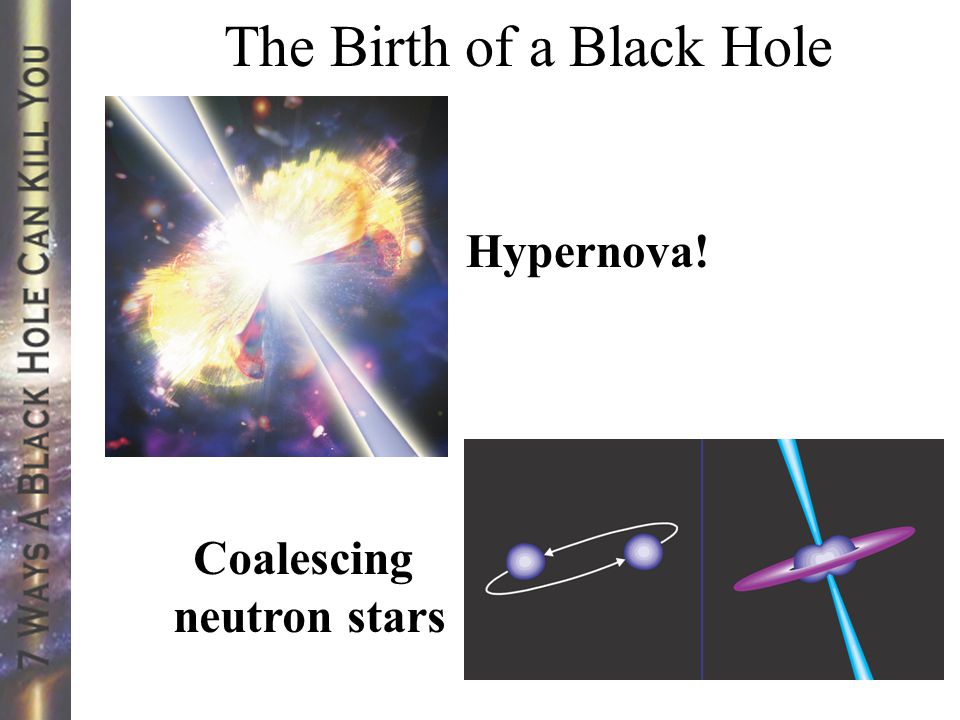

20. The Birth of a Black Hole Hypernova! Coalescing neutron stars

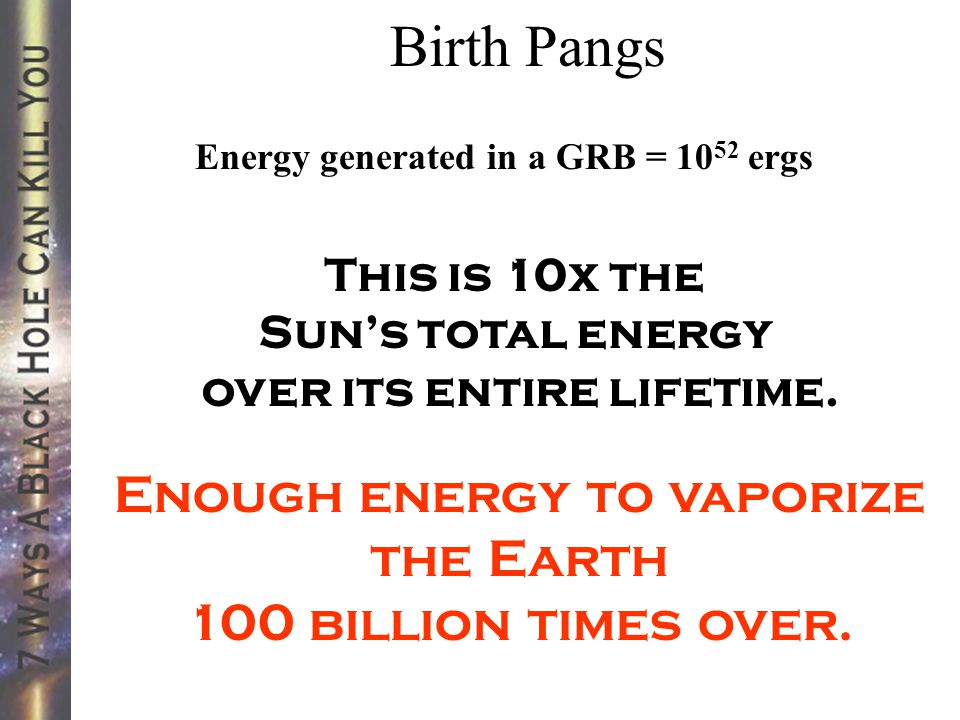

21. Birth Pangs Energy generated in a GRB = 10 52 ergs This is 10x the Sun’s total energy over its entire lifetime. Enough energy to vaporize the Earth 100 billion times over.

22. Pfffssssst!

23. NASA’s Swift Response Swift will detect >100 GRBs per year Due for launch in spring 2004

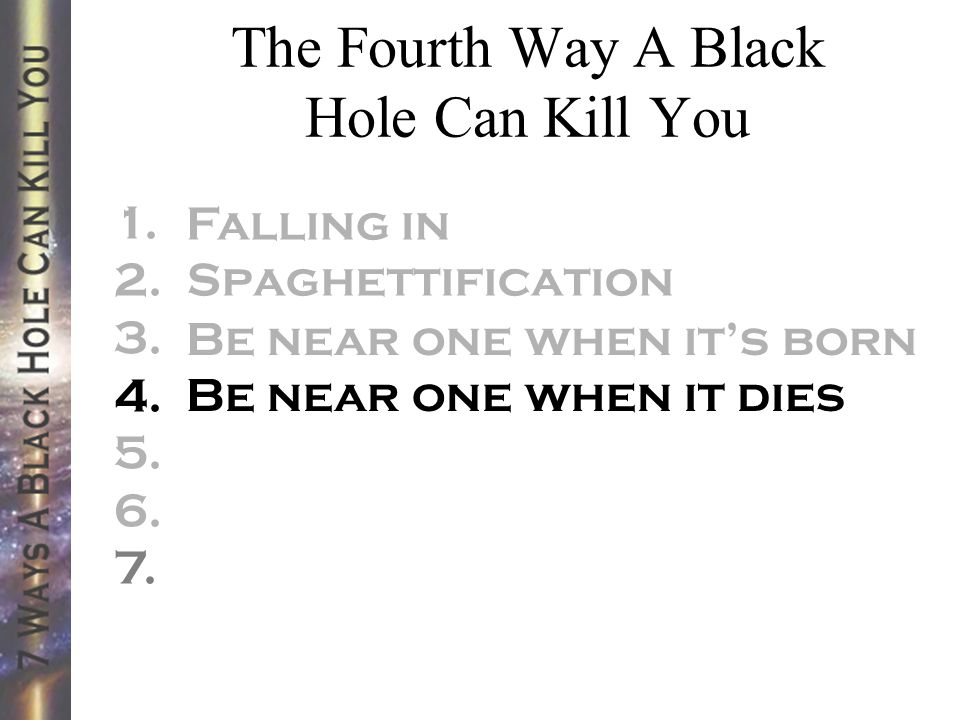

24. The Fourth Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born Be near one when it dies

25. Pare Production Particles created here Buh bye! Free at last! Black hole Hawking Radiation: 2 particles created, one particle leaves Net Effect: Black holes radiate away energy

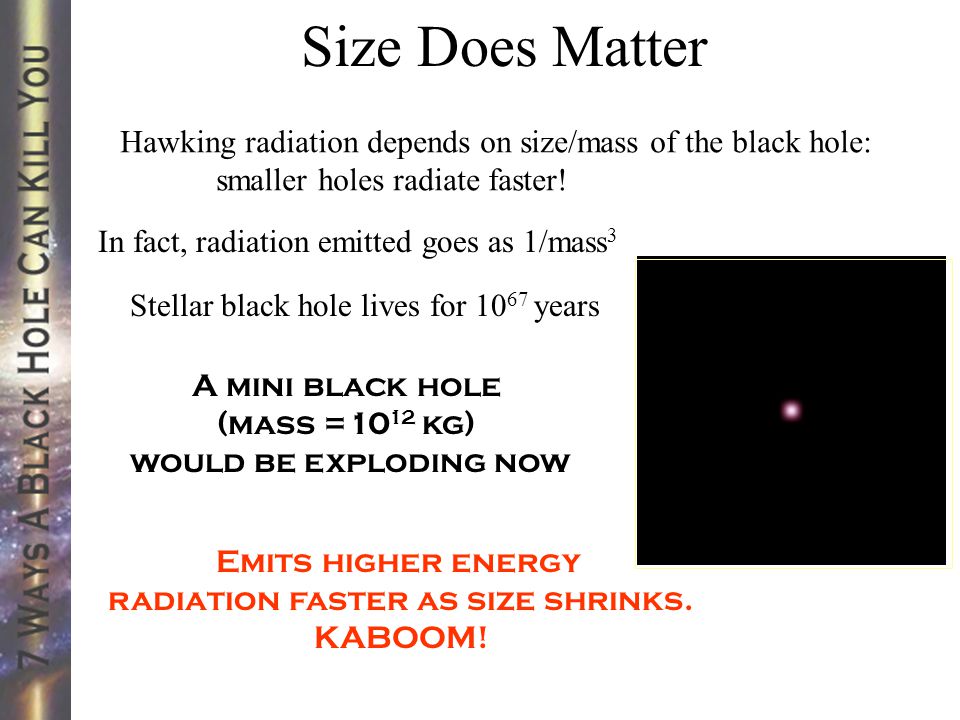

26. Size Does Matter Hawking radiation depends on size/mass of the black hole: smaller holes radiate faster! In fact, radiation emitted goes as 1/mass 3 Stellar black hole lives for 10 67 years A mini black hole (mass =10 12 kg) would be exploding now Emits higher energy radiation faster as size shrinks. KABOOM!

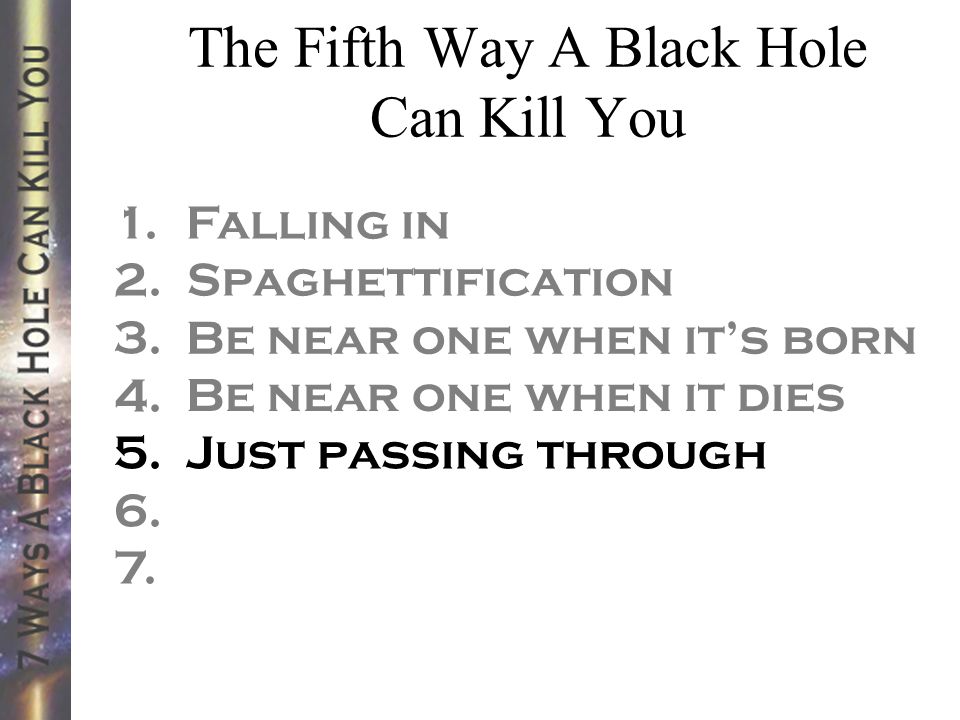

27. The Fifth Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born Just passing through Be near one when it dies

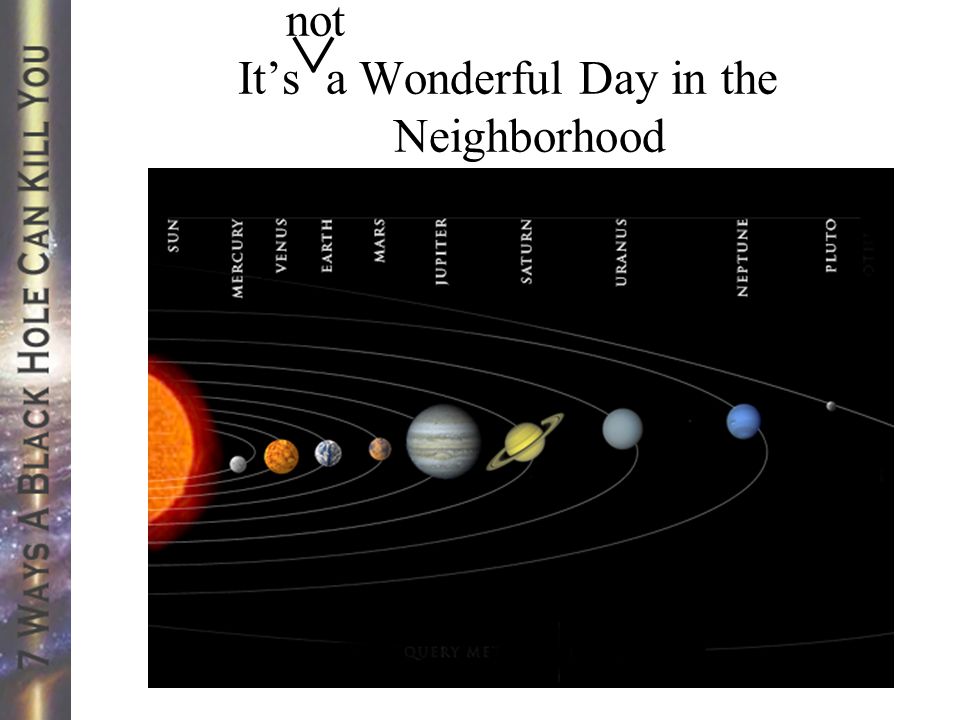

28. not It’s a Wonderful Day in the Neighborhood

29. Orbit Simulation Go to orbit animation

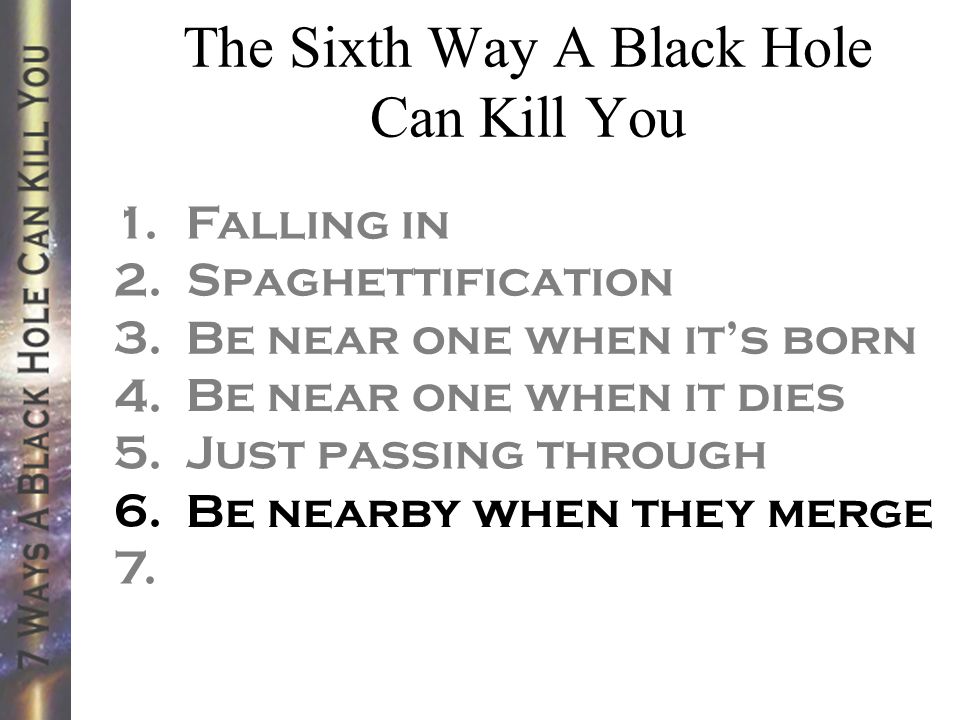

30. The Sixth Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born Just passing through Be nearby when they merge Be near one when it dies

31. When Galaxies Collide

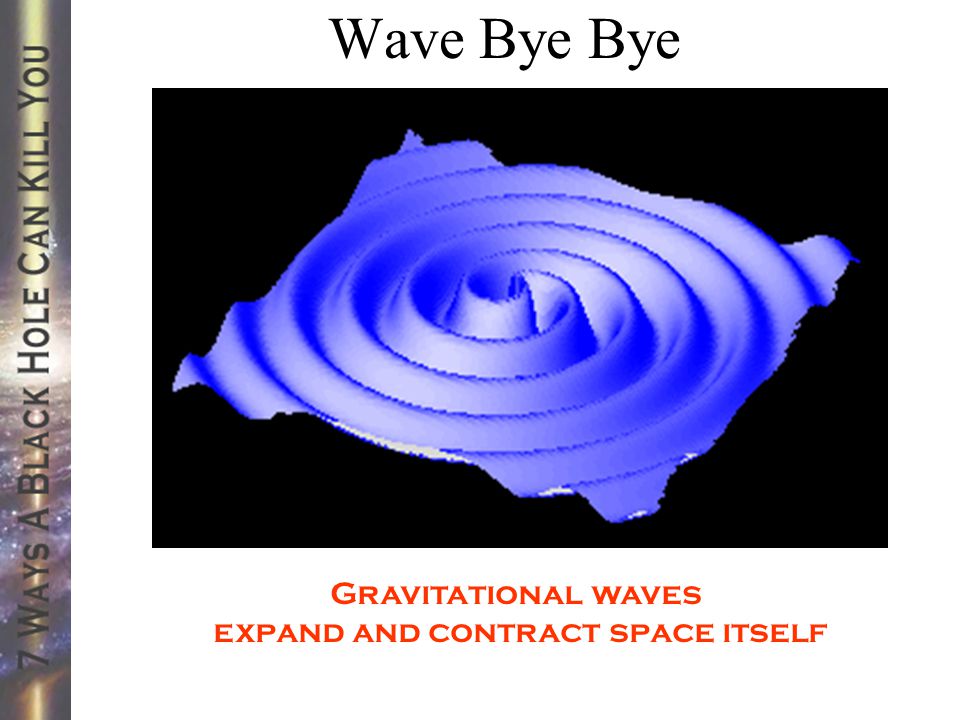

32. Wave Bye Bye Gravitational waves expand and contract space itself

33. The Long and the Short of It

34. ESA’s Response: LISA 3 “Wagon wheels” That will detect passing gravitational waves Target launch: 2011

35. The Seventh Way A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born Just passing through Be nearby when they merge Be near one when it dies Fried by the light

36. Traveling Companion HD 226868: just your typical bloated supergiant star… but it has a secret HD 226868 in X-rays (100,000x energy of Sun!) Cygnus X-1 Hey, where is it?

37. The Hideous Vortex

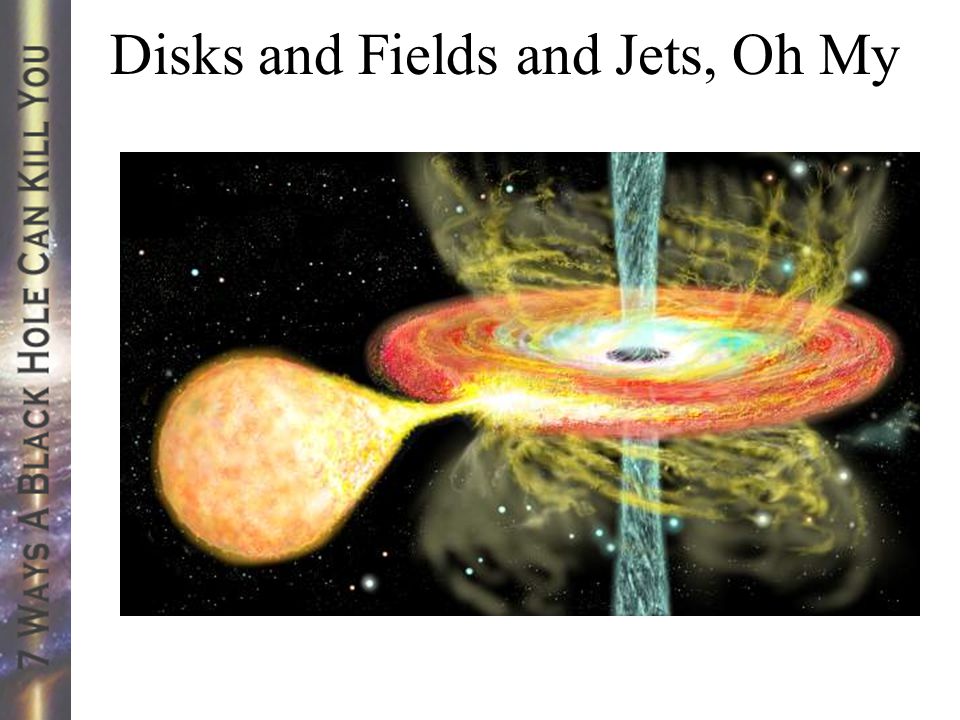

38. Disks and Fields and Jets, Oh My

39. The Sky by Eye

40. DIRBE’s Milky Way

41. EXTREME Close up

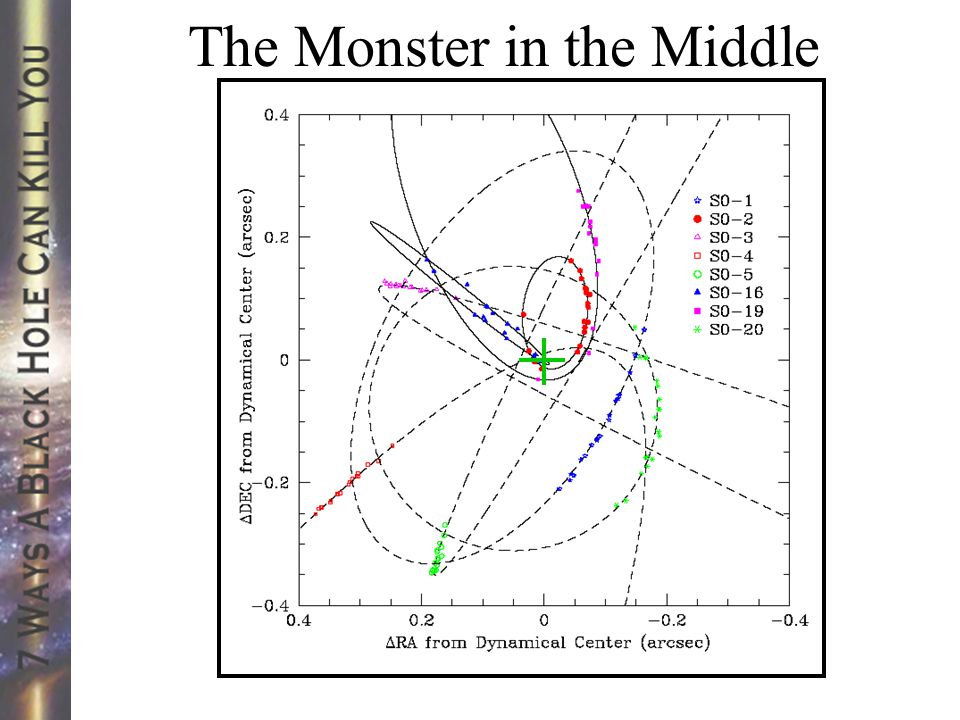

42. The Monster in the Middle

43. Not-so-compact Disk

44. Video Disk

45. Angry Neighbors Cygnus A M 87 (600 million light years) (60 million light years)

46. Blast from the Past

47. Our GLAST Resort Gamma-Ray Large Area Space Telescope Launch in 2006 GLAST will see thousands of active galaxies

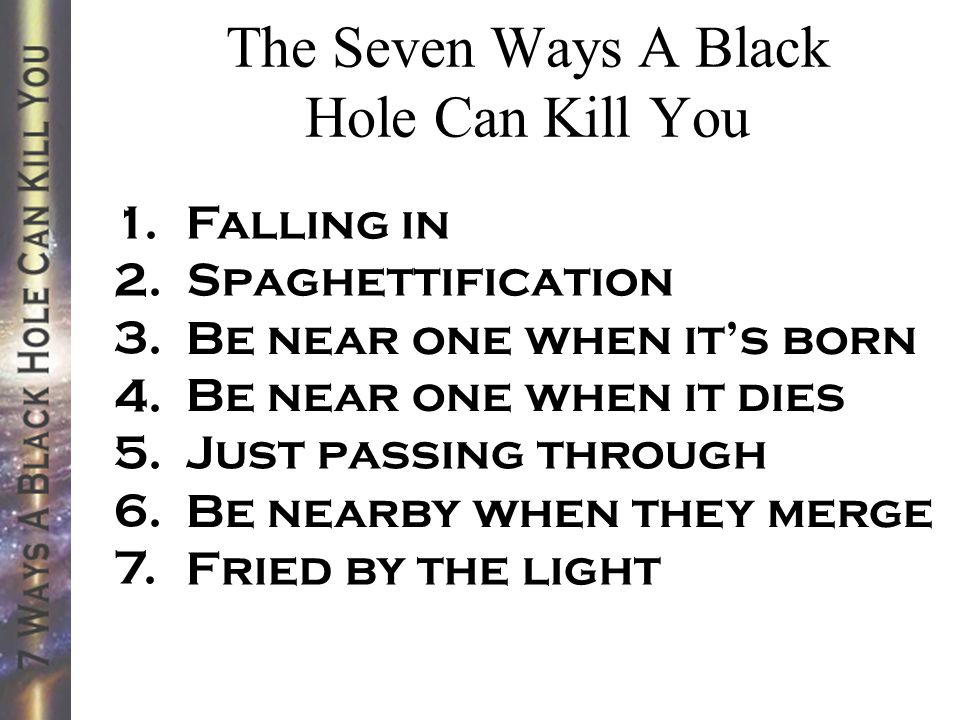

48. The Seven Ways A Black Hole Can Kill You 1. 2. 3. 4. 5. 6. 7. Falling in Spaghettification Be near one when it’s born Just passing through Be nearby when they merge Fried by the light Be near one when it dies

49. What’s on the other side…?
