Copyright © 2010 Pearson Education, Inc. Chapter 13 Black Holes.

Similar presentations


Presentation on theme: "Copyright © 2010 Pearson Education, Inc. Chapter 13 Black Holes."— Presentation transcript:

1 Copyright © 2010 Pearson Education, Inc. Chapter 13 Black Holes

2

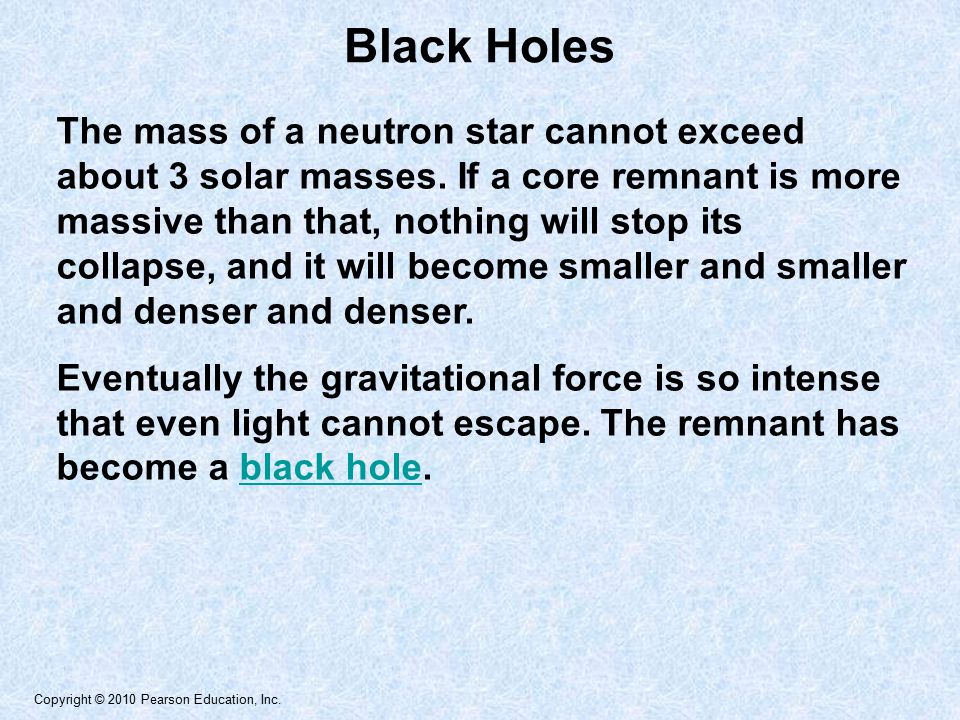

3 Copyright © 2010 Pearson Education, Inc. The mass of a neutron star cannot exceed about 3 solar masses. If a core remnant is more massive than that, nothing will stop its collapse, and it will become smaller and smaller and denser and denser. Eventually the gravitational force is so intense that even light cannot escape. The remnant has become a black hole.black hole Black Holes

4 Copyright © 2010 Pearson Education, Inc. Gravitational Lensing

5 Copyright © 2010 Pearson Education, Inc. Black Holes Black Hole and Neutron Star Dance Black Hole Geometry

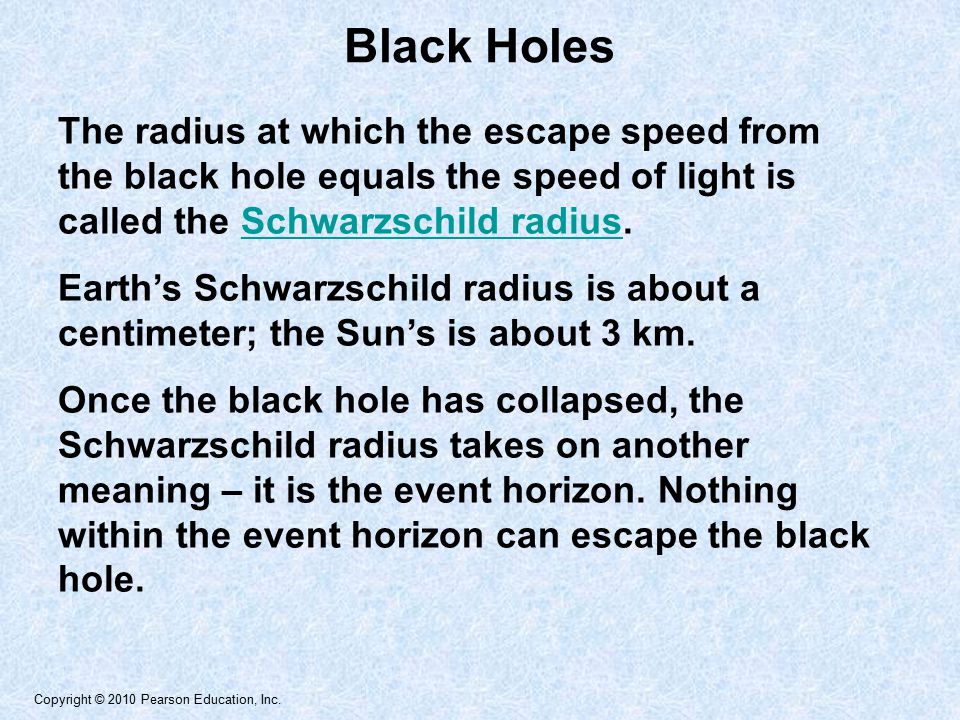

6 Copyright © 2010 Pearson Education, Inc. The radius at which the escape speed from the black hole equals the speed of light is called the Schwarzschild radius.Schwarzschild radius Earth’s Schwarzschild radius is about a centimeter; the Sun’s is about 3 km. Once the black hole has collapsed, the Schwarzschild radius takes on another meaning – it is the event horizon. Nothing within the event horizon can escape the black hole. Black Holes

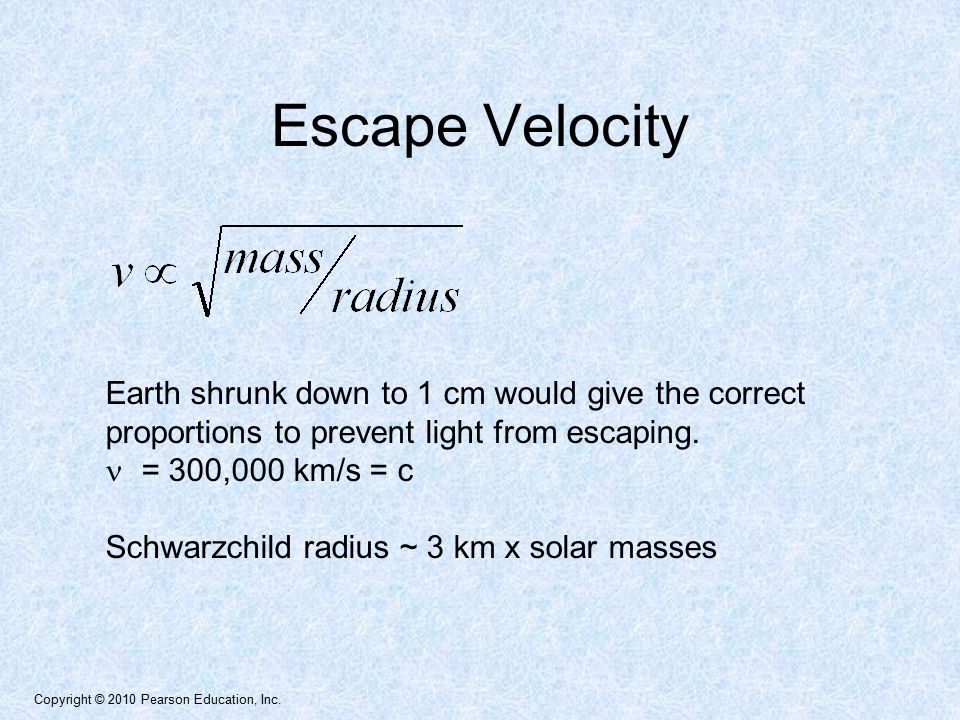

7 Copyright © 2010 Pearson Education, Inc. Escape Velocity Earth shrunk down to 1 cm would give the correct proportions to prevent light from escaping. = 300,000 km/s = c Schwarzchild radius ~ 3 km x solar masses

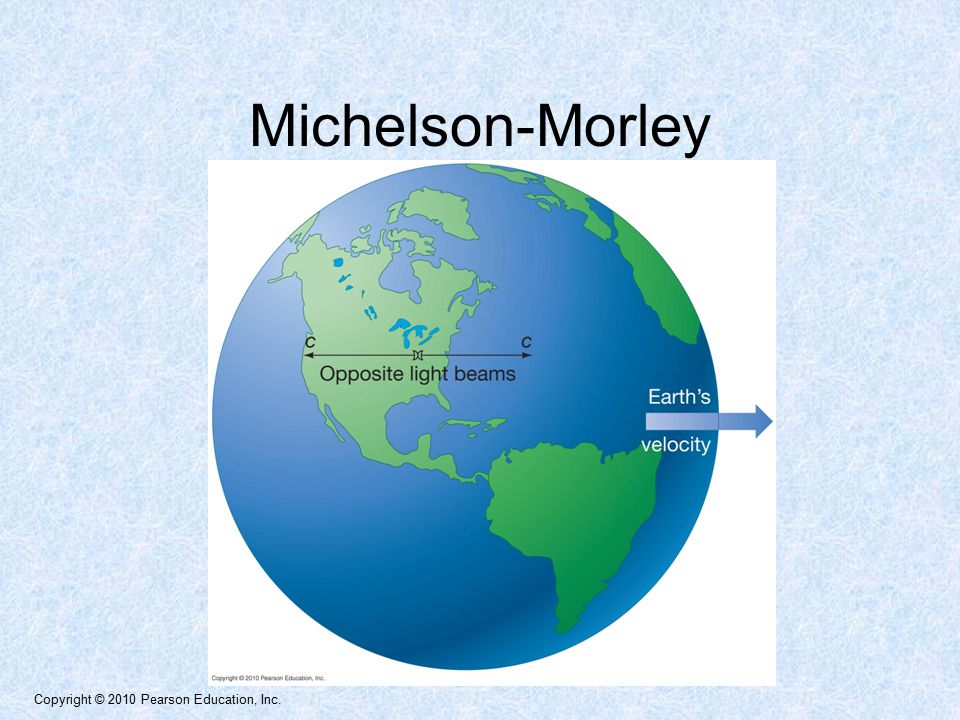

8 Copyright © 2010 Pearson Education, Inc. Michelson-Morley

9 Copyright © 2010 Pearson Education, Inc. Special relativity: 1. The speed of light is the maximum possible speed, and it is always measured to have the same value by all observers. Einstein’s Theories of Relativity

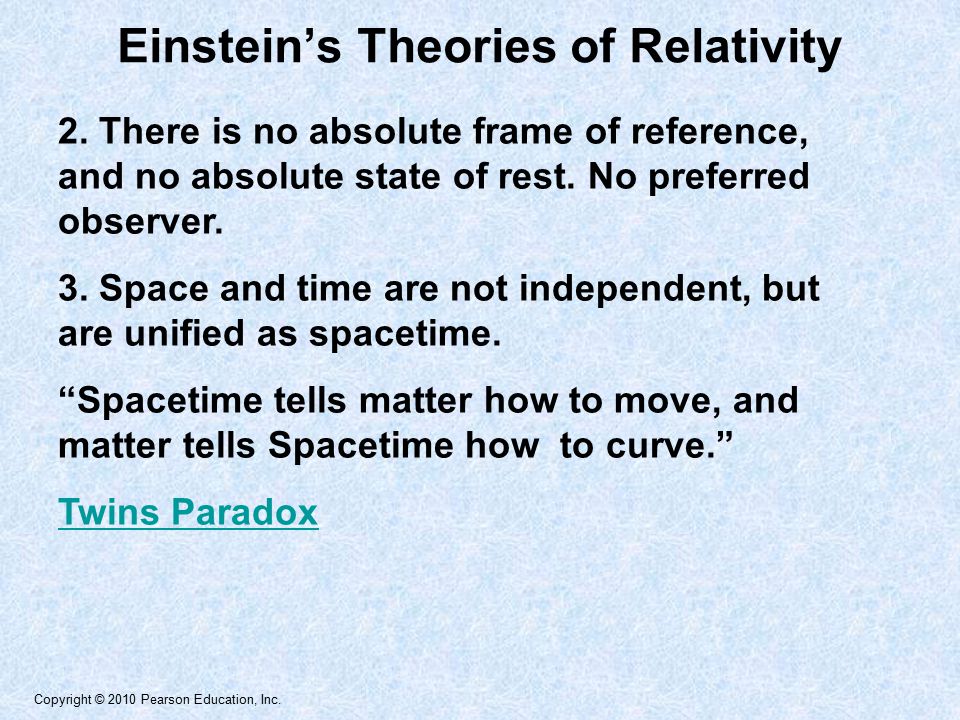

10 Copyright © 2010 Pearson Education, Inc. 2. There is no absolute frame of reference, and no absolute state of rest. No preferred observer. 3. Space and time are not independent, but are unified as spacetime. “Spacetime tells matter how to move, and matter tells Spacetime how to curve.” Twins Paradox Einstein’s Theories of Relativity

11 Copyright © 2010 Pearson Education, Inc. Einstein’s Theories of Relativity Special Relativity As objects move faster 1.Time dilation 2.Increase in Mass 3.Length contraction

12 Copyright © 2010 Pearson Education, Inc. General relativity: It is impossible to tell, from within a closed system, whether one is in a gravitational field, or accelerating. Einstein’s Theories of Relativity

13 Copyright © 2010 Pearson Education, Inc. Matter tends to warp Spacetime, and in doing so redefines straight lines (the path a light beam would take). A black hole occurs when the “indentation” caused by the mass of the hole becomes infinitely deep. Einstein’s Theories of Relativity

14 Copyright © 2010 Pearson Education, Inc. a) a beam of light. b) a massive object. c) neutrinos. d) antimatter. e) All of the above are correct. Question 1 The force of gravity can pull on

15 Copyright © 2010 Pearson Education, Inc. a) a beam of light. b) a massive object. c) neutrinos. d) antimatter. e) All of the above are correct. Question 1 The force of gravity can pull on Gravity is described by general relativity as a bending of space, and all particles, including photons, move through warped space along curved paths.

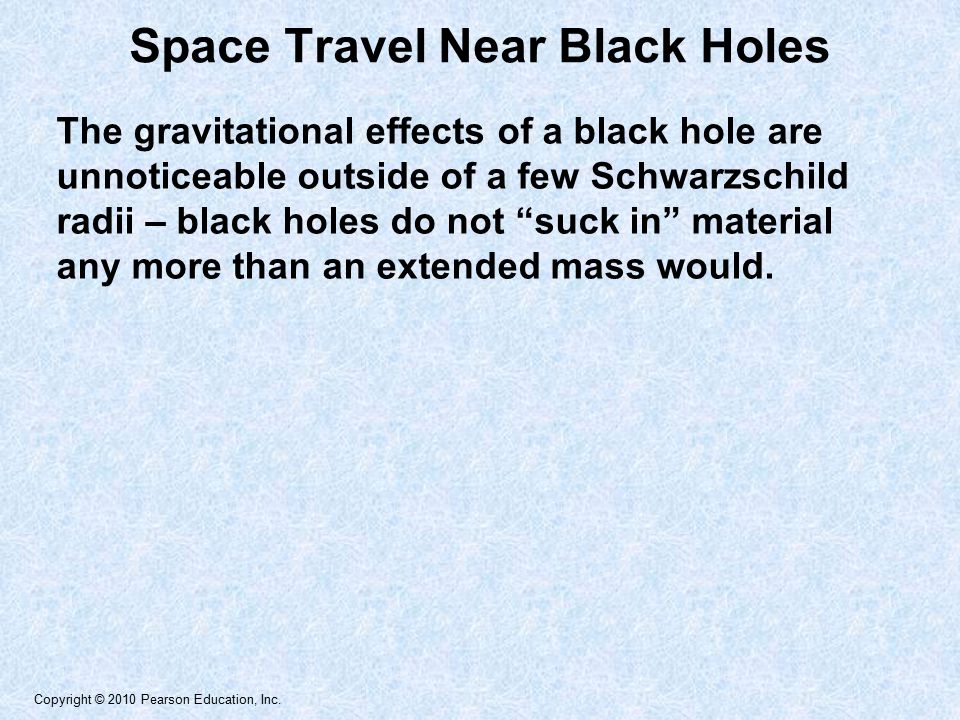

16 Copyright © 2010 Pearson Education, Inc. The gravitational effects of a black hole are unnoticeable outside of a few Schwarzschild radii – black holes do not “suck in” material any more than an extended mass would. Space Travel Near Black Holes

17 Copyright © 2010 Pearson Education, Inc. Matter encountering a black hole will experience enormous tidal forces that will both heat it enough to radiate, and tear it apart. Space Travel Near Black Holes

18 Copyright © 2010 Pearson Education, Inc. A probe nearing the event horizon of a black hole will be seen by observers as experiencing a dramatic redshift as it gets closer, so that time appears to be going more and more slowly as it approaches the event horizon. This is called a gravitational redshift – it is not due to motion, but to the large gravitational fields present.gravitational redshift The probe itself, however, does not experience any such shifts; time would appear normal to anyone inside. Space Travel Near Black Holes

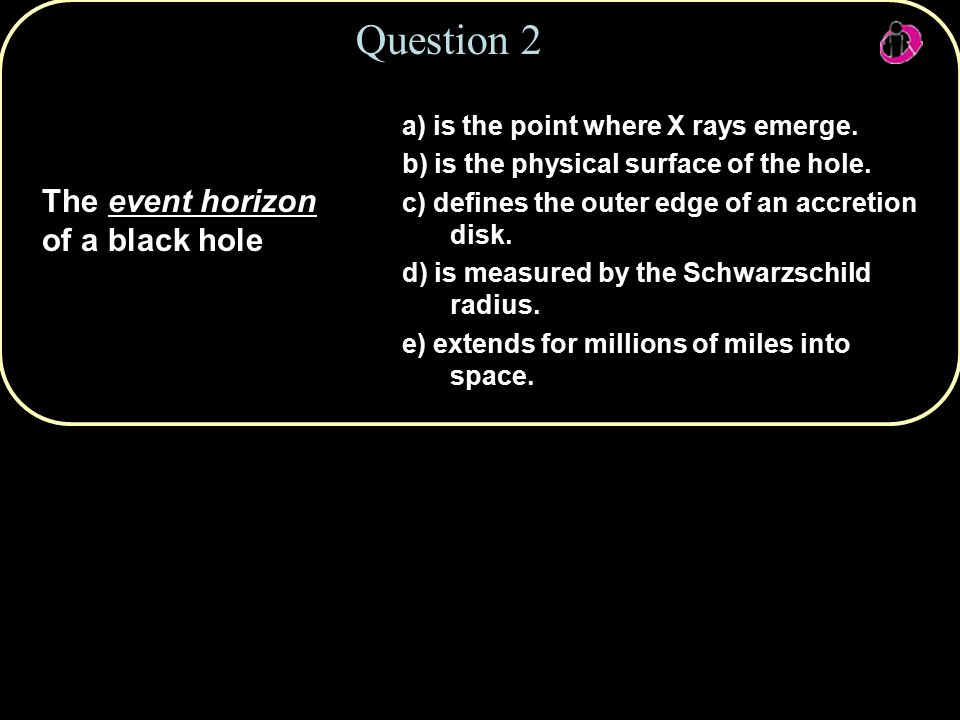

19 Copyright © 2010 Pearson Education, Inc. a) is the point where X rays emerge. b) is the physical surface of the hole. c) defines the outer edge of an accretion disk. d) is measured by the Schwarzschild radius. e) extends for millions of miles into space. Question 2 The event horizon of a black hole

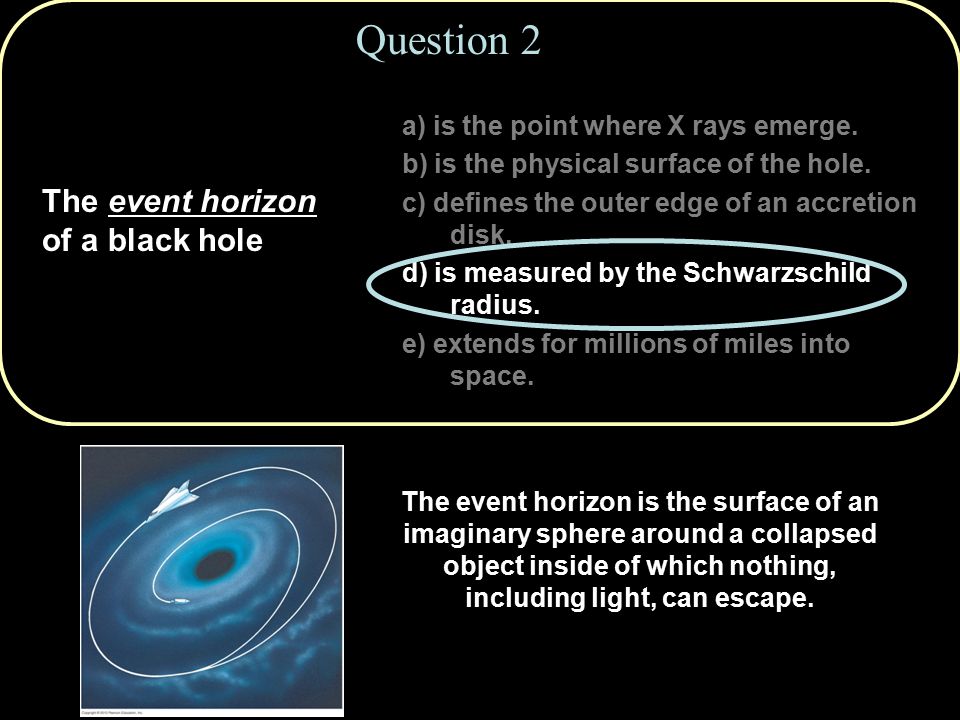

20 Copyright © 2010 Pearson Education, Inc. a) is the point where X rays emerge. b) is the physical surface of the hole. c) defines the outer edge of an accretion disk. d) is measured by the Schwarzschild radius. e) extends for millions of miles into space. Question 2 The event horizon of a black hole The event horizon is the surface of an imaginary sphere around a collapsed object inside of which nothing, including light, can escape.

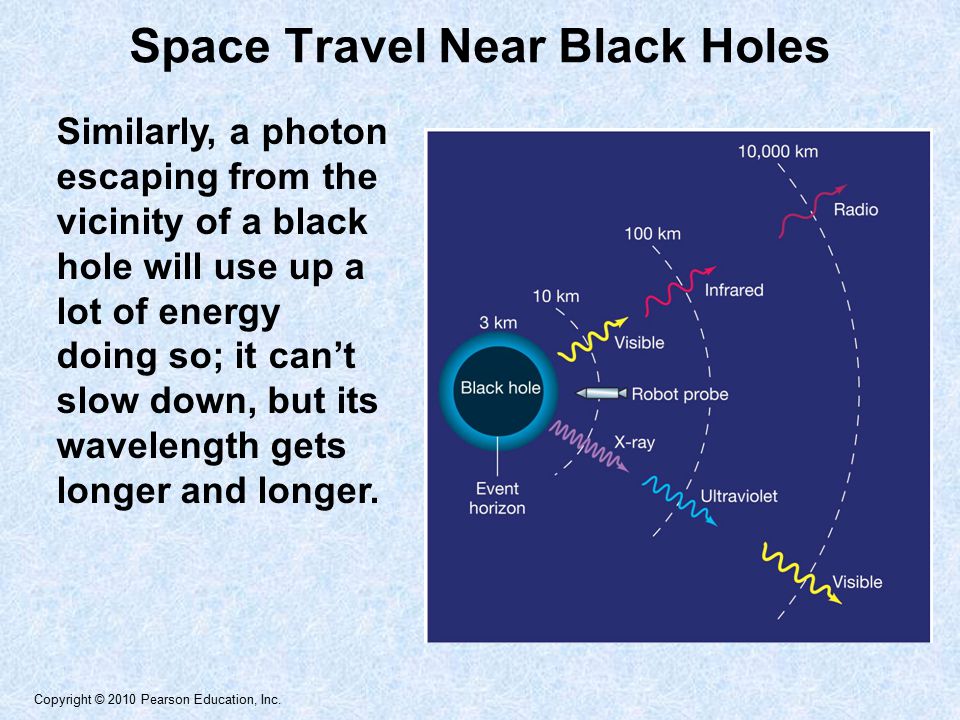

21 Copyright © 2010 Pearson Education, Inc. Similarly, a photon escaping from the vicinity of a black hole will use up a lot of energy doing so; it can’t slow down, but its wavelength gets longer and longer. Space Travel Near Black Holes

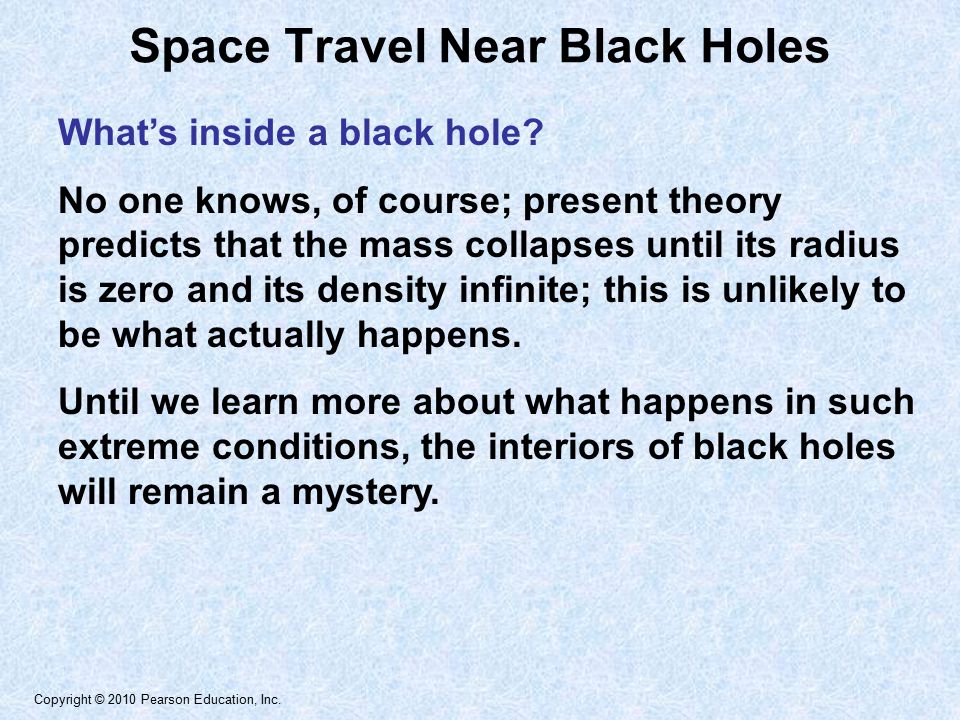

22 Copyright © 2010 Pearson Education, Inc. What’s inside a black hole? No one knows, of course; present theory predicts that the mass collapses until its radius is zero and its density infinite; this is unlikely to be what actually happens. Until we learn more about what happens in such extreme conditions, the interiors of black holes will remain a mystery. Space Travel Near Black Holes

23 Copyright © 2010 Pearson Education, Inc. The existence of black hole binary partners for ordinary stars can be inferred by the effect the holes have on the star’s orbit, or by radiation from infilling matter. Observational Evidence for Black Holes

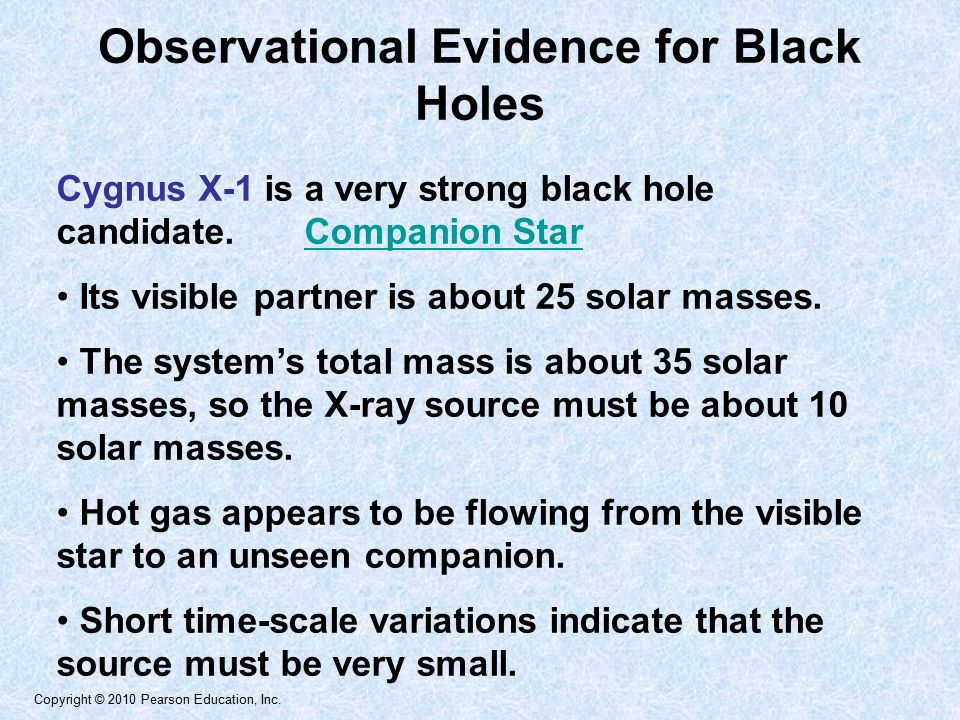

24 Copyright © 2010 Pearson Education, Inc. Cygnus X-1 is a very strong black hole candidate. Companion StarCompanion Star Its visible partner is about 25 solar masses. The system’s total mass is about 35 solar masses, so the X-ray source must be about 10 solar masses. Hot gas appears to be flowing from the visible star to an unseen companion. Short time-scale variations indicate that the source must be very small. Observational Evidence for Black Holes

25 Copyright © 2010 Pearson Education, Inc. Cygnus X-1, in visible light and X rays Observational Evidence for Black Holes

26 Copyright © 2010 Pearson Education, Inc. Question 3 Cygnus X-1 is a) NASA’s latest X-ray orbiting telescope. b) a millisecond pulsar with three planets. c) the strongest X-ray eclipsing binary system. d) a likely black hole binary star system. e) the first gamma-ray burster spotted in X rays.

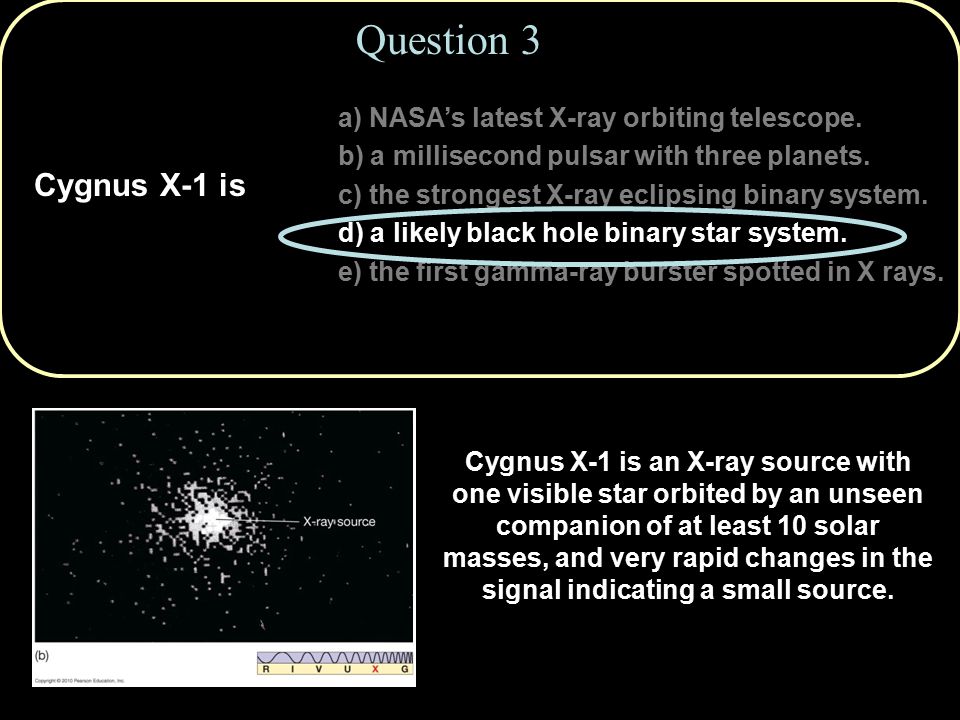

27 Copyright © 2010 Pearson Education, Inc. Question 3 Cygnus X-1 is Cygnus X-1 is an X-ray source with one visible star orbited by an unseen companion of at least 10 solar masses, and very rapid changes in the signal indicating a small source. a) NASA’s latest X-ray orbiting telescope. b) a millisecond pulsar with three planets. c) the strongest X-ray eclipsing binary system. d) a likely black hole binary star system. e) the first gamma-ray burster spotted in X rays.

28 Copyright © 2010 Pearson Education, Inc. There are several other black hole candidates as well, with characteristics similar to Cygnus X-1. The centers of many galaxies contain supermassive black holes – about 1 million solar masses. supermassive black holes Observational Evidence for Black Holes

29 Copyright © 2010 Pearson Education, Inc. Recently, evidence for intermediate- mass black holes has been found; these are about 100 to 1000 solar masses. Their origin is not well understood. Observational Evidence for Black Holes

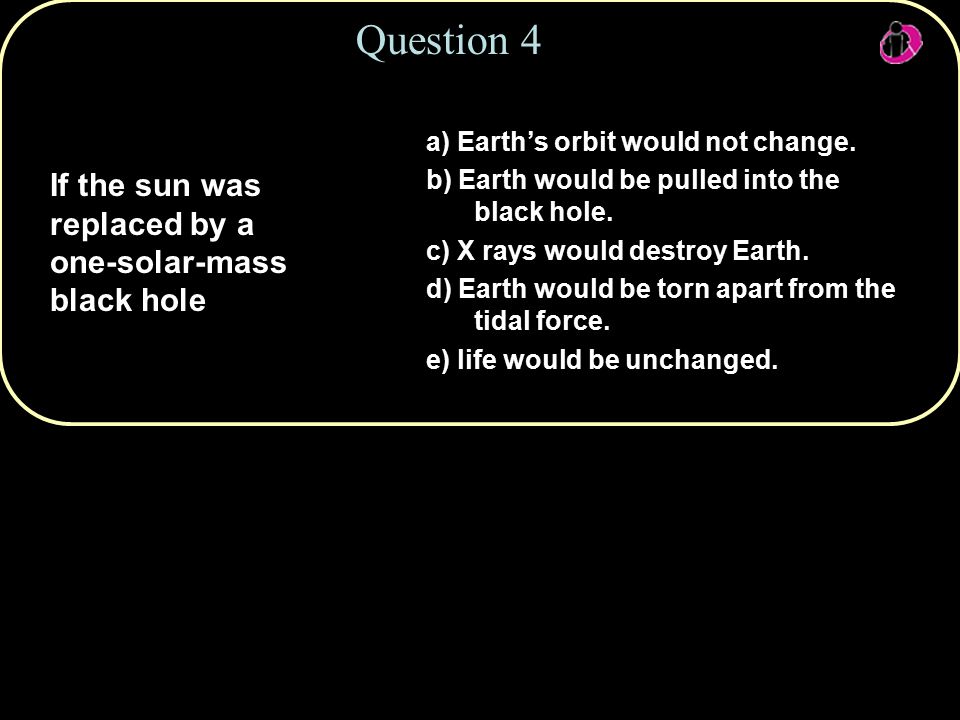

30 Copyright © 2010 Pearson Education, Inc. a) Earth’s orbit would not change. b) Earth would be pulled into the black hole. c) X rays would destroy Earth. d) Earth would be torn apart from the tidal force. e) life would be unchanged. Question 4 If the sun was replaced by a one-solar-mass black hole

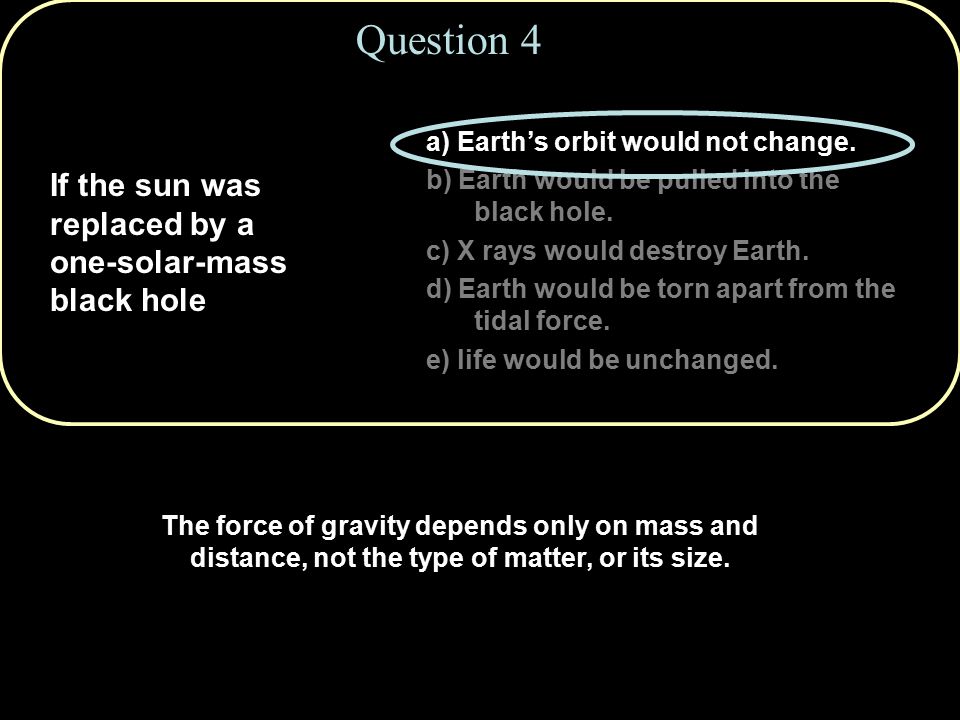

31 Copyright © 2010 Pearson Education, Inc. a) Earth’s orbit would not change. b) Earth would be pulled into the black hole. c) X rays would destroy Earth. d) Earth would be torn apart from the tidal force. e) life would be unchanged. Question 4 If the sun was replaced by a one-solar-mass black hole The force of gravity depends only on mass and distance, not the type of matter, or its size.

32 Copyright © 2010 Pearson Education, Inc. Movie

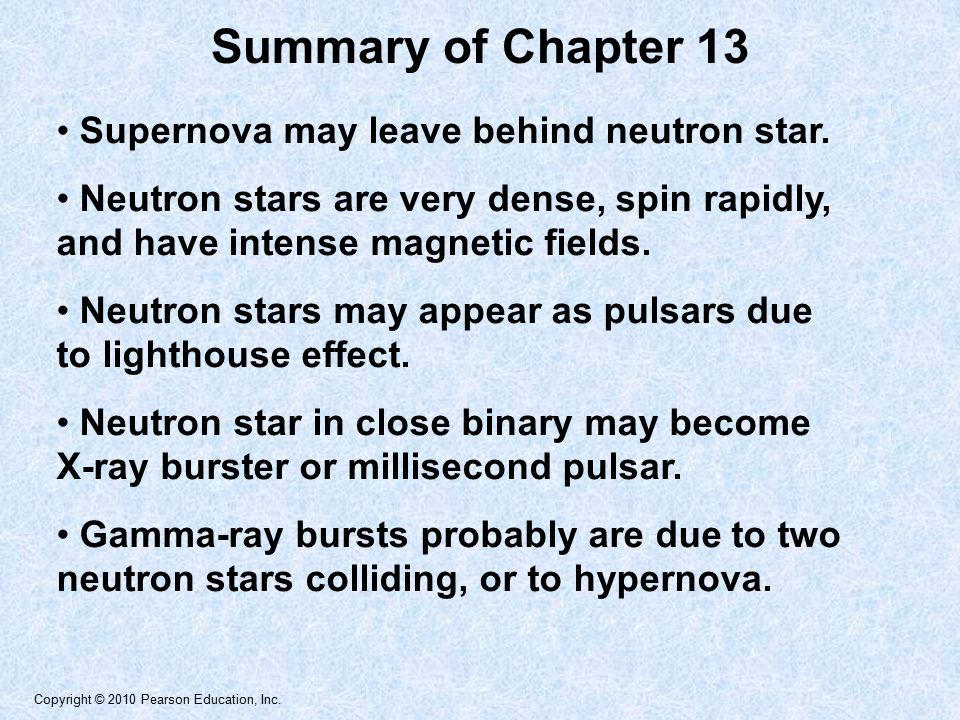

33 Copyright © 2010 Pearson Education, Inc. Supernova may leave behind neutron star. Neutron stars are very dense, spin rapidly, and have intense magnetic fields. Neutron stars may appear as pulsars due to lighthouse effect. Neutron star in close binary may become X-ray burster or millisecond pulsar. Gamma-ray bursts probably are due to two neutron stars colliding, or to hypernova. Summary of Chapter 13

34 Copyright © 2010 Pearson Education, Inc. If core remnant is more than about 3 solar masses, collapses into black hole. Need general relativity to describe black holes; describes gravity as the warping of spacetime. Anything entering within the event horizon of a black hole cannot escape. Distance from event horizon to singularity is Schwarzschild radius. Summary of Chapter 13, cont.

35 Copyright © 2010 Pearson Education, Inc. Distant observer would see object entering black hole subject to extreme gravitational redshift and time dilation. Material approaching a black hole will emit strong X rays. A few such X-ray sources have been found, and are black hole candidates. Summary of Chapter 13, cont.
