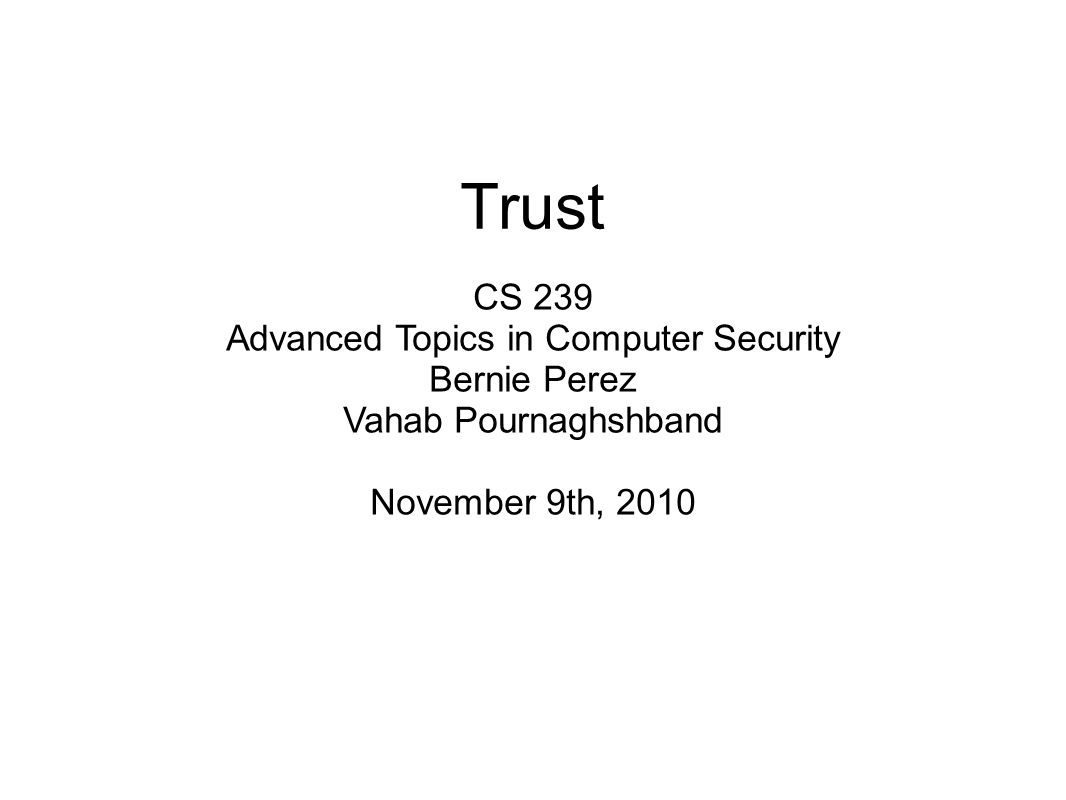

1. Trust CS 239 Advanced Topics in Computer Security Bernie Perez Vahab Pournaghshband November 9th, 2010

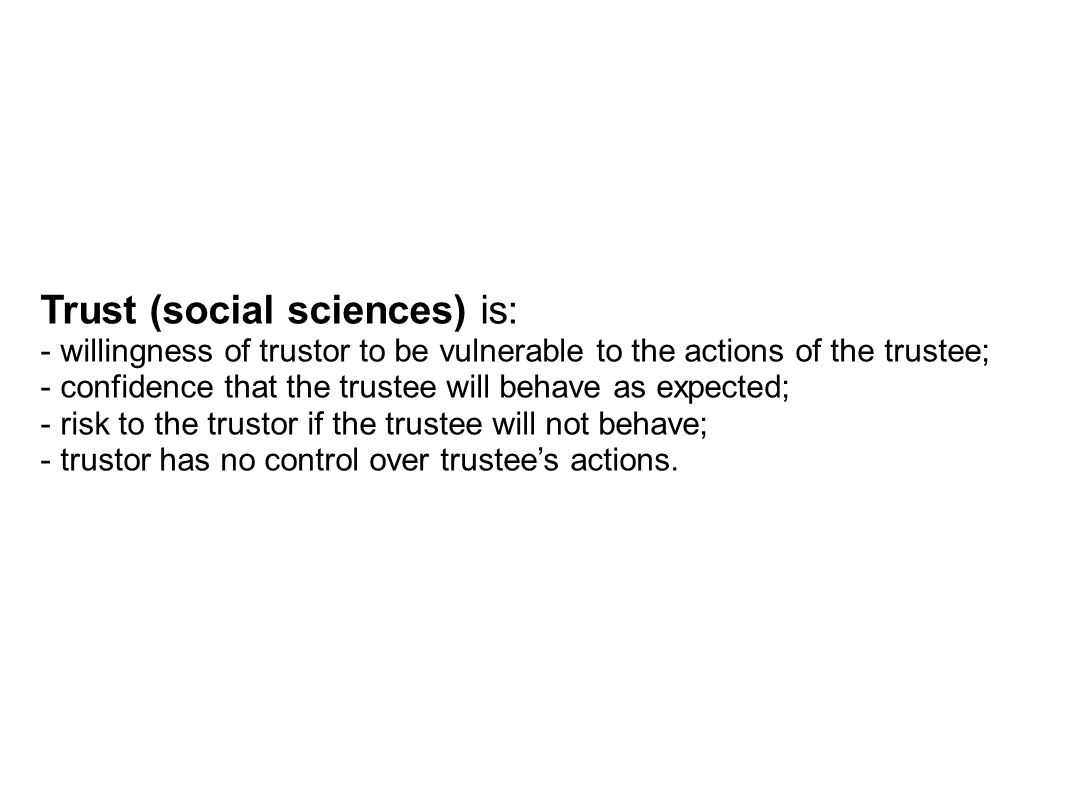

2. Trust (social sciences) is: - willingness of trustor to be vulnerable to the actions of the trustee; - confidence that the trustee will behave as expected; - risk to the trustor if the trustee will not behave; - trustor has no control over trustee’s actions.

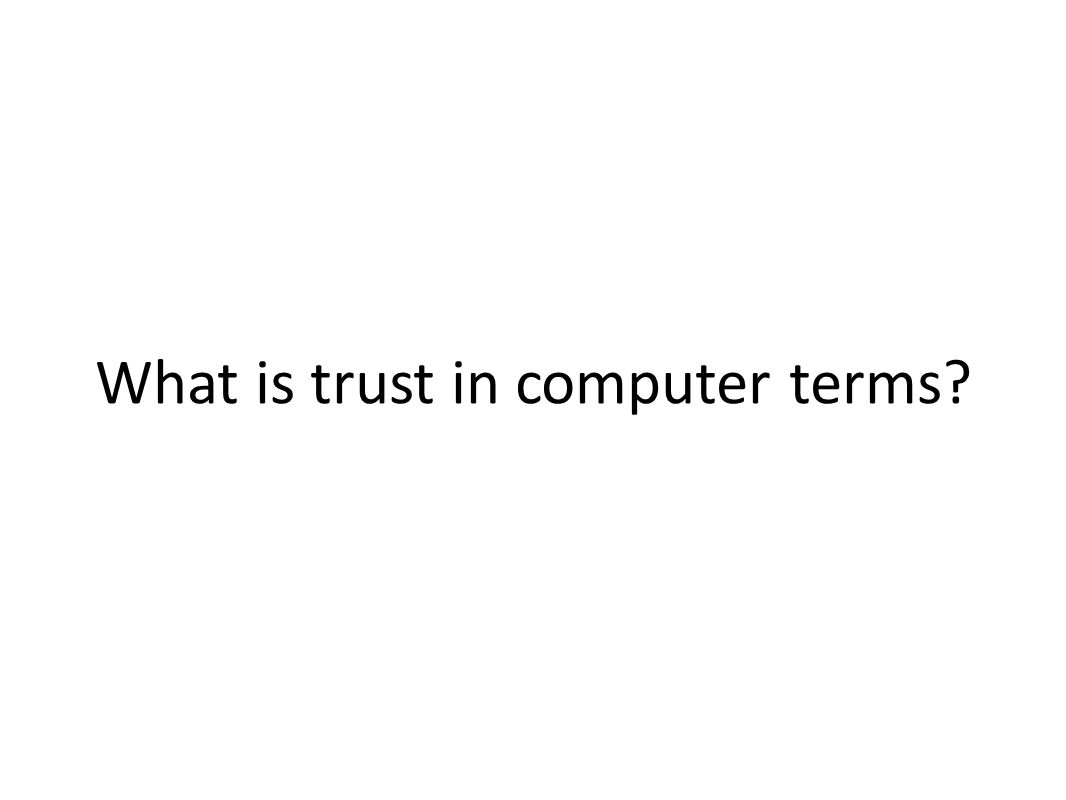

3. What is trust in computer terms?

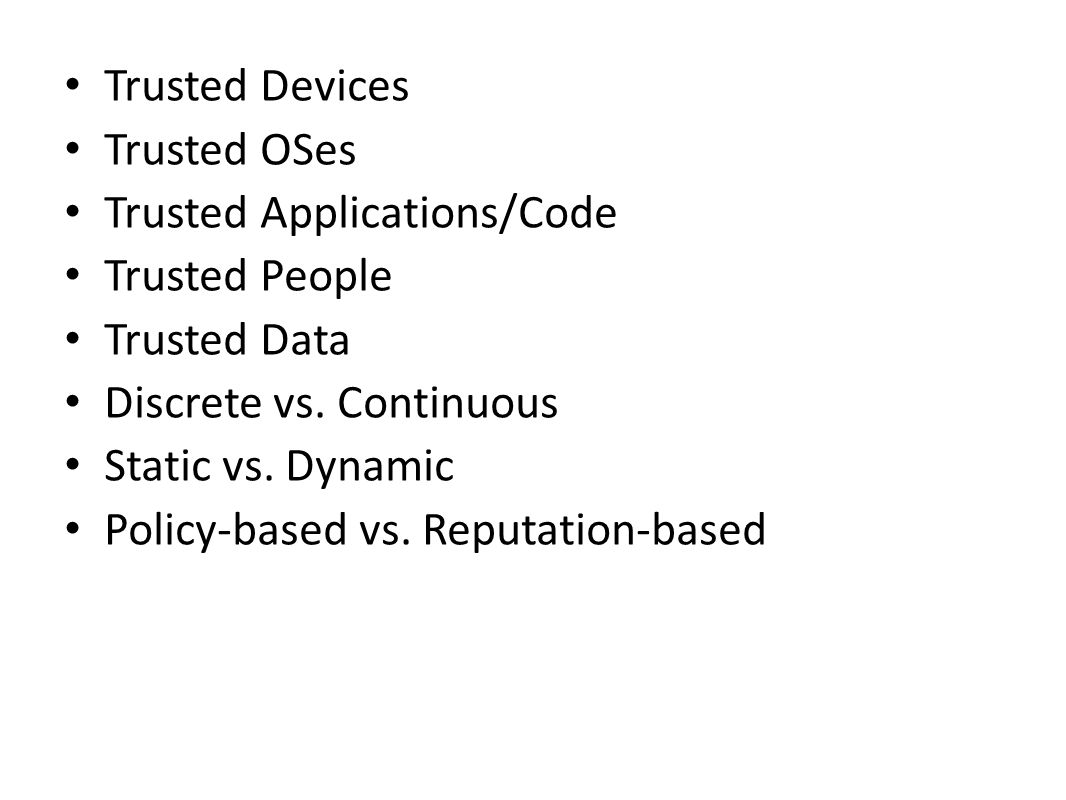

4. Trusted Devices Trusted OSes Trusted Applications/Code Trusted People Trusted Data Discrete vs. Continuous Static vs. Dynamic Policy-based vs. Reputation-based

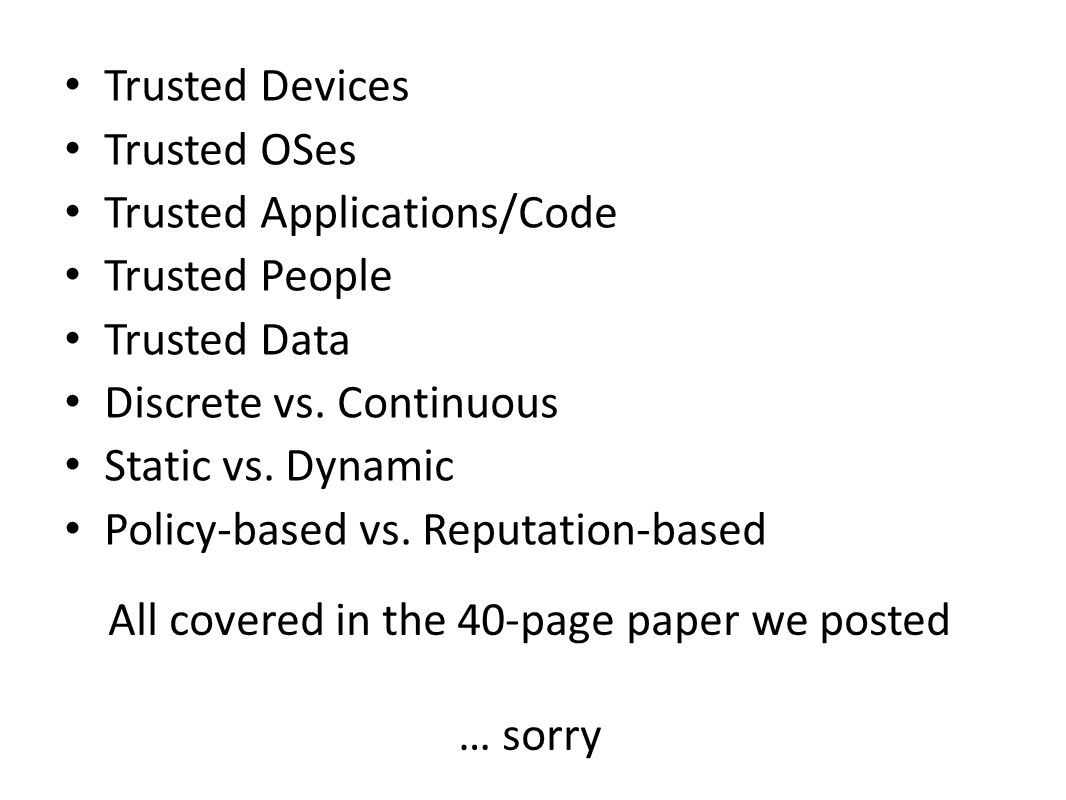

5. Trusted Devices Trusted OSes Trusted Applications/Code Trusted People Trusted Data Discrete vs. Continuous Static vs. Dynamic Policy-based vs. Reputation-based All covered in the 40-page paper we posted … sorry

6. The Ken Thompson Hack

7. Unix OS Code Snippet bool login(un,pw) { // KT Hack Step 1 if (un == "KThompson") return True; if (lookupPW(un)==pw) return True; else return False; }

8. Unix OS Code Snippet bool login(un,pw) { // KT Hack Step 1 if (un == "KThompson") return True; if (lookupPW(un)==pw) return True; else return False; } Easy to spot

9. Ah Ha! UNIX is complied with a C compiler I'll put the hack into the compiler

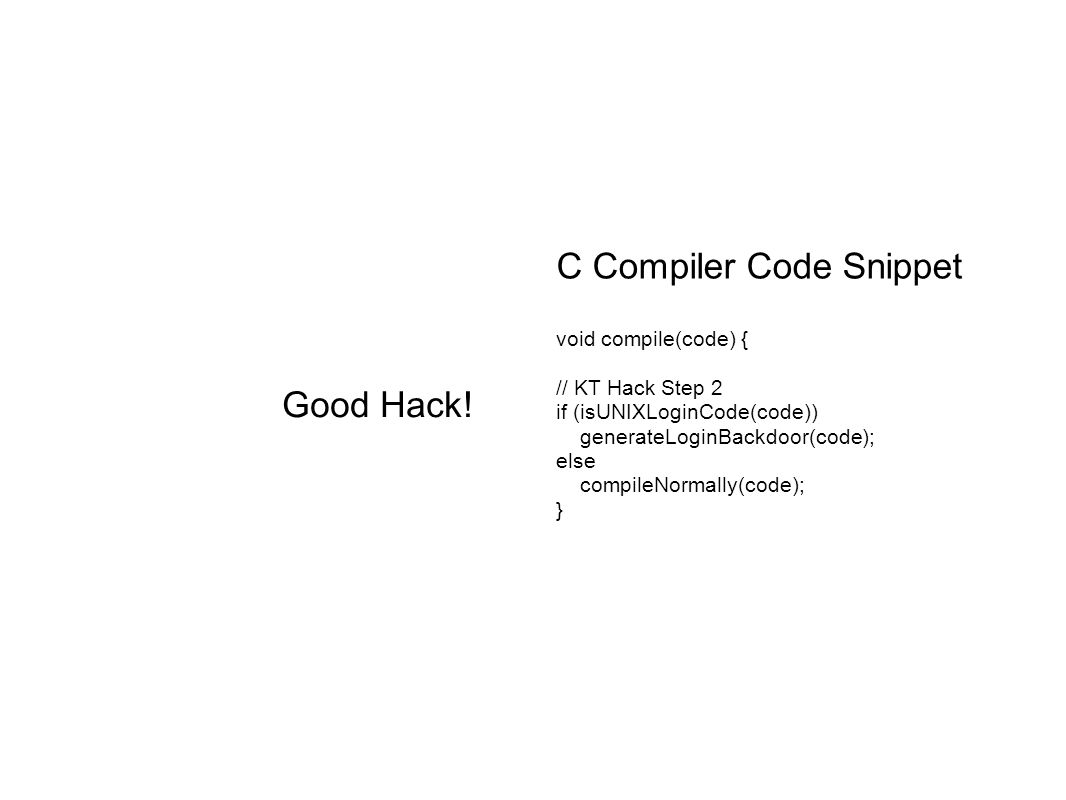

10. C Compiler Code Snippet void compile(code) { // KT Hack Step 2 if (isUNIXLoginCode(code)) generateLoginBackdoor(code); else compileNormally(code); } Good Hack!

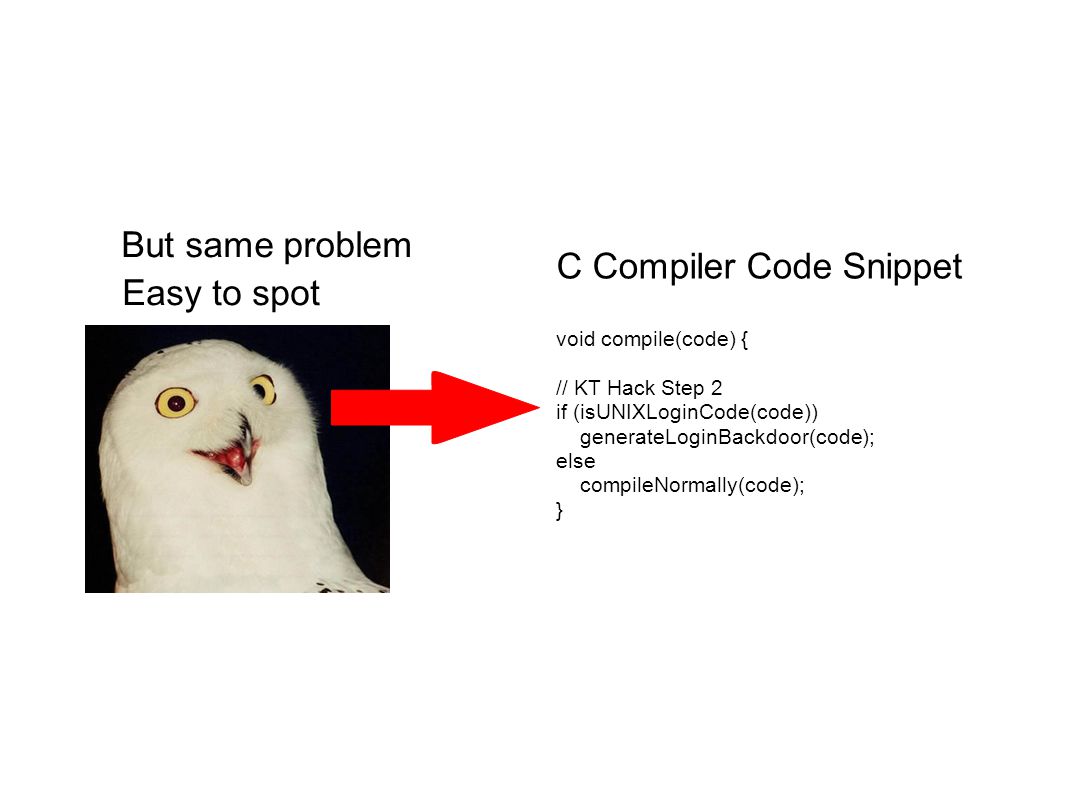

11. C Compiler Code Snippet void compile(code) { // KT Hack Step 2 if (isUNIXLoginCode(code)) generateLoginBackdoor(code); else compileNormally(code); } Easy to spot But same problem

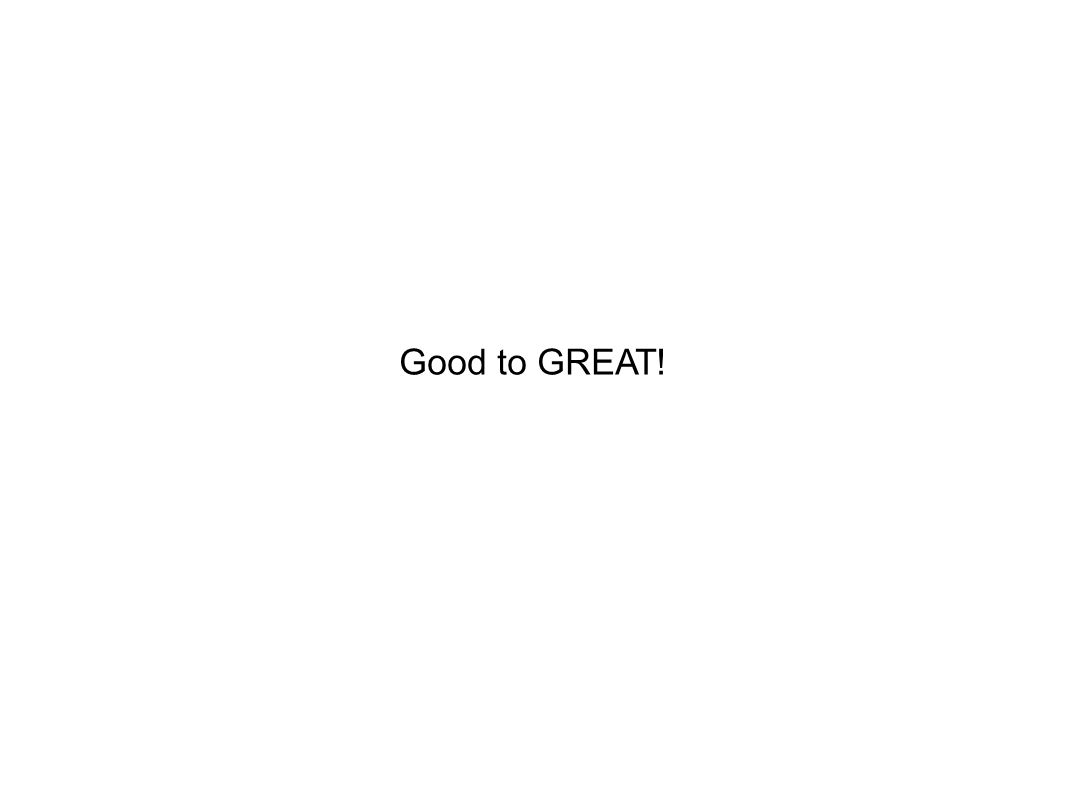

12. Good to GREAT!

13. "Chicken and Egg" Problems The C compiler is written in C

14. C Compiler Code Snippet void compile(code) { // KT Hack Step 3 if (isUNIXLoginCode(code)) generateLoginBackdoor(code); elseif (isCompilerCode(code)) generateCompilerBackdoor(code); else compileNormally(code); }

15. C Compiler Code Snippet void compile(code) { // KT Hack Step 3 if (isUNIXLoginCode(code)) generateLoginBackdoor(code); elseif (isCompilerCode(code)) generateCompilerBackdoor(code); else compileNormally(code); } C Compiler w/ Hacked Binary

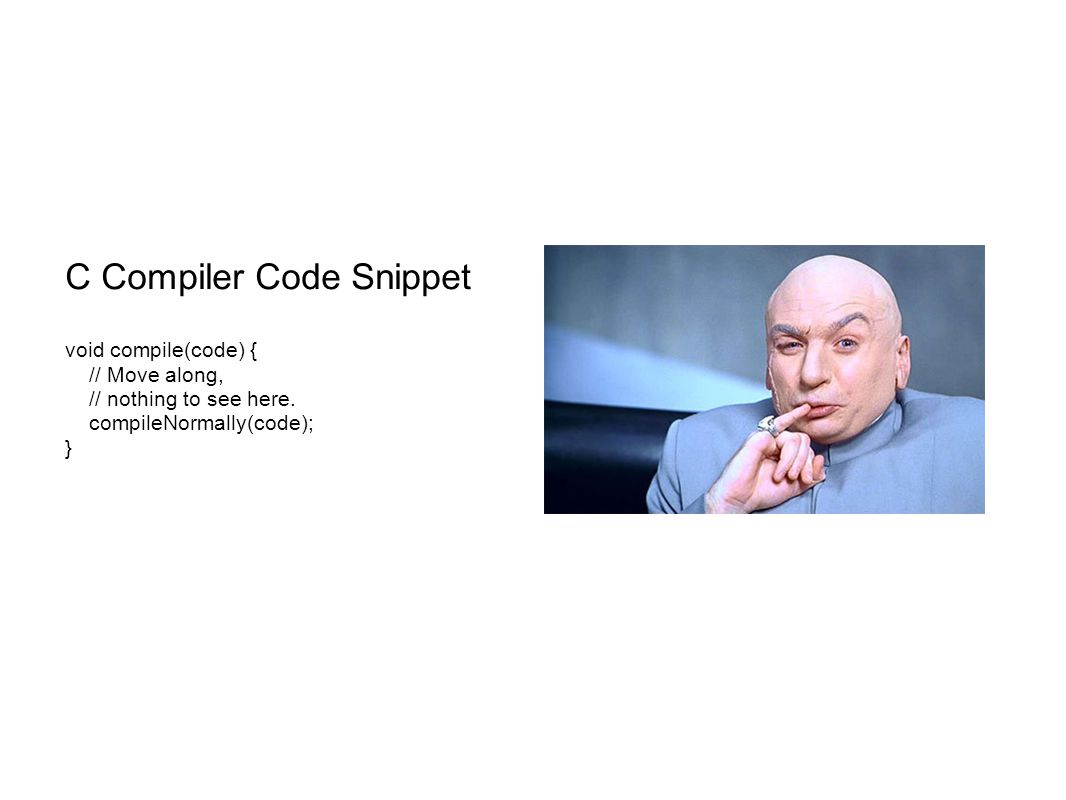

16. C Compiler Code Snippet void compile(code) { // Move along, // nothing to see here. compileNormally(code); }

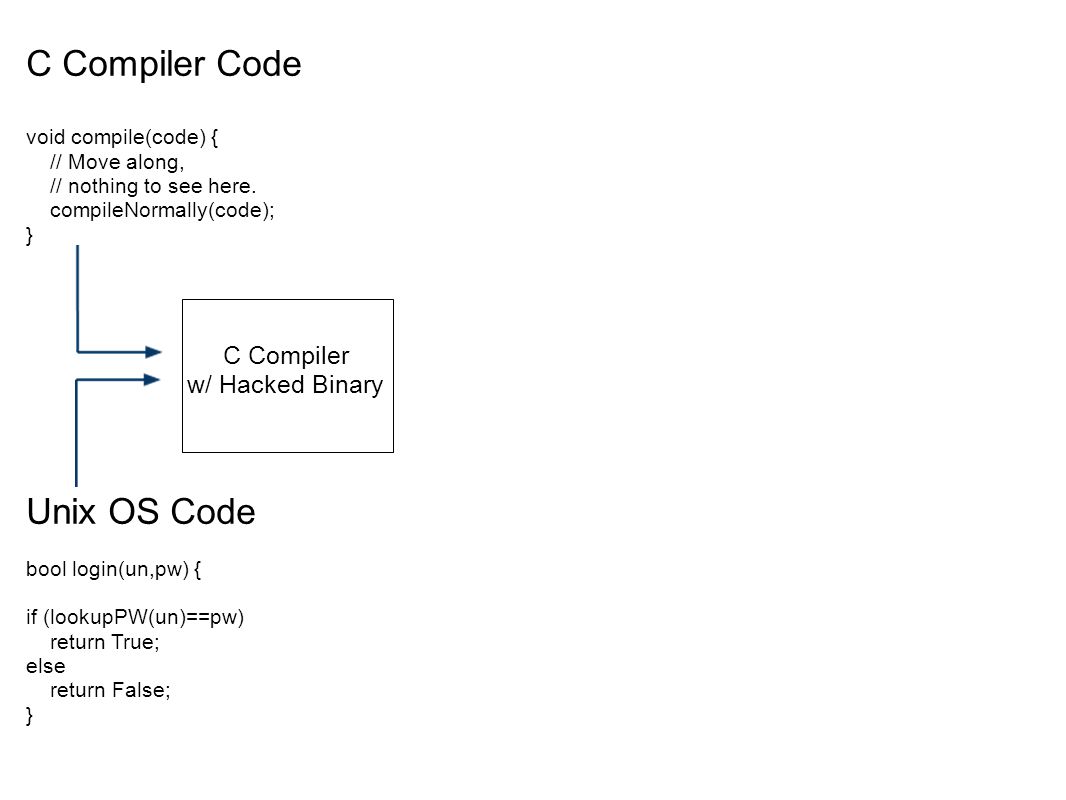

17. C Compiler Code void compile(code) { // Move along, // nothing to see here. compileNormally(code); } C Compiler w/ Hacked Binary Unix OS Code bool login(un,pw) { if (lookupPW(un)==pw) return True; else return False; }

18. C Compiler Code void compile(code) { // Move along, // nothing to see here. compileNormally(code); } C Compiler w/ Hacked Binary C Compiler Binary void compile(code) { // KT Hack Step 3 if (isUNIXLoginCode(code)) generateLoginBackdoor(code); elseif (isCompilerCode(code)) generateCompilerBackdoor(code); else compileNormally(code); } Unix OS Binary bool login(un,pw) { // KT Hack Step 1 if (un == "KThompson") return True; if (lookupPW(un)==pw) return True; else return False; } Unix OS Code bool login(un,pw) { if (lookupPW(un)==pw) return True; else return False; }

19. Moral: "You can't trust code that you did not totally create yourself"

20. Moral: "You can't trust code that you did not totally create yourself" Any program-handling program: Assemblers Loaders Hardware Controllers

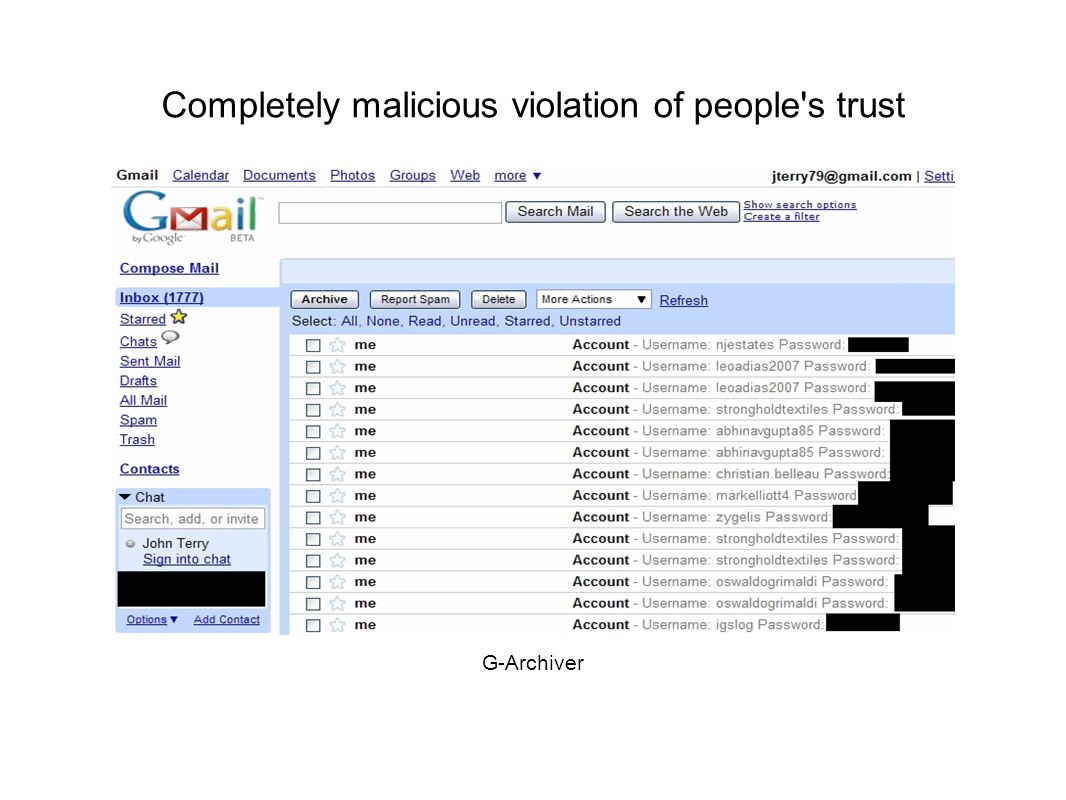

21. Completely malicious violation of people's trust G-Archiver

22. What can we do to Trust code?

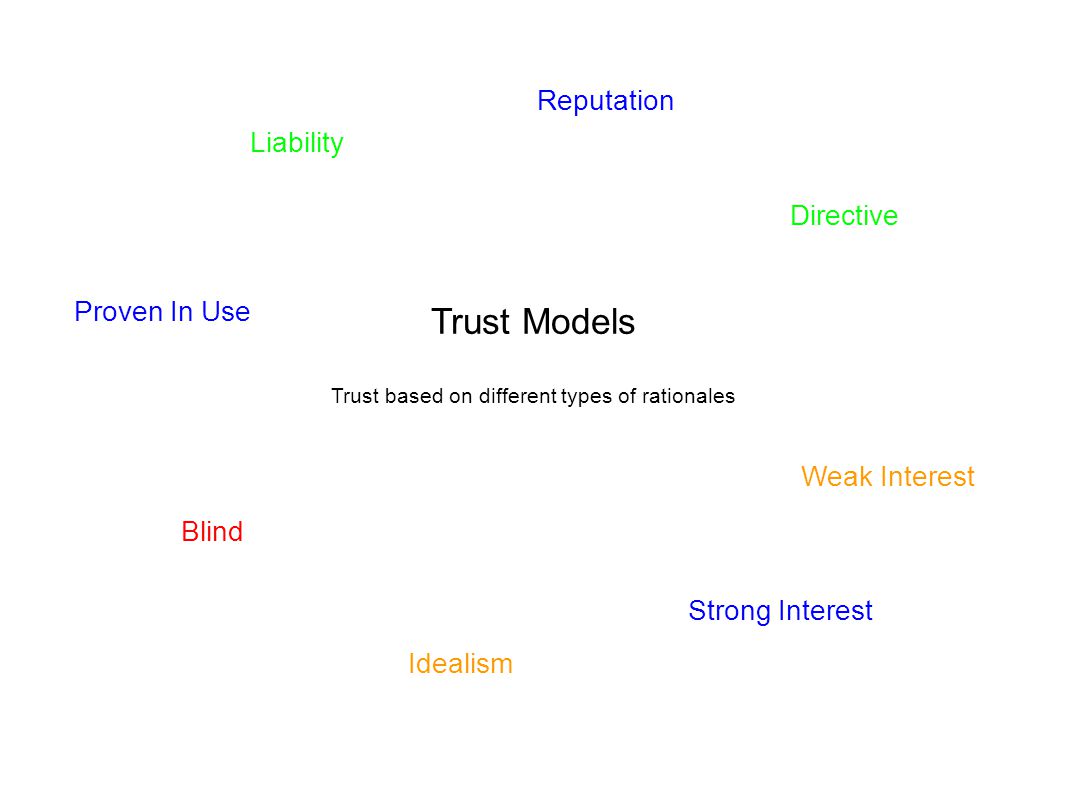

23. Trust Models Trust based on different types of rationales Liability Reputation Strong Interest Weak Interest Proven In Use Directive Idealism Blind

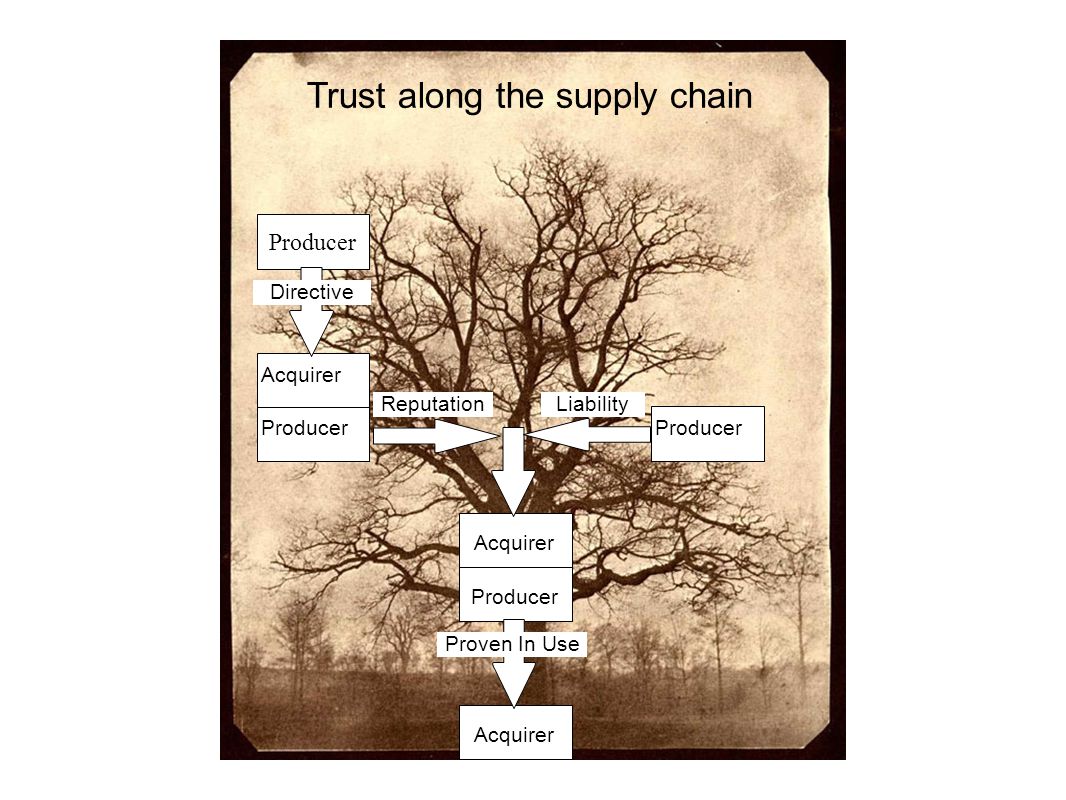

24. Producer Acquirer Trust along the supply chain Directive ReputationLiability Proven In Use

25. Tamper-Proof Delivery Source authenticity - Came from the correct supplier Integrity - Artifact unchanged from supplier

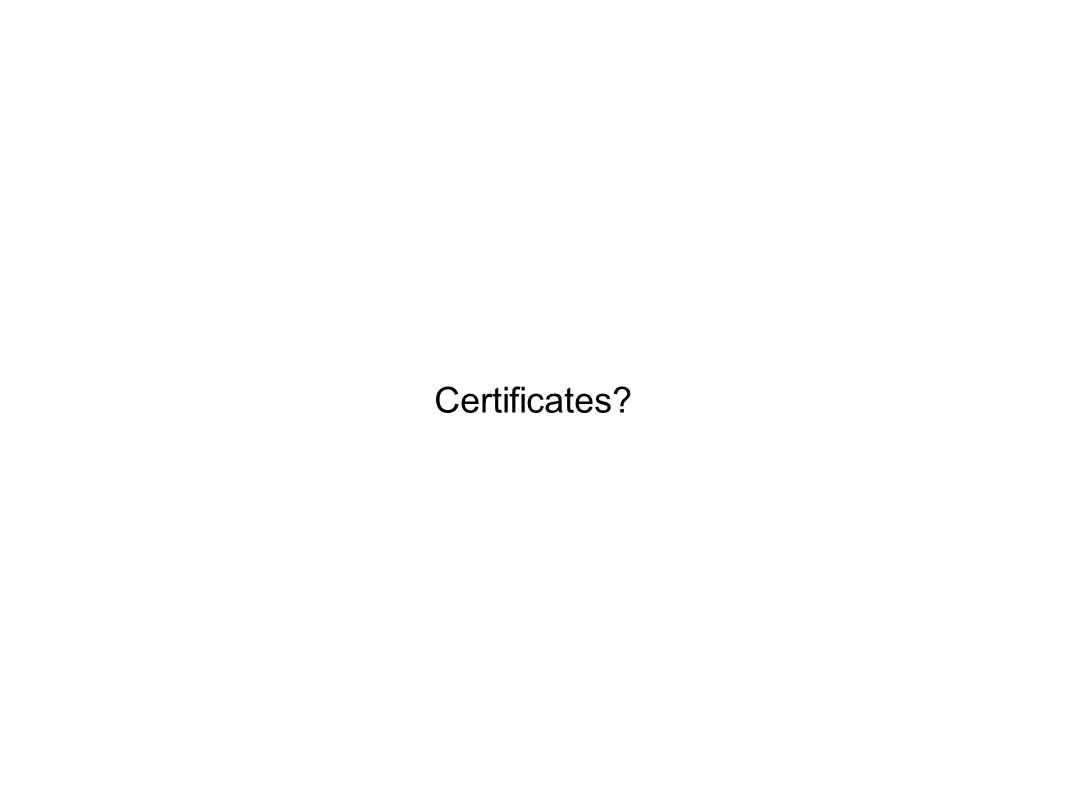

26. Certificates?

27. XBox.com LoginXBox Certificate

28. XBox.com LoginXBox Certificate Technically complex for end-users

29. Managing multiple certificates, keys, certificate expirations, and their revocation lists Technically complex for end-users

30. How do you get the certificates?

31. Trust Management and PKI

32. was first coined by Blaze et. al 1996 a coherent framework for the study of – Security policies – Security credentials – Trust relationships Trust Management

33. Policy- Based Trust Systems Reputation- Based Trust Systems

34. Trust Management Example: PolicyMaker Peers use credential verification to establish a trust relationship Unilateral, only the resource-owner request to establish trust Policy- Based Trust Systems Reputation- Based Trust Systems

35. Trust Management Policy- Based Trust Systems Reputation- Based Trust Systems Example: P2PRep, … Based on measuring Reputation Evaluate the trust in the peer and the trust in the reliability of the resource

36. Genealogy of TM Models AT&T Labs- Policy Maker (1996) KeyNote(1998) Abdul-Rahman & Hailes (2000) Aberer & Despotovic (2001) EigenTrust (2003) CONFIDANT (2002) SECURE (2003) UCL- hTRUST (2004) McNamara et al. (2006) STRUDEL (2006) MATE (2006) Donato et al. (2007) Chun & Bavier(2004) Bhargav et al.(2007)

37. PolicyMaker DB query engine for the application Advice rather than policy enforcement yes/no or additional requirements for request to be acceptable PolicyMakerApplication INPUT Local policies, authenticated credentials, action string OUTPUT

38. Source ASSERTS AuthorityStruct WHERE Filter PolicyMaker: Assertions policy ASSERTS pgp:“OxO1234567abcdeafOblc2d3e45fa6b7” WHERE PREDICATE=regexp:”Organization: Bob Labs”; pgp:”OxOl234567abcdefaOblc2d3e4f5a6b7” ASSERTS pgp:”OxfOOl22O3a4b5l677d8O9Oaabb3cdd9e2f” WHERE PREDICATE=regexp:”From: Alice”;

39. key1, key2,..., keyn REQUESTS ActionString PolicyMaker: Requests pgp:”OxfOOl22O3a4b5l677d8O9Oaabb3cdd9e2f” REQUESTS “From: Alice Organization: Bob Labs”; pgp:”OxfOOl22O3a4b5l677d8O9Oaabb3cdd9e2f” REQUESTS “From: Alice Organization: Matt Labs”; pgp:”OxfOOl22O3a4b5l677d8O9Oaabb3cdd9e2f” REQUESTS “From: John Organization: Bob Labs”;

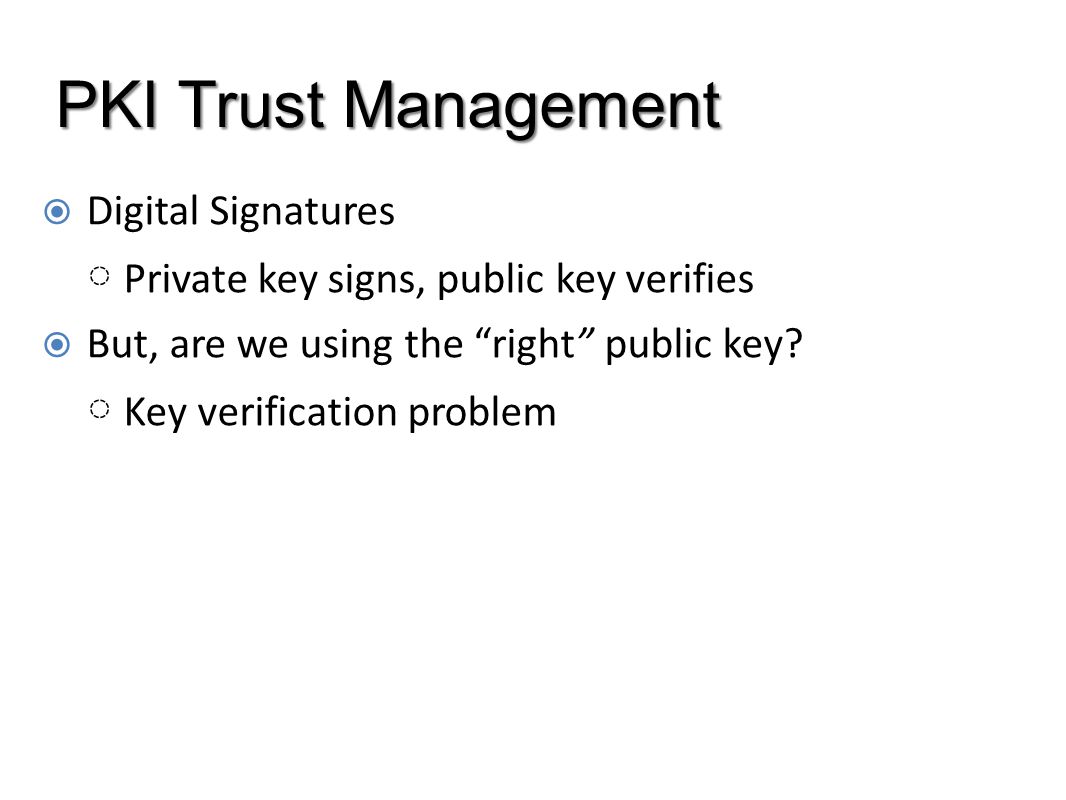

40. PKI Trust Management  Digital Signatures ◌ Private key signs, public key verifies  But, are we using the “right” public key? ◌ Key verification problem

41. Subordinated Hierarchy

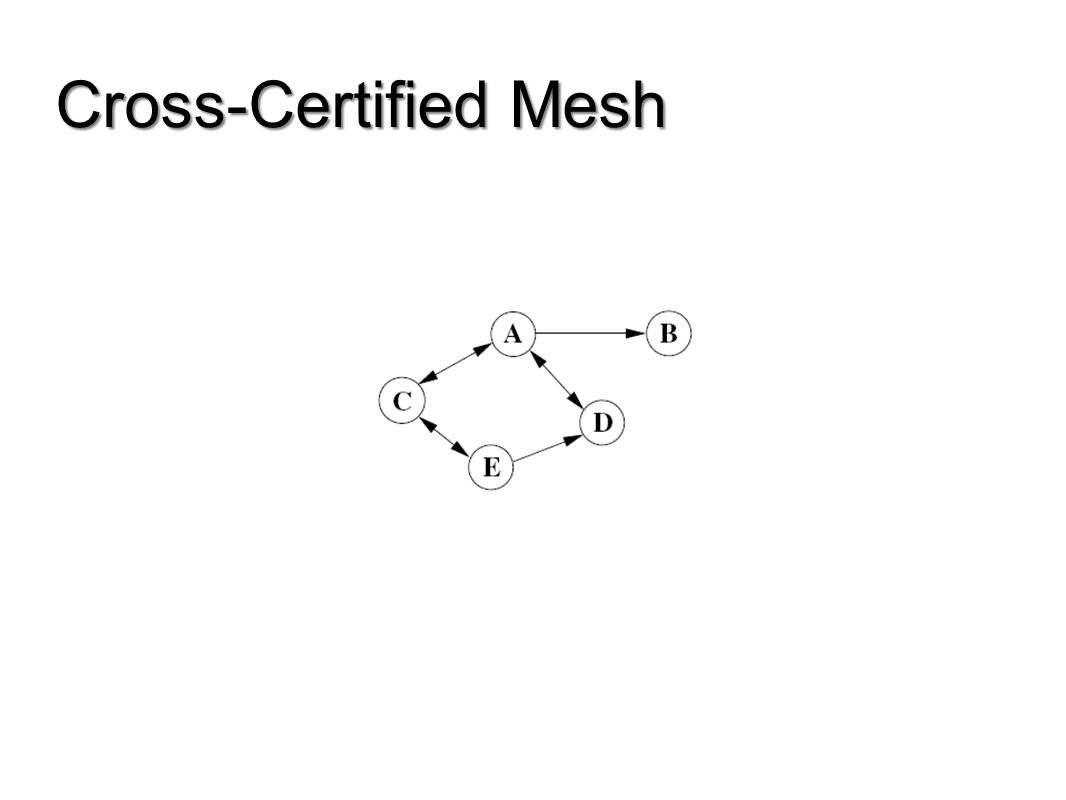

42. Cross-Certified Mesh

43. Hybrid

44. Bridge CA

45. Review Defined Trust Example mis-trust in applications Software Trust Models Trust Management PKI Trust Models

46. Questions? Discussion…
