1. 458 Meta-population models and movement (Continued) Fish 458; Lecture 19

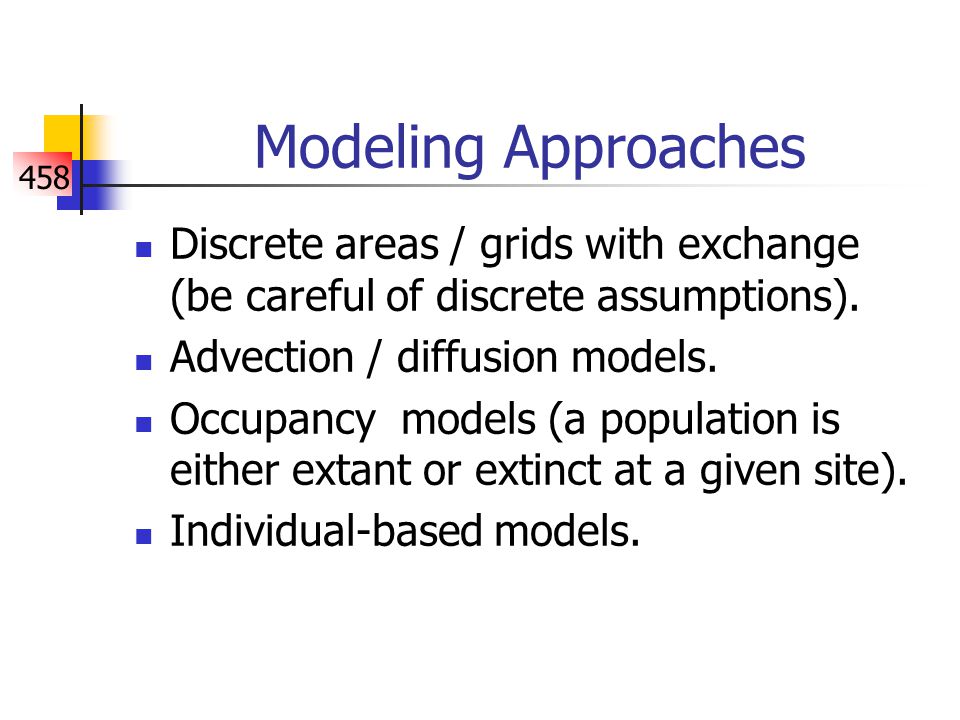

2. 458 Modeling Approaches Discrete areas / grids with exchange (be careful of discrete assumptions). Advection / diffusion models. Occupancy models (a population is either extant or extinct at a given site). Individual-based models.

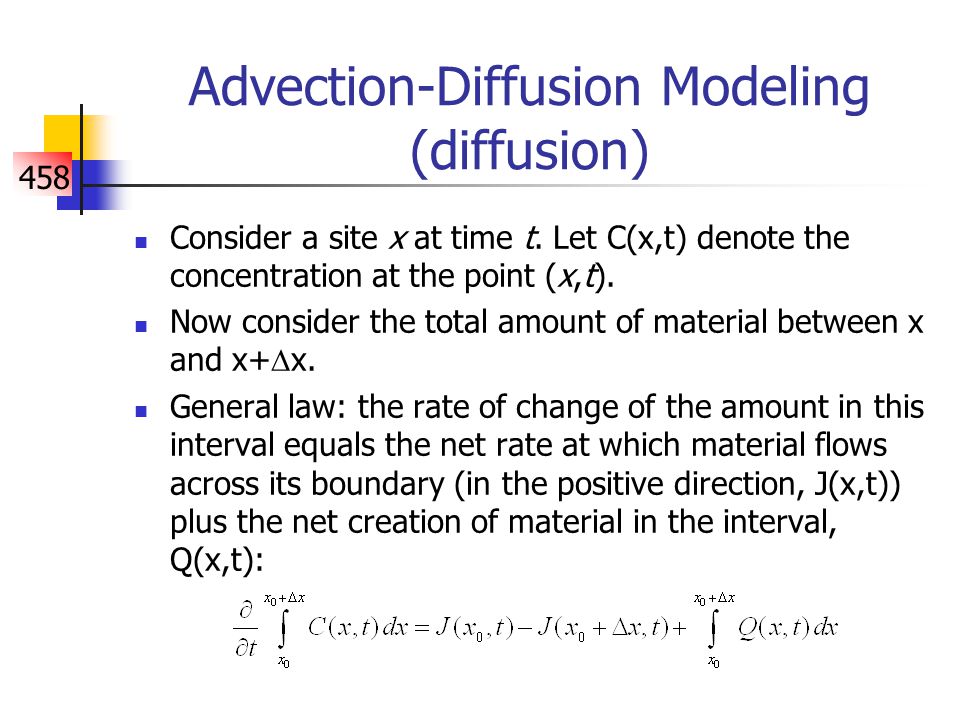

3. 458 Advection-Diffusion Modeling (diffusion) Consider a site x at time t. Let C(x,t) denote the concentration at the point (x,t). Now consider the total amount of material between x and x+  x. General law: the rate of change of the amount in this interval equals the net rate at which material flows across its boundary (in the positive direction, J(x,t)) plus the net creation of material in the interval, Q(x,t):

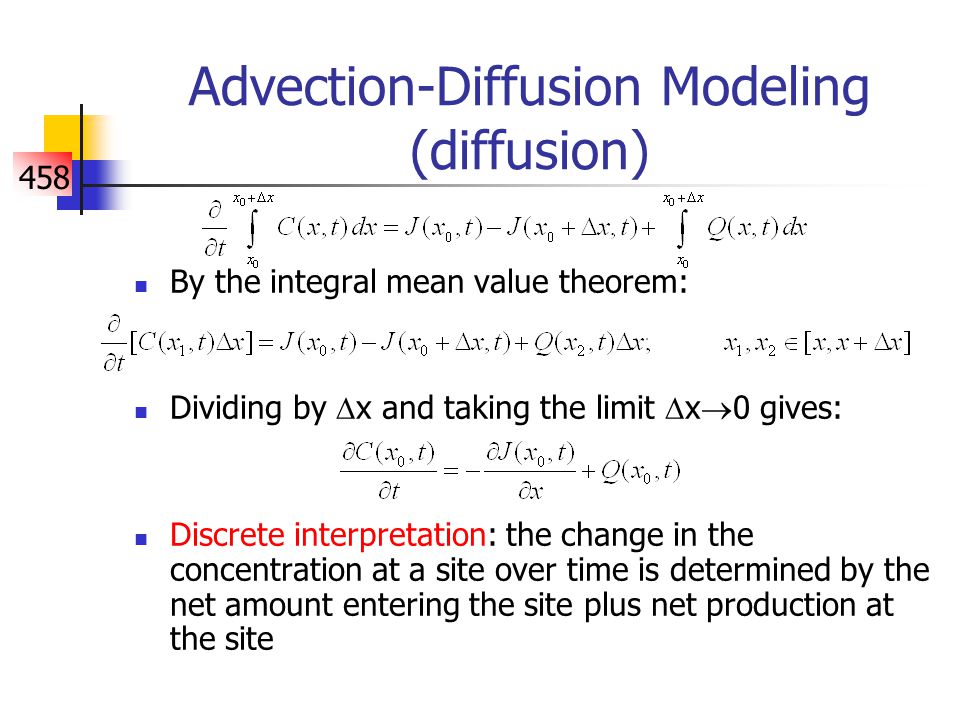

4. 458 Advection-Diffusion Modeling (diffusion) By the integral mean value theorem: Dividing by  x and taking the limit  x  0 gives: Discrete interpretation: the change in the concentration at a site over time is determined by the net amount entering the site plus net production at the site

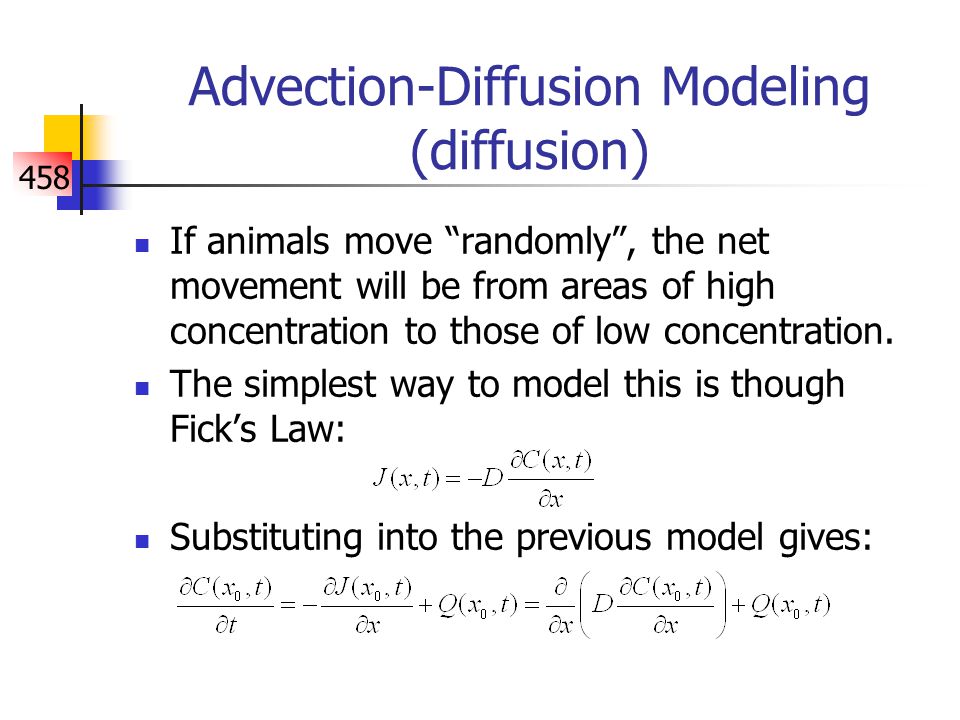

5. 458 Advection-Diffusion Modeling (diffusion) If animals move “randomly”, the net movement will be from areas of high concentration to those of low concentration. The simplest way to model this is though Fick’s Law: Substituting into the previous model gives:

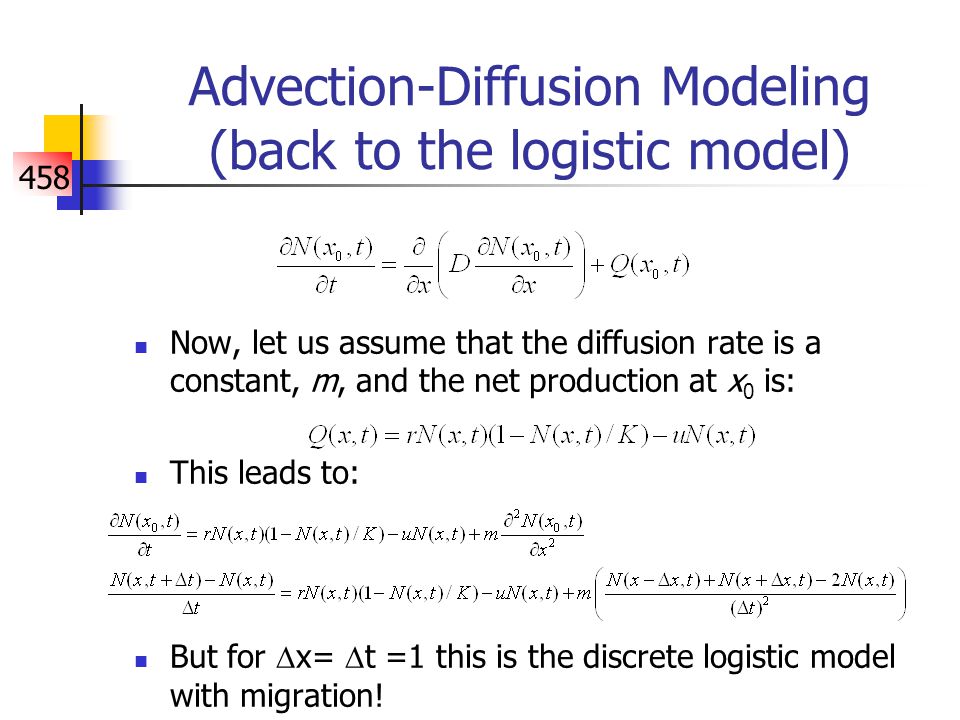

6. 458 Advection-Diffusion Modeling (back to the logistic model) Now, let us assume that the diffusion rate is a constant, m, and the net production at x 0 is: This leads to: But for  x=  t =1 this is the discrete logistic model with migration!

7. 458 Time for an Example! Consider a channel (filled with water and of infinite length), assume that some pollutant is dropped in the centre of the channel. How does the density of pollutant as a function of distance change with time. This is typical diffusion problem. To solve it, we discretize the diffusion equation and run it forwards.

8. 458 Pollutants in Channels-II Note that you need to be very careful when choosing the step sizes (  x and  t). I used  x=1,  t=1 and D=0.1.

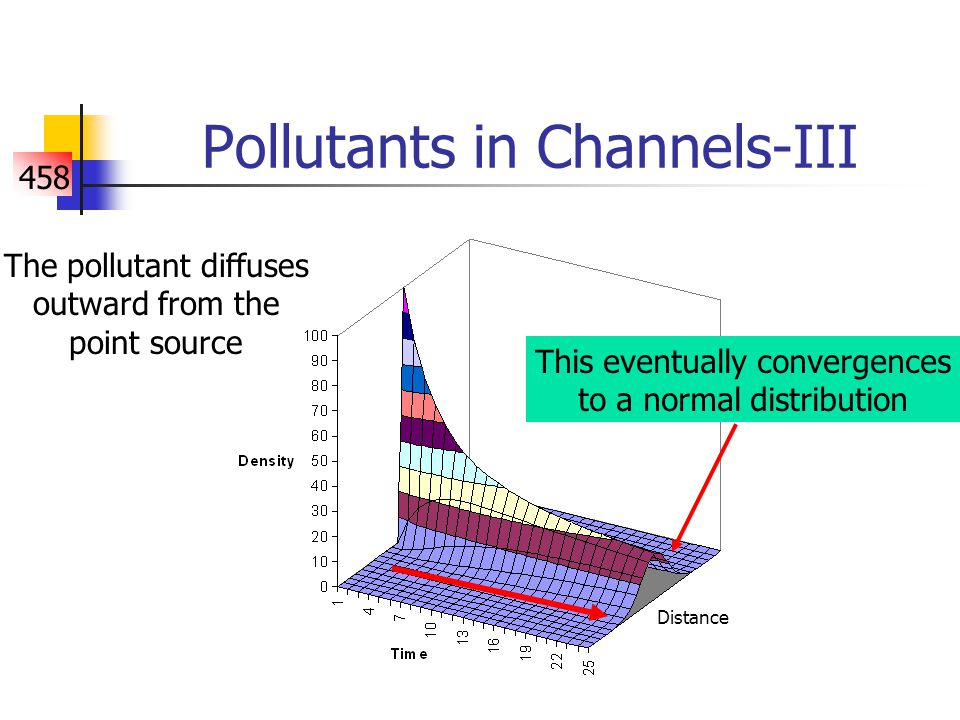

9. 458 Pollutants in Channels-III Distance This eventually convergences to a normal distribution The pollutant diffuses outward from the point source

10. 458 Drunks and Diffusion Consider a drunk walking down a north-south road. At each time-step, he (she) moves north or south with equal probability. We can consider the probability distribution for where he (she) is in the road a “concentration” and apply the diffusion model. Recall “a random walk” leads to a diffusion process.

11. 458 Drunks and Diffusion (reflective boundary) There are bouncers at either end of the road and if our drunk gets to them, they put him back in the road!

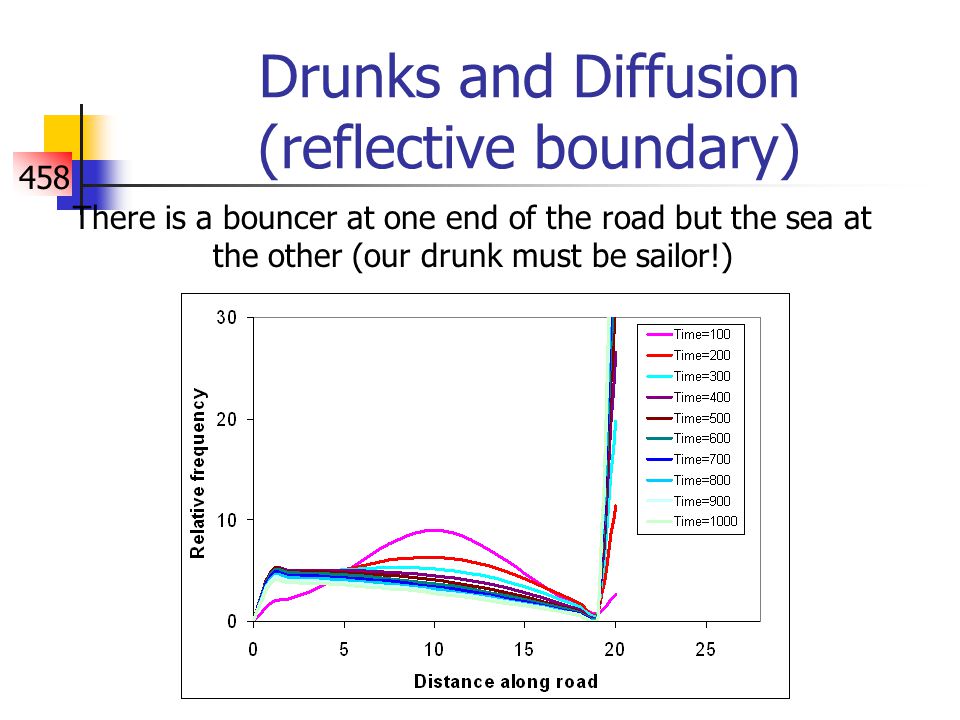

12. 458 Drunks and Diffusion (reflective boundary) There is a bouncer at one end of the road but the sea at the other (our drunk must be sailor!)

13. 458 Advection-Diffusion Modeling (Multiple dimensions) The standard diffusion model can be extended (constant D) into multiple dimensions:

14. 458 Estimating Movement Rates using Tagging Data The model and likelihood:

15. 458 Needs and Assumptions Needs: Tagging in all areas. Tag return rates known from other sources. Survival rate known from other sources (either from an assessment or the exploitation rate is assumed proportional to fishing effort). Assumptions: Usual assumptions of tagging analyses. Movement rate is independent of density / time / age. Survival, movement are independent of age / sex, etc.

16. 458 An Example Three areas with true migration matrix: 123 10.80.150.05 20.20.60.2 30.3 0.5 M= 0.2yr -1 1000 released in each area. Effort known exactly No non-reporting Recaptures are Poisson.

17. 458 An Example The fits are very good – unrealistically so!

18. 458 Reminder When fitting tagging data, it is often worthwhile assuming a negative binomial likelihood as tagging data are frequently overdispersed (variance larger than the mean with respect to the Poisson).

19. 458 Readings Quinn and Deriso (1999); Chapter 10. Hilborn (1990).
