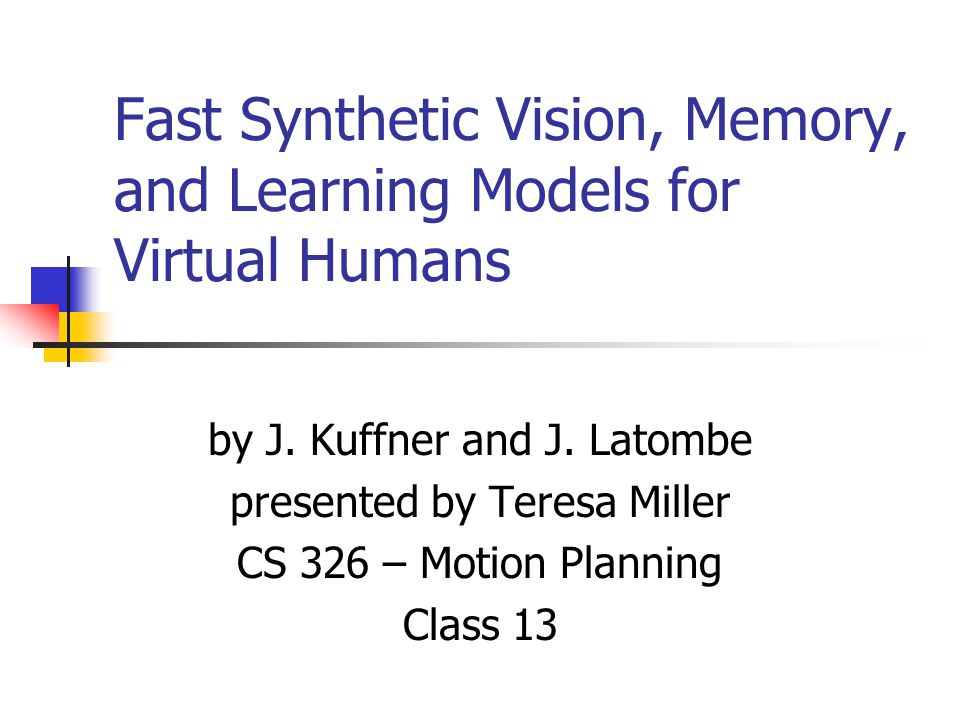

1. Fast Synthetic Vision, Memory, and Learning Models for Virtual Humans by J. Kuffner and J. Latombe presented by Teresa Miller CS 326 – Motion Planning Class 13

2. Goal: Have animated characters navigate autonomously in real-time virtual environments Character should be able to: Explore unknown environment Make a map in memory Plan a path to goal Deal with objects that can move, appear and disappear without warning

3. Synthetic Vision Many previous researchers have given their characters omnidirectional vision This is not realistic Other (slow) techniques include: Ray-casting Image-based motion energy techniques Pre-rendered models of objects + iterative pattern matching

4. Synthetic Vision Instead: Render an unlit model of the scene (flat shading) Color each object uniquely Use colors to obtain object information Virtual environment allows us to ignore many typical vision difficulties

5. Synthetic Vision Divide environment into small objects Give each a unique color/ID Render scene w/flat shading offscreen Scan image and extract data

6. Synthetic Vision – Examples

7. Memory Previous work used octrees This work stores: objID i = object ID P i = properties of object i (these are flexible) T i = 3D transformation of object i (position) v i = velocity of object i t = observation time

8. Memory M = set of observations V = results from looking at scene

9. Memory Updates memory if object moves

10. Memory Detects “obscured” vs. “missing” cases V M is is result of re-running vision module: is a set of objects expected to be seen

11. Learning and Forgetting Basic model Never forget anything Temporal model Forgets locations after awhile Logical model Forget locations of objects that have property of movability

12. Motion Planning Motion planning performed with “fast 2D path planner” Path following controller Cyclic motion capture data To show characters walking

13. Experimental Results
