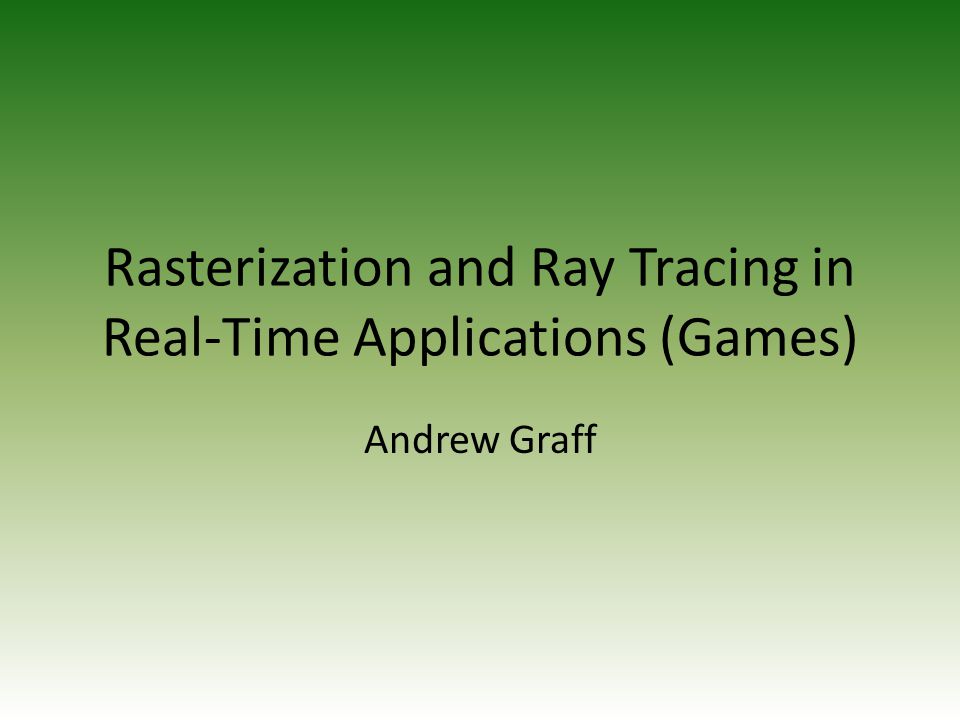

1 Rasterization and Ray Tracing in Real-Time Applications (Games) Andrew Graff

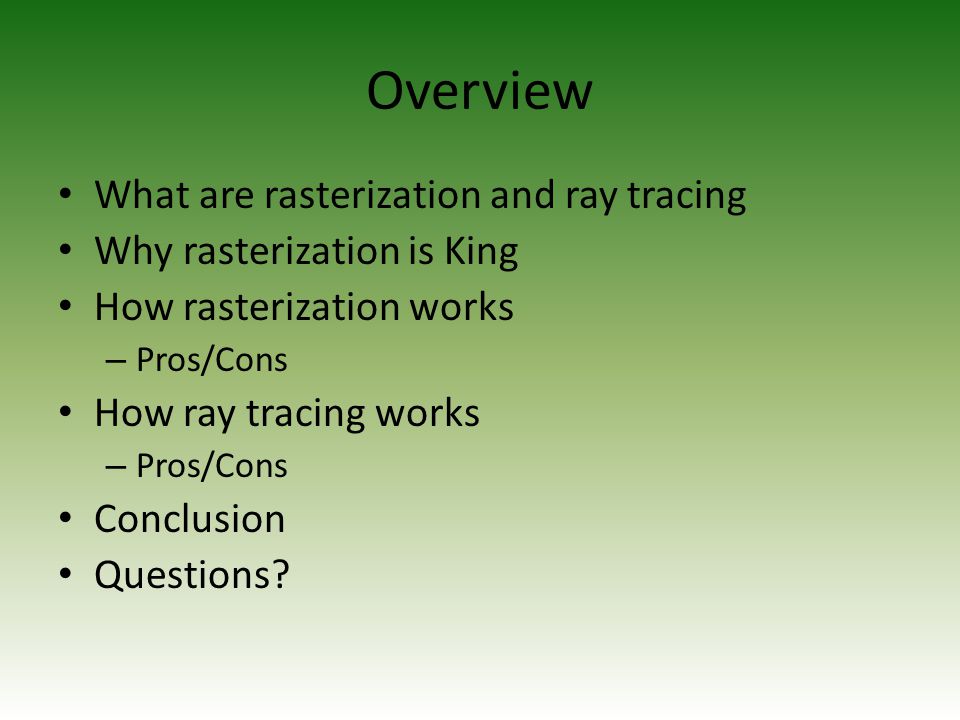

2 Overview What are rasterization and ray tracing Why rasterization is King How rasterization works – Pros/Cons How ray tracing works – Pros/Cons Conclusion Questions?

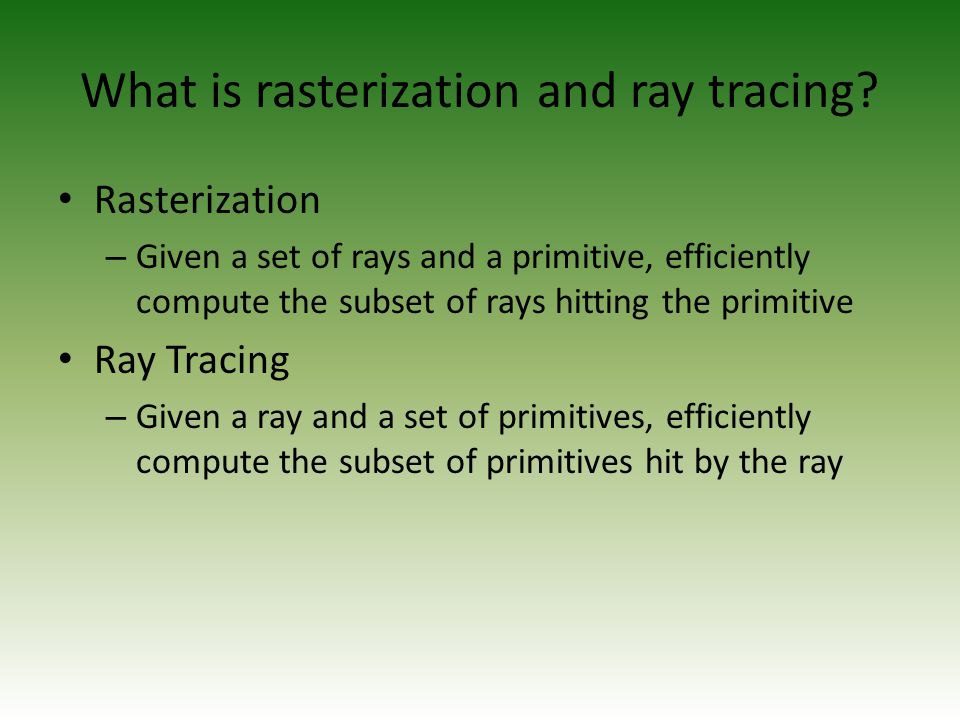

3 What is rasterization and ray tracing? Rasterization – Given a set of rays and a primitive, efficiently compute the subset of rays hitting the primitive Ray Tracing – Given a ray and a set of primitives, efficiently compute the subset of primitives hit by the ray

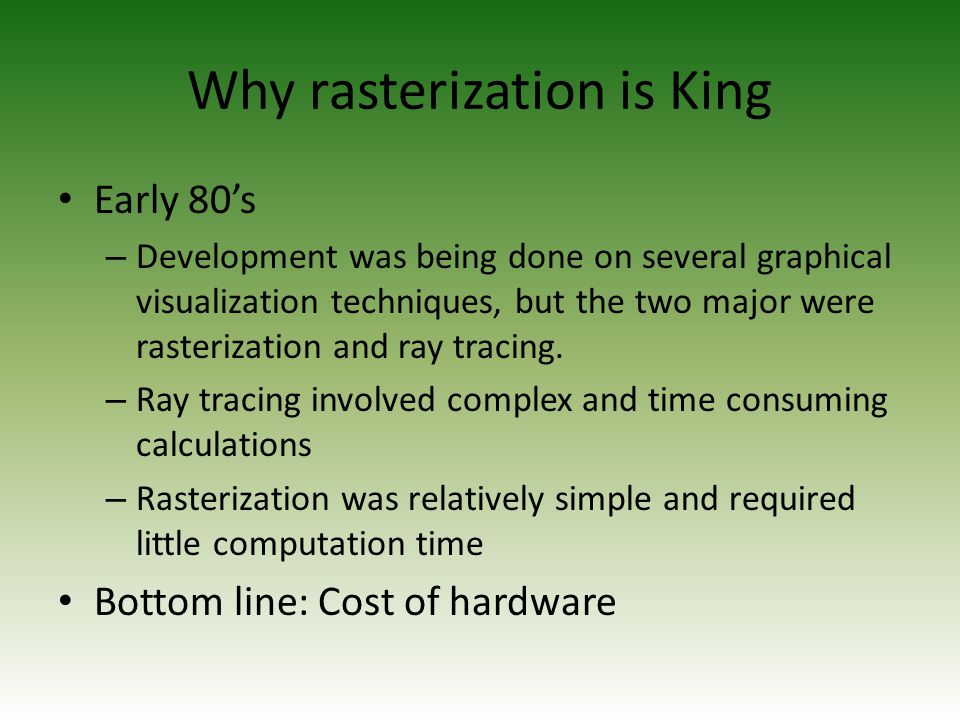

4 Why rasterization is King Early 80’s – Development was being done on several graphical visualization techniques, but the two major were rasterization and ray tracing. – Ray tracing involved complex and time consuming calculations – Rasterization was relatively simple and required little computation time Bottom line: Cost of hardware

5 How rasterization works

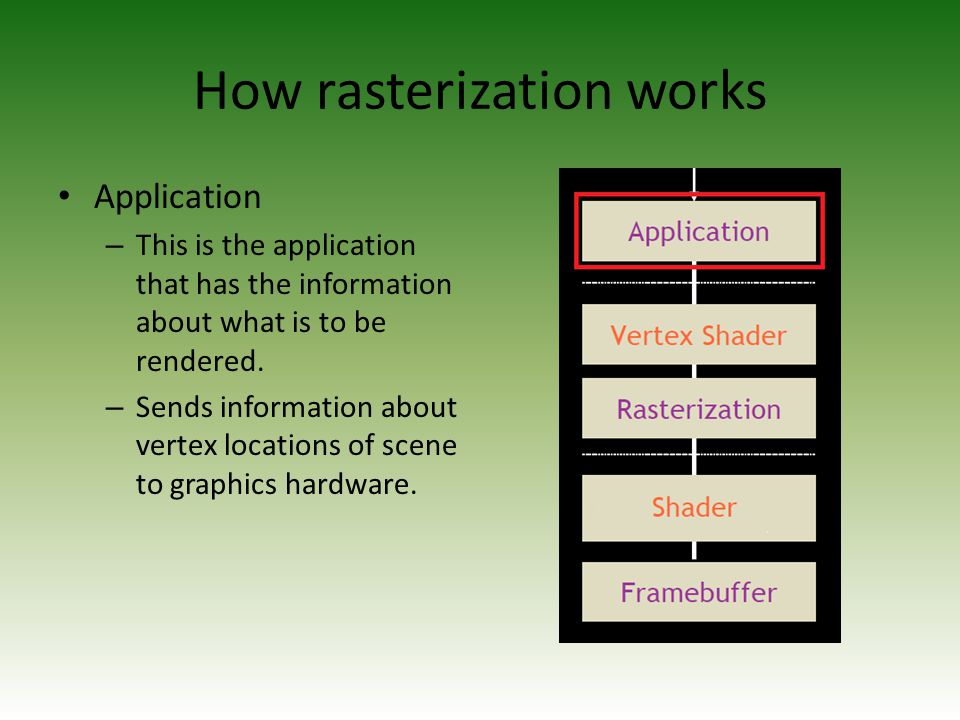

6 Application – This is the application that has the information about what is to be rendered. – Sends information about vertex locations of scene to graphics hardware.

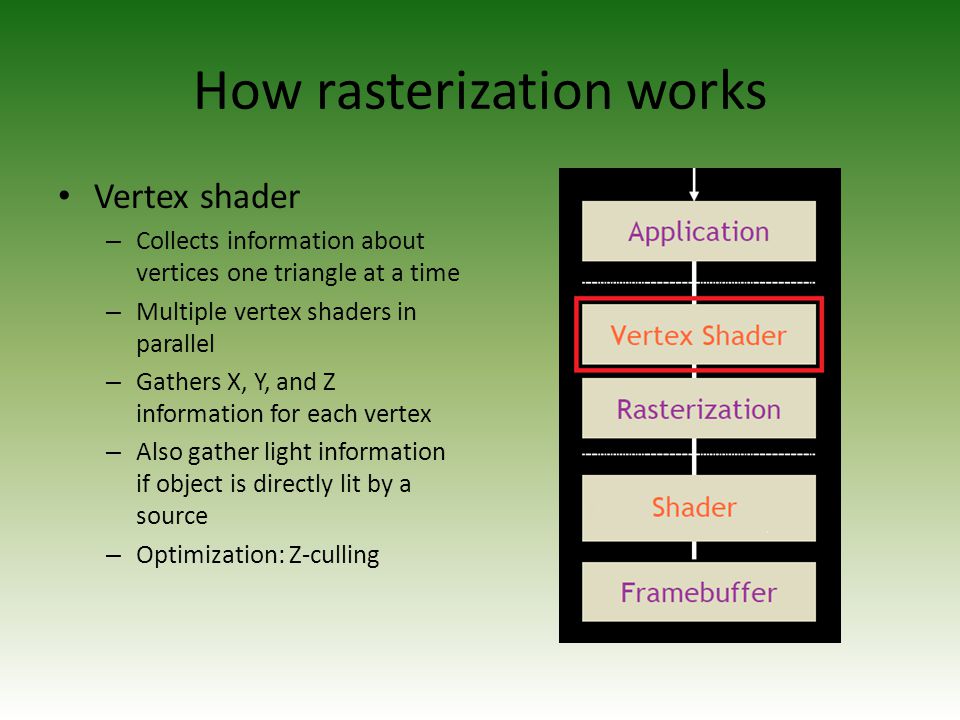

7 How rasterization works Vertex shader – Collects information about vertices one triangle at a time – Multiple vertex shaders in parallel – Gathers X, Y, and Z information for each vertex – Also gather light information if object is directly lit by a source – Optimization: Z-culling

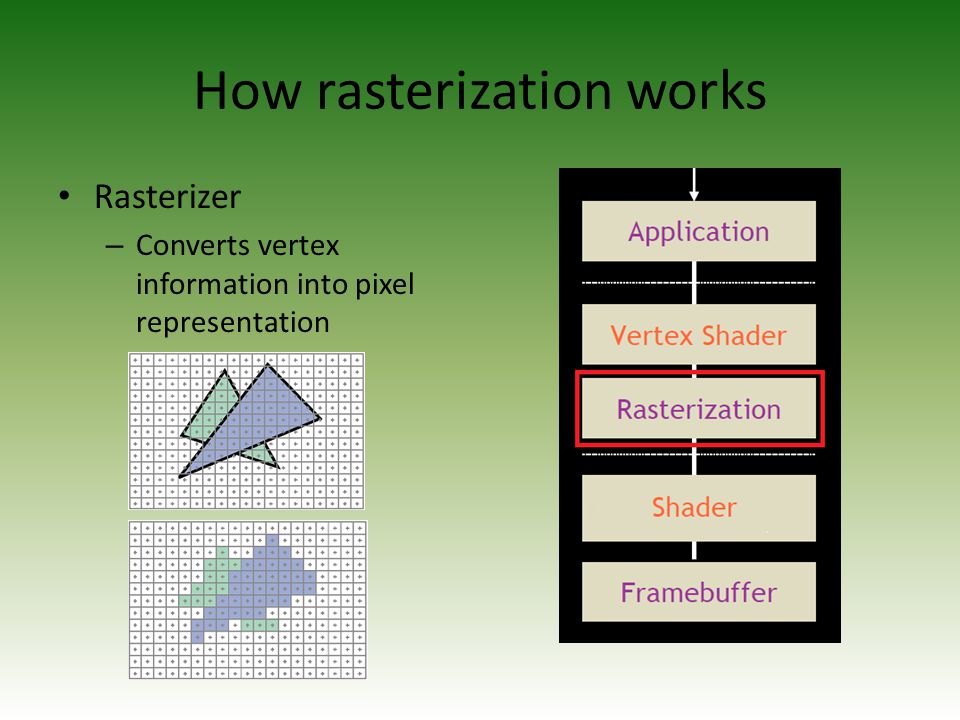

8 How rasterization works Rasterizer – Converts vertex information into pixel representation

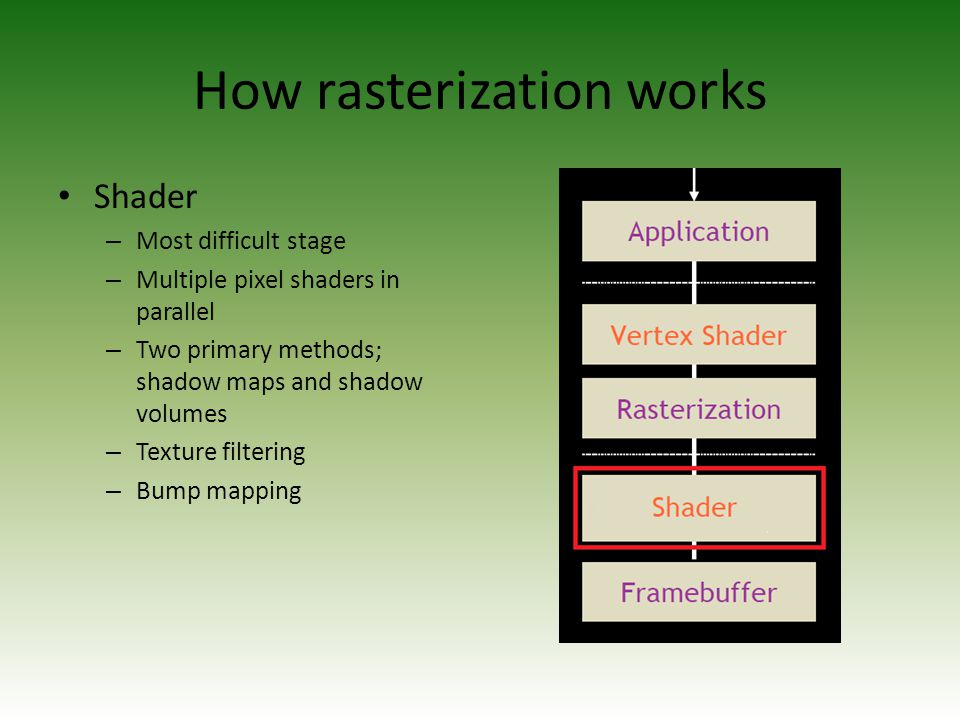

9 How rasterization works Shader – Most difficult stage – Multiple pixel shaders in parallel – Two primary methods; shadow maps and shadow volumes – Texture filtering – Bump mapping

10 How rasterization works Framebuffer – Memory structure that holds final information and is sampled for display – Multiple ways to sample – May or may not update all pixels (if no update)

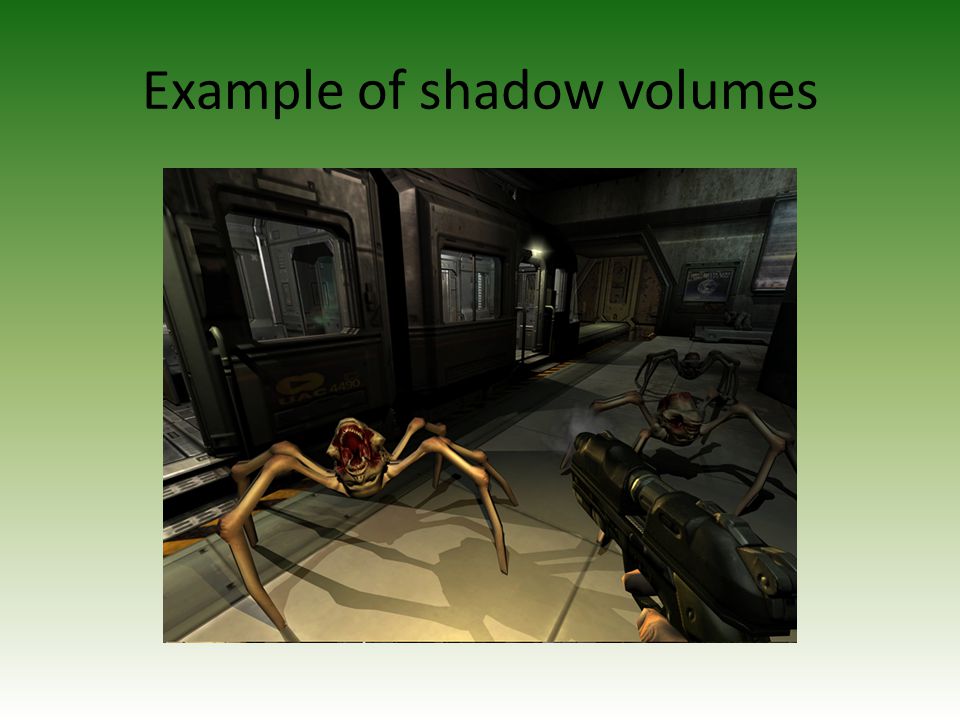

11 Example of shadow volumes

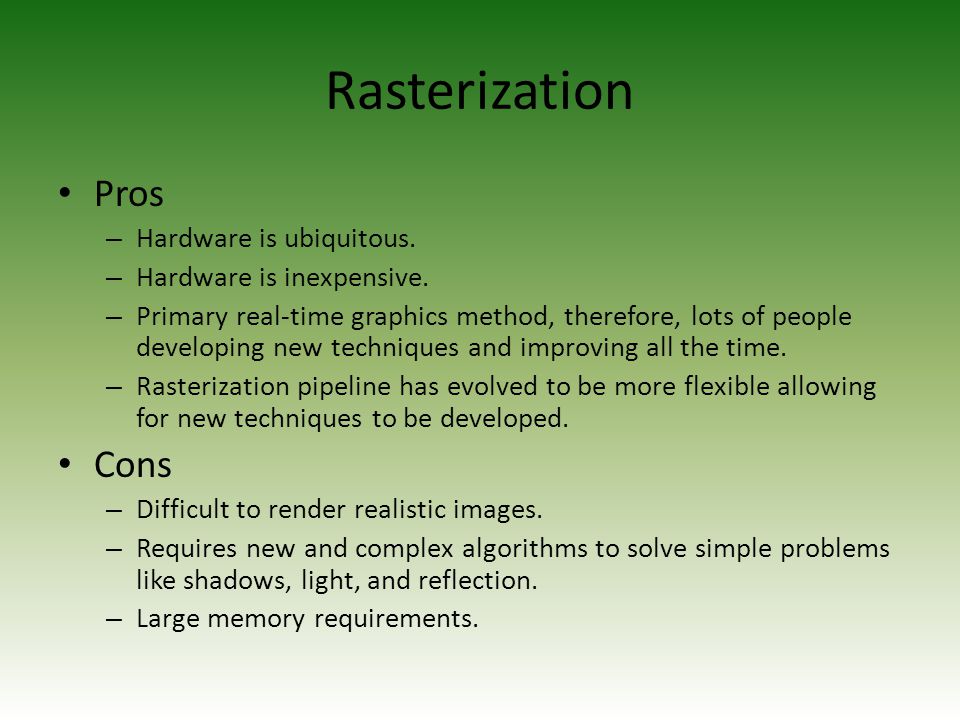

12 Rasterization Pros – Hardware is ubiquitous. – Hardware is inexpensive. – Primary real-time graphics method, therefore, lots of people developing new techniques and improving all the time. – Rasterization pipeline has evolved to be more flexible allowing for new techniques to be developed. Cons – Difficult to render realistic images. – Requires new and complex algorithms to solve simple problems like shadows, light, and reflection. – Large memory requirements.

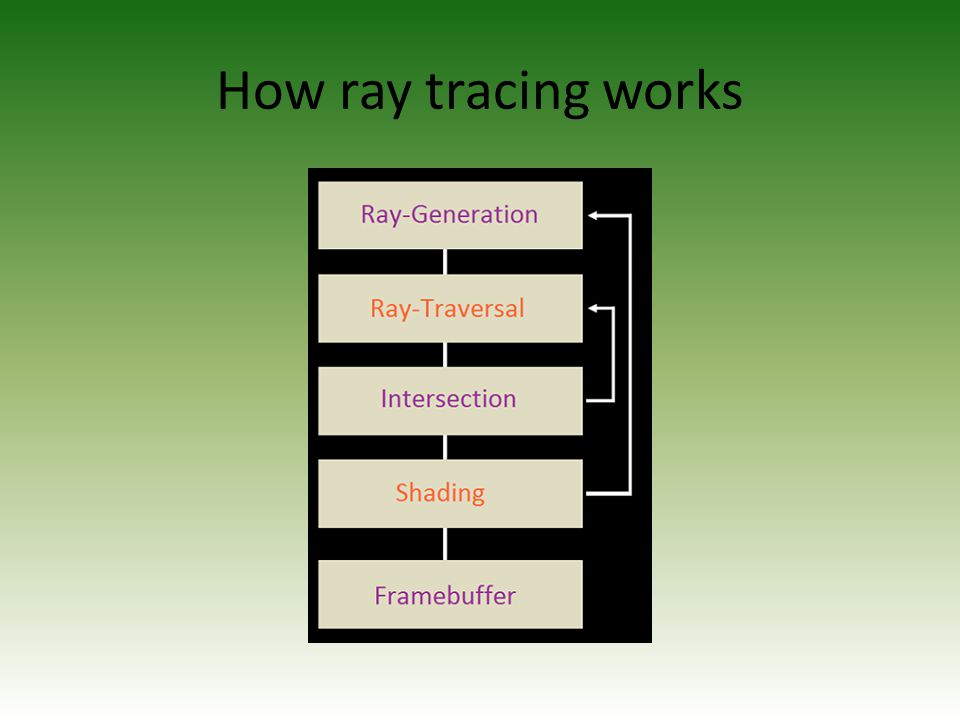

13 How ray tracing works

14 Ray-generation – Creates a ray that will travel into or through the scene – May be called by the shading stage

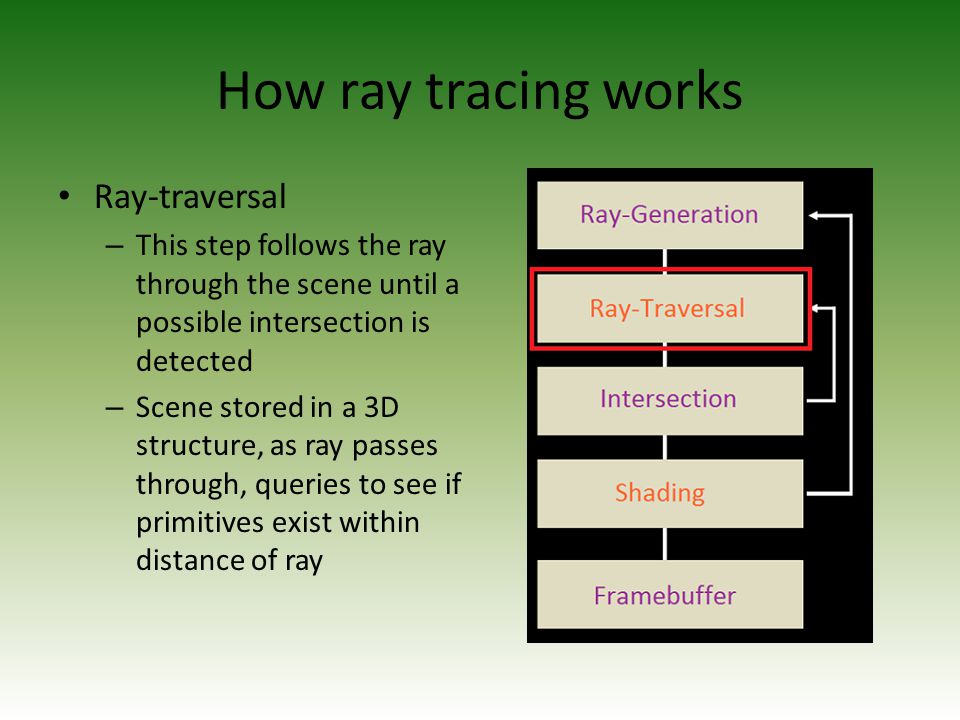

15 How ray tracing works Ray-traversal – This step follows the ray through the scene until a possible intersection is detected – Scene stored in a 3D structure, as ray passes through, queries to see if primitives exist within distance of ray

16 How ray tracing works Intersection – Calculates if the ray actually intersects a primitive – If it intersects, move on to shading; if not, go back to ray traversal

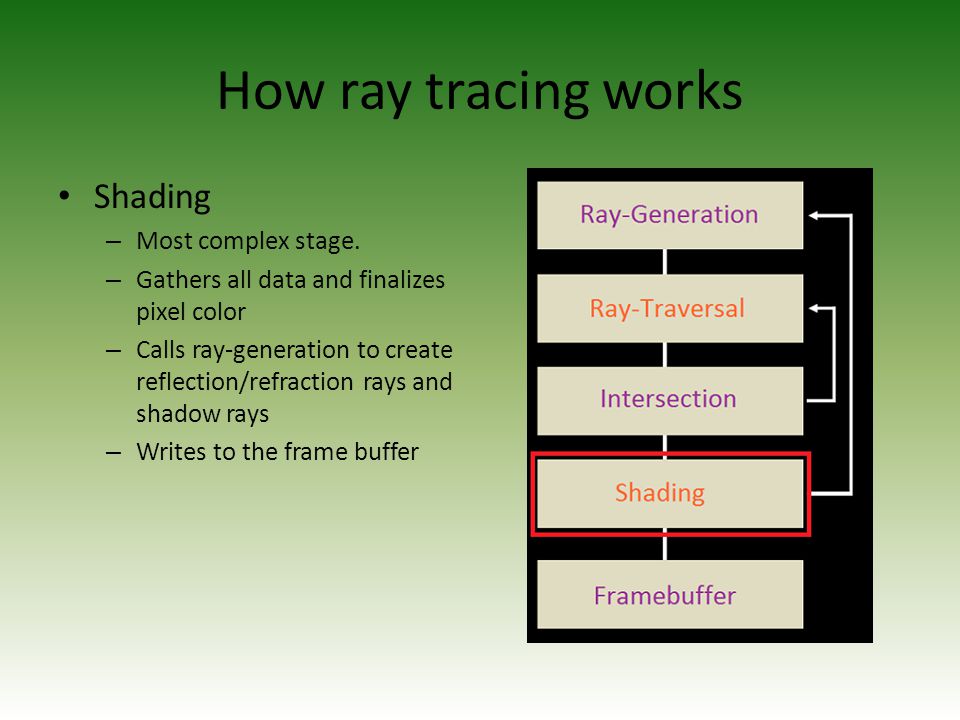

17 How ray tracing works Shading – Most complex stage. – Gathers all data and finalizes pixel color – Calls ray-generation to create reflection/refraction rays and shadow rays – Writes to the frame buffer

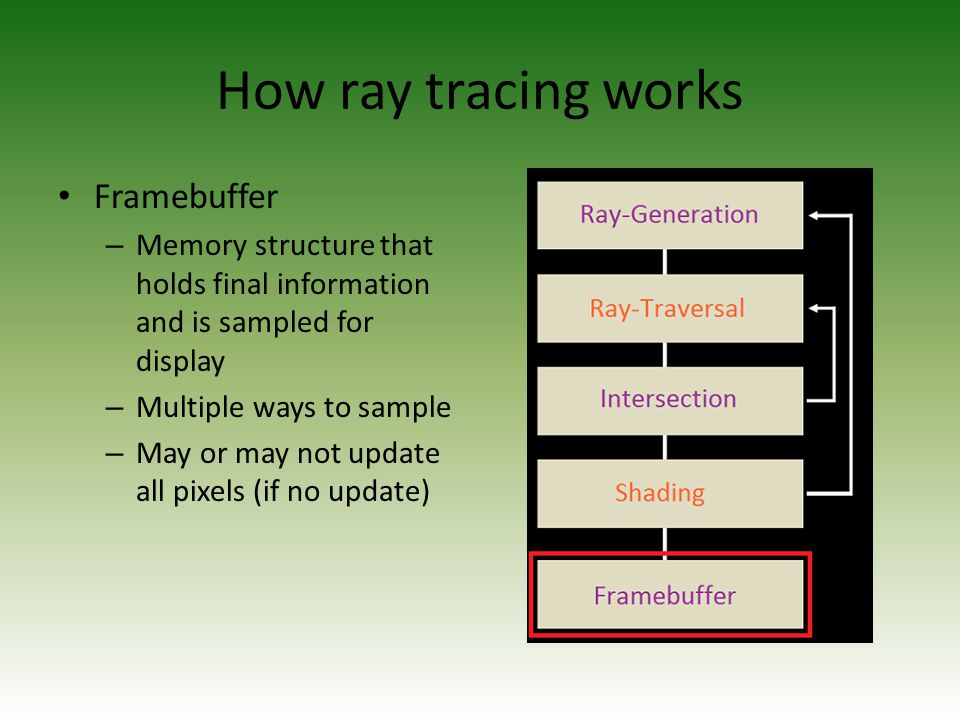

18 How ray tracing works Framebuffer – Memory structure that holds final information and is sampled for display – Multiple ways to sample – May or may not update all pixels (if no update)

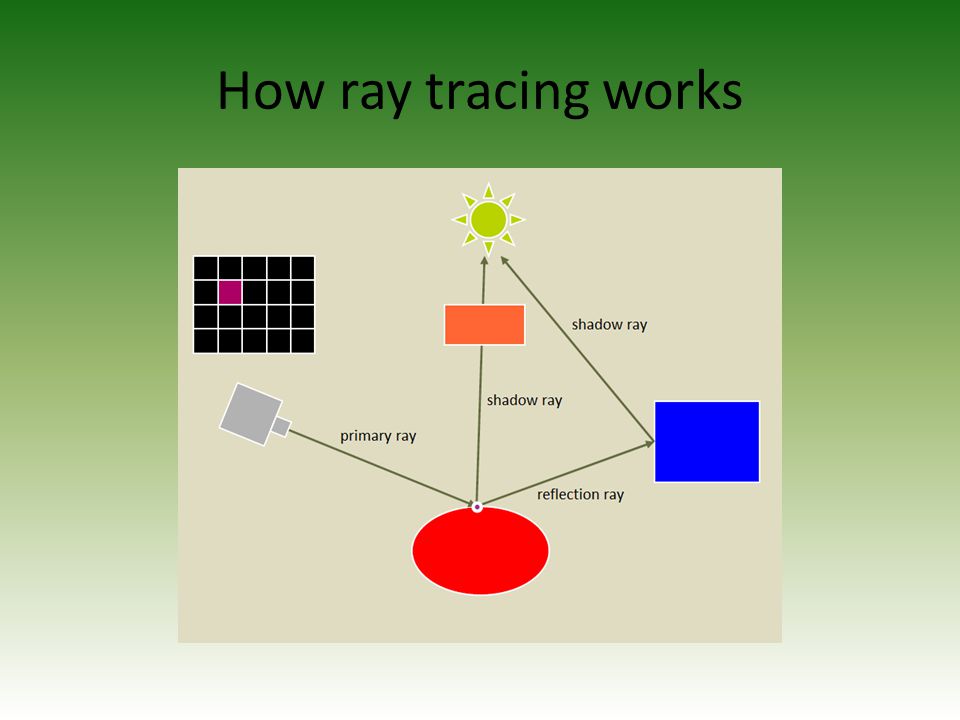

19 How ray tracing works

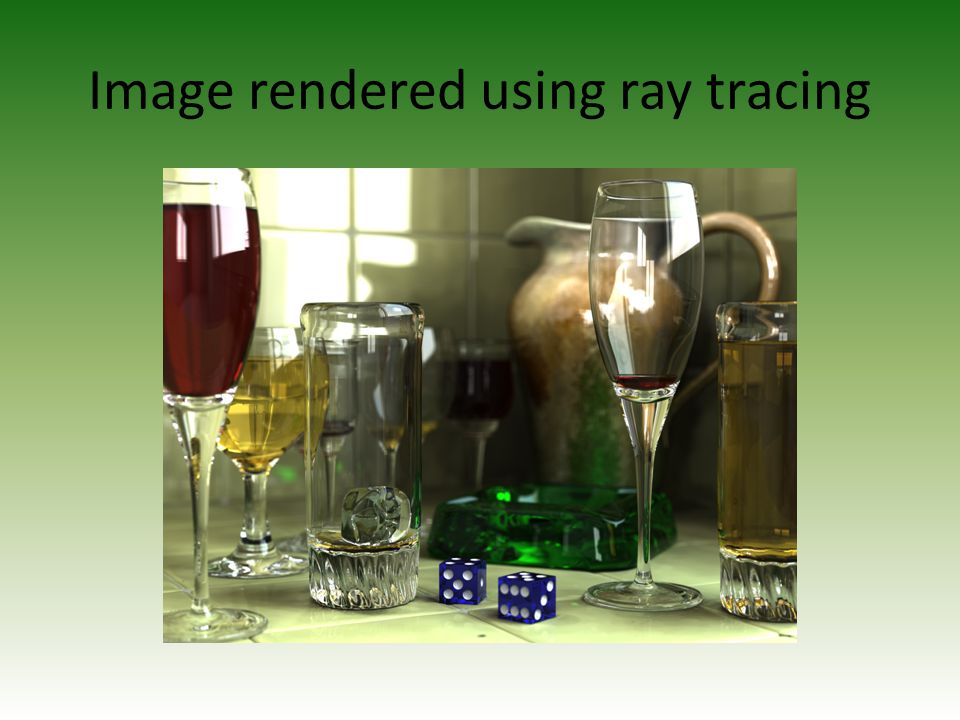

20 Image rendered using ray tracing

21

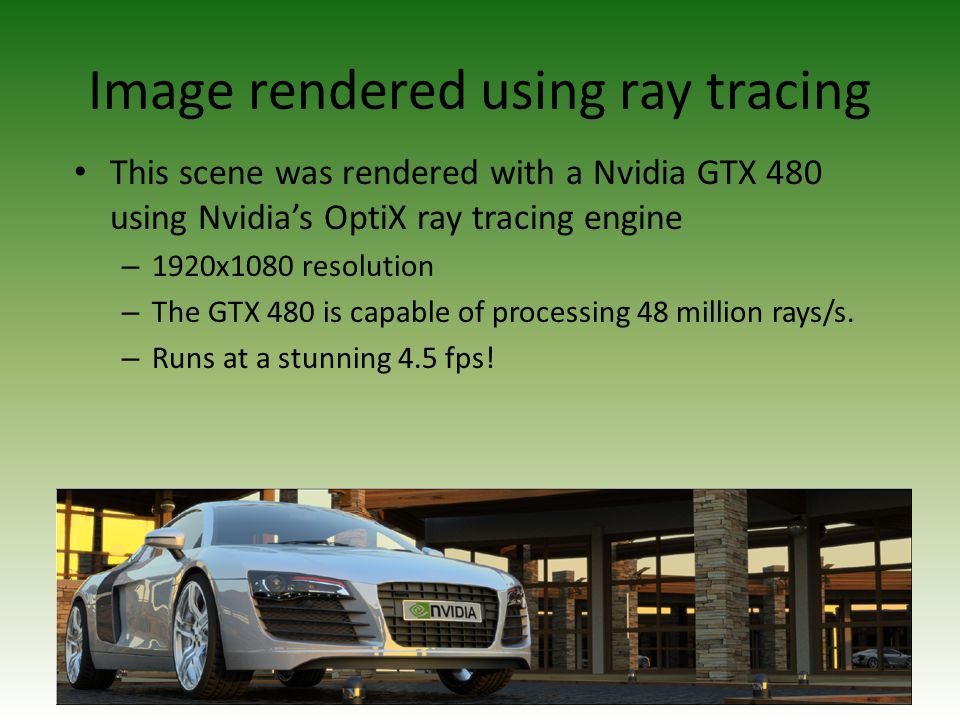

22 This scene was rendered with a Nvidia GTX 480 using Nvidia’s OptiX ray tracing engine – 1920x1080 resolution – The GTX 480 is capable of processing 48 million rays/s. – Runs at a stunning 4.5 fps!

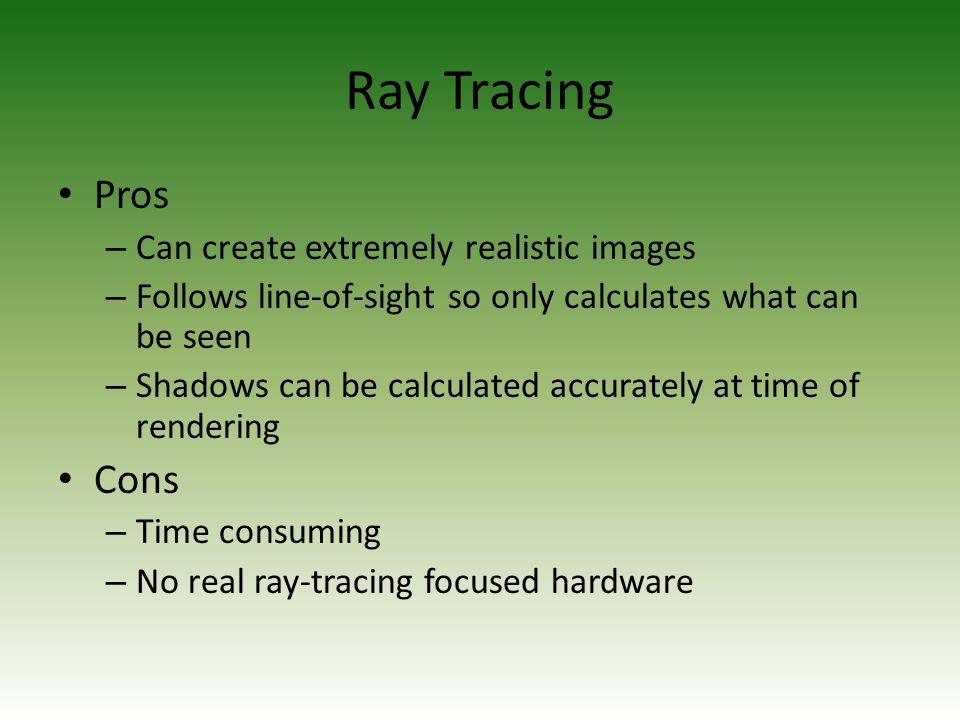

23 Ray Tracing Pros – Can create extremely realistic images – Follows line-of-sight so only calculates what can be seen – Shadows can be calculated accurately at time of rendering Cons – Time consuming – No real ray-tracing focused hardware

24 Conclusion Ray tracing isn’t ready for real-time yet. Potential to combine techniques for more realistic images without sacrificing a lot of performance. More focus on hardware and algorithms could result in real-time ray tracing.

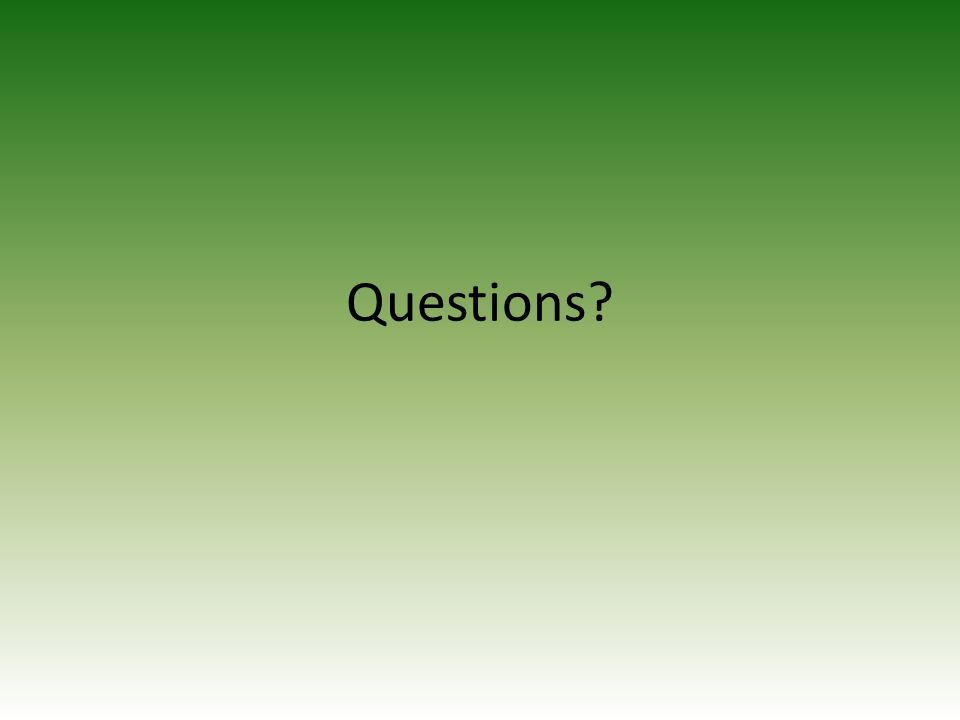

25 Questions?
