1
Calvin Cycle and Photorespiration
2

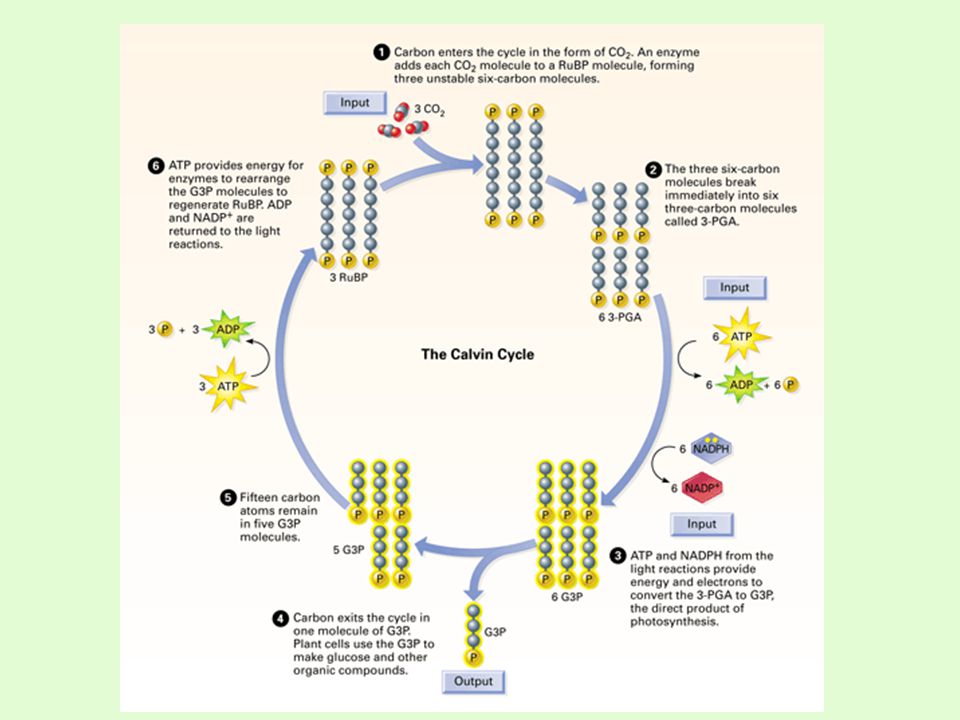

Calvin Cycle Where does the Calvin Cycle occur? In the stroma What goes into the Calvin Cycle? ATP, NADPH, Carbon Dioxide What comes out of the Calvin Cycle? Sugar, ADP, NADP+
6
The G3P made in the Calvin Cycle is involved in the biosynthesis of other organic molecules
7
Rate of Photosynthesis What is a rate? It is the activity per unit time. What factors can affect the photosynthetic rate?
8
Light Intensity
9
The Effect of Light Intensity on Photosynthetic Rate
10
Temperature
11
The Effect of Temperature on Photosynthetic Rate
12

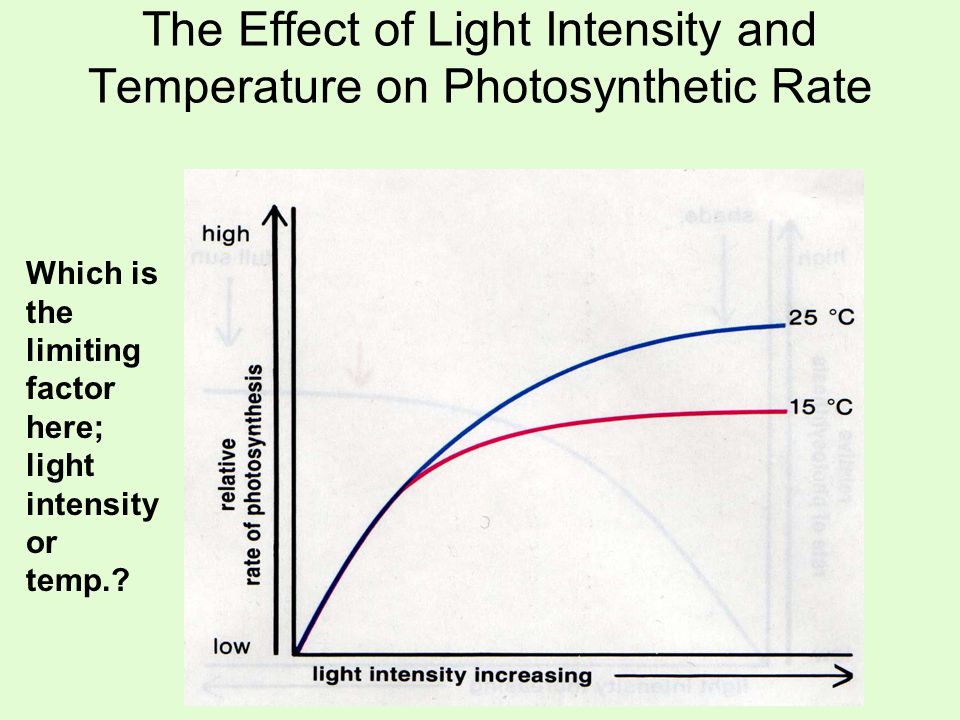

The Effect of Light Intensity and Temperature on Photosynthetic Rate Which is the limiting factor here; light intensity or temp.?
13
Oxygen Concentration What would a graph for increasing levels of CO 2 look like?
14

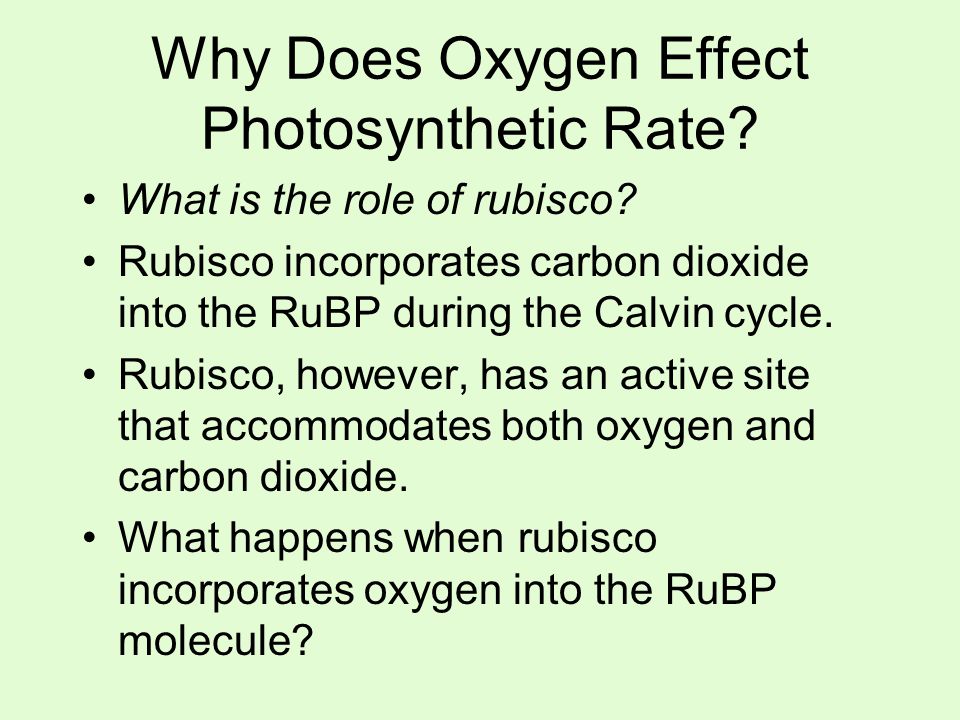

Why Does Oxygen Effect Photosynthetic Rate? What is the role of rubisco? Rubisco incorporates carbon dioxide into the RuBP during the Calvin cycle. Rubisco, however, has an active site that accommodates both oxygen and carbon dioxide. What happens when rubisco incorporates oxygen into the RuBP molecule?
16
Photorespiration The overall rate of photosynthesis decreases. Photorespiration and photosynthesis occur at the same time
17
Conditions for Photorespiation What conditions will lead to a lot of photorespiration? Hot Dry Sunny What happens to stomates under such conditions? They close.
19
Evolution Why does rubisco bind both oxygen and carbon dioxide? When Calvin Cycle evolved there was little oxygen in the atmosphere.
20

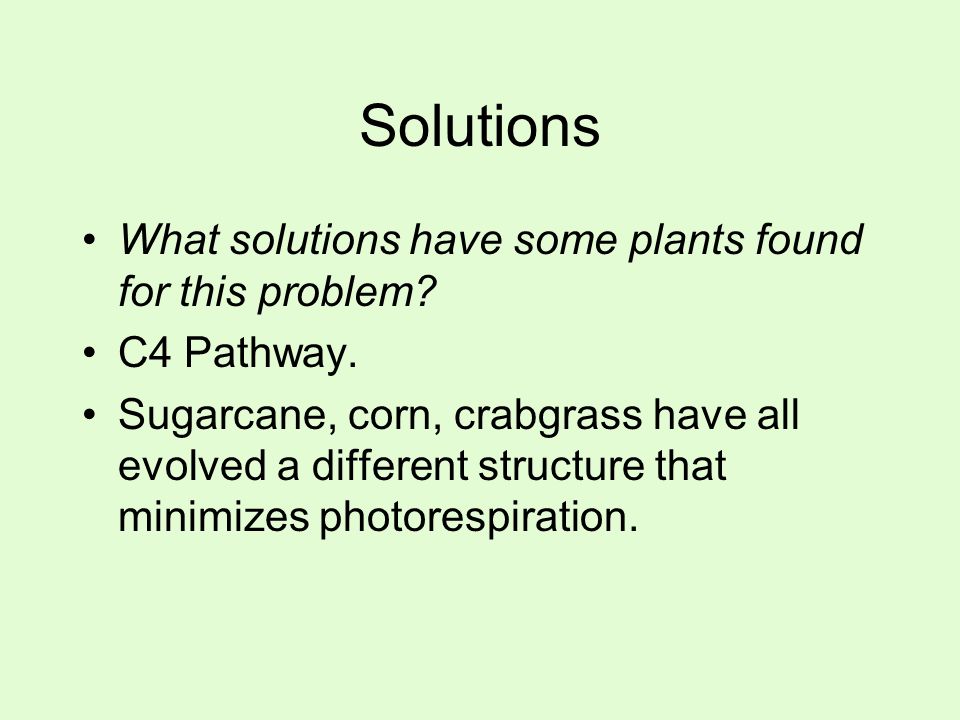

Solutions What solutions have some plants found for this problem? C4 Pathway. Sugarcane, corn, crabgrass have all evolved a different structure that minimizes photorespiration.
21
What is the new structure?
22
The bundle sheath cells! How do the bundle sheath cells minimize photorespiration?
23
Different between C3 vs. C4 plants Photorespiration? Leaf anatomy? Levels of tolerancy under the hot, dry, sunny conditions that favor photorespiration? Light comp. point? CO 2 comp. point?
24
CAM Plants At night, stomata open, take in CO 2, incorporate it into organic acids and store those acids in vacuoles until daylight during the day, stomates close The organic acids stored at night, break down, release CO2 and rubisco incorporates it into sugar.
25
Mesophyll cell
27
C4 plants use a new structure to solve the photorespiration problem. CAM plants use time to solve the photorespiration problem.
28
Photorespiration cycle
