1. J.M. Gabrielse VEX Drive Trains

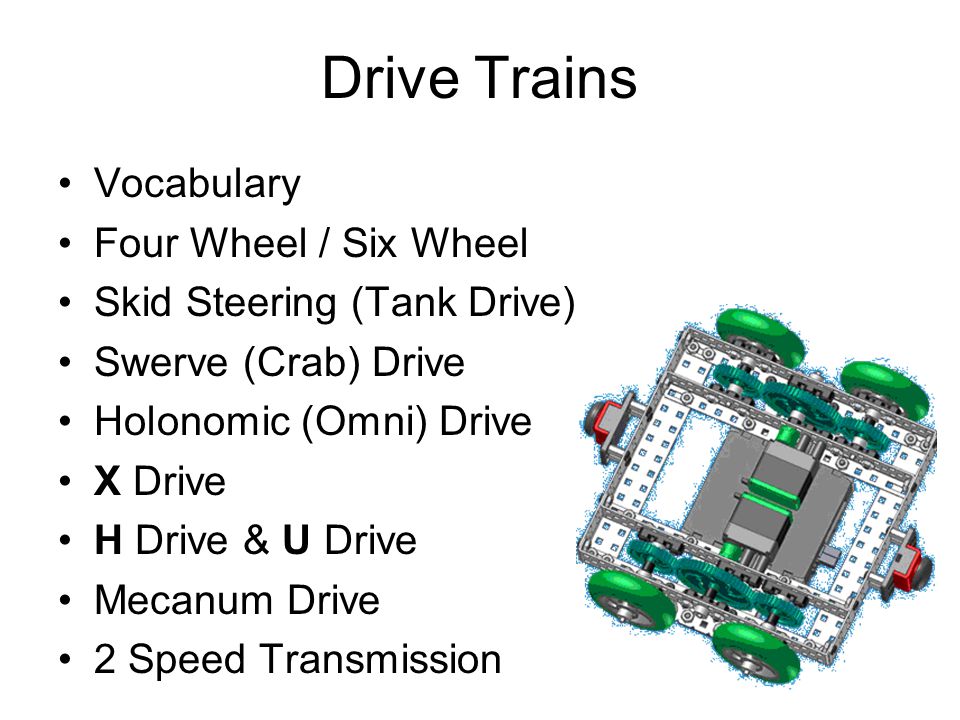

2. J.M. Gabrielse Drive Trains Vocabulary Four Wheel / Six Wheel Skid Steering (Tank Drive) Swerve (Crab) Drive Holonomic (Omni) Drive X Drive H Drive & U Drive Mecanum Drive 2 Speed Transmission

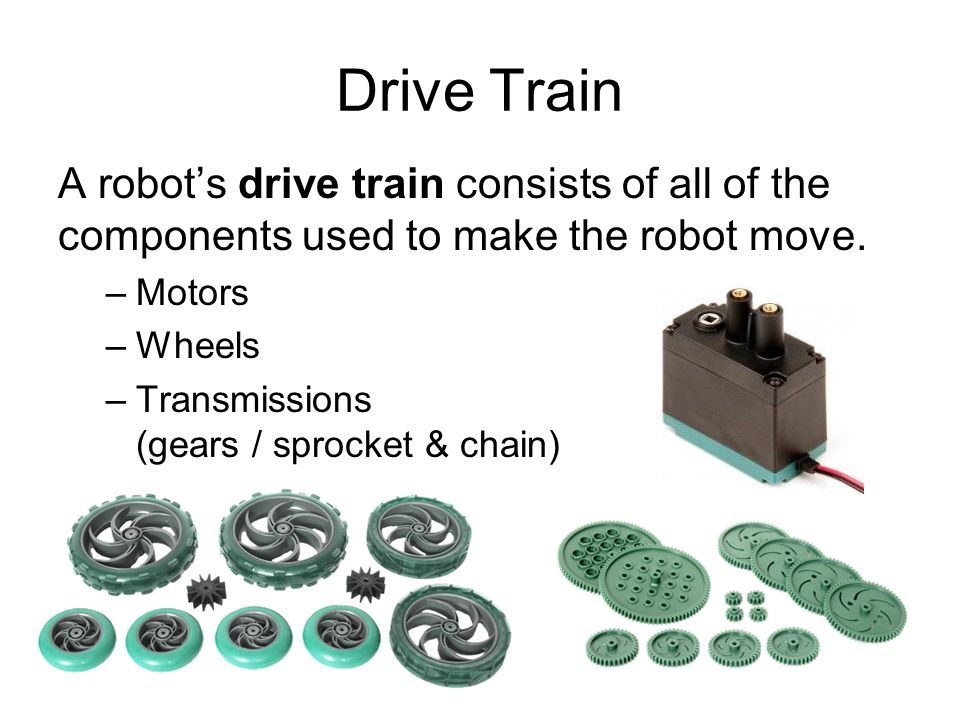

3. J.M. Gabrielse Drive Train A robot’s drive train consists of all of the components used to make the robot move. –Motors –Wheels –Transmissions (gears / sprocket & chain)

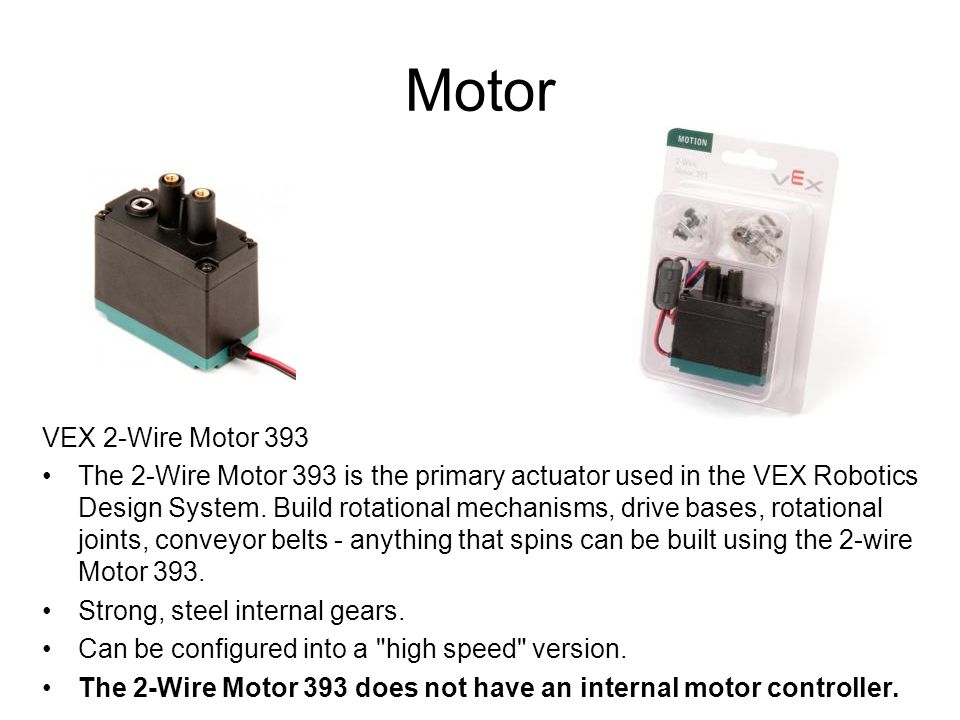

4. J.M. Gabrielse Motor VEX 2-Wire Motor 393 The 2-Wire Motor 393 is the primary actuator used in the VEX Robotics Design System. Build rotational mechanisms, drive bases, rotational joints, conveyor belts - anything that spins can be built using the 2-wire Motor 393. Strong, steel internal gears. Can be configured into a "high speed" version. The 2-Wire Motor 393 does not have an internal motor controller.

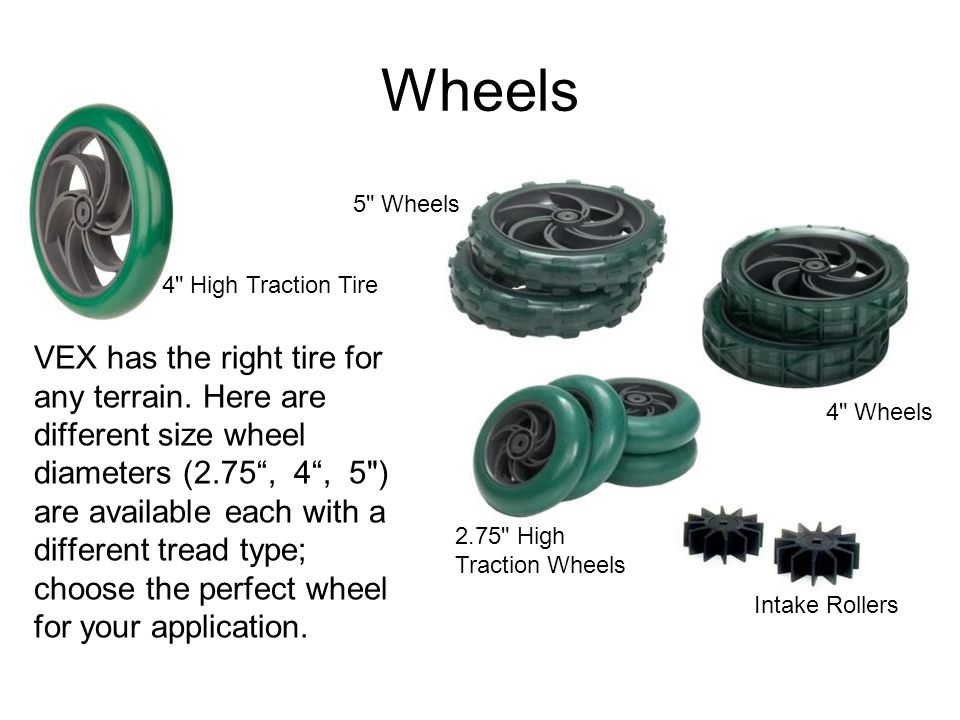

5. J.M. Gabrielse Wheels VEX has the right tire for any terrain. Here are different size wheel diameters (2.75“, 4“, 5") are available each with a different tread type; choose the perfect wheel for your application. 5" Wheels 4" Wheels 2.75" High Traction Wheels Intake Rollers 4" High Traction Tire

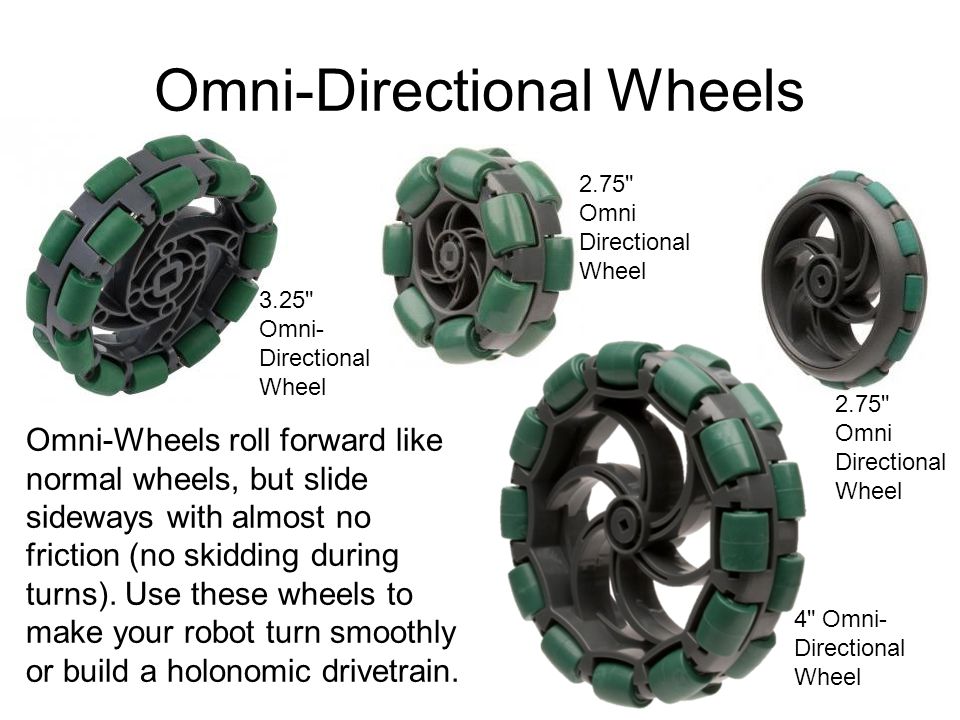

6. J.M. Gabrielse Omni-Directional Wheels 4" Omni- Directional Wheel Omni-Wheels roll forward like normal wheels, but slide sideways with almost no friction (no skidding during turns). Use these wheels to make your robot turn smoothly or build a holonomic drivetrain. 2.75" Omni Directional Wheel 3.25" Omni- Directional Wheel

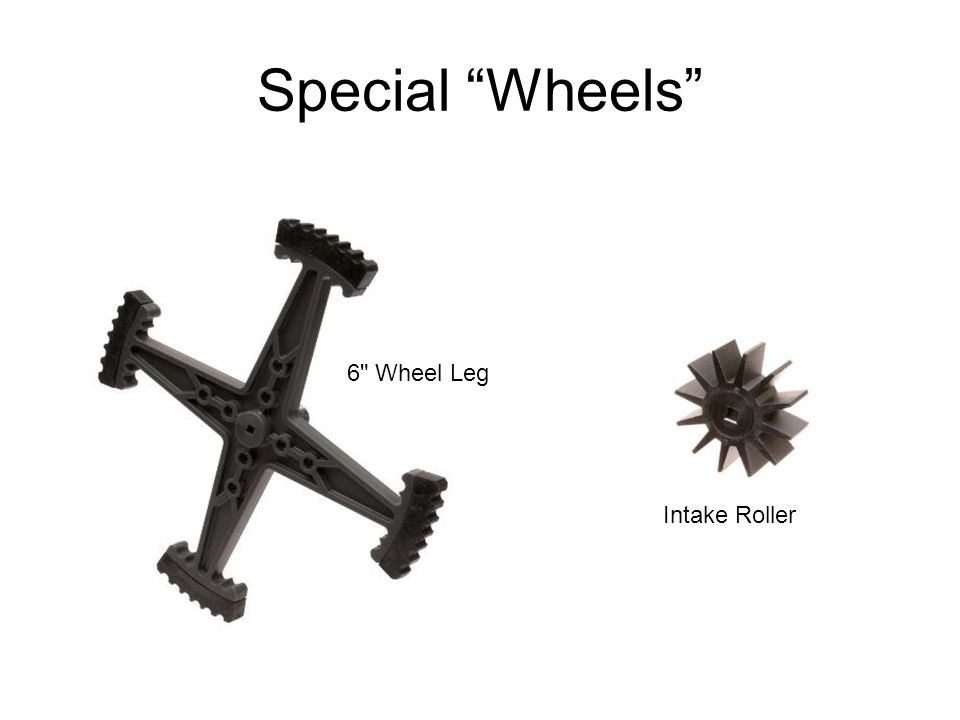

7. J.M. Gabrielse Special “Wheels” Intake Roller 6" Wheel Leg

8. J.M. Gabrielse Gear Types standard gears differentialbevel gearsrack & pinionworm gear high strength gears

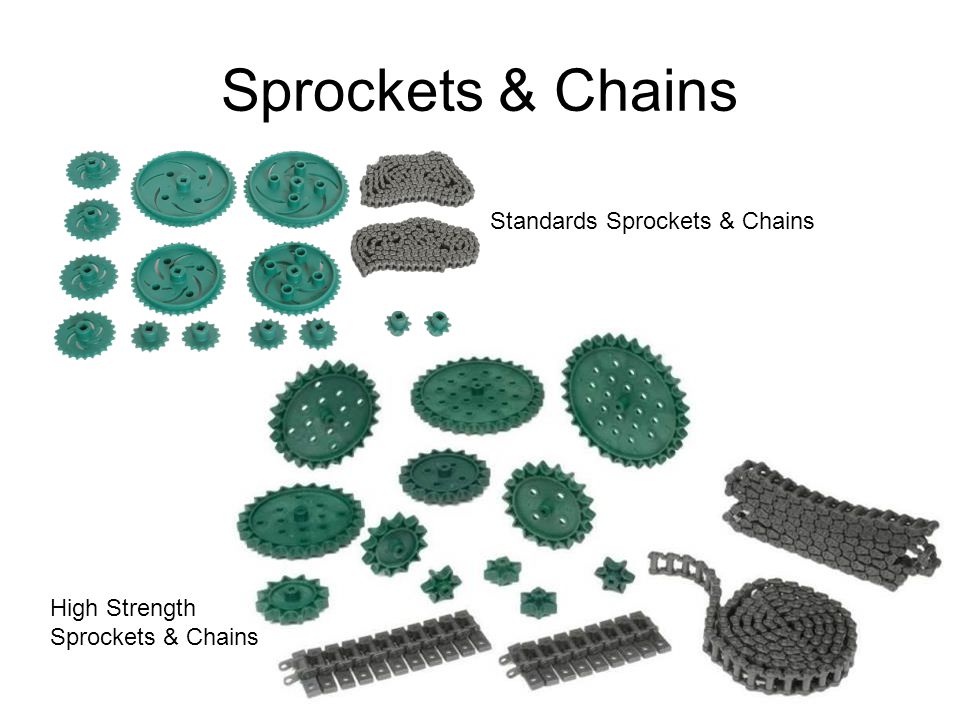

9. J.M. Gabrielse Sprockets & Chains Standards Sprockets & Chains High Strength Sprockets & Chains

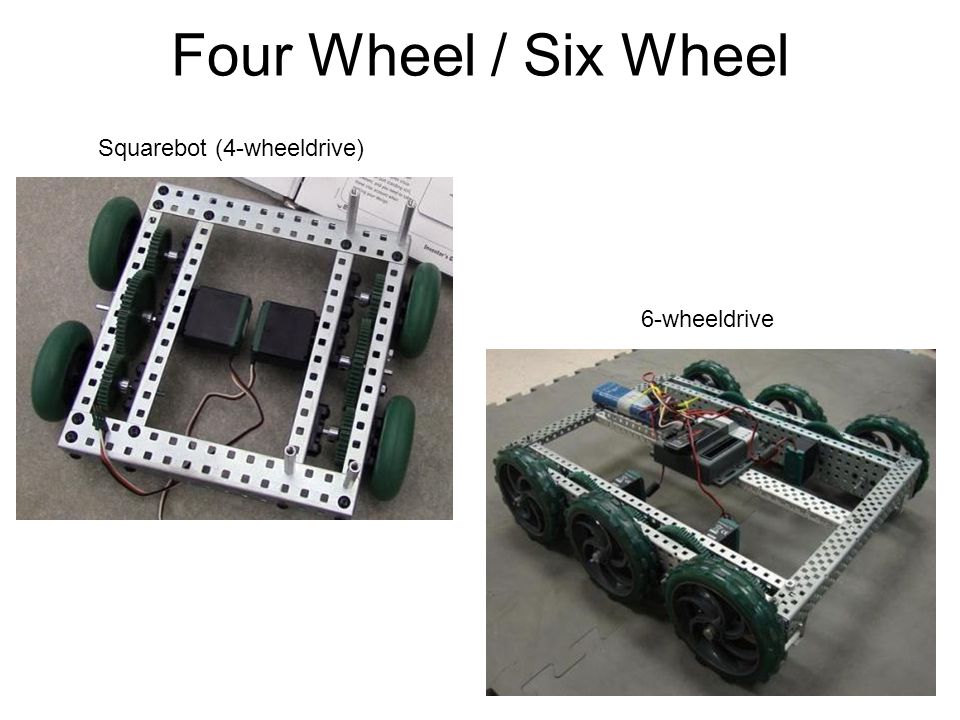

10. J.M. Gabrielse Four Wheel / Six Wheel Squarebot (4-wheeldrive) 6-wheeldrive

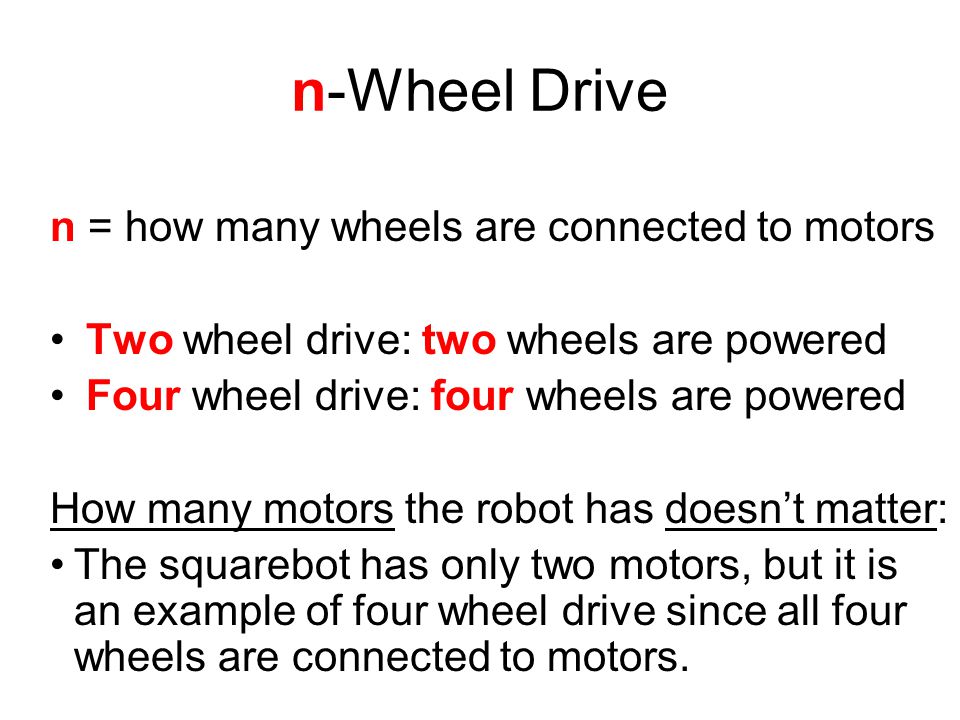

11. J.M. Gabrielse n-Wheel Drive n = how many wheels are connected to motors Two wheel drive: two wheels are powered Four wheel drive: four wheels are powered How many motors the robot has doesn’t matter: The squarebot has only two motors, but it is an example of four wheel drive since all four wheels are connected to motors.

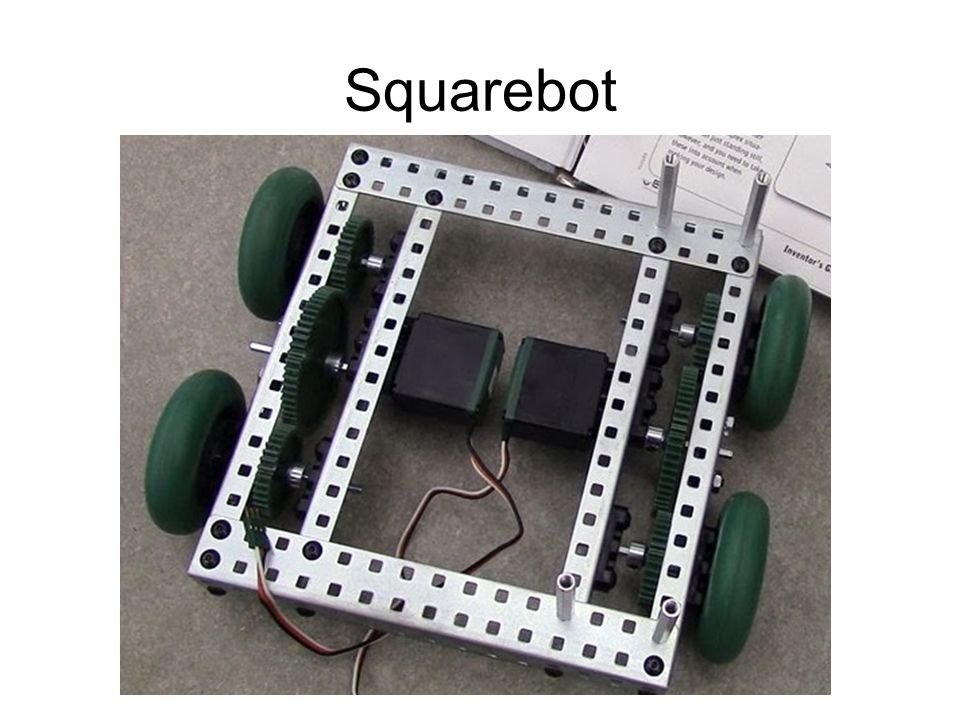

12. J.M. Gabrielse Squarebot

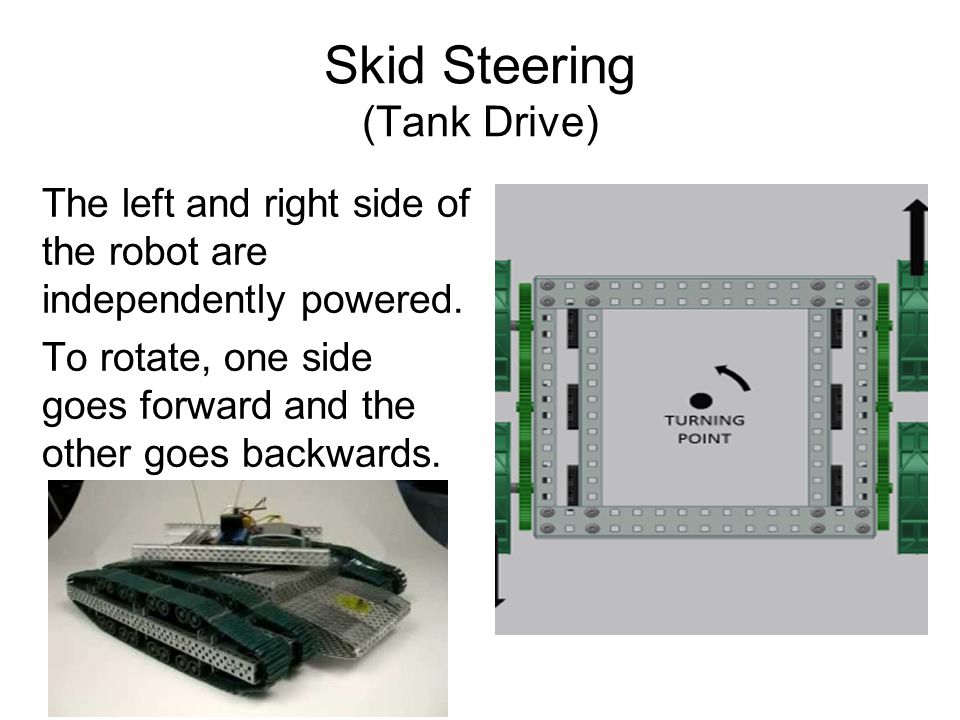

13. J.M. Gabrielse Skid Steering (Tank Drive) The left and right side of the robot are independently powered. To rotate, one side goes forward and the other goes backwards.

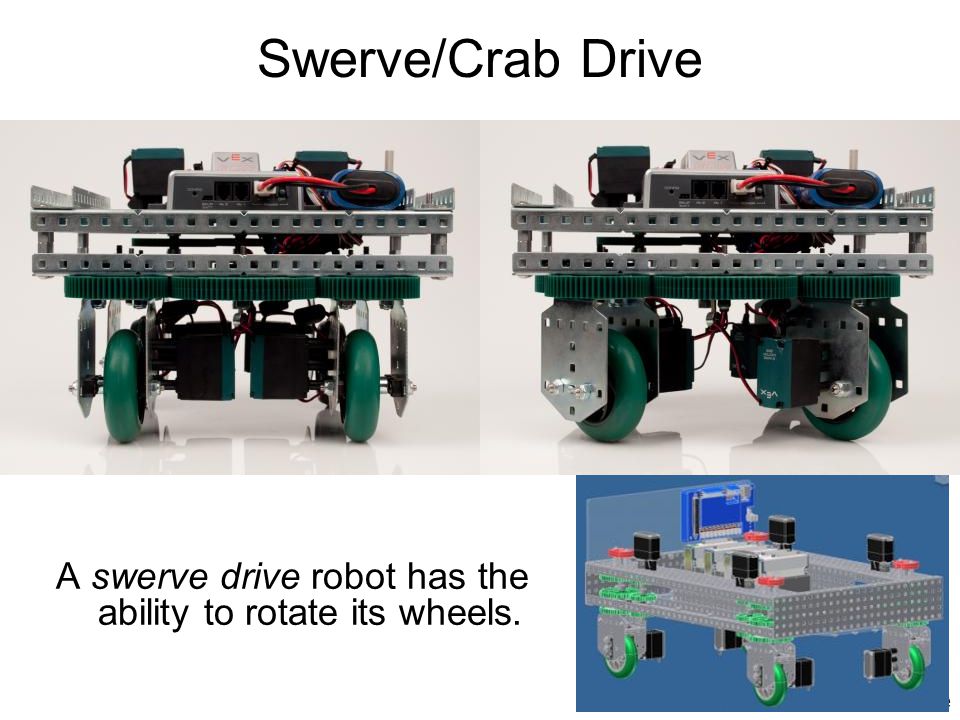

14. J.M. Gabrielse Swerve/Crab Drive A swerve drive robot has the ability to rotate its wheels.

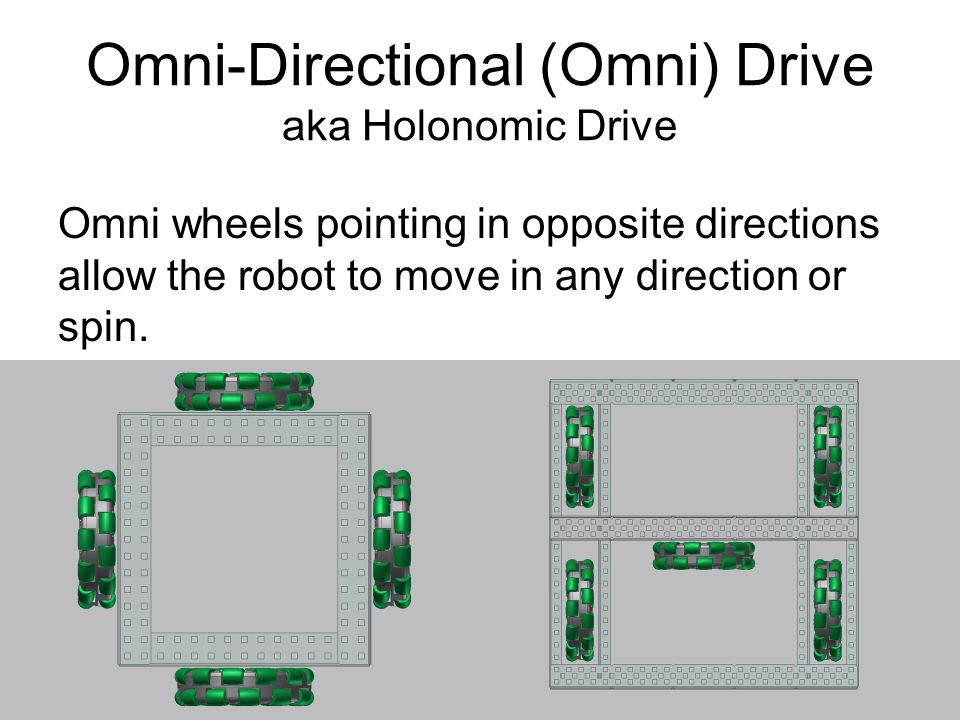

15. J.M. Gabrielse Omni-Directional (Omni) Drive aka Holonomic Drive Omni wheels pointing in opposite directions allow the robot to move in any direction or spin.

16. J.M. Gabrielse Omni-Directional (Omni) Drive aka Holonomic Drive

17. J.M. Gabrielse Omni-Directional (Omni) Drive aka Holonomic Drive

18. J.M. Gabrielse Omni-Directional (Omni) Drive This is a true holonomic drive aka X Drive.

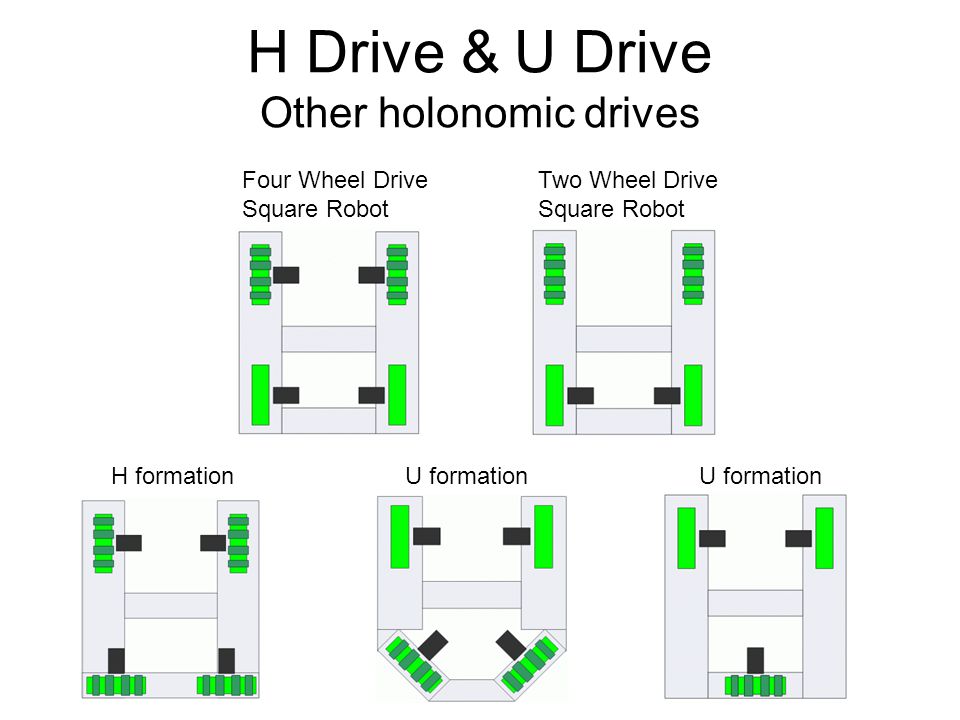

19. J.M. Gabrielse H Drive & U Drive Other holonomic drives U formation Four Wheel Drive Square Robot Two Wheel Drive Square Robot H formation

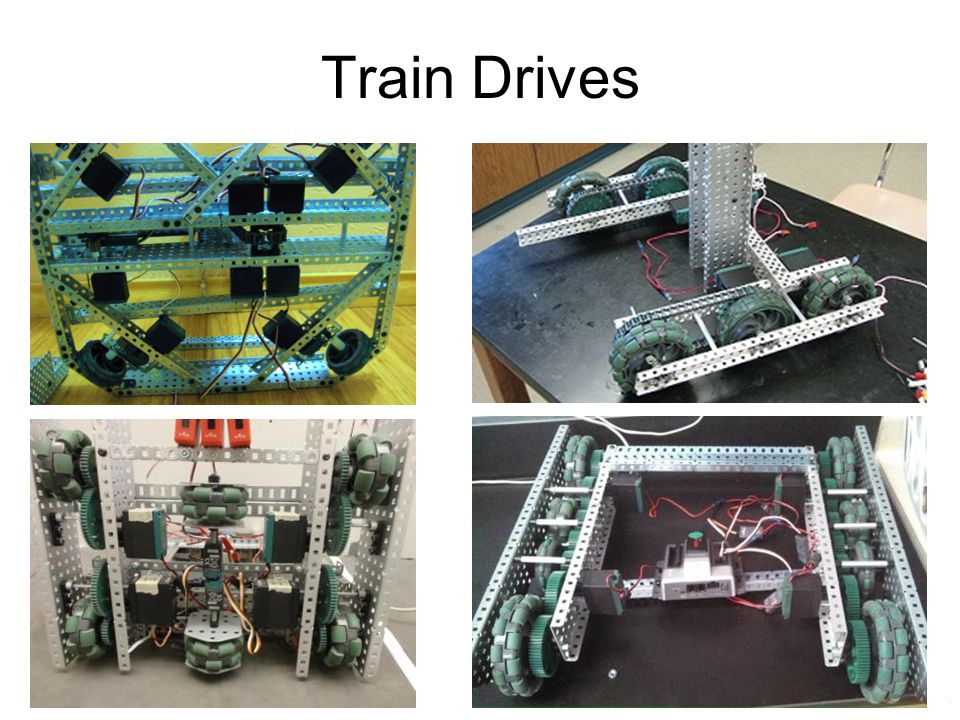

20. J.M. Gabrielse Train Drives

21. J.M. Gabrielse Mecanum Drive The Mecanum drive is also a holonomic drive.

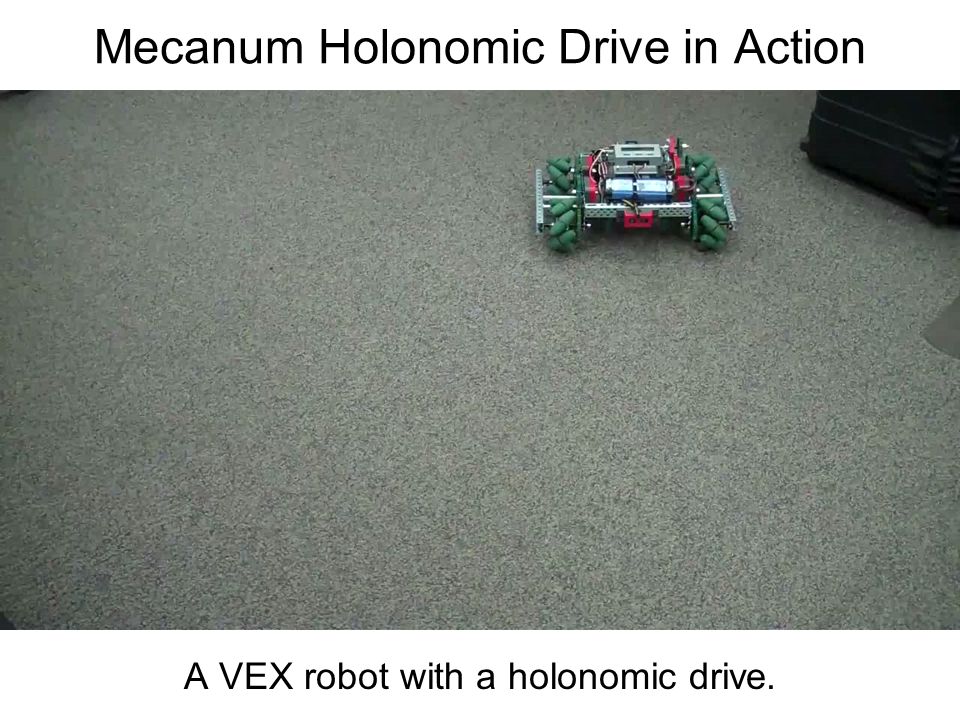

22. J.M. Gabrielse Mecanum Holonomic Drive in Action A VEX robot with a holonomic drive. If video do not play, go to this link: https://www.youtube.com/watch?v=pP8ajNMx84k https://www.youtube.com/watch?v=pP8ajNMx84k

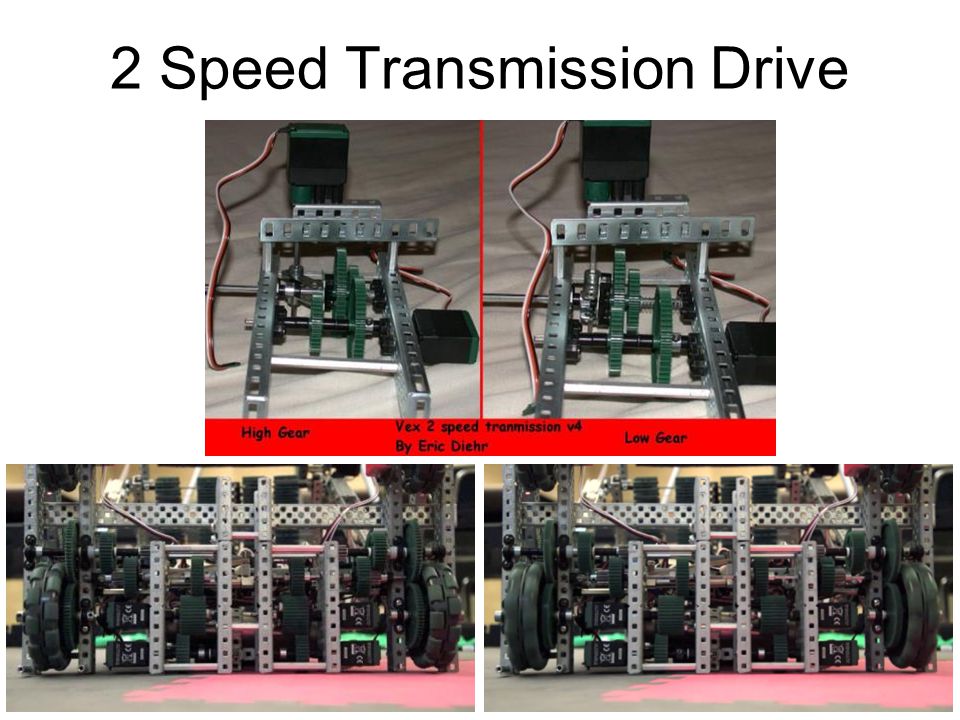

23. J.M. Gabrielse 2 Speed Transmission Drive

24. J.M. Gabrielse 2 Speed Transmission Drive

25. J.M. Gabrielse VEX Drive Trains Thanks!
