1
Low Voltage DC Motors Ricky Jessee Dan Taylor
2
Low Voltage DC Motors Primary Motor Manufacturers Motor Selection Finding More Information
3

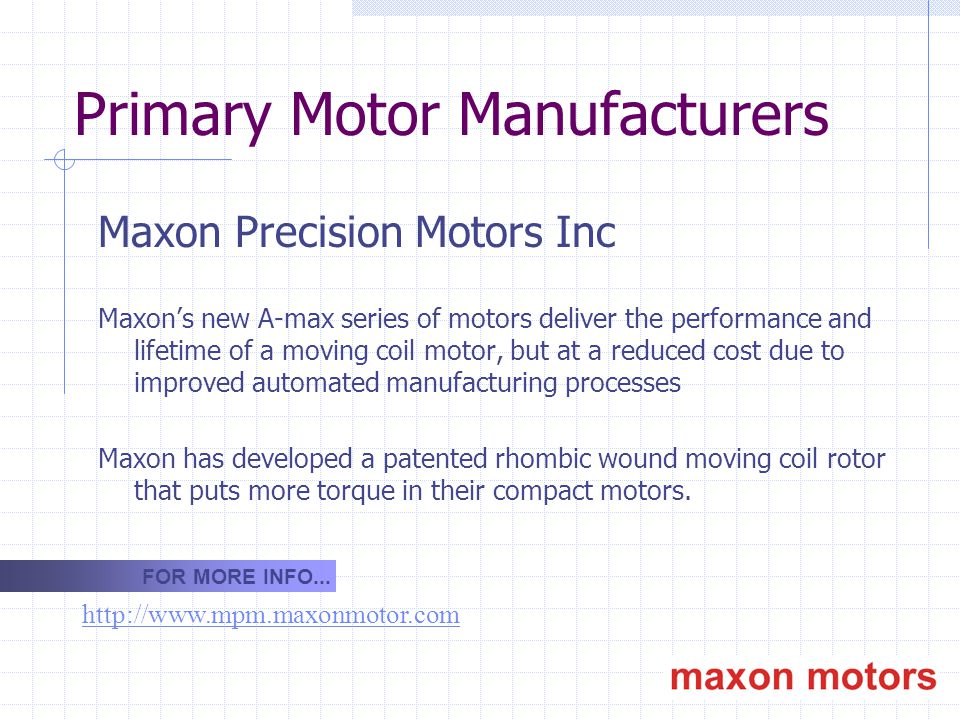

Primary Motor Manufacturers Maxon Precision Motors Inc Maxon’s new A-max series of motors deliver the performance and lifetime of a moving coil motor, but at a reduced cost due to improved automated manufacturing processes Maxon has developed a patented rhombic wound moving coil rotor that puts more torque in their compact motors. http://www.mpm.maxonmotor.com FOR MORE INFO...
4

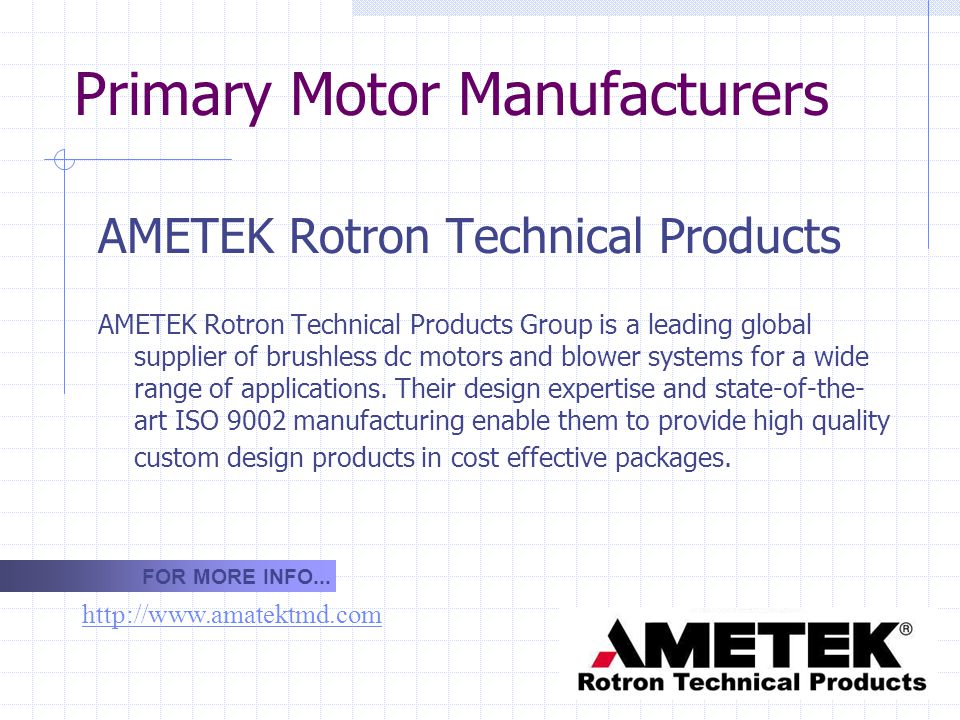

Primary Motor Manufacturers AMETEK Rotron Technical Products AMETEK Rotron Technical Products Group is a leading global supplier of brushless dc motors and blower systems for a wide range of applications. Their design expertise and state-of-the- art ISO 9002 manufacturing enable them to provide high quality custom design products in cost effective packages. http://www.ahttp://www.amatektmd.com FOR MORE INFO...
5
Primary Motor Manufacturers Baldor Motors and Drives Baldor has the industry's shortest lead times on custom motors - as short as three weeks. Their unique FLEX FLOW™ manufacturing process lets them produce any order in any quantity, quickly and efficiently. FOR MORE INFO... http://www.http://www.baldor.com
6
Motor Selection Power Source – Voltage and Amperage RPM Requirements Torque Requirements Size Requirements Cost
7
Motor Selection
9
Maxon’s Amax Program The new breakthrough Maxon DC motor program that gives high performance at low cost. The A/max program, equipped with high performance AINiCo magnets, consists of six diameters, ranging from 12mm to 32mm; versions are available with either graphite or precious metal brushes, sleeve or ball bearings, and one or two shafts. http://www.mpm.maxonmotor.com/guide/amax.cfm FOR MORE INFO...
10
Finding More Information Maxon Motors: www.mpm.maxon.com Ametek Rotron Technical Products: www.ametektmd.com Baldor Motors and Drives: www.baldor.com Micro-Control Journal: www.mcjournal.com
11
In Summary: There are many good manufacturers of Low Voltage DC Motors. Three of the largest are: Maxon, Ametek, and Baldor. The specifications to consider when selecting a motor are: power source, RPM, torque, size, and cost. The Maxon Amax program offers a good combination of cost, durability, and versatility.
