1. Pancreas Transplant Pathology: A Surgeon’s Perspective Jon Odorico M.D., F.A.C.S. University of Wisconsin-Madison

2. Richard Lillehei and William Kelly – First successful pancreas transplant - December 16, 1966

3. Pancreas Graft Survival UW Experience 1 year rates SPK 88% P = 0.03 PAN 87% SPK PAN

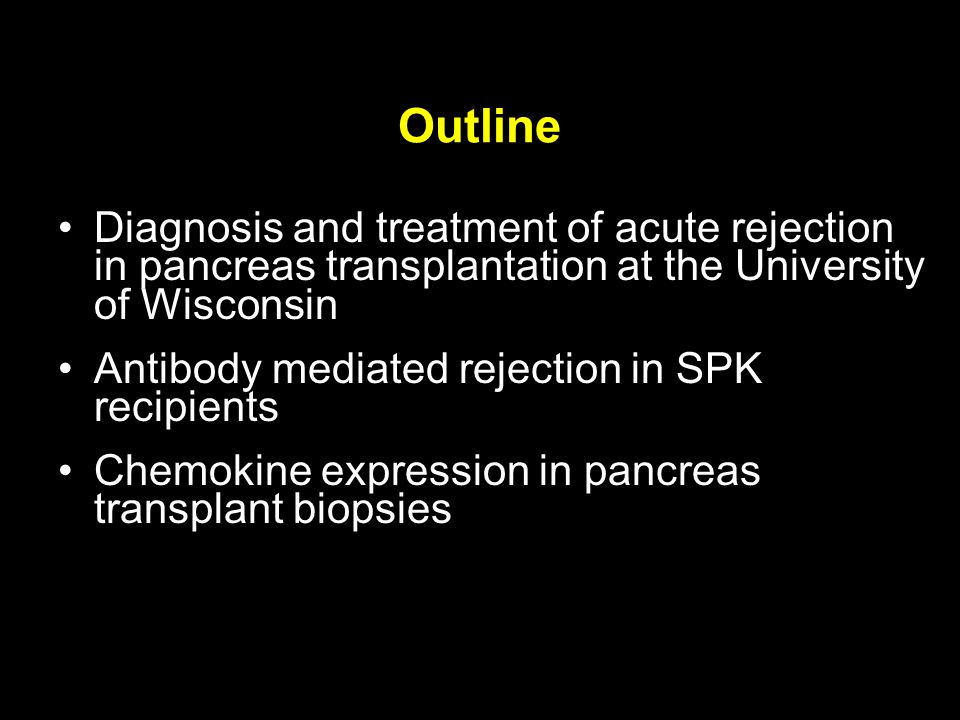

4. Outline Diagnosis and treatment of acute rejection in pancreas transplantation at the University of Wisconsin Antibody mediated rejection in SPK recipients Chemokine expression in pancreas transplant biopsies

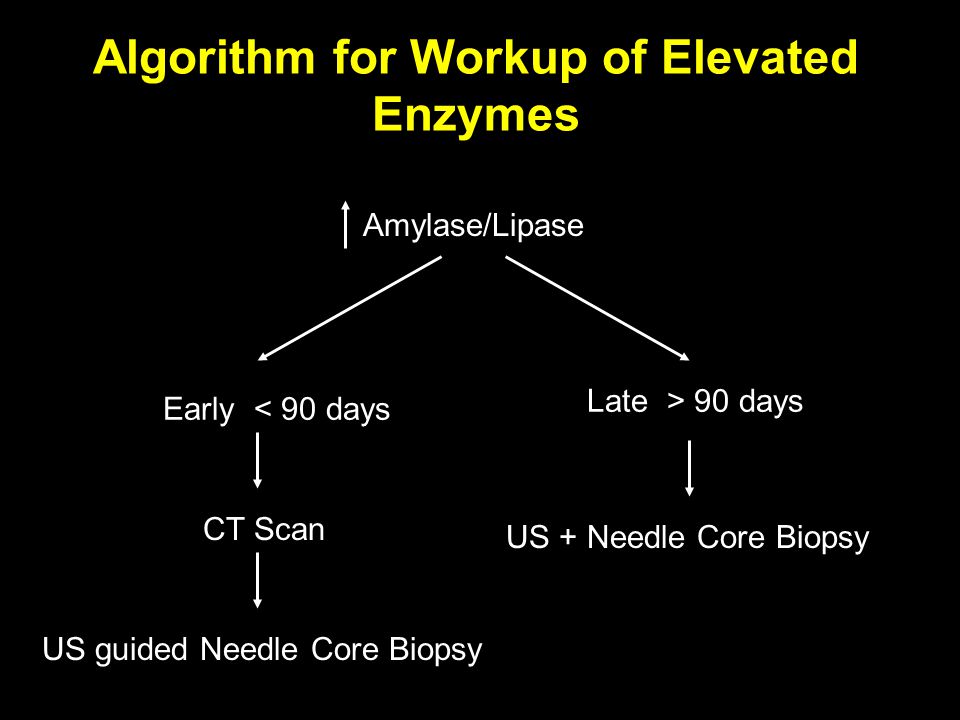

5. Algorithm for Workup of Elevated Enzymes Amylase/Lipase Early < 90 days Late > 90 days US + Needle Core Biopsy CT Scan US guided Needle Core Biopsy

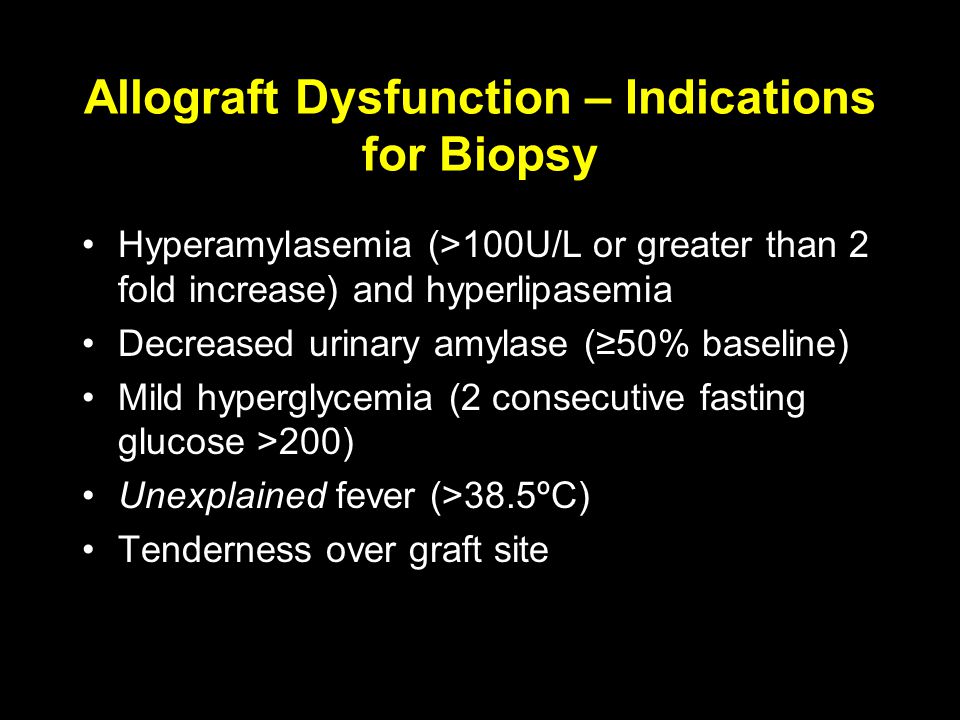

6. Allograft Dysfunction – Indications for Biopsy Hyperamylasemia (>100U/L or greater than 2 fold increase) and hyperlipasemia Decreased urinary amylase (≥50% baseline) Mild hyperglycemia (2 consecutive fasting glucose >200) Unexplained fever (>38.5ºC) Tenderness over graft site

7. Needle Core Biopsy of the Pancreas Why? Serum Enzymes - non-specific and only 70% accurate No 100% accurate serologic or urinary marker of acute rejection Accurate diagnosis of rejection avoids unnecessary over immunosuppression Diagnosis of other pathologies Significant incidence of isolated pancreas rejection in SPK transplants ~5-15%

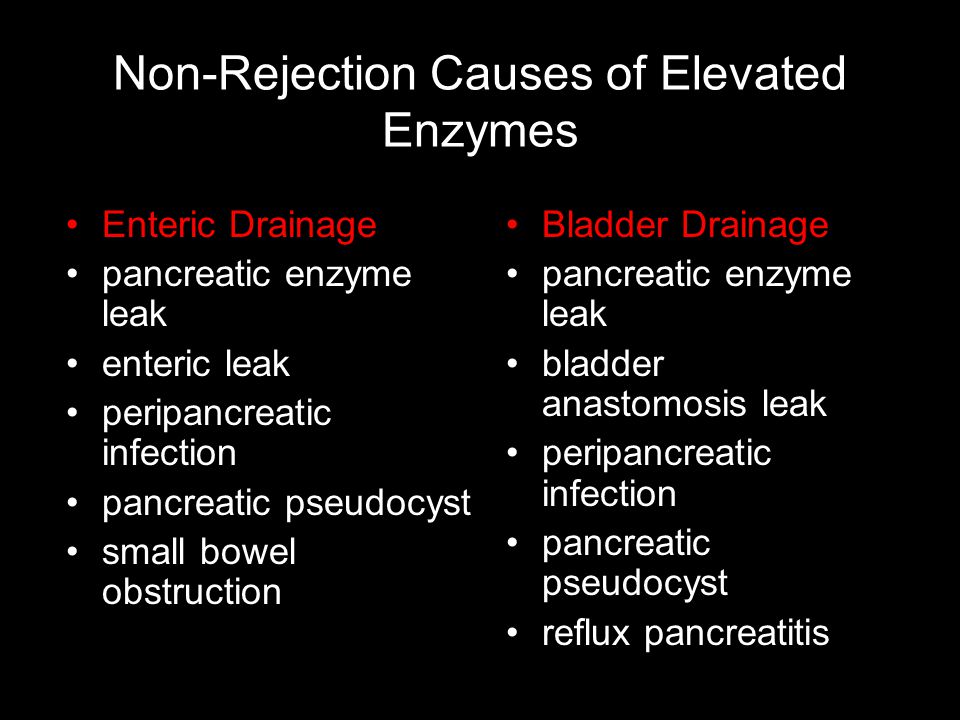

8. Non-Rejection Causes of Elevated Enzymes Enteric Drainage pancreatic enzyme leak enteric leak peripancreatic infection pancreatic pseudocyst small bowel obstruction Bladder Drainage pancreatic enzyme leak bladder anastomosis leak peripancreatic infection pancreatic pseudocyst reflux pancreatitis

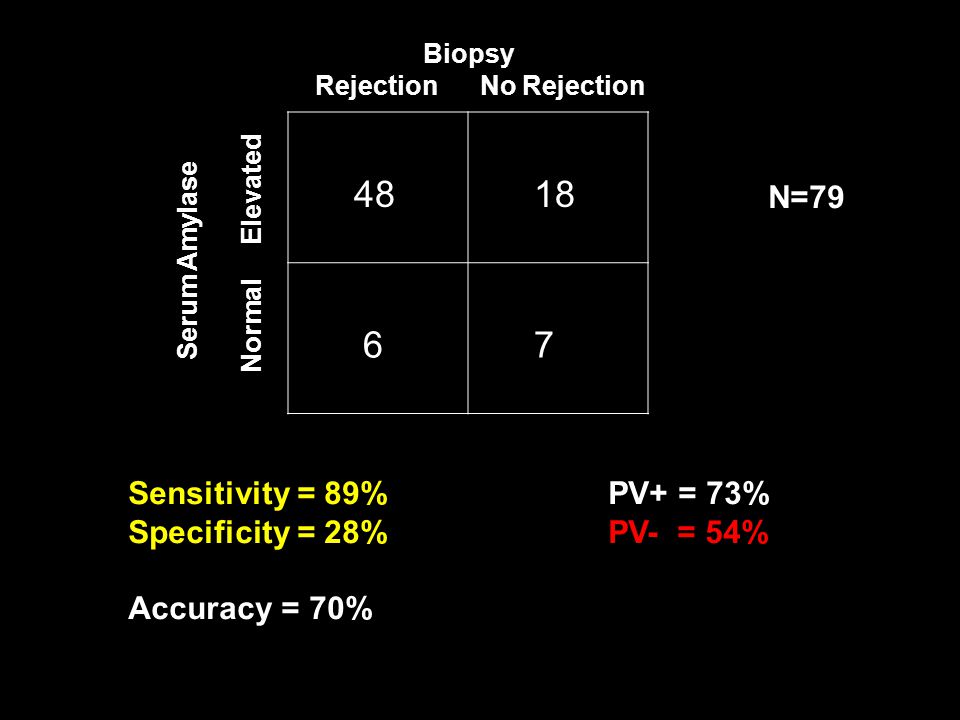

9. 48 18 6 7 Biopsy Rejection No Rejection Serum Amylase Normal Elevated Normal Sensitivity = 89%PV+ = 73% Specificity = 28%PV- = 54% Accuracy = 70% N=79

10. 0 1 2 3 4 Serum Creatininine (mg/dL)

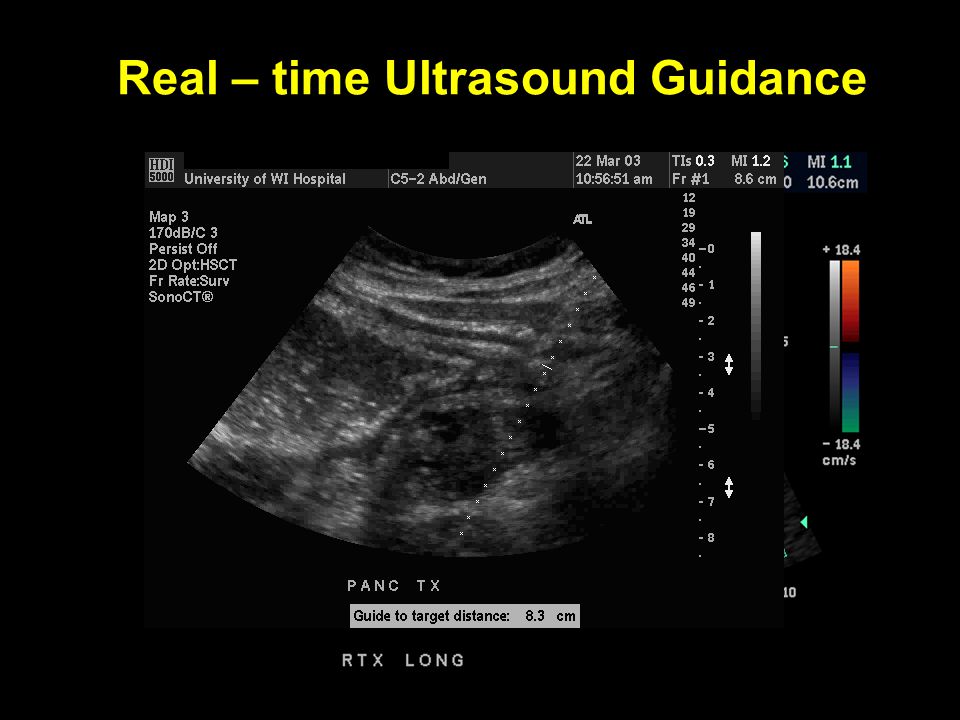

11. Real – time Ultrasound Guidance

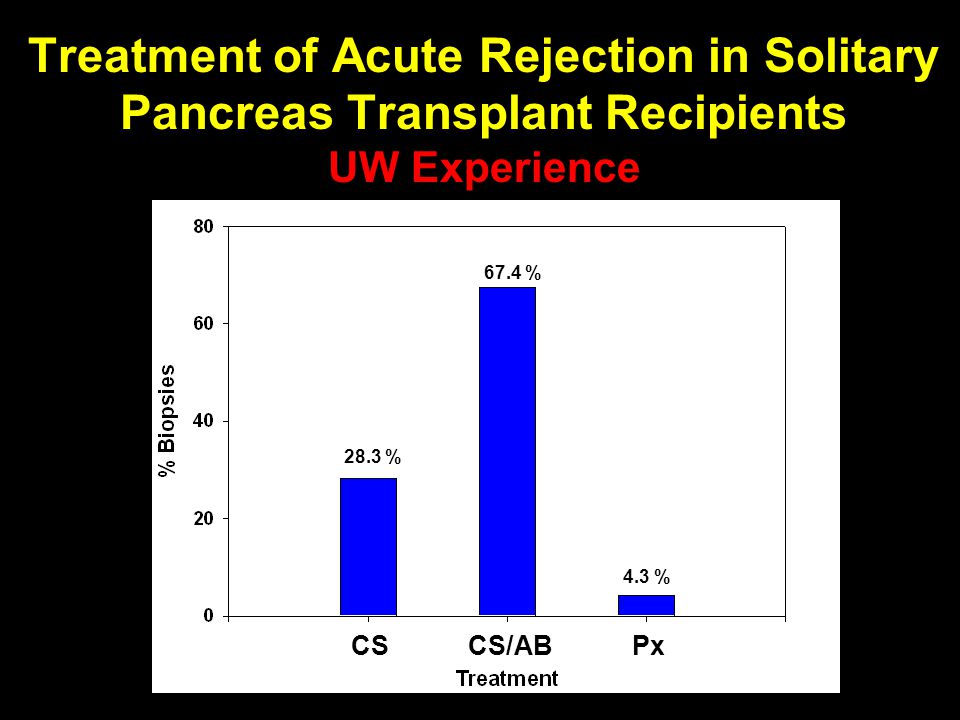

12. Treatment of Acute Rejection in Solitary Pancreas Transplant Recipients UW Experience 184 192 195 209 P=NS CS CS/AB Px 28.3 % 67.4 % 4.3 %

13. Management of Grade I Pathology and Outcomes – UW 1997-2007 – 21 of 179 biopsies If something else is going on  no antirejection treatment If no other imaging findings or suspected infections, then treat

14. Percutaneous Needle Core Biopsies UW Experience 1997-2007 Complications 57.9 % 15.8 % 7.8 % 18.4 % 194 145 P = 0.045 Complication rate – 8 (4.5%) No graft losses 179 biopsies US or CT guided percutaneous needle core biopsy

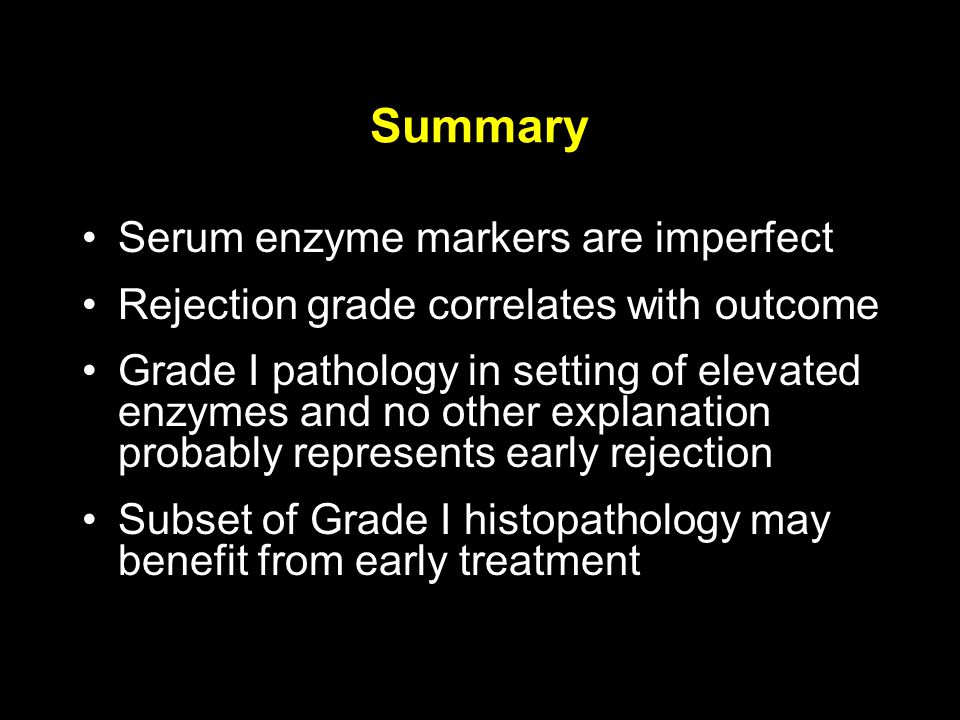

15. Summary Serum enzyme markers are imperfect Rejection grade correlates with outcome Grade I pathology in setting of elevated enzymes and no other explanation probably represents early rejection Subset of Grade I histopathology may benefit from early treatment

16. Surveillance or Protocol Biopsies ?? 57.9 % 15.8 % 7.8 % 18.4 % 194 145 P = 0.045 What do the infiltrates mean? Are infiltrates pathological in all cases? When and how often? Increasing evidence of the deleterious effect of subclinical rejection on CAN in kidney transplants Makes sense when there are poor serological markers of rejection and biopsy is safe, i.e. heart, lung transplantation ?Useful in Solitary Pancreas transplants; probably not necessary in SPK patients

18. C4d+ Kidney Transplant Rejection in Simultaneous Kidney Pancreas Transplantation: Differential Effects on Kidney vs. Pancreas Transplants LT Chin, M Samaniego, YT Becker, J Odorico, JD Pirsch, HW Sollinger Departments of Surgery and Medicine University of Wisconsin School of Medicine and Public Health Presented at ATC 2006

19. Antibody-Mediated Rejection in SPK Evaluate effect of AMR on kidney and pancreas transplant function. –identified patients with AMR kidney –are pancreas transplants susceptible to circulating alloantibody ? –Does pancreas tx outcome parallel that of the kidney tx ?

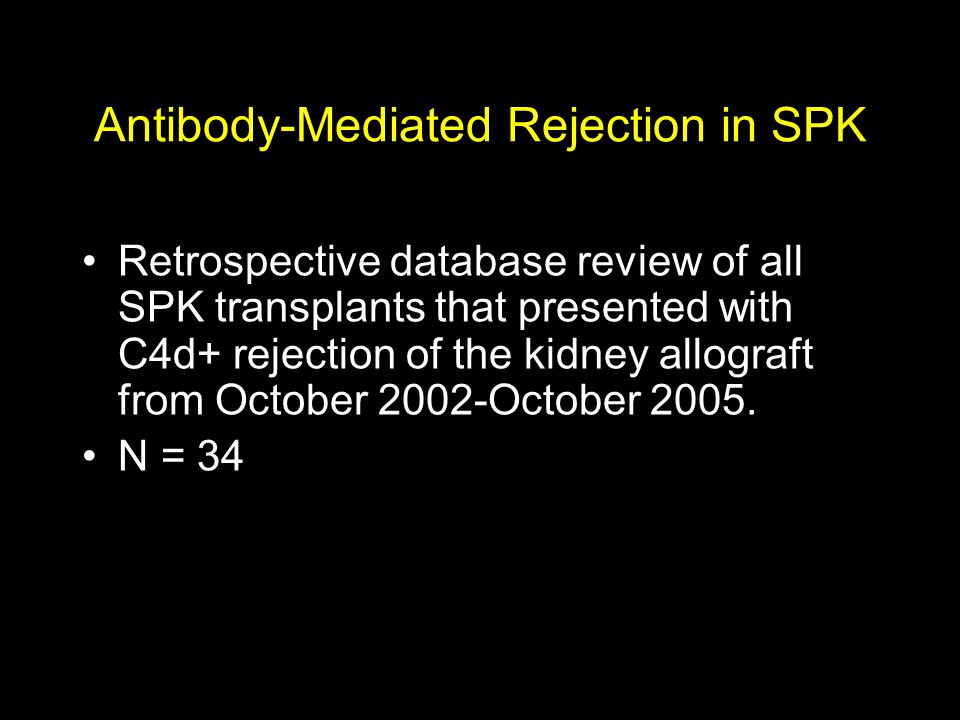

20. Antibody-Mediated Rejection in SPK Retrospective database review of all SPK transplants that presented with C4d+ rejection of the kidney allograft from October 2002-October 2005. N = 34

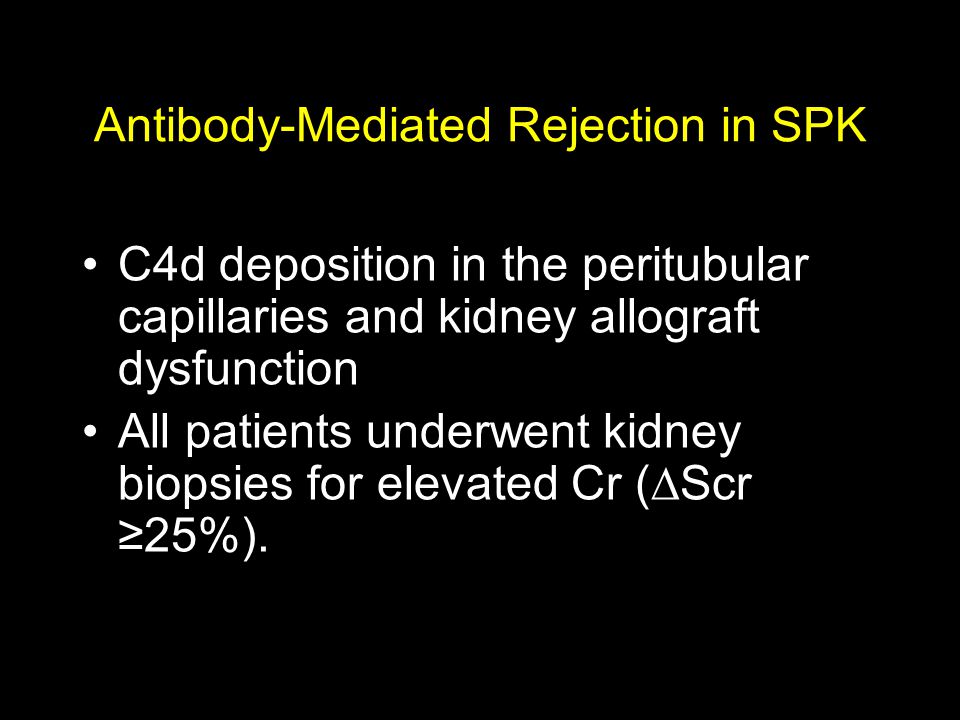

21. Antibody-Mediated Rejection in SPK C4d deposition in the peritubular capillaries and kidney allograft dysfunction All patients underwent kidney biopsies for elevated Cr (  Scr ≥25%).

22. Antibody-Mediated Rejection in SPK Elevated serum amylase or lipase was used as a surrogate marker of pancreas allograft rejection. No pancreas biopsies were performed. Donor specific antibody (DSA- Luminex ® ) data were collected whenever available.

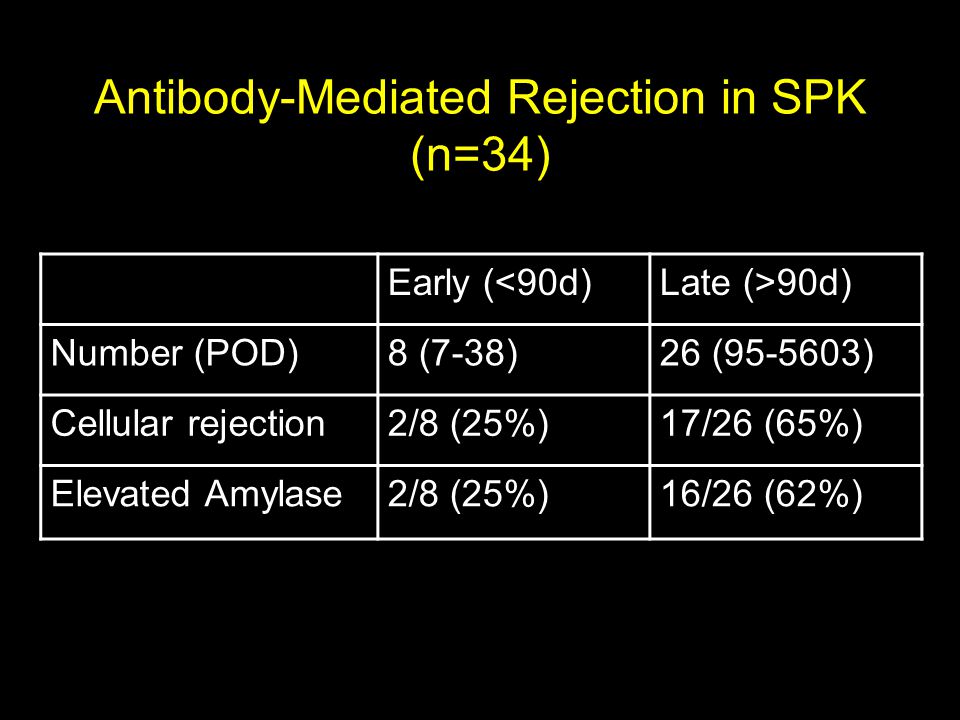

23. Antibody-Mediated Rejection in SPK (n=34) Early (<90d)Late (>90d) Number (POD)8 (7-38)26 (95-5603) Cellular rejection2/8 (25%)17/26 (65%) Elevated Amylase2/8 (25%)16/26 (62%)

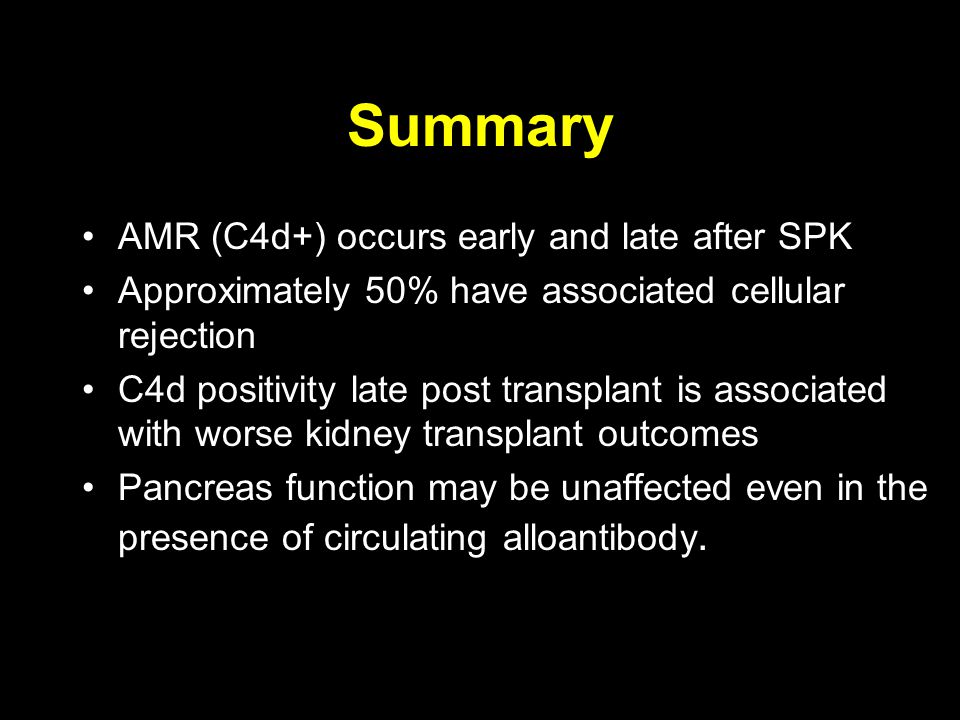

24. Summary AMR (C4d+) occurs early and late after SPK Approximately 50% have associated cellular rejection C4d positivity late post transplant is associated with worse kidney transplant outcomes Pancreas function may be unaffected even in the presence of circulating alloantibody.

25. AMR Pancreas allograft Grade II C4d+ DSA to A31 and B31

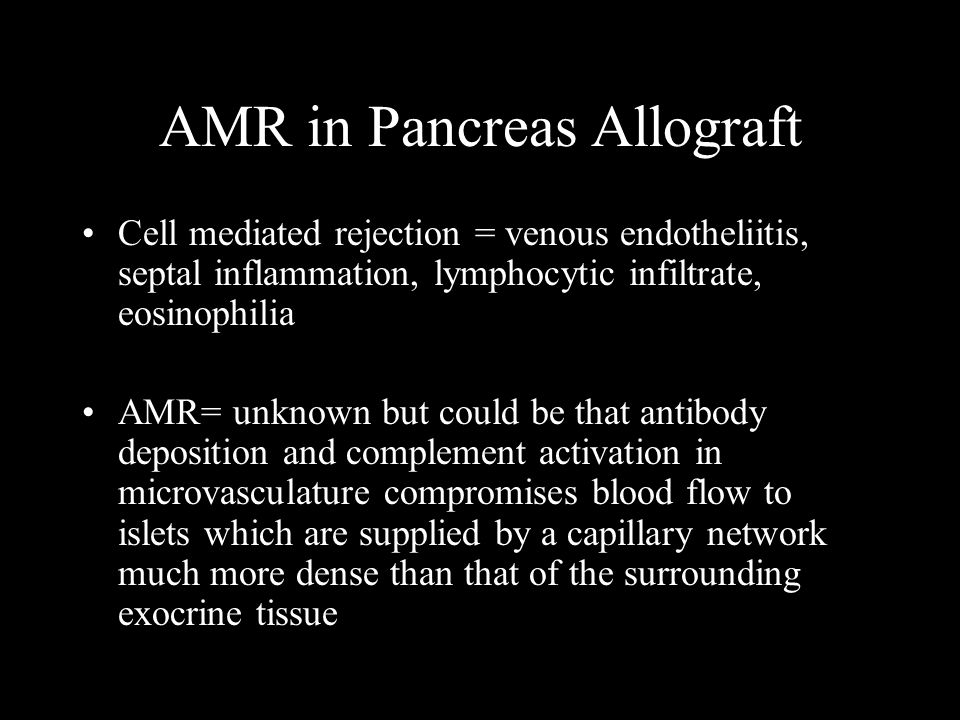

26. AMR in Pancreas Allograft Cell mediated rejection = venous endotheliitis, septal inflammation, lymphocytic infiltrate, eosinophilia AMR= unknown but could be that antibody deposition and complement activation in microvasculature compromises blood flow to islets which are supplied by a capillary network much more dense than that of the surrounding exocrine tissue reference

27. AMR and Pancreas Transplantation Increased expression of C4d has been noted in pancreas allograft biopsies undergoing acute rejection Case report of patient with SPK undergoing AMR of both grafts with C4d capillary staining with serum positive for HLA Class II DSA

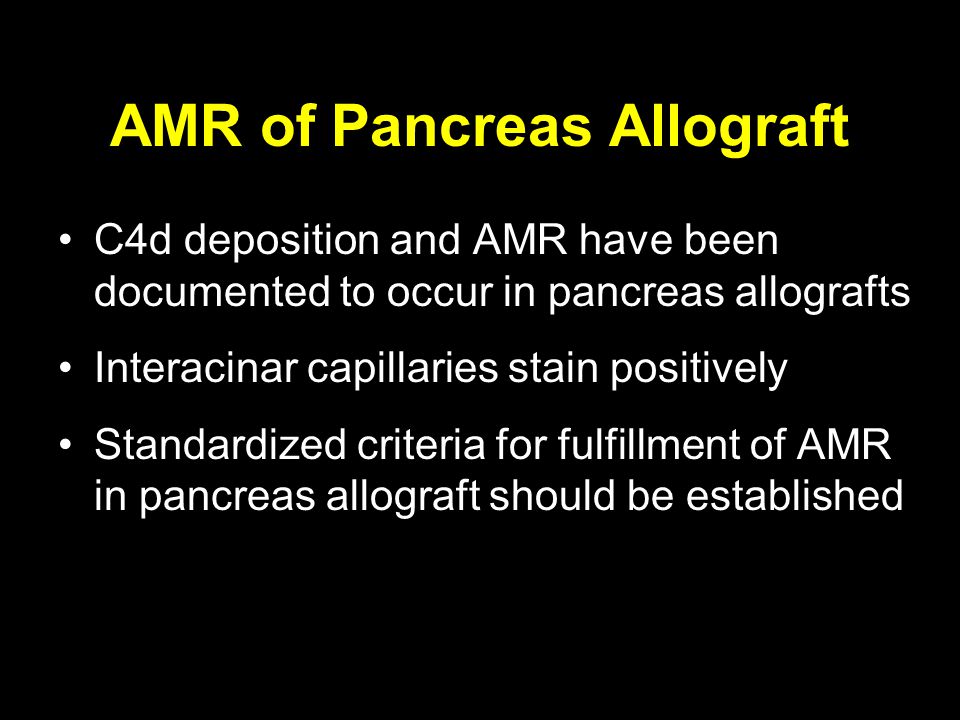

28. AMR of Pancreas Allograft C4d deposition and AMR have been documented to occur in pancreas allografts Interacinar capillaries stain positively Standardized criteria for fulfillment of AMR in pancreas allograft should be established

29. Molecular Markers and Signaling Pathways of Acute Pancreatic Allograft Rejection Identified by Microarray Analysis Nathan R. Treff, Lynn M. Jacobson, Drew A. Roenneburg, Stuart J. Knechtle, Jon S. Odorico Division of Transplantation, Department of Surgery, University of Wisconsin School of Medicine and Wm.S.Middleton Memorial VA Hospital, Madison, WI

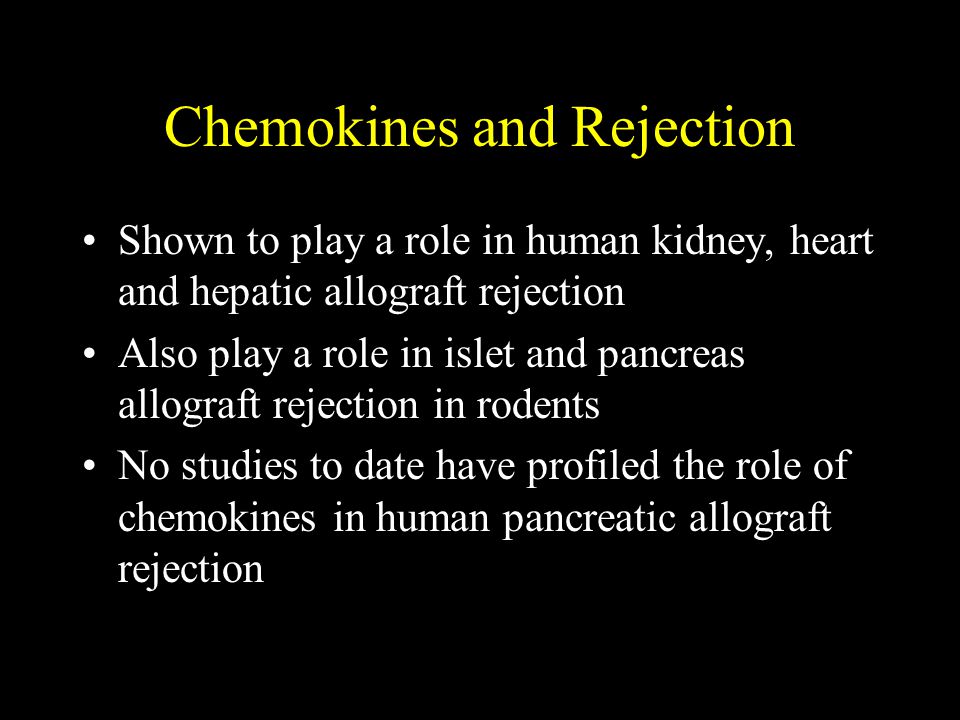

30. Chemokines and Rejection Shown to play a role in human kidney, heart and hepatic allograft rejection Also play a role in islet and pancreas allograft rejection in rodents No studies to date have profiled the role of chemokines in human pancreatic allograft rejection 1. Fahmy NM, Yamani MH, Starling RC, Ratliff NB, Young JB, McCarthy PM et al. Chemokine and chemokine receptor gene expression indicates acute rejection of human cardiac transplants. Transplantation 2003; 75:72-78. 2. Fahmy NM, Yamani MH, Starling RC, Ratliff NB, Young JB, McCarthy PM et al. Chemokine and receptor-gene expression during early and late acute rejection episodes in human cardiac allografts. Transplantation 2003; 75:2044-2047. 3. Krukemeyer MG, Moeller J, Morawietz L, Rudolph B, Neumann U, Theruvath T et al. Description of B lymphocytes and plasma cells, complement, and chemokines/receptors in acute liver allograft rejection. Transplantation 2004; 78:65-12 4. Melter M, Exeni A, Reinders ME, Fang JC, McMahon G, Ganz P et al. Expression of the chemokine receptor CXCR3 and its ligand IP-10 during human cardiac allograft rejection. Circulation 2001; 104:2558-2564.

31. Conclusions Chemokines are upregulated in rejecting pancreatic allografts IP-10 possible candidate marker of rejection CXCR3+ cells in both normal and rejecting allografts Further study of chemokine signaling pathways in pancreas rejection, particularly Grade I and other non-rejection inflammatory states is recommended

32. Acknowledgements Tom Chin Millie Saminiego Jose Torrealba Stuart Knechtle Drew Roennenberg Anna Ibele Nathan Treff UW Biotechnology Center
