1. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation EXP810 cabled to DS4700 and DS4800

2. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Objectives  List the basic steps for installing the DS4700 or DS4800 with the EXP810 drive enclosures  Employ proper cabling techniques/methodology  Follow proper power on/off sequence

3. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Steps for Hardware Install 1.Unpack the hardware according to the directions in the unpacking guide that should be attached to the outside of the shipping carton. 2.Install the cabinet, controller enclosure and drive expansion enclosures by following the directions in the hardware installation guide. 3.Attach the power cables. 4.Attach Ethernet cables - one to each controller. 5.Cable the controller and drive expansion enclosures. 6.Check the link rate switch on all enclosures. 7.Turn on the power in the correct sequence. 8.Set the controllers’ IP addresses 9.Attach the host interface cables

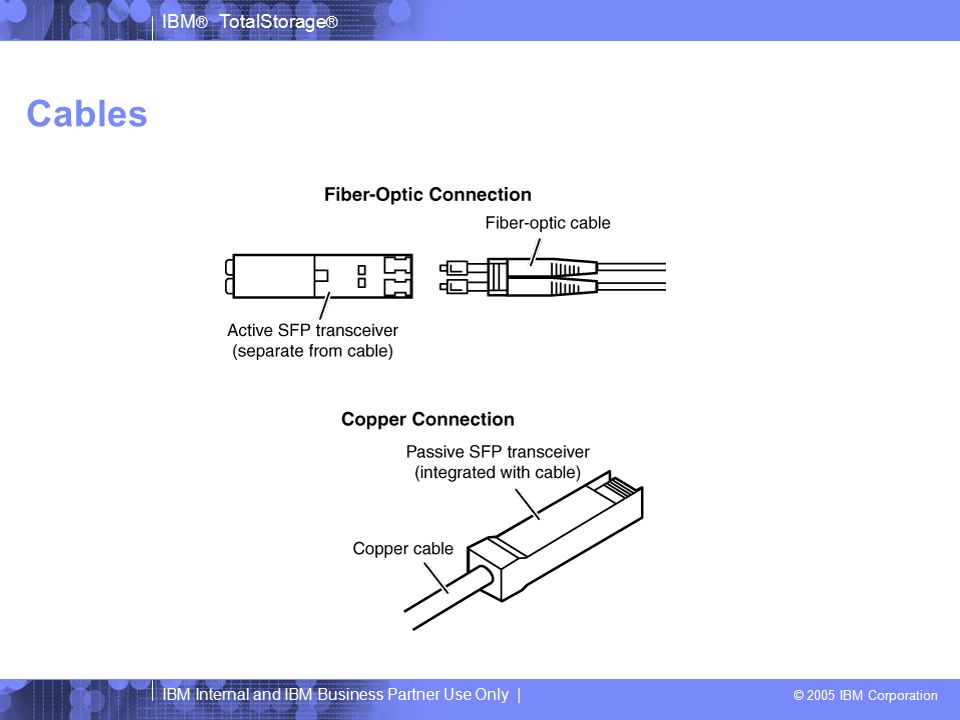

4. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Cables

5. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Cabling

6. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Cabling Controller Tray B A B A Expansion Trays

7. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray 1 Expansion Tray

8. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray 2 Expansion Trays

9. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray 3 Expansion Trays

10. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray 4 Expansion Trays

11. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray Top-Down Bottom-Up 5 Expansion Trays

12. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Controller Tray Expansion Tray Top-Down Bottom-Up 6 Expansion Trays Expansion Tray

13. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Cabling

14. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation DS4800 Cabling with EXP810

15. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Full Configuration with EXP810s Loop pairs 1 and 3 will run at the same speed Loop pairs 2 and 4 will run at the same speed

16. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation DS4800 and EXP810 and EXP710 Intermix Guidelines – Per Loop No. EXP810 No. Drives in EXP810 No. EXP710 No. Drives in EXP710 Total Number of Drives 008112 116798114 232684116 232570102 348456104 464342106 580228108 696114110 711200 Configurations where a total number of drives over 112 per loop are not supported.

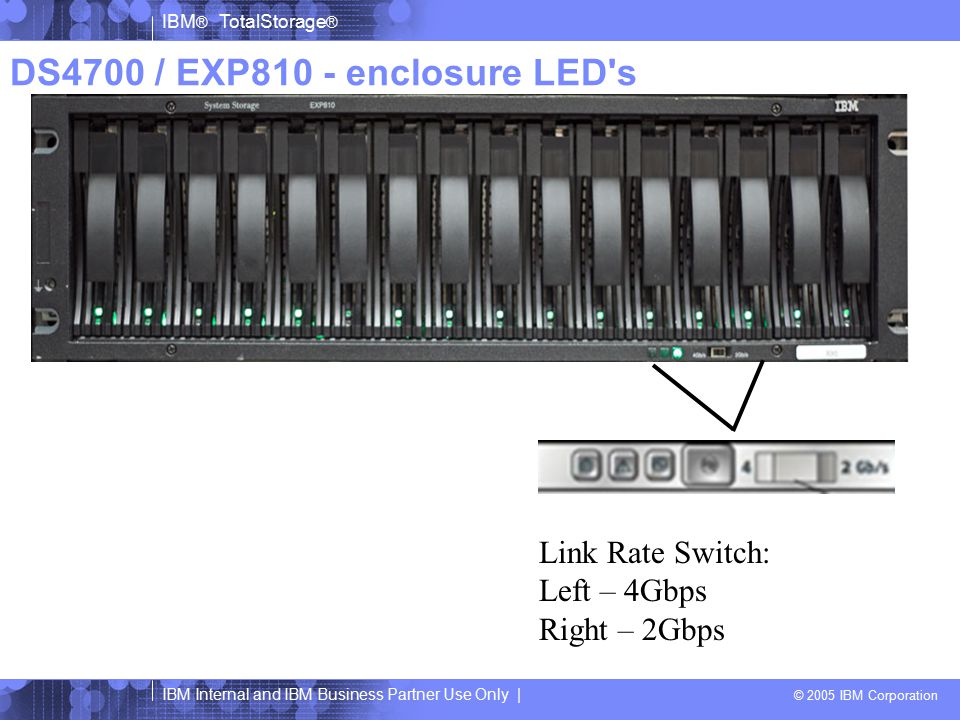

17. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation DS4700 / EXP810 - enclosure LED's Link Rate Switch: Left – 4Gbps Right – 2Gbps

18. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Turn on the Power 1.drive enclosures 2.controller enclsoure Turn off the Power 1.controller enclosure 2.drive enclosures

19. IBM ® TotalStorage ® IBM Internal and IBM Business Partner Use Only | © 2005 IBM Corporation Any Comments?
