1. Office 2003 Post-Advanced Concepts and Techniques M i c r o s o f t Word Project 7 Creating an Online Form

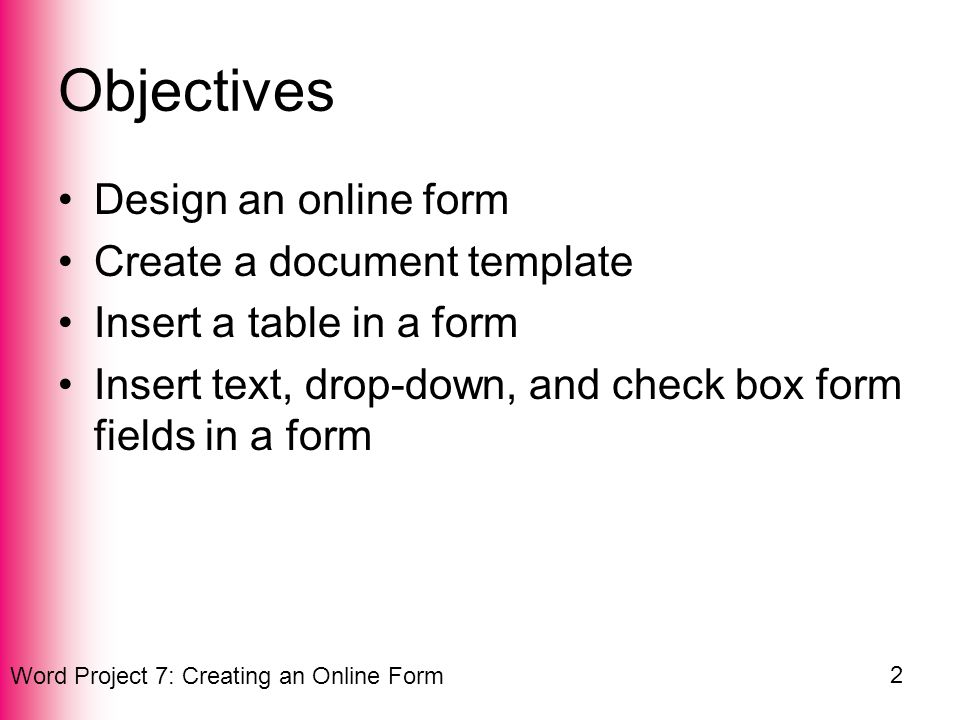

2. Word Project 7: Creating an Online Form 2 Objectives Design an online form Create a document template Insert a table in a form Insert text, drop-down, and check box form fields in a form

3. Word Project 7: Creating an Online Form 3 Objectives Format form fields Add Help text to form fields Insert and format a rectangle drawing object Protect a form

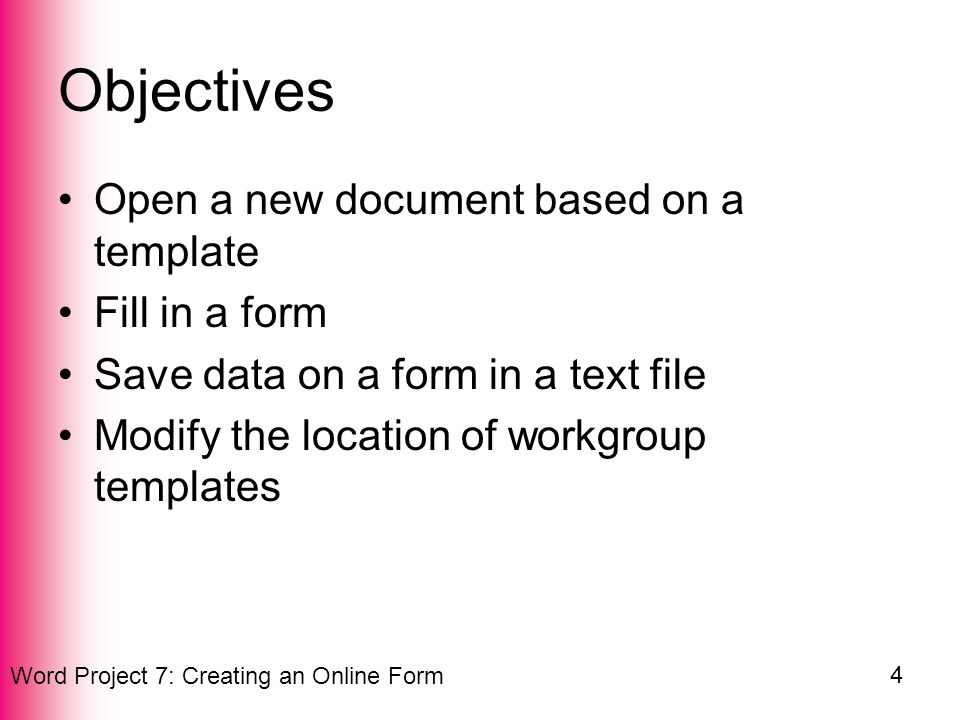

4. Word Project 7: Creating an Online Form 4 Objectives Open a new document based on a template Fill in a form Save data on a form in a text file Modify the location of workgroup templates

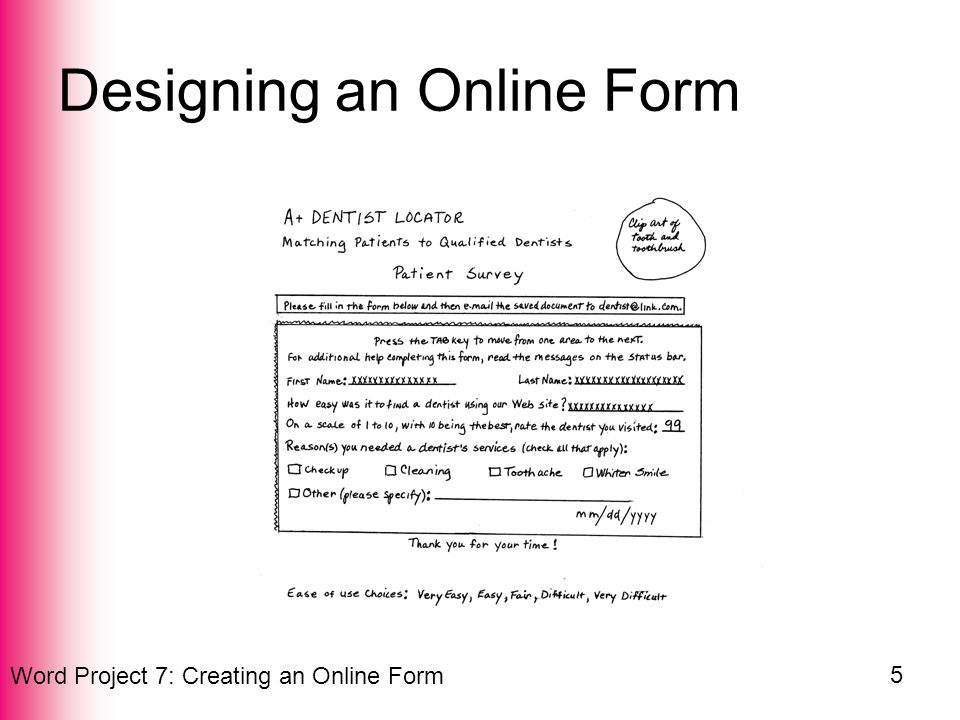

5. Word Project 7: Creating an Online Form 5 Designing an Online Form

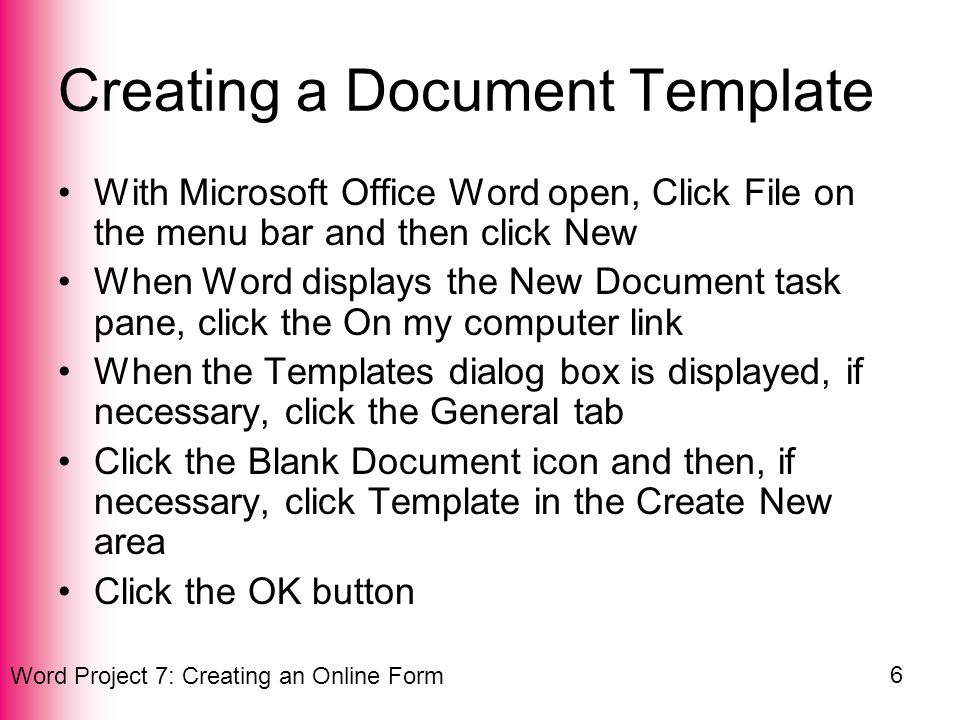

6. Word Project 7: Creating an Online Form 6 Creating a Document Template With Microsoft Office Word open, Click File on the menu bar and then click New When Word displays the New Document task pane, click the On my computer link When the Templates dialog box is displayed, if necessary, click the General tab Click the Blank Document icon and then, if necessary, click Template in the Create New area Click the OK button

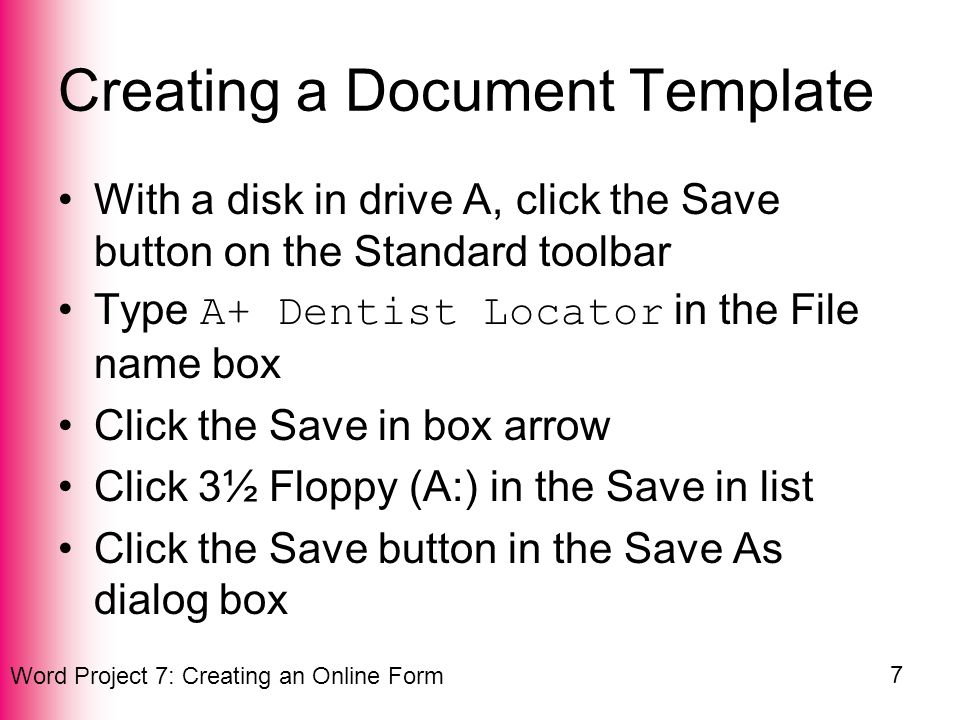

7. Word Project 7: Creating an Online Form 7 Creating a Document Template With a disk in drive A, click the Save button on the Standard toolbar Type A+ Dentist Locator in the File name box Click the Save in box arrow Click 3½ Floppy (A:) in the Save in list Click the Save button in the Save As dialog box

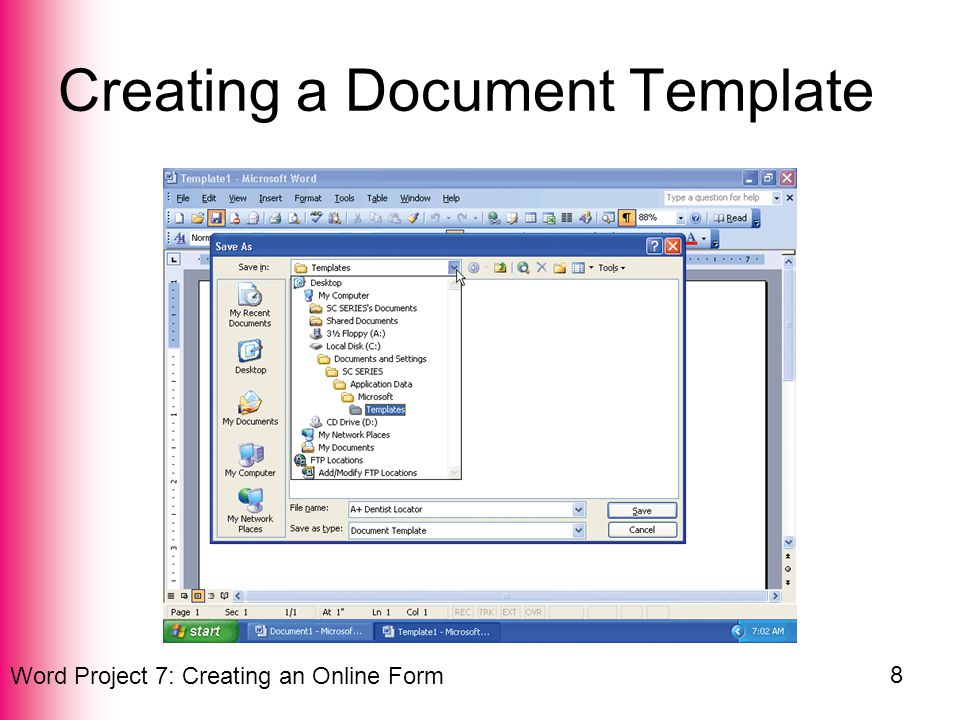

8. Word Project 7: Creating an Online Form 8 Creating a Document Template

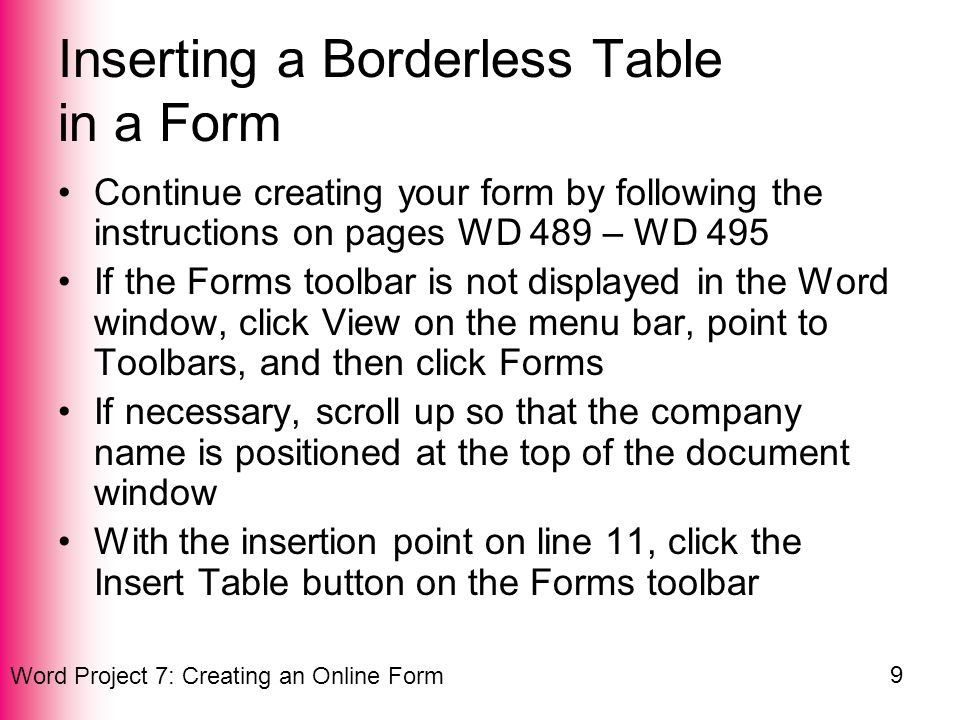

9. Word Project 7: Creating an Online Form 9 Inserting a Borderless Table in a Form Continue creating your form by following the instructions on pages WD 489 – WD 495 If the Forms toolbar is not displayed in the Word window, click View on the menu bar, point to Toolbars, and then click Forms If necessary, scroll up so that the company name is positioned at the top of the document window With the insertion point on line 11, click the Insert Table button on the Forms toolbar

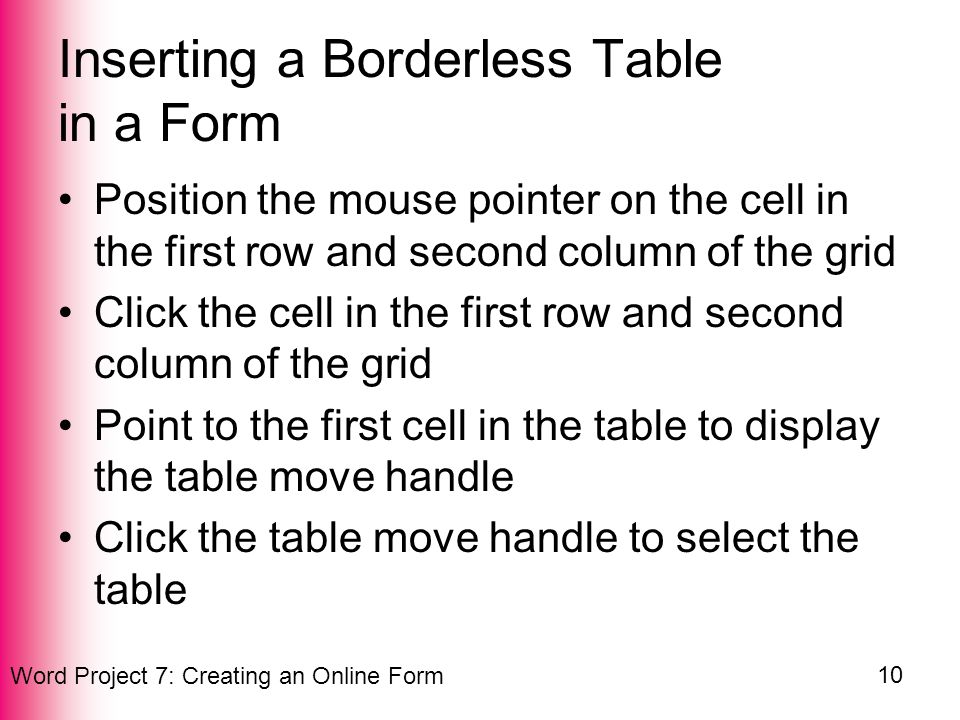

10. Word Project 7: Creating an Online Form 10 Inserting a Borderless Table in a Form Position the mouse pointer on the cell in the first row and second column of the grid Click the cell in the first row and second column of the grid Point to the first cell in the table to display the table move handle Click the table move handle to select the table

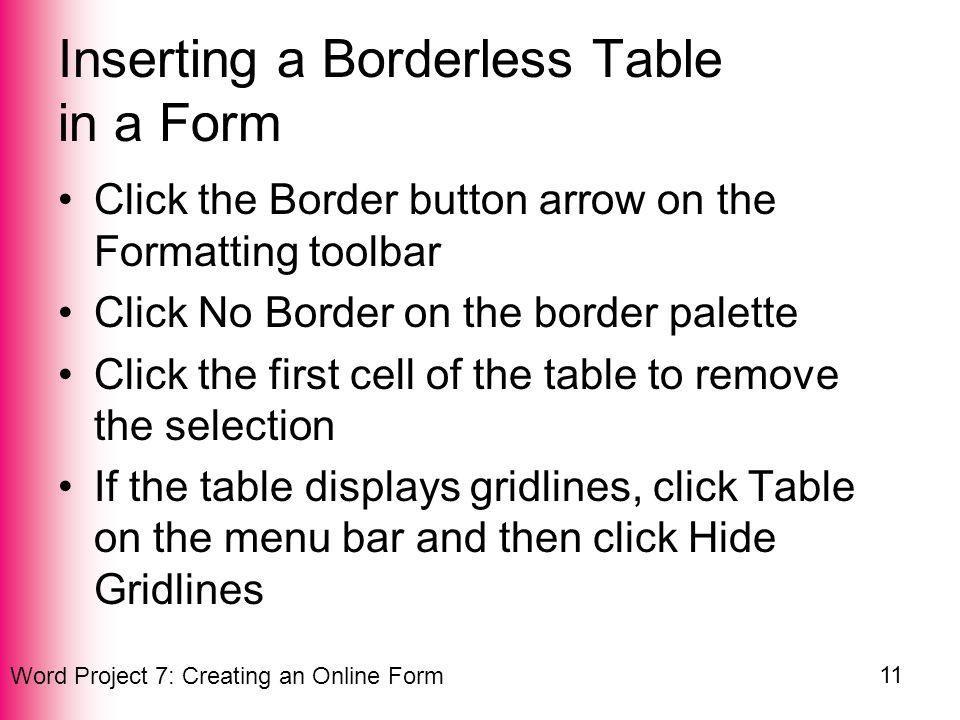

11. Word Project 7: Creating an Online Form 11 Inserting a Borderless Table in a Form Click the Border button arrow on the Formatting toolbar Click No Border on the border palette Click the first cell of the table to remove the selection If the table displays gridlines, click Table on the menu bar and then click Hide Gridlines

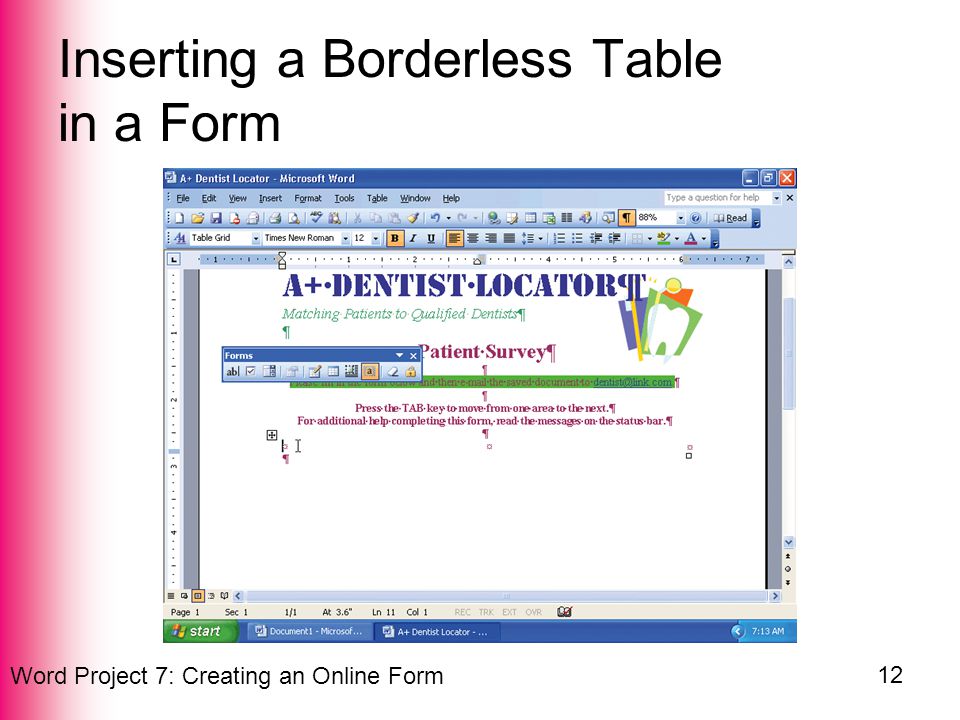

12. Word Project 7: Creating an Online Form 12 Inserting a Borderless Table in a Form

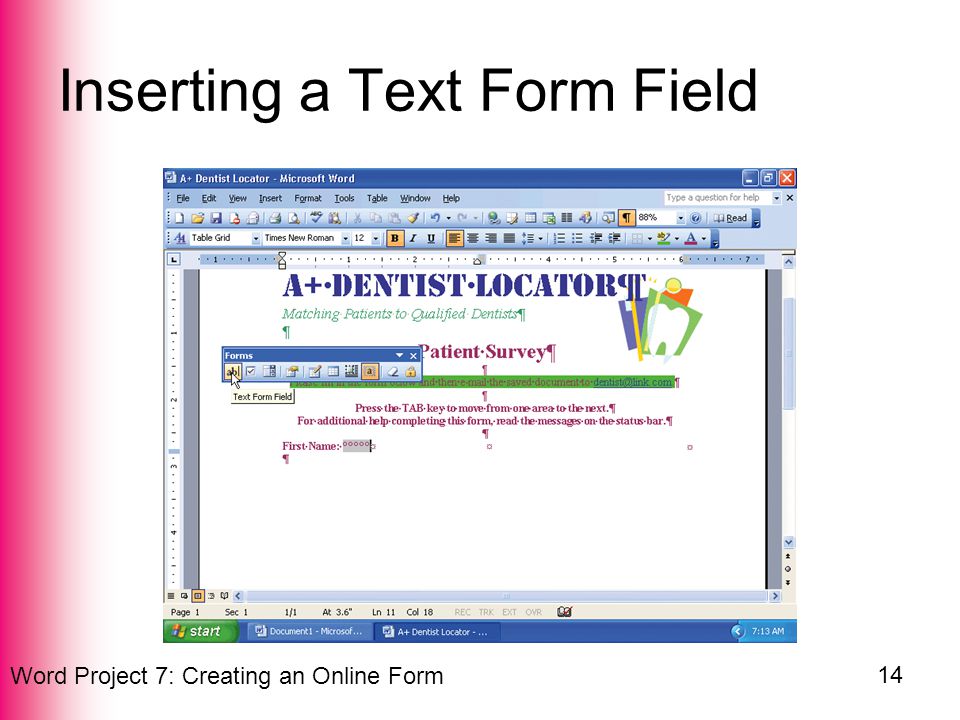

13. Word Project 7: Creating an Online Form 13 Inserting a Text Form Field With the insertion point in the first cell of the table as shown on the previous slide, type First Name and then press the COLON (:) key Press the SPACEBAR Click the Text Form Field button on the Forms toolbar If Word does not display the form field shaded in gray, click the Form Field Shading button on the Forms toolbar

14. Word Project 7: Creating an Online Form 14 Inserting a Text Form Field

15. Word Project 7: Creating an Online Form 15 Specifying Text Form Field Options Double-click the text form field When Word displays the Text Form Field Options dialog box, press the UNDERSCORE (_) key 15 times in the Default text text box Double-click the Maximum length box and then type 15 as the length Click the Text format box arrow and then click First capital in the Text format list

16. Word Project 7: Creating an Online Form 16 Specifying Text Form Field Options Click the OK button Press the TAB key to move the insertion point to the beginning of the next cell in the table

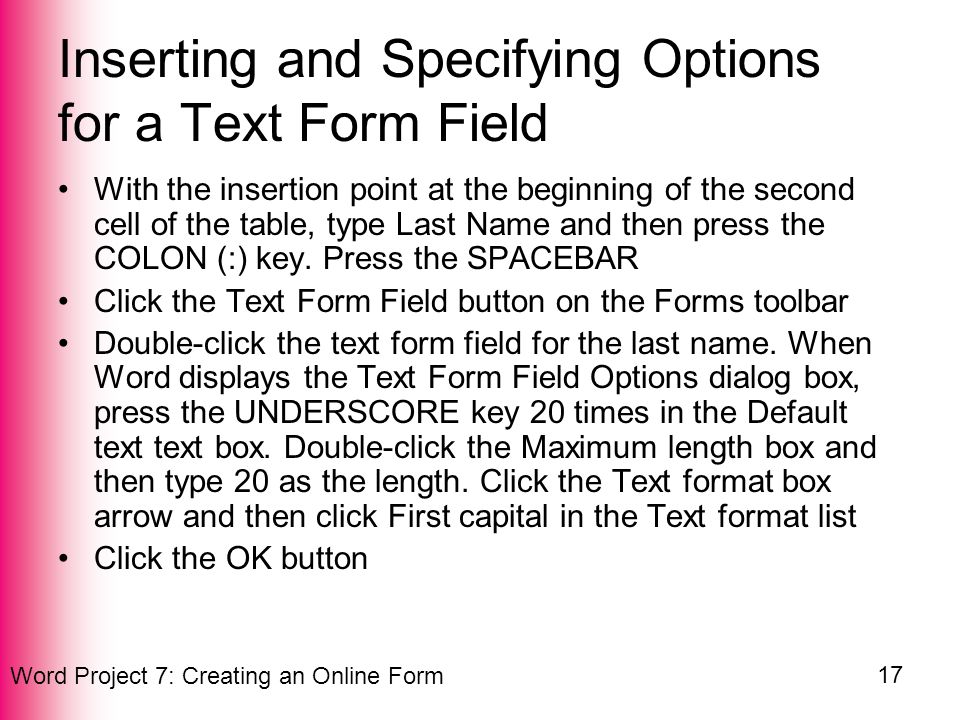

17. Word Project 7: Creating an Online Form 17 Inserting and Specifying Options for a Text Form Field With the insertion point at the beginning of the second cell of the table, type Last Name and then press the COLON (:) key. Press the SPACEBAR Click the Text Form Field button on the Forms toolbar Double-click the text form field for the last name. When Word displays the Text Form Field Options dialog box, press the UNDERSCORE key 20 times in the Default text text box. Double-click the Maximum length box and then type 20 as the length. Click the Text format box arrow and then click First capital in the Text format list Click the OK button

18. Word Project 7: Creating an Online Form 18 Inserting and Specifying Options for a Text Form Field

19. Word Project 7: Creating an Online Form 19 Inserting a Drop-Down Form Field Click the paragraph mark below the 1 × 2 table to position the insertion point below the First Name caption and then press the ENTER key Type How easy was it to find a dentist using our Web site? Press the SPACEBAR Click the Drop-Down Form Field button on the Forms toolbar

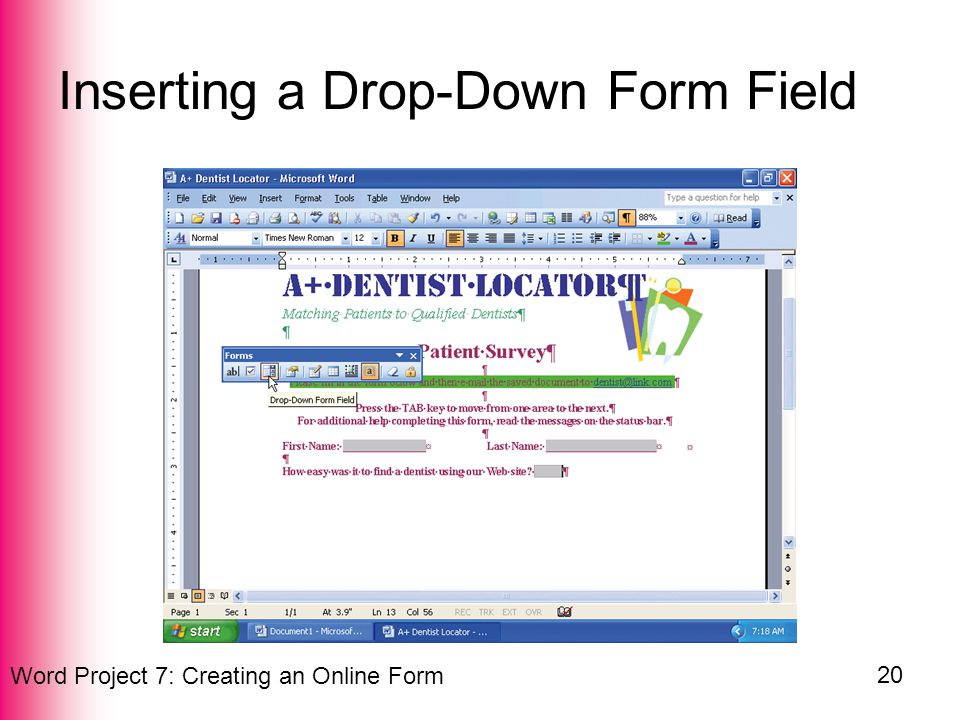

20. Word Project 7: Creating an Online Form 20 Inserting a Drop-Down Form Field

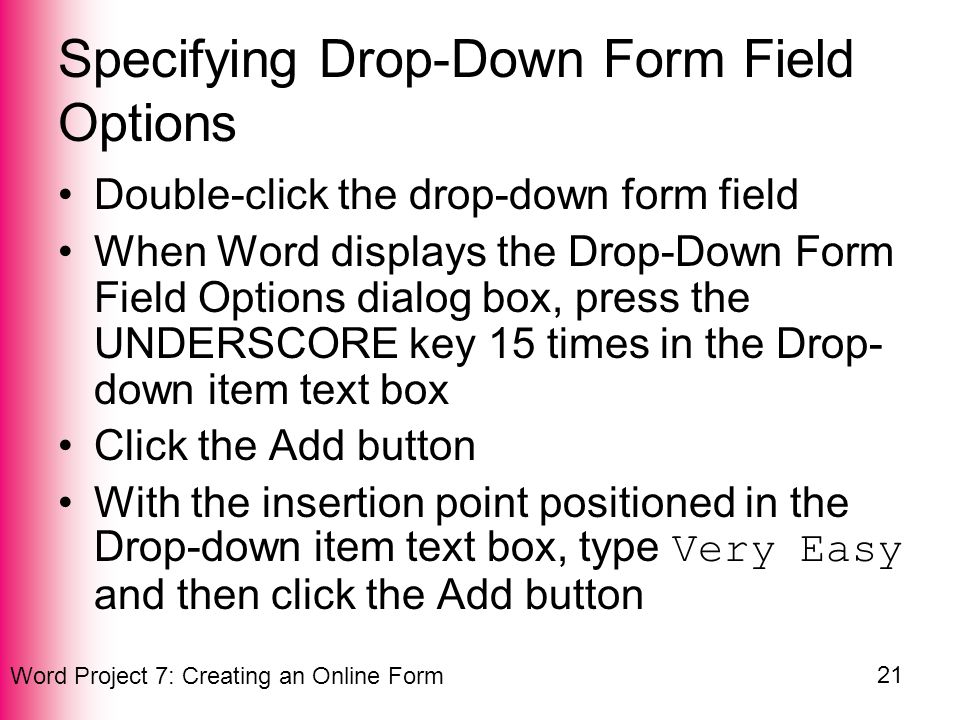

21. Word Project 7: Creating an Online Form 21 Specifying Drop-Down Form Field Options Double-click the drop-down form field When Word displays the Drop-Down Form Field Options dialog box, press the UNDERSCORE key 15 times in the Drop- down item text box Click the Add button With the insertion point positioned in the Drop-down item text box, type Very Easy and then click the Add button

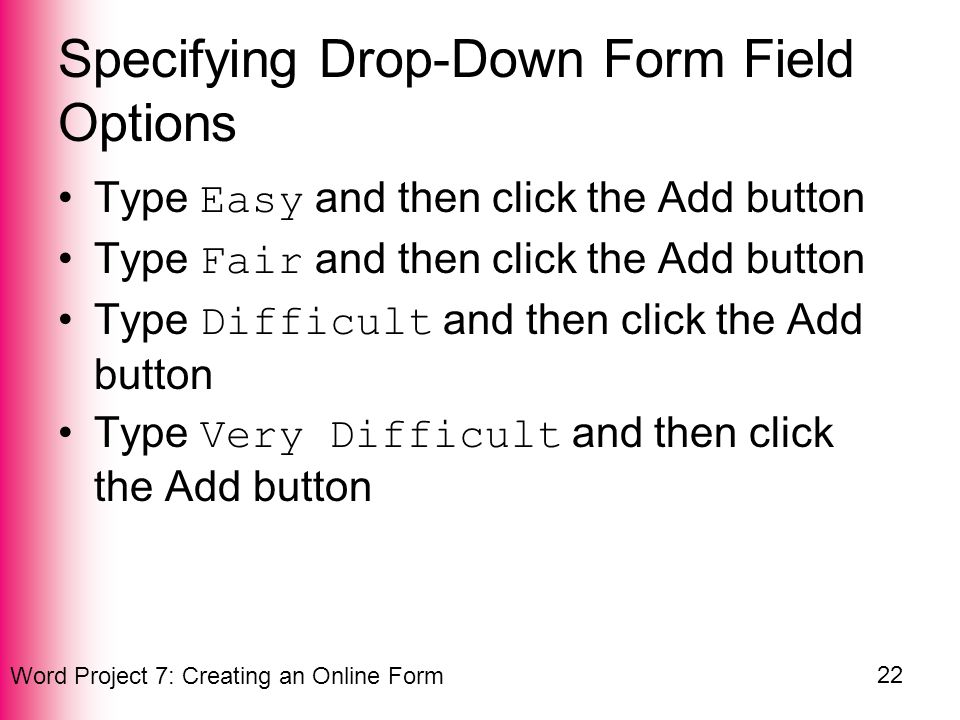

22. Word Project 7: Creating an Online Form 22 Specifying Drop-Down Form Field Options Type Easy and then click the Add button Type Fair and then click the Add button Type Difficult and then click the Add button Type Very Difficult and then click the Add button

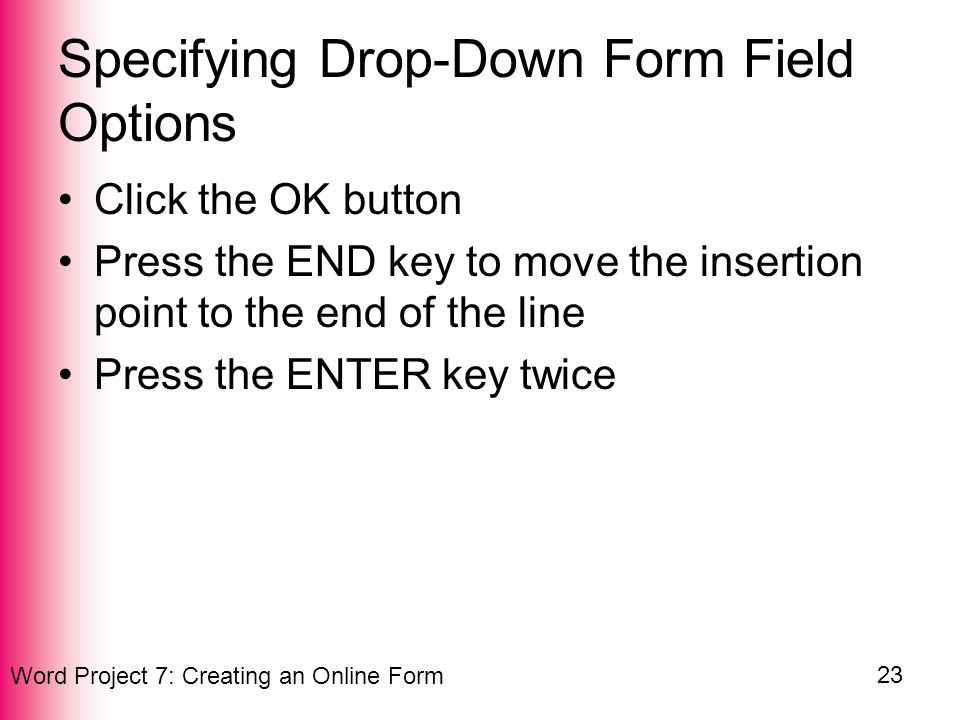

23. Word Project 7: Creating an Online Form 23 Specifying Drop-Down Form Field Options Click the OK button Press the END key to move the insertion point to the end of the line Press the ENTER key twice

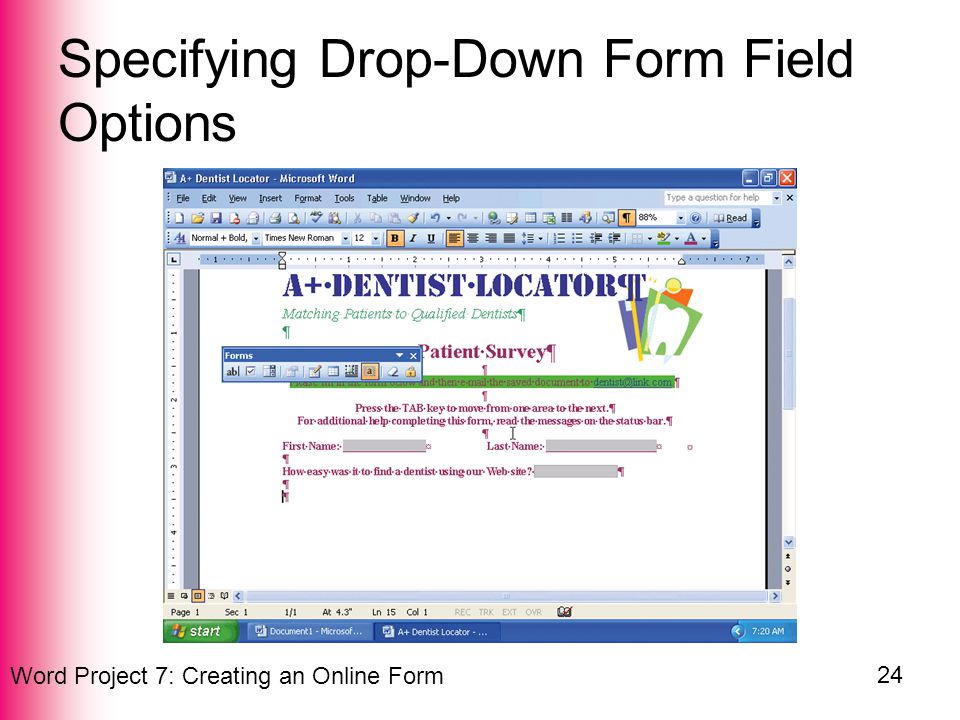

24. Word Project 7: Creating an Online Form 24 Specifying Drop-Down Form Field Options

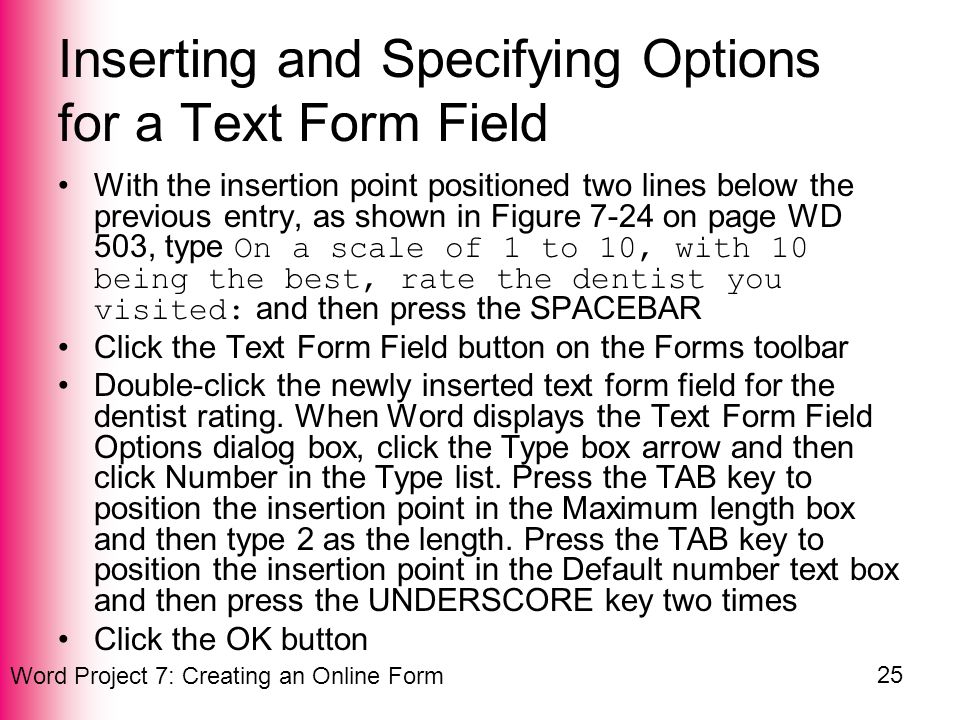

25. Word Project 7: Creating an Online Form 25 Inserting and Specifying Options for a Text Form Field With the insertion point positioned two lines below the previous entry, as shown in Figure 7-24 on page WD 503, type On a scale of 1 to 10, with 10 being the best, rate the dentist you visited: and then press the SPACEBAR Click the Text Form Field button on the Forms toolbar Double-click the newly inserted text form field for the dentist rating. When Word displays the Text Form Field Options dialog box, click the Type box arrow and then click Number in the Type list. Press the TAB key to position the insertion point in the Maximum length box and then type 2 as the length. Press the TAB key to position the insertion point in the Default number text box and then press the UNDERSCORE key two times Click the OK button

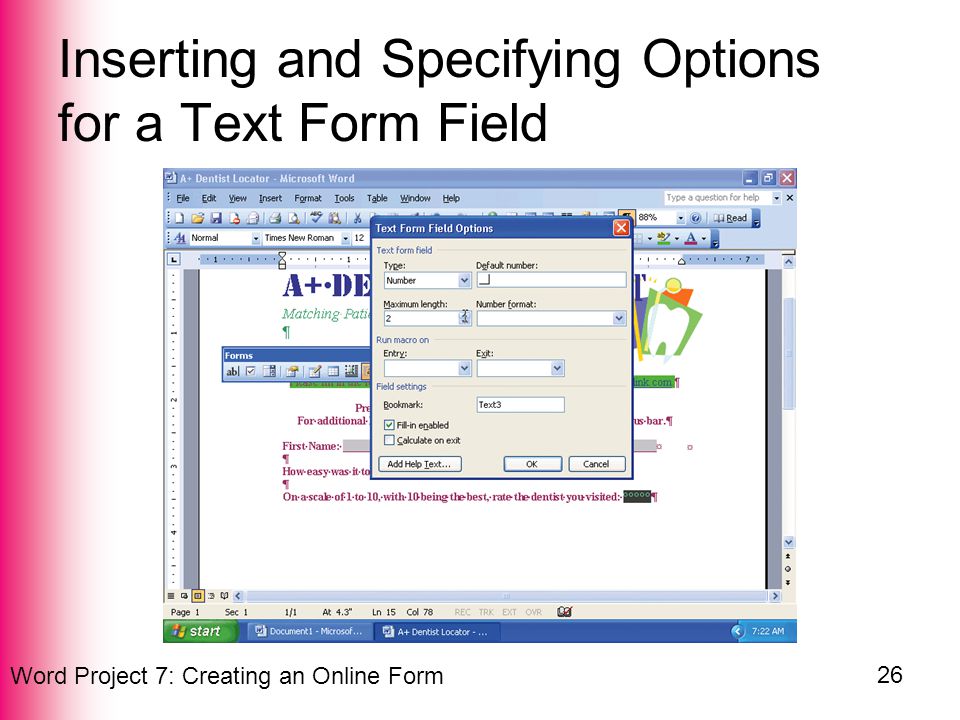

26. Word Project 7: Creating an Online Form 26 Inserting and Specifying Options for a Text Form Field

27. Word Project 7: Creating an Online Form 27 Inserting a Check Box Form Field Follow the instructions on pages WD 504 – WD 506 With the insertion point in the first cell of the table, click the Check Box Form Field button on the Forms toolbar Press the SPACEBAR. Type Checkup and then press the TAB key Follow the instructions on page WD 508 to insert additional check box form fields

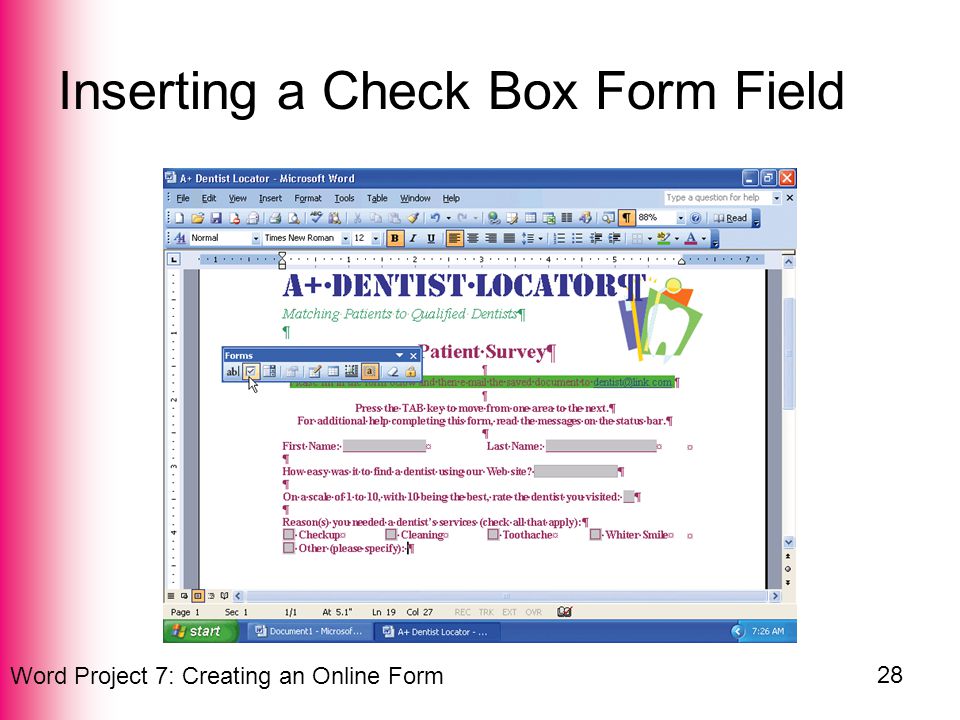

28. Word Project 7: Creating an Online Form 28 Inserting a Check Box Form Field

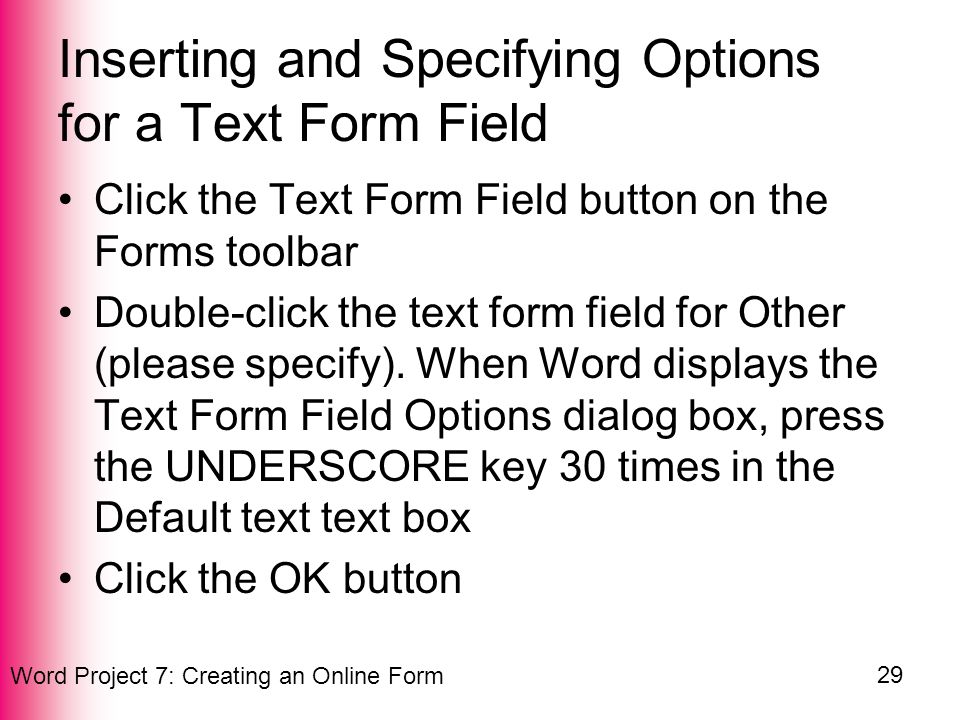

29. Word Project 7: Creating an Online Form 29 Inserting and Specifying Options for a Text Form Field Click the Text Form Field button on the Forms toolbar Double-click the text form field for Other (please specify). When Word displays the Text Form Field Options dialog box, press the UNDERSCORE key 30 times in the Default text text box Click the OK button

30. Word Project 7: Creating an Online Form 30 Inserting and Specifying Options for a Text Form Field

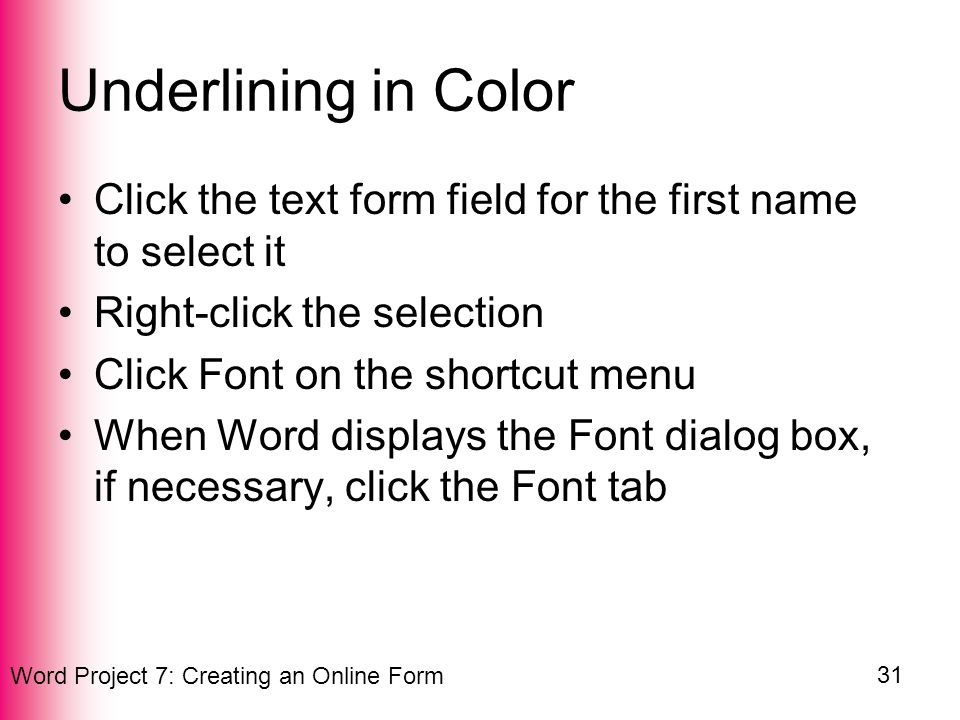

31. Word Project 7: Creating an Online Form 31 Underlining in Color Click the text form field for the first name to select it Right-click the selection Click Font on the shortcut menu When Word displays the Font dialog box, if necessary, click the Font tab

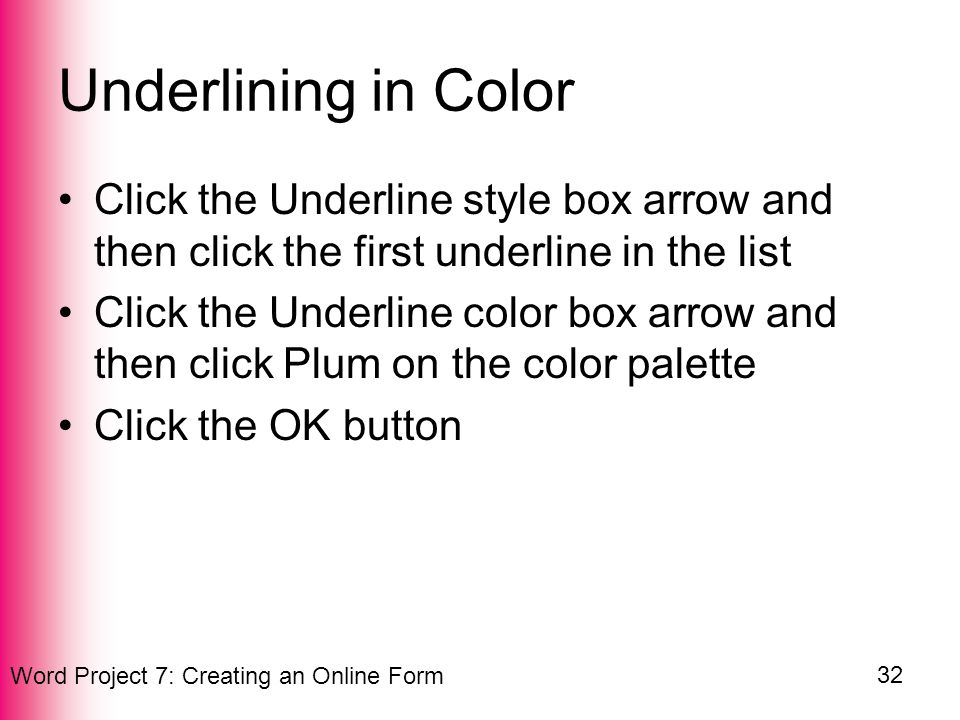

32. Word Project 7: Creating an Online Form 32 Underlining in Color Click the Underline style box arrow and then click the first underline in the list Click the Underline color box arrow and then click Plum on the color palette Click the OK button

33. Word Project 7: Creating an Online Form 33 Underlining in Color

34. Word Project 7: Creating an Online Form 34 Using the Format Painter Button With the text form field for the first name selected as shown in Figure 7-33 on page WD 511, double-click the Format Painter button on the Standard toolbar Click the text form field for the last name Drag through the ease of use drop-down form field

35. Word Project 7: Creating an Online Form 35 Using the Format Painter Button Click the text form field for the dentist rating Click the text form field for Other (please specify) Click the Format Painter button on the Standard toolbar to turn off the format painter

36. Word Project 7: Creating an Online Form 36 Using the Format Painter Button

37. Word Project 7: Creating an Online Form 37 Adding Help Text to a Form Field Double-click the text form field for the first name Click the Add Help Text button When Word displays the Form Field Help Text dialog box, if necessary, click the Status Bar tab Click Type your own

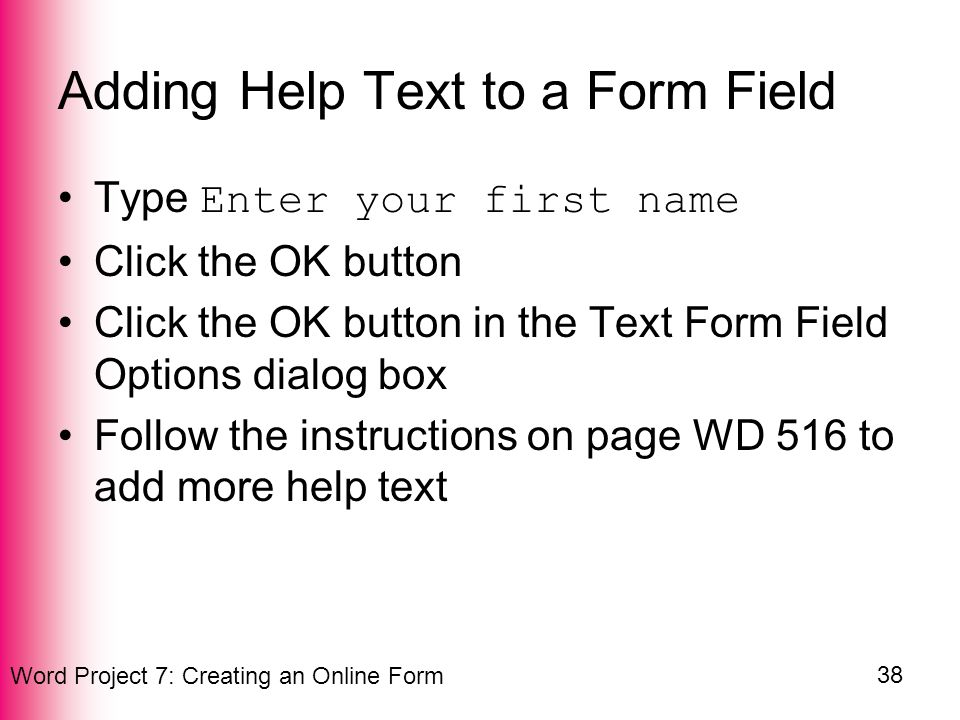

38. Word Project 7: Creating an Online Form 38 Adding Help Text to a Form Field Type Enter your first name Click the OK button Click the OK button in the Text Form Field Options dialog box Follow the instructions on page WD 516 to add more help text

39. Word Project 7: Creating an Online Form 39 Adding Help Text to a Form Field

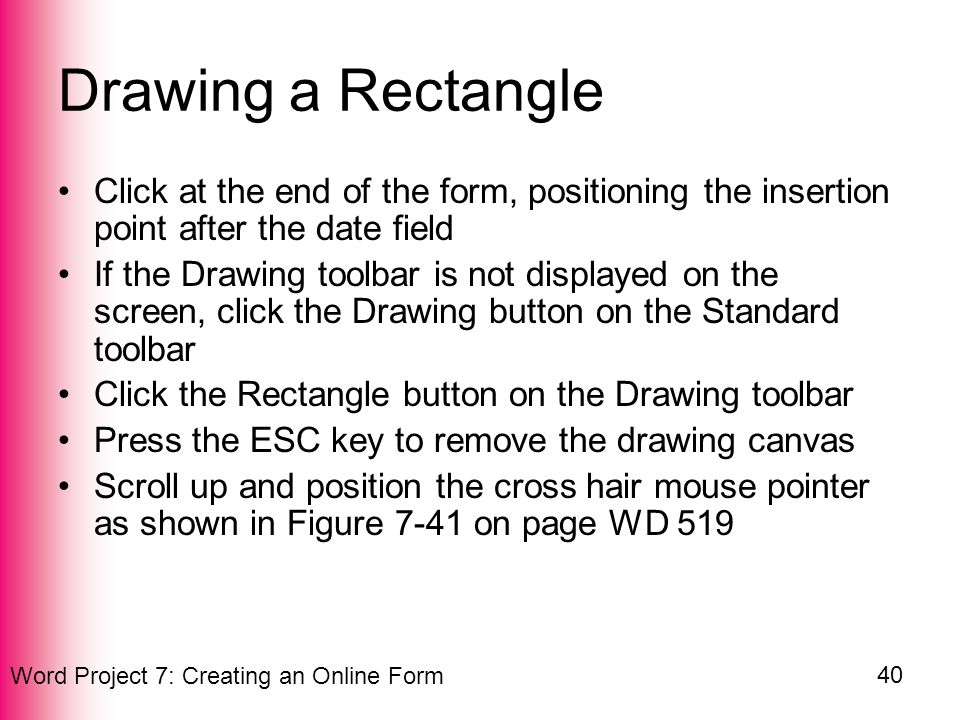

40. Word Project 7: Creating an Online Form 40 Drawing a Rectangle Click at the end of the form, positioning the insertion point after the date field If the Drawing toolbar is not displayed on the screen, click the Drawing button on the Standard toolbar Click the Rectangle button on the Drawing toolbar Press the ESC key to remove the drawing canvas Scroll up and position the cross hair mouse pointer as shown in Figure 7-41 on page WD 519

41. Word Project 7: Creating an Online Form 41 Drawing a Rectangle Drag the mouse pointer downward and rightward to form a rectangle around the data entry area, as shown in Figure 7-42 on page WD 519 Release the mouse button If Word positions the form text below the rectangle, click Format on the menu bar, click AutoShape, click the Layout tab, click In front of text, and then click the OK button If you need to resize the rectangle after it is drawn, simply drag the sizing handles

42. Word Project 7: Creating an Online Form 42 Drawing a Rectangle

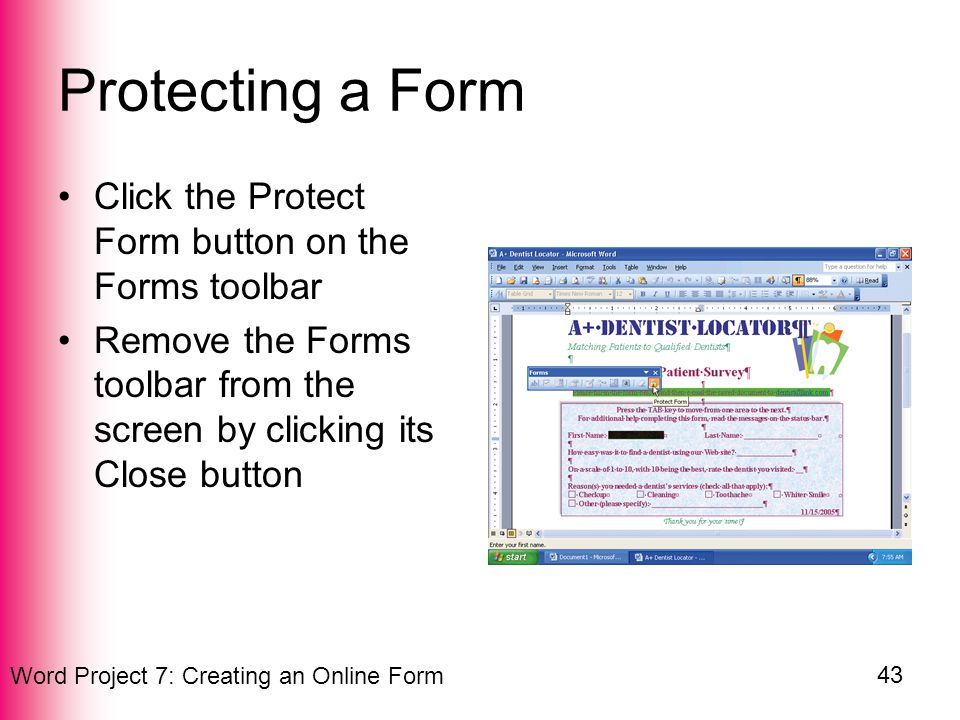

43. Word Project 7: Creating an Online Form 43 Protecting a Form Click the Protect Form button on the Forms toolbar Remove the Forms toolbar from the screen by clicking its Close button

44. Word Project 7: Creating an Online Form 44 Accessing a Template through Windows Explorer Click the Start button on the Windows taskbar and then right-click My Computer on the Start menu Click Explore on the shortcut menu When the Explorer window opens, if necessary, double-click its title bar to maximize the window

45. Word Project 7: Creating an Online Form 45 Accessing a Template through Windows Explorer In the Folders bar, click 3½ Floppy (A:) Double-click the A+ Dentist Locator icon in the Explorer window Scroll down so the entire form is displayed in the Word window

46. Word Project 7: Creating an Online Form 46 Accessing a Template through Windows Explorer

47. Word Project 7: Creating an Online Form 47 Filling In a Form With the First Name form field selected, type Rick and then press the TAB key Type Schultz in the Last Name form field Press the TAB key to select the ease of use form field and display its box arrow. Click the box arrow Click Very Easy in the list and then press the TAB key

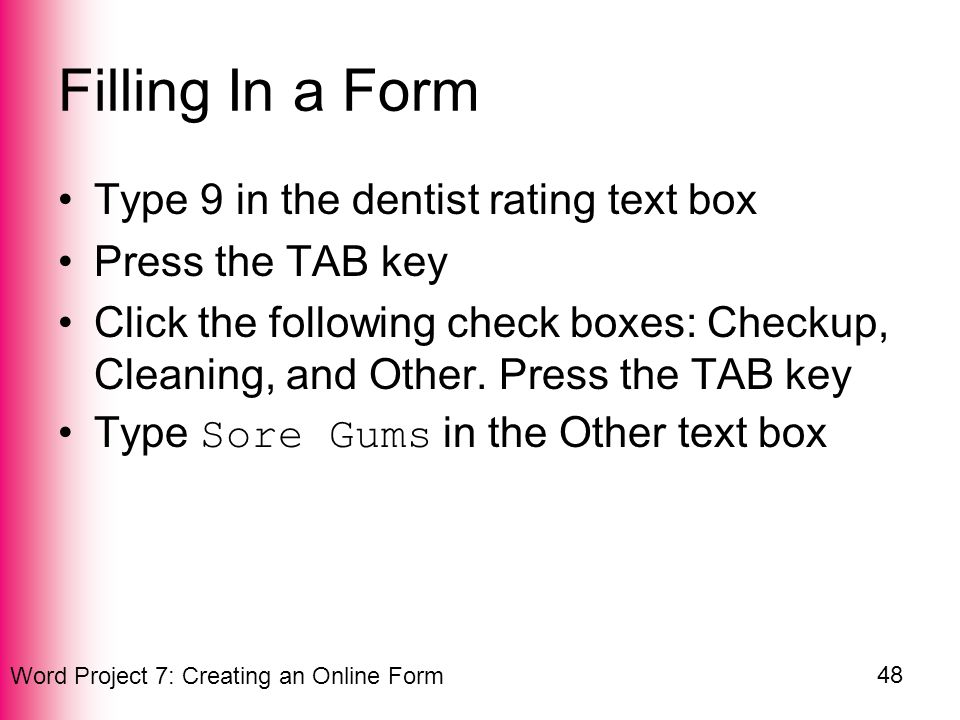

48. Word Project 7: Creating an Online Form 48 Filling In a Form Type 9 in the dentist rating text box Press the TAB key Click the following check boxes: Checkup, Cleaning, and Other. Press the TAB key Type Sore Gums in the Other text box

49. Word Project 7: Creating an Online Form 49 Filling In a Form

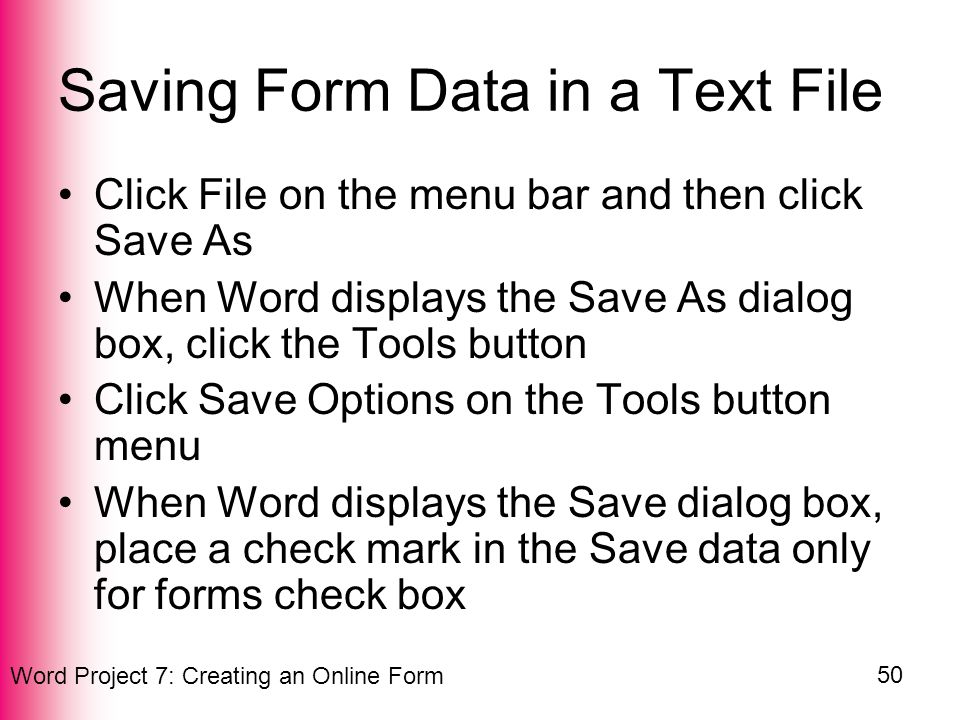

50. Word Project 7: Creating an Online Form 50 Saving Form Data in a Text File Click File on the menu bar and then click Save As When Word displays the Save As dialog box, click the Tools button Click Save Options on the Tools button menu When Word displays the Save dialog box, place a check mark in the Save data only for forms check box

51. Word Project 7: Creating an Online Form 51 Saving Form Data in a Text File Click the OK button Click the Save button in the Save As dialog box Click the OK button

52. Word Project 7: Creating an Online Form 52 Saving Form Data in a Text File

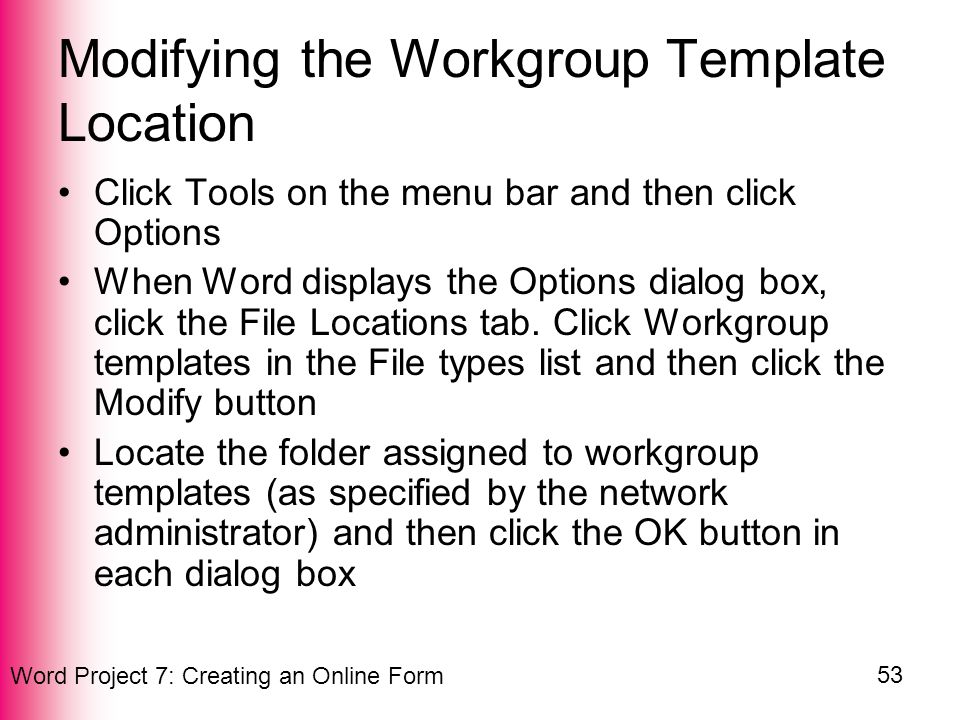

53. Word Project 7: Creating an Online Form 53 Modifying the Workgroup Template Location Click Tools on the menu bar and then click Options When Word displays the Options dialog box, click the File Locations tab. Click Workgroup templates in the File types list and then click the Modify button Locate the folder assigned to workgroup templates (as specified by the network administrator) and then click the OK button in each dialog box

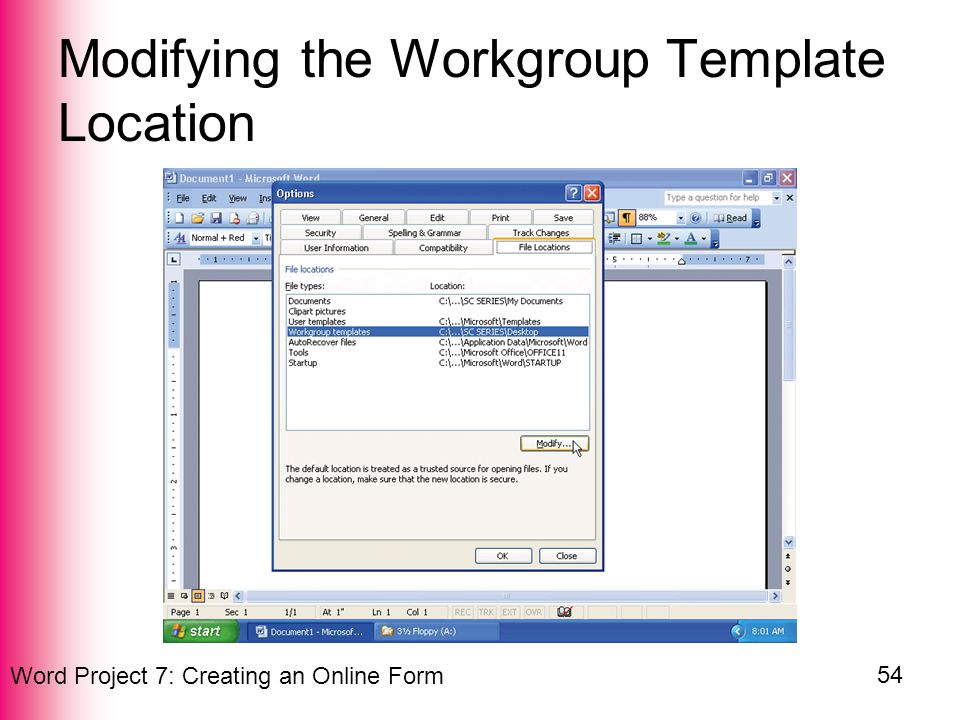

54. Word Project 7: Creating an Online Form 54 Modifying the Workgroup Template Location

55. Word Project 7: Creating an Online Form 55 Summary Design an online form Create a document template Insert a table in a form Insert text, drop-down, and check box form fields in a form

56. Word Project 7: Creating an Online Form 56 Summary Format form fields Add Help text to form fields Insert and format a rectangle drawing object Protect a form

57. Word Project 7: Creating an Online Form 57 Summary Open a new document based on a template Fill in a form Save data on a form in a text file Modify the location of workgroup templates

58. Office 2003 Post-Advanced Concepts and Techniques M i c r o s o f t Word Project 7 Complete
