Congruent triangles have congruent sides and congruent angles. The parts of congruent triangles that “match” are called corresponding parts.

Similar presentations


Presentation on theme: "Congruent triangles have congruent sides and congruent angles. The parts of congruent triangles that “match” are called corresponding parts."— Presentation transcript:

1

2 Congruent triangles have congruent sides and congruent angles. The parts of congruent triangles that “match” are called corresponding parts.

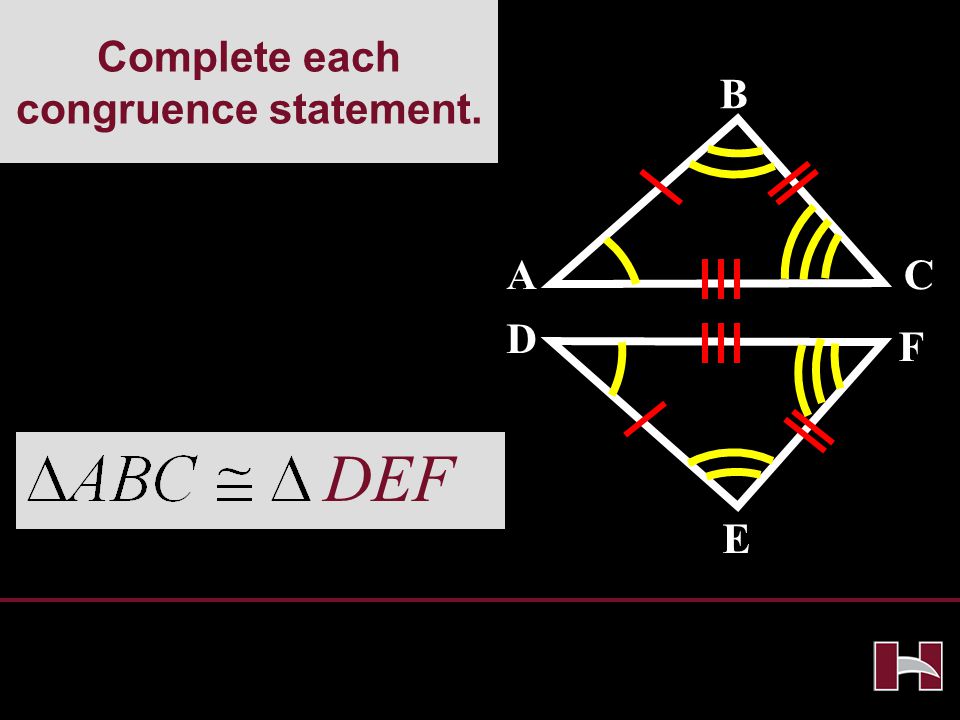

3 Complete each congruence statement. CA E D B F DEF

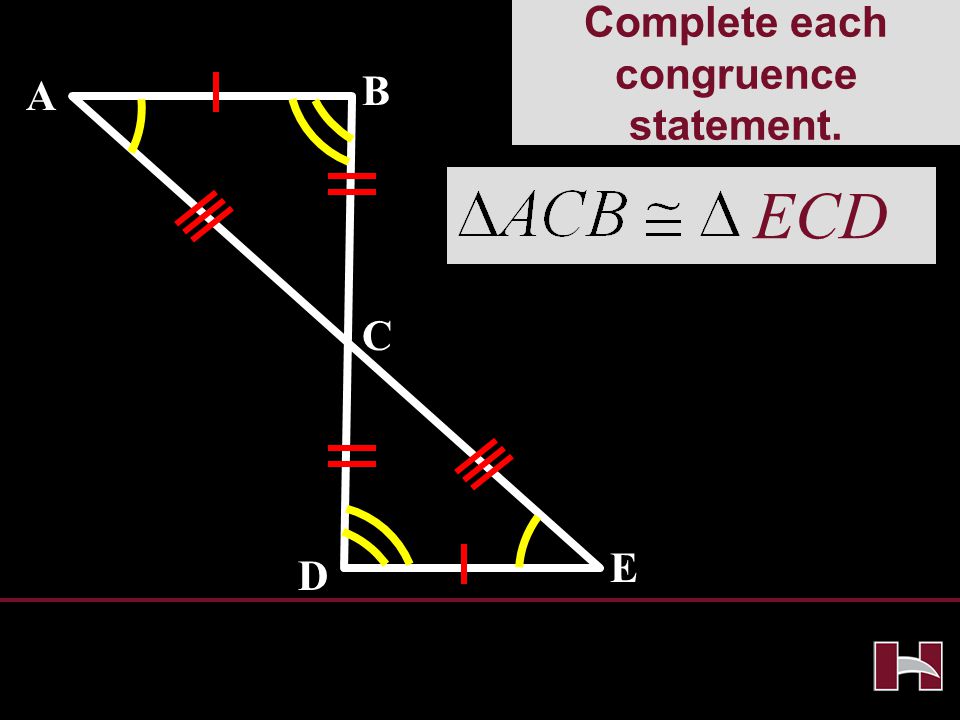

4 ECD C A E D B Complete each congruence statement.

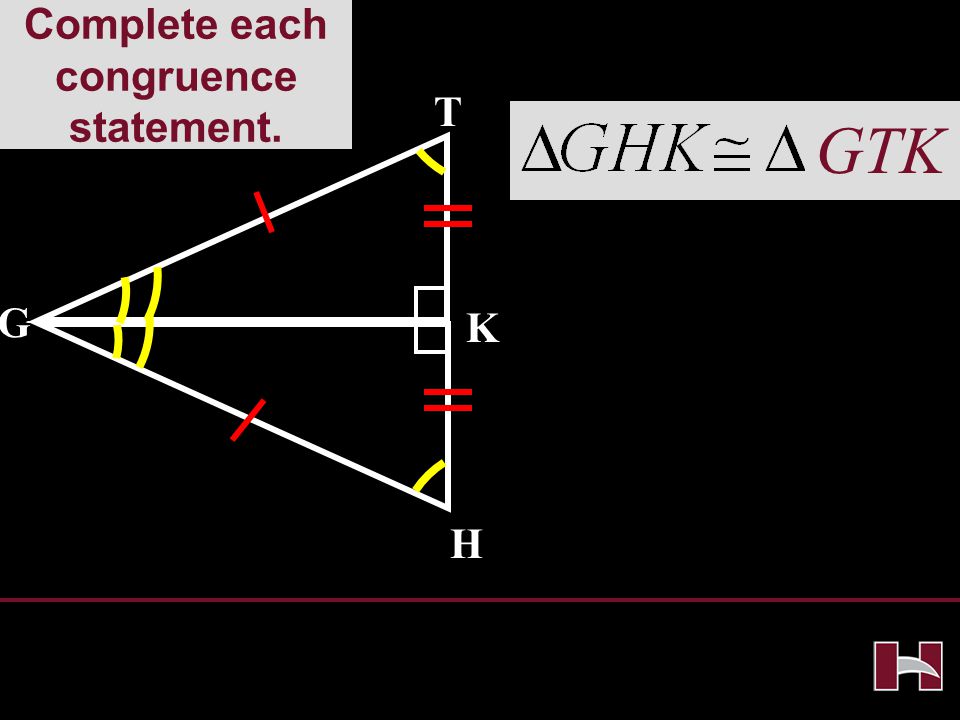

5 GTK K G H T Complete each congruence statement.

6 Corresponding Parts of Congruent Triangles are Congruent

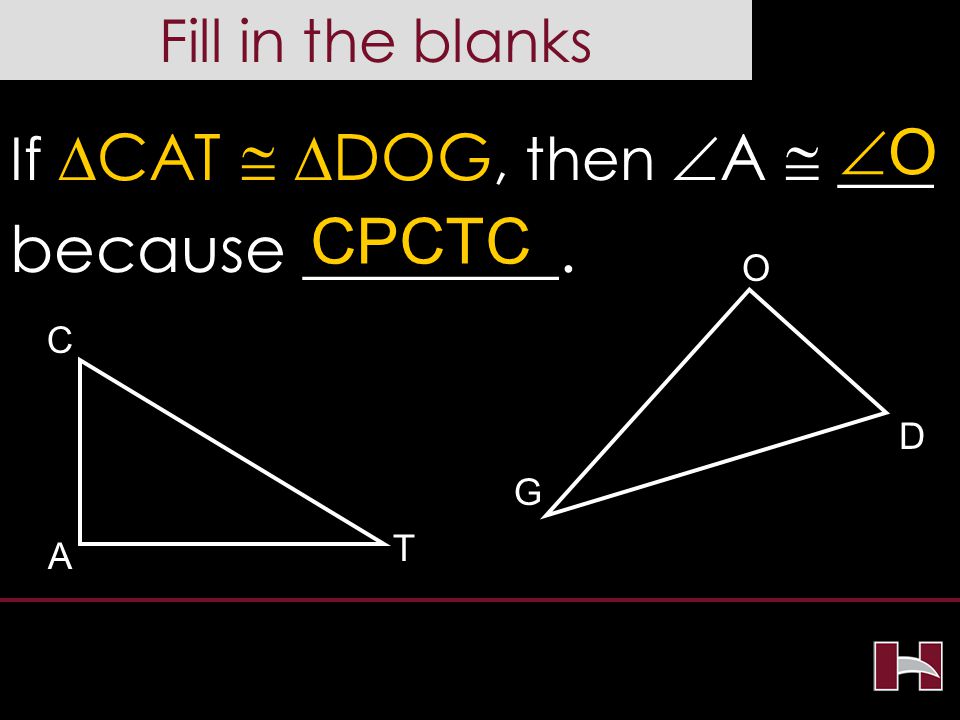

7 Fill in the blanks If  CAT   DOG, then  A  ___ because ________. OO CPCTC C A T O D G

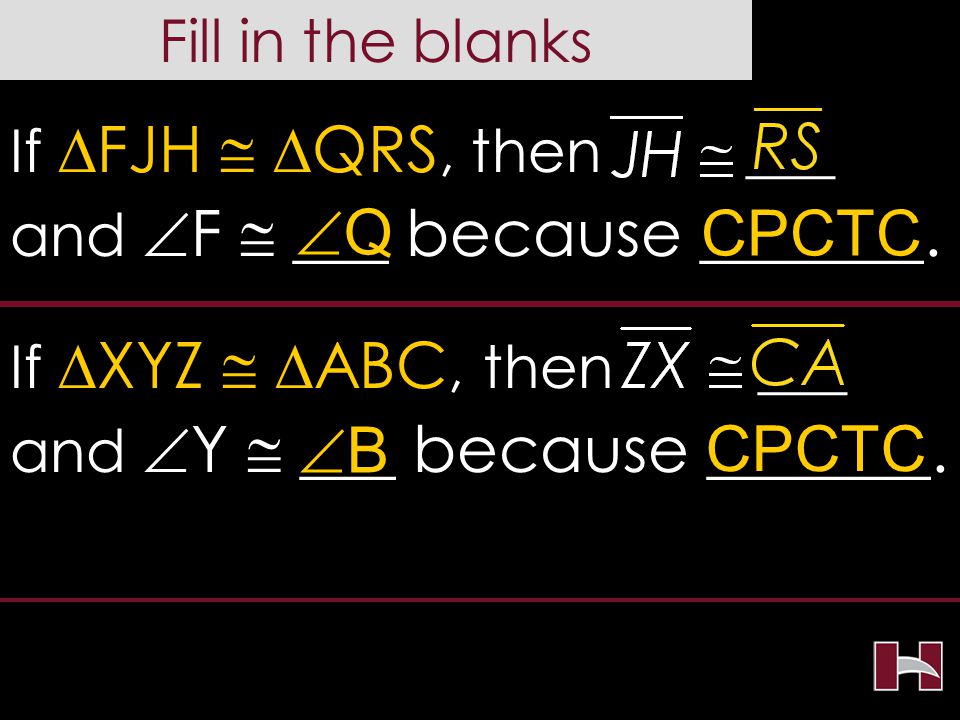

8 Fill in the blanks If  FJH   QRS, then ___ and  F  ___ because _______. QQ CPCTC BB If  XYZ   ABC, then ___ and  Y  ___ because _______.

9

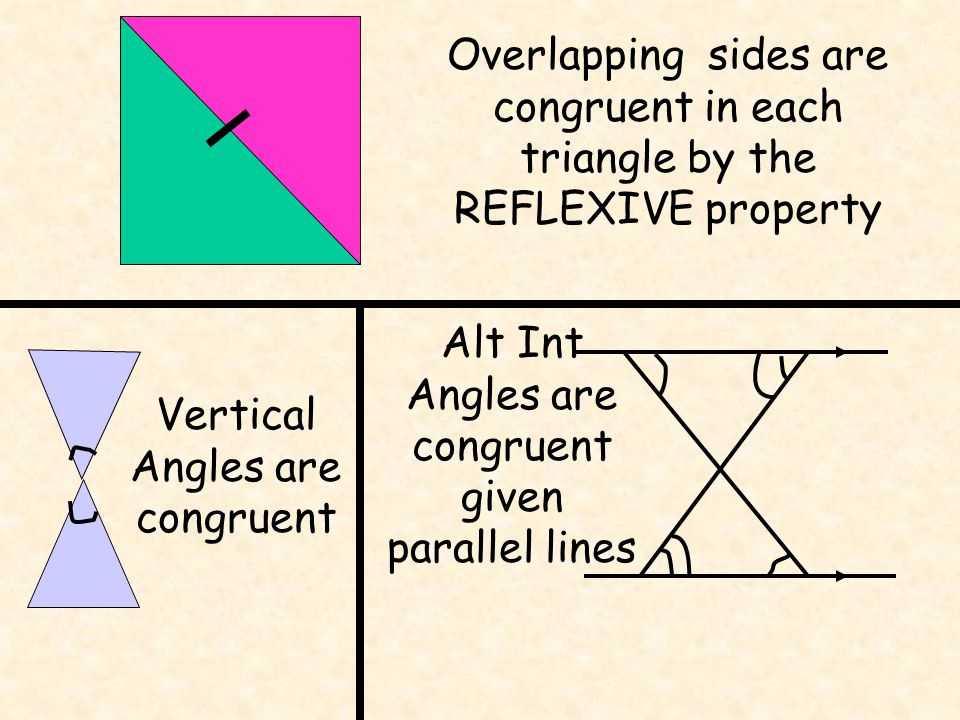

10 Overlapping sides are congruent in each triangle by the REFLEXIVE property Vertical Angles are congruent Alt Int Angles are congruent given parallel lines

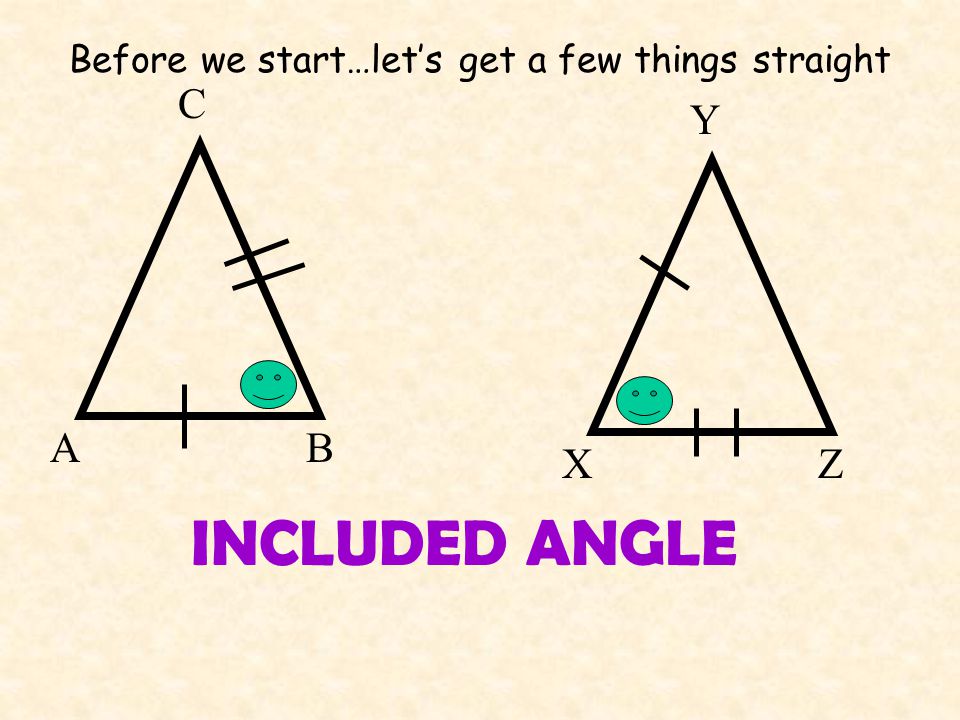

11 Before we start…let’s get a few things straight AB C XZ Y INCLUDED ANGLE

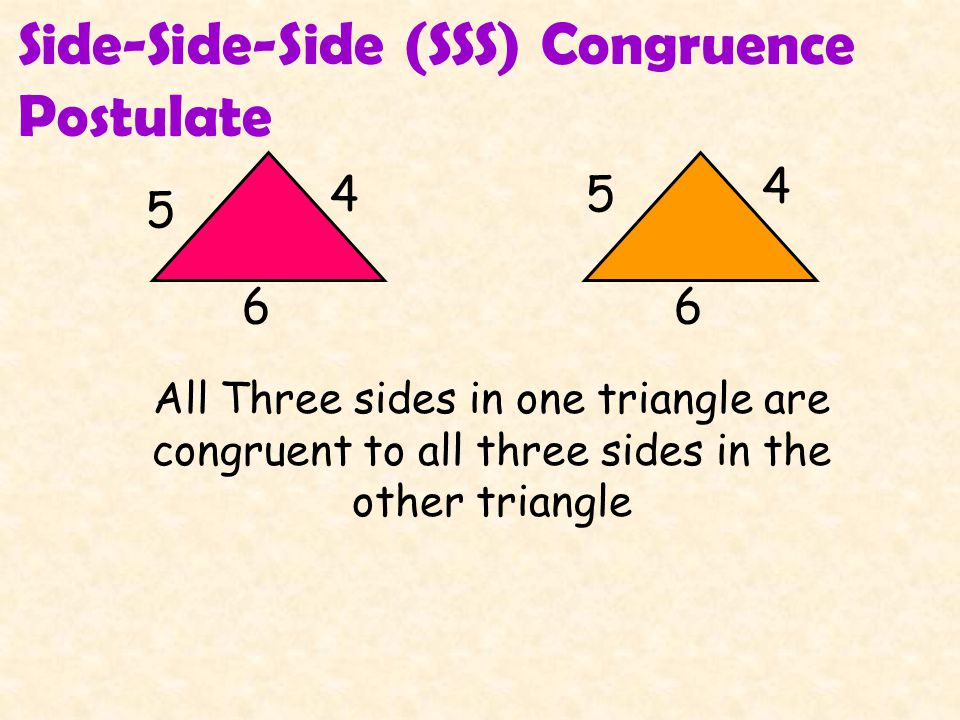

12 Side-Side-Side (SSS) Congruence Postulate 66 4 4 5 5 All Three sides in one triangle are congruent to all three sides in the other triangle

13 Side-Angle-Side (SAS) Congruence Postulate Two sides and the INCLUDED angle

14 Example #1 DFEUVW by ____ SSS

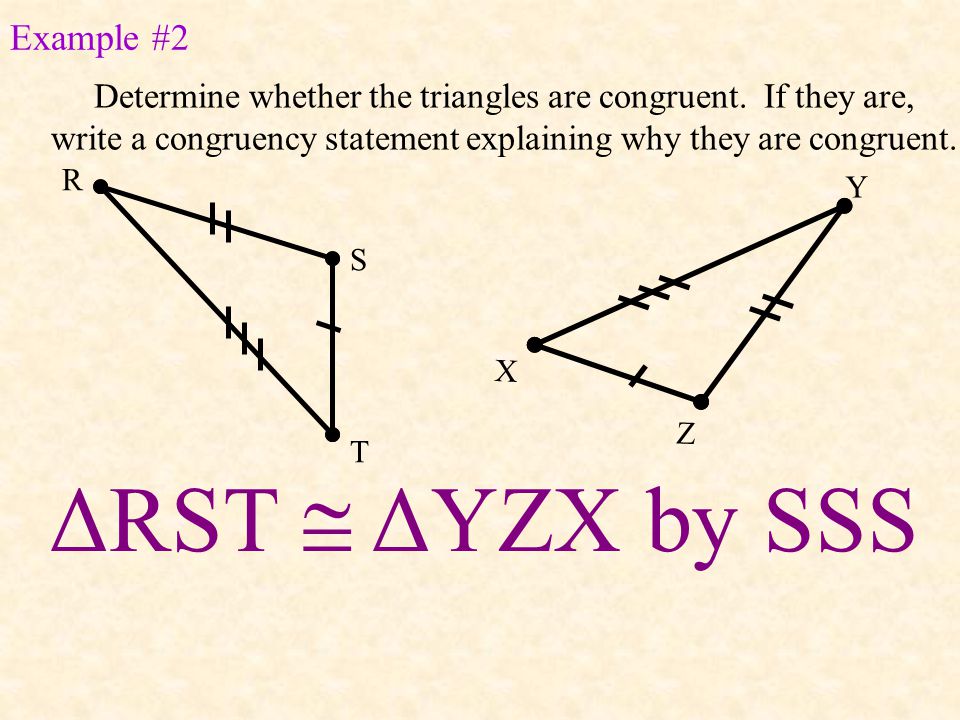

15 Determine whether the triangles are congruent. If they are, write a congruency statement explaining why they are congruent. R T S Y X Z ΔRST  ΔYZX by SSS Example #2

16 Not congruent. Not enough Information to Tell R T S B A C Determine whether the triangles are congruent. If they are, write a congruency statement explaining why they are congruent. Example #3

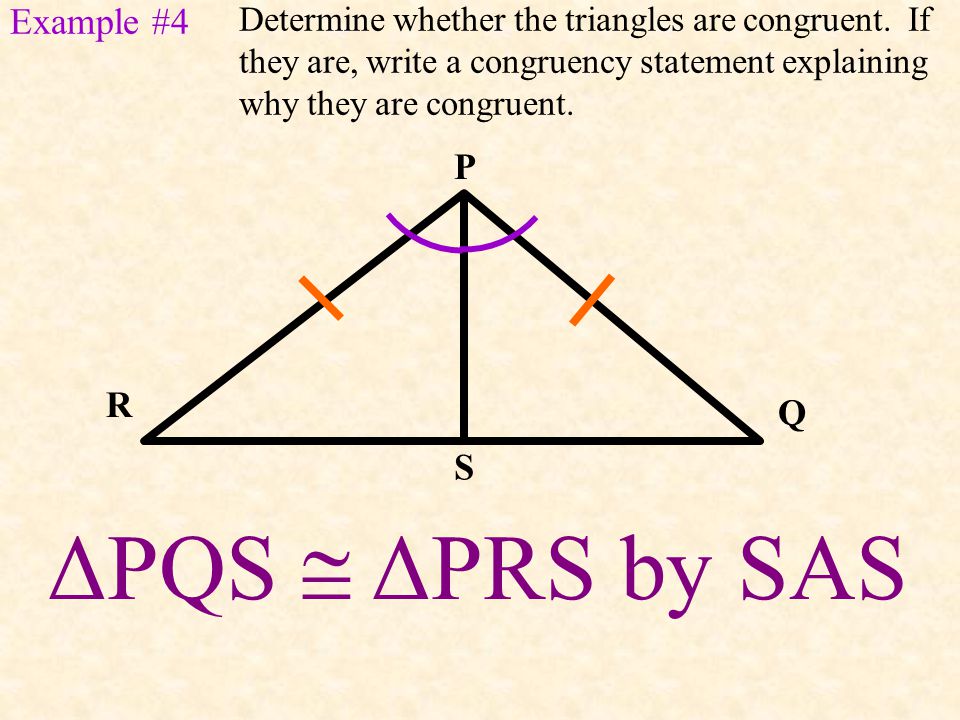

17 Determine whether the triangles are congruent. If they are, write a congruency statement explaining why they are congruent. Example #4 R P S Q ΔPQS  ΔPRS by SAS

18 Determine whether the triangles are congruent. If they are, write a congruency statement explaining why they are congruent. Example #5 R P S Q ΔPQR  ΔSTU by SSS T U

19 Determine whether the triangles are congruent. If they are, write a congruency statement explaining why they are congruent. Example #6 N M R Not congruent. Not enough Information to Tell Q P

20 Before we start…let’s get a few things straight INCLUDED SIDE AB C XZ Y

21 Angle-Side-Angle (ASA) Congruence Postulate Two angles and the INCLUDED side

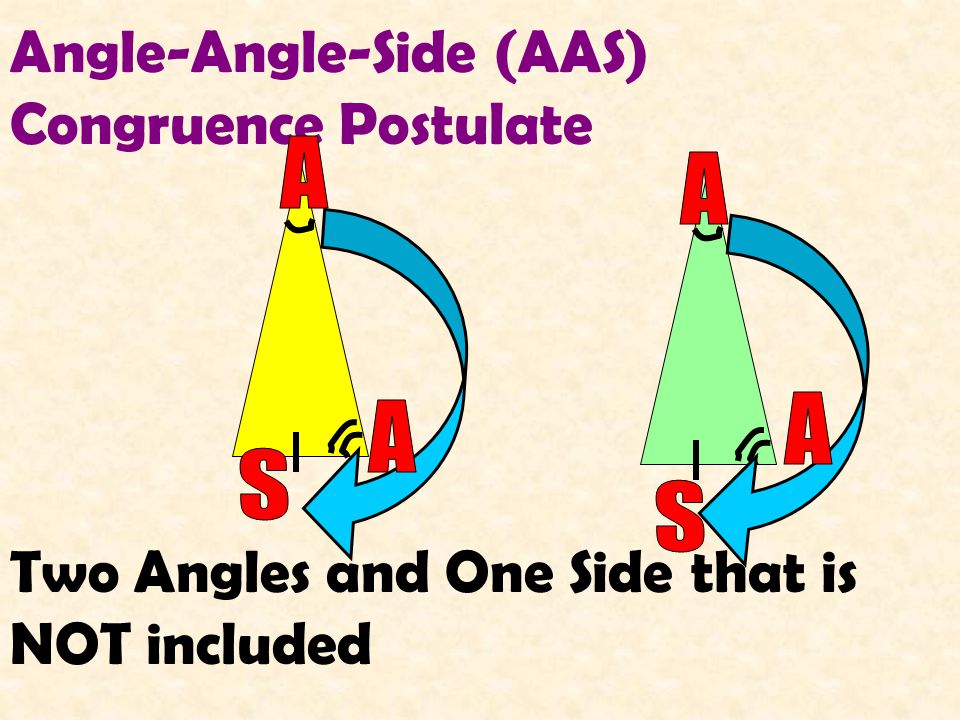

22 Angle-Angle-Side (AAS) Congruence Postulate Two Angles and One Side that is NOT included

23 Your Only Ways To Prove Triangles Are Congruent NO BAD WORDS

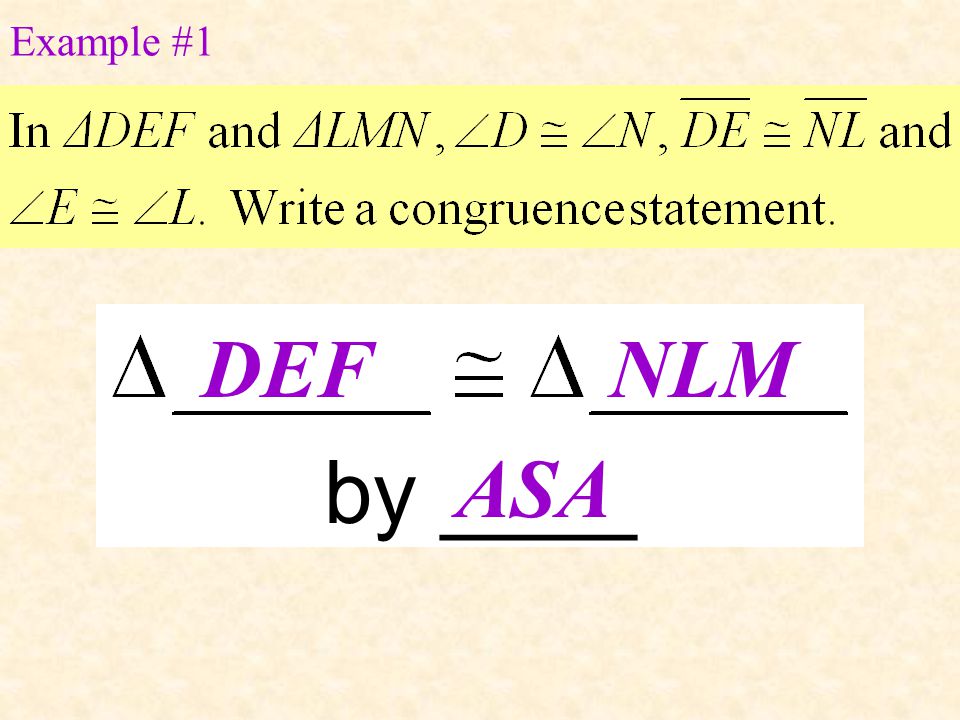

24 Example #1 DEFNLM by ____ ASA

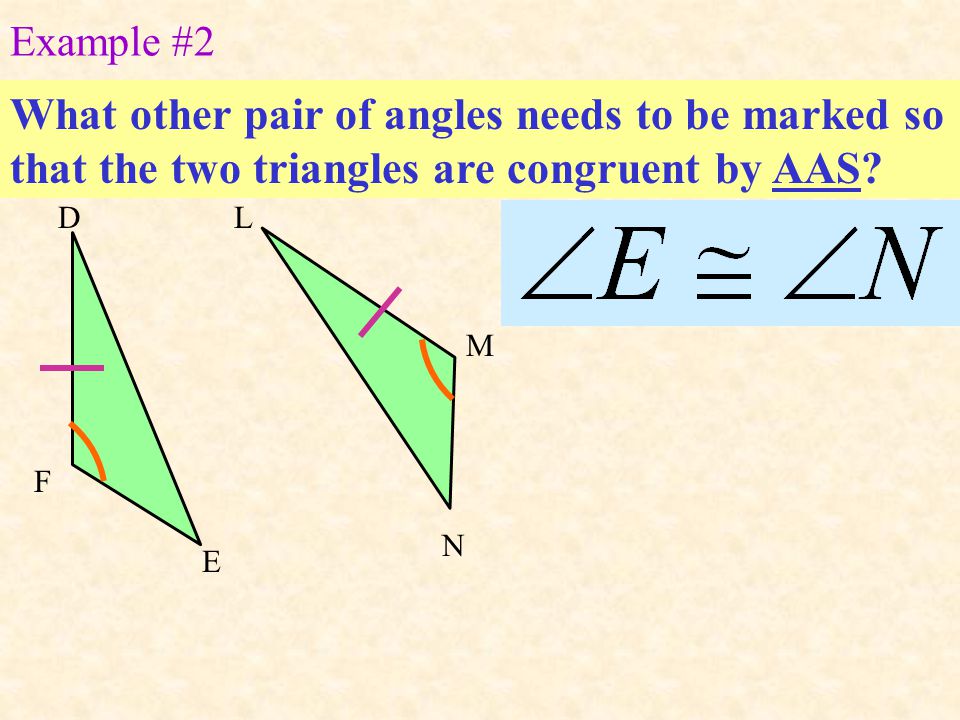

25 Example #2 What other pair of angles needs to be marked so that the two triangles are congruent by AAS? F D E M L N

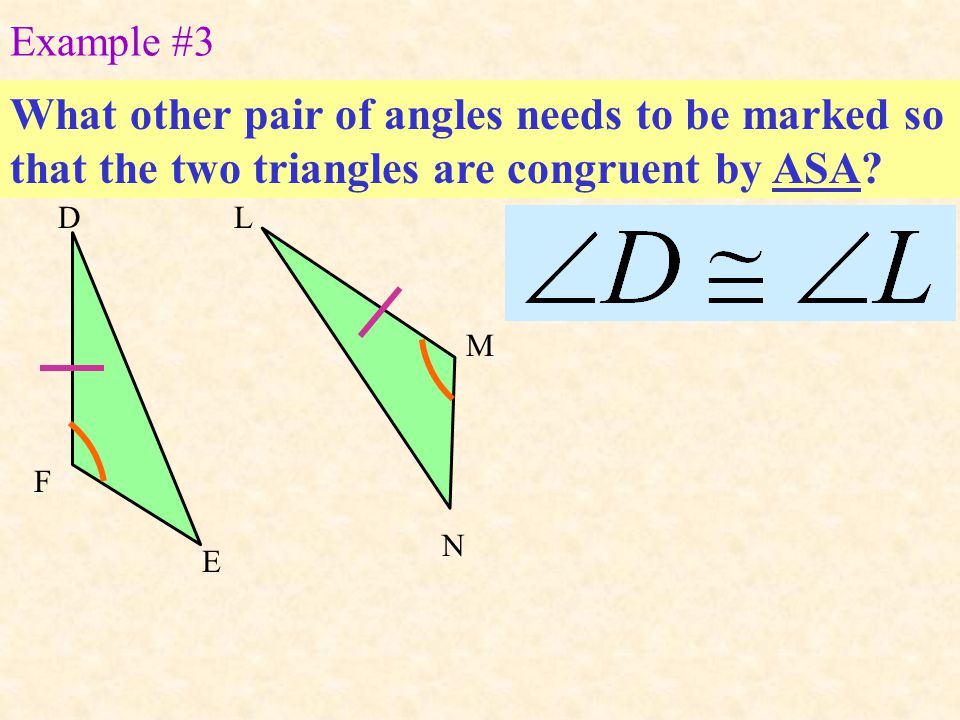

26 Example #3 What other pair of angles needs to be marked so that the two triangles are congruent by ASA? F D E M L N

27 Determine whether each pair of triangles is congruent by SSS, SAS, ASA, or AAS. If it is not possible to prove that they are congruent, write not possible. ΔGIH  ΔJIK by AAS G I H J K Example #4

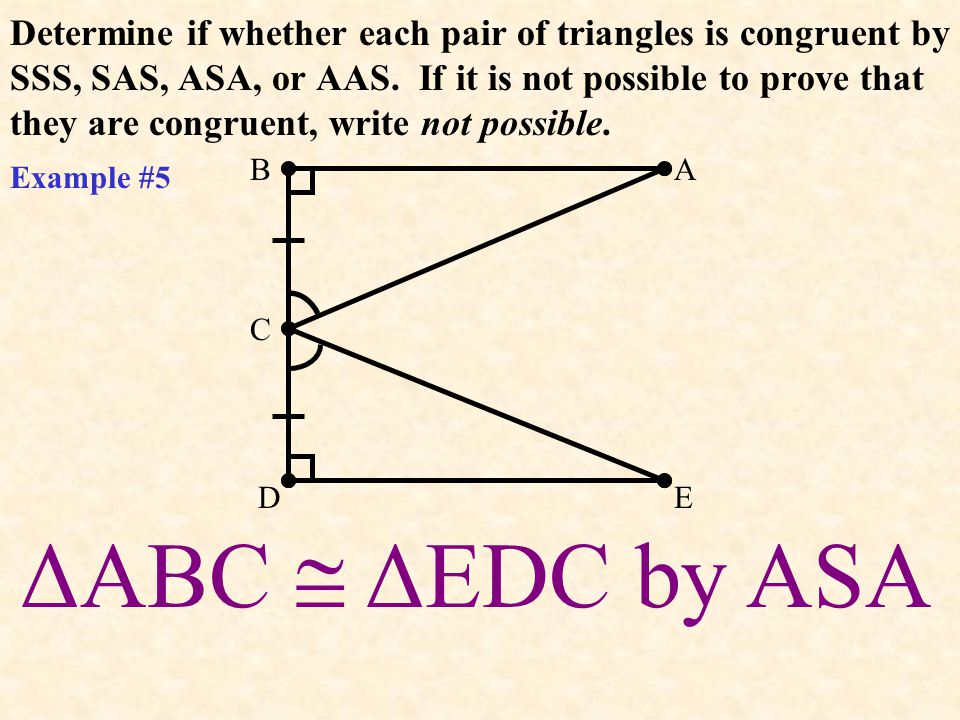

28 ΔABC  ΔEDC by ASA BA C ED Example #5 Determine if whether each pair of triangles is congruent by SSS, SAS, ASA, or AAS. If it is not possible to prove that they are congruent, write not possible.

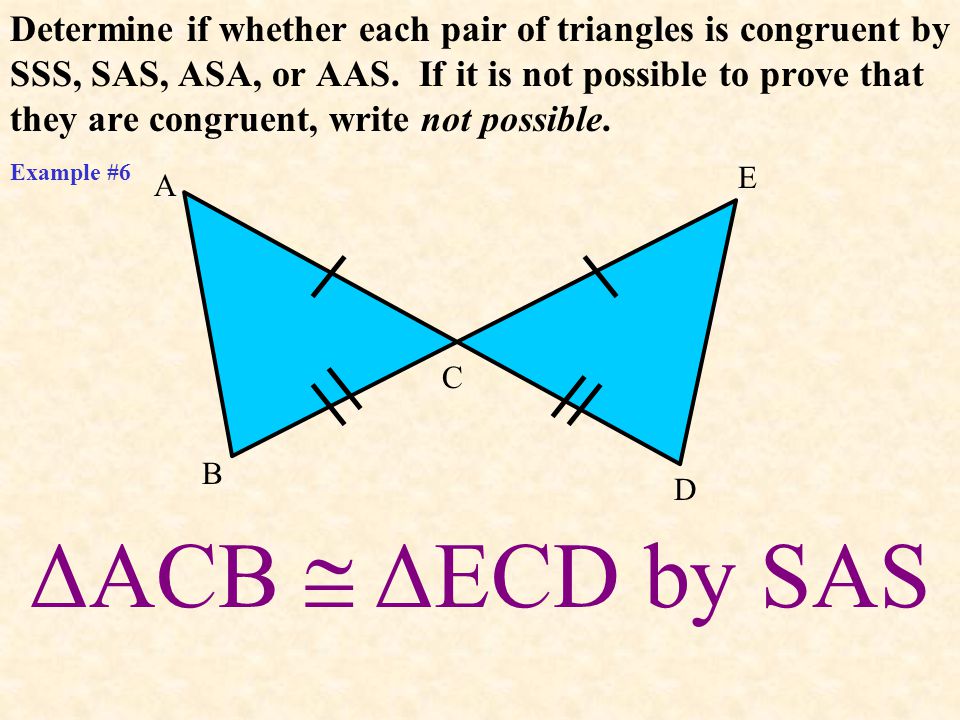

29 ΔACB  ΔECD by SAS B A C E D Example #6 Determine if whether each pair of triangles is congruent by SSS, SAS, ASA, or AAS. If it is not possible to prove that they are congruent, write not possible.

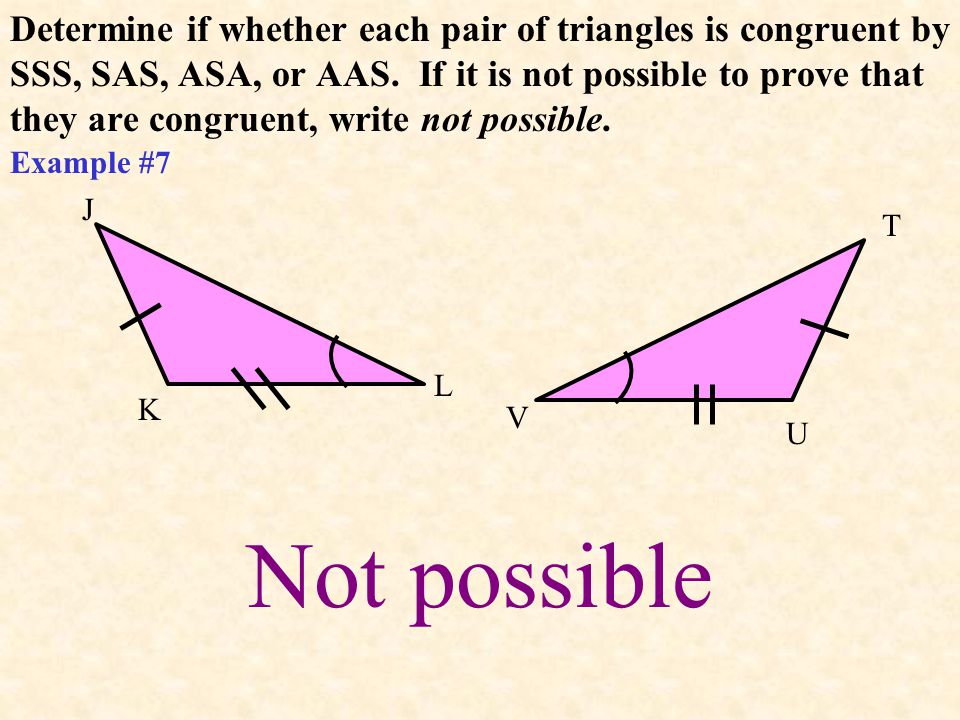

30 Not possible K J L T U Example #7 Determine if whether each pair of triangles is congruent by SSS, SAS, ASA, or AAS. If it is not possible to prove that they are congruent, write not possible. V
