1. Data modeling at Europeana Antoine Isaac METS Workshop at the Digital Libraries 2014 Conference London, Sept. 11, 2014

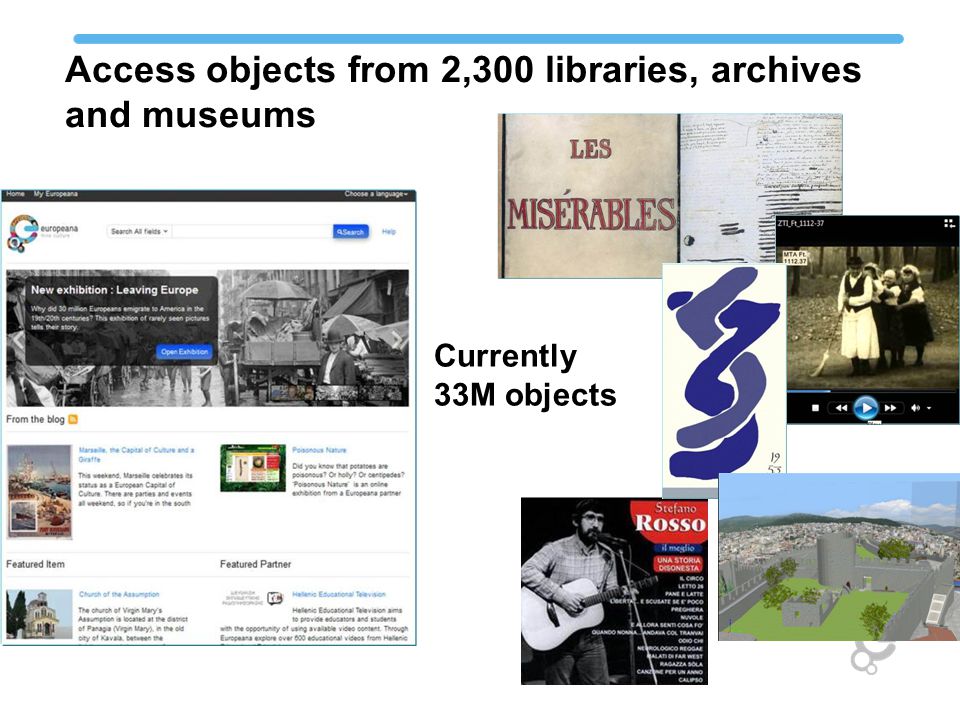

2. Access objects from 2,300 libraries, archives and museums Currently 33M objects

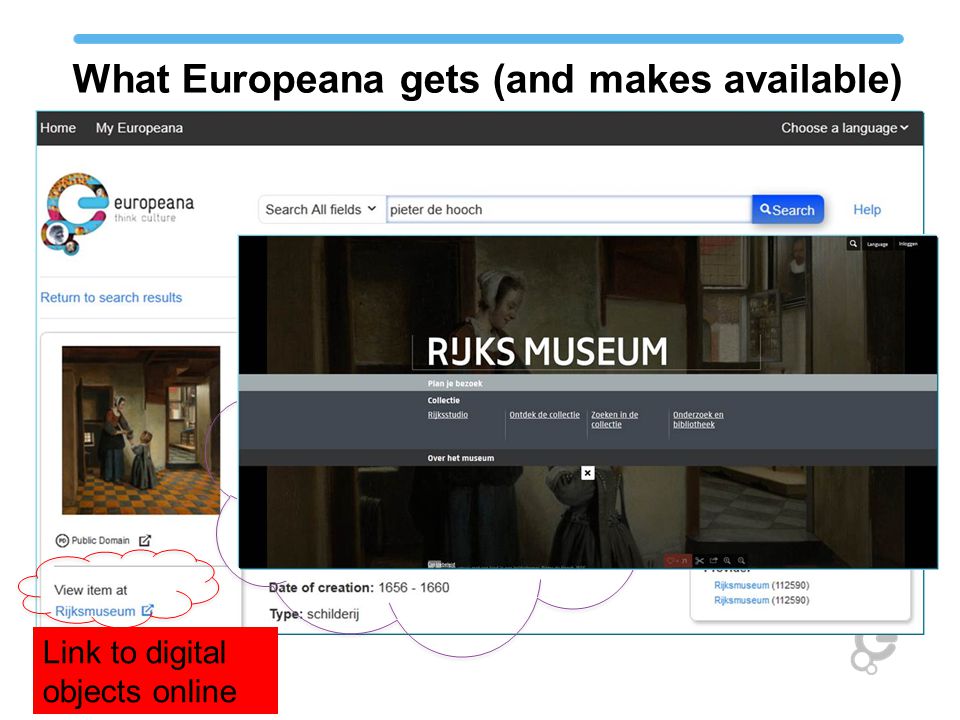

3. What Europeana gets (and makes available) Descriptive metadata Link to digital objects online

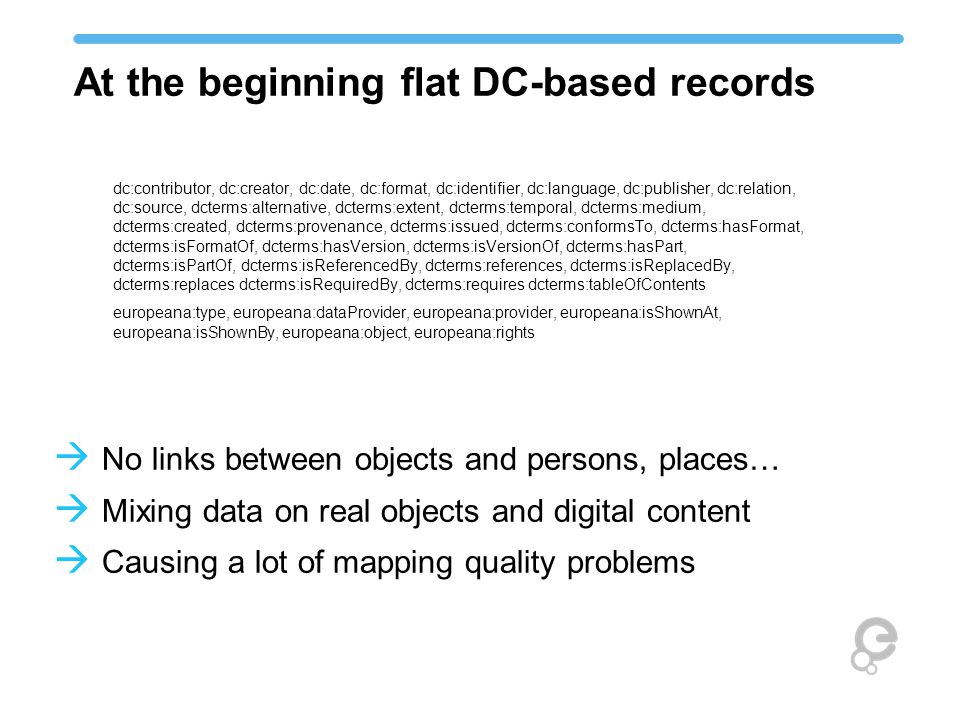

4. At the beginning flat DC-based records dc:contributor, dc:creator, dc:date, dc:format, dc:identifier, dc:language, dc:publisher, dc:relation, dc:source, dcterms:alternative, dcterms:extent, dcterms:temporal, dcterms:medium, dcterms:created, dcterms:provenance, dcterms:issued, dcterms:conformsTo, dcterms:hasFormat, dcterms:isFormatOf, dcterms:hasVersion, dcterms:isVersionOf, dcterms:hasPart, dcterms:isPartOf, dcterms:isReferencedBy, dcterms:references, dcterms:isReplacedBy, dcterms:replaces dcterms:isRequiredBy, dcterms:requires dcterms:tableOfContents europeana:type, europeana:dataProvider, europeana:provider, europeana:isShownAt, europeana:isShownBy, europeana:object, europeana:rights  No links between objects and persons, places…  Mixing data on real objects and digital content  Causing a lot of mapping quality problems

5. Creating a new Europeana Data Model: EDM http://pro.europeana.eu/edm-documentation

6. Metadata interoperability challenges  Needs: Accommodate different data models Accommodate domain specific requirements Avoid losing data and keep the best granularity Co-exist with the original data

7. EDM rationale: requirements  Richer metadata - finer granularity 1.Distinguish “provided objects” (painting, book, movie, etc.) from their digital representations 2.Distinguish object from its metadata record 3.Allow multiple records for a same object, containing potentially contradictory statements about it 4.Support for objects that are composed of other objects 5.Support for contextual resources, including concepts from controlled vocabularies

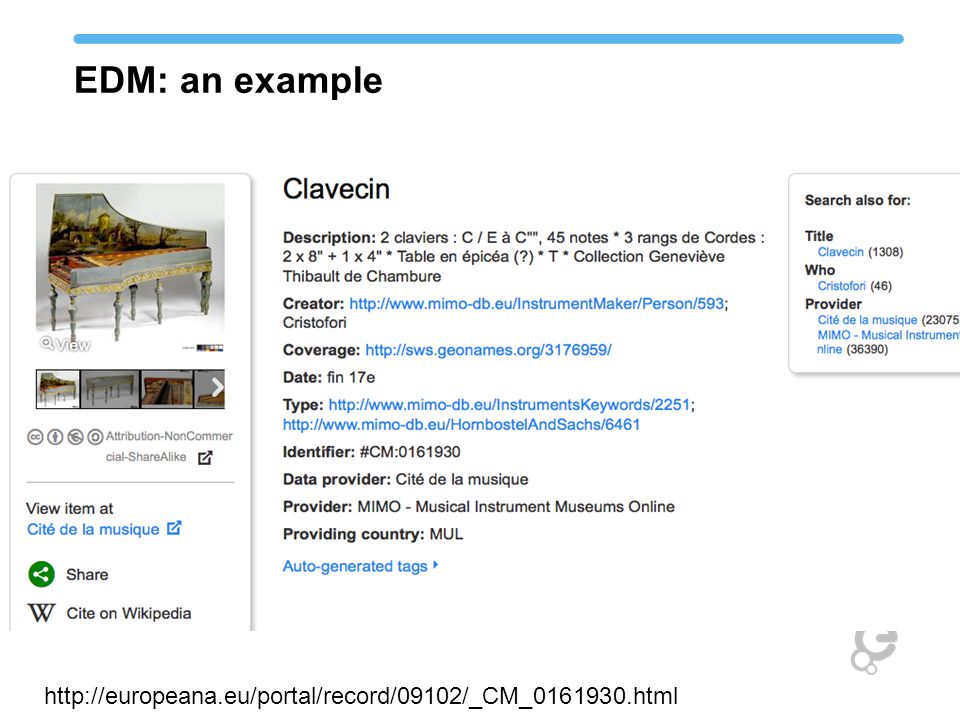

8. EDM: an example http://europeana.eu/portal/record/09102/_CM_0161930.html

9. More granular metadata

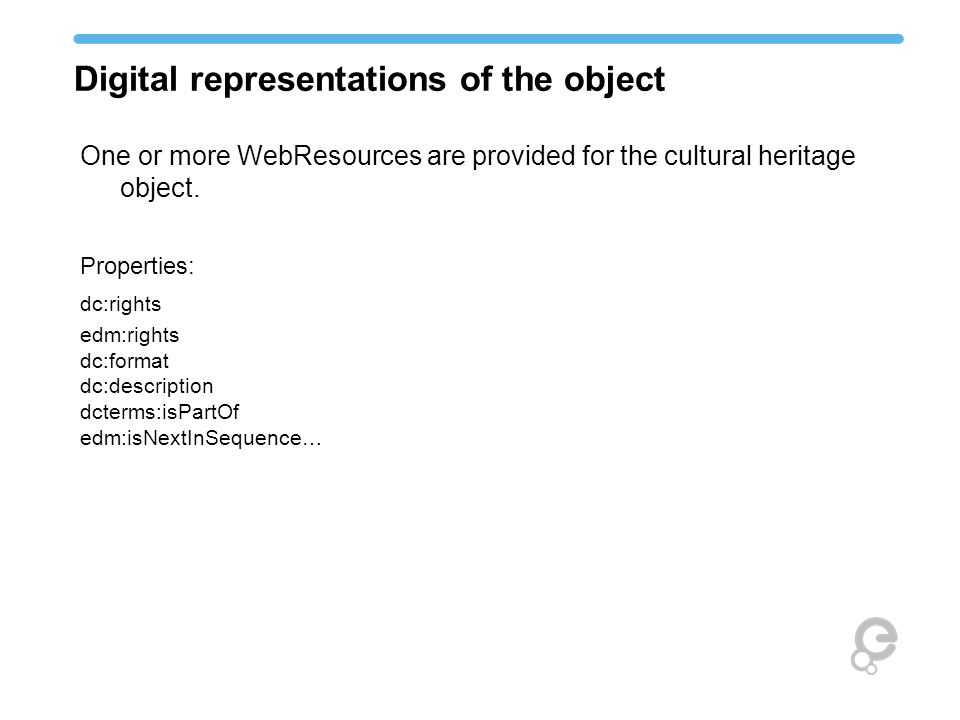

10. Digital representations of the object One or more WebResources are provided for the cultural heritage object. Properties: dc:rights edm:rights dc:format dc:description dcterms:isPartOf edm:isNextInSequence…

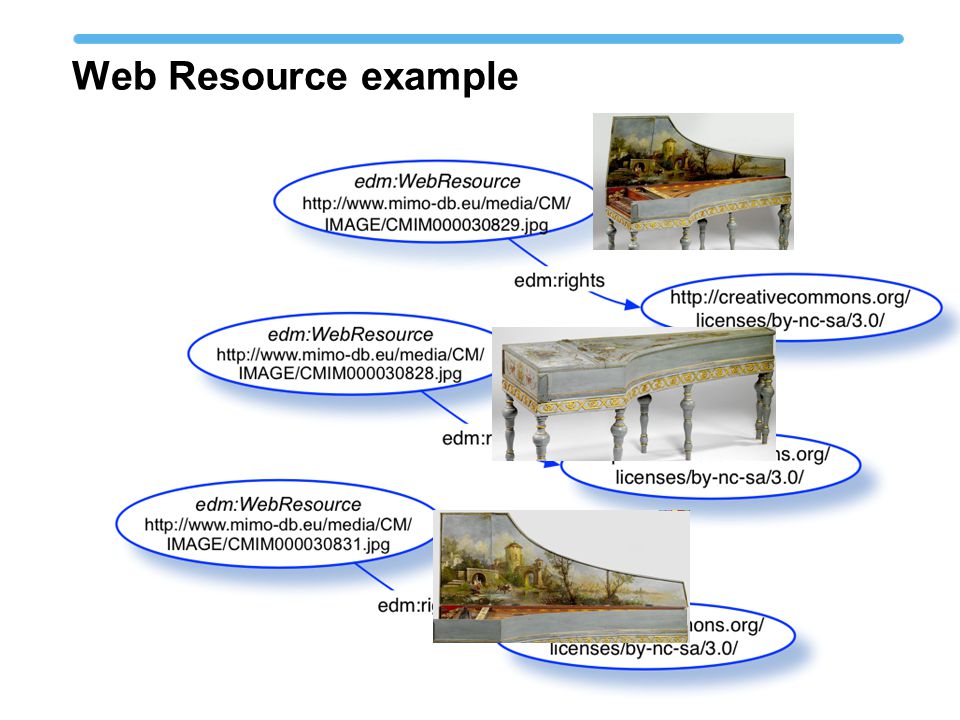

11. Web Resource example

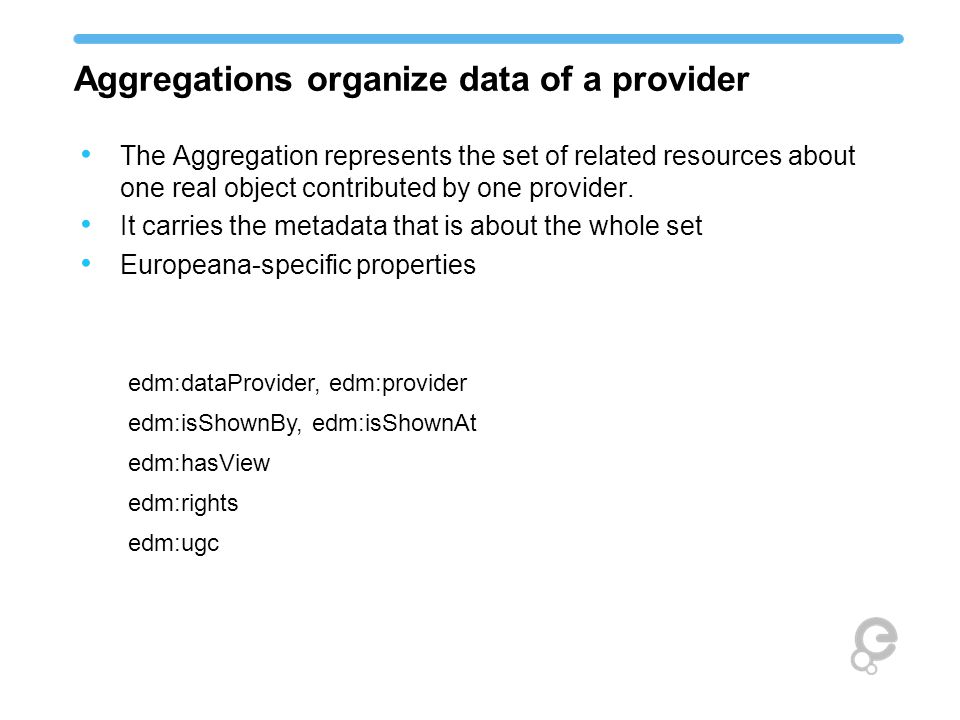

12. Aggregations organize data of a provider The Aggregation represents the set of related resources about one real object contributed by one provider. It carries the metadata that is about the whole set Europeana-specific properties edm:dataProvider, edm:provider edm:isShownBy, edm:isShownAt edm:hasView edm:rights edm:ugc

13. Aggregation example

14. Contextual Resources – Places Linked Open Data

15. Hierarchical objects in EDM

16. Complete version at:http://semanticweb.cs.vu.nl/europeana/browse/list_resource?r=http://purl.org/collections/apenet/proxy-4_VTH- ATLASSEN_EN_KAARTBOEKEN-F&raw=truehttp://semanticweb.cs.vu.nl/europeana/browse/list_resource?r=http://purl.org/collections/apenet/proxy-4_VTH- ATLASSEN_EN_KAARTBOEKEN-F&raw=true

17. Collaborative, soft standardization  Cross-community development, involving library, archive and museum experts and academic partners  Data model that re-uses several existing models Semantic Web paradigm just allows mixing them!

18. (Future work:) Different semantic grains  Adopts Semantic Web principle of specializing classes and properties  Enables extensions, “applications profiles”, based on needs and best practices from specific sectors or domains  For now Europeana core ingestion still relies on an XML schema (for RDF data!)

19. METS – EDM mappings  DPLA  DDB  DM2E  EuropeanaConnect  APEx  Judaica Most are METS/MODS

20. METS – EDM mappings  Focusing on MODS for the descriptive MD 1Mb METS may result in 3Kb EDM  METS structMap can populate the Aggregation of WebResources Media links and technical MD  Or hierarchies of ProvidedCHOs when the map refers to objects that have cultural interest by themselves E.g. multi-volume works, but not pages of books

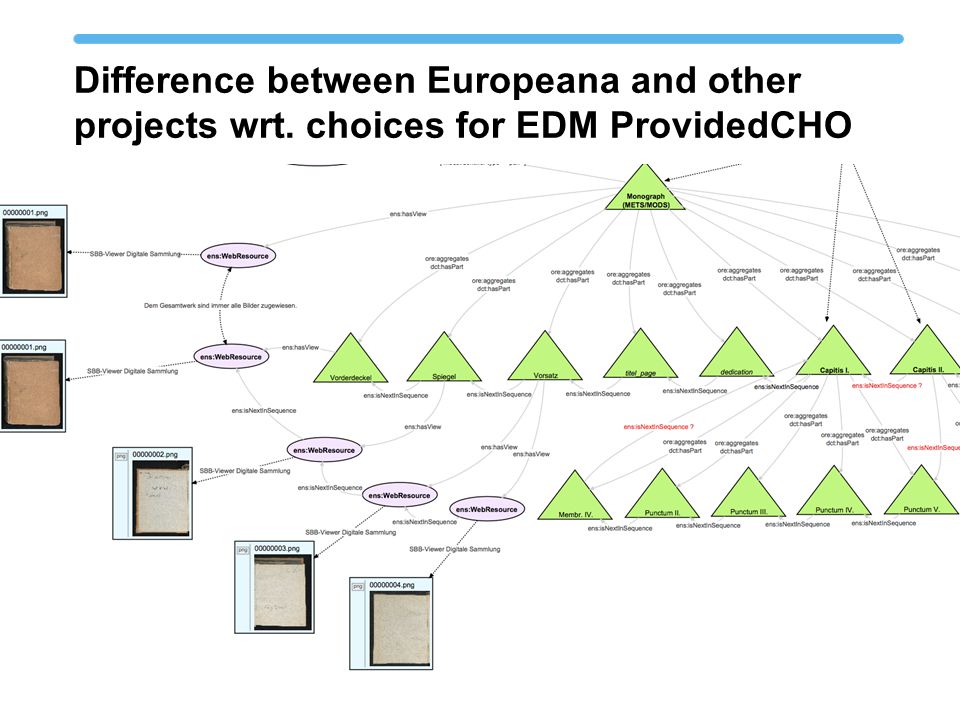

21. Difference between Europeana and other projects wrt. choices for EDM ProvidedCHO

22. Conclusions  Exchanging data about aggregation of cultural objects, media files, with technical and descriptive MD Mapping from METS is possible  Linked data is really interesting in a network/community environment ( Europeana & partners)  Implementing only a part of the Linked Data technical stack already bring benefits  An ongoing effort

23. Thank you Antoine Isaac antoine.isaac@europeana.eu @EuropeanaTech

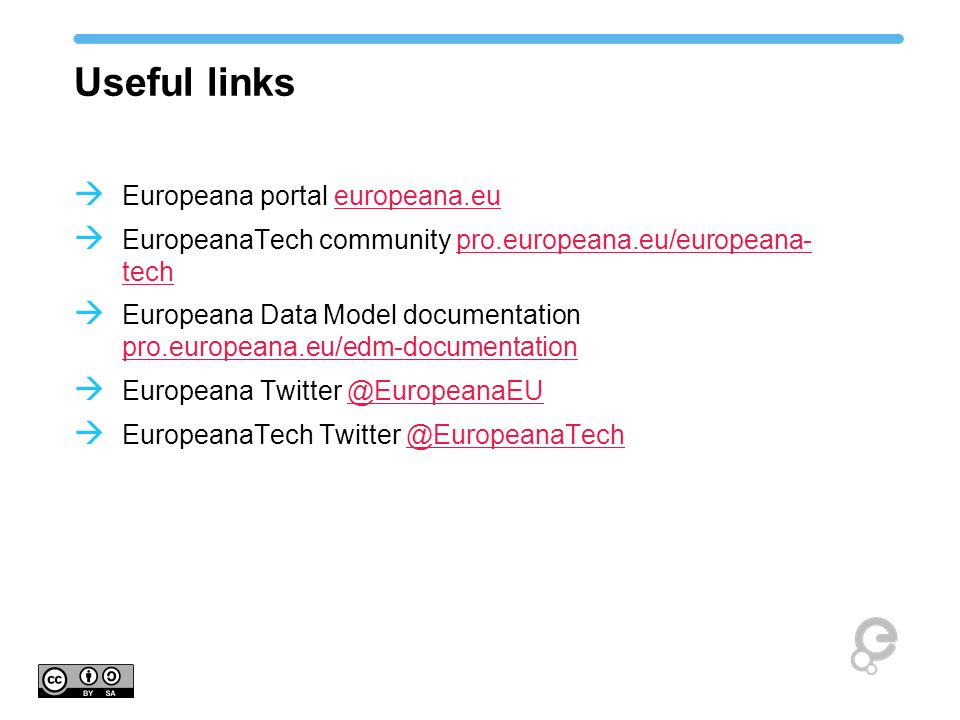

24. Useful links  Europeana portal europeana.eueuropeana.eu  EuropeanaTech community pro.europeana.eu/europeana- techpro.europeana.eu/europeana- tech  Europeana Data Model documentation pro.europeana.eu/edm-documentation pro.europeana.eu/edm-documentation  Europeana Twitter @EuropeanaEU@EuropeanaEU  EuropeanaTech Twitter @EuropeanaTech@EuropeanaTech

25. Ready for metadata enrichment  Europeana links objects to third-party sources GEMET, GeoNames, DBpedia  Europeana providers send richer metadata

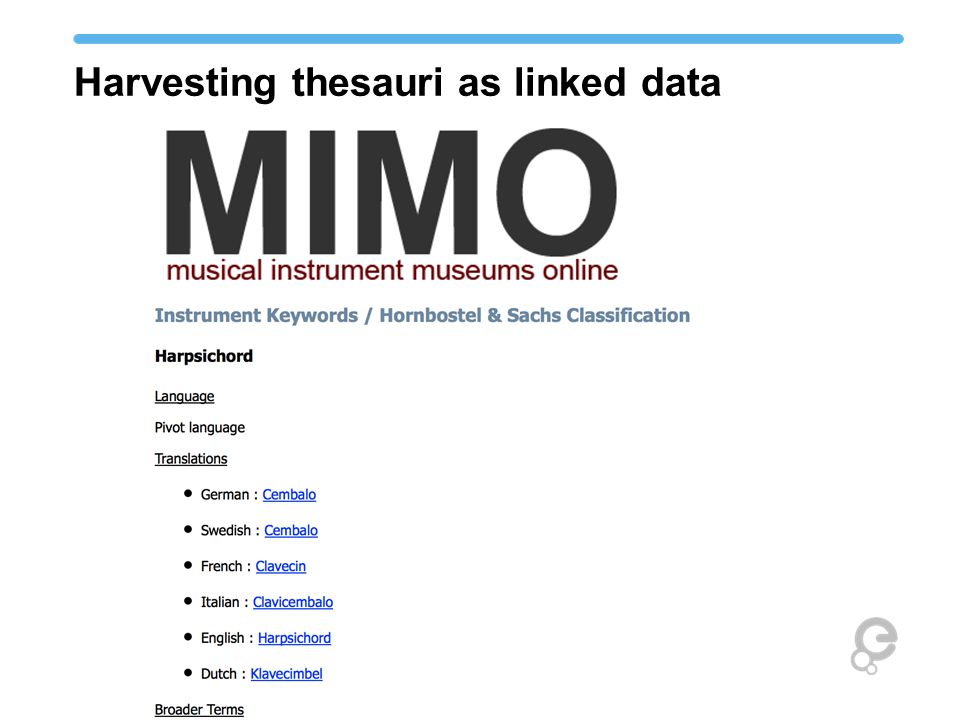

26. Harvesting thesauri as linked data

27. Contextual resources – multilingual & semantic linked data for Concepts Harpsichord Cembalo Clavecin Clavicembalo Harpsichord Klavecimbel

28. Contextual resource benefits - Work in progress  Allows to present users with richer context  Boosts multilingual search  And multilingual display
