1. CHAPTER 5 THREADS & MULTITHREADING 1

2. Single and Multithreaded Processes 2

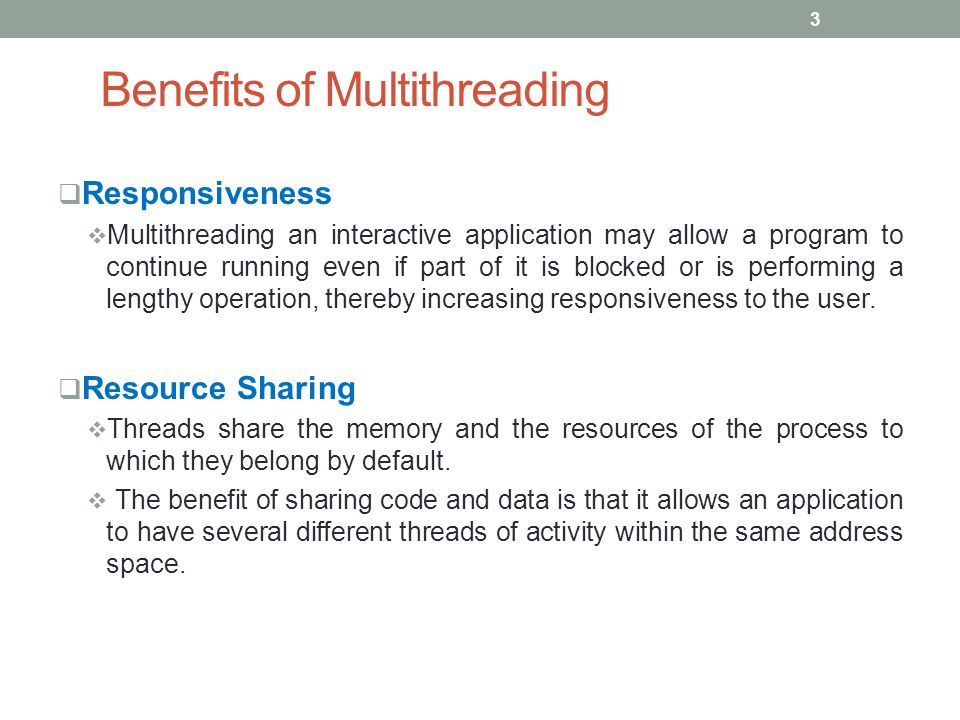

3. Benefits of Multithreading  Responsiveness  Multithreading an interactive application may allow a program to continue running even if part of it is blocked or is performing a lengthy operation, thereby increasing responsiveness to the user.  Resource Sharing  Threads share the memory and the resources of the process to which they belong by default.  The benefit of sharing code and data is that it allows an application to have several different threads of activity within the same address space. 3

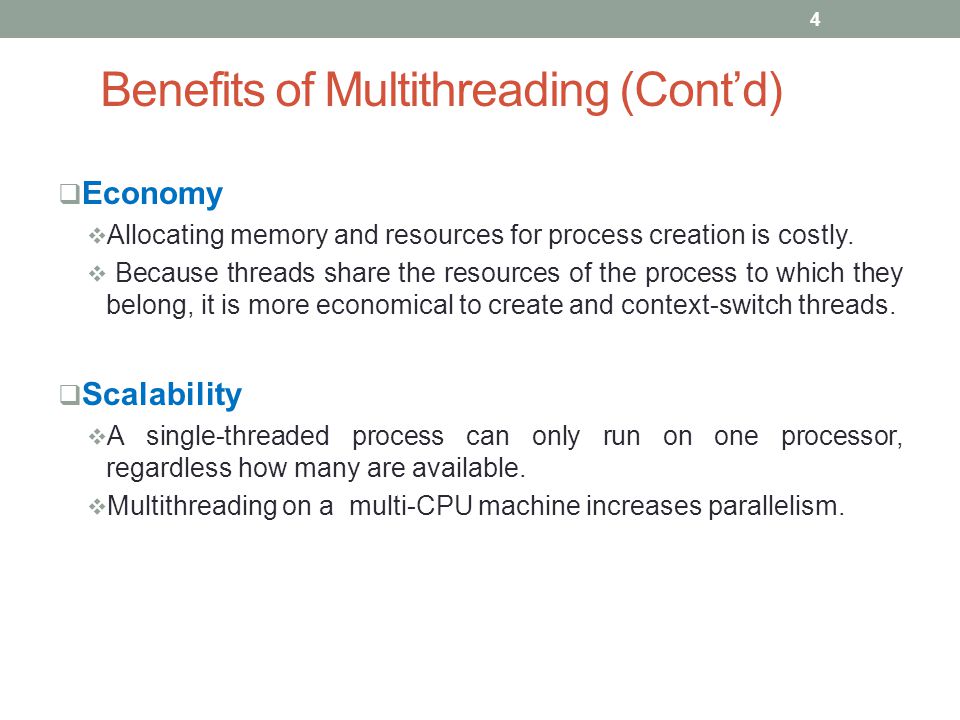

4. Benefits of Multithreading (Cont’d)  Economy  Allocating memory and resources for process creation is costly.  Because threads share the resources of the process to which they belong, it is more economical to create and context-switch threads.  Scalability  A single-threaded process can only run on one processor, regardless how many are available.  Multithreading on a multi-CPU machine increases parallelism. 4

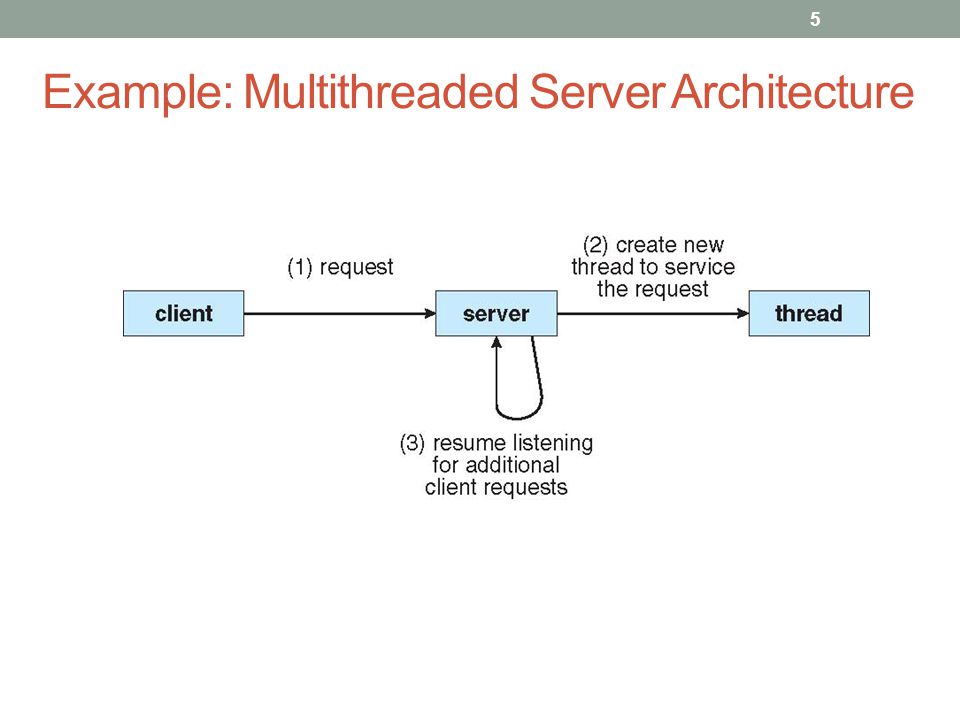

5. Example: Multithreaded Server Architecture 5

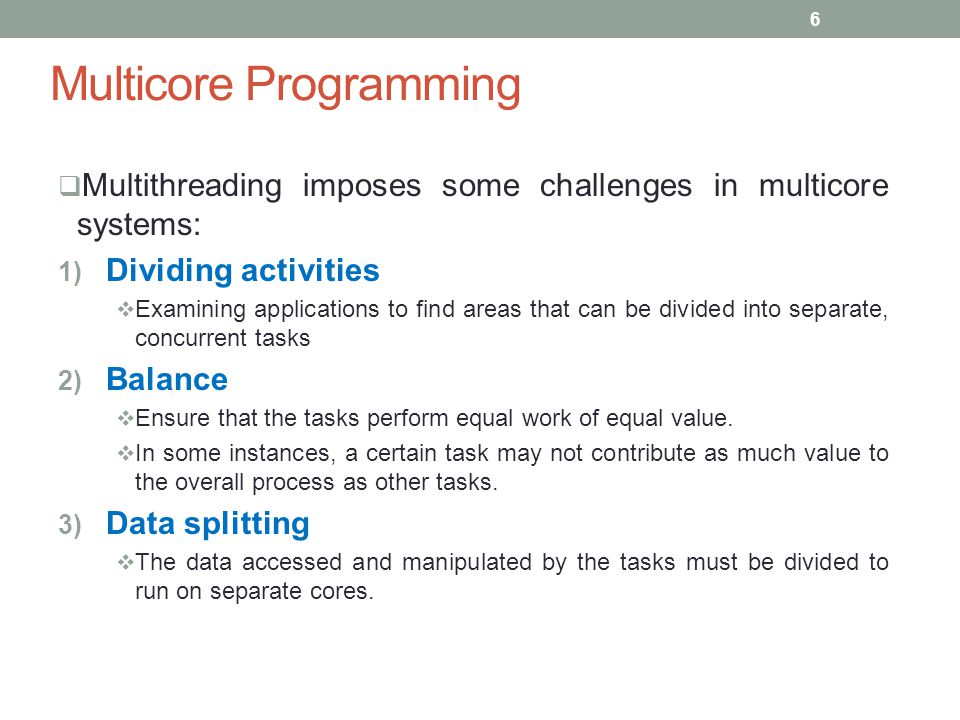

6. Multicore Programming  Multithreading imposes some challenges in multicore systems: 1) Dividing activities  Examining applications to find areas that can be divided into separate, concurrent tasks 2) Balance  Ensure that the tasks perform equal work of equal value.  In some instances, a certain task may not contribute as much value to the overall process as other tasks. 3) Data splitting  The data accessed and manipulated by the tasks must be divided to run on separate cores. 6

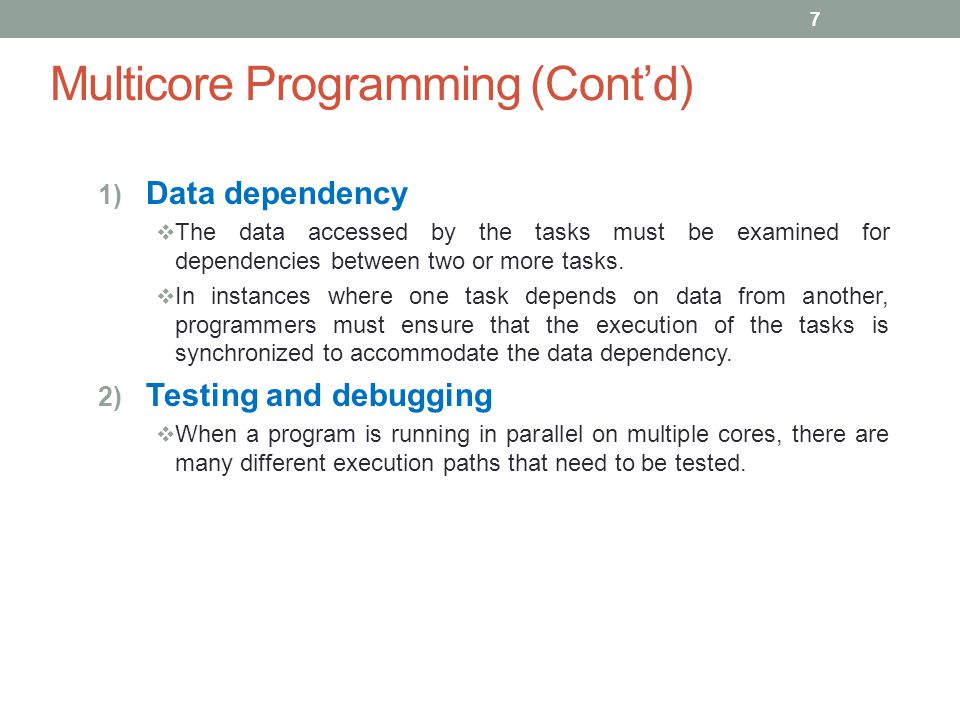

7. Multicore Programming (Cont’d) 1) Data dependency  The data accessed by the tasks must be examined for dependencies between two or more tasks.  In instances where one task depends on data from another, programmers must ensure that the execution of the tasks is synchronized to accommodate the data dependency. 2) Testing and debugging  When a program is running in parallel on multiple cores, there are many different execution paths that need to be tested. 7

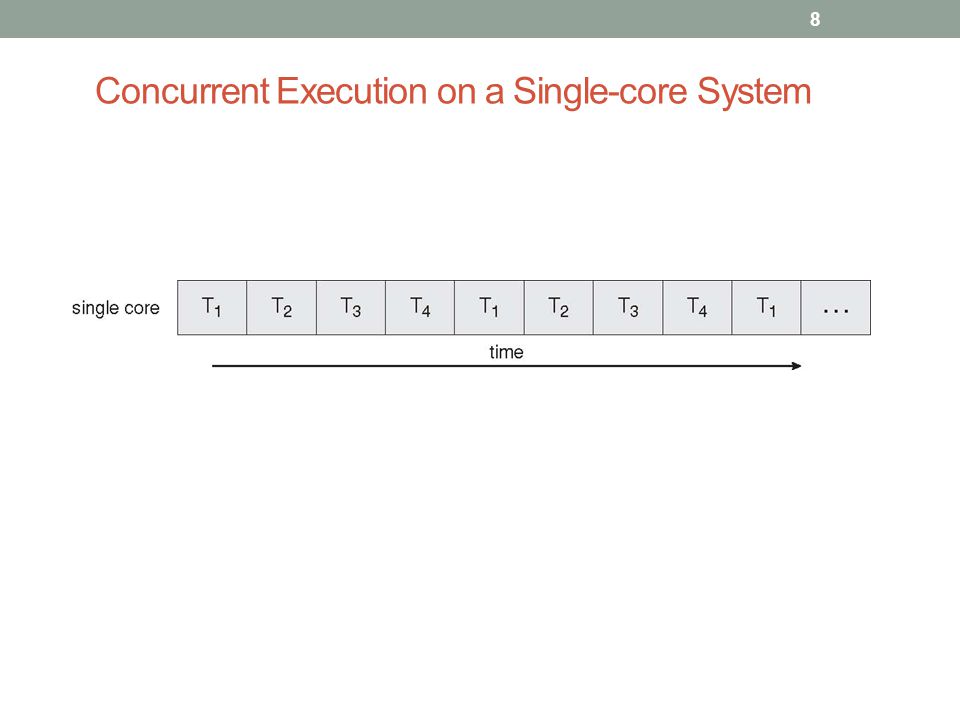

8. Concurrent Execution on a Single-core System 8

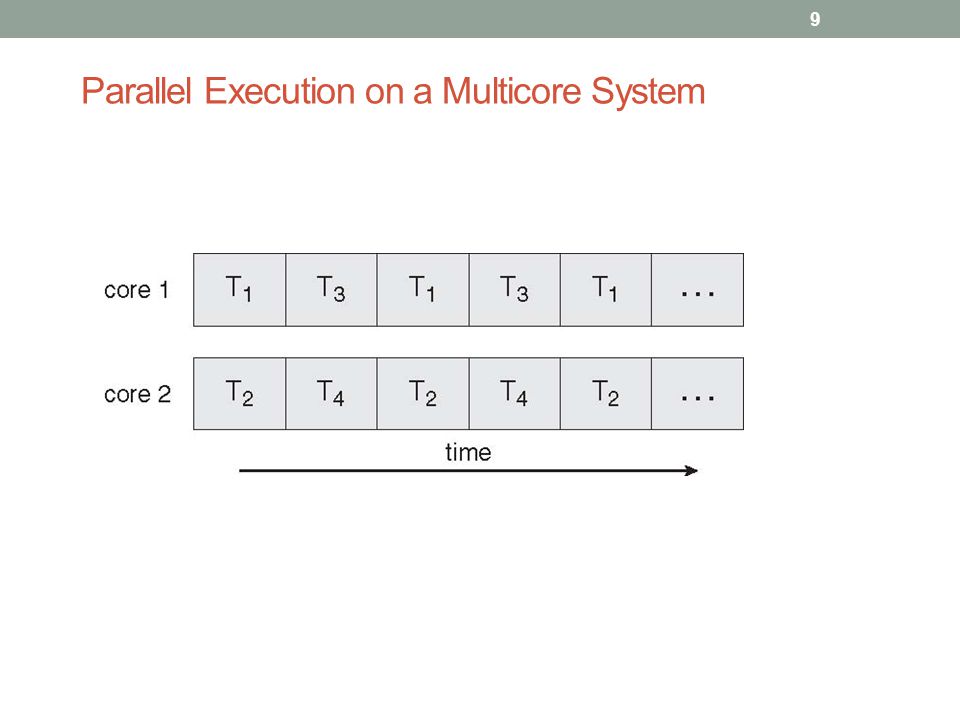

9. Parallel Execution on a Multicore System 9

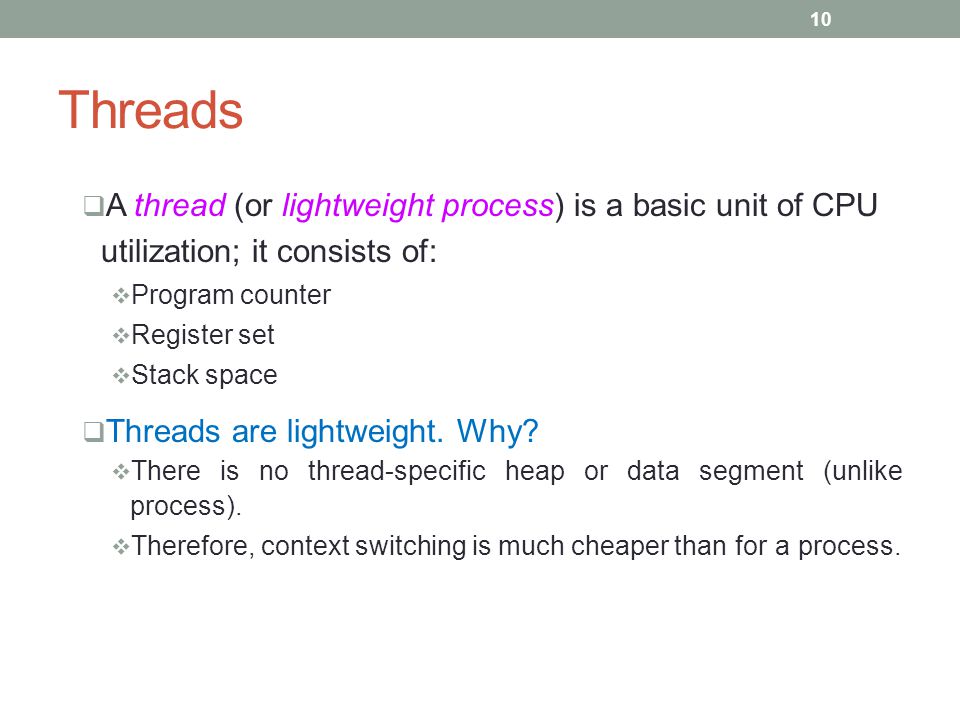

10. Threads  A thread (or lightweight process) is a basic unit of CPU utilization; it consists of:  Program counter  Register set  Stack space  Threads are lightweight. Why?  There is no thread-specific heap or data segment (unlike process).  Therefore, context switching is much cheaper than for a process. 10

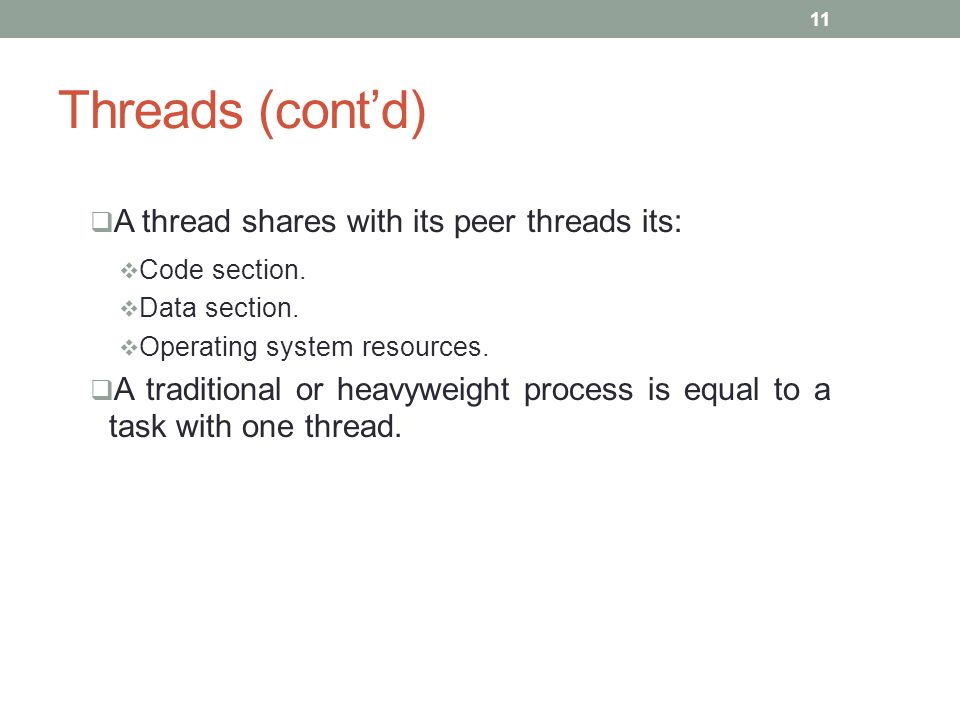

11.  A thread shares with its peer threads its:  Code section.  Data section.  Operating system resources.  A traditional or heavyweight process is equal to a task with one thread. Threads (cont’d) 11

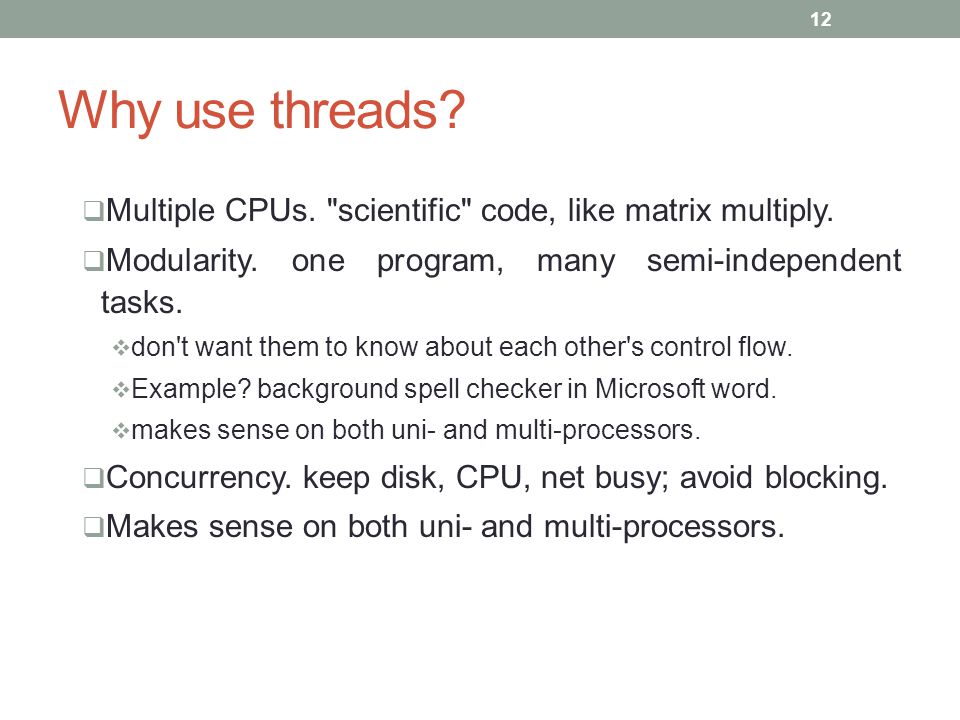

12. Why use threads?  Multiple CPUs. "scientific" code, like matrix multiply.  Modularity. one program, many semi-independent tasks.  don't want them to know about each other's control flow.  Example? background spell checker in Microsoft word.  makes sense on both uni- and multi-processors.  Concurrency. keep disk, CPU, net busy; avoid blocking.  Makes sense on both uni- and multi-processors. 12

13. Threads vs. Processes A thread has no data segment or heapA process has code/data/heap & other segments A thread cannot live on its own, it must live within a process There must be at least one thread in a process There can be more than one thread in a process, the first thread calls main & has the process’s stack Threads within a process share code/data/heap, share I/O, but each has its own stack & registers Inexpensive creationExpensive creation Inexpensive context switchingExpensive context switching If a thread dies, its stack is reclaimedIf a process dies, its resources are reclaimed & all threads die 13

14. Threads Types  There are two types of threads:  User threads  Kernel threads 14

15. User Threads  Thread Management Done by User-Level Threads Library.  The library provides support for thread creation, scheduling, and management with support from the kernel.  All thread creation and scheduling are done in user space without the need for kernel intervention, Kernel is unaware of user-level threads.  User-level threads are generally fast to create and manage. 15

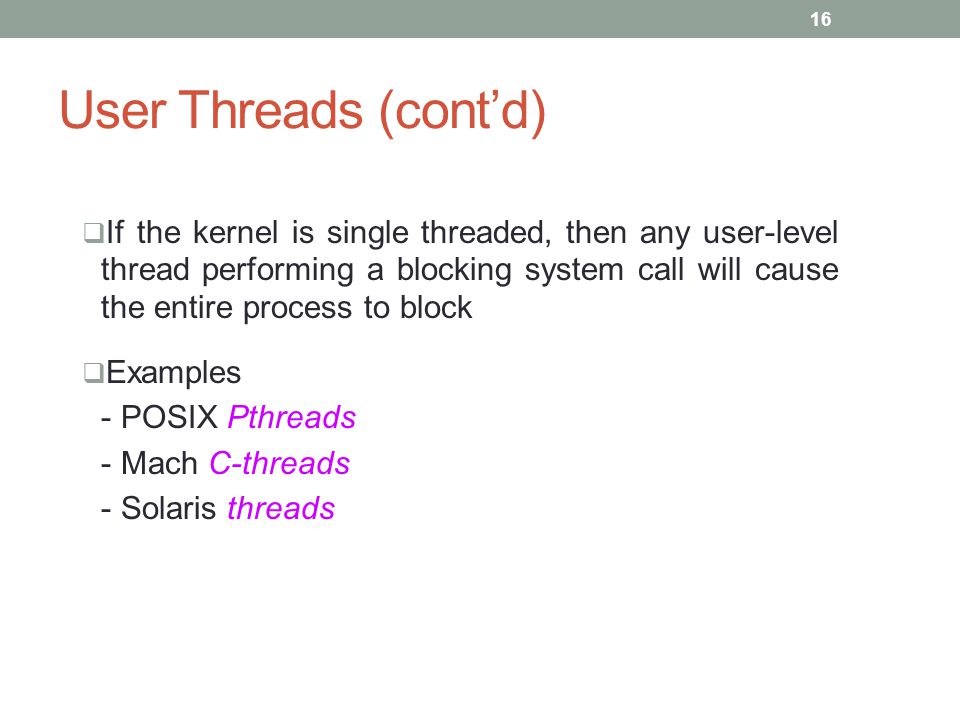

16.  If the kernel is single threaded, then any user-level thread performing a blocking system call will cause the entire process to block  Examples - POSIX Pthreads - Mach C-threads - Solaris threads User Threads (cont’d) 16

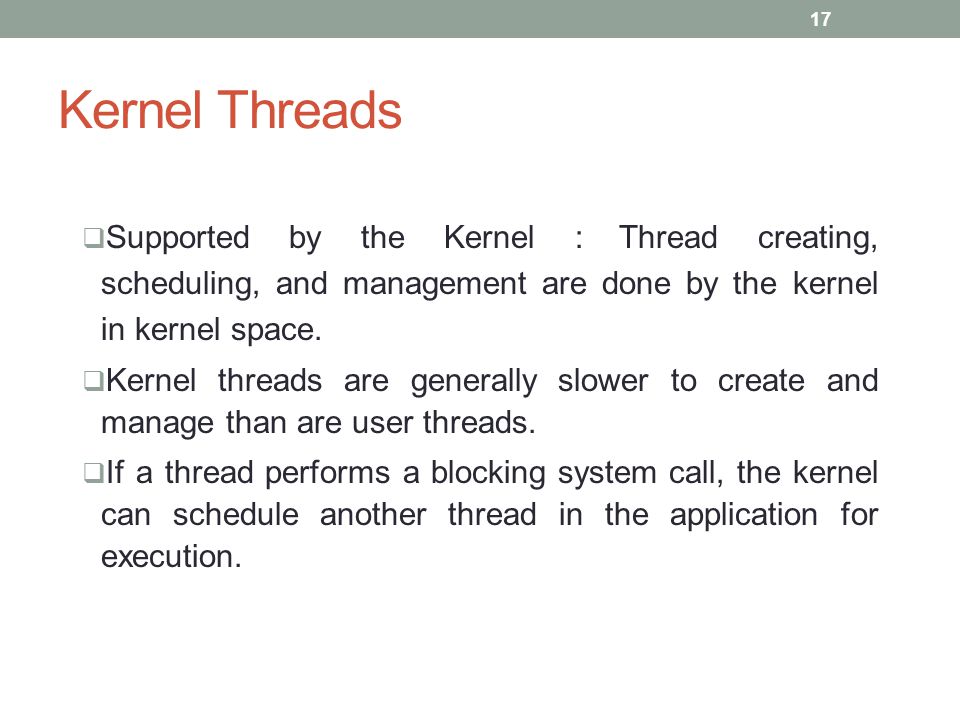

17. Kernel Threads  Supported by the Kernel : Thread creating, scheduling, and management are done by the kernel in kernel space.  Kernel threads are generally slower to create and manage than are user threads.  If a thread performs a blocking system call, the kernel can schedule another thread in the application for execution. 17

18.  In multiprocessor environment, the kernel can schedule threads on different processors.  Examples - Windows 95/98/NT - Solaris - Digital UNIX Kernel Threads (cont’d) 18

19. Multithreading Models  There are three multithreading models: 1) Many-to-One 2) One-to-One 3) Many-to-Many 19

20. Many-to-One  Many User-Level Threads Mapped to Single Kernel Thread.  Multiple threads are unable to run in parallel on multiprocessors.  Used on Systems That Do Not Support Kernel Threads. 20

21. One-to-One  Each User-Level Thread Maps to Kernel Thread.  Allows another thread to run when a thread makes a blocking system call (concurrency).  It allows multiple threads to run in parallel on multiprocessors.  Creating a user thread requires creating the corresponding kernel thread.  Examples: - Windows 95/98/NT - OS/2 21

22. One-to-One Model 22

23. Many-to-Many Model  Multiplexes many user-level threads to smaller or equal number of kernel threads. 23
