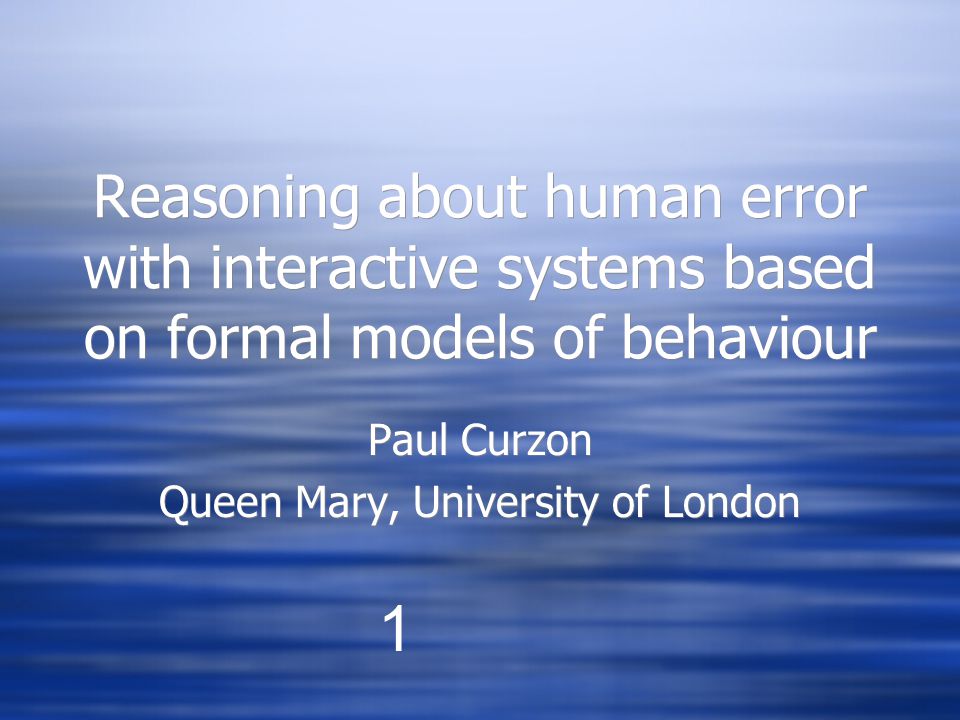

1. Reasoning about human error with interactive systems based on formal models of behaviour Paul Curzon Queen Mary, University of London Paul Curzon Queen Mary, University of London 1

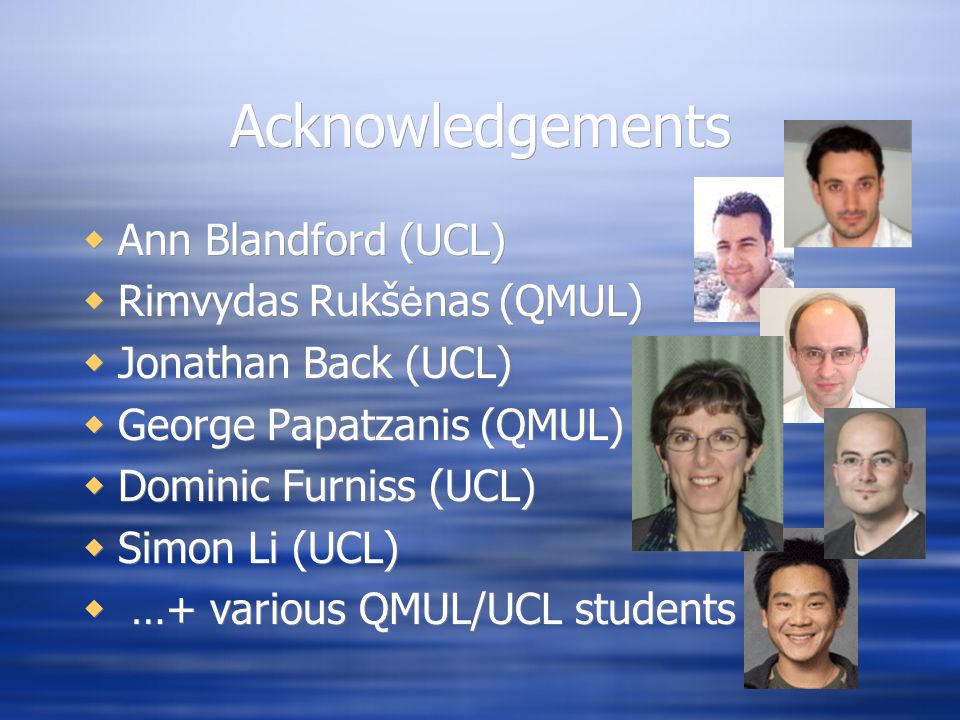

2. Acknowledgements  Ann Blandford (UCL)  Rimvydas Rukš ė nas (QMUL)  Jonathan Back (UCL)  George Papatzanis (QMUL)  Dominic Furniss (UCL)  Simon Li (UCL)  …+ various QMUL/UCL students  Ann Blandford (UCL)  Rimvydas Rukš ė nas (QMUL)  Jonathan Back (UCL)  George Papatzanis (QMUL)  Dominic Furniss (UCL)  Simon Li (UCL)  …+ various QMUL/UCL students

3. Background  The design of computer systems (including safety critical systems) has historically focused on the hardware and software components of an interactive system  People have typically been outside the system as considered for verification  The design of computer systems (including safety critical systems) has historically focused on the hardware and software components of an interactive system  People have typically been outside the system as considered for verification 1

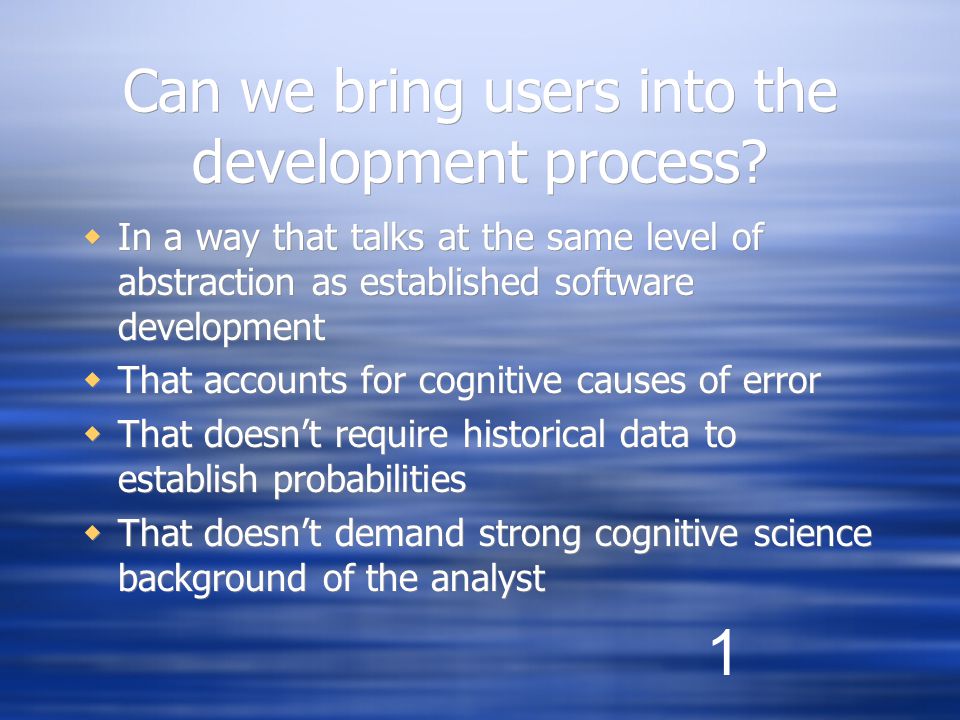

4. Can we bring users into the development process?  In a way that talks at the same level of abstraction as established software development  That accounts for cognitive causes of error  That doesn’t require historical data to establish probabilities  That doesn’t demand strong cognitive science background of the analyst  In a way that talks at the same level of abstraction as established software development  That accounts for cognitive causes of error  That doesn’t require historical data to establish probabilities  That doesn’t demand strong cognitive science background of the analyst 1

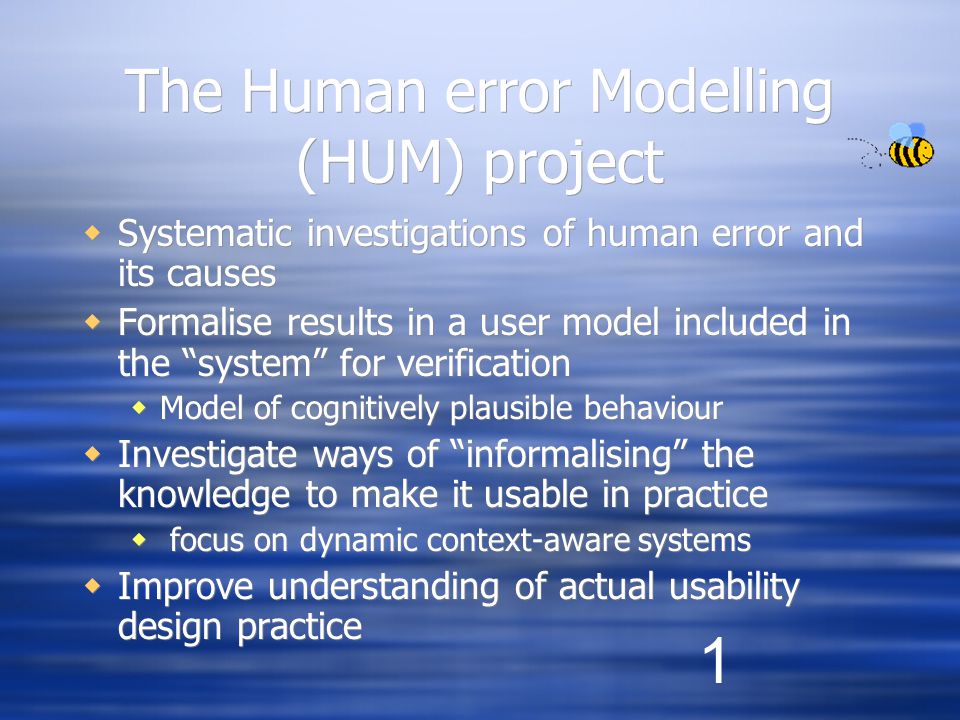

5. The Human error Modelling (HUM) project  Systematic investigations of human error and its causes  Formalise results in a user model included in the “system” for verification  Model of cognitively plausible behaviour  Investigate ways of “informalising” the knowledge to make it usable in practice  focus on dynamic context-aware systems  Improve understanding of actual usability design practice  Systematic investigations of human error and its causes  Formalise results in a user model included in the “system” for verification  Model of cognitively plausible behaviour  Investigate ways of “informalising” the knowledge to make it usable in practice  focus on dynamic context-aware systems  Improve understanding of actual usability design practice 1

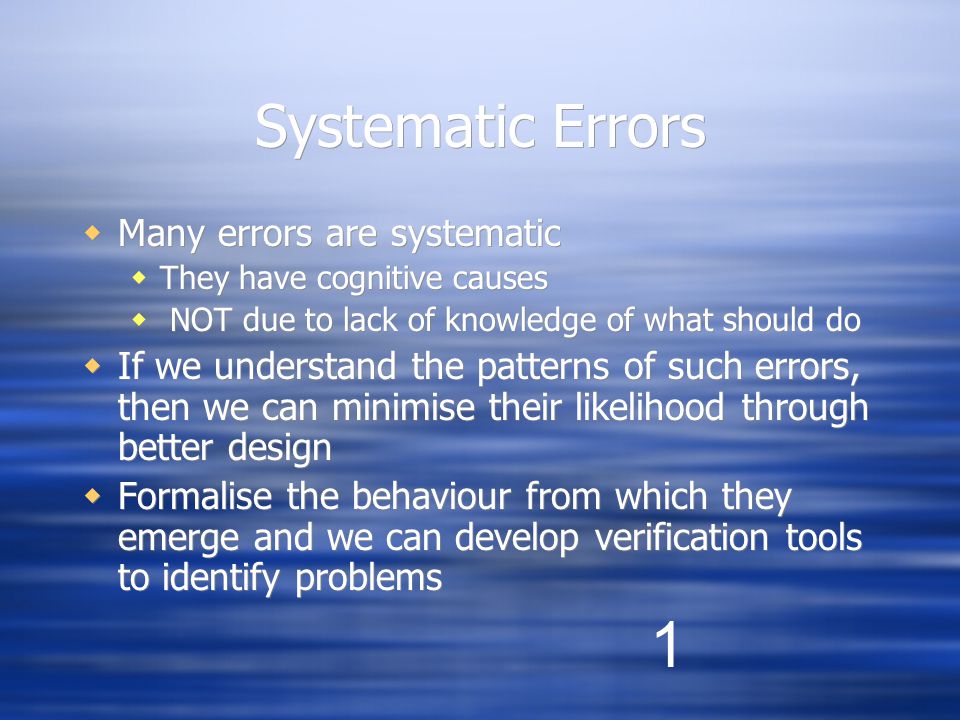

6. Systematic Errors  Many errors are systematic  They have cognitive causes  NOT due to lack of knowledge of what should do  If we understand the patterns of such errors, then we can minimise their likelihood through better design  Formalise the behaviour from which they emerge and we can develop verification tools to identify problems  Many errors are systematic  They have cognitive causes  NOT due to lack of knowledge of what should do  If we understand the patterns of such errors, then we can minimise their likelihood through better design  Formalise the behaviour from which they emerge and we can develop verification tools to identify problems 1

7. Post-completion errors (PCEs)  Characterised by there being a clean-up or confirmation operation after achievement of main goal  Infrequent but persistent  Examples:  Leaving the original on the photocopier  Leaving the petrol filler cap at the petrol station  …etc.  Characterised by there being a clean-up or confirmation operation after achievement of main goal  Infrequent but persistent  Examples:  Leaving the original on the photocopier  Leaving the petrol filler cap at the petrol station  …etc. 1

8. Experiments: eg Fire engine dispatch

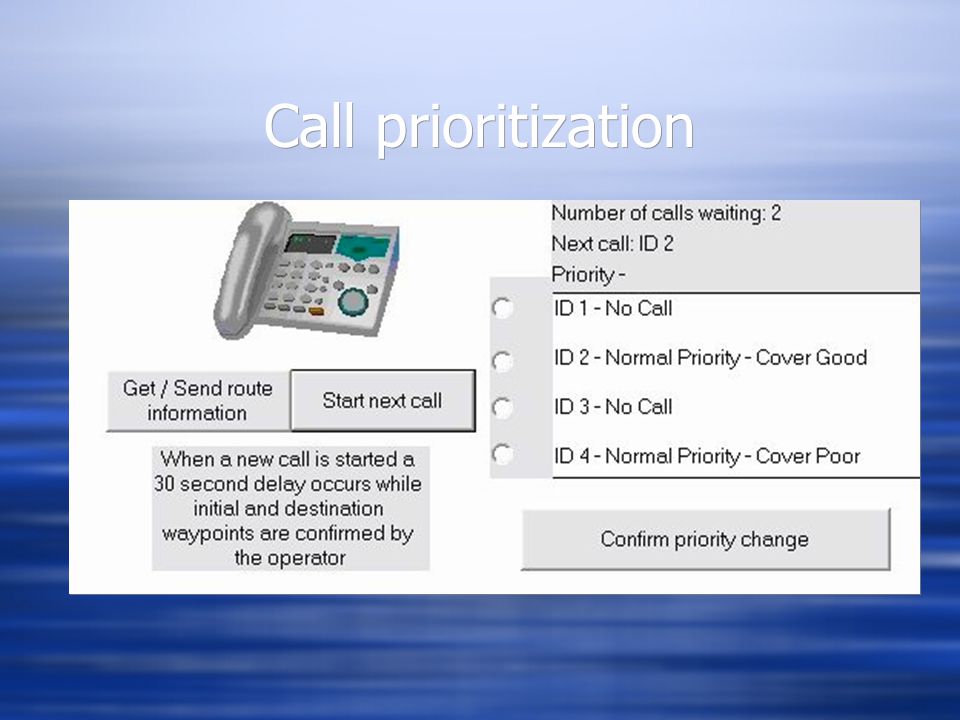

9. Call prioritization

10. The structure of specifications

11. Generic user model in SAL Cognitive principles:  Non-determinism  Relevance  Salience  Mental vs. physical  Pre-determined goals  Reactive behaviour  Voluntary completion  Forced termination Cognitive principles:  Non-determinism  Relevance  Salience  Mental vs. physical  Pre-determined goals  Reactive behaviour  Voluntary completion  Forced termination UserModel{goals,actions, … } = … TRANSITION ([]g,slc: Commit_Action: … ) [] ([]a: Perform_Action: … ) [] Exit_Task: … [] Abort_Task: … [] Idle: … 1

12. Recent Work: salience and cognitive load  Our early work suggested importance of salience and cognitive load…  Humans rely on various cues to correctly perform interactive tasks:  procedural cues are internal;  sensory cues are provided by interfaces;  sensory cues can strengthen procedural cueing (Chung & Byrne, 2004).  Cognitive load can affect the strength of sensory & procedural cues.  Our early work suggested importance of salience and cognitive load…  Humans rely on various cues to correctly perform interactive tasks:  procedural cues are internal;  sensory cues are provided by interfaces;  sensory cues can strengthen procedural cueing (Chung & Byrne, 2004).  Cognitive load can affect the strength of sensory & procedural cues. 1

13. Aims  To determine the relationship between salience and cognitive load;  To extend (refine) our cognitive architecture with salience and load rules;  To assess the formalization by modeling the task used in the empirical studies.  To highlight further areas where empirical studies are needed.  To determine the relationship between salience and cognitive load;  To extend (refine) our cognitive architecture with salience and load rules;  To assess the formalization by modeling the task used in the empirical studies.  To highlight further areas where empirical studies are needed. 1

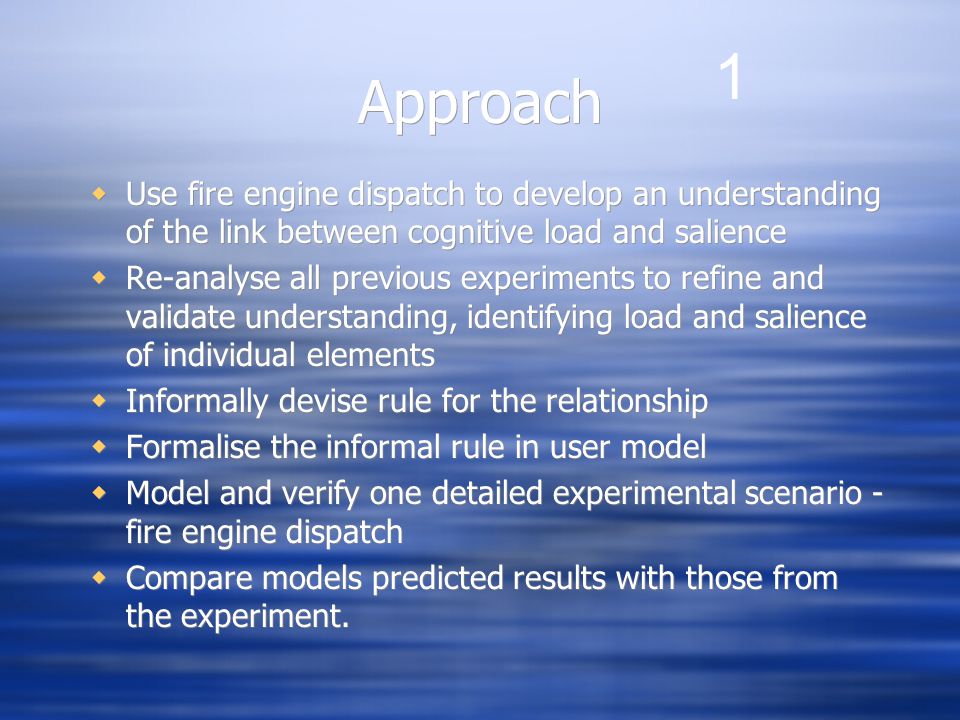

14. Approach  Use fire engine dispatch to develop an understanding of the link between cognitive load and salience  Re-analyse all previous experiments to refine and validate understanding, identifying load and salience of individual elements  Informally devise rule for the relationship  Formalise the informal rule in user model  Model and verify one detailed experimental scenario - fire engine dispatch  Compare models predicted results with those from the experiment.  Use fire engine dispatch to develop an understanding of the link between cognitive load and salience  Re-analyse all previous experiments to refine and validate understanding, identifying load and salience of individual elements  Informally devise rule for the relationship  Formalise the informal rule in user model  Model and verify one detailed experimental scenario - fire engine dispatch  Compare models predicted results with those from the experiment. 1

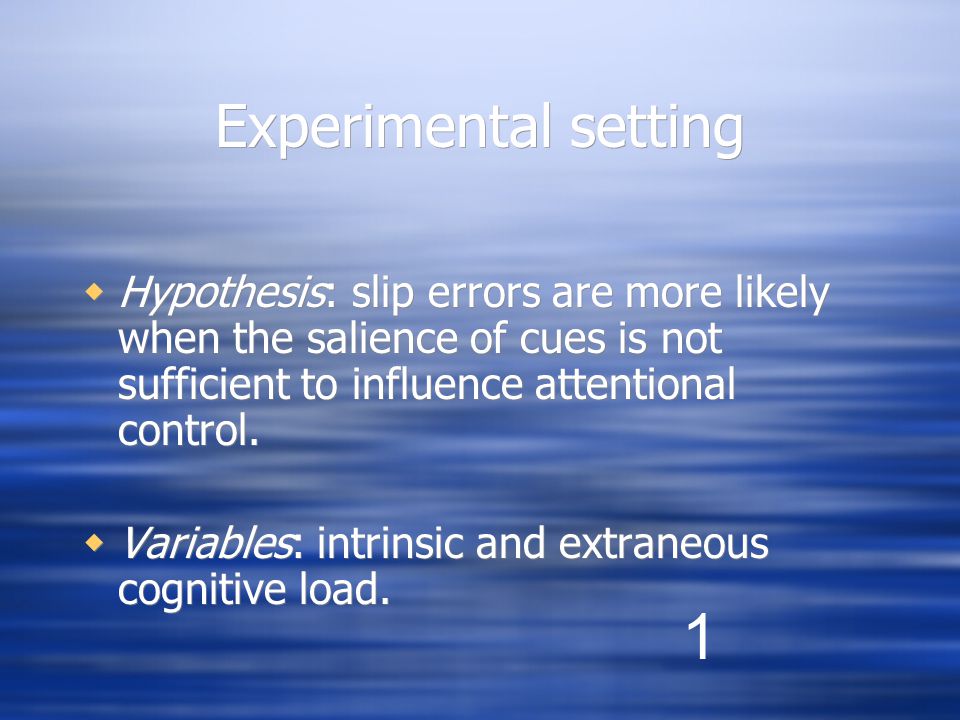

15. Experimental setting  Hypothesis: slip errors are more likely when the salience of cues is not sufficient to influence attentional control.  Variables: intrinsic and extraneous cognitive load.  Hypothesis: slip errors are more likely when the salience of cues is not sufficient to influence attentional control.  Variables: intrinsic and extraneous cognitive load. 1

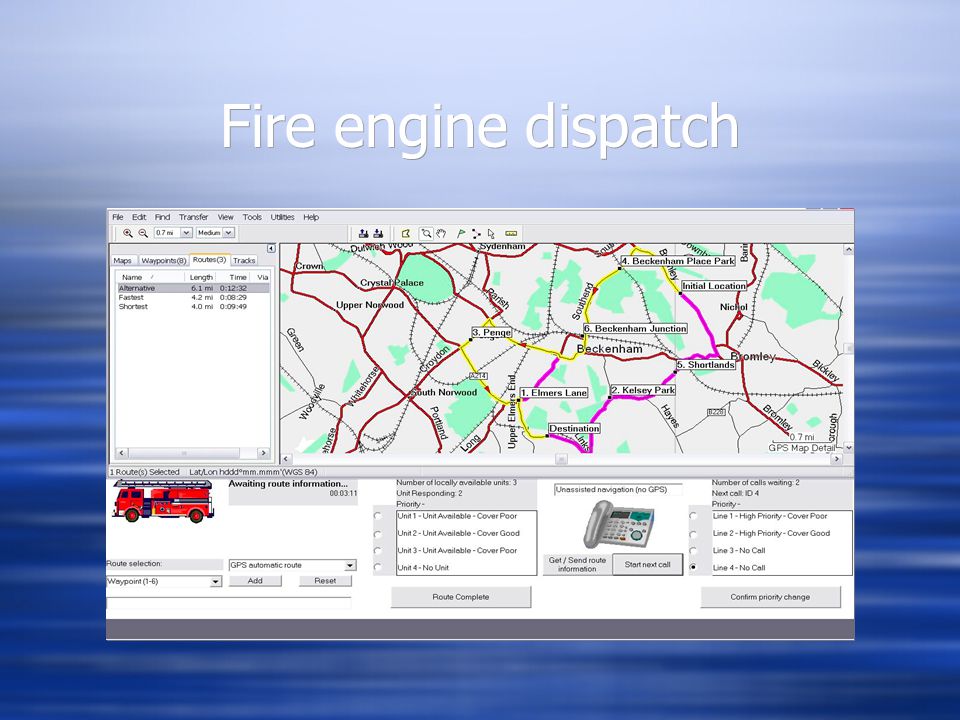

16. Fire engine dispatch

17. Results 1

18. Interpretation of empirical data  High intrinsic load reduces the salience of procedural cues.  High intrinsic & extraneous load may reduce the salience of sensory cues  High intrinsic load reduces the salience of procedural cues.  High intrinsic & extraneous load may reduce the salience of sensory cues 1

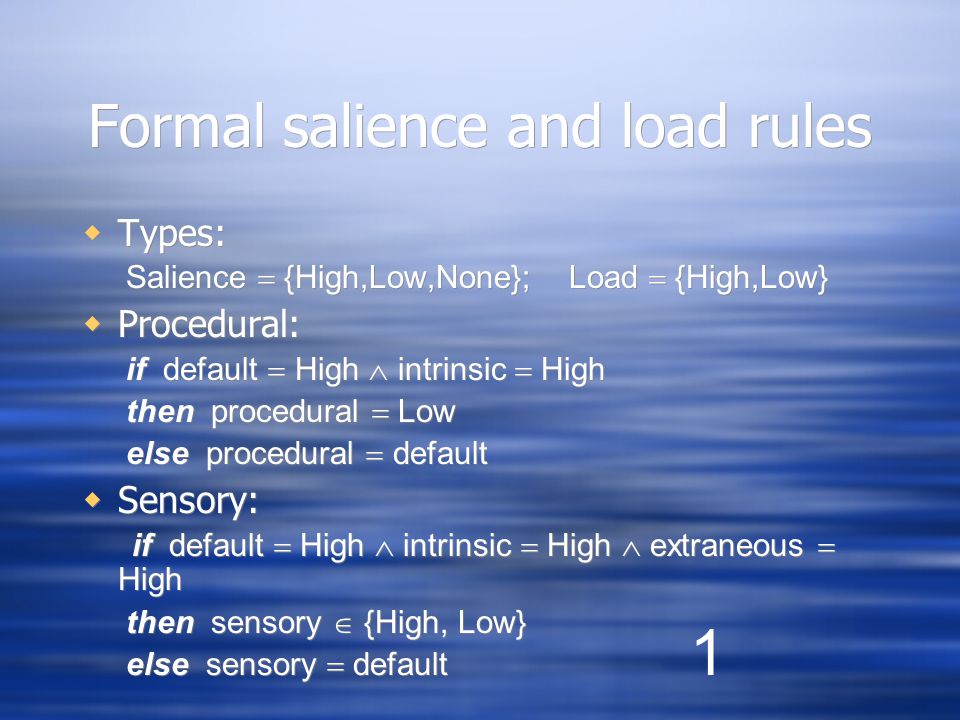

19. Formal salience and load rules  Types: Salience  {High,Low,None}; Load  {High,Low}  Procedural: if default  High  intrinsic  High then procedural  Low else procedural  default  Sensory: if default  High  intrinsic  High  extraneous  High then sensory  {High, Low} else sensory  default  Types: Salience  {High,Low,None}; Load  {High,Low}  Procedural: if default  High  intrinsic  High then procedural  Low else procedural  default  Sensory: if default  High  intrinsic  High  extraneous  High then sensory  {High, Low} else sensory  default 1

20. Levels of overall salience  HighestSalience( … )  … procedural  High  procedural  Low  sensory  High  HighSalience( … )  … procedural  None  sensory  High  LowSalience( … )  …  HighestSalience( … )  … procedural  High  procedural  Low  sensory  High  HighSalience( … )  … procedural  None  sensory  High  LowSalience( … )  … 1

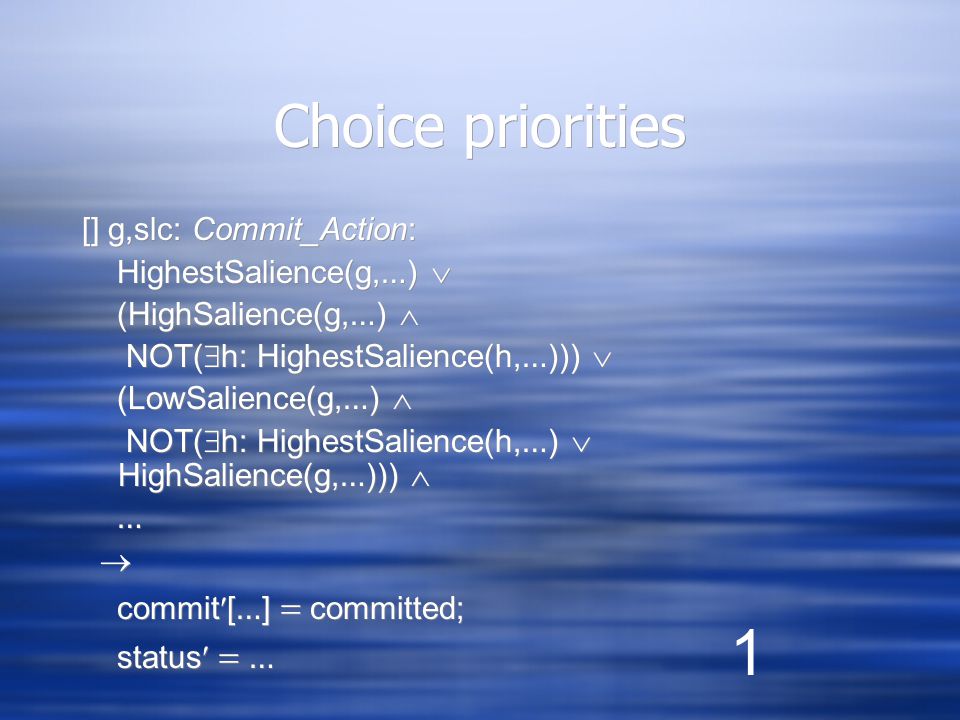

21. Choice priorities [] g,slc: Commit_Action: HighestSalience(g, … )  (HighSalience(g, … )  NOT(  h: HighestSalience(h, … )))  (LowSalience(g, … )  NOT(  h: HighestSalience(h, … )  HighSalience(g, … )))  …  commit[ … ]  committed; status  … [] g,slc: Commit_Action: HighestSalience(g, … )  (HighSalience(g, … )  NOT(  h: HighestSalience(h, … )))  (LowSalience(g, … )  NOT(  h: HighestSalience(h, … )  HighSalience(g, … )))  …  commit[ … ]  committed; status  … 1

22. Correctness verification  Use model checking to reason about properties of combined user model - fire engine dispatch system  Compare to actual results from the experiment  Use model checking to reason about properties of combined user model - fire engine dispatch system  Compare to actual results from the experiment 1

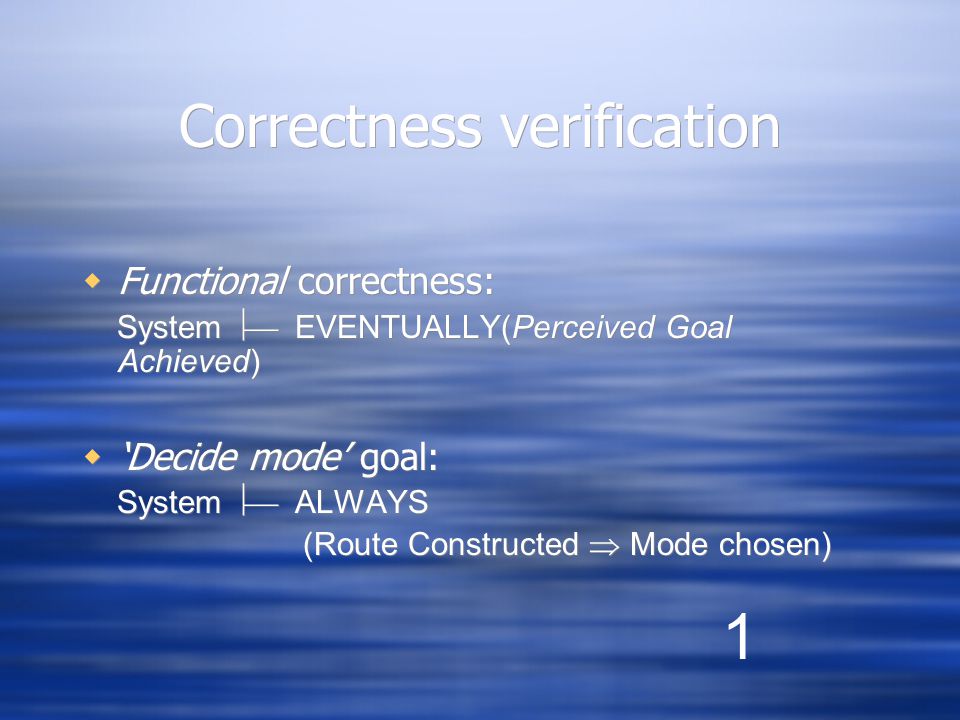

23. Correctness verification  Functional correctness: System  EVENTUALLY(Perceived Goal Achieved)  ‘Decide mode’ goal: System  ALWAYS (Route Constructed  Mode chosen)  Functional correctness: System  EVENTUALLY(Perceived Goal Achieved)  ‘Decide mode’ goal: System  ALWAYS (Route Constructed  Mode chosen) 1

24. Formal verification & empirical data LoadError ExtraneousIntrinsicInitializeModeTerm Low + HighLow + LowHigh +  High

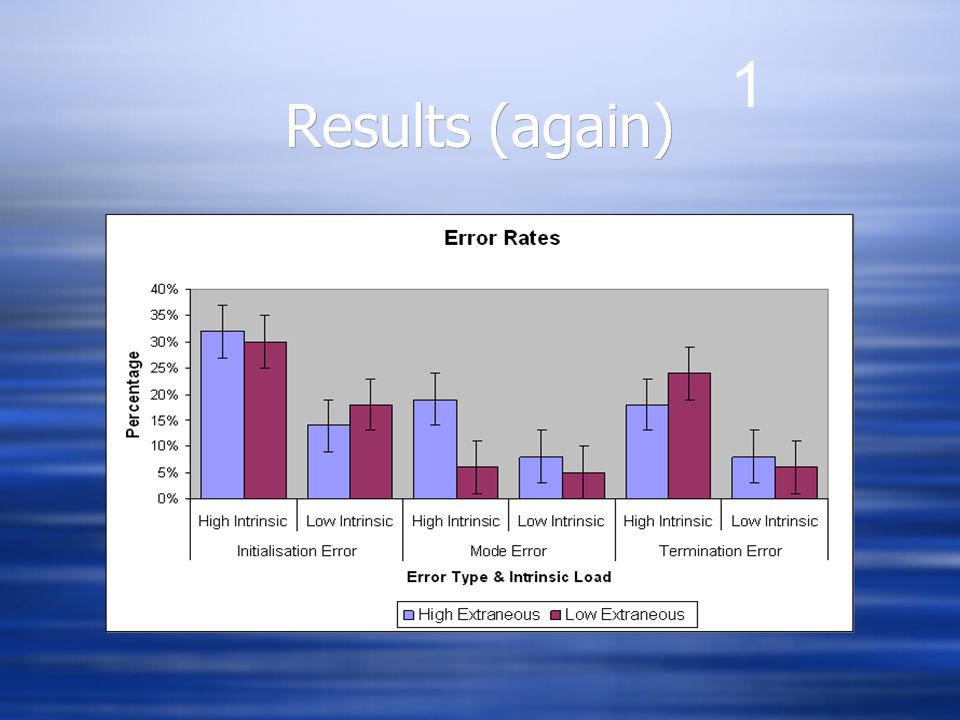

25. Results (again) 1

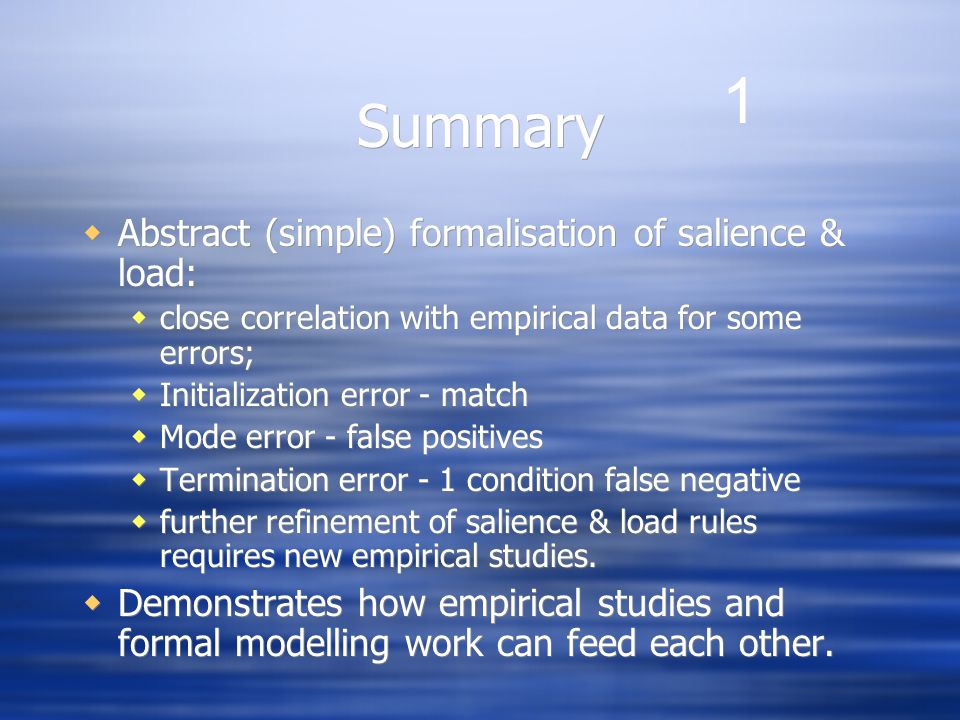

26. Summary  Abstract (simple) formalisation of salience & load:  close correlation with empirical data for some errors;  Initialization error - match  Mode error - false positives  Termination error - 1 condition false negative  further refinement of salience & load rules requires new empirical studies.  Demonstrates how empirical studies and formal modelling work can feed each other.  Abstract (simple) formalisation of salience & load:  close correlation with empirical data for some errors;  Initialization error - match  Mode error - false positives  Termination error - 1 condition false negative  further refinement of salience & load rules requires new empirical studies.  Demonstrates how empirical studies and formal modelling work can feed each other. 1
