7. Beer’s Law and It’s Implications for Instrument Construction

2
1. Derive Beer’s Law ASSUMPTIONS 1.No light is emitted 2.dx infinitesimal 3.Monochromatic light uniform on the surface, S 4.dn molecules in a section volume 5.Capture cross sectional area is

4
PoPo P1P1 P2P2 Consider a large # of boxes This is an integration Set up Derivation

5
Substitutions

6

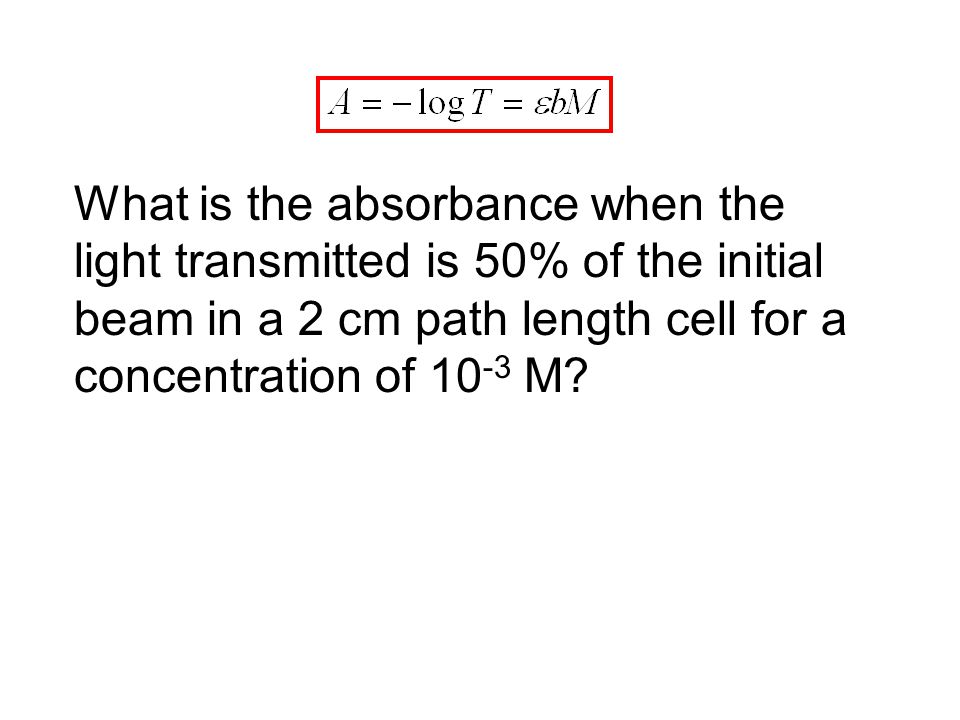

What is the absorbance when the light transmitted is 50% of the initial beam in a 2 cm path length cell for a concentration of 10 -3 M?

7
Deviations 1.Assumed each molecule was independent of the other When will the assumptions fail?

8
Molecules not independent when : Neighbors experience each other 1.High concentrations 2.High electrolyte 3.Large local fields due to large absorption probability (alpha)

9
Apparent Instrumental Deviations **polychromatic radiation*** What is the source of polychromatic radiation?

11

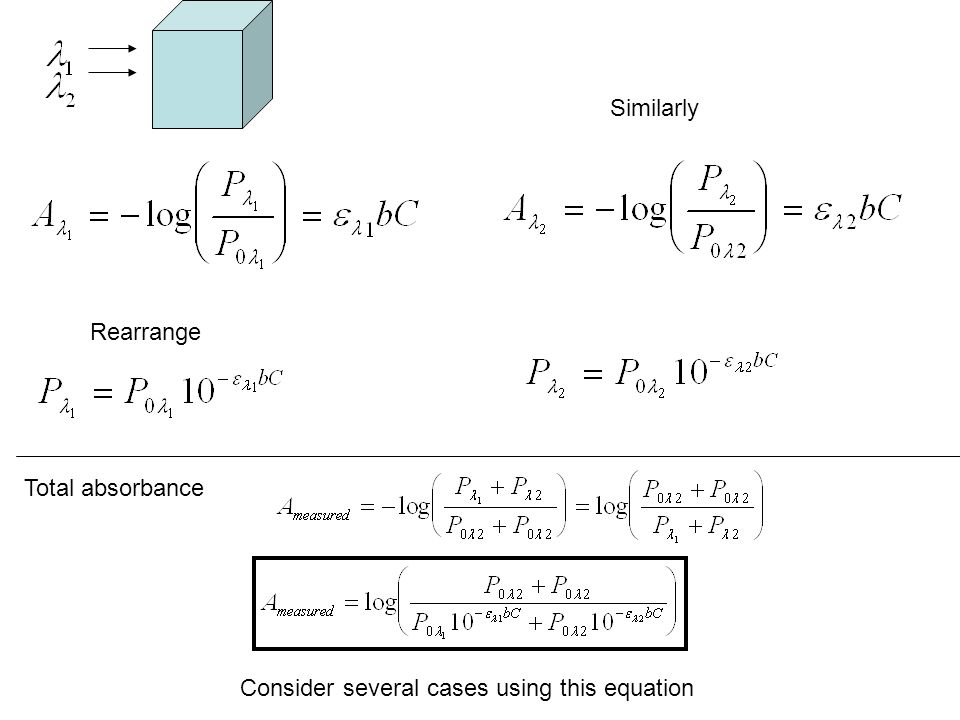

Rearrange Similarly Total absorbance Consider several cases using this equation

12
1. Monochromatic light Reality check ok

13
2. Case 2 Example Calculation B=1 M=0.001 Molar absorptivity at 1=2000 at 2 = 200.494 M

14
When would this situation apply?

17
3. Stray Light What happens when light at 1 is strongly absorbed? Example Calculation Stray light is 0.5% of total light The maximum absorbance the Instrument is capable of measuring is 2.303

18
Comparison of Instruments Instrument%stray lightmaxA Spect 200.52.3 McPherson0.13 McPherson +filter 0.014 Double monochromator 0.0015

19

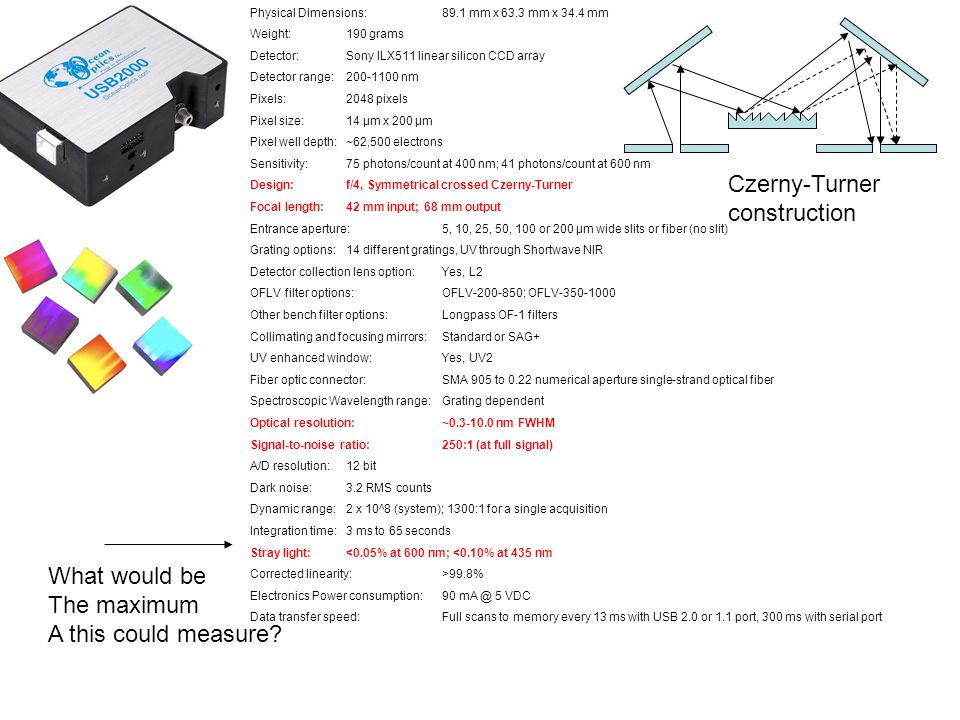

Physical Dimensions: 89.1 mm x 63.3 mm x 34.4 mm Weight: 190 grams Detector:Sony ILX511 linear silicon CCD array Detector range: 200-1100 nm Pixels:2048 pixels Pixel size:14 μm x 200 μm Pixel well depth:~62,500 electrons Sensitivity: 75 photons/count at 400 nm; 41 photons/count at 600 nm Design: f/4, Symmetrical crossed Czerny-Turner Focal length: 42 mm input; 68 mm output Entrance aperture: 5, 10, 25, 50, 100 or 200 µm wide slits or fiber (no slit) Grating options: 14 different gratings, UV through Shortwave NIR Detector collection lens option: Yes, L2 OFLV filter options: OFLV-200-850; OFLV-350-1000 Other bench filter options: Longpass OF-1 filters Collimating and focusing mirrors: Standard or SAG+ UV enhanced window: Yes, UV2 Fiber optic connector: SMA 905 to 0.22 numerical aperture single-strand optical fiber Spectroscopic Wavelength range: Grating dependent Optical resolution: ~0.3-10.0 nm FWHM Signal-to-noise ratio: 250:1 (at full signal) A/D resolution: 12 bit Dark noise: 3.2 RMS counts Dynamic range: 2 x 10^8 (system); 1300:1 for a single acquisition Integration time: 3 ms to 65 seconds Stray light: <0.05% at 600 nm; <0.10% at 435 nm Corrected linearity: >99.8% Electronics Power consumption: 90 mA @ 5 VDC Data transfer speed: Full scans to memory every 13 ms with USB 2.0 or 1.1 port, 300 ms with serial port Czerny-Turner construction What would be The maximum A this could measure?

20
What is the maximum amount of absorbance you can measure if the stray light in an instrument is 8%? If it is 0.05% at 600 nm as for the Ocean Optics?

21
1.Where does stray light come from? 2.Is stray light likely to be more important for 200 or for 900 nm light? 3.Is stray light likely to be more or less important near a region where solvent interferes?

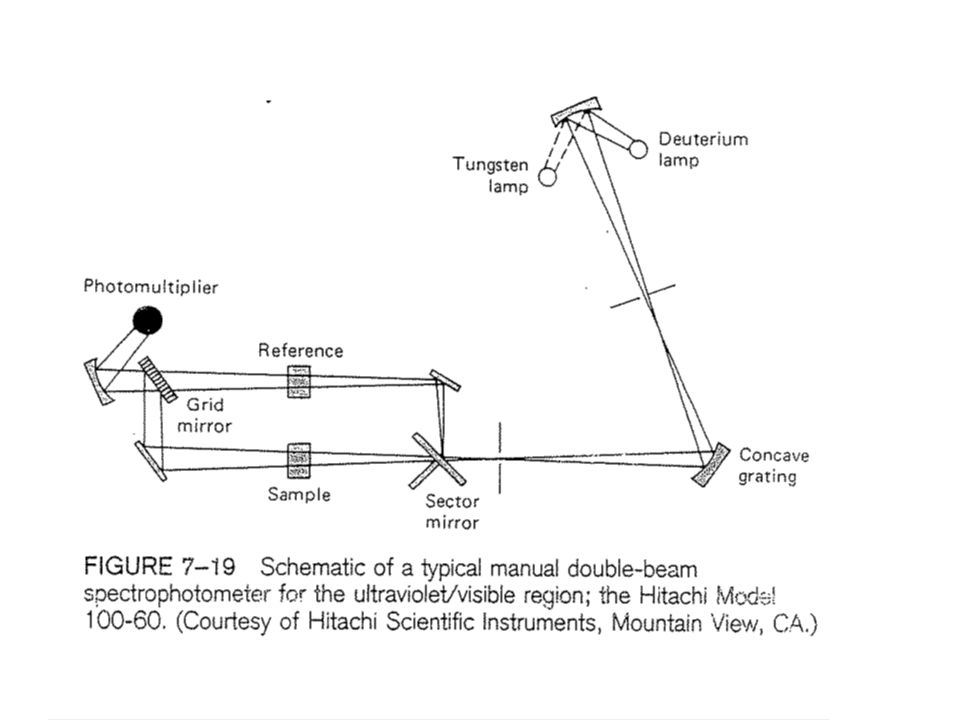

24
Double Dispersion Reduces the Stray Light

25
Comparison of Instruments Name$∆ range P s /P o % Spect 202-4k2-8190-10000.5 Double Beam4-15k195-8500.1 PE-57>5k0.2190-750<0.1 Double dispersive0.07185-31250.0008 Multichannel Array 7-9k200-920

26
Beer’s Law and Standard Additions

27
QUANTITATION 1.Wide chromophore range (universality) -extended by color forming reactions for example complexation 2.Good sensitivity 3.Selectivity 4.Accuracy 5.Ease

28
1.Standard Curves Choose a wavelength where the molar absorptivity does not change where would this be? why choose this wavelength region? Need clear cells and no greasy fingers. Why? Need to control: temperature; pH; electrolyte/solvent. Why? 2.Standard addition method is useful when matrix (the solution containing the sample analyte) effects complicate matters

29
Overcoming Matrix Effects in Calibration Curves Ppm Metal Signal Solvent Matrix Example: Flame Atomic Absorption for Pb in SeaWater, PbCl 2 Is lost lowering the signal Matrix Effect If we don’t have a Clear idea what The matrix effect is Then we drastically Misjudge the conc Of the sample from The measured signal Our standards Suggest this Sample conc. Standards made Up in the matrix of The sample would Suggest this sample Conc. Matrix Sample Signal

30
Overcoming Matrix Effects in Calibration Curves

31
x slopeintercept y

32
M=slope=0.03912 B=intercept=0.2422 V unknown = 10 ml M standard =11.1ppm

33
You did standard addition for the flame lead analysis. You found: Your unknown volume is 10 mL and the standard you added is 20 ppb. What is the unknown concentration?

34
Two Component Spectra Must be known measure Result is two equations in two unknowns – can be solved
