9 Those are what we call 2 dimensional shapes. – We have learned the names of these shapes and found their areas In chapter 12, we are going to work with 3 dimensional shapes or solids. Solid- is a three dimensional figure that encloses a part of space.

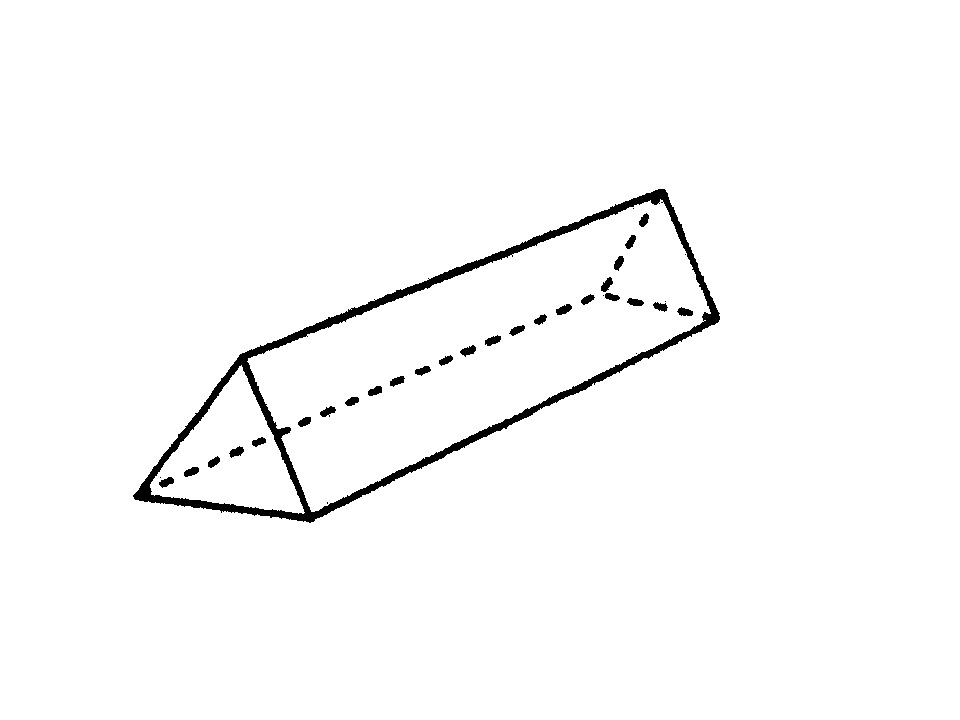

10 1.Prism- is a solid formed by polygons. Prisms have two congruent bases that lie in parallel planes. This would be called a triangular prism. This would be called a heptagonal prism.

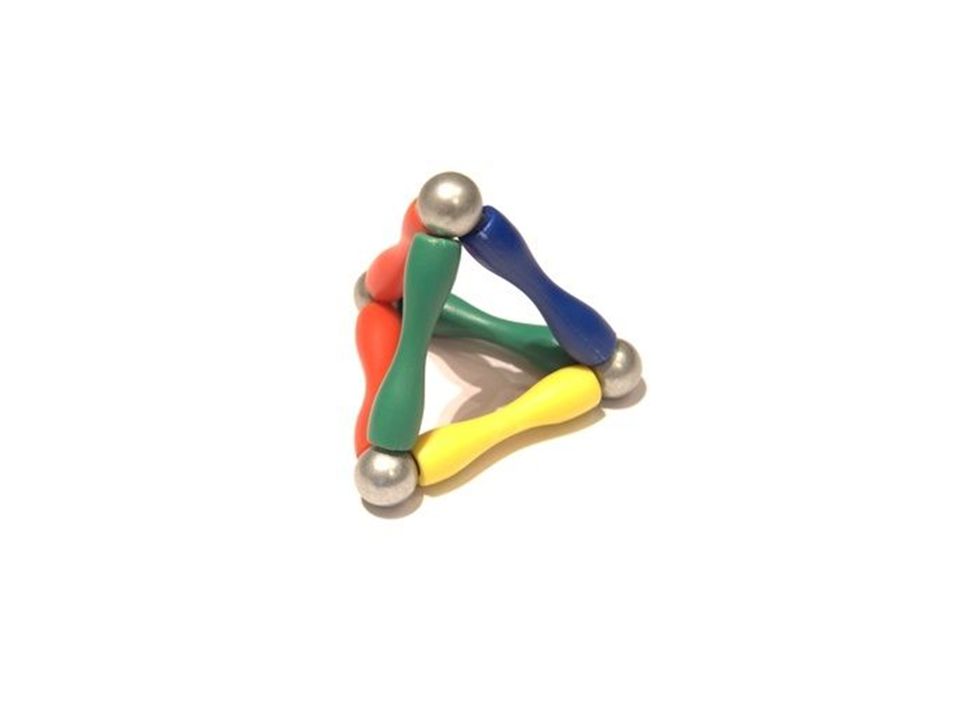

11 2. Pyramid: is a solid formed by polygons. The base can be ANY POLYGON, and the other polygons are triangles. Vertex edge Face

12 3. Cylinder: is a solid with two congruent circular bases that lie in parallel planes.

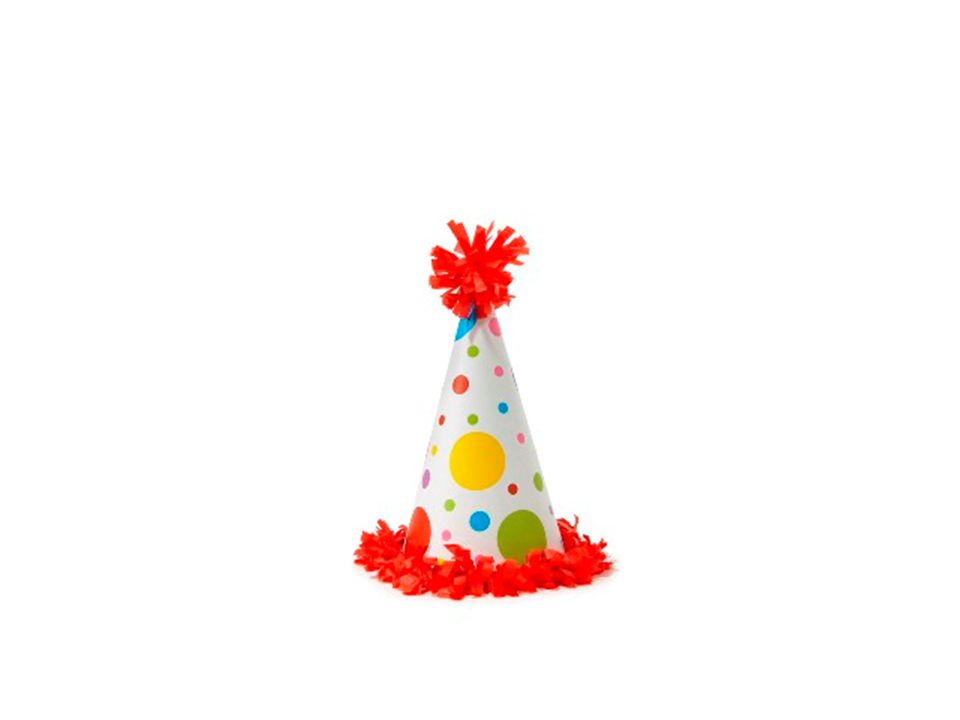

13 4. Cone: is a solid with one circular base.

14 5. Sphere: is a solid formed by all points in space that are the same distance from a fixed point called the center.

15

16

17

18

19

20

21

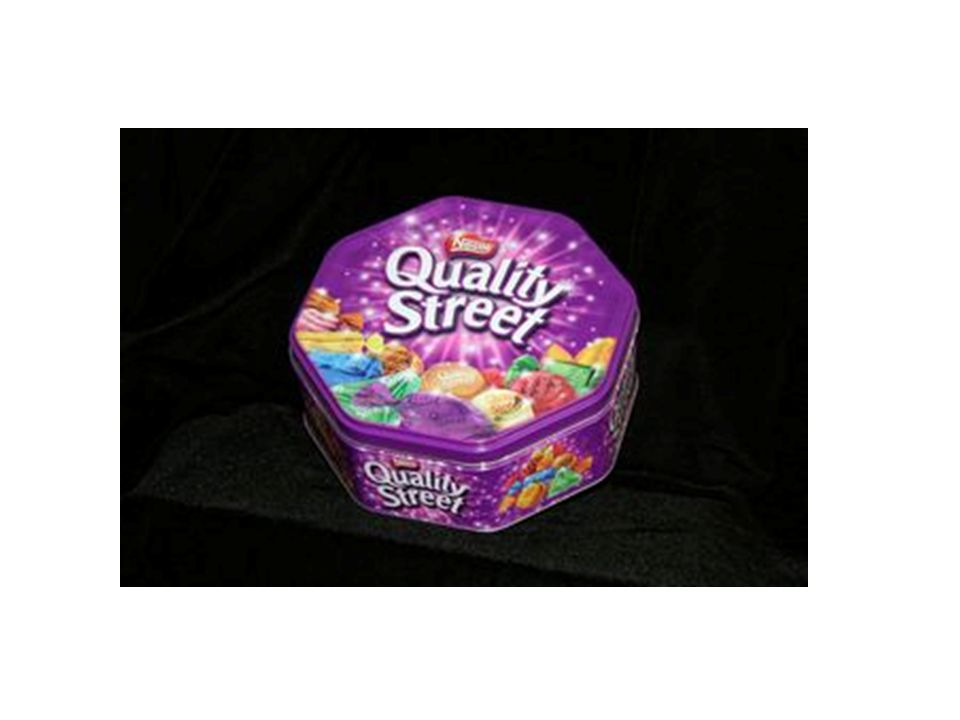

22 Find one partner to work with and share a loose leaf paper and writing utensil between the two of you. Around the room you will find 3-D shapes or objects that you must classify in order to move on! You will need to match the shape name with the number(s) found at each station. In order to move on to your homework, I need 8 groups with all the correct answers!!

23 Compete the following problems in your text book: Green: Page (20-30all) Yellow: Page (12-22all) Red: Page633 (1-13all)

24 12.2 Sketching solids and their Nets

25 How to sketch a prism Step 1 draw 2 congruent rectangles Step 2 connect corresponding vertices using line segments Step 3 change any “hidden lines” to dashed lines Practice this in your notes along with me!

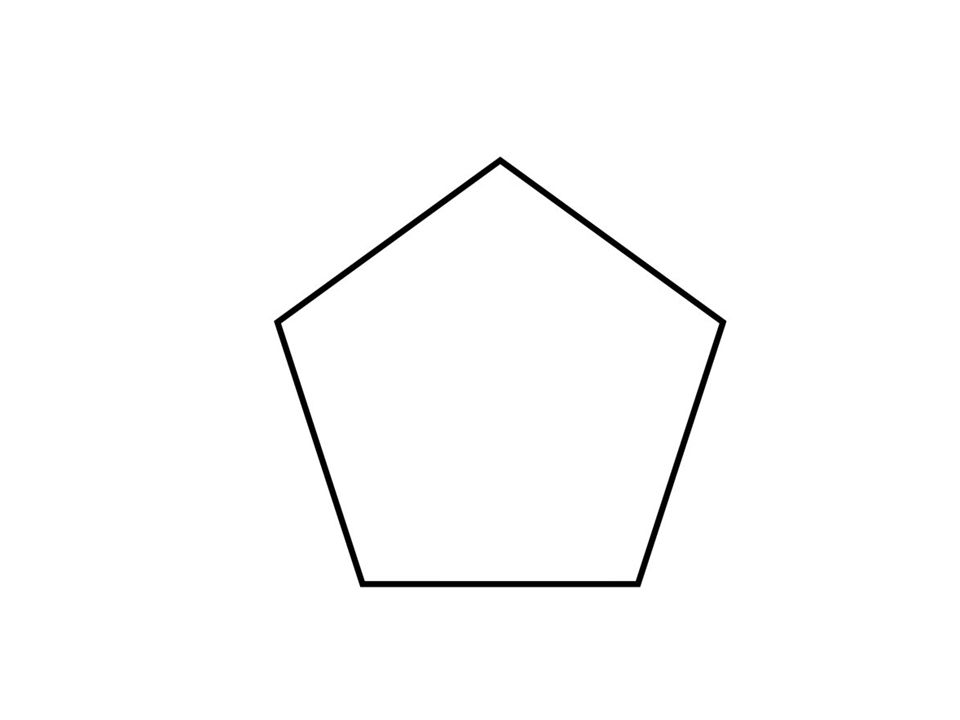

26 How to sketch a pyramid Step 1 sketch a pentagon for the base and draw a dot directly above the pentagon

27 Step 2 connect the vertices of the pentagon to the dot. Final step is to change any “hidden” lines to dashed lines.

28 Views of a solid Top view Side view Front view

29 Draw the top view of a cylinder

30

31 Draw a side view of a cylinder

32

33 Draw the frontal view of a cylinder

34

35 Drawing nets Nets are a two-dimensional representation of a solid. **think of this as un-folding a solid. Net of a cube:

36 Net of a rectangular prism

37 PRACTICE! For your practice you need to First: sketch each solid below Then: draw their top, front, side view and their net. – cone – Rectangular pyramid Take your time!

38

39 HOMEWORK Green: page (15-24all) Yellow: page (11-20all) Red: page 638 (1-12all)
