1. Warren Heising and Joe Kennedy, IBM Corp. IBM Information Integration: Federated Queries heising@us.ibm.comheising@us.ibm.com and joekenn@us.ibm.com joekenn@us.ibm.com

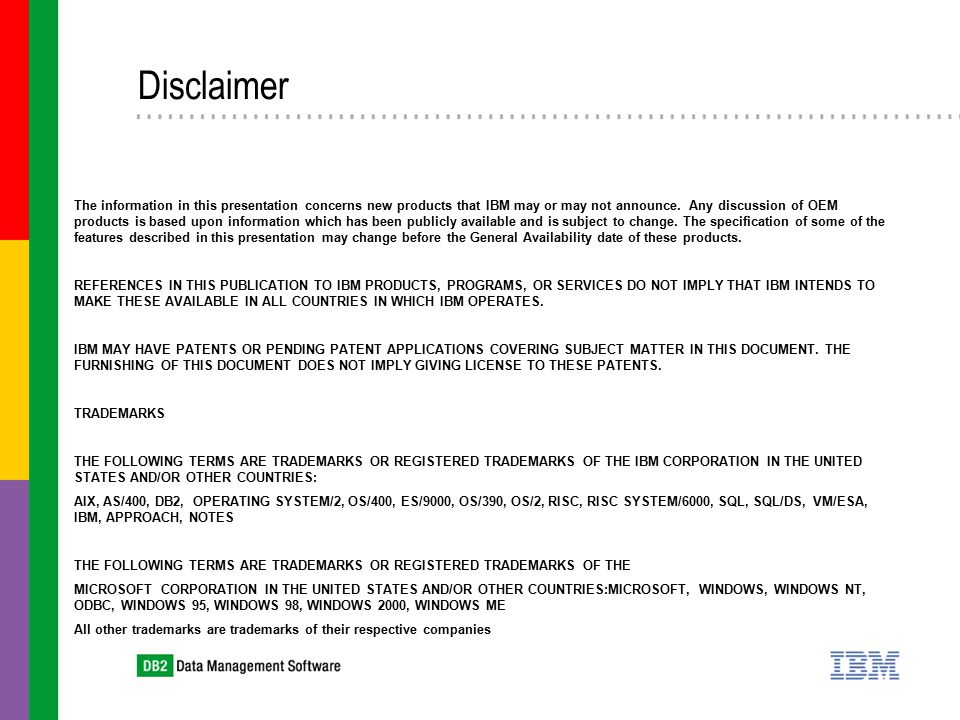

2. Disclaimer The information in this presentation concerns new products that IBM may or may not announce. Any discussion of OEM products is based upon information which has been publicly available and is subject to change. The specification of some of the features described in this presentation may change before the General Availability date of these products. REFERENCES IN THIS PUBLICATION TO IBM PRODUCTS, PROGRAMS, OR SERVICES DO NOT IMPLY THAT IBM INTENDS TO MAKE THESE AVAILABLE IN ALL COUNTRIES IN WHICH IBM OPERATES. IBM MAY HAVE PATENTS OR PENDING PATENT APPLICATIONS COVERING SUBJECT MATTER IN THIS DOCUMENT. THE FURNISHING OF THIS DOCUMENT DOES NOT IMPLY GIVING LICENSE TO THESE PATENTS. TRADEMARKS THE FOLLOWING TERMS ARE TRADEMARKS OR REGISTERED TRADEMARKS OF THE IBM CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES: AIX, AS/400, DB2, OPERATING SYSTEM/2, OS/400, ES/9000, OS/390, OS/2, RISC, RISC SYSTEM/6000, SQL, SQL/DS, VM/ESA, IBM, APPROACH, NOTES THE FOLLOWING TERMS ARE TRADEMARKS OR REGISTERED TRADEMARKS OF THE MICROSOFT CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES:MICROSOFT, WINDOWS, WINDOWS NT, ODBC, WINDOWS 95, WINDOWS 98, WINDOWS 2000, WINDOWS ME All other trademarks are trademarks of their respective companies

3. Agenda You are here …

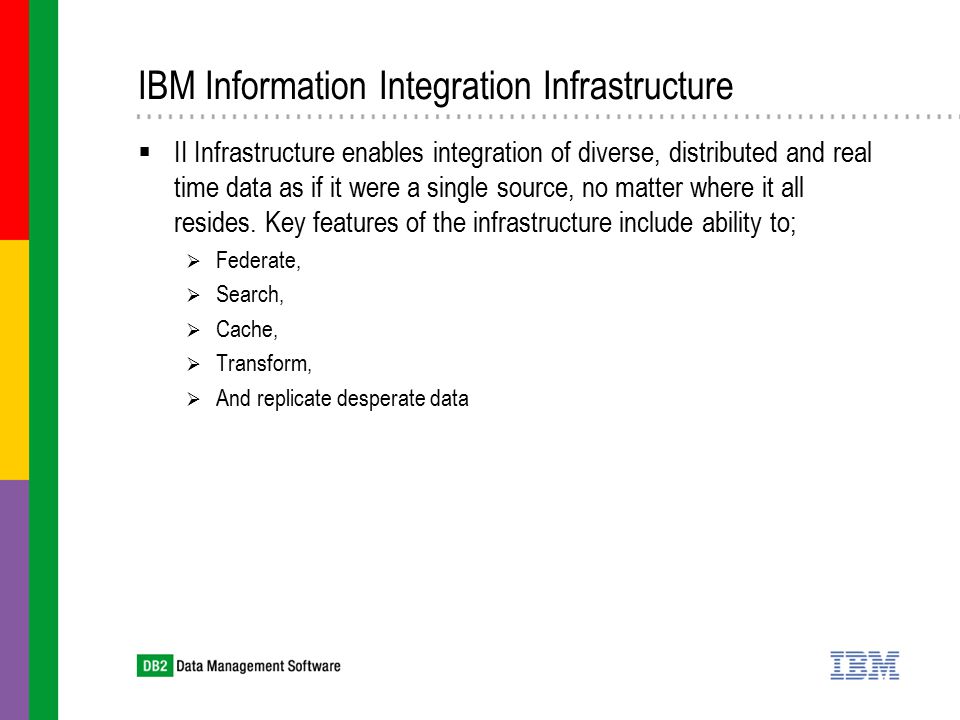

4. IBM Information Integration Infrastructure  II Infrastructure enables integration of diverse, distributed and real time data as if it were a single source, no matter where it all resides. Key features of the infrastructure include ability to;  Federate,  Search,  Cache,  Transform,  And replicate desperate data

5. DB2 Family MVSAIX VMOS2 VSEHP-UX OS/400SUN SINIXNT SCOOthers Non-Relational IMS VSAM Other Servers InformixOracleSybaseMicrosoftTeradata External Files Cross Access EDA/SQL Supported Data Sources DB2 WEB Data Sources OLE/OLE DB data sources Lotus Notes MS Exchange MS Excel MS Access,... DB2 Client DB2 Connect Native Interface Data Links Third-party Gateway TABLE UDFs Personal Edition to Universal Data AST cache of external data (reliability/perf) DB2 Federation Extenders

6. DB2/390 Other Servers OracleSybase Any External Data Source Cross Access EDA/SQL Supported Data Sources IIF EGM W/DRDA Enterprise Gateway Third-party Gateway Personal Edition to Universal Data Informix Federation Virtual Table Interface DataBlades

7. Federation  Single image of disparate data  For Federated Queries between DB2 and Informix;  Only DB2 UDB ( includes Relational Connect) with wrappers  For Federated Queries between DB2 and non IBM databases and access to non-relational sources (XML) and unstructured data;  DB2 UDB (includes Relational Connect)  DB2 UDB Information Integrator  DB2 UDB Integrator for Content

8. From A to B db2 =>IDS, IIF, XPSRelational Connect* db2 =>Oracle, Sybase, SQL Server (more to come) Information Integrator* db2 =>zSeries DB2DB2 Connect db2 =>somewhere elseInformation Integrator for Content * Was D.J., now Info Integrator

9. How does “Federation” Work? You are here … Target 1 Target N Federated server Client SW for targets 1…N Don’t move data, “play it as it lays” Network client configured and operational Authentication

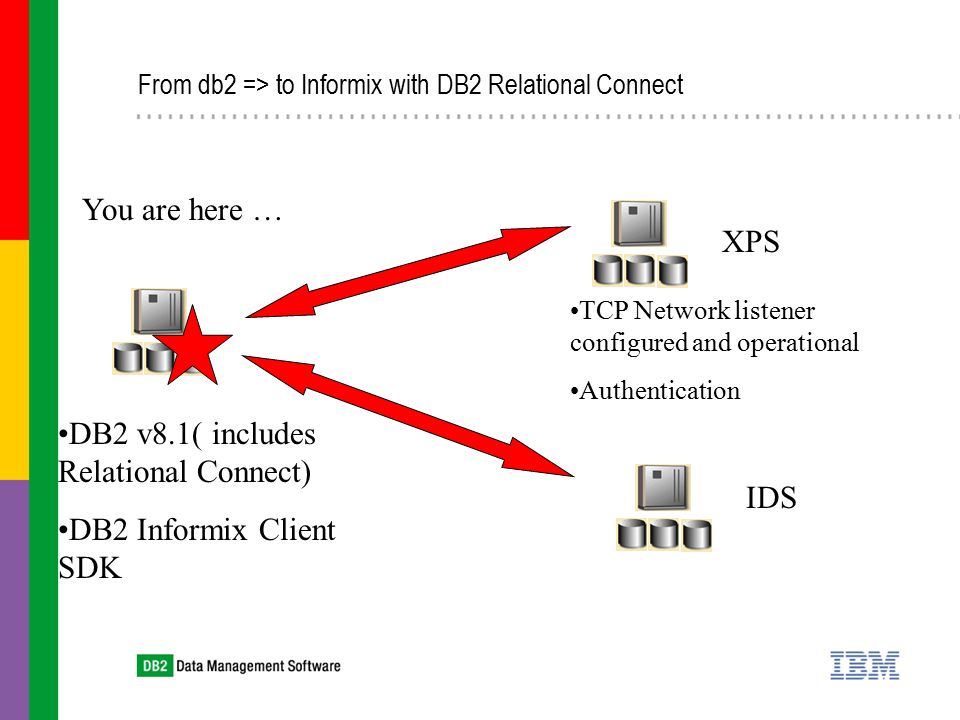

10. From db2 => to Informix with DB2 Relational Connect You are here … XPS IDS DB2 v8.1( includes Relational Connect) DB2 Informix Client SDK TCP Network listener configured and operational Authentication

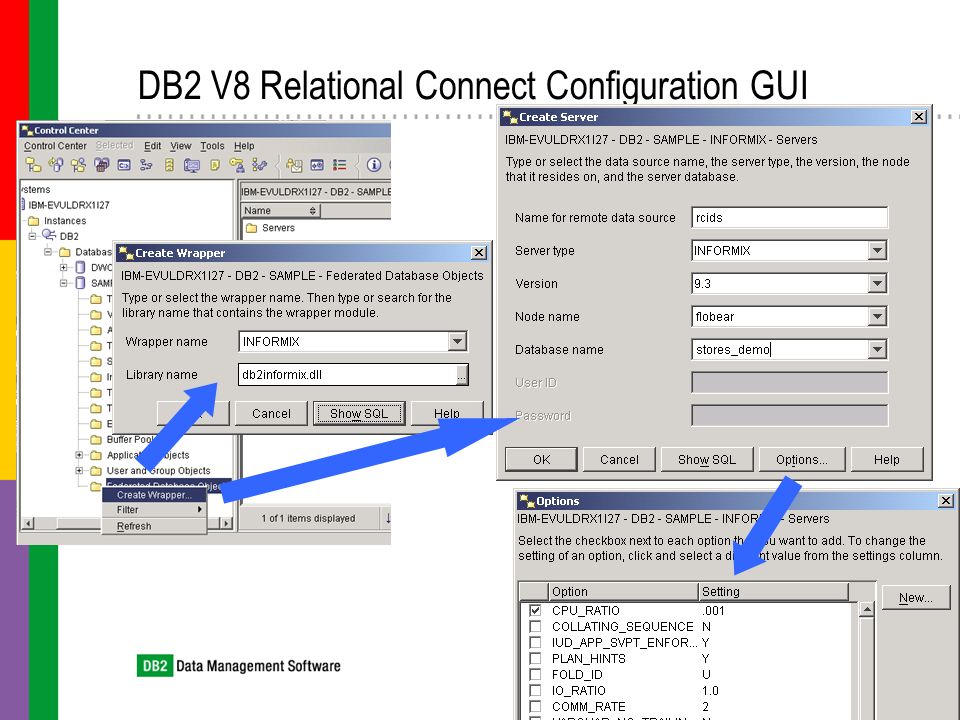

11. DB2 V8 Relational Connect Configuration GUI

13. Relational Connect – hints and tips http://www-3.ibm.com/software/data/db2/udb/ad/db2irfp7/db2ir101.htm Run install: The order has to be V8.1, Relational Connect, then latest fixpack IFMX client software Add Federated Data Sources 1.Set the environment variables and update the profile registry. 2.Link DB2 to the Informix client software – djxlinkInformix (pre 8.1) 3.Recycle the DB2 instance. 4.Create the Informix sqlhosts file. 5.Set up db2dj.ini 6.Create the wrapper. 7.Optional: Set the DB2_DJ_COMM environment variable (double check) 8.Create a server. 9.Create a user mapping. 10.Create nicknames for tables, views and Informix synonyms

14. Relational Connect Syntax connect to sample; create wrapper informix; create server rcxps type informix version 8 wrapper informix options ( node 'mkxps', dbname 'stores_demo', cpu_ratio '.1' io_ratio '.1' ); create user mapping for db2inst1 server rcxps options ( remote_authid 'informix', remote_password ‘techconf' ); create nickname rcx_customer for rcxps."informix"."customer"; select * from rcx_customer;

15. More Capabilities Target 1 Target N Read/Write XML Extender WebSphere MQSeries

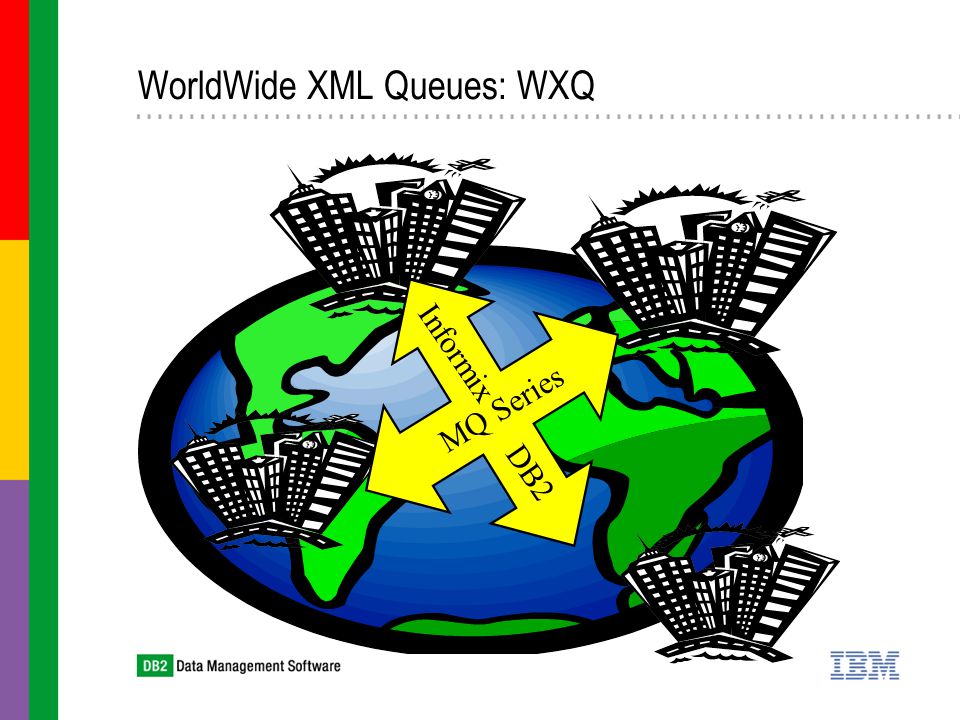

16. WorldWide XML Queues: WXQ MQ Series Informix DB2

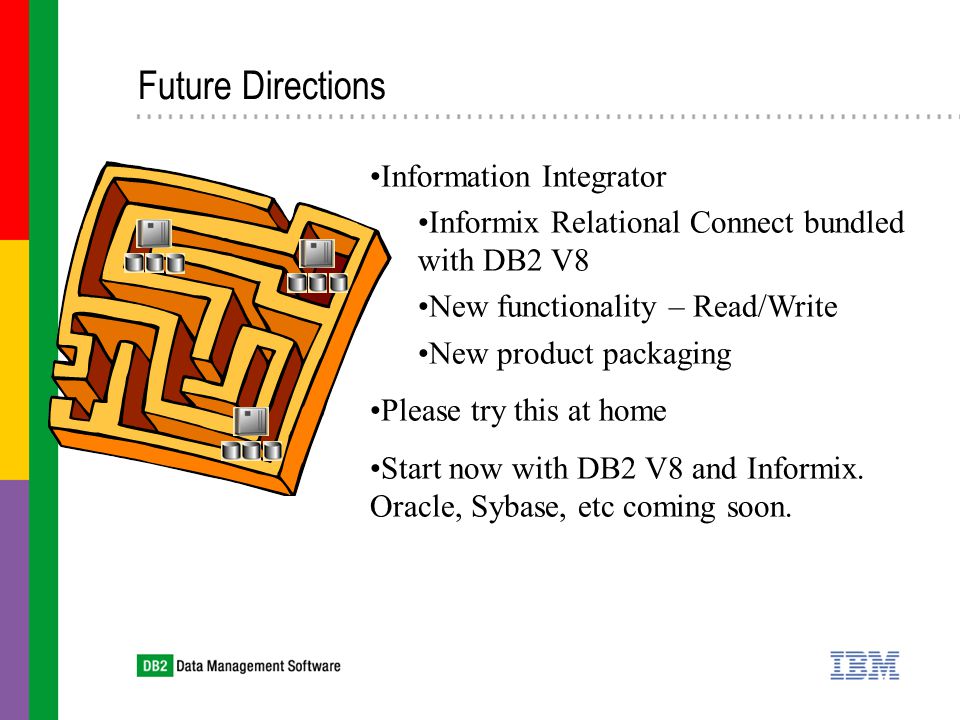

17. Future Directions Information Integrator Informix Relational Connect bundled with DB2 V8 New functionality – Read/Write New product packaging Please try this at home Start now with DB2 V8 and Informix. Oracle, Sybase, etc coming soon.
