1 Introduction to Biological Psychology Central Control of Movement

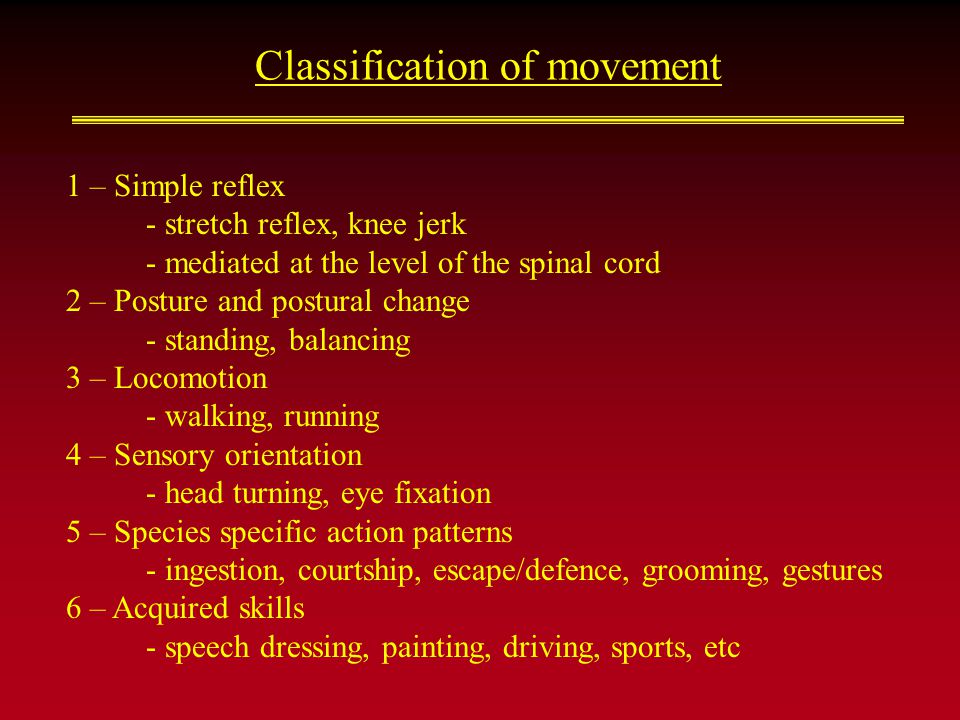

2 Classification of movement 1 – Simple reflex - stretch reflex, knee jerk - mediated at the level of the spinal cord 2 – Posture and postural change - standing, balancing 3 – Locomotion - walking, running 4 – Sensory orientation - head turning, eye fixation 5 – Species specific action patterns - ingestion, courtship, escape/defence, grooming, gestures 6 – Acquired skills - speech dressing, painting, driving, sports, etc

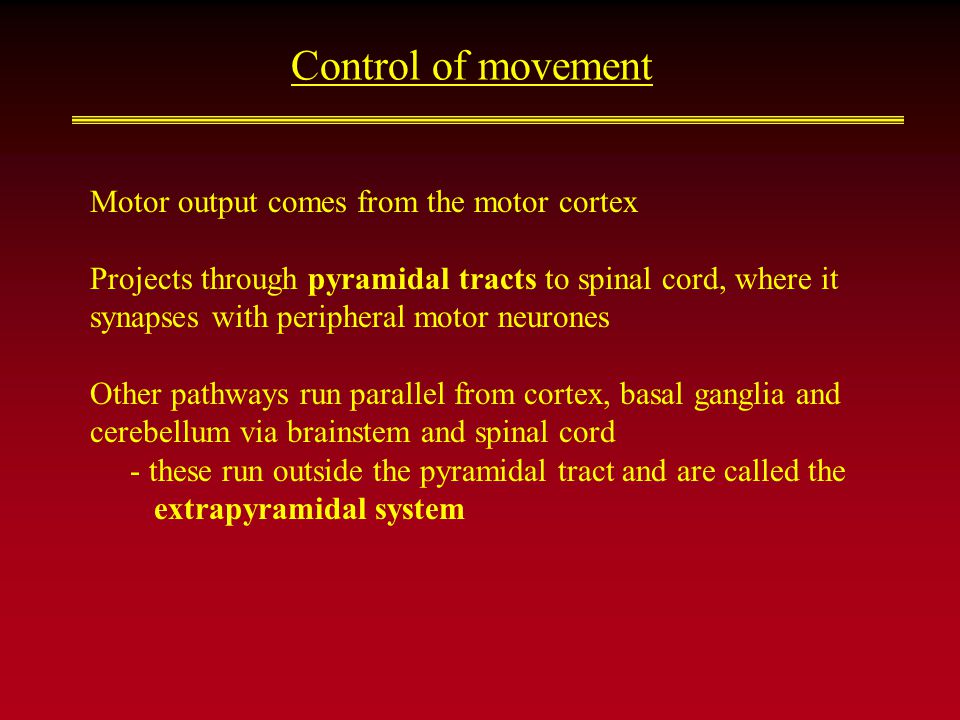

3 Control of movement Motor output comes from the motor cortex Projects through pyramidal tracts to spinal cord, where it synapses with peripheral motor neurones Other pathways run parallel from cortex, basal ganglia and cerebellum via brainstem and spinal cord - these run outside the pyramidal tract and are called the extrapyramidal system

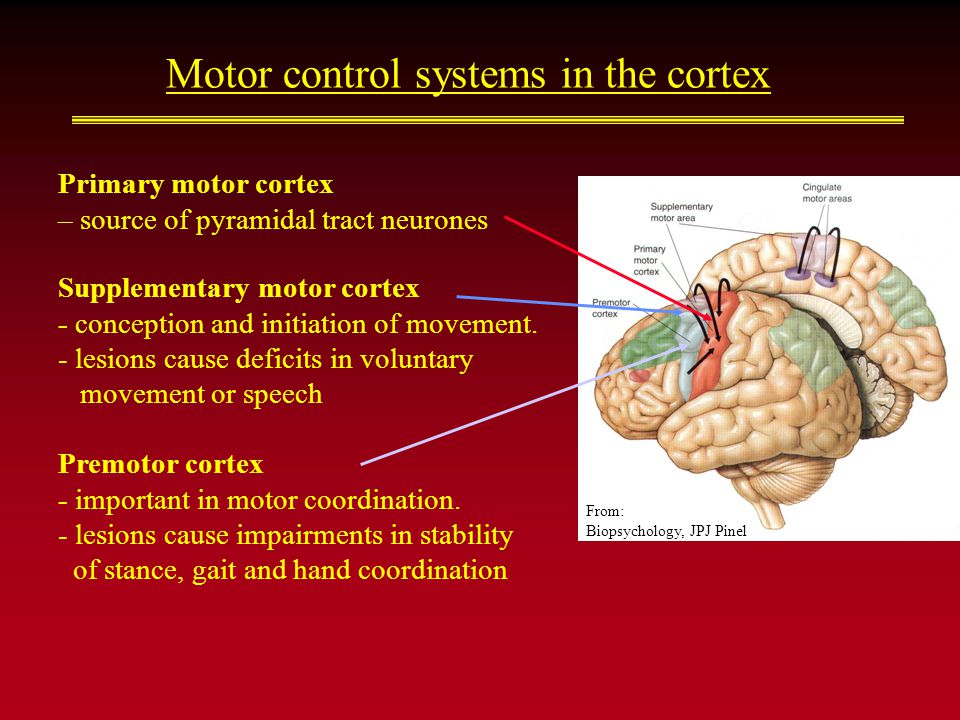

4 Motor control systems in the cortex Primary motor cortex – source of pyramidal tract neurones Supplementary motor cortex - conception and initiation of movement. - lesions cause deficits in voluntary movement or speech Premotor cortex - important in motor coordination. - lesions cause impairments in stability of stance, gait and hand coordination From: Biopsychology, JPJ Pinel

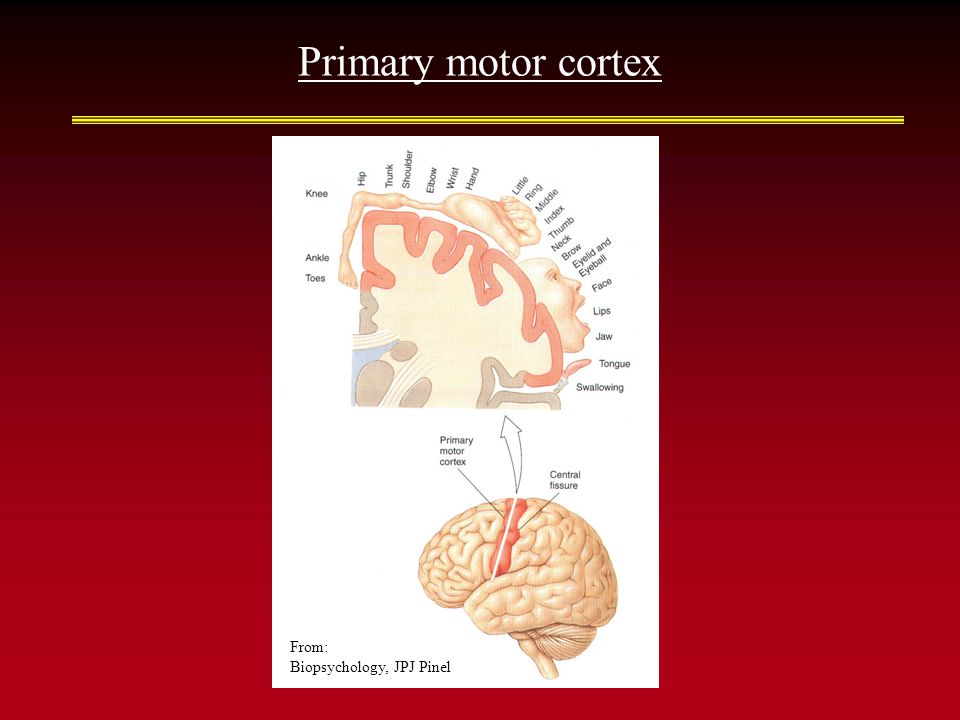

5 Primary motor cortex From: Biopsychology, JPJ Pinel

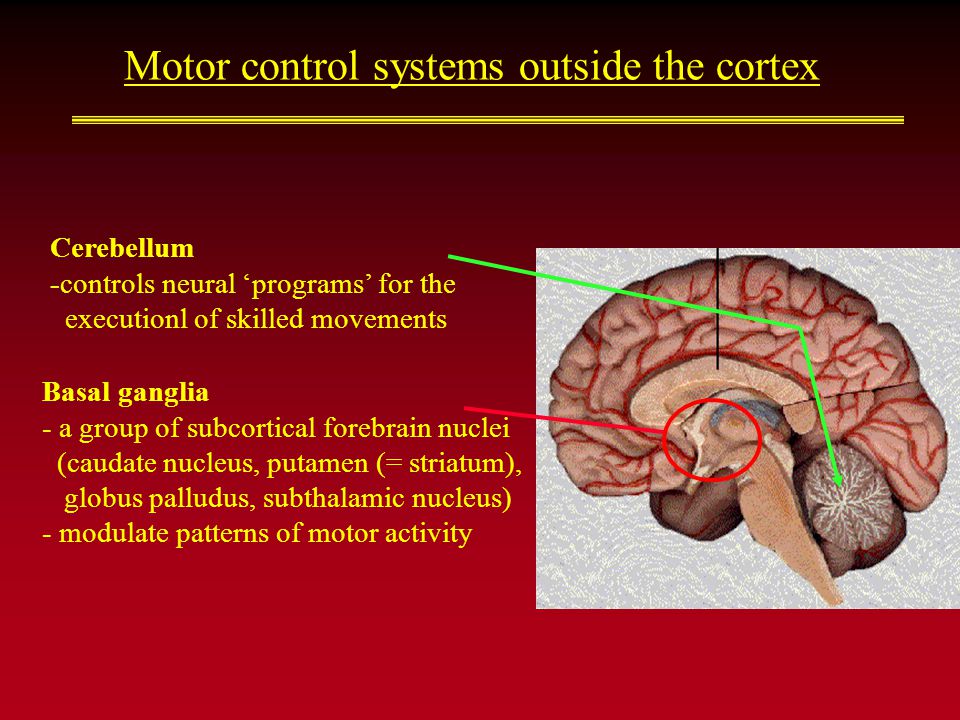

6 Motor control systems outside the cortex Basal ganglia - a group of subcortical forebrain nuclei (caudate nucleus, putamen (= striatum), globus palludus, subthalamic nucleus) - modulate patterns of motor activity Cerebellum -controls neural ‘programs’ for the executionl of skilled movements

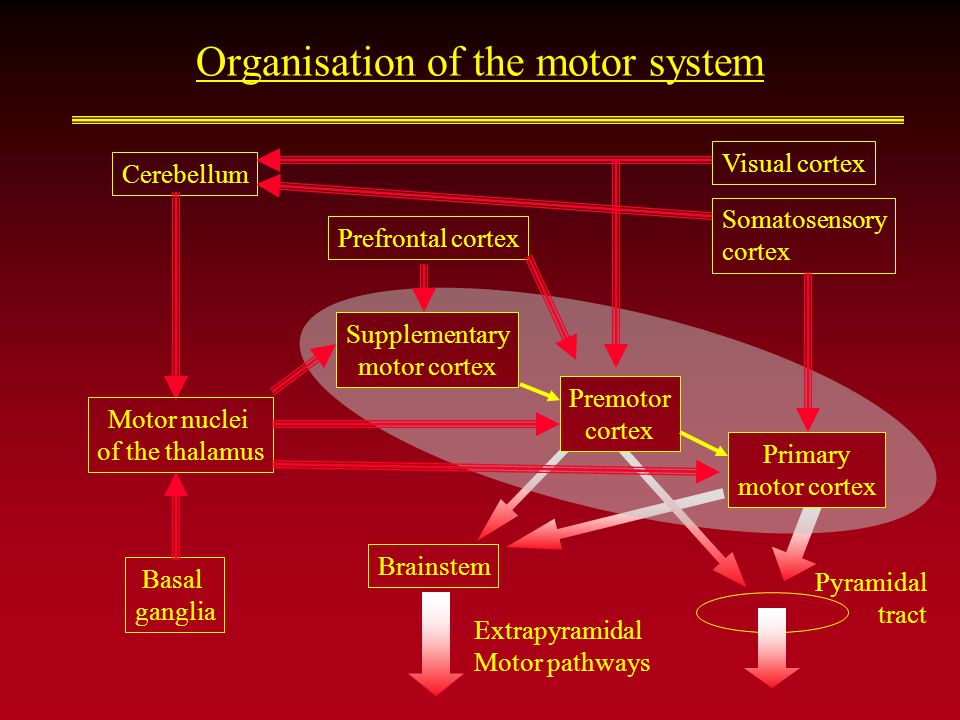

7 Organisation of the motor system Brainstem Extrapyramidal Motor pathways Cerebellum Basal ganglia Supplementary motor cortex Pyramidal tract Premotor cortex Primary motor cortex Visual cortex Somatosensory cortex Motor nuclei of the thalamus Prefrontal cortex

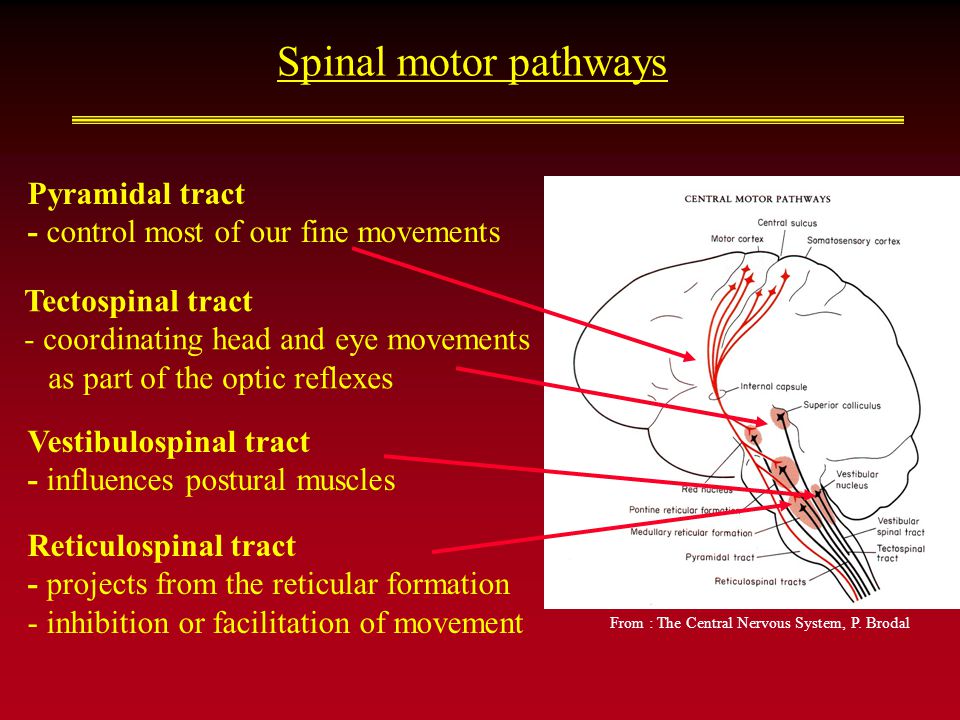

8 Pyramidal tract - control most of our fine movements From : The Central Nervous System, P. Brodal Reticulospinal tract - projects from the reticular formation - inhibition or facilitation of movement Vestibulospinal tract - influences postural muscles Tectospinal tract - coordinating head and eye movements as part of the optic reflexes Spinal motor pathways

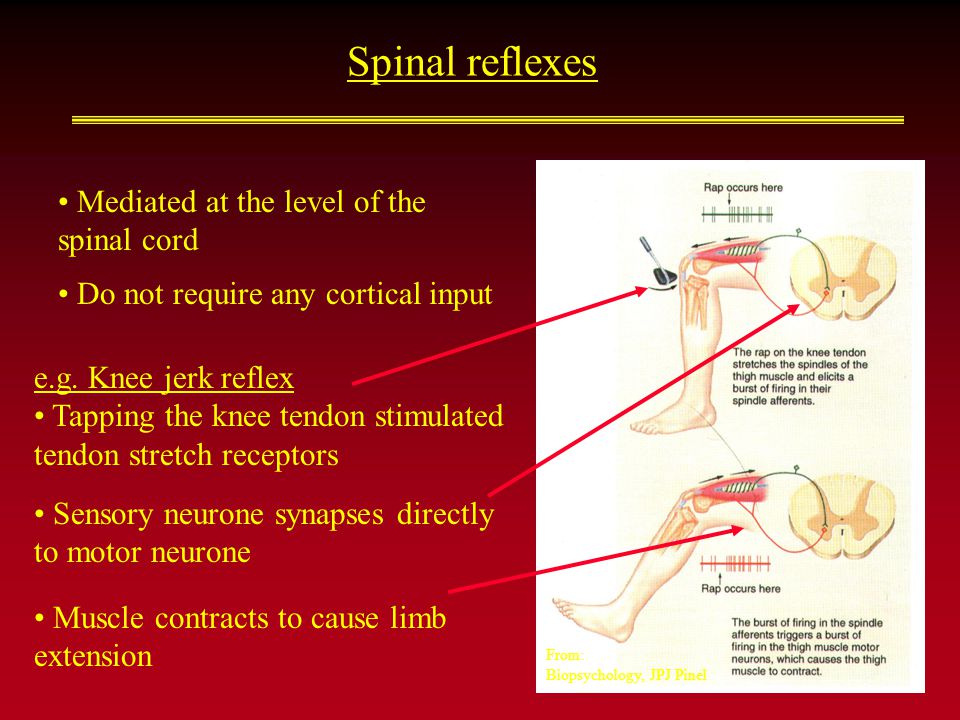

9 e.g. Knee jerk reflex From: Biopsychology, JPJ Pinel Spinal reflexes Mediated at the level of the spinal cord Do not require any cortical input Tapping the knee tendon stimulated tendon stretch receptors Sensory neurone synapses directly to motor neurone Muscle contracts to cause limb extension

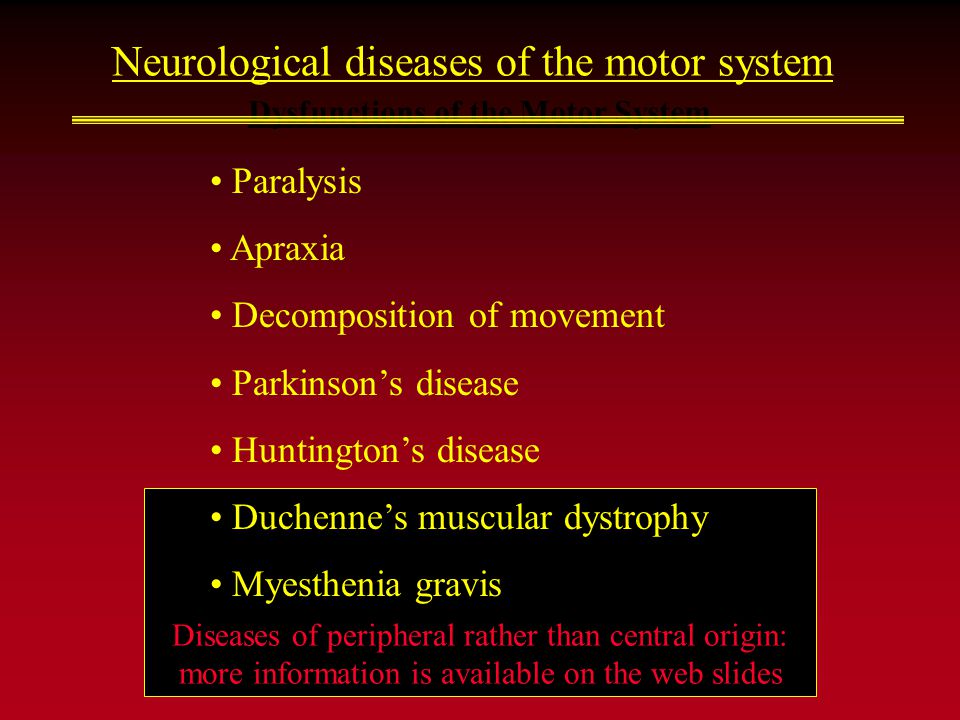

10 Diseases of peripheral rather than central origin: more information is available on the web slides Dysfunctions of the Motor System Neurological diseases of the motor system Paralysis Apraxia Decomposition of movement Parkinson’s disease Huntington’s disease Duchenne’s muscular dystrophy Myesthenia gravis

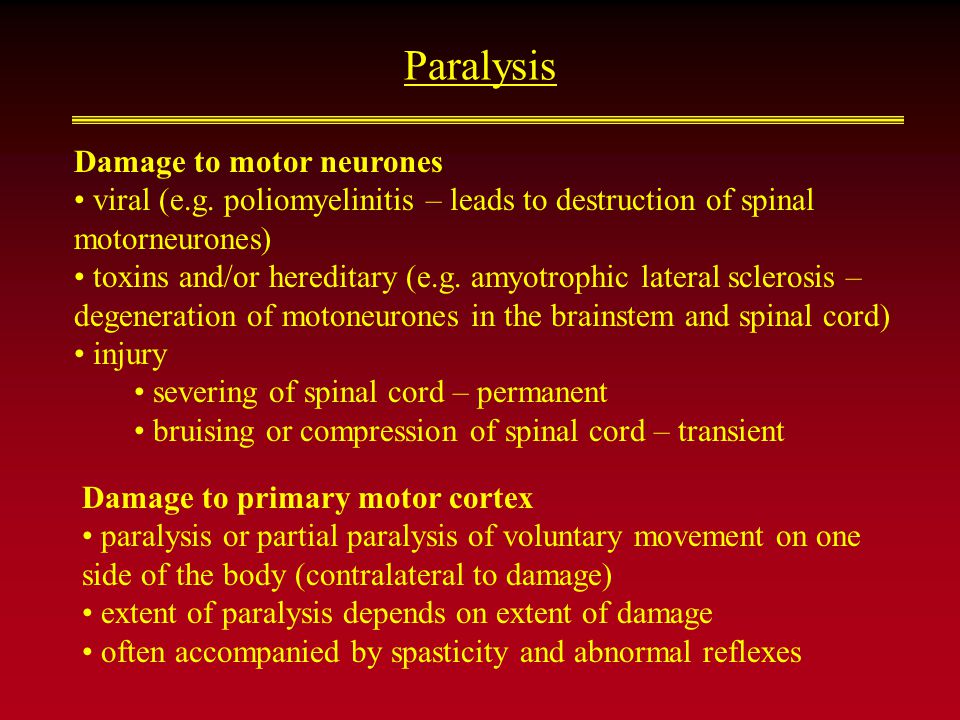

11 Paralysis Damage to motor neurones viral (e.g. poliomyelinitis – leads to destruction of spinal motorneurones) toxins and/or hereditary (e.g. amyotrophic lateral sclerosis – degeneration of motoneurones in the brainstem and spinal cord) injury severing of spinal cord – permanent bruising or compression of spinal cord – transient Damage to primary motor cortex paralysis or partial paralysis of voluntary movement on one side of the body (contralateral to damage) extent of paralysis depends on extent of damage often accompanied by spasticity and abnormal reflexes

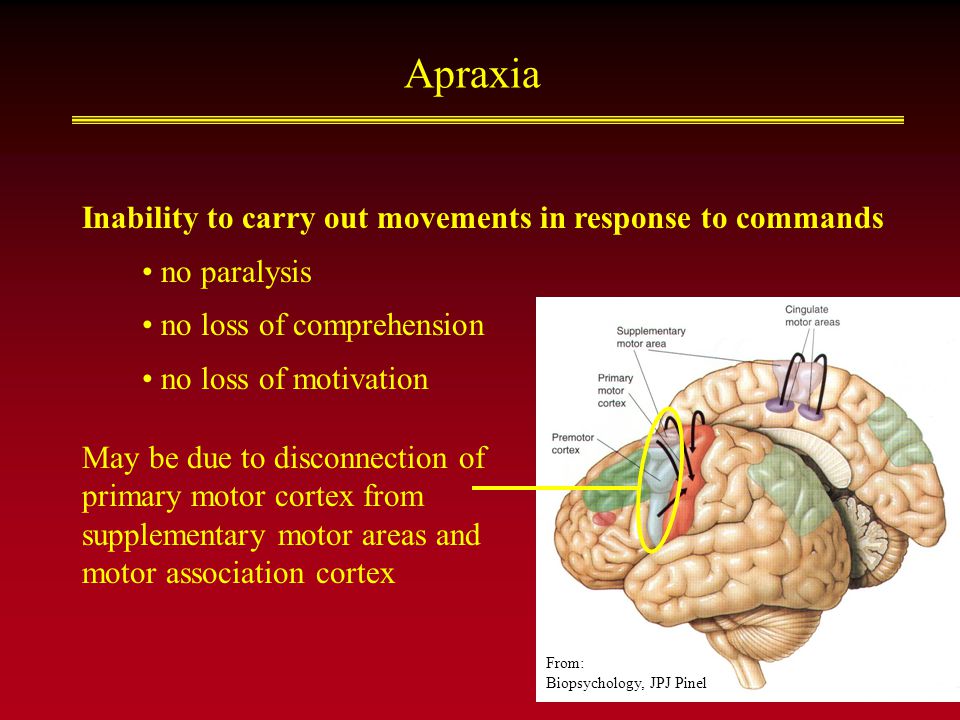

12 Apraxia Inability to carry out movements in response to commands no paralysis no loss of comprehension no loss of motivation May be due to disconnection of primary motor cortex from supplementary motor areas and motor association cortex From: Biopsychology, JPJ Pinel

13 Decomposition of movement Inability to perform “motor patterns” (e.g. walking) motor patterns are broken up into individual segments instead of being executed smoothly movements require thought for execution, rather than being “automatic” Due to cerebellar damage

14 Influence of the cerebellum Brainstem Extrapyramidal tract Cerebellum Basal ganglia Supplementary motor cortex Pyramidal tract Premotor cortex Primary motor cortex Visual cortex Somatosensory cortex Motor nuclei of the thalamus Prefrontal cortex

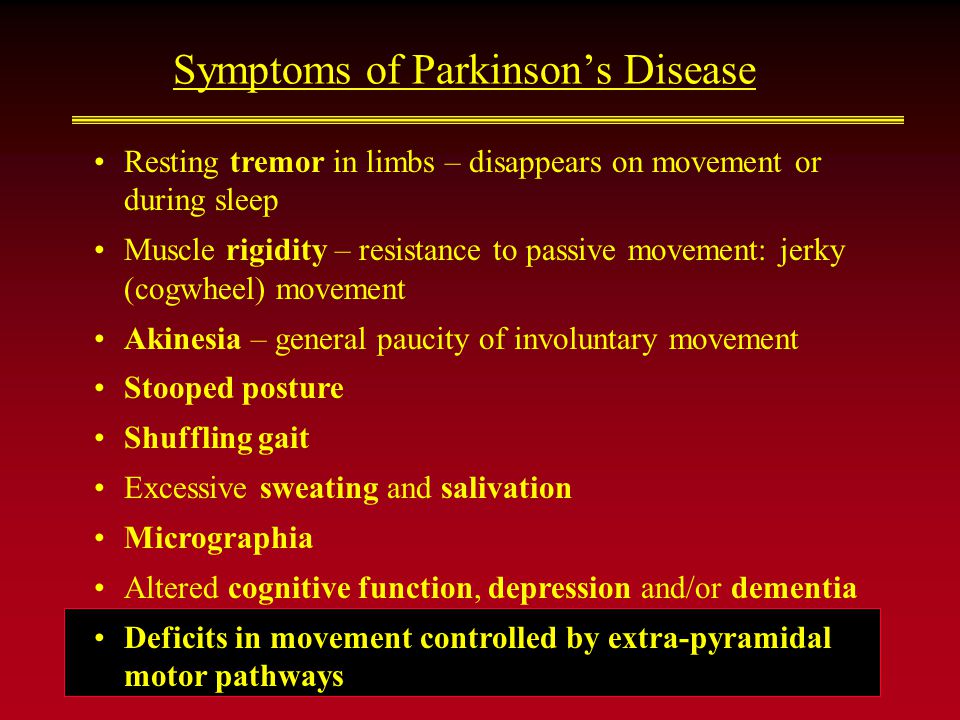

15 Symptoms of Parkinson’s Disease Resting tremor in limbs – disappears on movement or during sleep Muscle rigidity – resistance to passive movement: jerky (cogwheel) movement Akinesia – general paucity of involuntary movement Stooped posture Shuffling gait Excessive sweating and salivation Micrographia Altered cognitive function, depression and/or dementia Deficits in movement controlled by extra-pyramidal motor pathways

16 Striatum DopamineGlutamate GABA Neuropathology of Parkinson’s disease nigro-striatal pathway degeneration leading to a depletion of striatal dopamine some degeneration of other dopamine pathways too X

17 Treatment of Parkinson’s disease prior to 1960s there were no effective treatments realisation of dopamine’s involvement led to use of drugs which increase brain dopamine dopamine itself cannot cross from the blood to the brain use precursor, L-DOPA, which enters the brain and is converted there into dopamine can cause severe side effects (dyskinetic movements, psychotisism) surgical interventions and neural transplantation are under investigation as alternative therapies

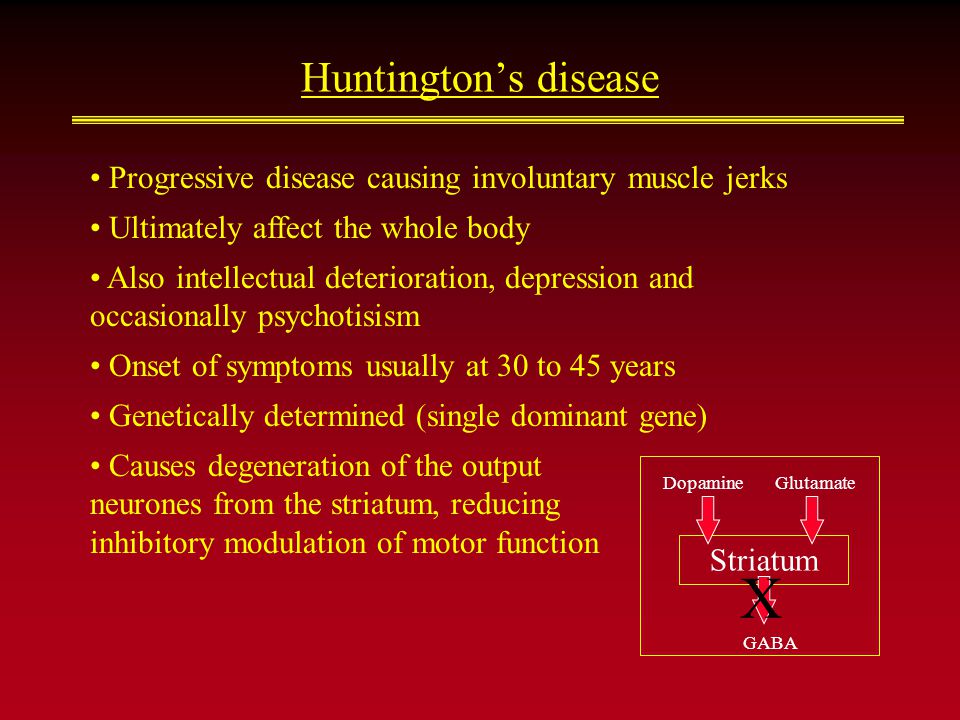

18 Huntington’s disease Progressive disease causing involuntary muscle jerks Ultimately affect the whole body Also intellectual deterioration, depression and occasionally psychotisism Onset of symptoms usually at 30 to 45 years Genetically determined (single dominant gene) Causes degeneration of the output neurones from the striatum, reducing inhibitory modulation of motor function Striatum DopamineGlutamate GABA X

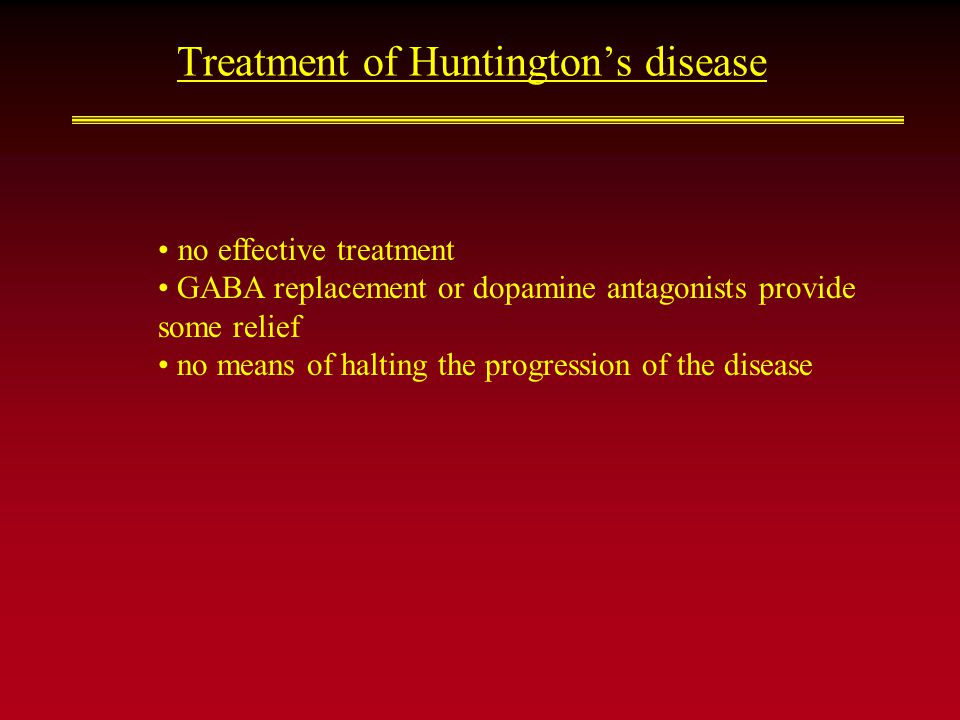

19 Treatment of Huntington’s disease no effective treatment GABA replacement or dopamine antagonists provide some relief no means of halting the progression of the disease

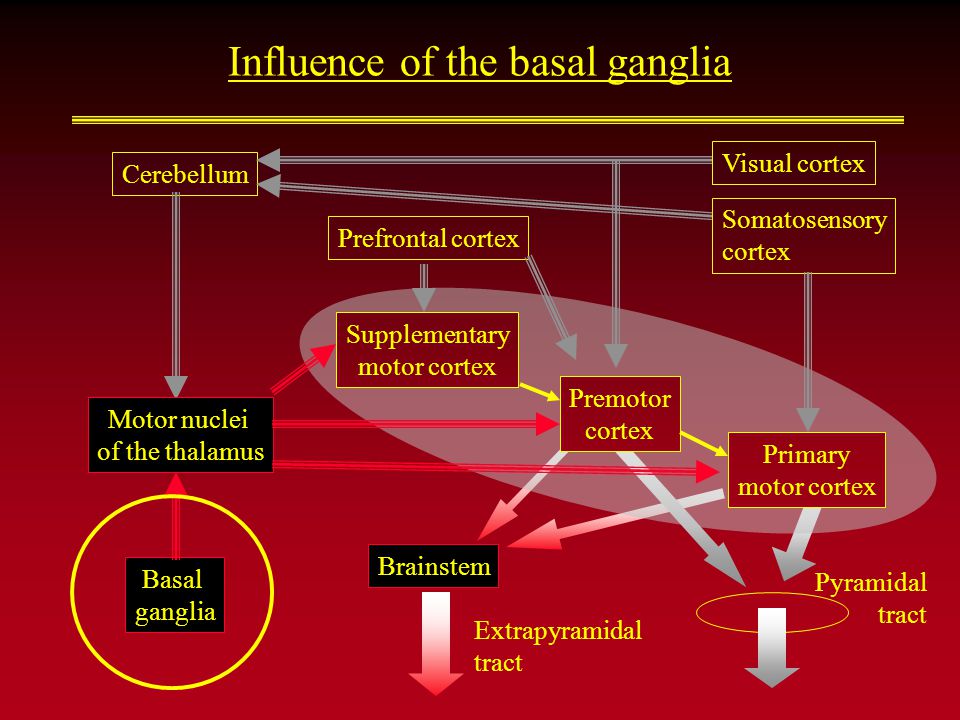

20 Influence of the basal ganglia Brainstem Extrapyramidal tract Cerebellum Basal ganglia Supplementary motor cortex Pyramidal tract Premotor cortex Primary motor cortex Visual cortex Somatosensory cortex Motor nuclei of the thalamus Prefrontal cortex

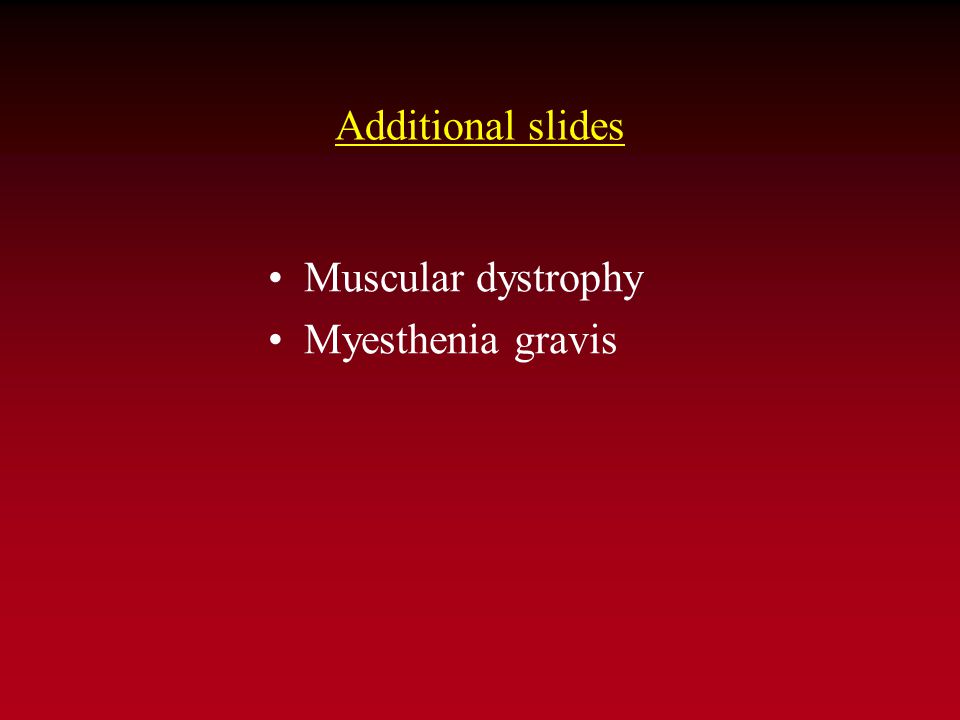

21 Additional slides Muscular dystrophy Myesthenia gravis

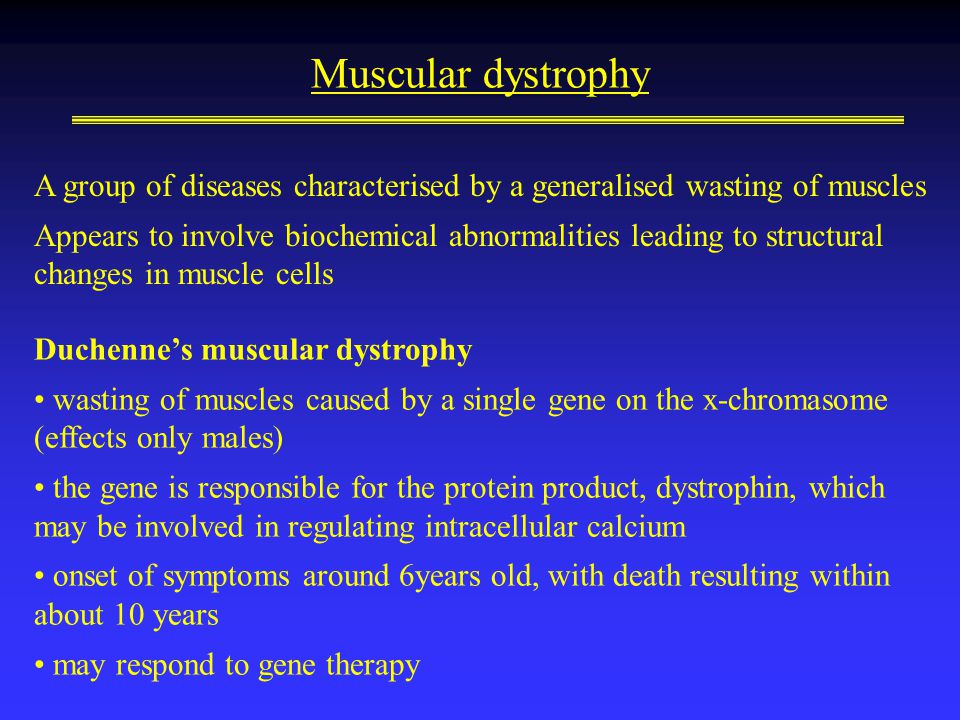

22 Muscular dystrophy A group of diseases characterised by a generalised wasting of muscles Appears to involve biochemical abnormalities leading to structural changes in muscle cells Duchenne’s muscular dystrophy wasting of muscles caused by a single gene on the x-chromasome (effects only males) the gene is responsible for the protein product, dystrophin, which may be involved in regulating intracellular calcium onset of symptoms around 6years old, with death resulting within about 10 years may respond to gene therapy

23 X-Linkage in Duchenne’s muscular dystrophy The gene responsible is recessive Therefore for a female to be affected they would have to have two copies of the DMD gene, one derived from each parent If a female has one DMD gene (i.e. heterozygous) she would be a carrier, but would not express the disease For a male to be affected they only need one copy of the DMD gene, which must come from his mother Since affected individuals die before reaching reproductive age, it is impossible for a male to pass on the DMD gene Therefore it is impossible for a female to be homozygous for the DMD gene Therefore a female cannot express the disease.

24 Myesthenia gravis profound weakening of sketetal muscles due to reduced numbers of acetylcholine receptors at the neuromuscular junction (c.f. snake venom toxins such as bungarotoxin) this leads to reduced transmission of neuronal signals activating muscles caused by autoimmune destruction of the neuromuscular junction removal of the thymus gland (where immune cells are made) has some beneficial effects
