Types of Mountains. Mountain building takes many years. Himalayas, Nepal.

Similar presentations

Presentation on theme: "Types of Mountains. Mountain building takes many years. Himalayas, Nepal."— Presentation transcript:

1 Types of Mountains

2 Mountain building takes many years. Himalayas, Nepal

3 TYPES OF MOUNTAINS Folded: reverse faults and compression Fault-block: normal faulting and tension Dome/Upwarped: Magma rises through the mantle but does not break through the surface. Volcanic: Shield and composite; magma rises from asthenosphere and breaks through the surface of Earth

4 Fold Mountains Fold mountains are: – the most common type of mountain. –The world’s largest mountain ranges are fold mountains. –These ranges were formed over millions of years.

5 Fold mountains are formed when two plates collide head on, and their edges crumble, much the same way as a piece of paper folds when pushed together.

6 The crust is raised UP, and folded. In the end, a mountain range is produced.

7 This produces anticlines and synclines.

8 The upward, or top part of folded rock is called anticline, the bottom is called syncline.

9 Fault-Block Form when faults or cracks in the earth's crust force some materials or blocks of rock up and others down. Earth's crust fractures (pulls apart) and breaks into blocks These blocks move up and down, move apart and blocks of rock end up being stacked on one another.

10 Fault block mountains form when older rock ends up on top of younger rock as a result of thrust faulting.

11 Often fault-block mountains have a steep front side and a sloping back side.

12 Examples of fold mountains include: –Himalayan Mountains in Asia –the Alps in Europe –the Andes in South America –the Rockies in North America –the Urals in Russia –

13 Fault-Block

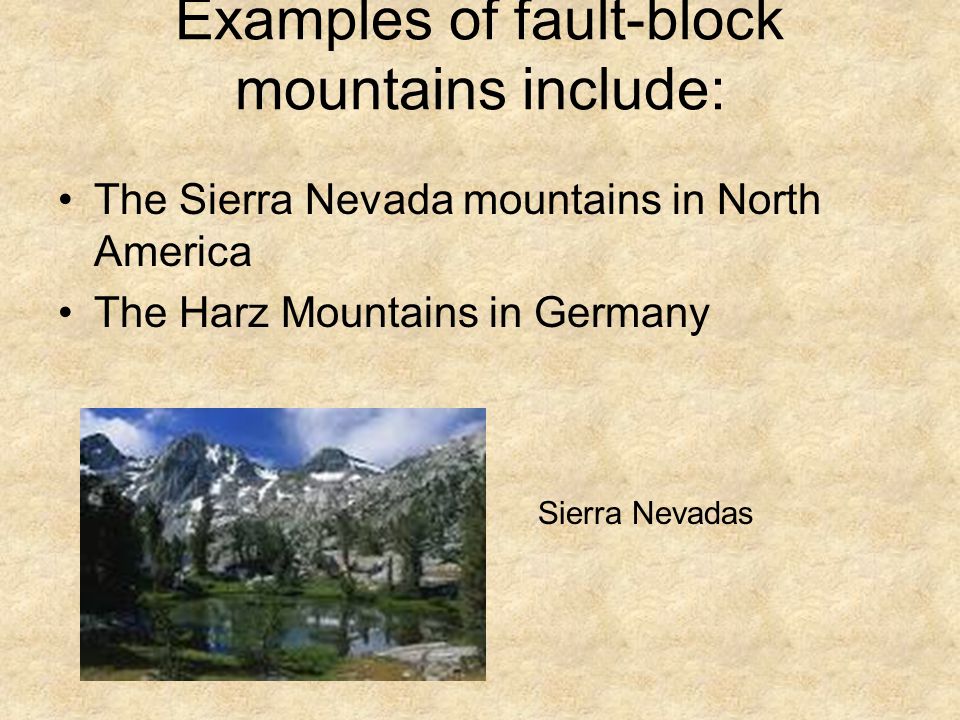

14 Examples of fault-block mountains include: The Sierra Nevada mountains in North America The Harz Mountains in Germany Sierra Nevadas

15 Upwarped/Dome Upwarped/dome mountains are the result of a great amount of melted rock (magma) pushing its way up under the earth crust. Without erupting, the magma pushes up overlaying rock layers.

16 Upwarped/Dome The magma cools and forms hardened rock. The uplifted area created by rising magma is called a dome because of looking like the top half of a sphere (ball).

17 Upwarped/Dome Mountains Since the dome is higher than its surroundings, erosion by wind and rain occurs from the top. This results in a circular mountain range. Domes that have been worn away in places form many separate peaks called Dome Mountains

18 Volcanic Mountains Volcanic Mountains are formed when molten rock (magma) deep within the earth, erupts, and piles upon the surface. –Magma is called lava when it breaks through the earth's crust. –When the ash and lava cools, it builds a cone of rock. –Rock and lava pile up, layer on top of layer.


20 Examples of volcanic mountains include: Mount St. Helens in North America Mount Pinatubo in the Philippines Mount Kea and Mount Loa in Hawaii

21 Ages of Mountains Mountains that are jagged at the top are 'young' mountains Mountains more rounded (due to erosion and weathering) are 'old' mountains.

22 The Himalayas are the youngest mountain range with the highest mountains (and still growing).

23 One of the oldest ranges is the Laurentian Mountains, in Quebec (they are being worn down).
