4900 Project SEI LASER CONVERTING srl OVERVIEW. SEI LASER CONVERTING srl.

Similar presentations


Presentation on theme: "4900 Project SEI LASER CONVERTING srl OVERVIEW. SEI LASER CONVERTING srl."— Presentation transcript:

1 4900 Project SEI LASER CONVERTING srl OVERVIEW

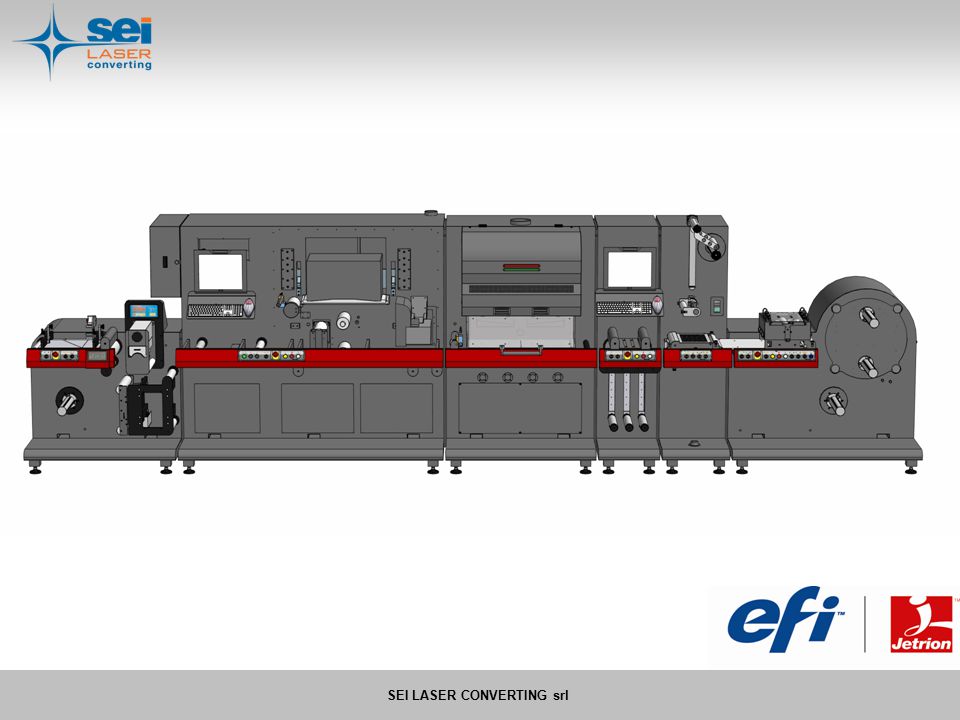

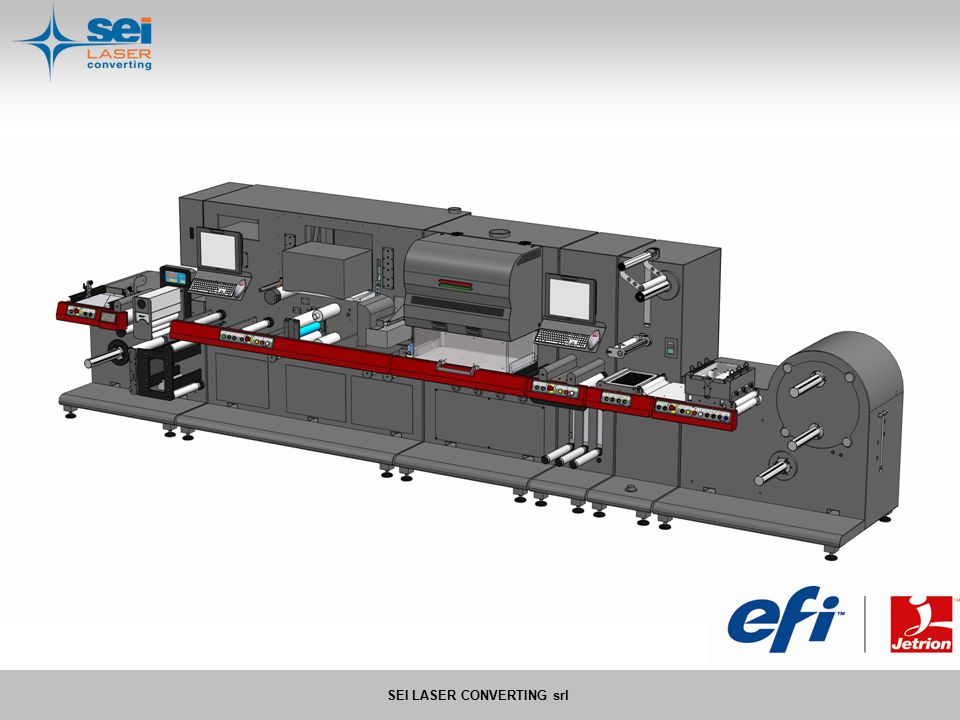

2 SEI LASER CONVERTING srl

3

4

5

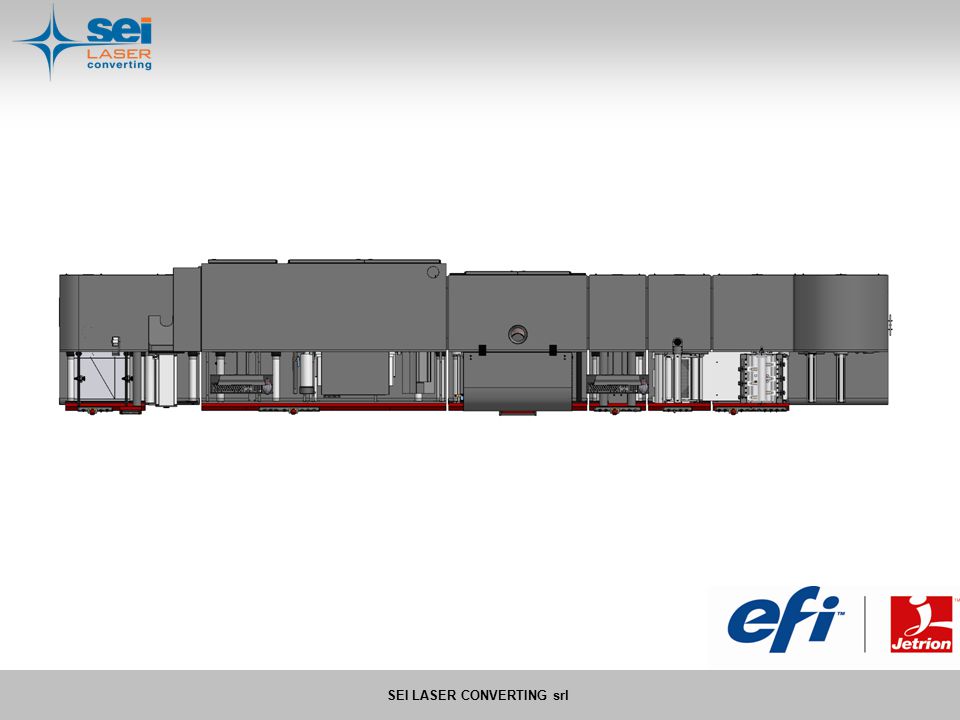

6

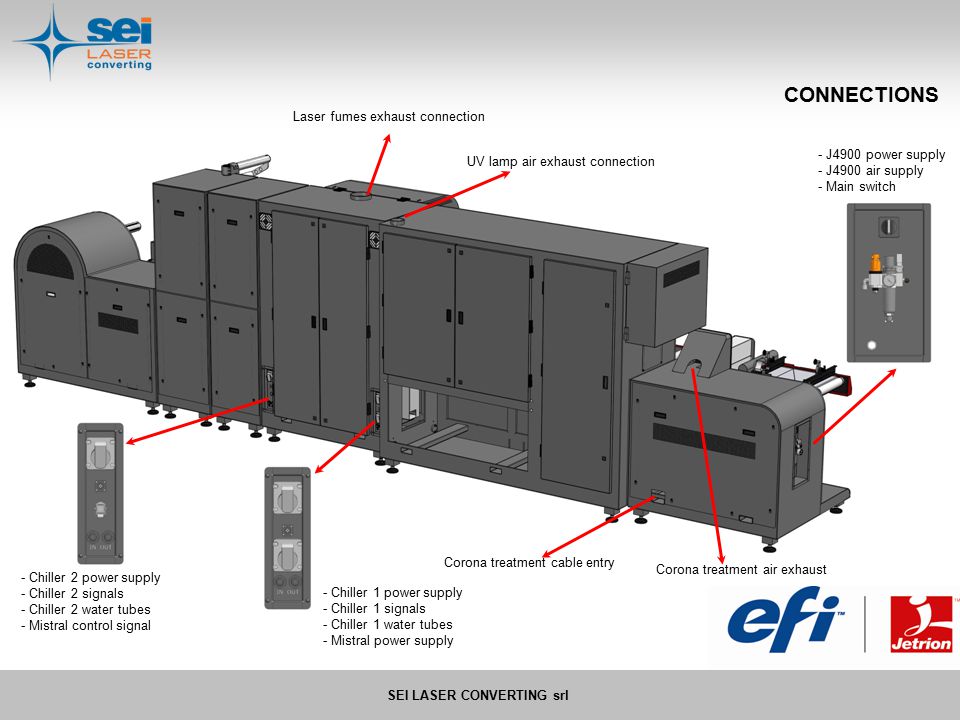

7 - Chiller 2 power supply - Chiller 2 signals - Chiller 2 water tubes - Mistral control signal - Chiller 1 power supply - Chiller 1 signals - Chiller 1 water tubes - Mistral power supply Corona treatment cable entry Corona treatment air exhaust - J4900 power supply - J4900 air supply - Main switch UV lamp air exhaust connection Laser fumes exhaust connection CONNECTIONS

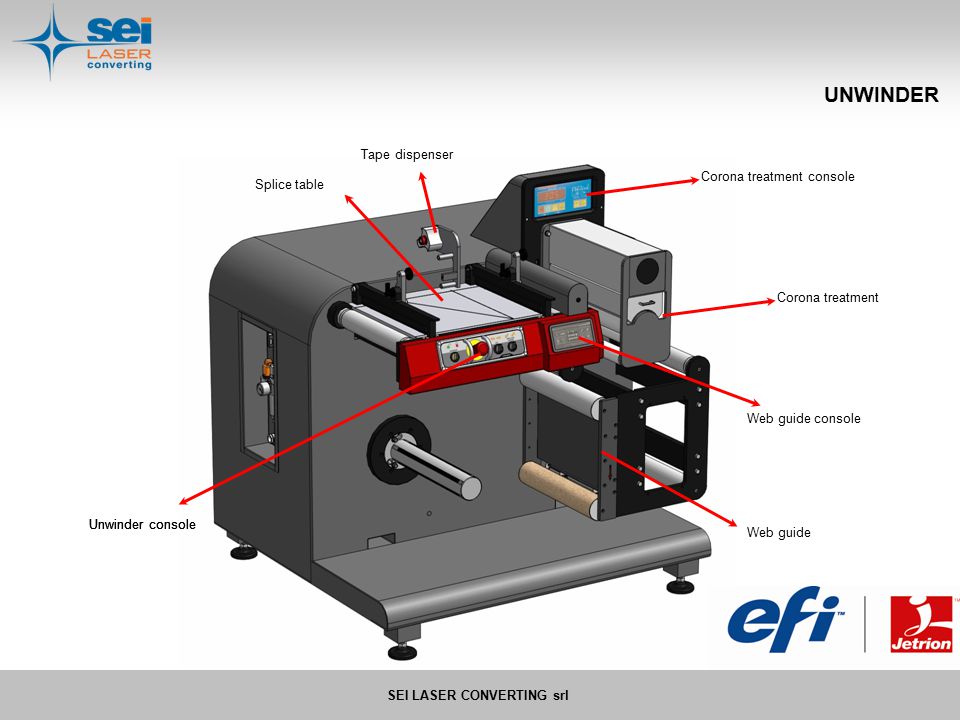

8 SEI LASER CONVERTING srl Corona treatment Corona treatment console Web guide console Web guide UNWINDER Unwinder console Splice table Tape dispenser

9 SEI LASER CONVERTING srl DIGITAL PRINTER Printer console Keyboard and mouse shelf Accessible PC housing Monitor UV lamp air exhaust connection

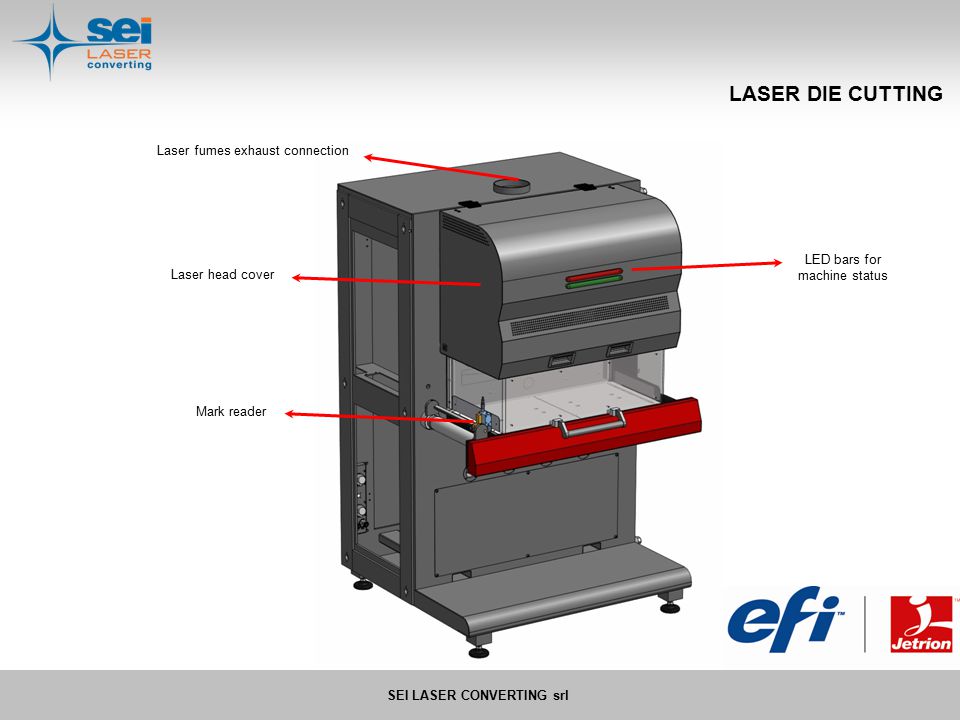

10 SEI LASER CONVERTING srl LASER DIE CUTTING LED bars for machine status Laser fumes exhaust connection Laser head cover Mark reader

11 SEI LASER CONVERTING srl BUFFER Buffer console Buffer 2 mt PC panel model with touch screen - SW Icaro - SW Scada Keyboard and mouse shelf

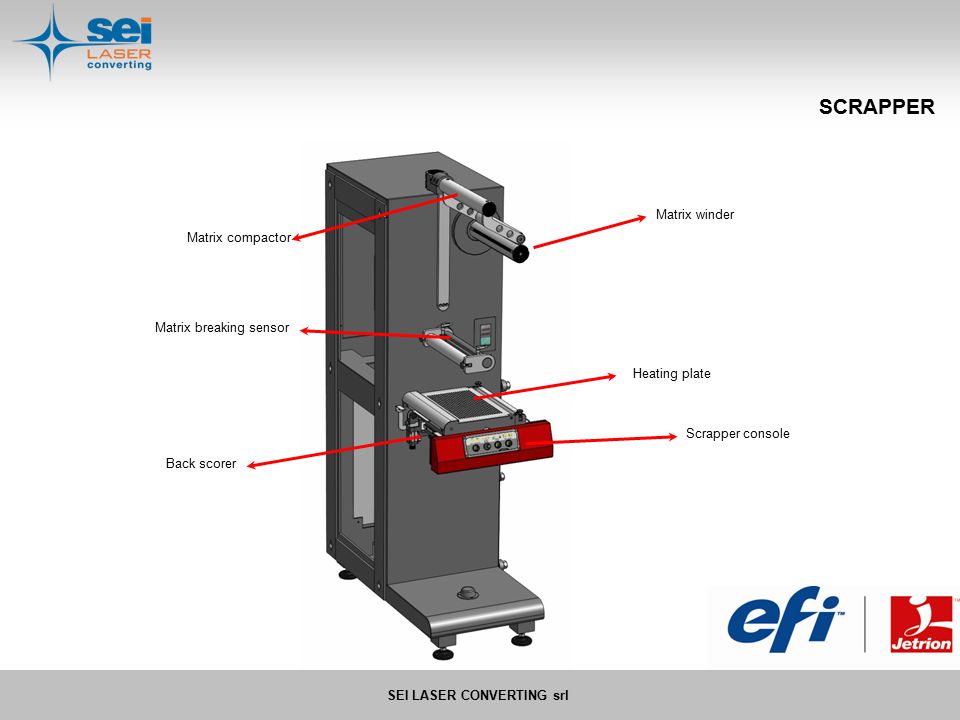

12 SEI LASER CONVERTING srl SCRAPPER Scrapper console Back scorer Matrix winder Matrix compactor Heating plate Matrix breaking sensor

13 SEI LASER CONVERTING srl WINDER Winder console Turret Main winder Slitting unit Interchangeable air chuck Splice table

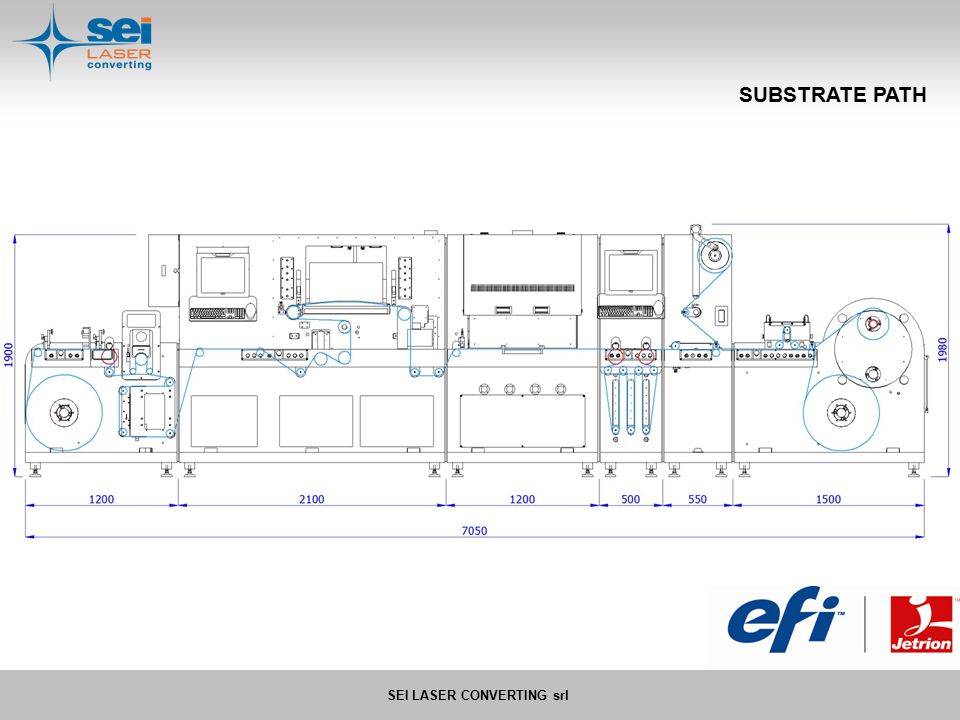

14 SEI LASER CONVERTING srl SUBSTRATE PATH

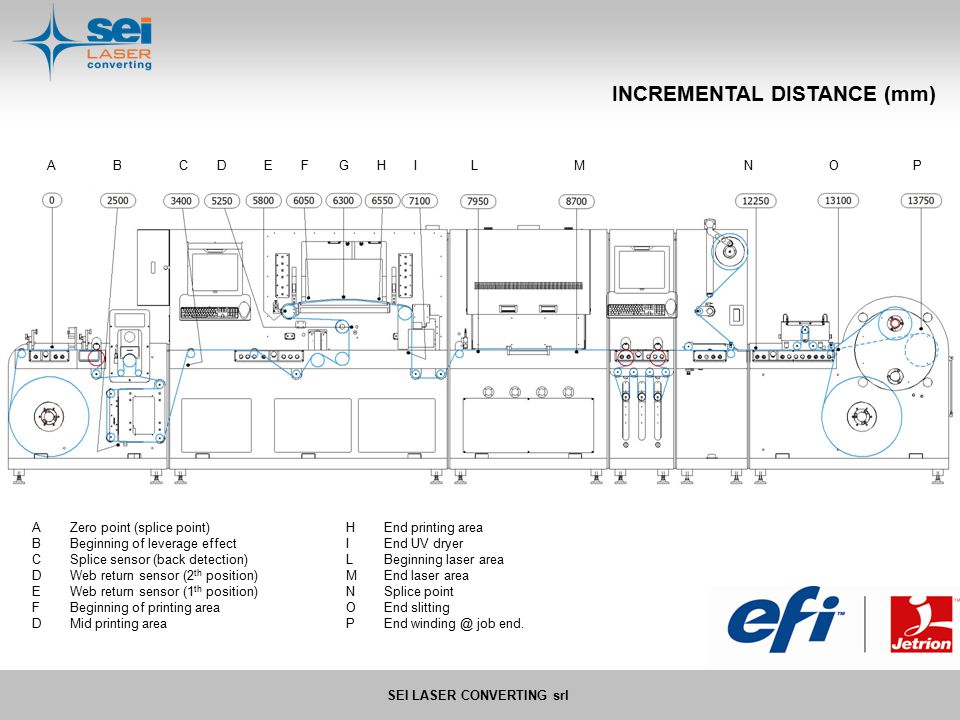

15 SEI LASER CONVERTING srl INCREMENTAL DISTANCE (mm) ABCDEFGHILMNOPABCDEFGHILMNOP AZero point (splice point) BBeginning of leverage effect CSplice sensor (back detection) DWeb return sensor (2 th position) EWeb return sensor (1 th position) FBeginning of printing area DMid printing area HEnd printing area IEnd UV dryer LBeginning laser area MEnd laser area NSplice point OEnd slitting PEnd job end.
