1. Sustainability Program for Community Housing Organisations Compass Housing Services This project has been assisted by the New South Wales Government through its Energy Efficiency Training Program

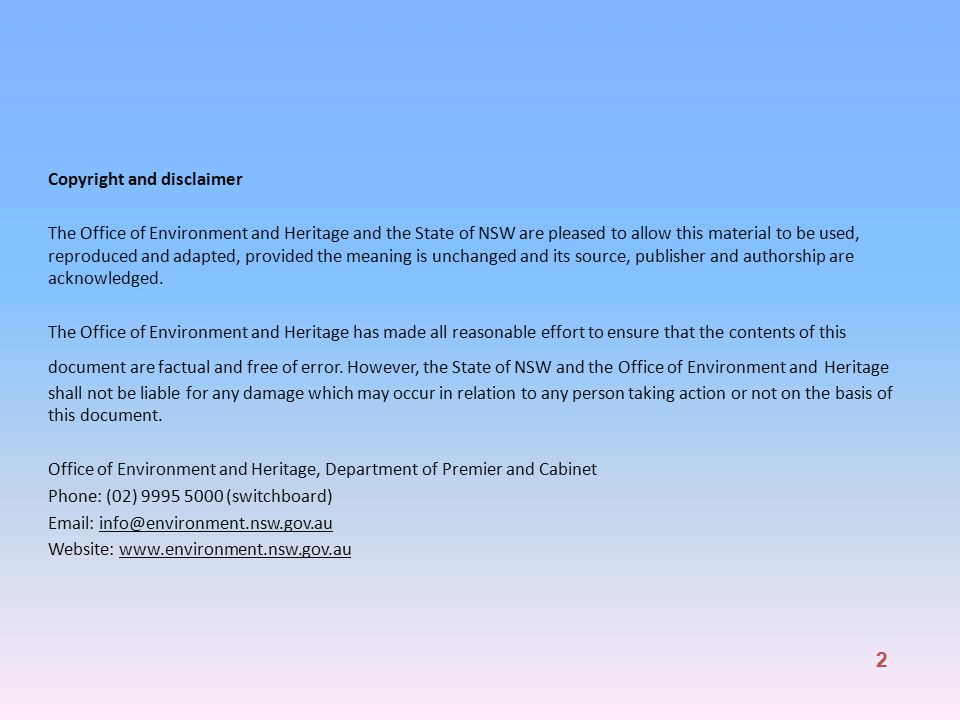

2. Copyright and disclaimer The Office of Environment and Heritage and the State of NSW are pleased to allow this material to be used, reproduced and adapted, provided the meaning is unchanged and its source, publisher and authorship are acknowledged. The Office of Environment and Heritage has made all reasonable effort to ensure that the contents of this document are factual and free of error. However, the State of NSW and the Office of Environment and Heritage shall not be liable for any damage which may occur in relation to any person taking action or not on the basis of this document. Office of Environment and Heritage, Department of Premier and Cabinet Phone: (02) 9995 5000 (switchboard) Email: info@environment.nsw.gov.au Website: www.environment.nsw.gov.au 2

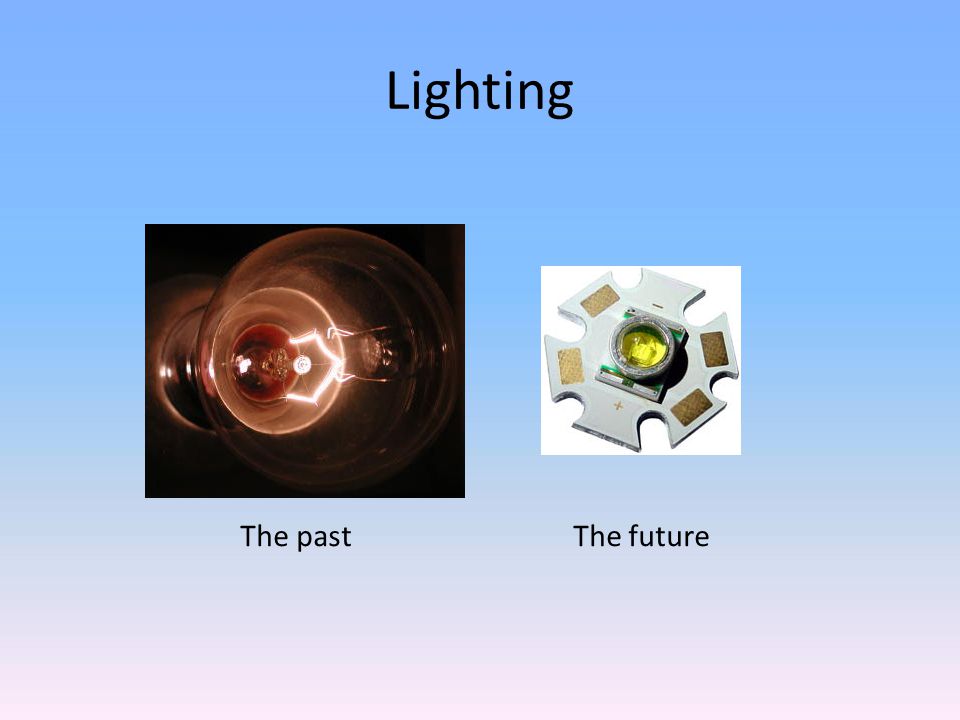

3. Lighting The past The future

4. Lamp development and efficiency

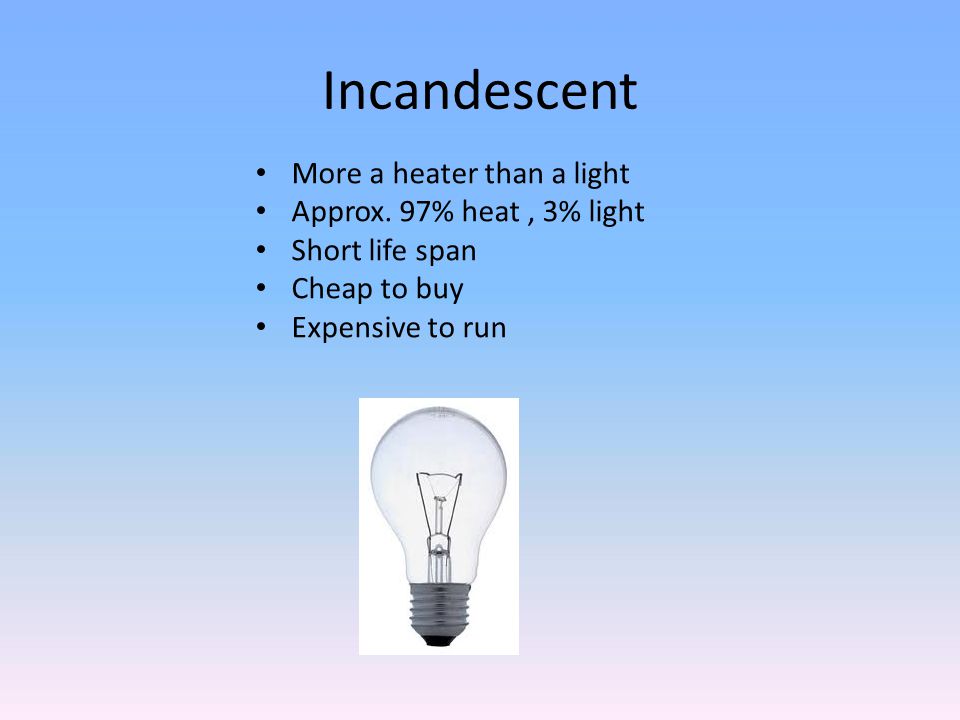

5. Incandescent More a heater than a light Approx. 97% heat, 3% light Short life span Cheap to buy Expensive to run

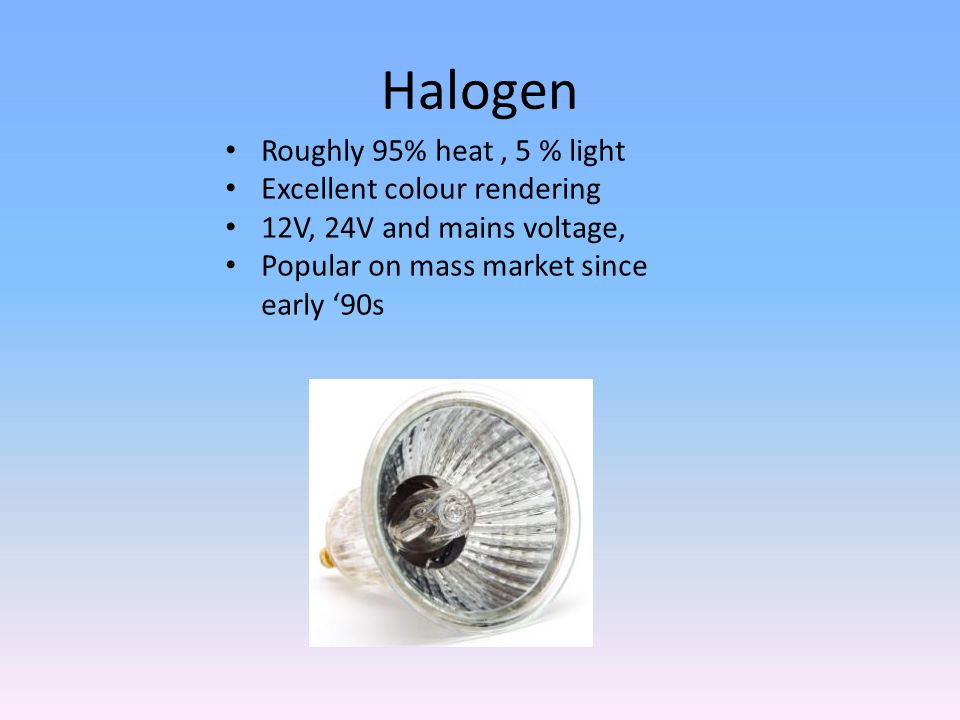

6. Halogen Roughly 95% heat, 5 % light Excellent colour rendering 12V, 24V and mains voltage, Popular on mass market since early ‘90s

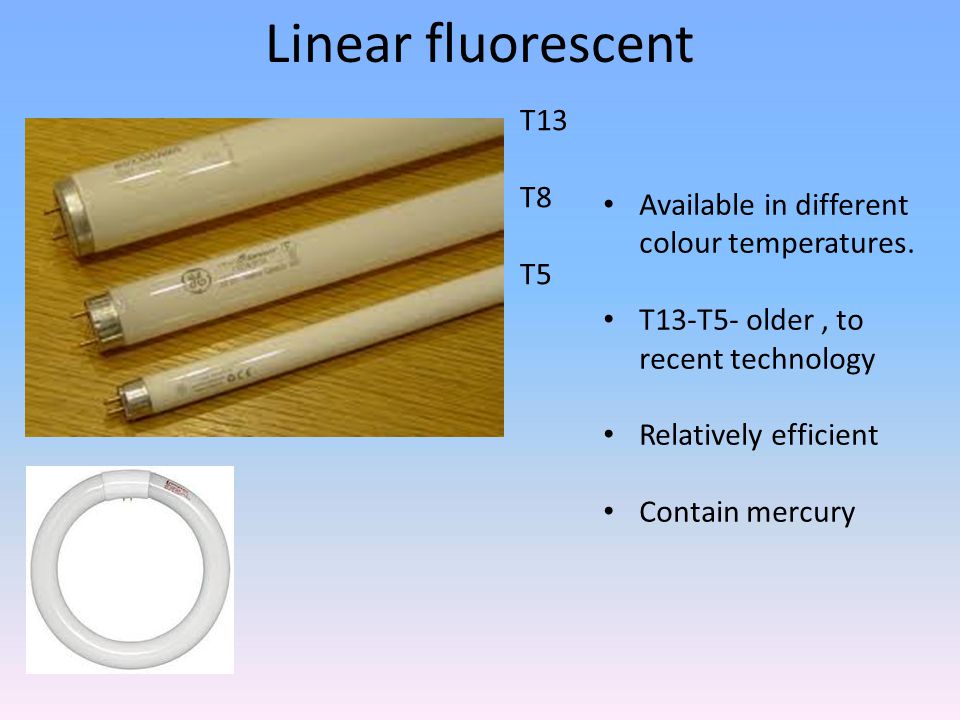

7. Linear fluorescent T13 T8 T5 Available in different colour temperatures. T13-T5- older, to recent technology Relatively efficient Contain mercury

8. Colour temperatures Different light types have different ‘colour temperatures’ The eyes behave differently with different colours. Ie- Cool white is a better choice for reading lamps, as contrast is sharper.

9. Compact Fluorescent Cool white, and warm white Carefully select correct lamp for each unique situation 4 X more efficient than incandescent 2-3 x more efficient than halogen More reliable than those mentioned Not easily dimmable Contain Mercury

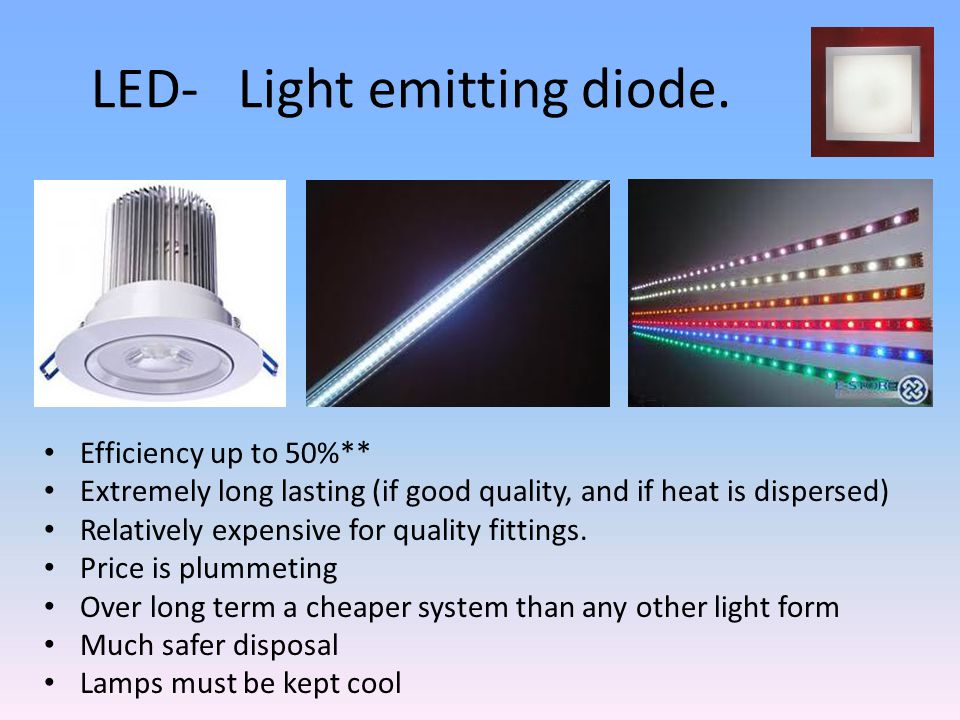

10. LED- Light emitting diode. Efficiency up to 50%** Extremely long lasting (if good quality, and if heat is dispersed) Relatively expensive for quality fittings. Price is plummeting Over long term a cheaper system than any other light form Much safer disposal Lamps must be kept cool

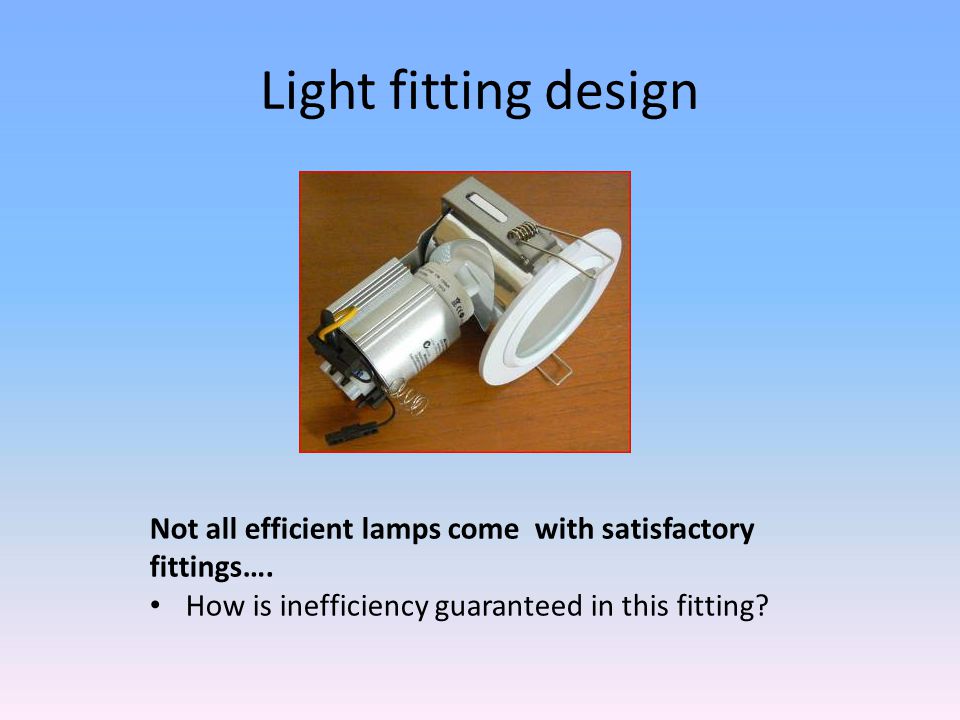

11. Light fitting design Not all efficient lamps come with satisfactory fittings…. How is inefficiency guaranteed in this fitting?

12. Relative life span of lamps (This comparison relates to good quality lamps) Incandescent lamps- 1-2 000 hours Halogen lamps- 2-8 000 hours CFL- 5-10 000 hours Fluorescent Tubes – 4000-10 000 LED- 30-50 000

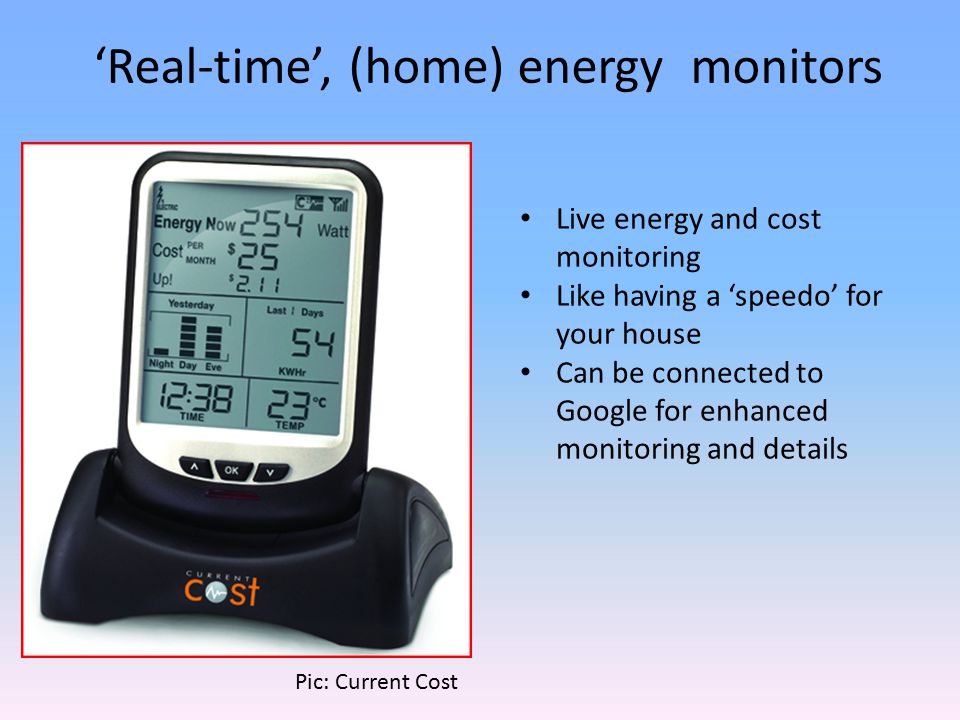

13. ‘Real-time’, (home) energy monitors Live energy and cost monitoring Like having a ‘speedo’ for your house Can be connected to Google for enhanced monitoring and details Pic: Current Cost

14. Energy, or power meters Excellent for measuring actual consumption of any plug in appliances Can also enter cost of energy to calculate running costs over any nominated period Great for single use costs- i.e. dishwashers, or long term costs- i.e. fridges.

15. Questions and Review

16. Break
