2 Arc Welding Equipment

3 Welding Machines AC – (alternating current) used for most agricultural arc welding jobs and has low purchase cost compared to other arc welders

4 Welding Machines DC (direct current) are generator operated and can be used where regular electrical power is not available

5 Welding Machines AC/DC – welders use a rectifier to change regular AC current to DC These welders can be used as either AC or DC

6 Welding Machines TIG (tungsten inert gas) welders have an electric power unit, a pressure reducing regulator, electrode holder, tungsten electrode, nozzle, cables and hoses, and a gas supply unit

7 TIG The two gases used are helium and argon

8 TIG The tungsten electrode is not consumed (burned) and there is no slag on the bead

9 TIG TIG is good for welding stainless steel and aluminum because it is stronger and more free of corrosion than other welders

10 Welding Machines MIG (metallic inert gas) welders are wire feed welders that use a consumable wire fed automatically through the torch and can be used in industries as an automatic welder

11 Welding Equipment Helmet, leather gloves, leather aprons, leather welding jacket, and leather boots are for protection

12 Welding Equipment Chipping hammer removes slag, and wire brush removes rust and dirt

13 Welding Equipment Clamps and vise grip clamps are used to hold metal in place for welding

14 Electrodes Electrodes are wire cores or rods usually covered in flux

15

16 Electrodes Size is the diameter of the metal rod not including flux

17 Electrodes Classification code system has a letter and four numbers such as E6011 or E6013

18 Electrodes E6011 is the most commonly used electrode for welding farm projects because it can be used for all purpose welding of mild steel, has deep penetration, and can be used with both AC and DC welders

19 Electrodes E6013 is a good general purpose electrode but only has medium penetration

20 Arc Welder An electric arc welder is used to weld two pieces of metal by melting and joining the edges of each using an electrode to help fill the space between them

21 TIG Welder TIG welders are best for welding aluminum and stainless steel

22 MIG Welder MIG welders are the best welder for welding very thin metals

23 Shade 10 A shade 10 lens in a welding helmet protects the eyes of the person welding or the person watching someone weld

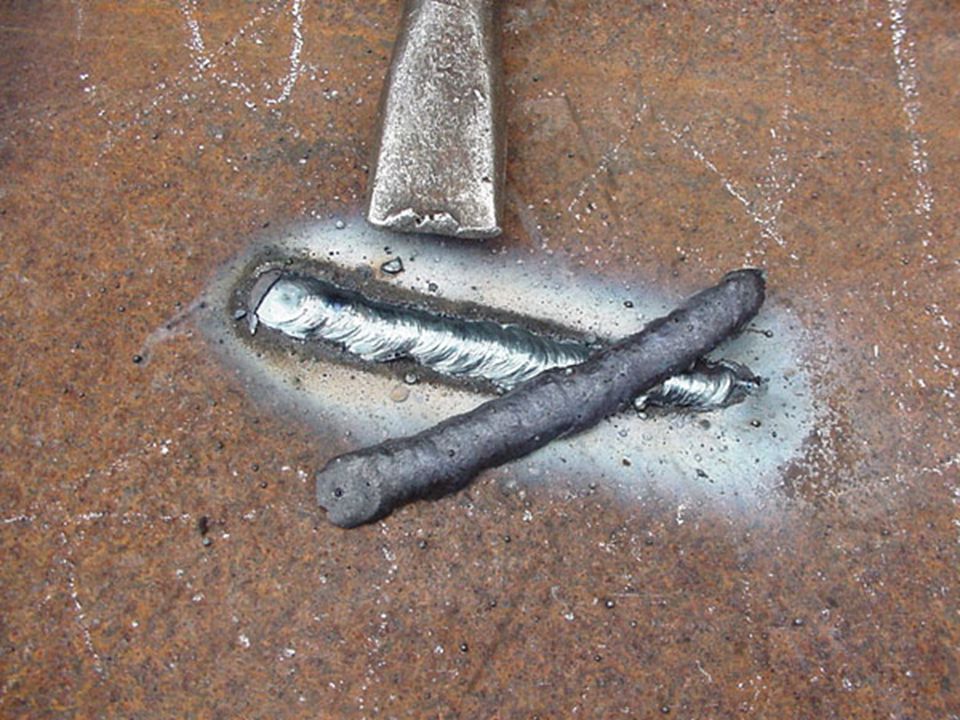

24 Chipping Hammer A chipping hammer is used to remove the slag (crust) off a welded bead

25

26 Basic Arc Welding Procedure

27 Clean Metal Metal should be cleaned before it is welded

28 Clean Metal A grinder is the fastest way, but a wire brush or other methods may be used to remove paint, rust, dirt, or oil

29 Beveled Metal more than ¼” should be beveled at a 30 degree angle and placed 1/16” to 1/8” apart before two pieces are welded together

30 Welding Joints Butt – two pieces of metal lying in the same plane such as end-to- end or edge-to-edge in a flat position

31 Welding Joints T – two pieces of metal placed together to form a T (two pieces at a 90 degree angle)

32 Welding Joints A fillet weld is used to fuse the two pieces permanently

33 Lap Two pieces of metal overlap each other

34 Corner Two pieces of metal make a 90 degree corner

35 Edge Two pieces placed parallel to one another or stacked on top of each other

36 Amperage Setting Welding position, metal thickness, and electrode size are used to determine amperage setting

37 Amperage Setting Amperage too low causes a narrow, high bead with poor penetration

38 Amperage Setting Amperage too high caused a flat bead with excessive spatter

39 Amperage Setting Correct amperage helps make a uniform bead with bead width and penetration depth equal to each other

40 Before Welding Before metal is welded, it should be identified, cleaned and cut to correct size (if needed)

41 Electrode Sticks If an electrode sticks to the metal, the electrode should be wiggled back and forth, or it should be released from the electrode holder

42 Electrode Size The maximum thickness of the beveled edge of metal should be the same as the diameter of the electrode used to make the weld

43 Electrode Size A 1/8” electrode for a 1/8” thick bevel

44 Adjust Amperage Spatter and flat bead are caused by amperage that is too high

45 Adjust Amperage A high narrow bead with poor penetration is caused by amperage that is too low

46 Strike and Arc Tapping or scratching methods can be used to strike an arc (starts a weld)

47 Arc Length Arc length should be the same as the diameter of electrode

48 Strong Weld Many different electrode movements or weaves are used to make a bead

49 Strong Weld Regardless of the movement used, the pattern should be uniform to make a strong weld

50 Travel Speed If the travel speed is too fast, the welded bead is narrow
