Microprocessor based Design for Biomedical Applications MBE 3 – MDBA VI : Measuring Biosignals Basics & OpenEEG Designs.

Similar presentations


Presentation on theme: "Microprocessor based Design for Biomedical Applications MBE 3 – MDBA VI : Measuring Biosignals Basics & OpenEEG Designs."— Presentation transcript:

1 Microprocessor based Design for Biomedical Applications MBE 3 – MDBA VI : Measuring Biosignals Basics & OpenEEG Designs

2 Last lecture: Origin and characteristics of bioelectric signals Electrodes and sensors Review of Project exercises Programming

3 Today: Electrode-Skin interface Opamps and Instrumentation Amplifiers Challenges for a good EEG recording EagleCad and LTSpice The ModularEEG Design The MonolithEEG Design

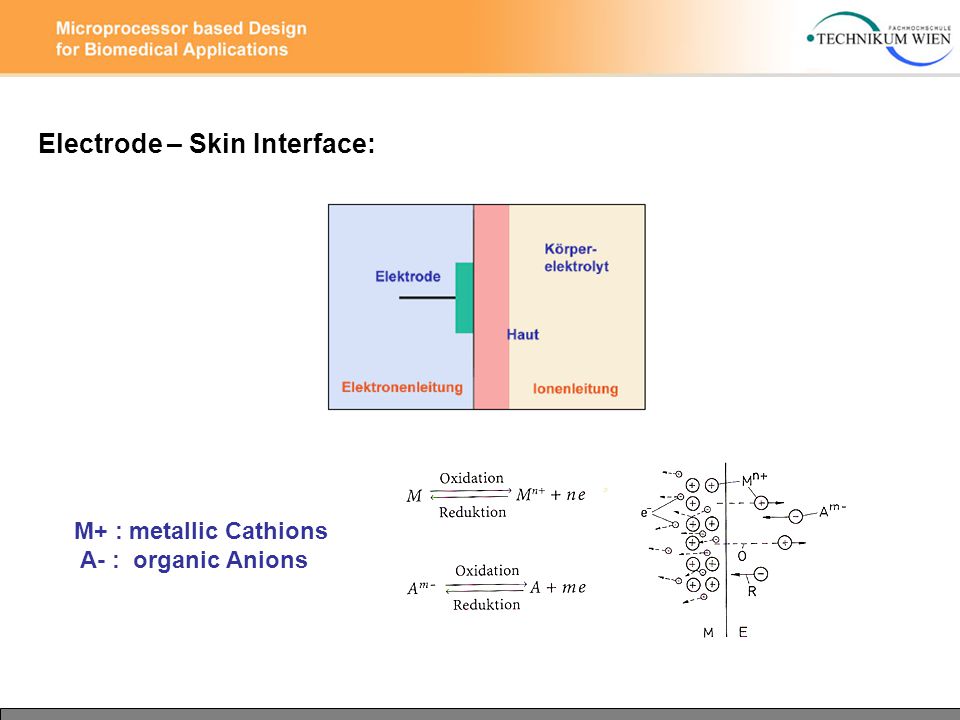

4 Electrode – Skin Interface: M+ : metallic Cathions A- : organic Anions

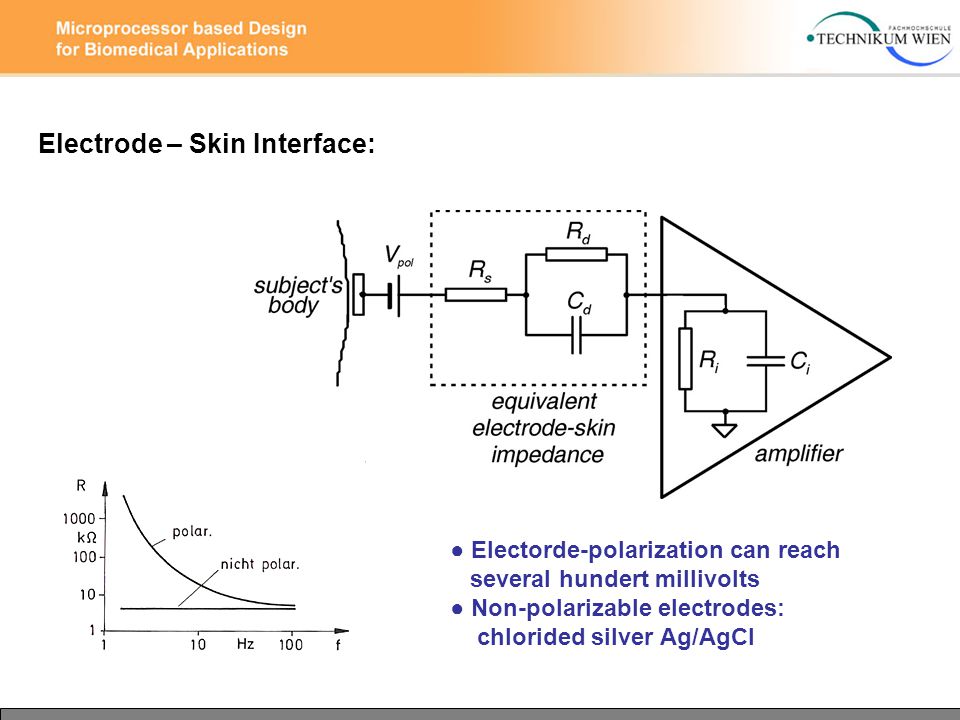

5 Electrode – Skin Interface: ● Electorde-polarization can reach several hundert millivolts ● Non-polarizable electrodes: chlorided silver Ag/AgCl

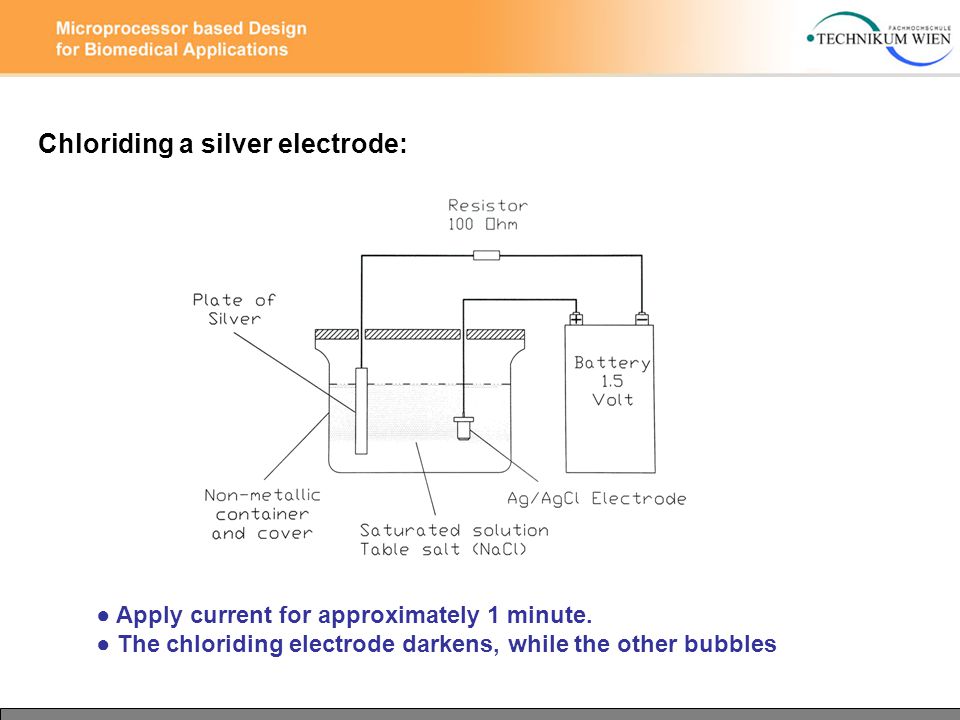

6 Chloriding a silver electrode: ● Apply current for approximately 1 minute. ● The chloriding electrode darkens, while the other bubbles

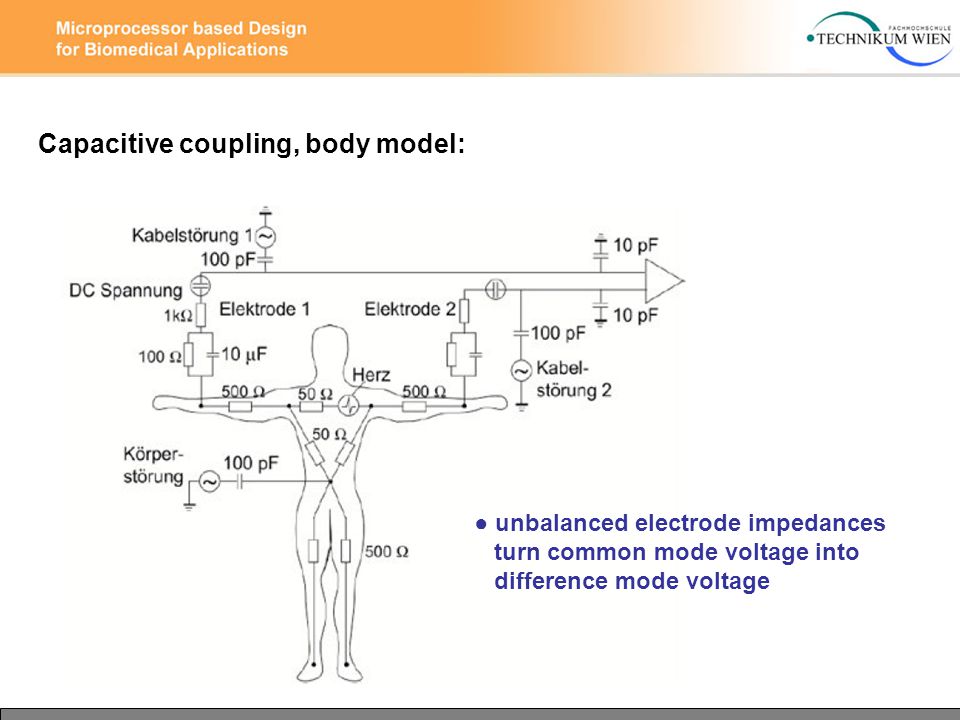

7 Capacitive coupling, body model: ● unbalanced electrode impedances turn common mode voltage into difference mode voltage

8 Impedance monitoring: /accessoryequip/checktrode3.jpg

9 by Ian McCulloch, ● MP3 player or Laptop SoundCard as AC source ● Voltage divider effect: mesaure AC with multimeter at TP1/2 ● Vout > ½ Vin Use a battery powered Mp3 player or laptop for Safety reasons ! Low cost impedance checker:

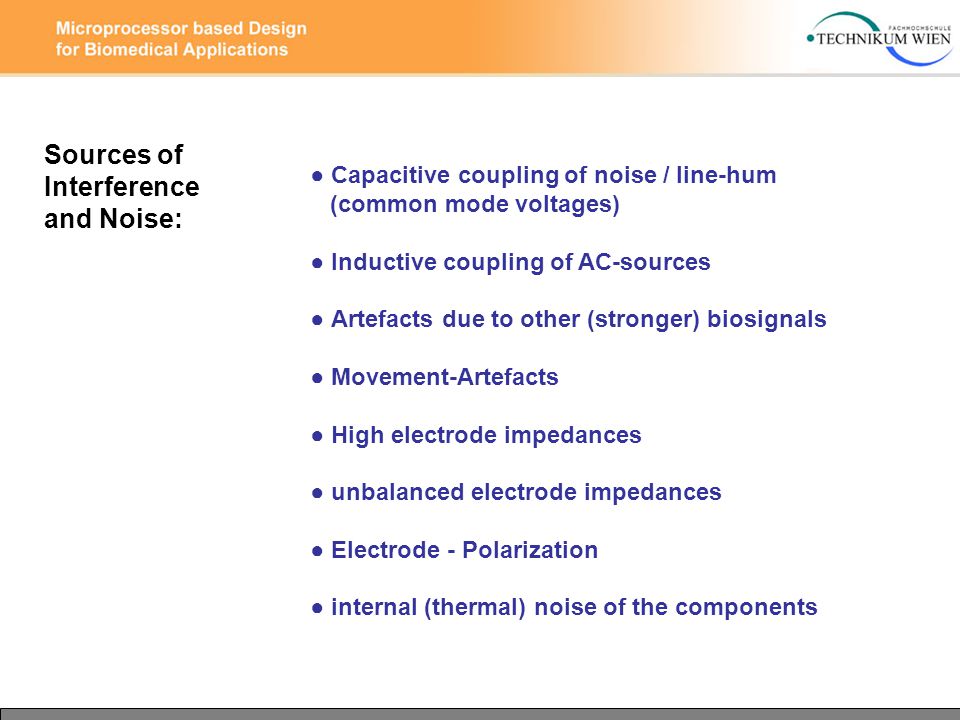

10 ● Capacitive coupling of noise / line-hum (common mode voltages) ● Inductive coupling of AC-sources ● Artefacts due to other (stronger) biosignals ● Movement-Artefacts ● High electrode impedances ● unbalanced electrode impedances ● Electrode - Polarization ● internal (thermal) noise of the components Sources of Interference and Noise:

11 ● increase distance to electriceal devices and cables ● use shielding (Faraday - Cage) ● decrease Electrode impedance (contact gel, skin cleaning) ● avoid ground loops ● use a 50/60Hz notch filter ● cable shiedling and driven shields (guarding). ● use a driven right leg circuit / closed loop system to increase common mode rejection Strategies to handle noise / interferences Ad … Differential gain Ucm … Common mode voltage at the inputs Ua … voltage at the output

12 Instrumentation Amplifier ● high input impedance ~ 1GOhm ● low output impedance ● high common mode rejection CMRR ~ 110 dB ● adjustable gain (Rg) Capacitive coupling of Common Mode voltages into cables ~ 100 mV ! -> Instrumentation Amplifier measures voltage difference

13 Measurement Chain, Aliasing Source Amplification Filtering A/D-Conversion Digital Value correct f sample insufficient f sample

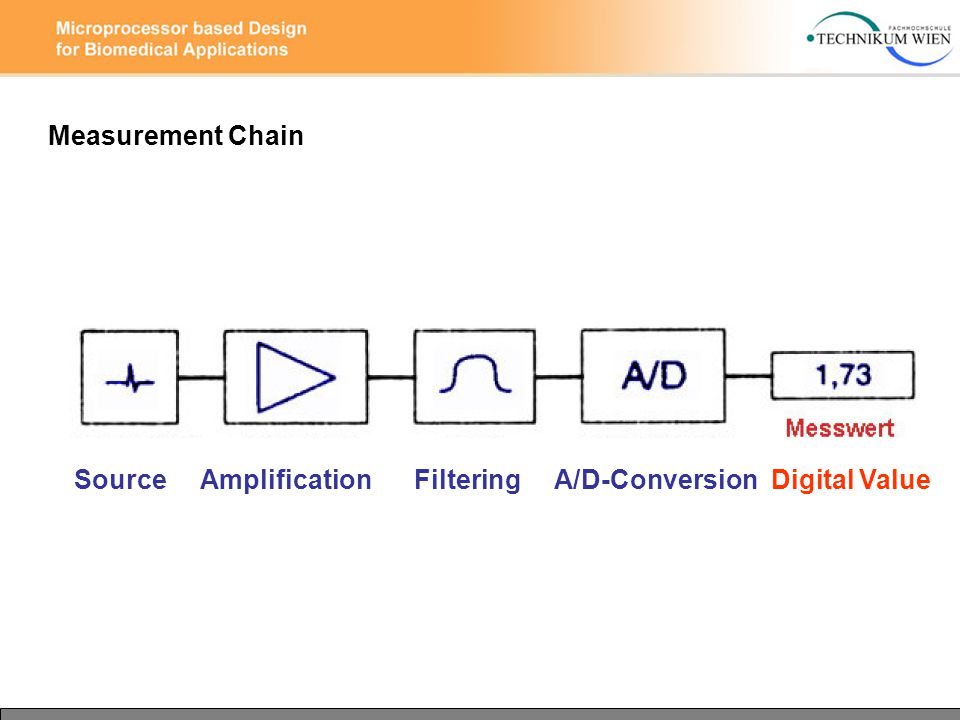

14 Measurement Chain Source Amplification Filtering A/D-Conversion Digital Value

15 Nyquist Frequency, Anti-Aliasing Filter ● fsignal < fNyquist ( fNyquist = ½ fsample ) -> band-limit the Input Signal using a Low Pass Filter ● Sallen Key (lowpass configuration): cutoff fc = 1 / (2π*R*C) gain G = 1+Rf/R1 OpAmp slew-rate has to match frequency range active Low Pass Filter (Sallen Key Circuit)

16 Active Filter designer software (TI)

17 Commercial EEG - Amplifieres

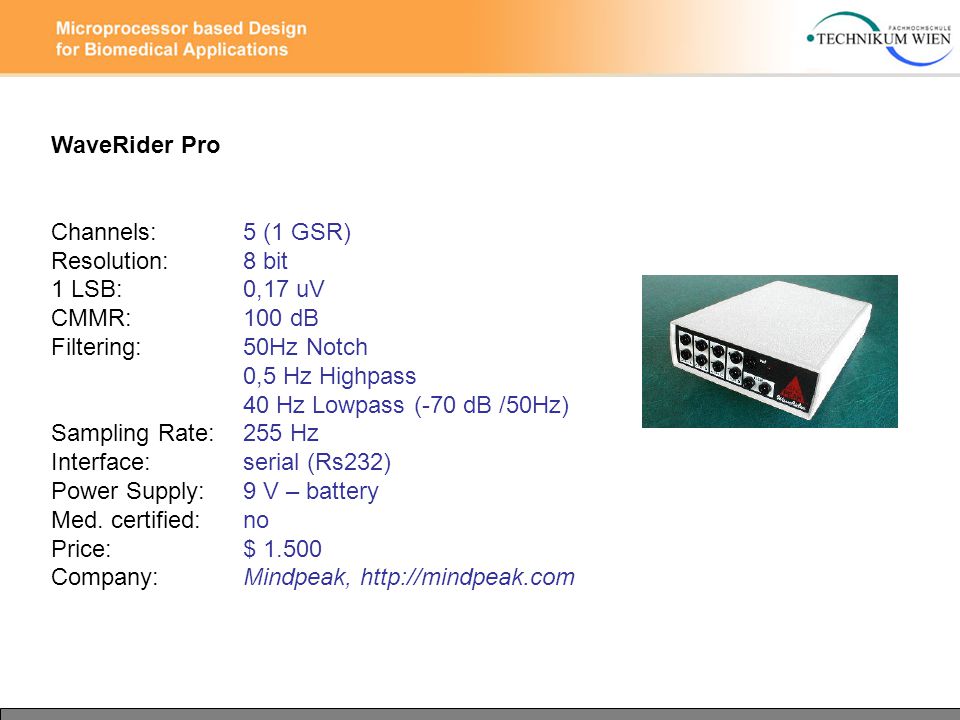

18 WaveRider Pro Channels: 5 (1 GSR) Resolution:8 bit 1 LSB:0,17 uV CMMR:100 dB Filtering:50Hz Notch 0,5 Hz Highpass 40 Hz Lowpass (-70 dB /50Hz) Sampling Rate:255 Hz Interface:serial (Rs232) Power Supply:9 V – battery Med. certified:no Price:$ Company: Mindpeak,

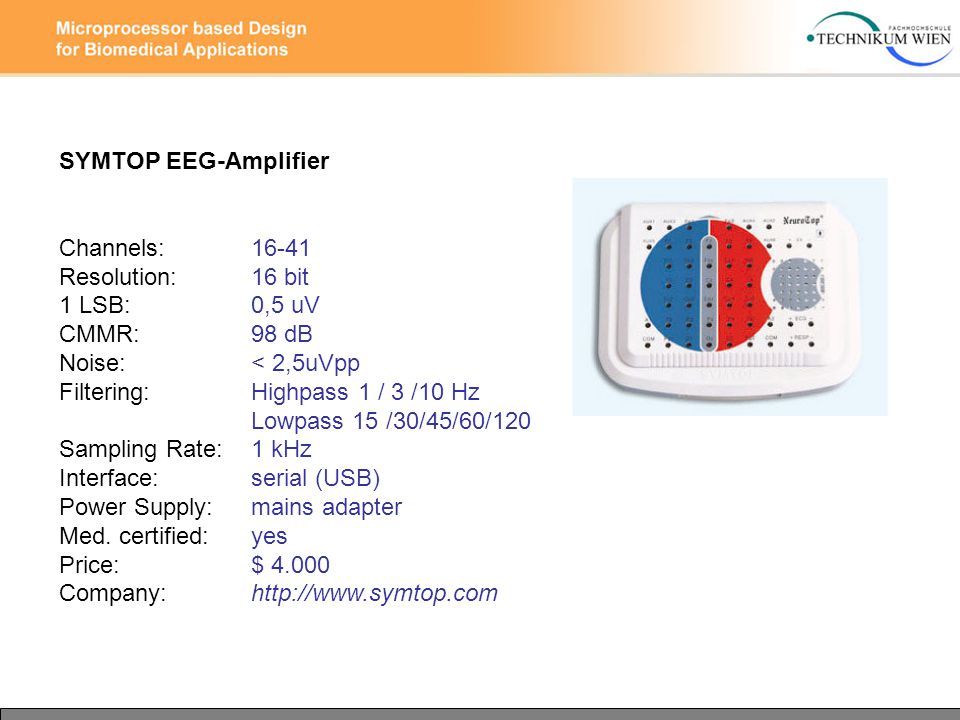

19 SYMTOP EEG-Amplifier Channels: Resolution:16 bit 1 LSB:0,5 uV CMMR:98 dB Noise:< 2,5uVpp Filtering:Highpass 1 / 3 /10 Hz Lowpass 15 /30/45/60/120 Sampling Rate:1 kHz Interface:serial (USB) Power Supply:mains adapter Med. certified:yes Price:$ Company:

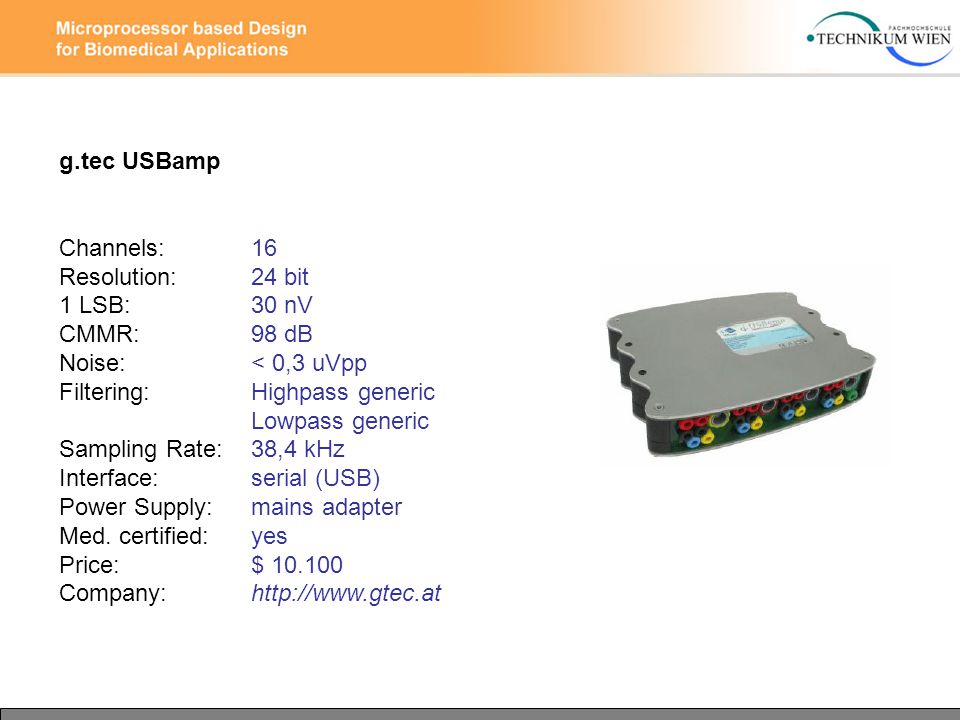

20 g.tec USBamp Channels: 16 Resolution:24 bit 1 LSB:30 nV CMMR:98 dB Noise:< 0,3 uVpp Filtering:Highpass generic Lowpass generic Sampling Rate:38,4 kHz Interface:serial (USB) Power Supply:mains adapter Med. certified:yes Price:$ Company:

21 Neuroscan Synamp2 EEG Verstärker Channels: 64 Resolution:24 bit 1 LSB:3 nV CMMR:108 dB Noise:< 0,4 uVpp Filtering:Highpass DC/0,5Hz Lowpass Hz Sampling Rate:20,4 kHz Interface:serial (USB) Power Supply:mains adapter Med. certified:yes Price:$ ( inc. Software) Company:

22 Open EEG - Amplifieres

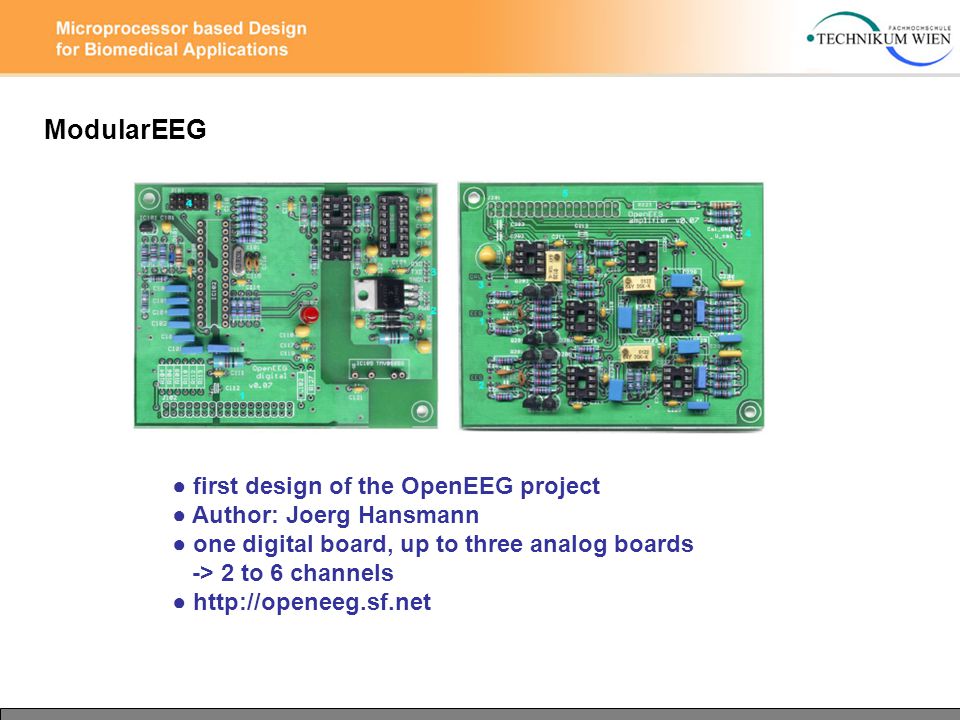

23 ModularEEG ● first design of the OpenEEG project ● Author: Joerg Hansmann ● one digital board, up to three analog boards -> 2 to 6 channels ●

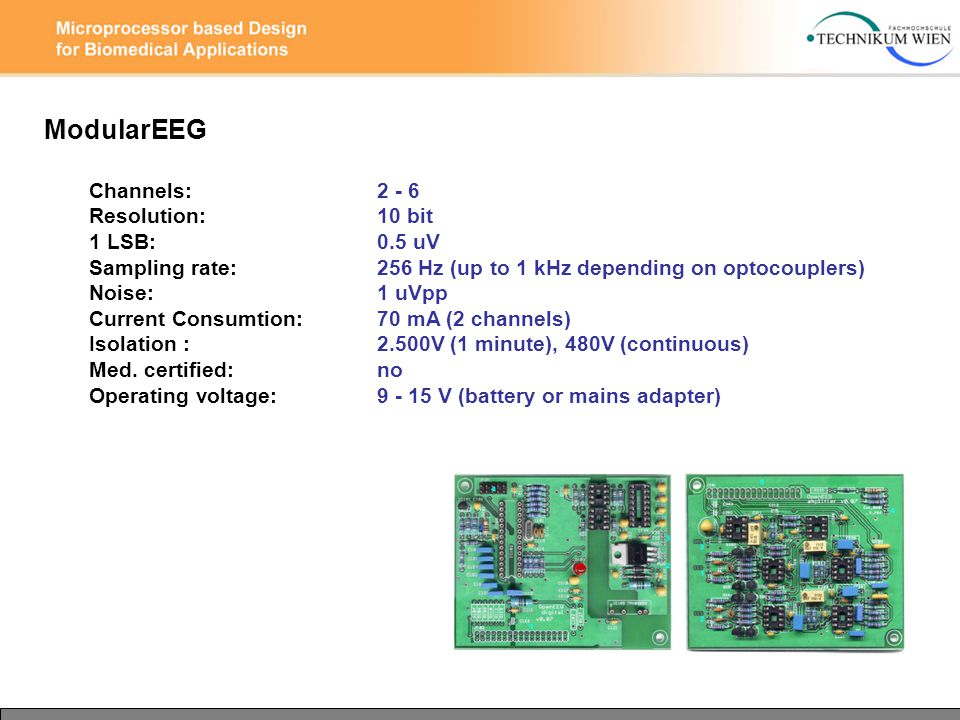

24 Channels: Resolution: 10 bit 1 LSB: 0.5 uV Sampling rate: 256 Hz (up to 1 kHz depending on optocouplers) Noise: 1 uVpp Current Consumtion: 70 mA (2 channels) Isolation : 2.500V (1 minute), 480V (continuous) Med. certified: no Operating voltage: V (battery or mains adapter) ModularEEG

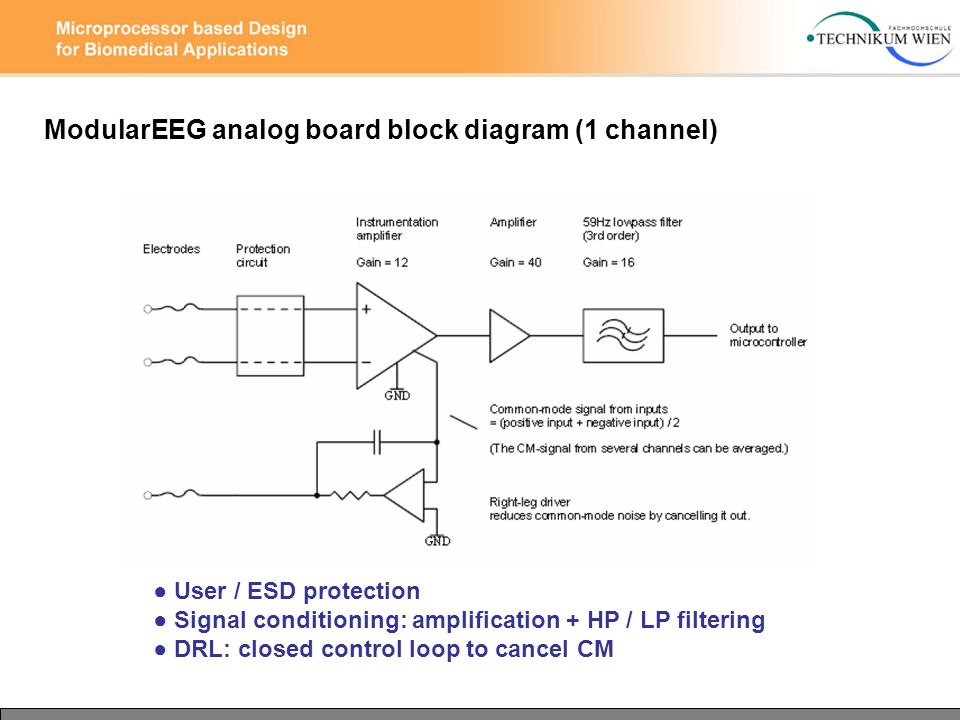

25 ModularEEG analog board block diagram (1 channel) ● User / ESD protection ● Signal conditioning: amplification + HP / LP filtering ● DRL: closed control loop to cancel CM

26 ModularEEG digital board block diagram ● Power supply regulation, DC/DC-conversion, LP-filter ● Reference Voltage: 4V, Virtual ground: 2V ● uC: Sampling and data protocol, UART ● Isolated data transfer: MAX232, optocoupler

27 ModularEEG analog stages schematics – protection circuit ● C204, 205,209 suppress RF-signals ● Q201, 203, 205, R201, 202, limit current transistors are used as clamping diodes -> V < 0,7 Volts

28 ModularEEG analog stages schematics - first gain stage ● INA114 Instrumentation Amp. ● suitable supply range: +/-2,25V ● low drift and offset voltage ● low noise for given source impedances: 0.4uVpp (.1-10Hz) ● Gain 1 to (50kOhm / ( R214+R215)) set to 12.2 ● Comon mode voltage measured between R214 and R215 and passed to DRL circuit DRL

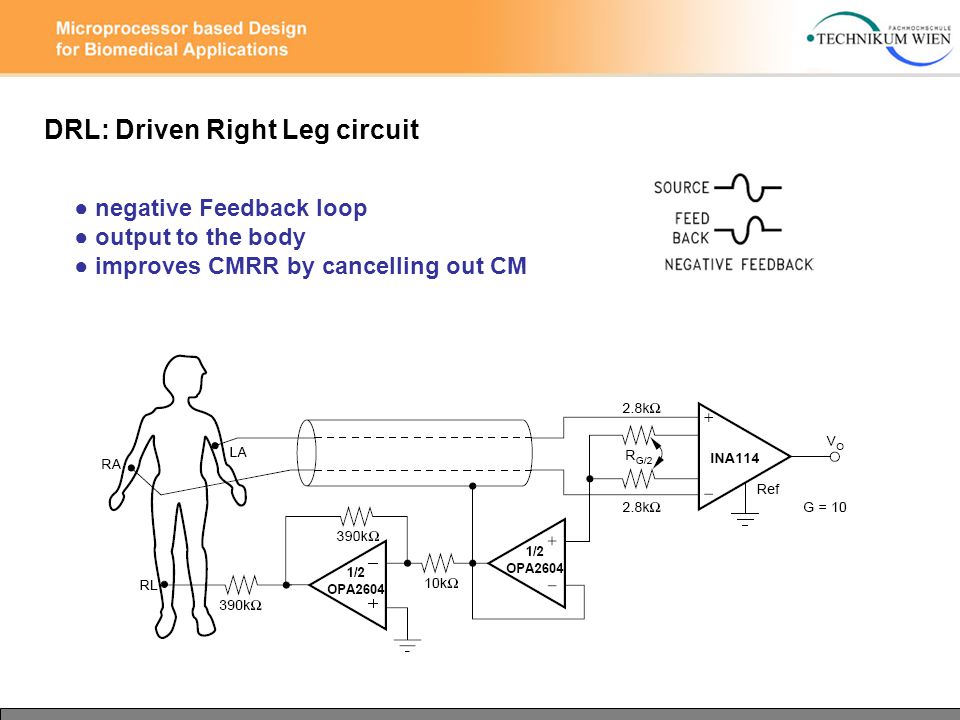

29 DRL: Driven Right Leg circuit ● negative Feedback loop ● output to the body ● improves CMRR by cancelling out CM

30 ModularEEG analog stages schematics - DRL circuit ● DRL-implementation using inverting amplifier and integrator circuit ● further reading:

31 ModularEEG analog stages schematics - filter / gain stages ● first high-pass 0.16 Hz ● Non-inverting amplifier G = (Ra+Rb) / Ra ( Ra=1k + P202 Rb=100k) ● second high-pass 0.16 Hz ● active 2nd order low-pass 59Hz, gain=16 ● 3rd pole located at digital board, near ADC input pin HP 1pole 0.16Hz

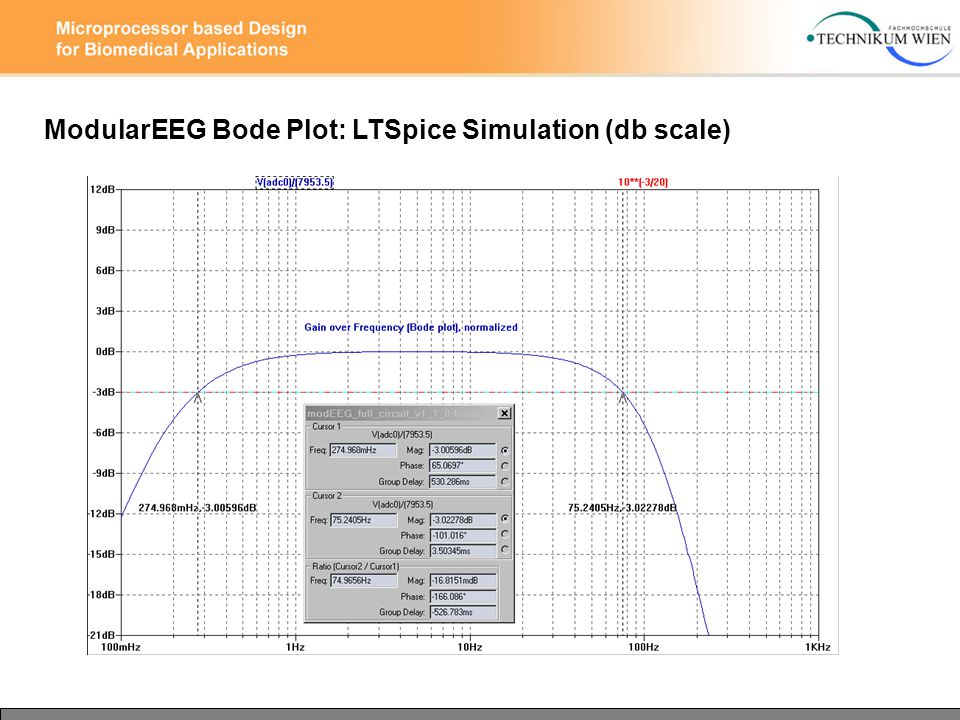

32 ModularEEG Bode Plot: LTSpice Simulation (db scale)

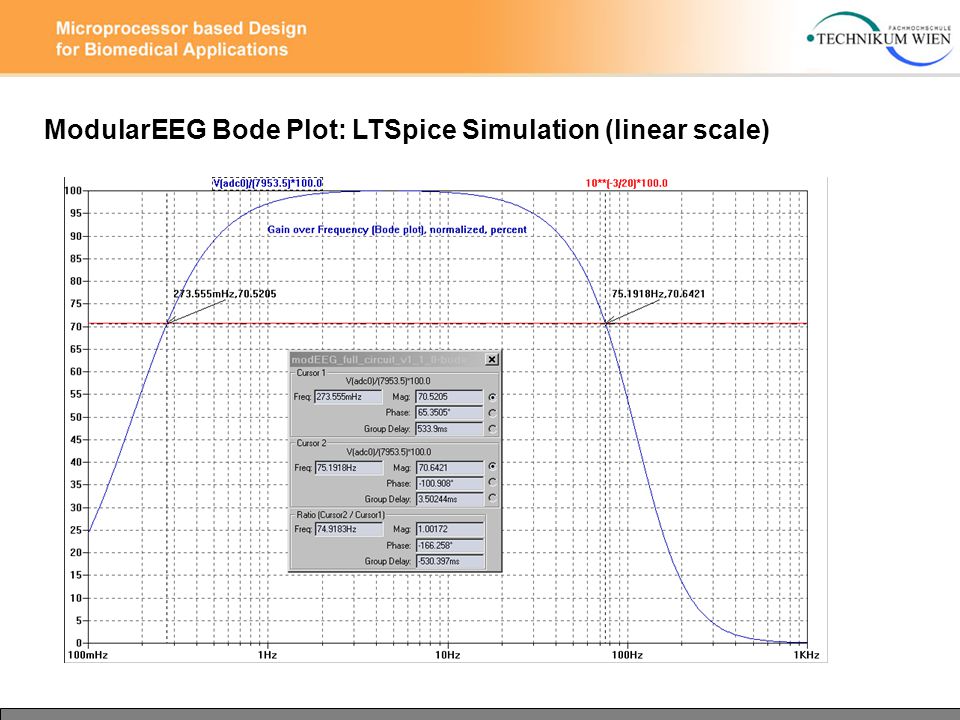

33 ModularEEG Bode Plot: LTSpice Simulation (linear scale)

34 ModularEEG Bode Plot: single and combined stages

35 MonolithEEG: ● based upon the Modular EEG ● Author: Reiner Münch ● 2 channels, one double-sided SMD board ● USB data transfer and USB powered ● improved noise characteristics ●

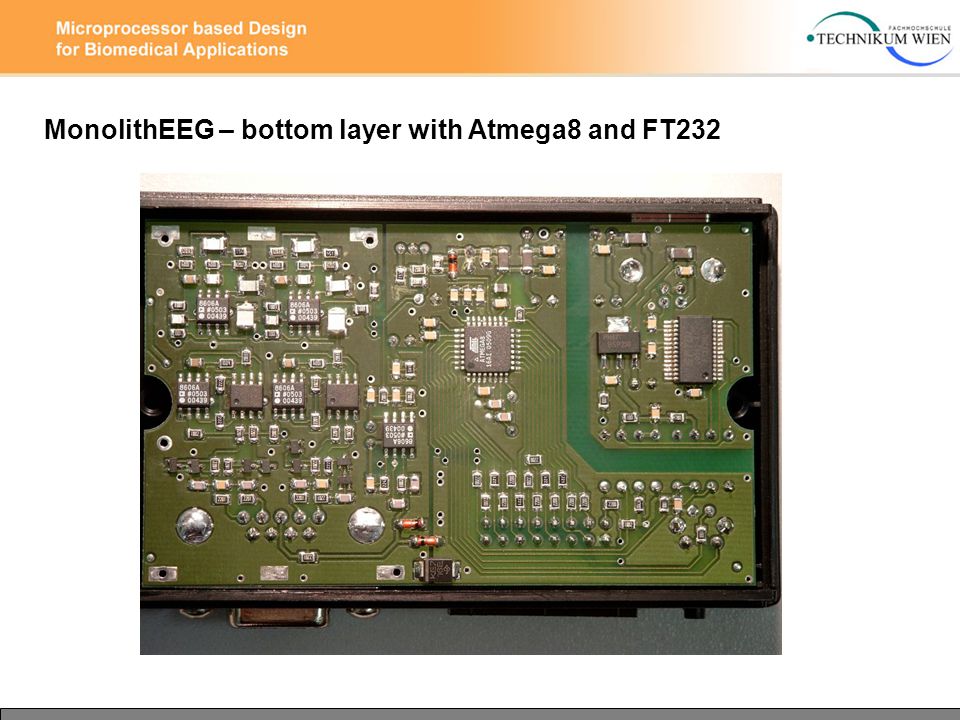

36 MonolithEEG – bottom layer with Atmega8 and FT232

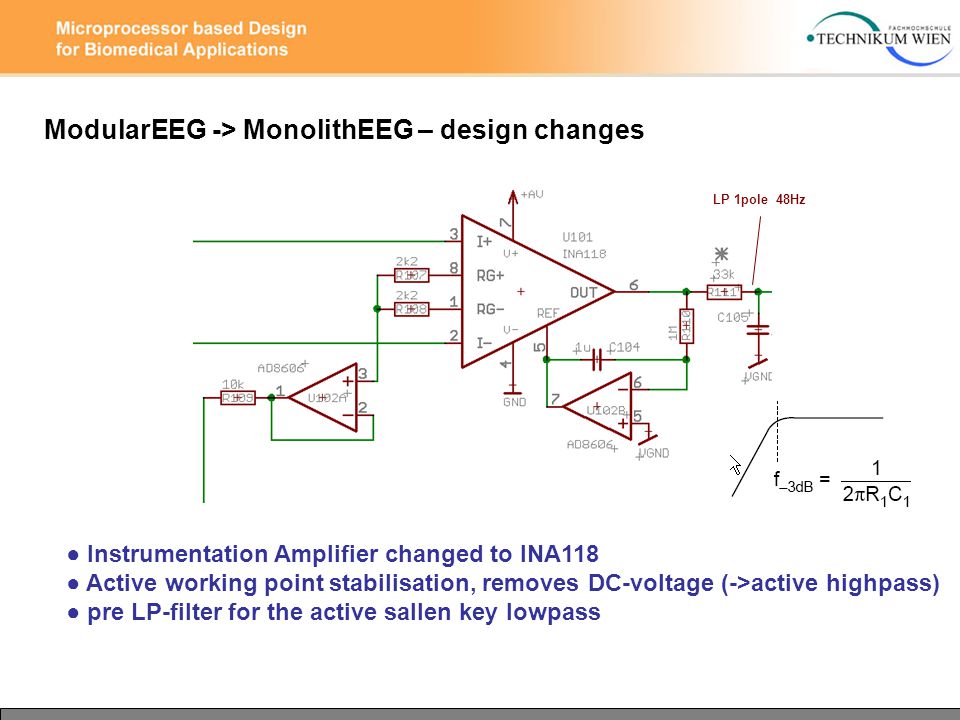

37 ModularEEG -> MonolithEEG – design changes ● Instrumentation Amplifier changed to INA118 ● Active working point stabilisation, removes DC-voltage (->active highpass) ● pre LP-filter for the active sallen key lowpass LP 1pole 48Hz

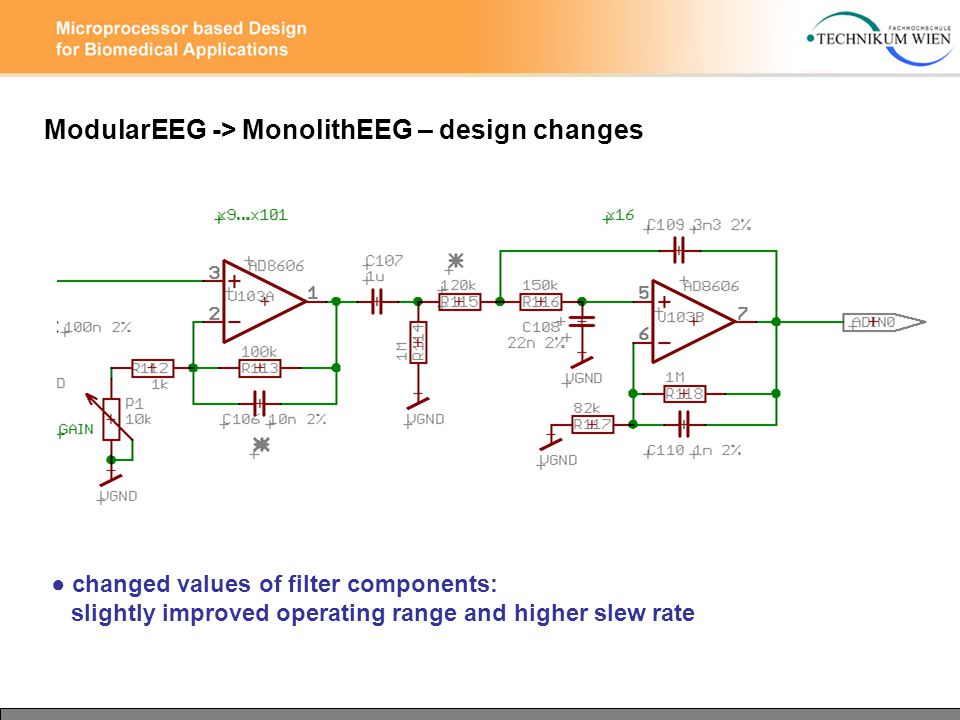

38 ● changed values of filter components: slightly improved operating range and higher slew rate ModularEEG -> MonolithEEG – design changes

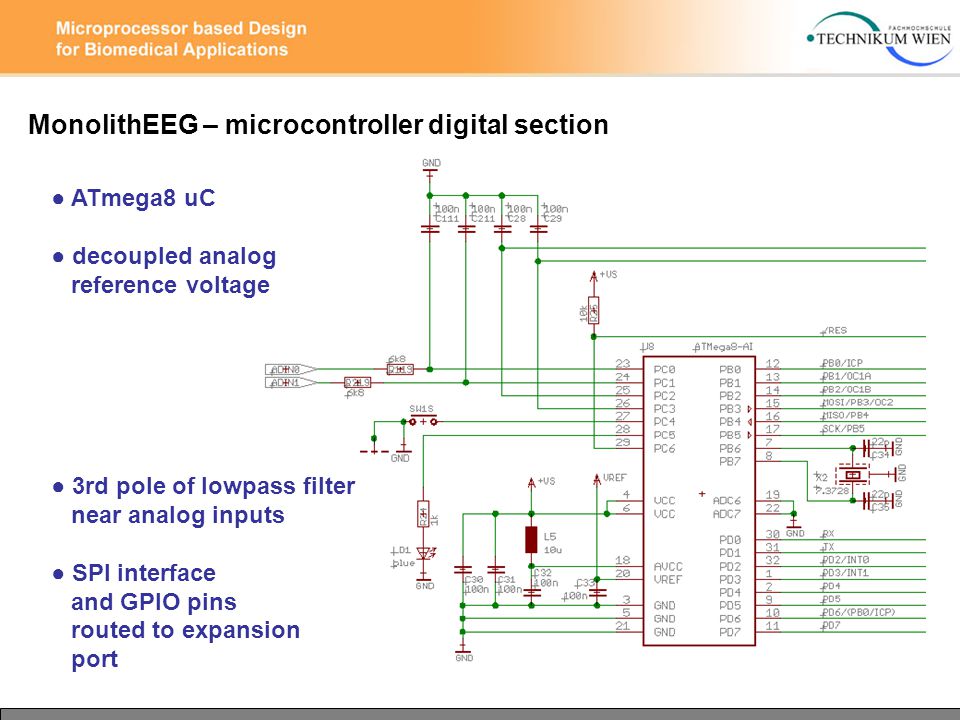

39 MonolithEEG – microcontroller digital section ● ATmega8 uC ● decoupled analog reference voltage ● 3rd pole of lowpass filter near analog inputs ● SPI interface and GPIO pins routed to expansion port

40 MonolithEEG – USB-interface ● 5v supply from USB port ● suspend circuit added in current design version ● FTDI driver delivers VCP Port

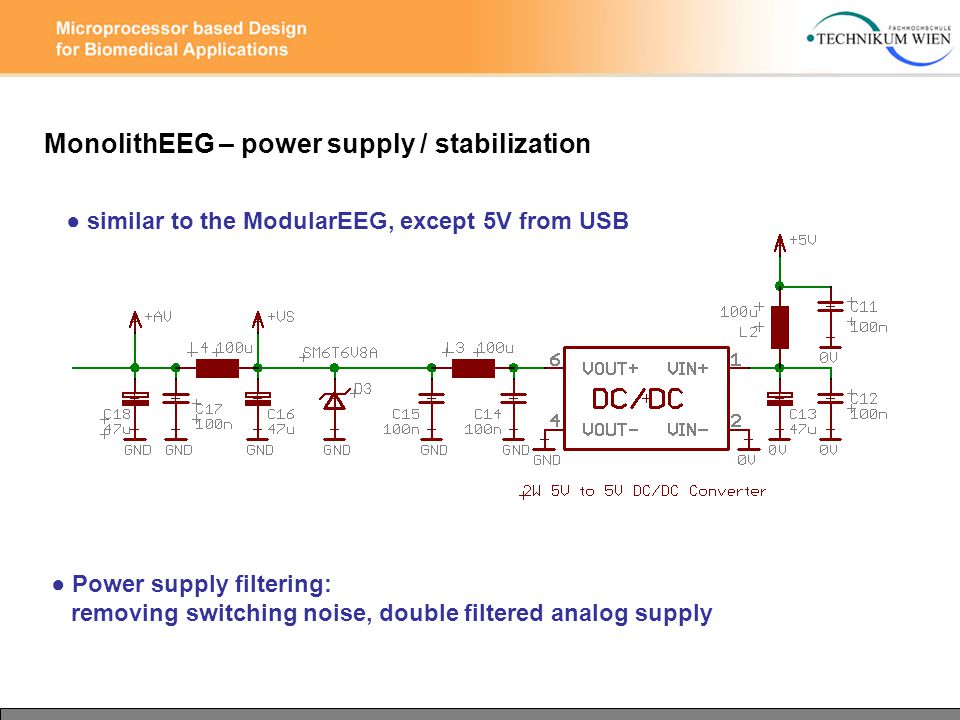

41 MonolithEEG – power supply / stabilization ● Power supply filtering: removing switching noise, double filtered analog supply ● similar to the ModularEEG, except 5V from USB

42 MonolithEEG – power rails / VGND ● generate stabilized 4V : TL431 shunt regulator (2.5V ref.) : ● buffered 2V virtual Ground for split-rail supply

43 Returning to the digital domain: The OpenEEG P2 Packet Formats

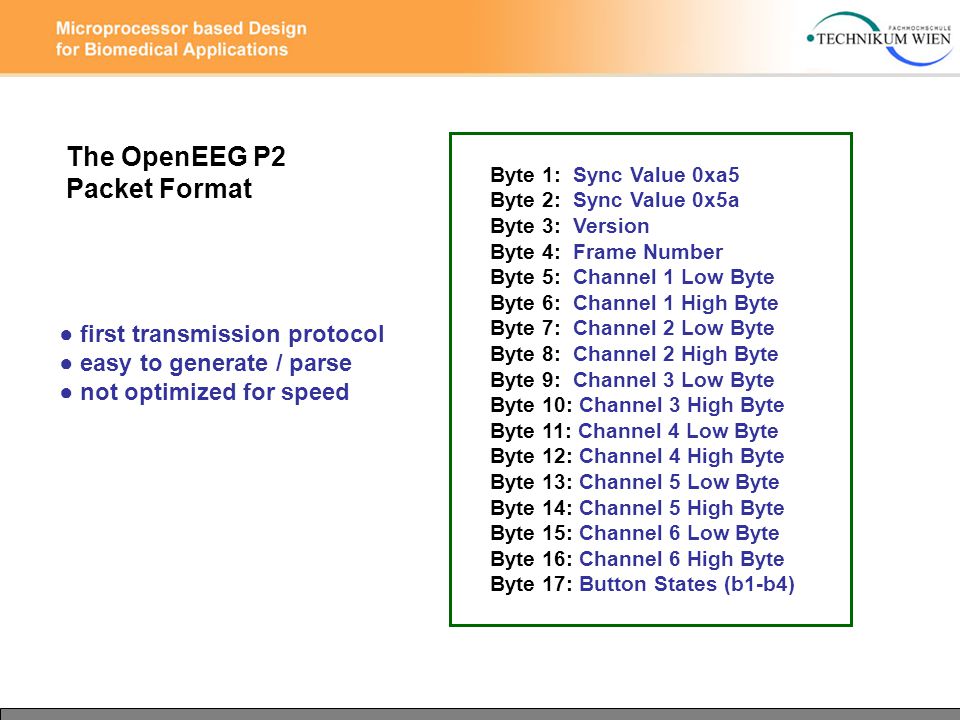

44 Byte 1: Sync Value 0xa5 Byte 2: Sync Value 0x5a Byte 3: Version Byte 4: Frame Number Byte 5: Channel 1 Low Byte Byte 6: Channel 1 High Byte Byte 7: Channel 2 Low Byte Byte 8: Channel 2 High Byte Byte 9: Channel 3 Low Byte Byte 10: Channel 3 High Byte Byte 11: Channel 4 Low Byte Byte 12: Channel 4 High Byte Byte 13: Channel 5 Low Byte Byte 14: Channel 5 High Byte Byte 15: Channel 6 Low Byte Byte 16: Channel 6 High Byte Byte 17: Button States (b1-b4) The OpenEEG P2 Packet Format ● first transmission protocol ● easy to generate / parse ● not optimized for speed

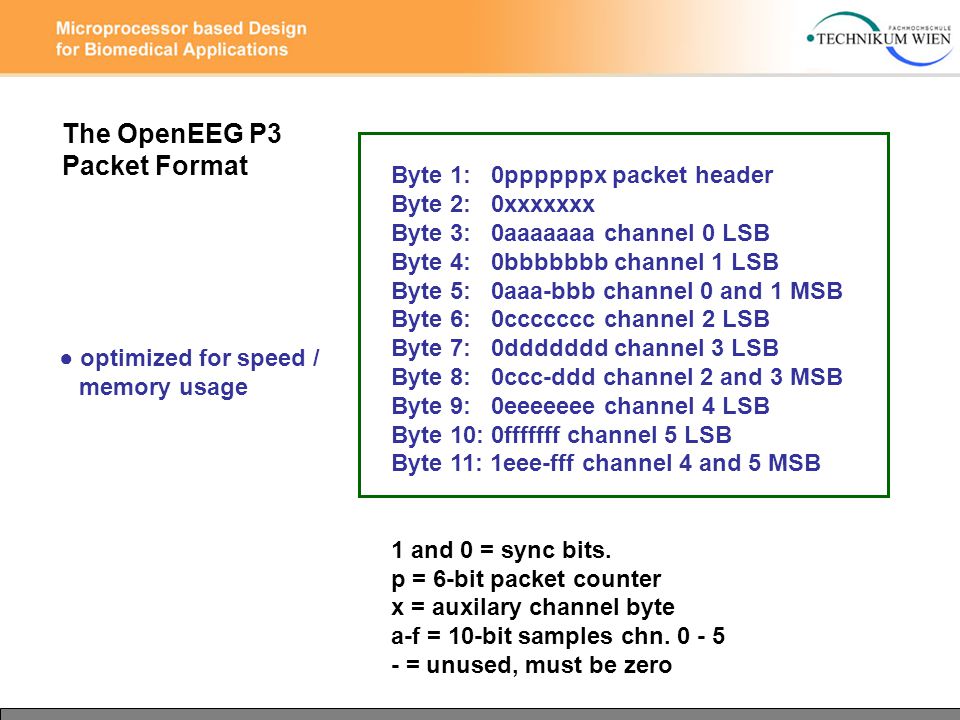

45 Byte 1: 0ppppppx packet header Byte 2: 0xxxxxxx Byte 3: 0aaaaaaa channel 0 LSB Byte 4: 0bbbbbbb channel 1 LSB Byte 5: 0aaa-bbb channel 0 and 1 MSB Byte 6: 0ccccccc channel 2 LSB Byte 7: 0ddddddd channel 3 LSB Byte 8: 0ccc-ddd channel 2 and 3 MSB Byte 9: 0eeeeeee channel 4 LSB Byte 10: 0fffffff channel 5 LSB Byte 11: 1eee-fff channel 4 and 5 MSB 1 and 0 = sync bits. p = 6-bit packet counter x = auxilary channel byte a-f = 10-bit samples chn = unused, must be zero The OpenEEG P3 Packet Format ● optimized for speed / memory usage

46 other Packet Formats ● P21 by Jarek Foltynski: bidirectional transmission support ● P21_v2 by Reiner Münch: new commands supported by BrainBay host software
