1 What is vision Aristotle - vision is knowing what is where by looking

2 What is vision Aristotle - vision is knowing what is where by looking Helmholtz - vision is an act of unconscious inference –Our percepts are inferences about properties of the world from sensory data

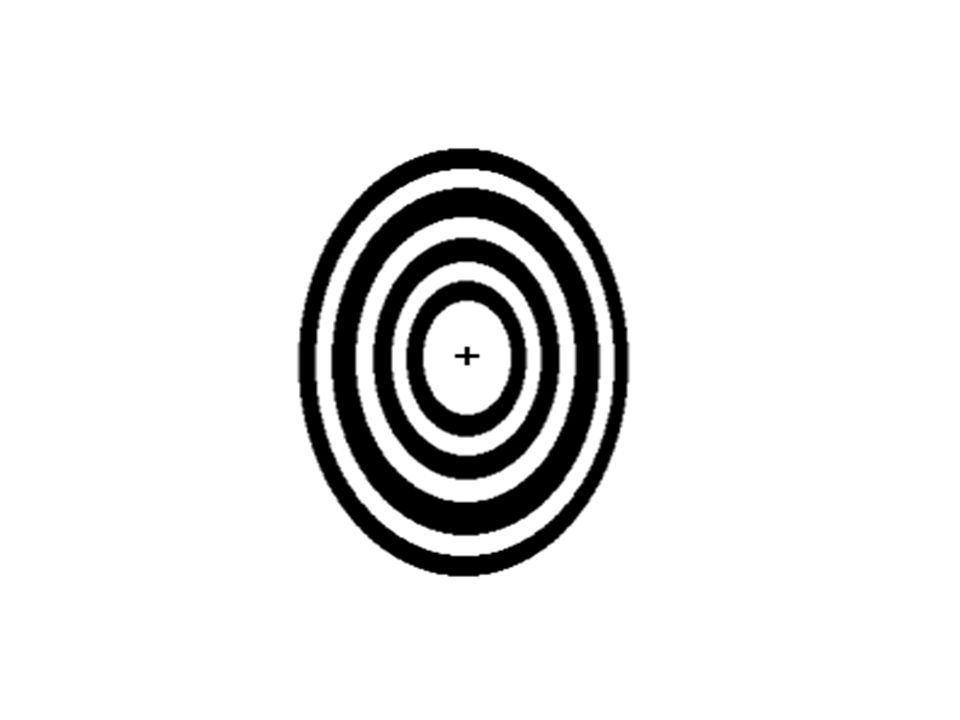

3

4 What is vision Aristotle - vision is knowing what is where by looking Helmholtz - vision is an act of unconscious inference –Our percepts are inferences about properties of the world from sensory data Vision is (neural) computation

5

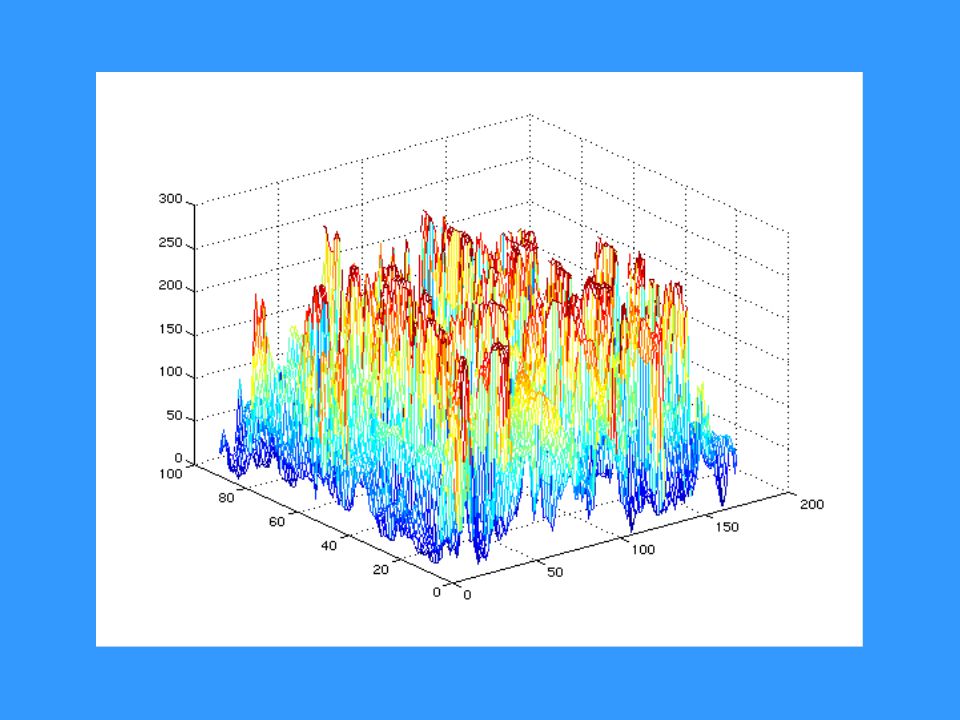

6

7 Processes of vision

8 What is vision Aristotle - vision is knowing what is where by looking Helmholtz - vision is an act of unconscious inference –Our percepts are inferences about properties of the world from sensory data Vision is (neural) computation Vision controls action

9 The swinging room

10 Processes of vision II

11 Lecture outline Image transduction Neural coding in the retina Neural coding in visual cortex Visual pathways in the brain

12

13 The Optic Array: pattern of light intensity arriving at a point as a function of direction (  ), time (  ) and wavelength( ) I = f( 

14 Goals of eye design Form high spatial resolution image –Accurately represent light intensities coming from different directions. E.g. minimize blur in a camera Maximize sensitivity –Trigger neural responses at very low light levels. –Particle nature of light places fundamental limit on sensitivity.

15

16 Visual angle

17

18

19

20

21 Point spread

22 Point spread function

23

24 Resolution (acuity) Optics of eye and physics of light pace fundamental limit on acuity Width of blur circle in fovea = 1’ Blur increases with eccentricity –Optical aberrations –Depth variation in the environment

25

26 Focus - the lens equation

27 Accommodation - bringing objects into focus Focused on

28 Some numbers Refractive power of cornea –43 diopters Refractive power of lens –17 (relaxed) - 25 diopters Other eyes –Diving ducks - 80 diopter accommodation range –Anableps - four eyes with different focusing power

29

30

31

32

33 Sampling in the fovea Receptor sampling in fovea matches the width of point spread function (blur circle) – Effective width of blur circle ~ 1 minute of arc –Spacing of receptors ~.5 minutes of arc (theoretical requirement for optimal resolution)

34 Relationship between sampling and blur Two test images 60 cycle / degree grating 120 cycle / degree grating

35 Relationship between sampling and blur Two test images 60 cycle / degree grating 120 cycle / degree grating Receptor sampling =.5 minutes

36 Relationship between sampling and blur Two test images 60 cycle / degree grating 120 cycle / degree grating Receptor sampling =.5 minutes Receptor Output

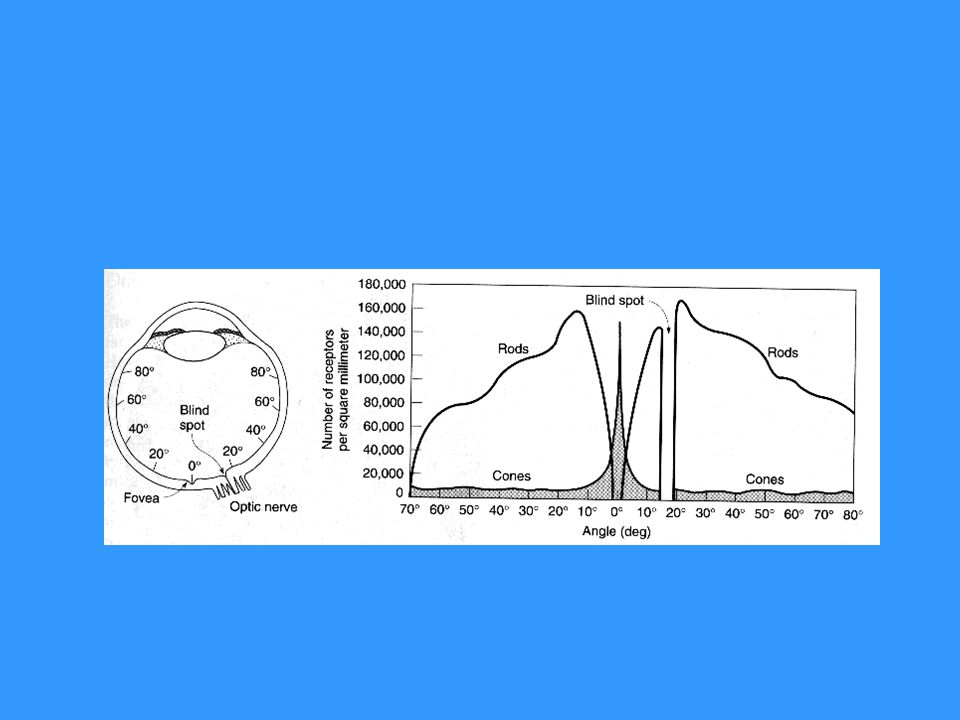

37 Peripheral sampling More rods than cones in periphery Coarser sampling in periphery

38 Tricks for maximizing resolution

39 Problem: High resolution coding of intensity information

40 Example Computer monitors typically use 8 bits to encode the intensity of each pixel. –256 distinct light levels Old monitors only provided 4 bits per pixel. –16 distinct light levels Number of light levels encoded = intensity resolution of the system. Human visual system can only distinguish ~ light levels.

41 Code wide range of light intensities Range of light intensities receptors can encode Dynamic range of receptors and of ganglion cells limits # of distinguishable light levels. Problem –How does system represent large range of intensities while maintaining high intensity resolution?

42 Some typical intensity values

43 Solution Dynamic range of receptors (cones) – photons absorbed per 10 msec. Range of intensities in a typical scene – cd / m 2 in starlight – cd / m 2 in sunlight –100:1 range of light intensities Only need to code 100:1 range of intensities within a scene Solution - Adaptation adjusts dynamic range of receptors to match range of intensities in a scene.

44 # photons hitting receptor % photons absorbed # photons absorbed Scene 1 Scene ,000 1, , % 10% ,000 Increase IlluminationAdaptation

45 Starlight Moonlight Window of visibility Indoor lighting Sunlight

46 Starlight Moonlight Indoor lighting Sunlight Window of visibility Adapt to the dark (e.g. % photons absorbed =.1)

47 Starlight Moonlight Window of visibility Adapt to the bright (e.g. % photons absorbed = ) Indoor lighting Sunlight

48 Hartline Experiment Limulus eye has ommotidia containing one receptor each. Each receptor sends a large axon to the brain. Output of one receptor was inhibited by light shining on a neighboring receptor (lateral inhibition).

49

50

51 Ganglion cell receptive fields Receptive field - region of visual field that cell responds to. Center-surround receptive field On-center, off-surround Off-center, on-surround

52

53 Ganglion cells as computational devices Write a mathematical function that calculates firing rate of cell from luminance pattern. 1st guess –Increase in firing rate = weighted sum of intensities within receptive field. Problem 1 - Adaptation Problem 2 - dark regions in inhibitory region actually excite cell

54 Ganglion cells as computational devices Solution –Increase in firing rate = weighted sum of local contrast values within receptive field. Local contrast C(x,y) = I(x,y) / M - 1

55 Ganglion cells as computational devices Solution –Increase in firing rate = weighted sum of local contrast values within receptive field. Local contrast C(x,y) = I(x,y) / M - 1 Intensity

56 Ganglion cells as computational devices Solution –Increase in firing rate = weighted sum of local contrast values within receptive field. Local contrast C(x,y) = I(x,y) / M - 1 Intensity Mean intensity

57 Ganglion cells as computational devices Solution –Increase in firing rate = weighted sum of local contrast values within receptive field. Local contrast C(x,y) = I(x,y) / M - 1 Local contrast Intensity Mean intensity

58

59

60

61

62 Ganglion Cells Simple Cells

63

64 Cells in V1 Simple cells –orientation selective –scale selective (cells have different size receptive fields) –some are motion selective –some are end-stopped Complex cells –same properties as simple cells, BUT... –insensitive to position of stimulus within RF

65

66

67

68

69

70

71

72

73

74

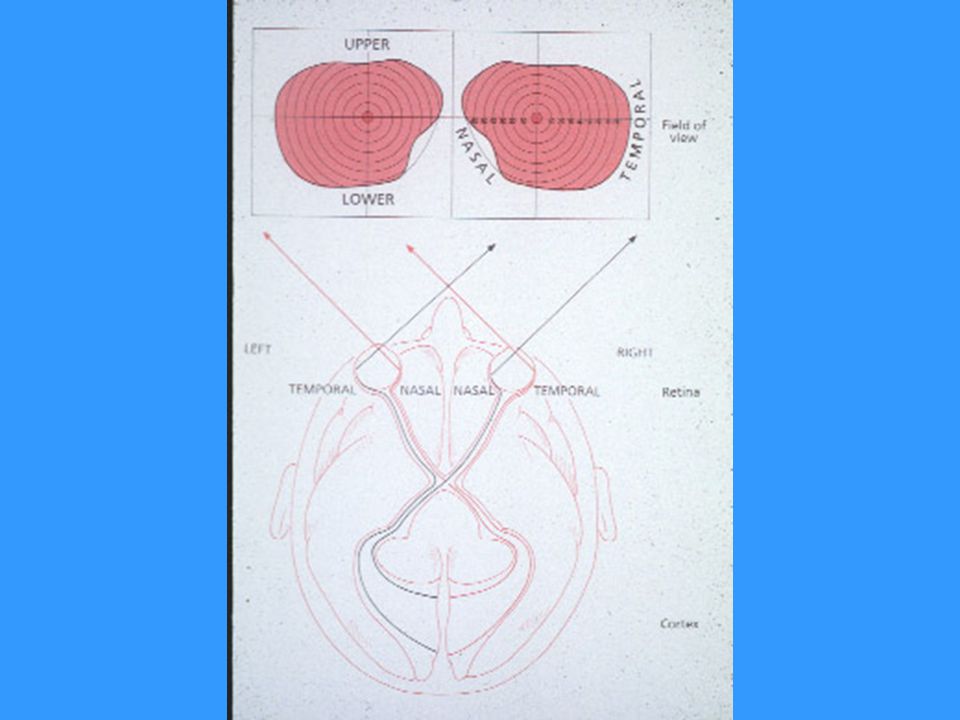

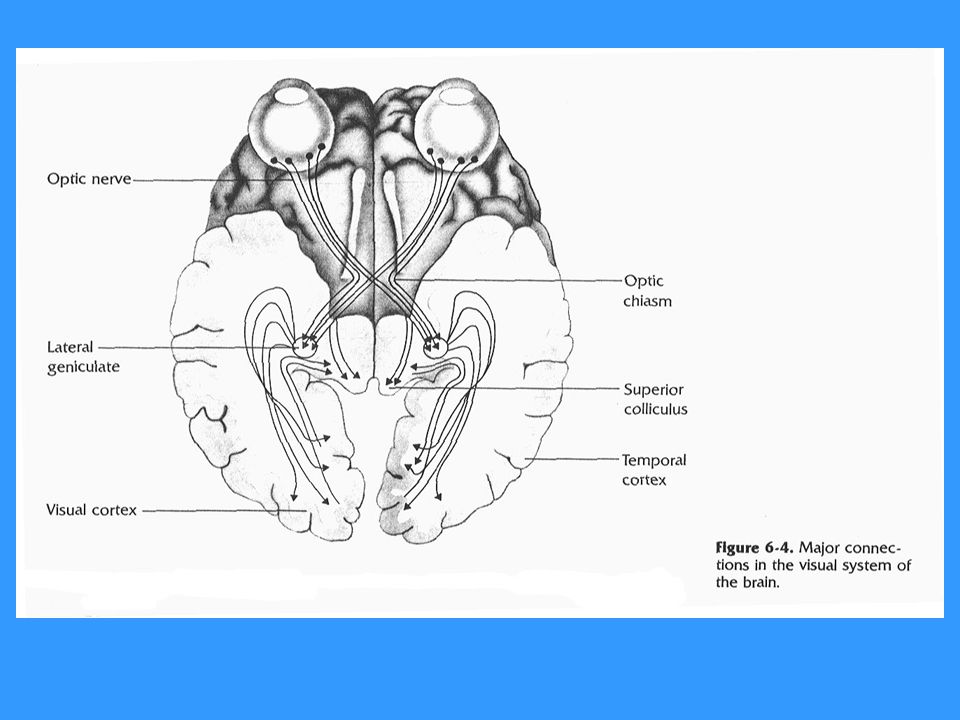

75 V1 V2 V3 MT V4 MST Parietal Lobe Temporal Lobe Cortical pathways

76

77
